1995 Fleetwood Brougham "The Grey Ghost"

[kudims]

Don't you hate it when people shortcut and don't repair properly.

Bruce.

Don't expect anything extra from ordinary people 😁

[kudims]

Sandblasting

The frame and underbody will undergo sandblasting, providing a clean slate for exceptional future work.

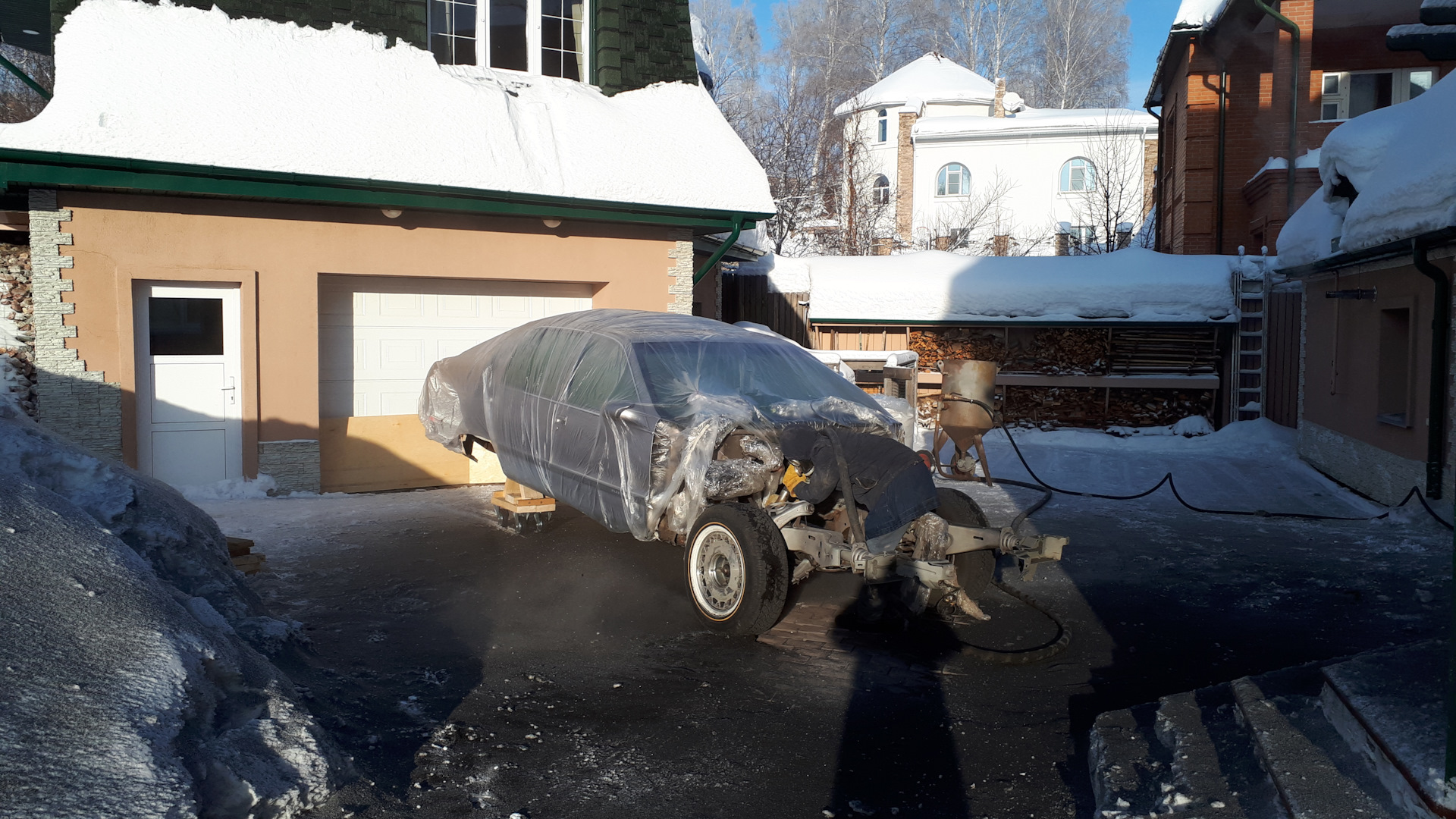

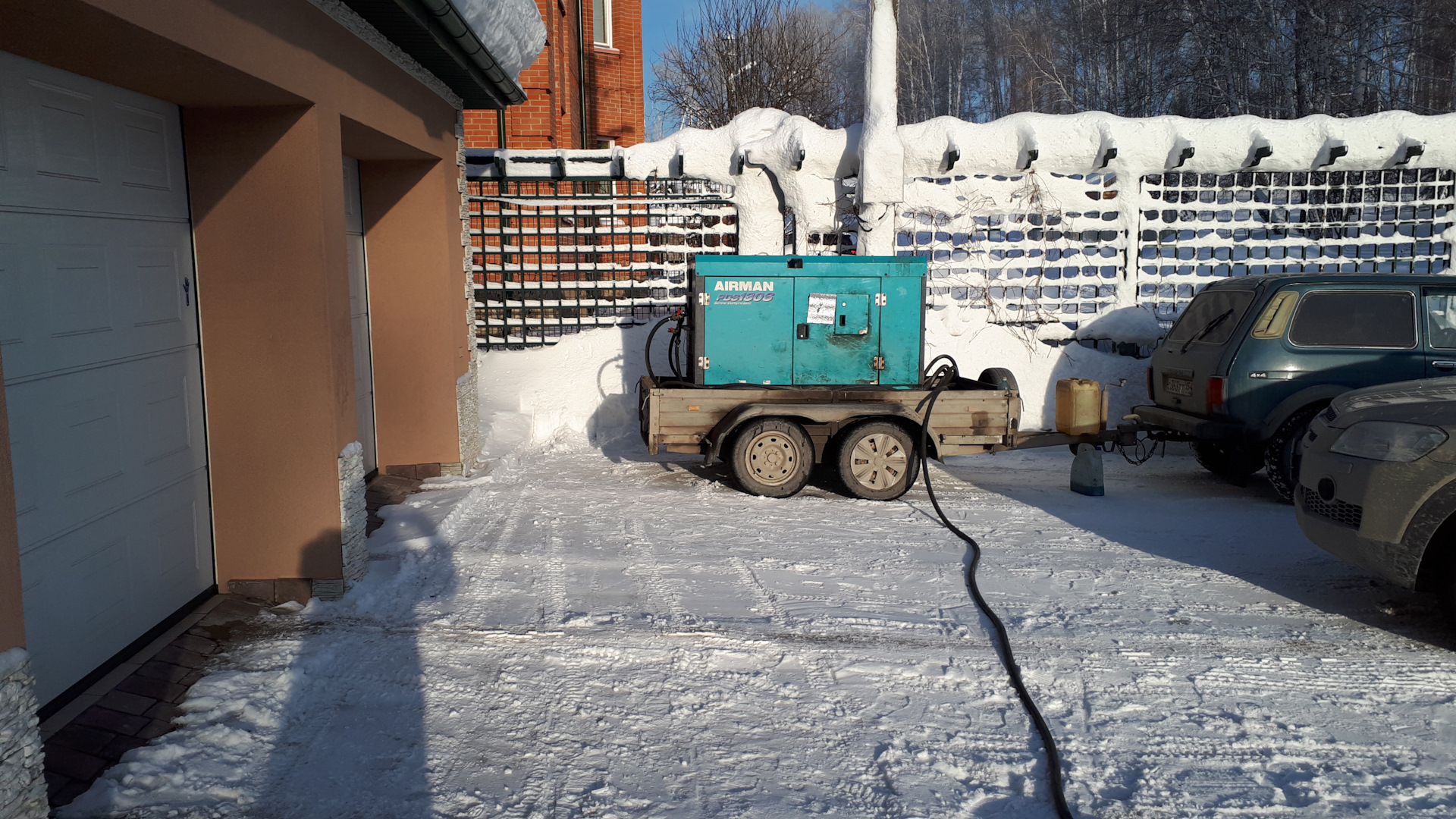

50 kW compressor with the diesel engine

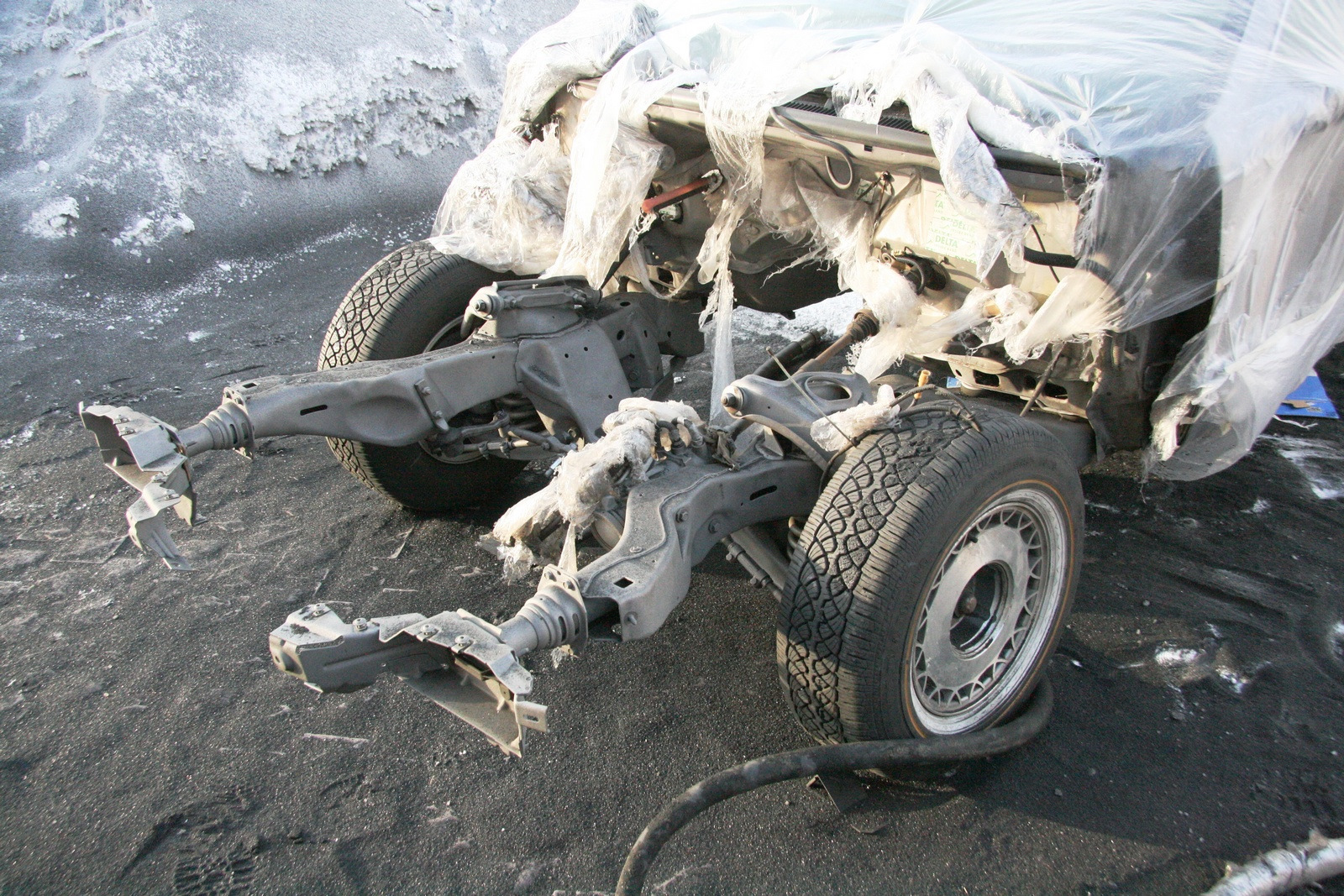

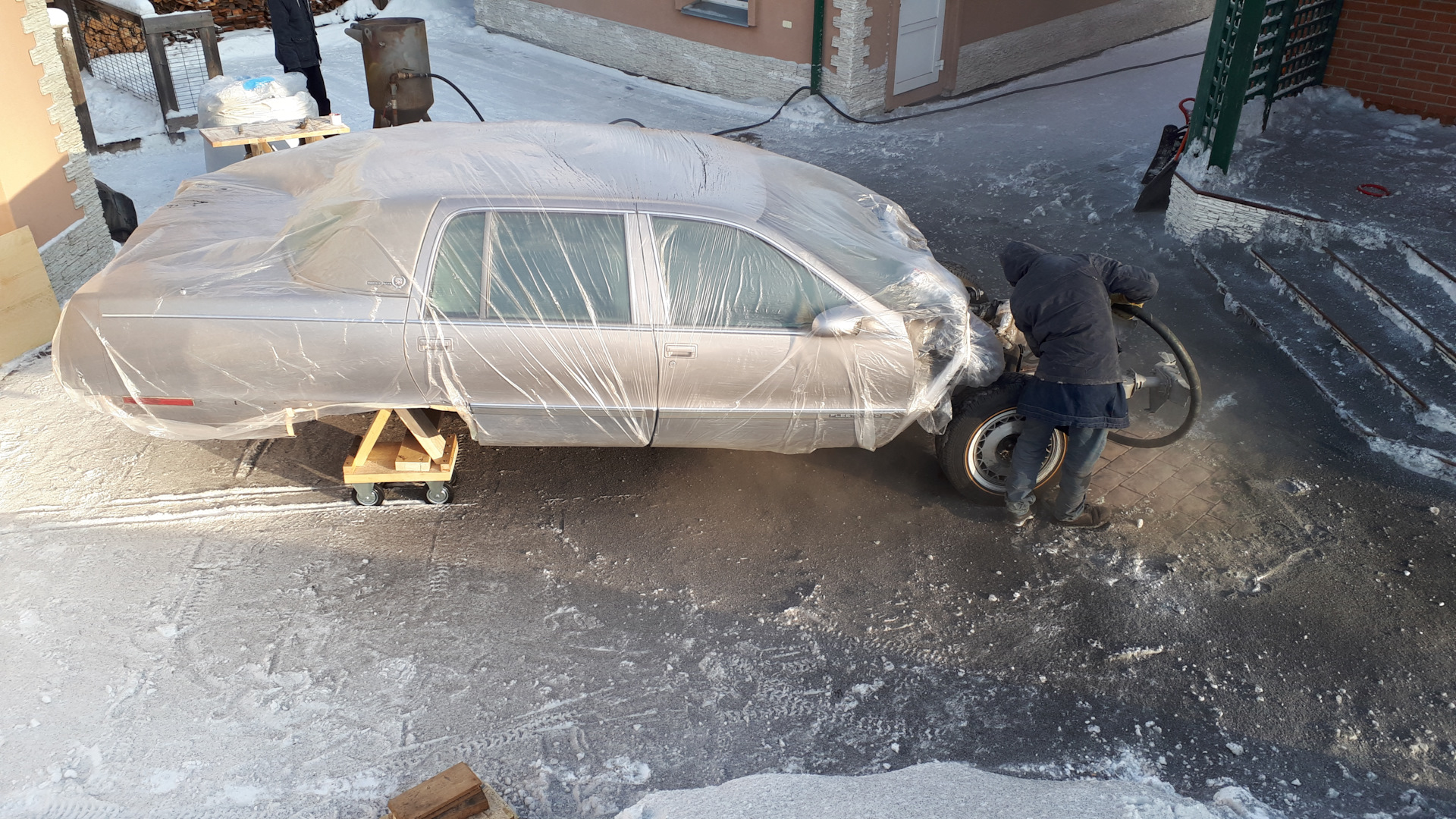

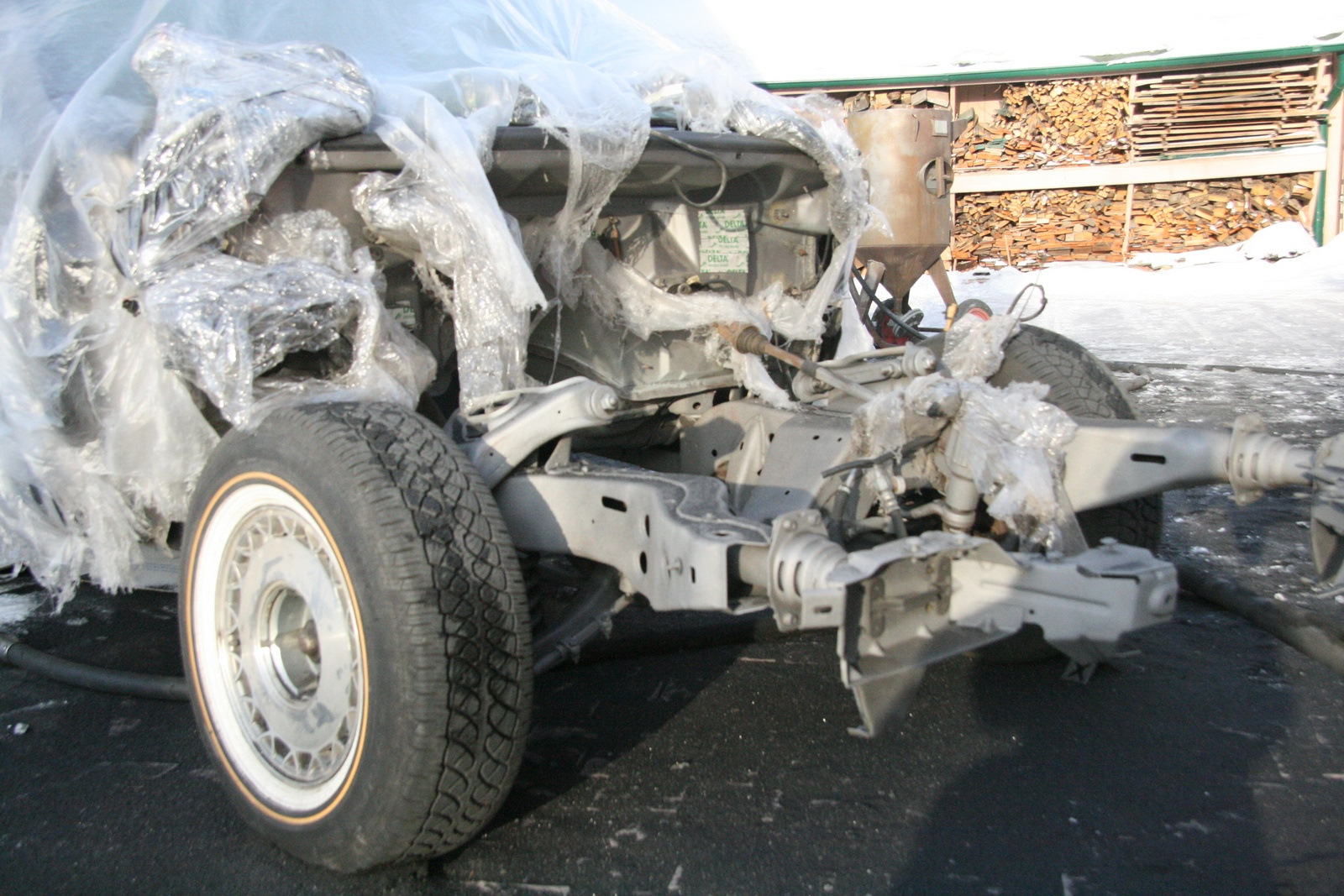

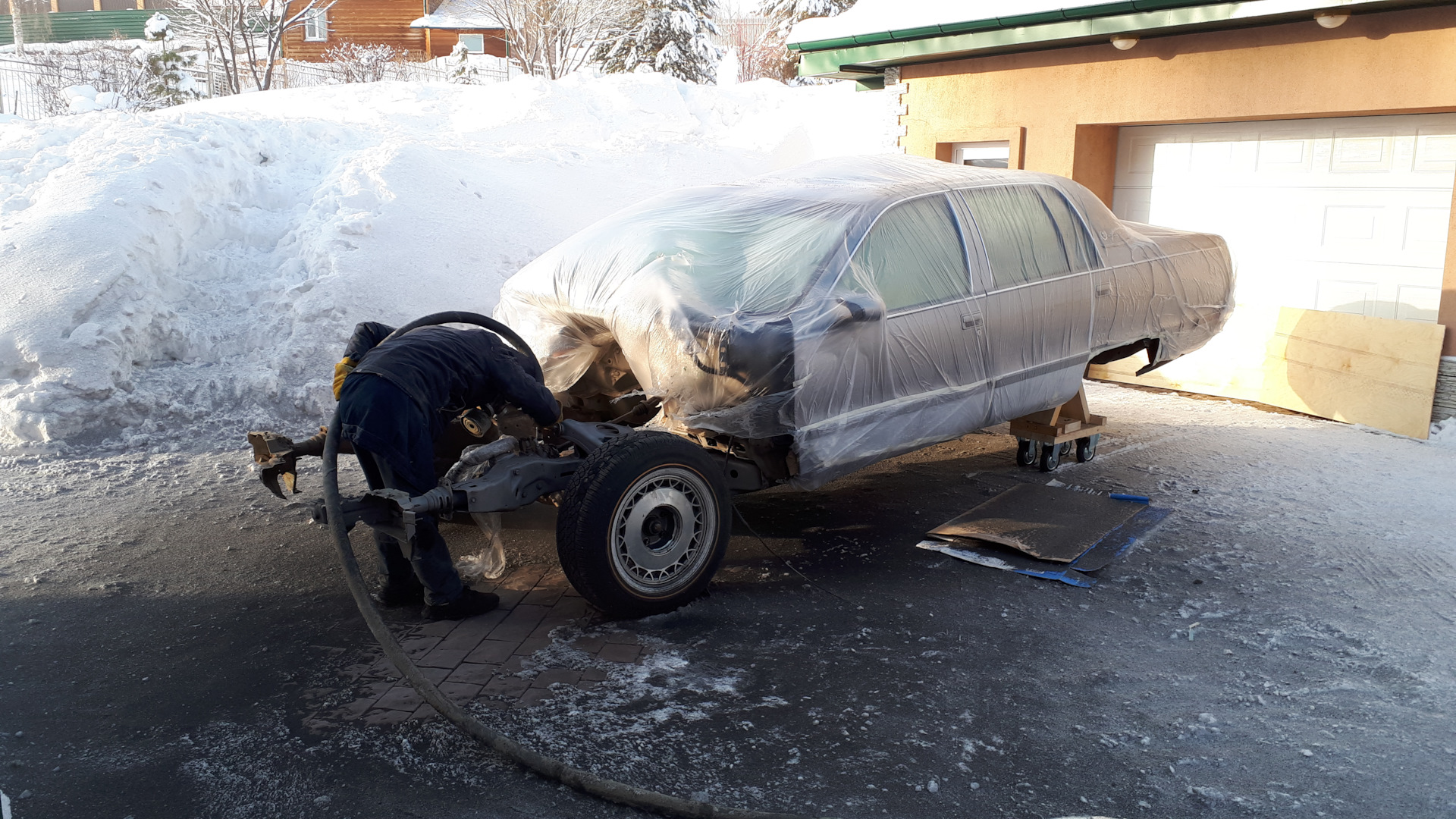

It was done in front of my home shop at the backyard



The car was on old tires and non-chrome rims



Totally 1.5 tons of copper slag was used



It looks terrible, I understand

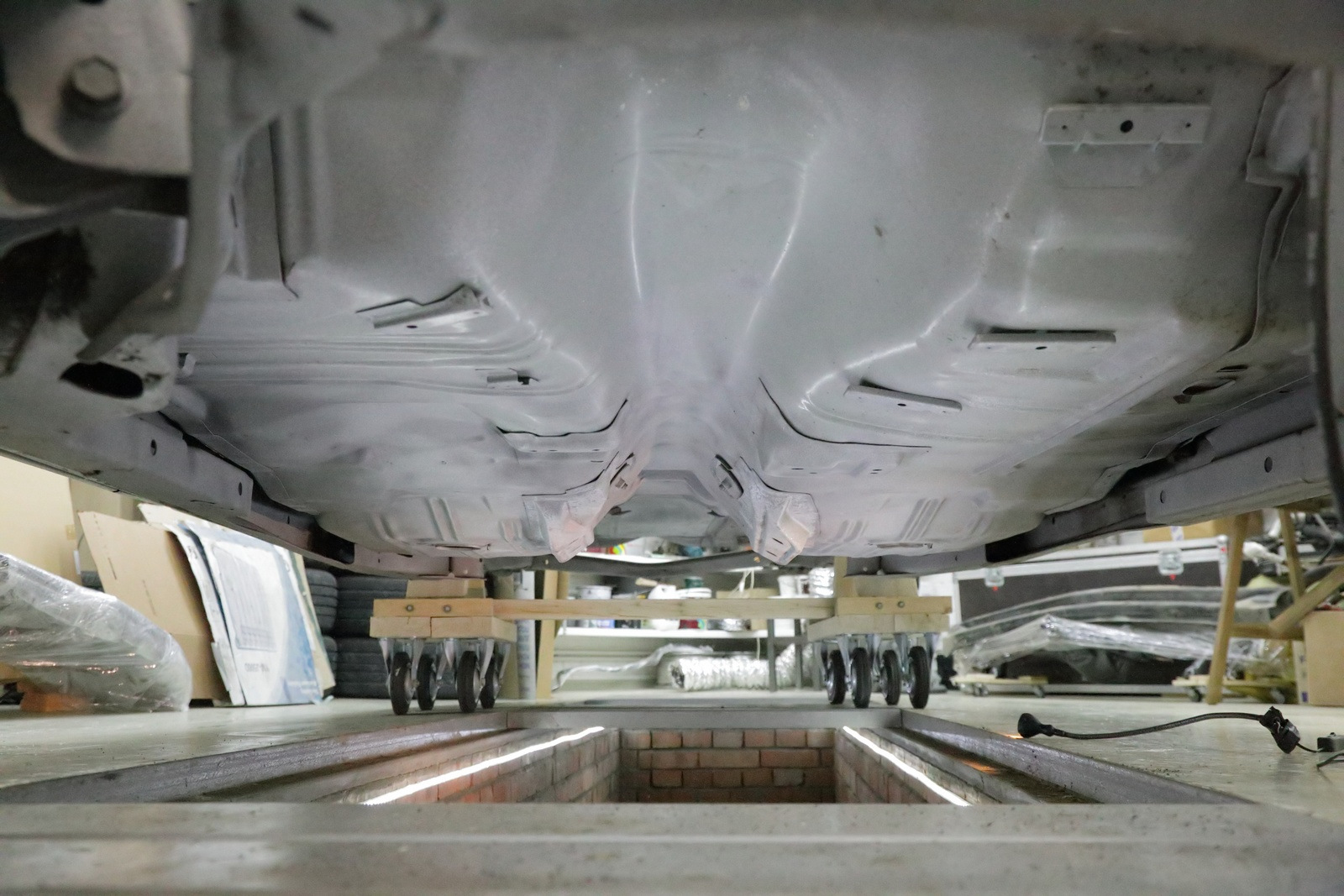

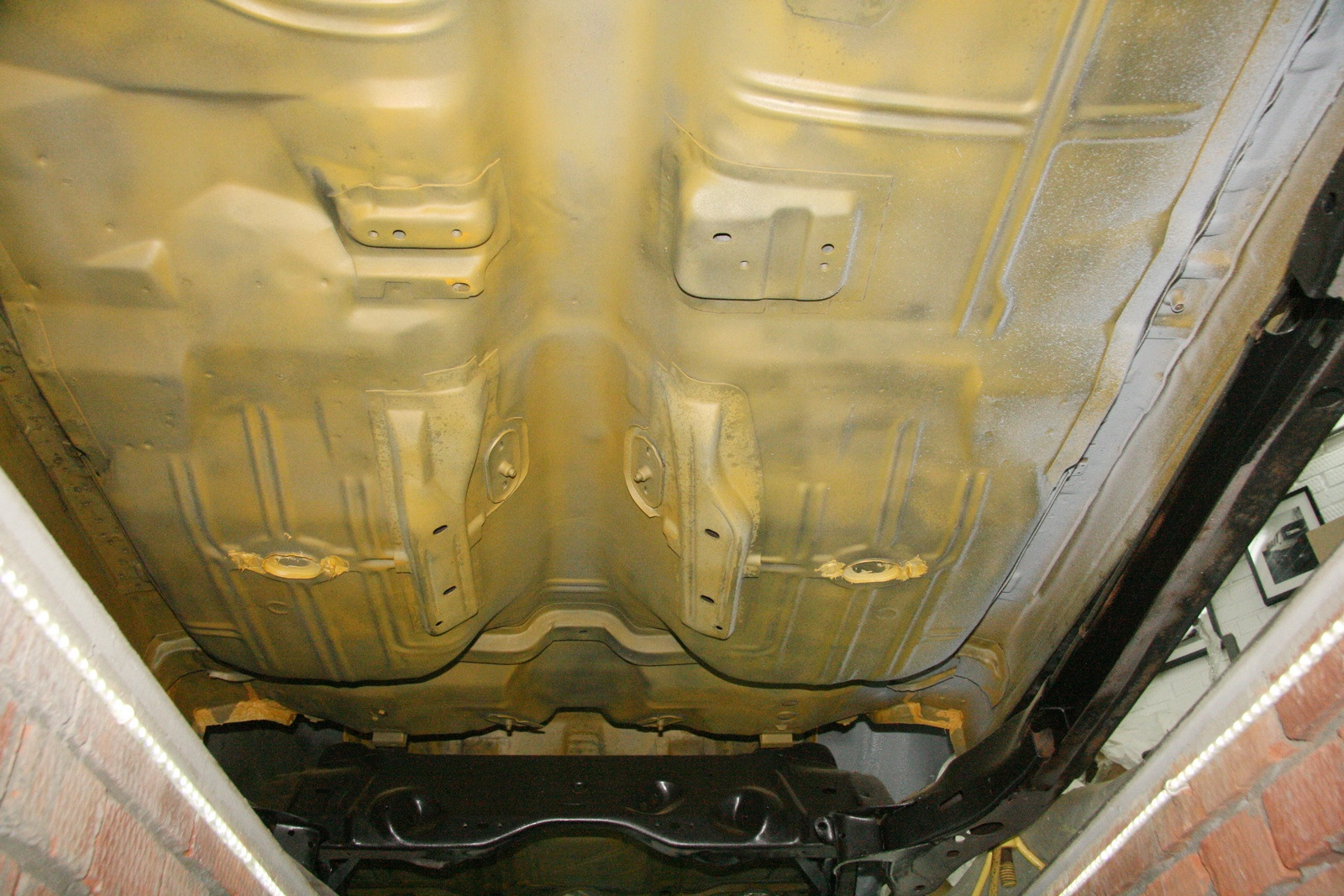

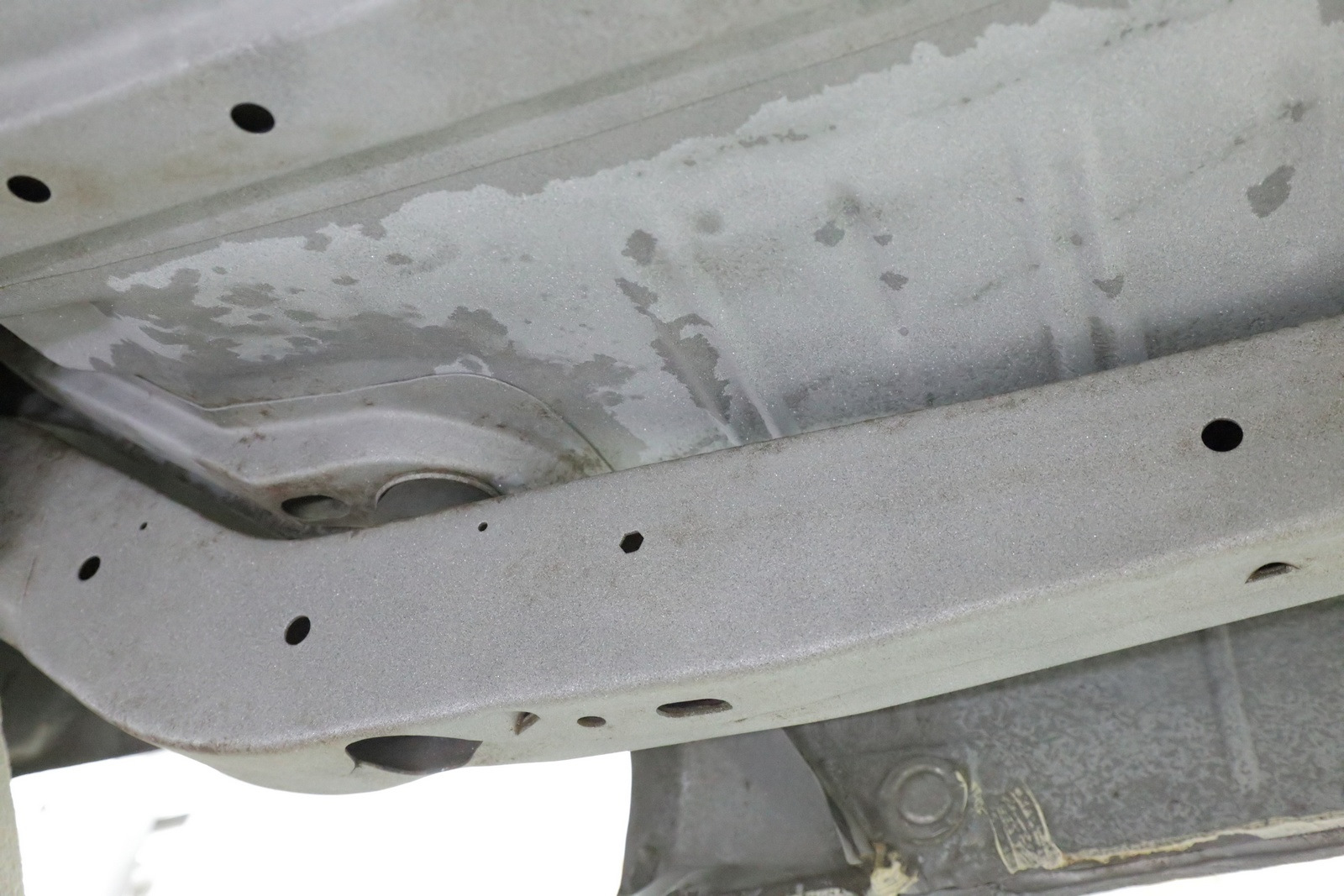

Finished. In garage already

























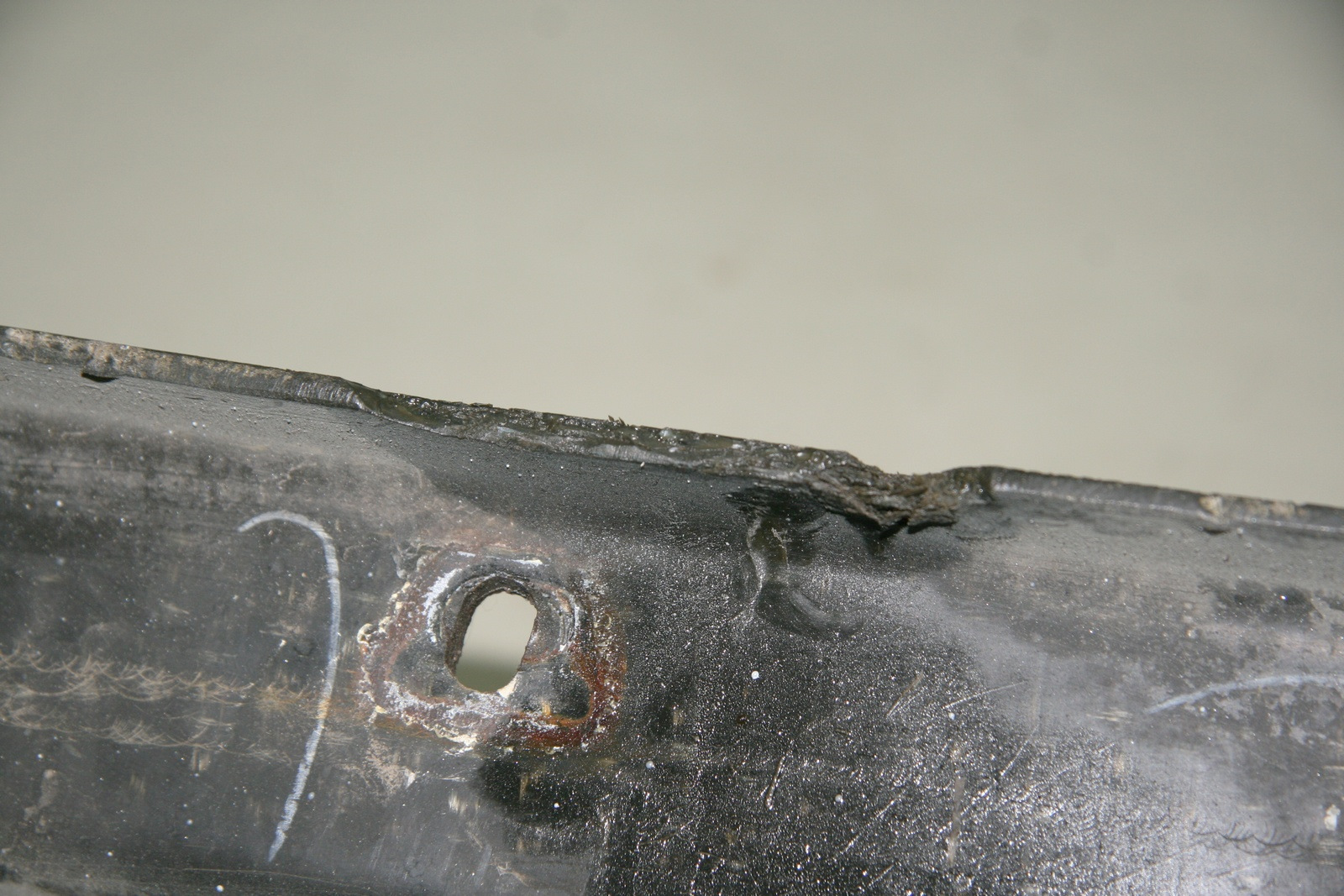

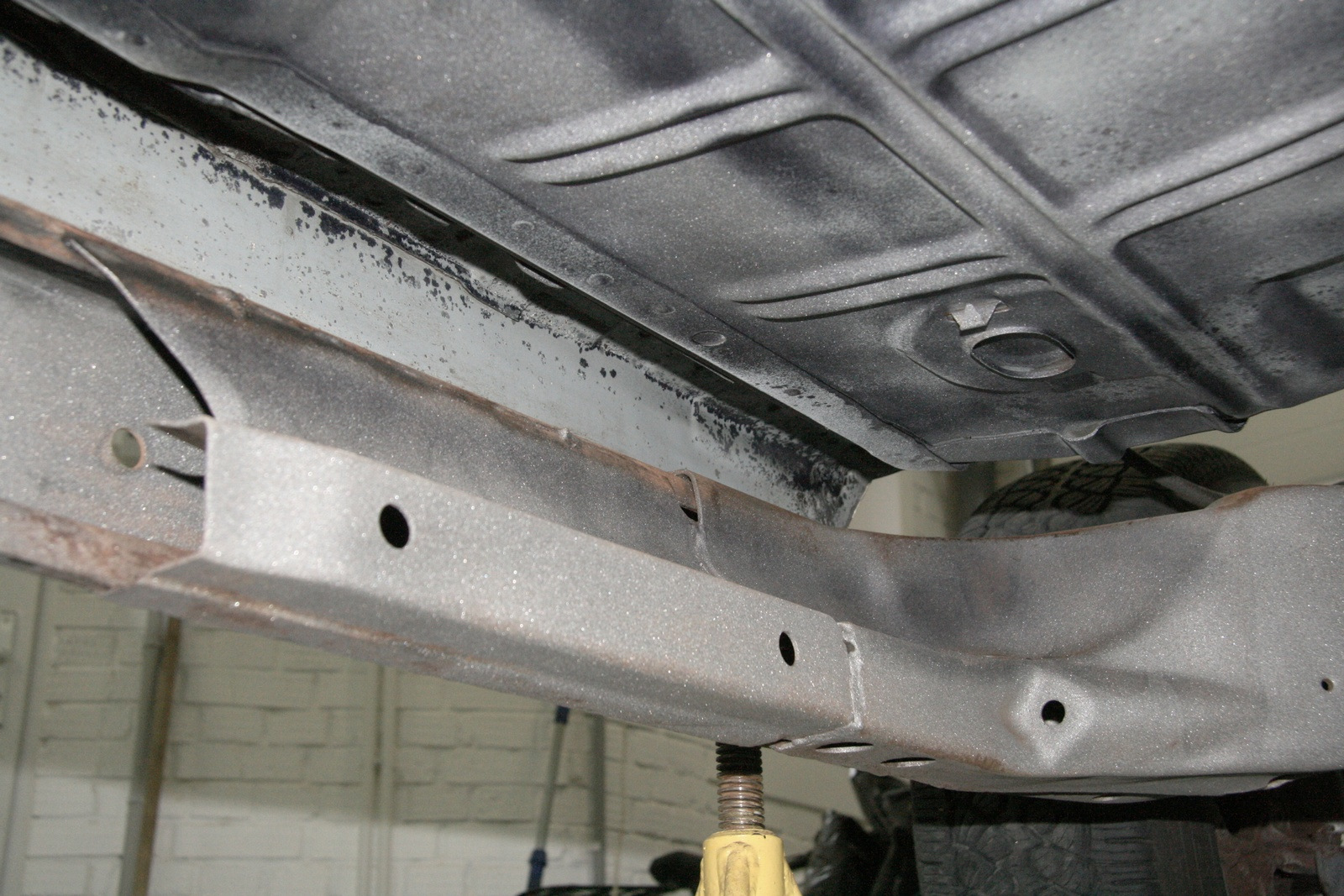

And this is the only problem that was found

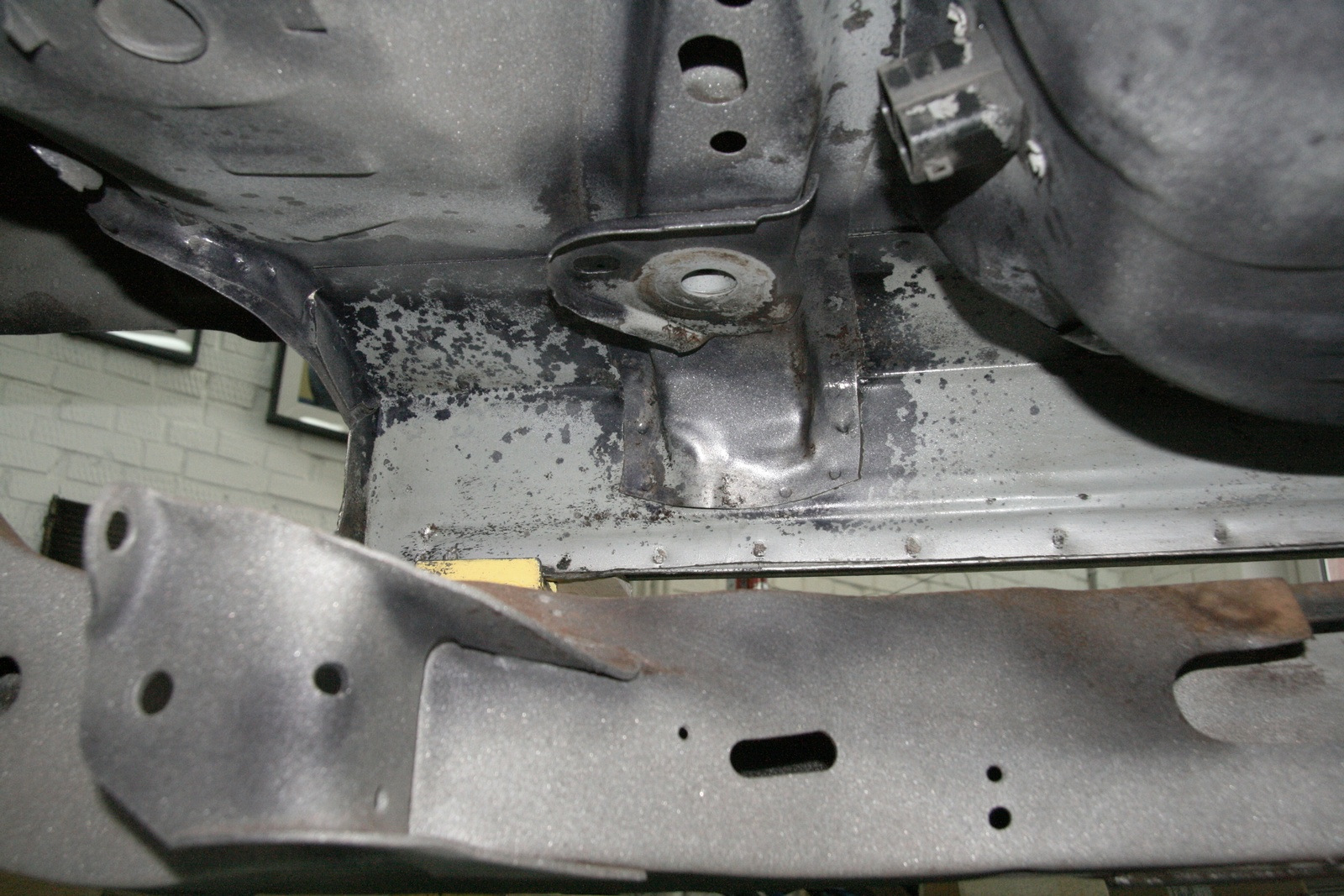

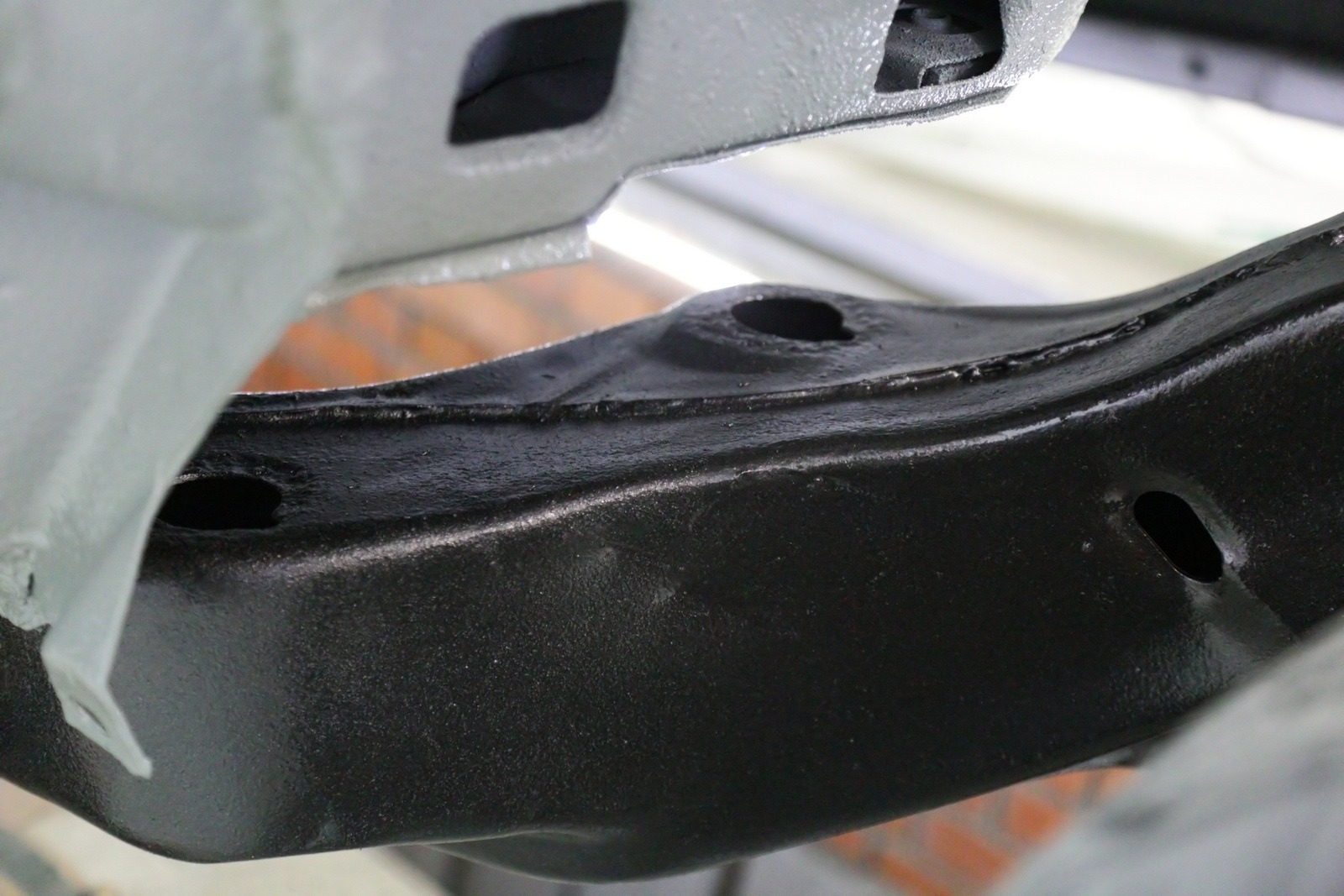

Front crossmember. Remember how it was

[kudims]

Preparing for paint job



The body was raised and the frae was lowered



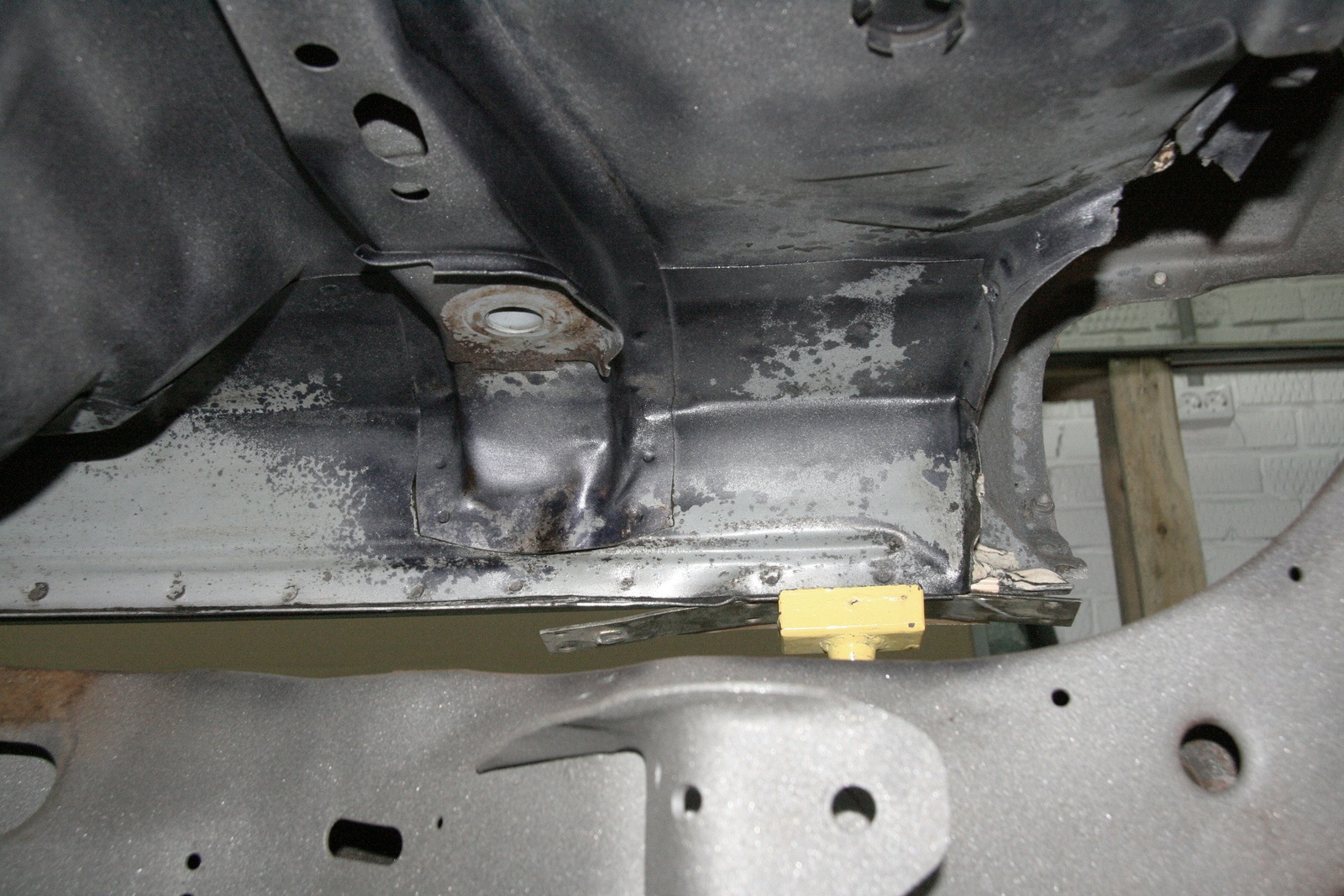

To prevent bare metal from fast corrosion, a special solution on a formic acid was used.



The metal becomes dark after such treatment, and resistant for further corrosion

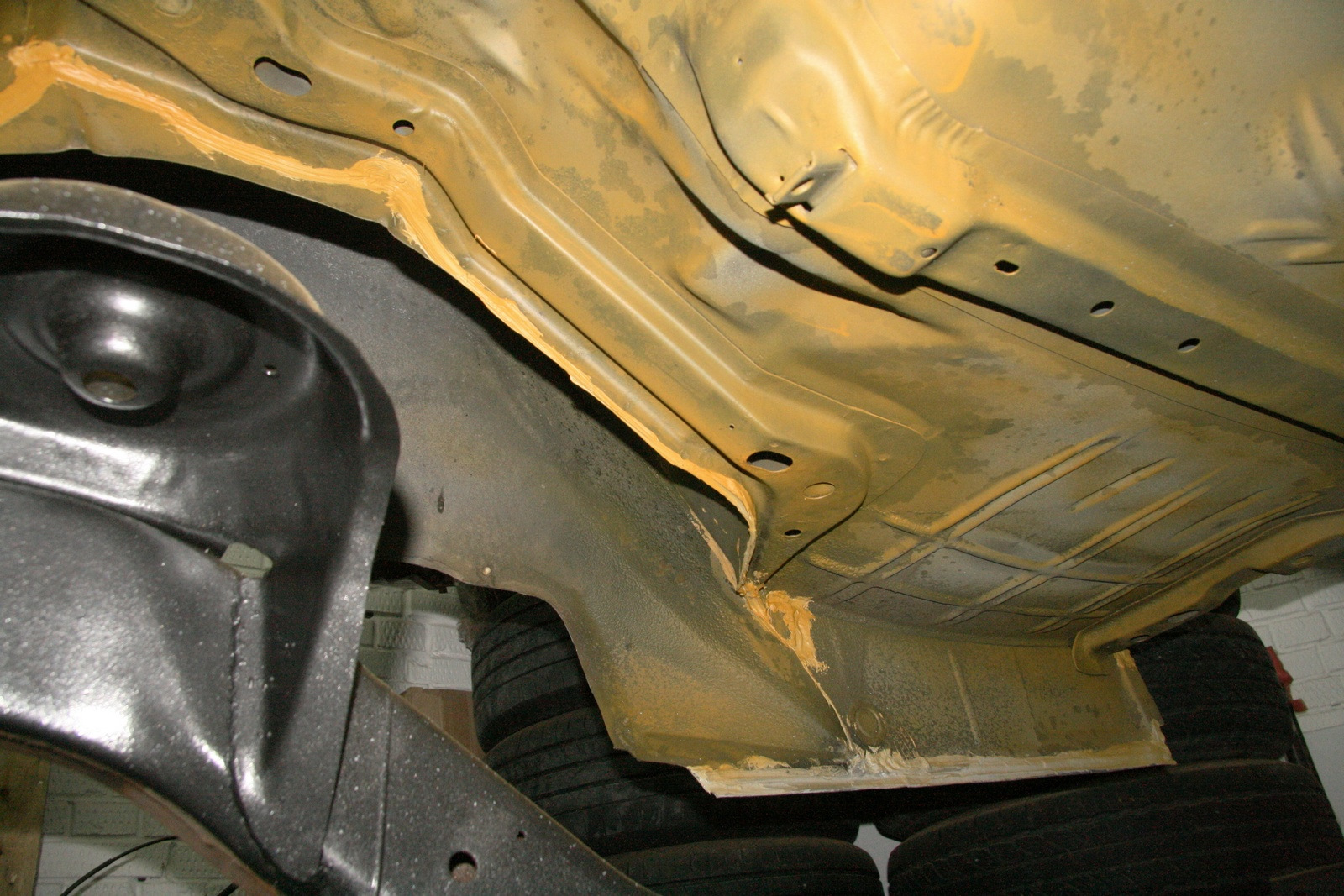

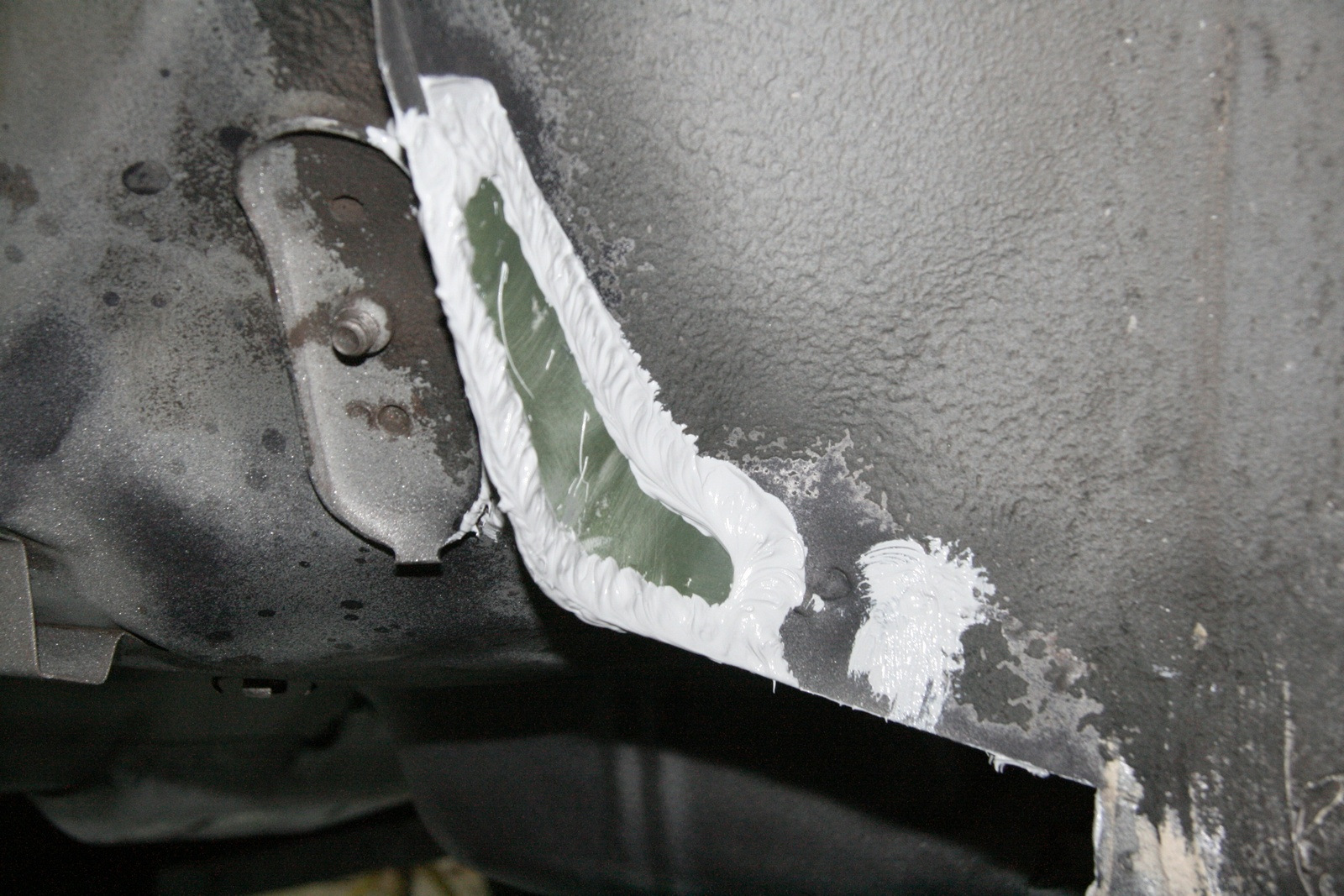

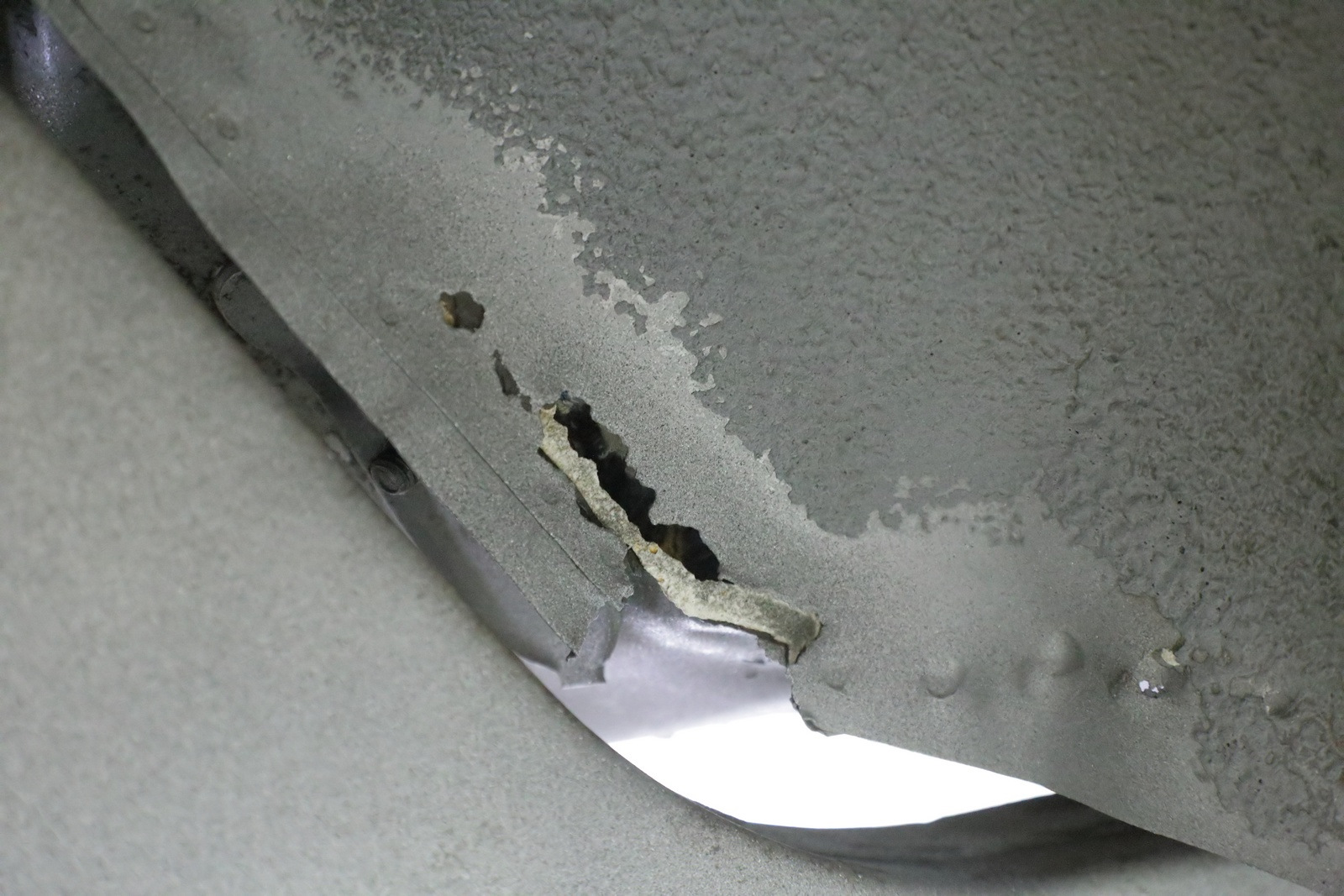

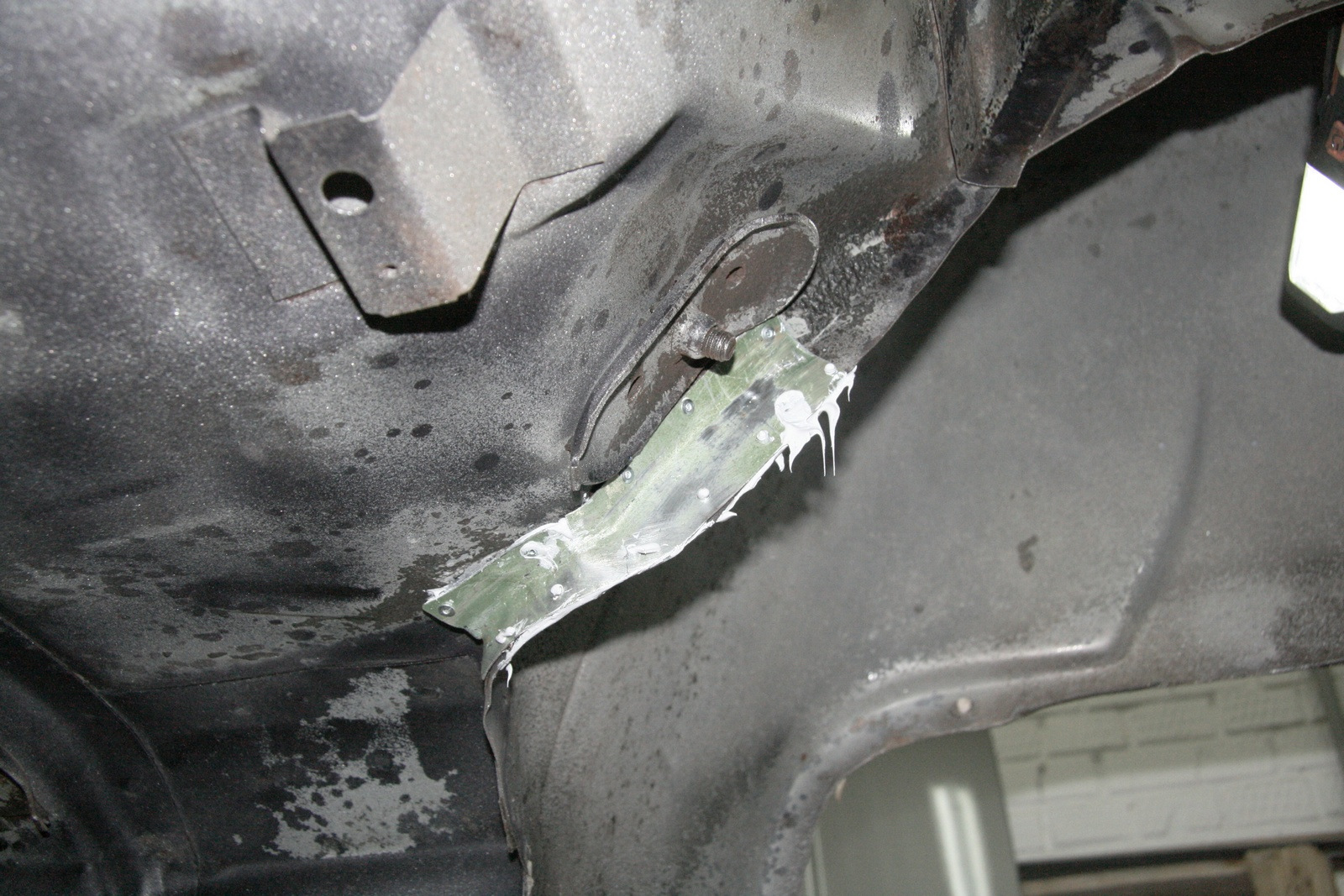

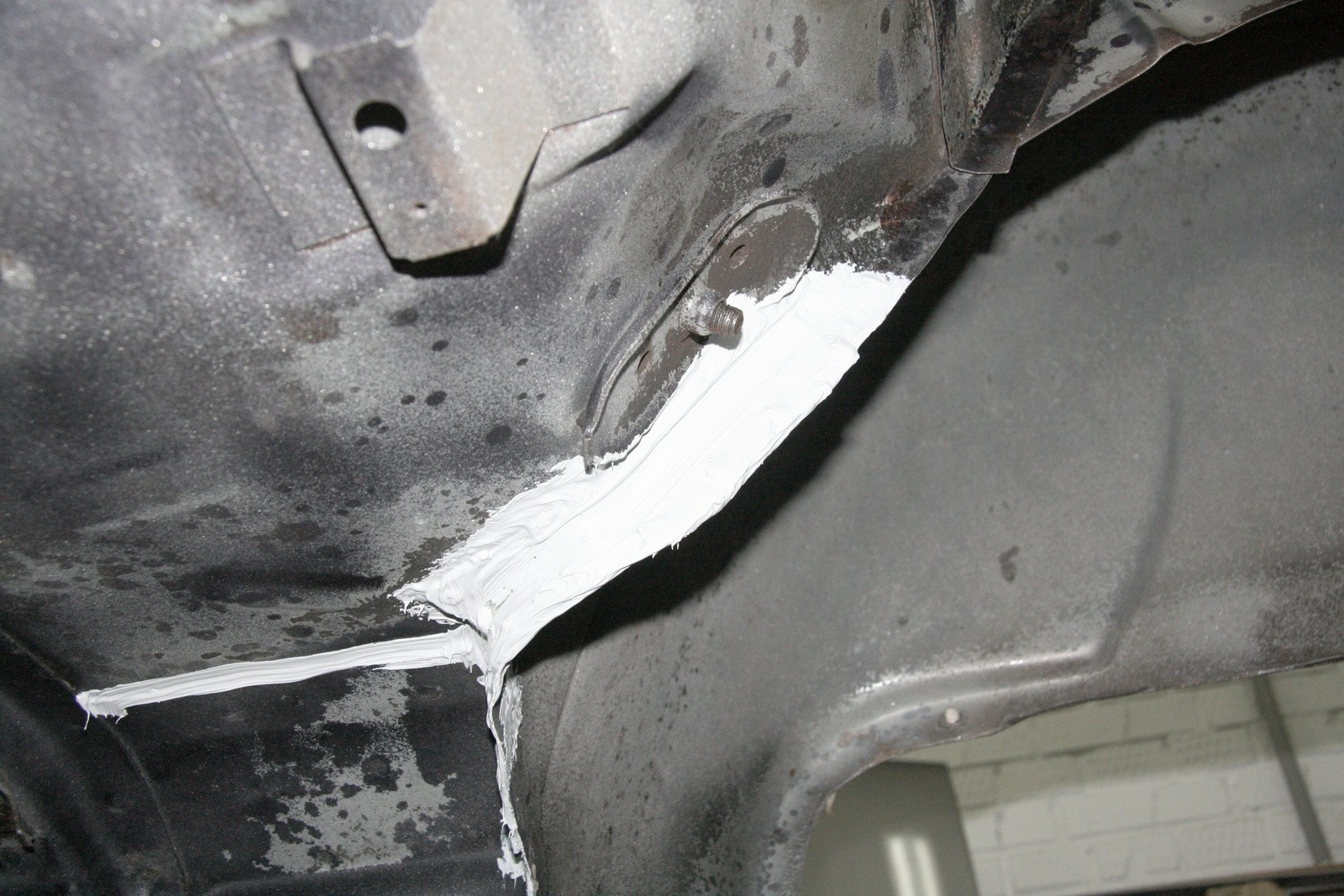

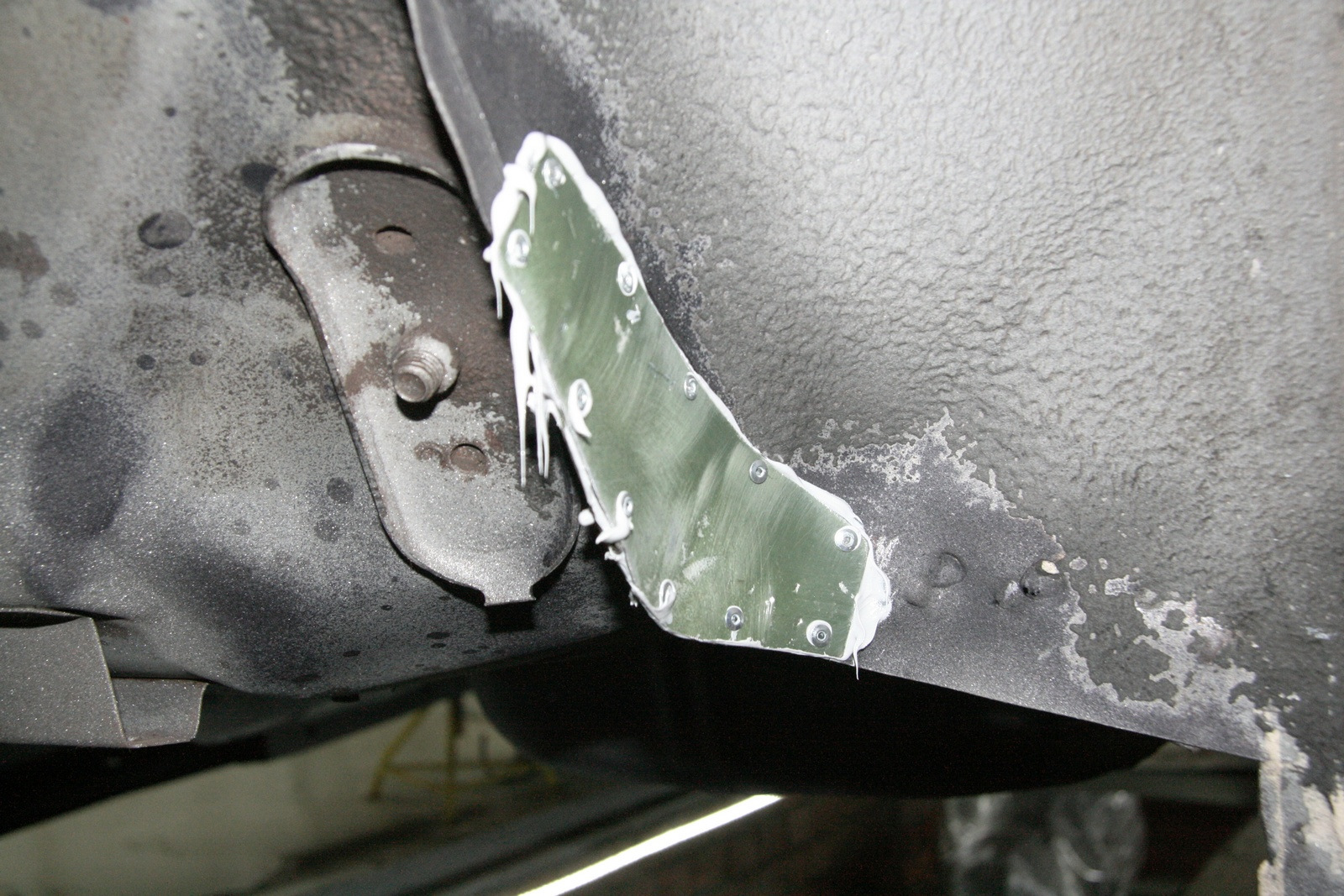

The corroded hole in the body was cured using aviation technologies: a piece of metal + steel rivets



+ body sealant

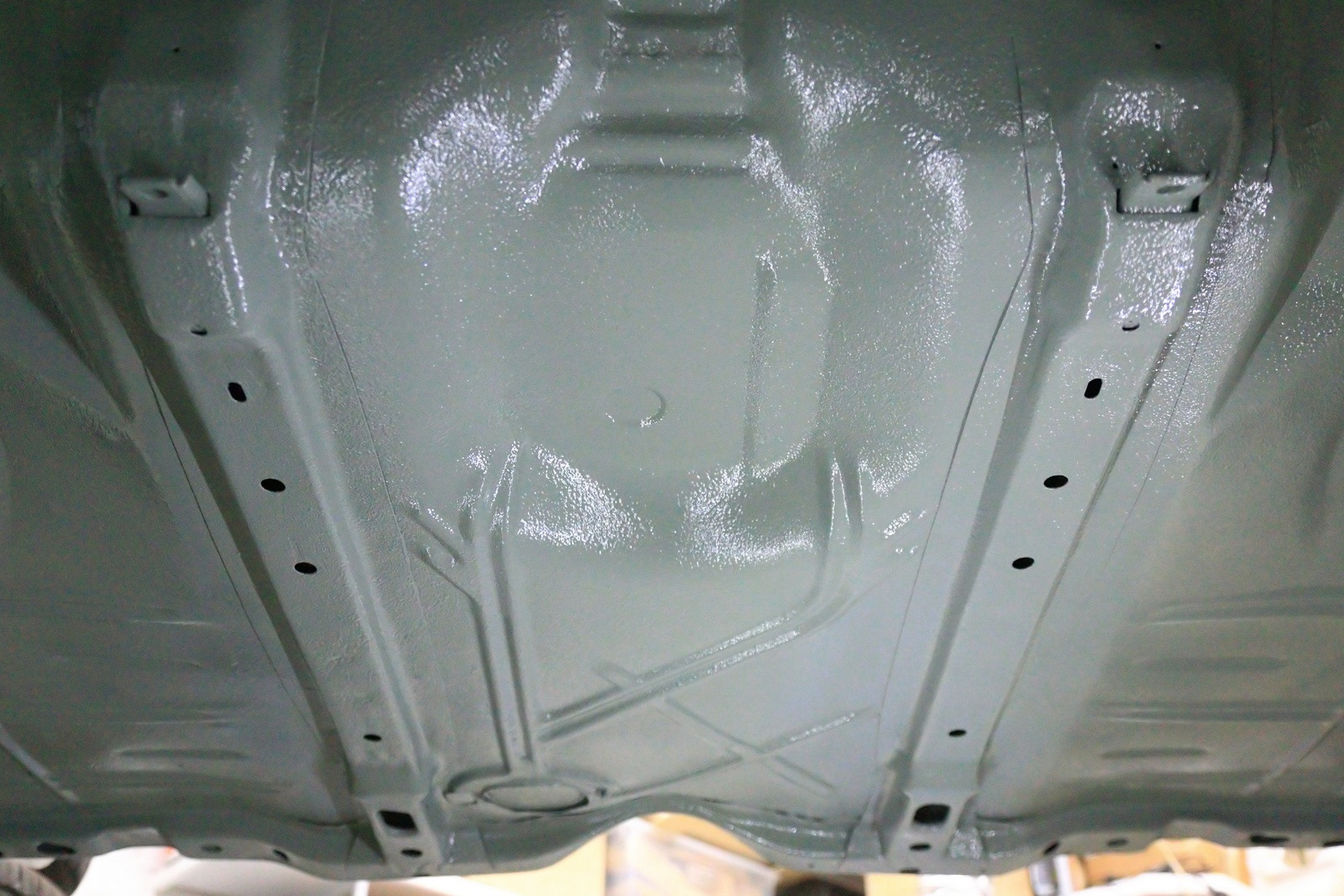

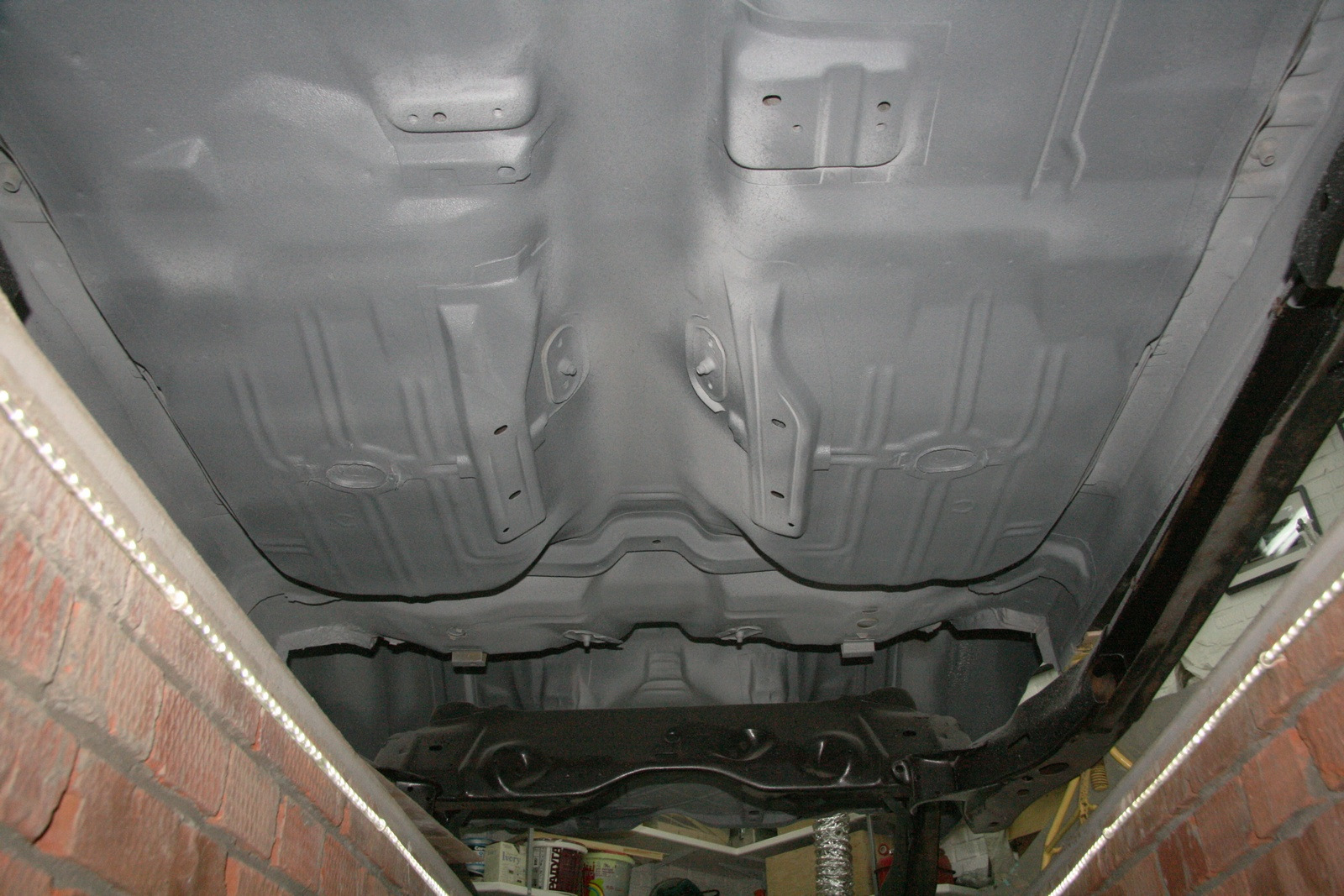

Final look





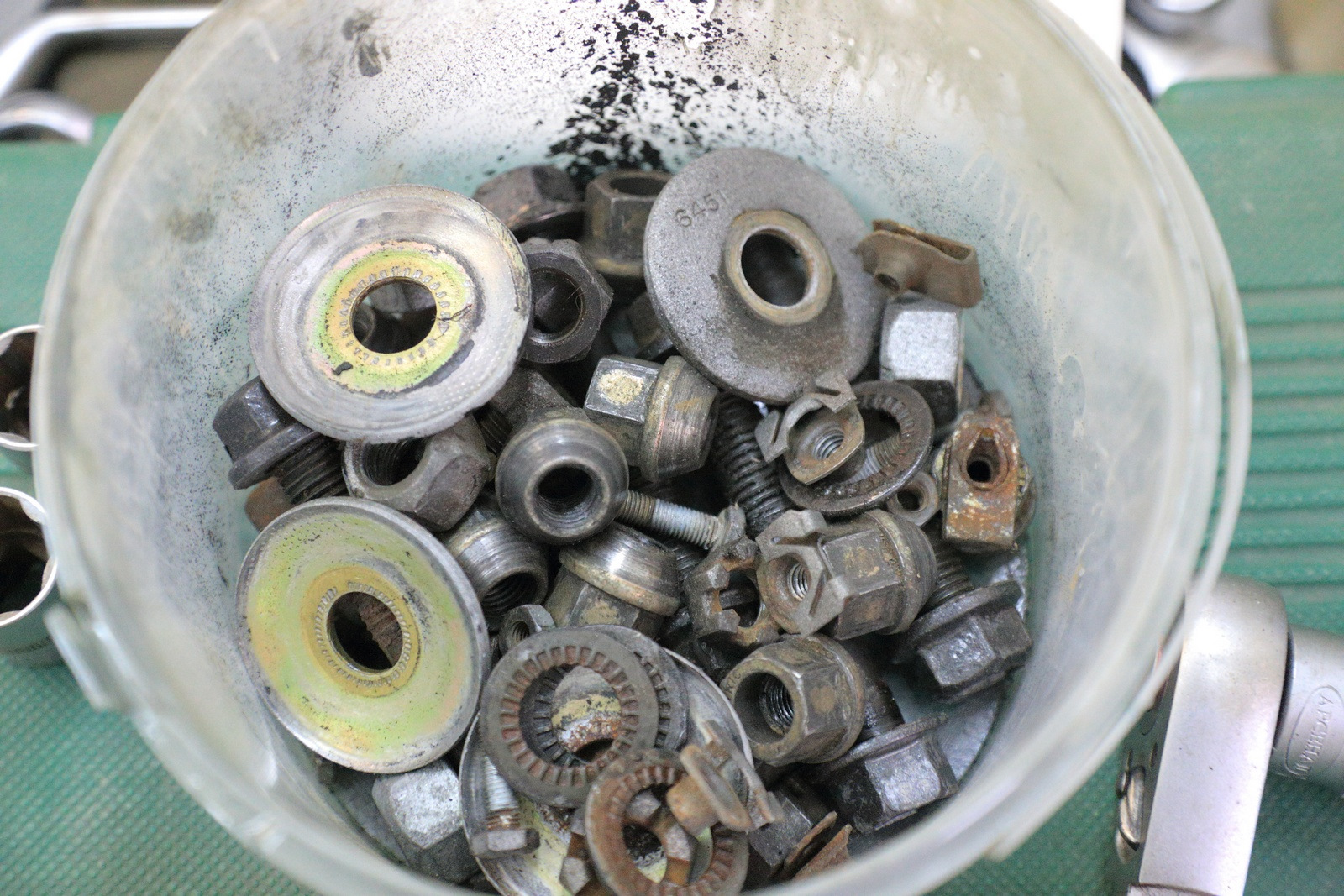

Another portion of hardware that goes to sandblasting and powder coating

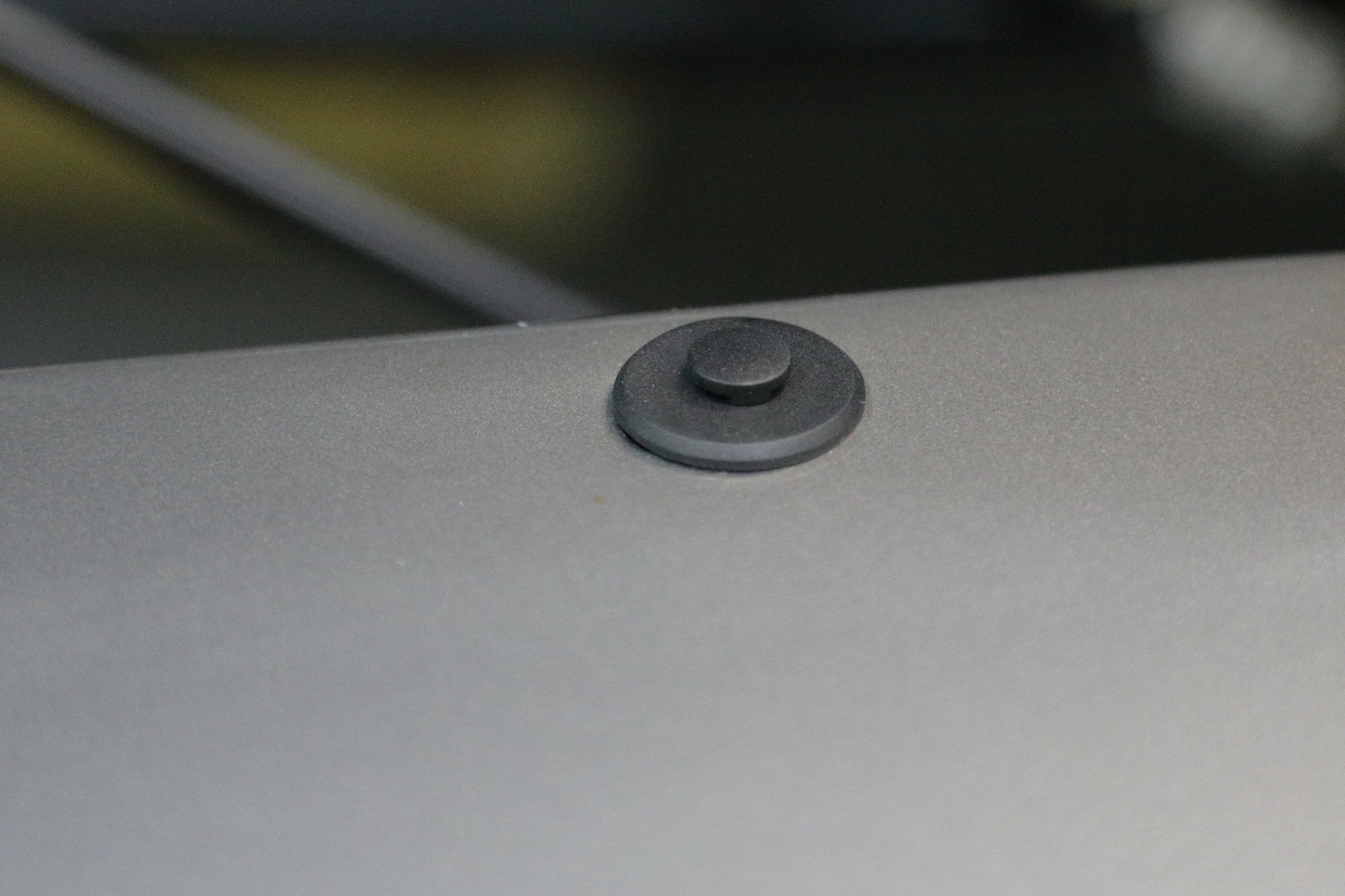

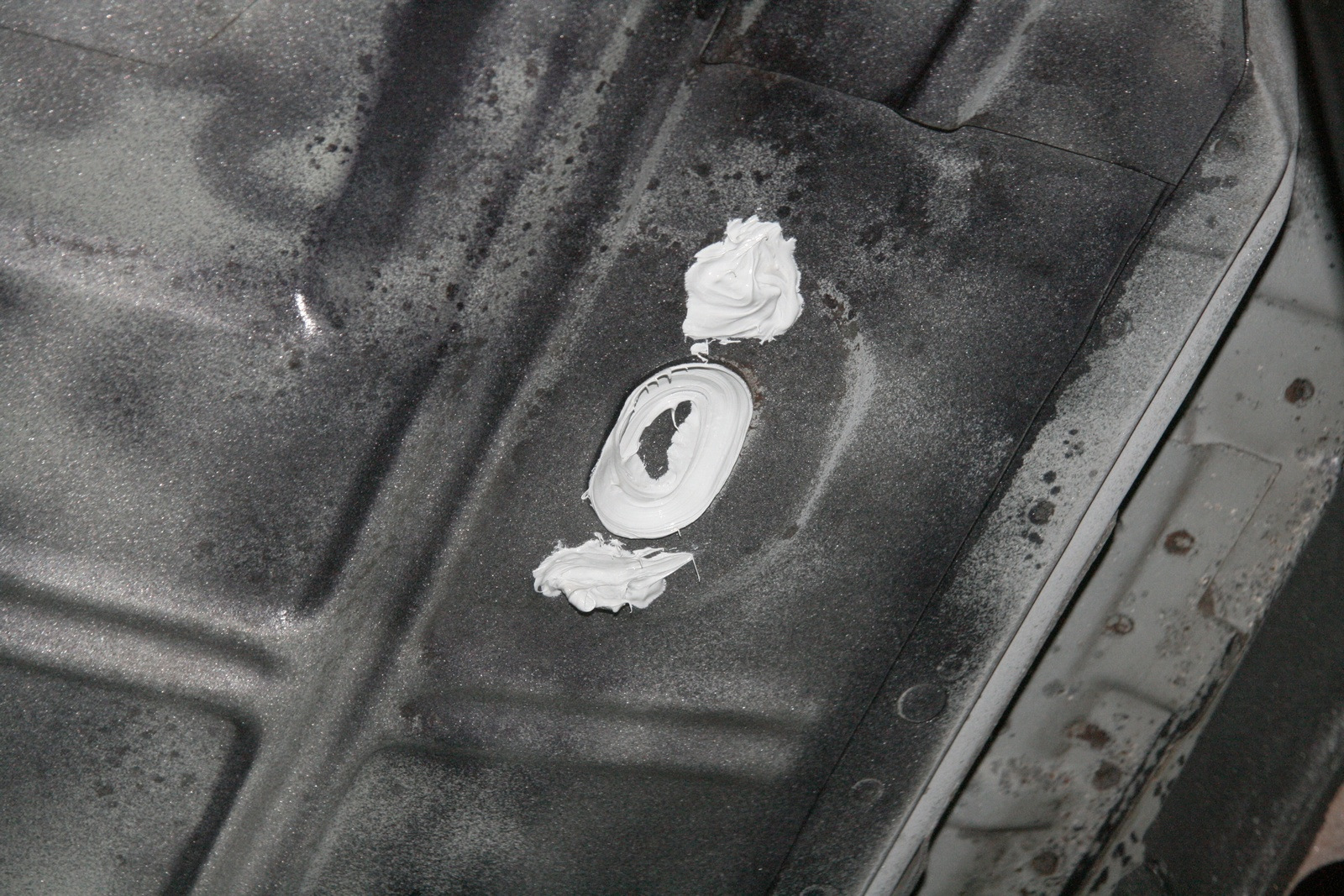

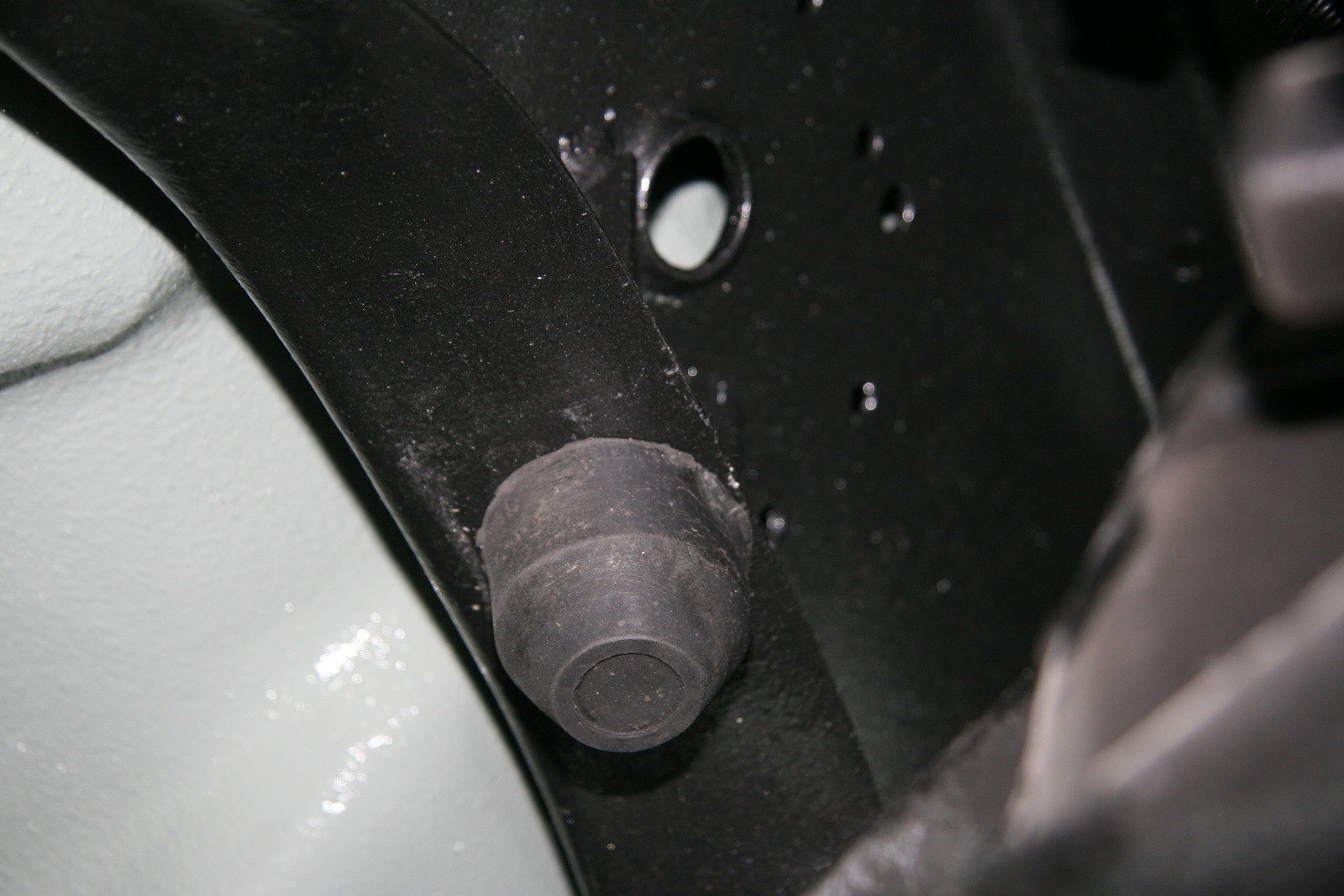

Body sealant was used on drain plugs



The frame after one coat of black hammered enamel, which has corrosion inhibitors



Phosphoric primer

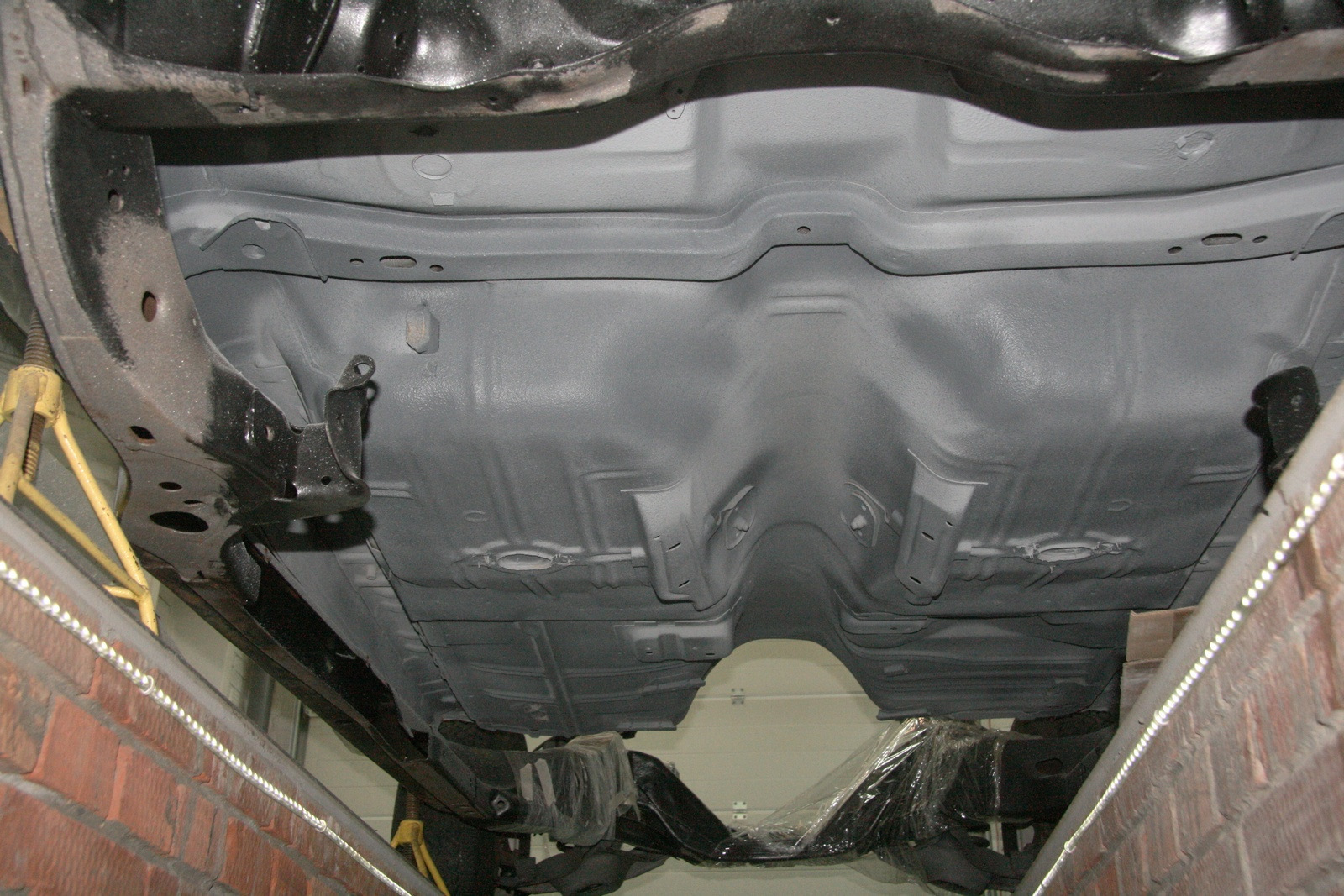

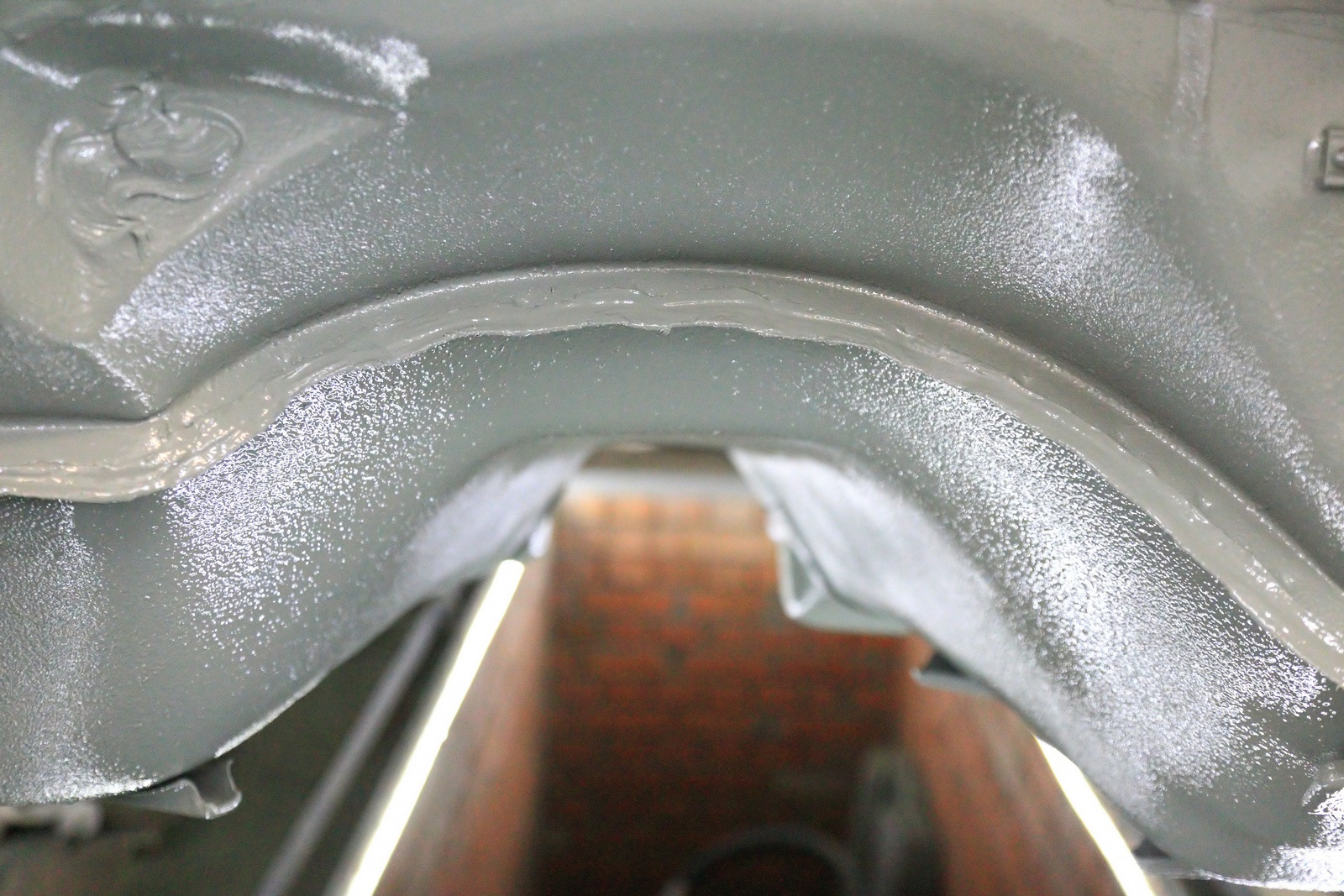

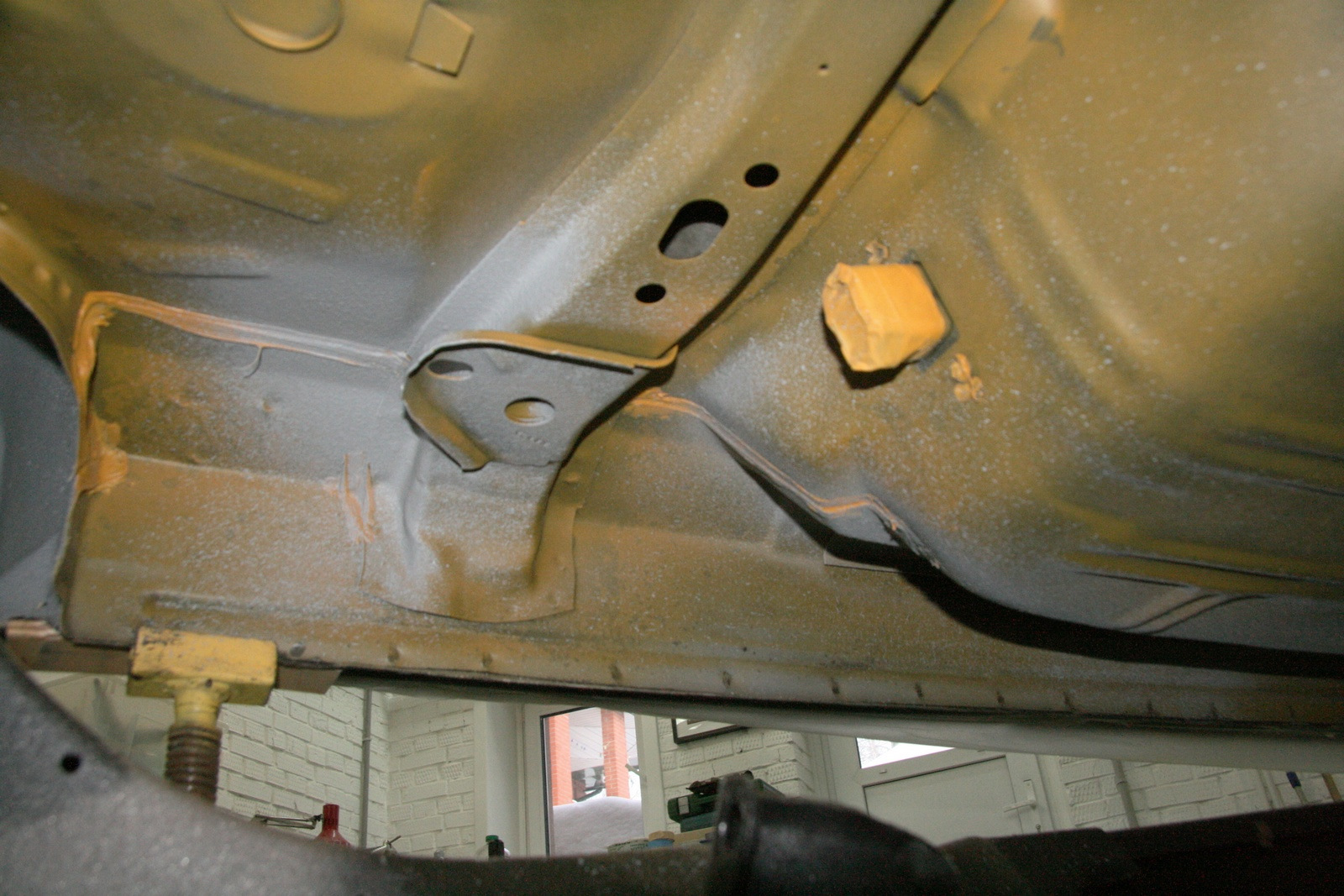

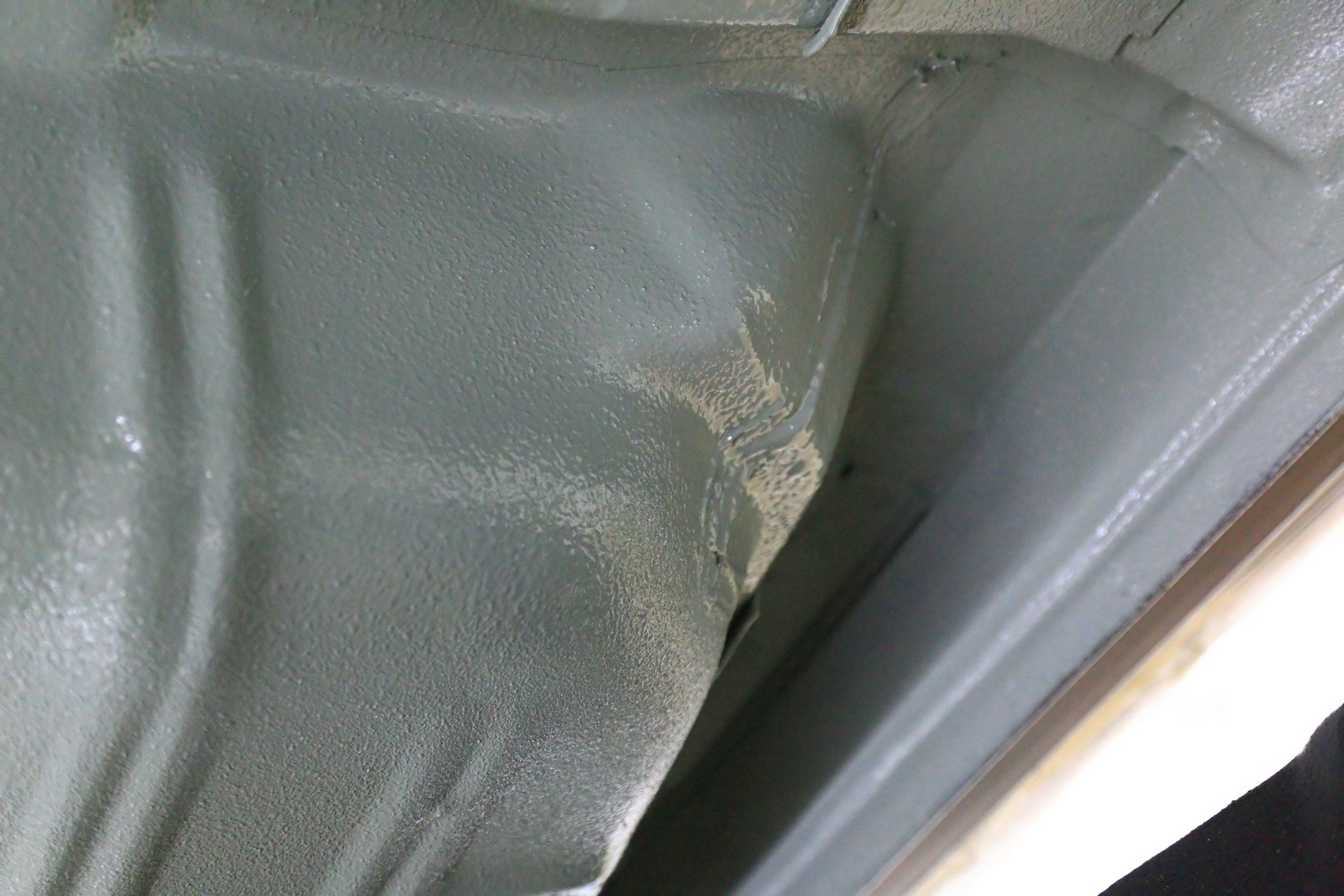

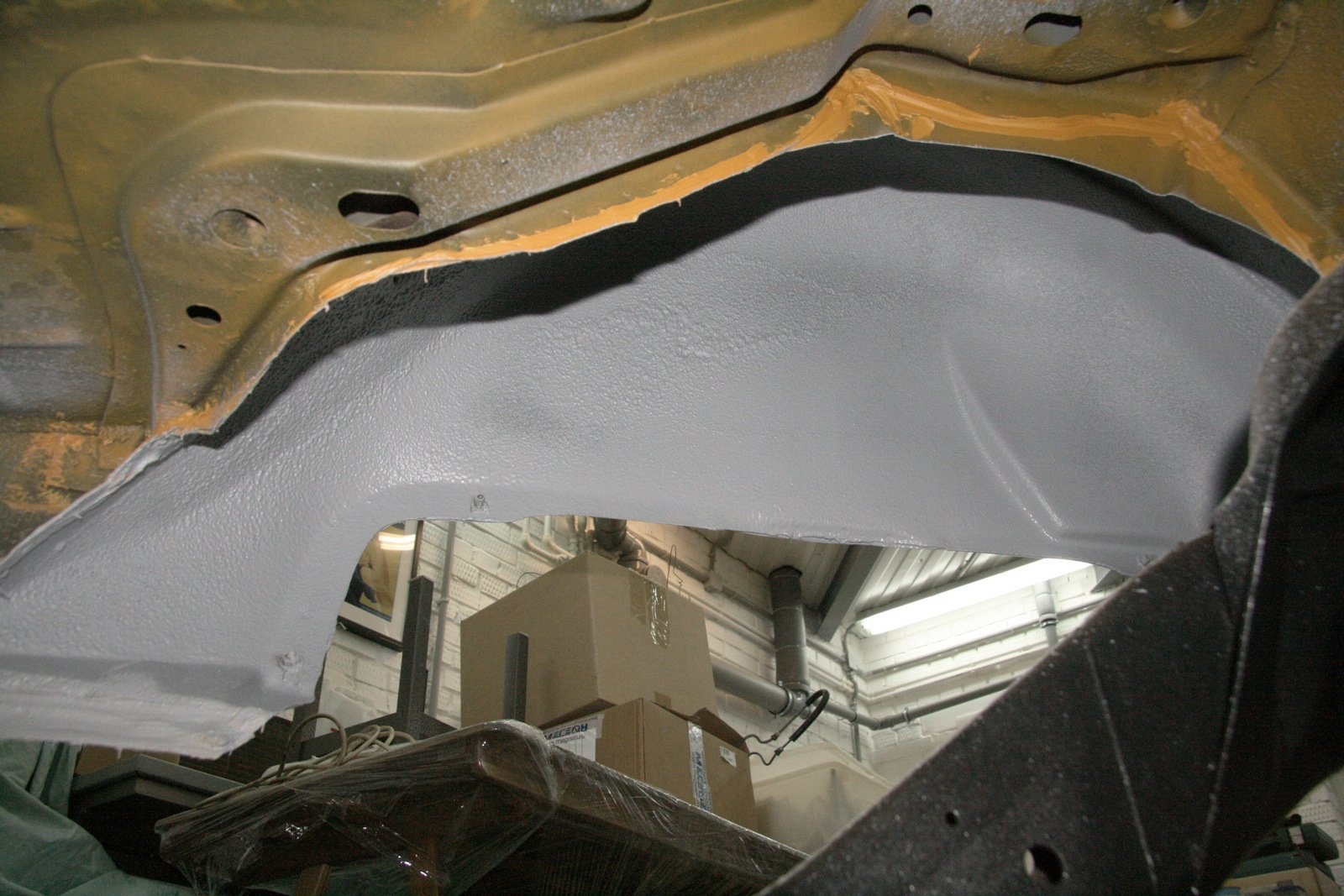

Antigravel coat











Firewall was coated up to the welding stitch



Antigravel coat







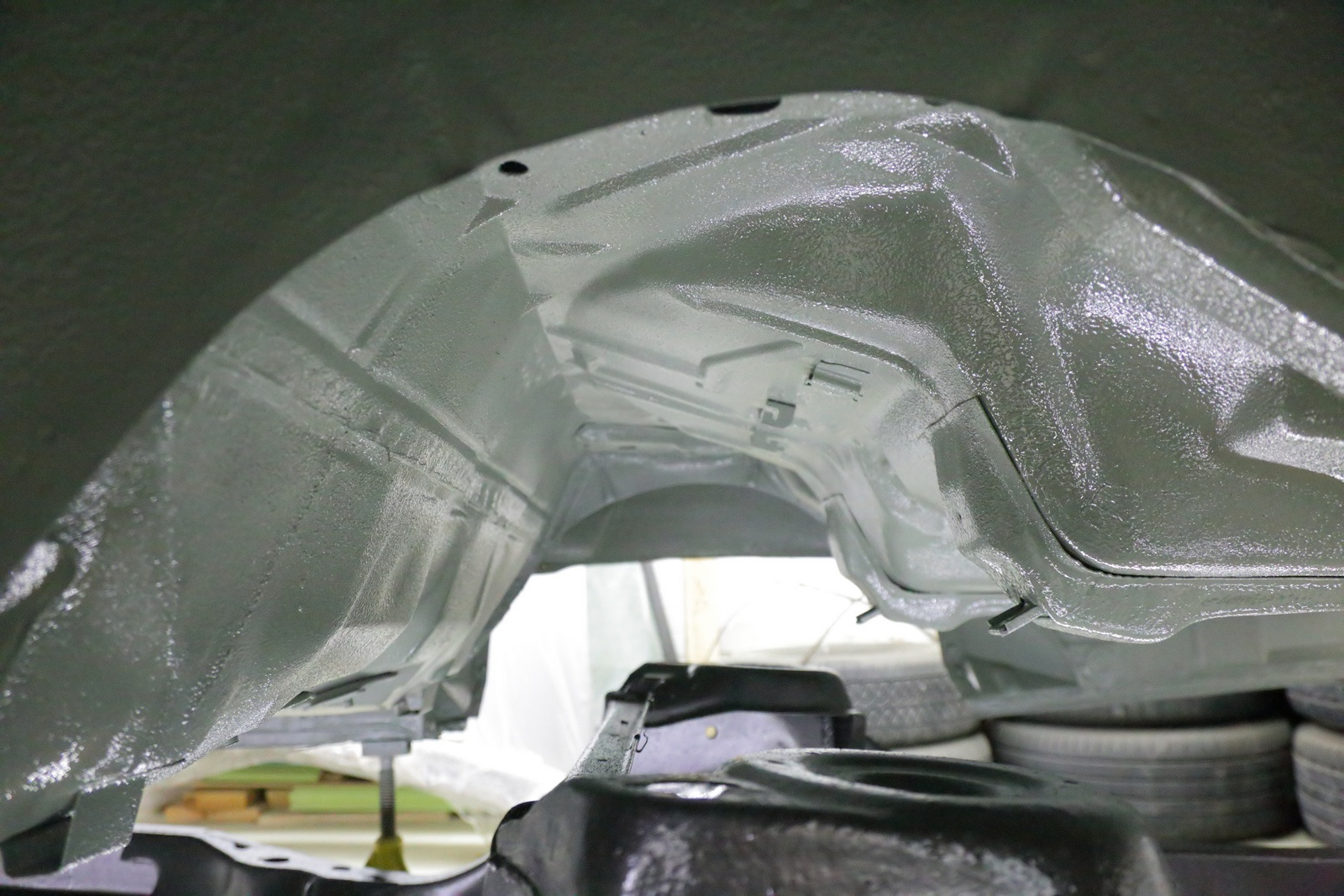

Final coat

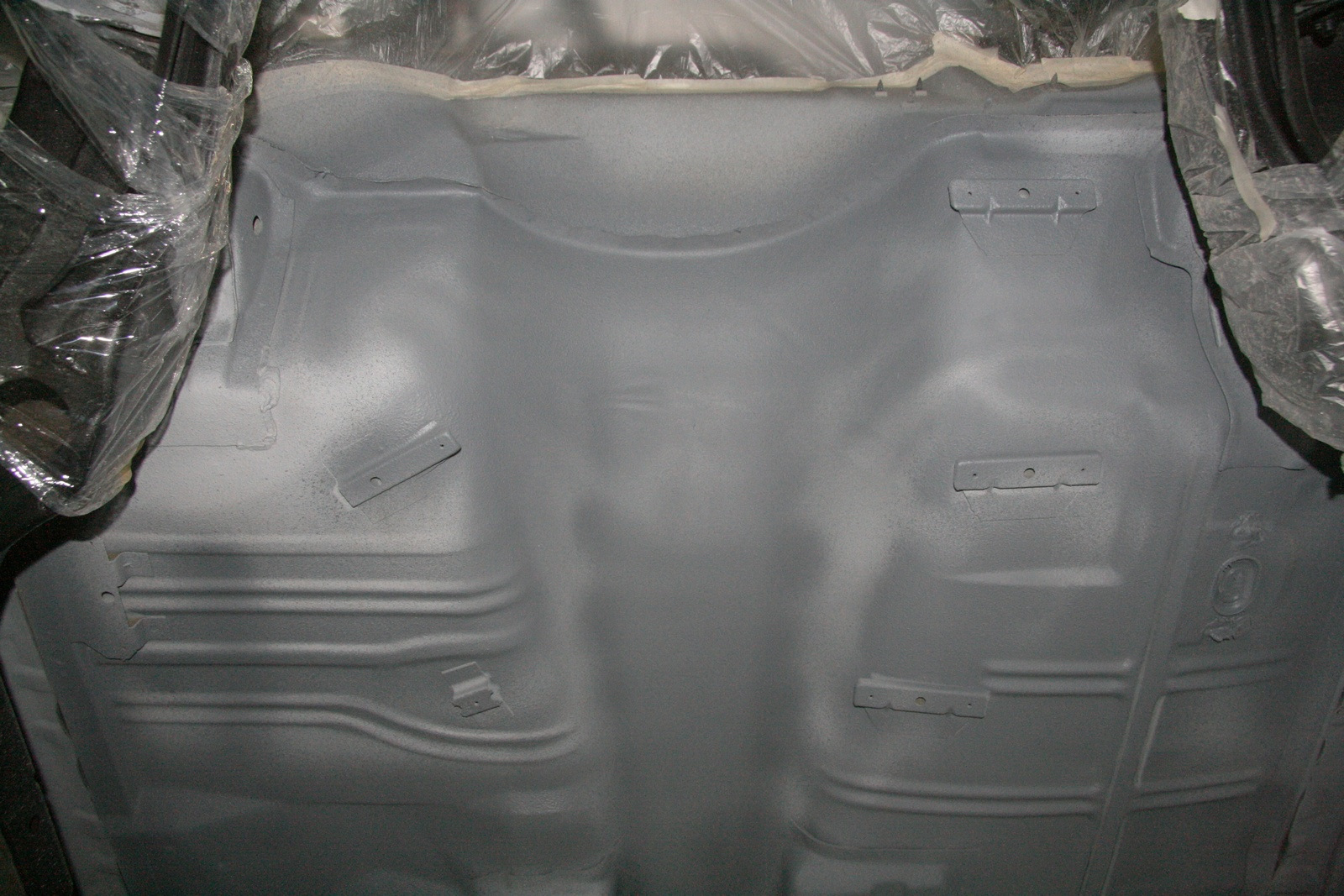

The body on GM vehicles was painted with RAL7033 color (cement grey), and only from outside it was painted with exterior color. So, every vehicle, regardless of exterior color, has grey underbody and floor inside.

I used 2K acrylic coat



The edge will be hidden with the firewall insulation

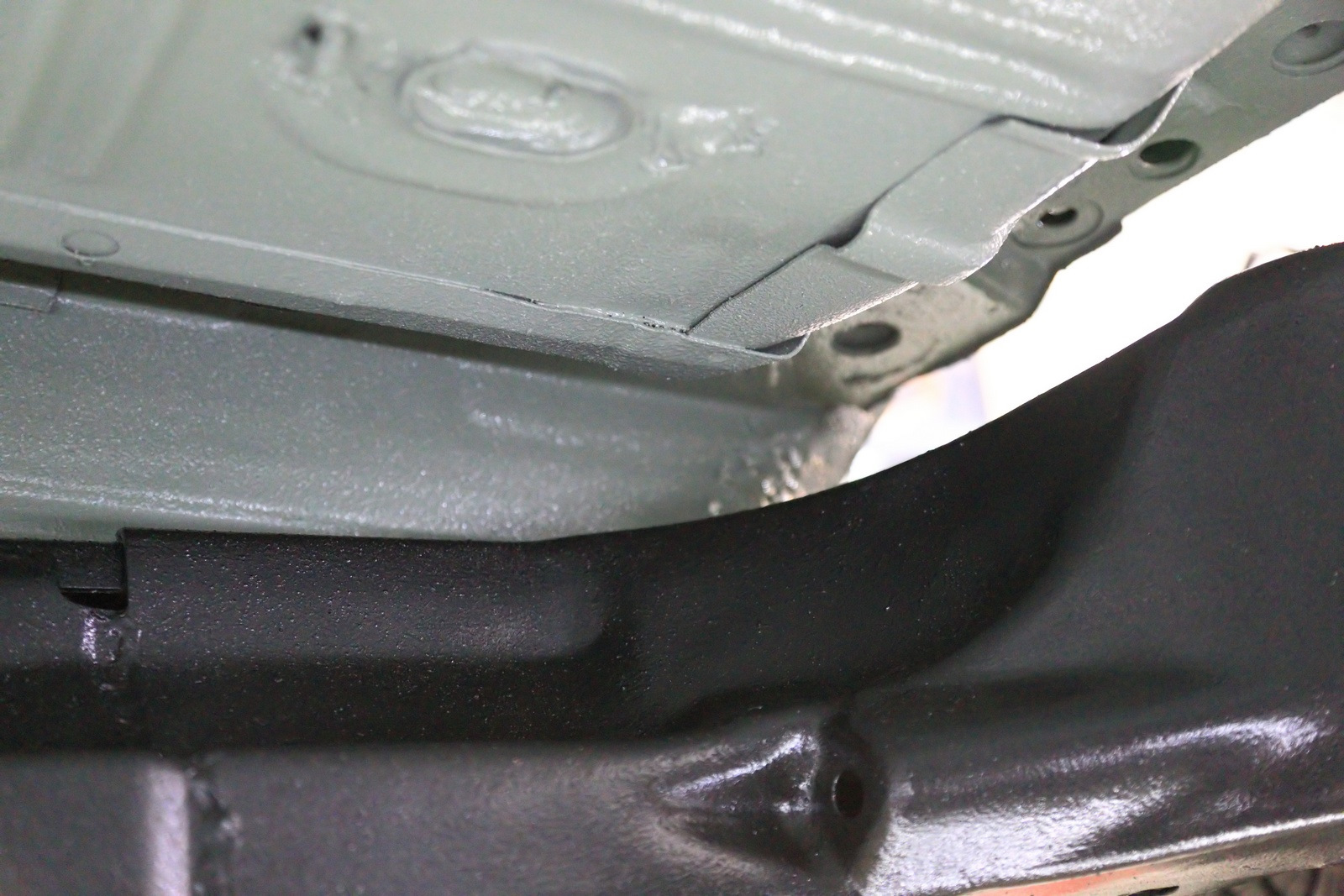

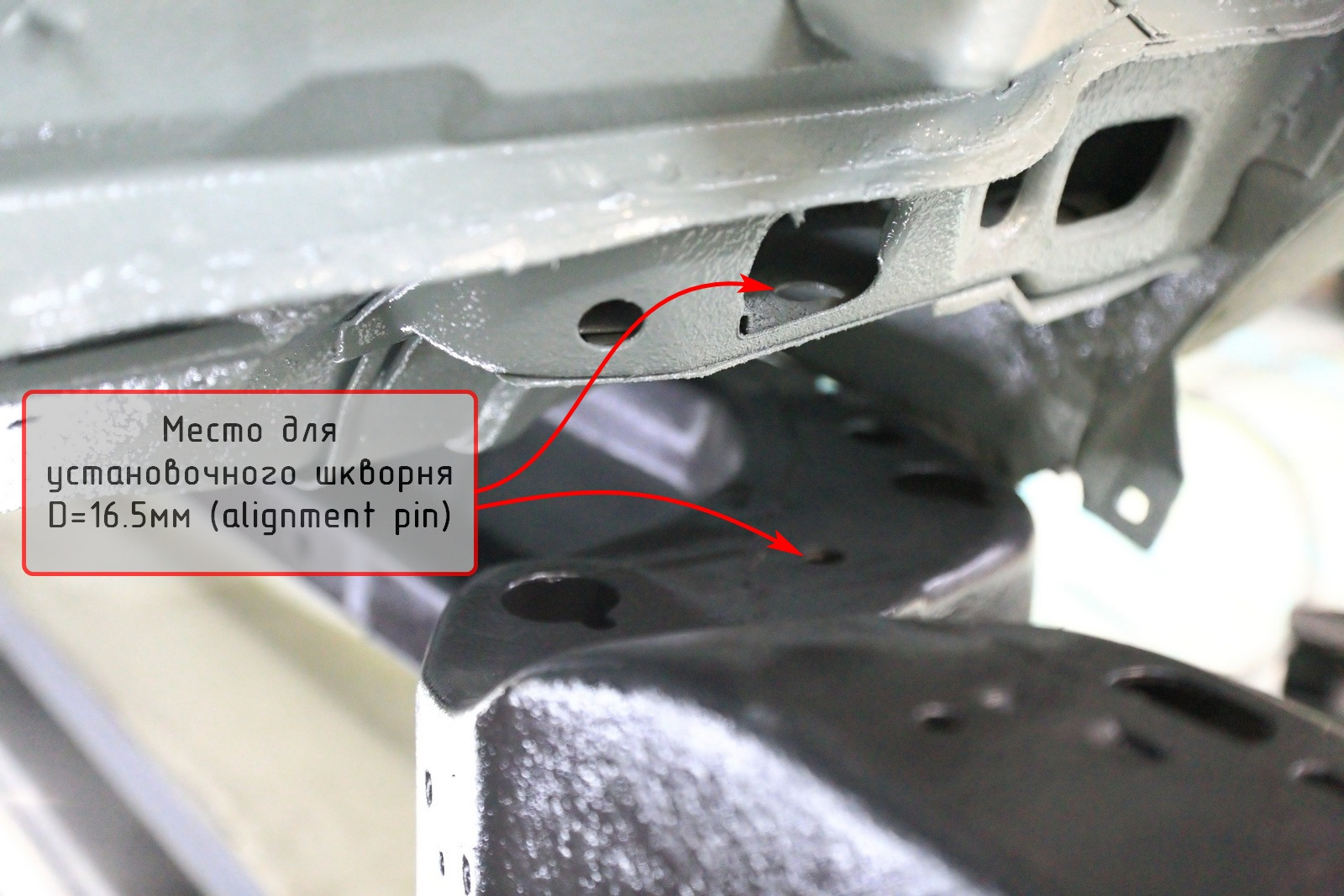

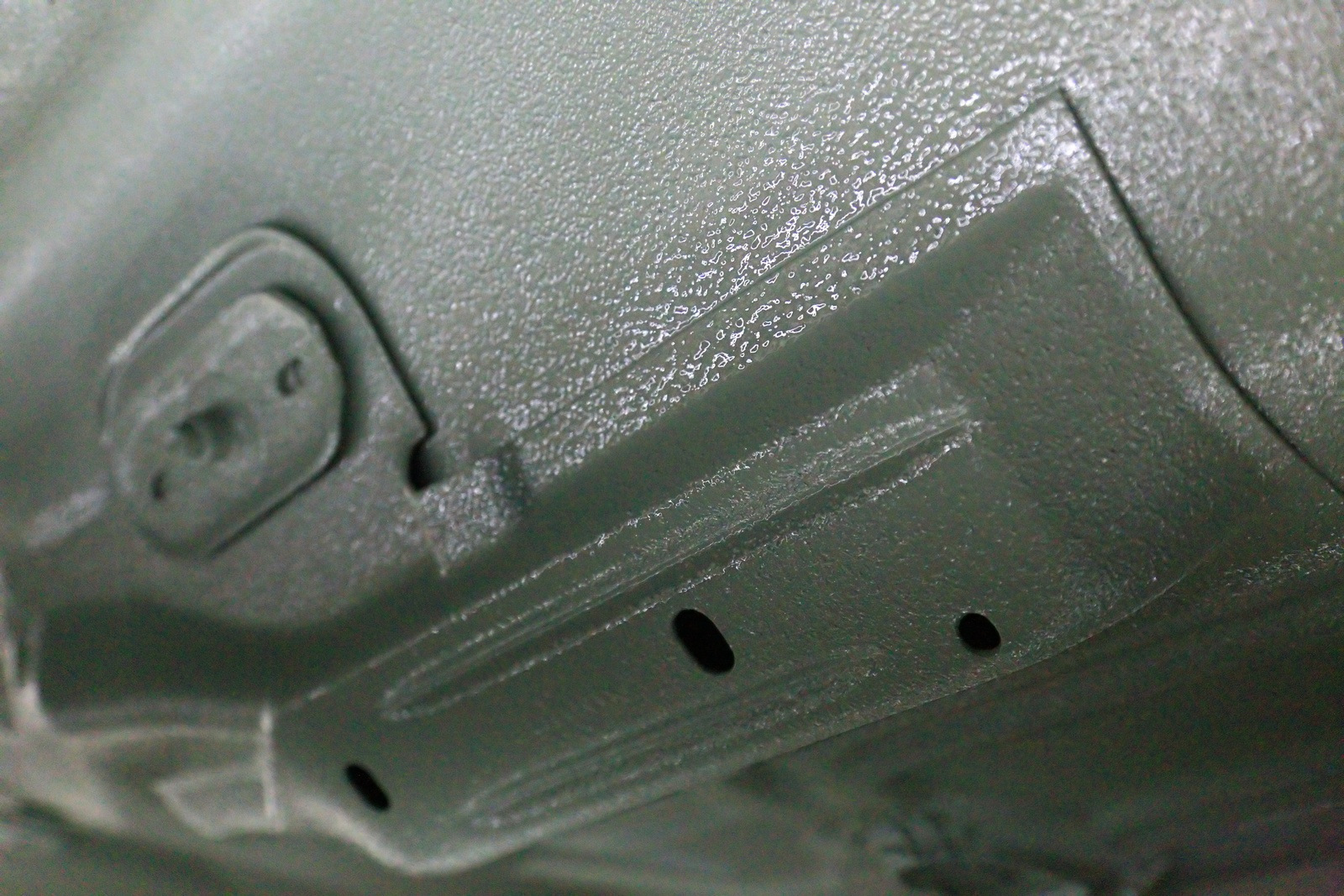

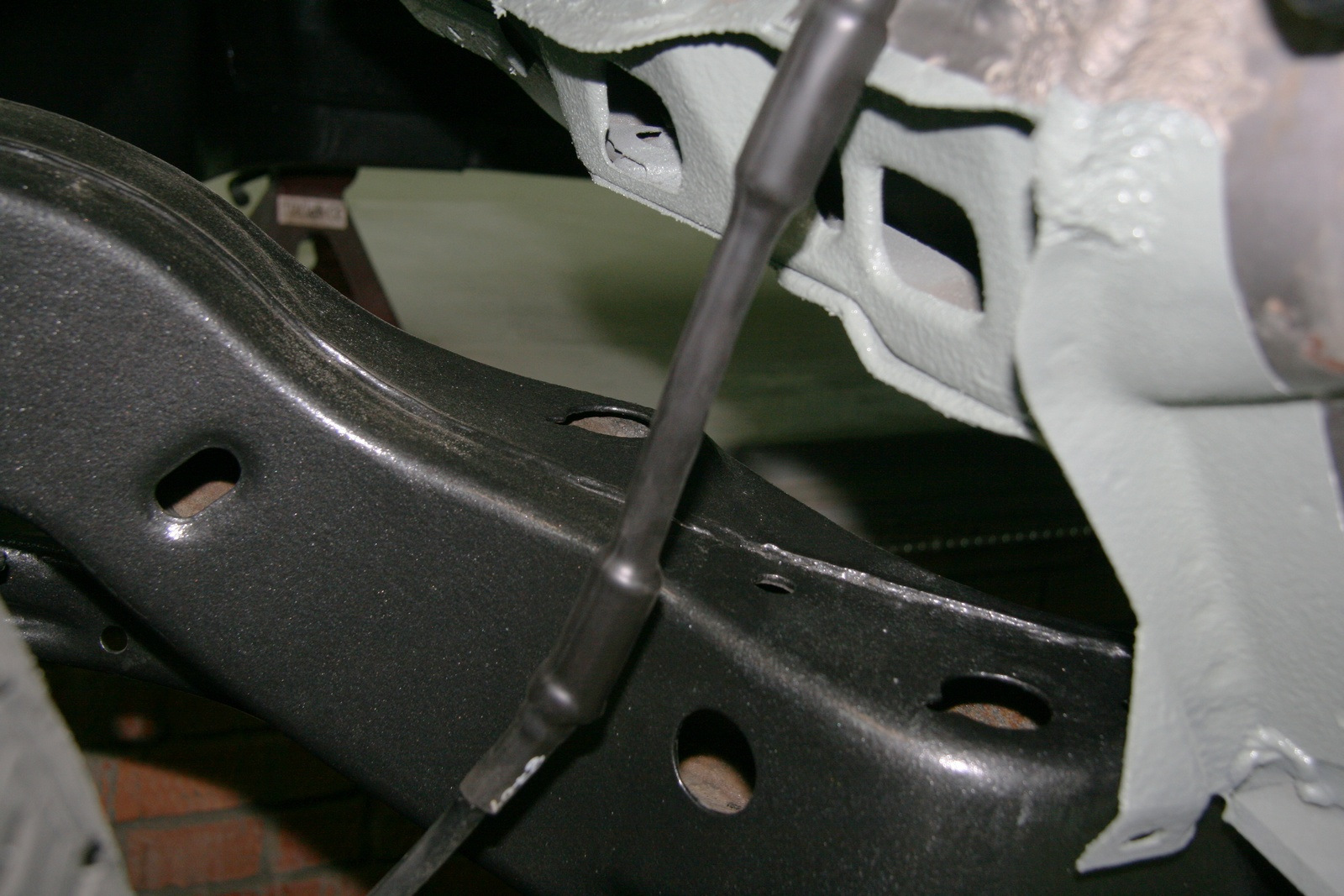

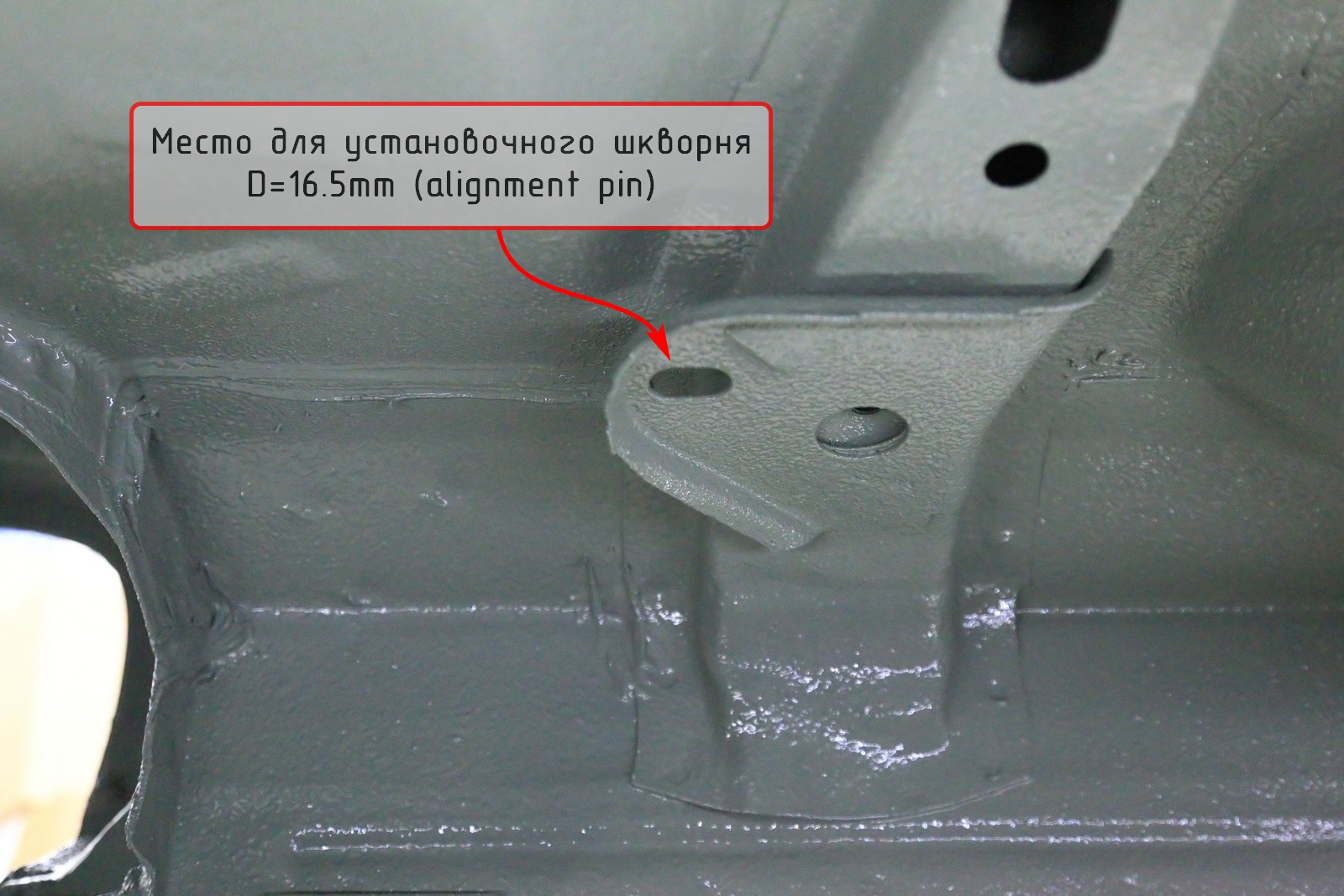

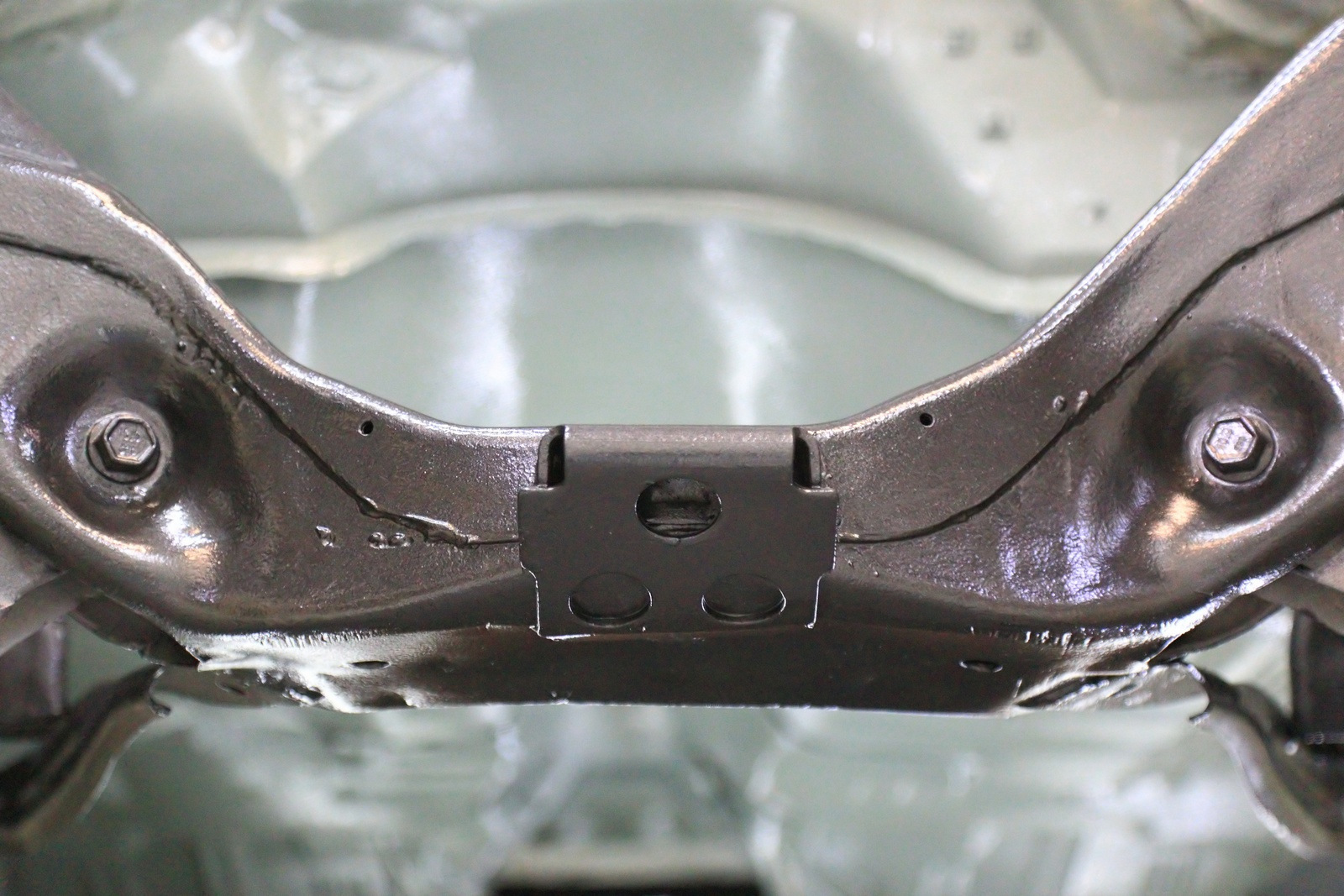

This is the location of the front alignment pin, which is used to position body on a frame

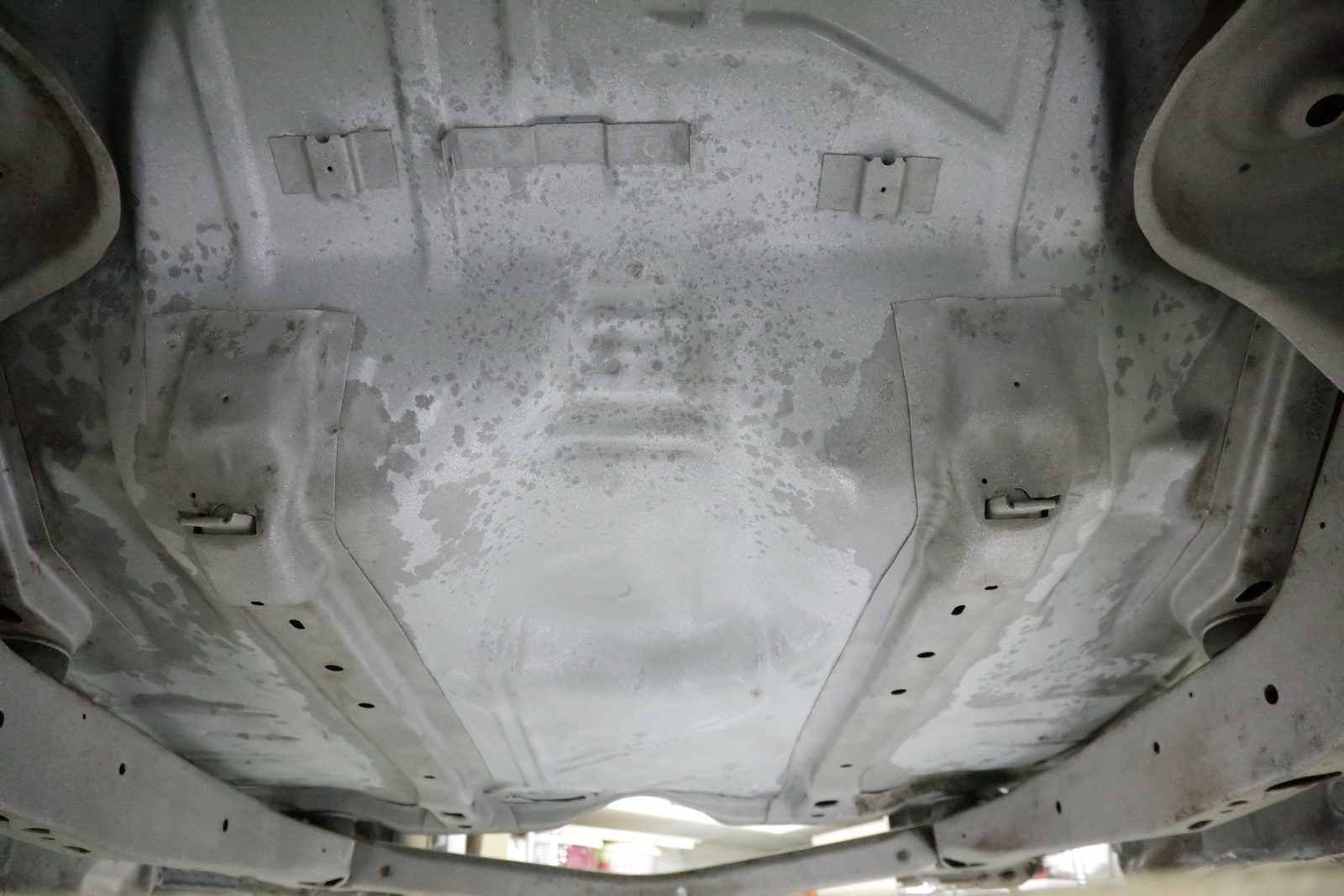

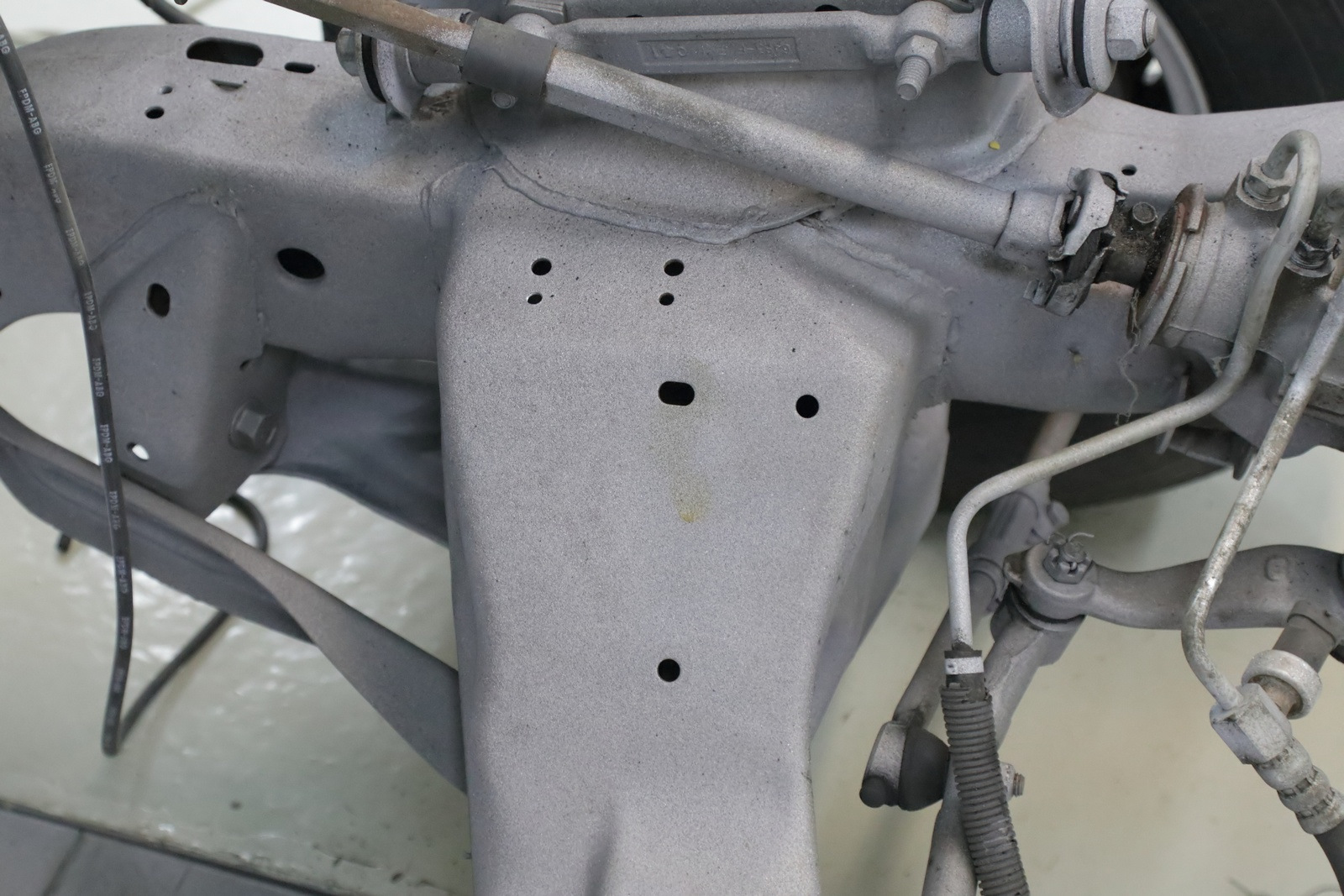

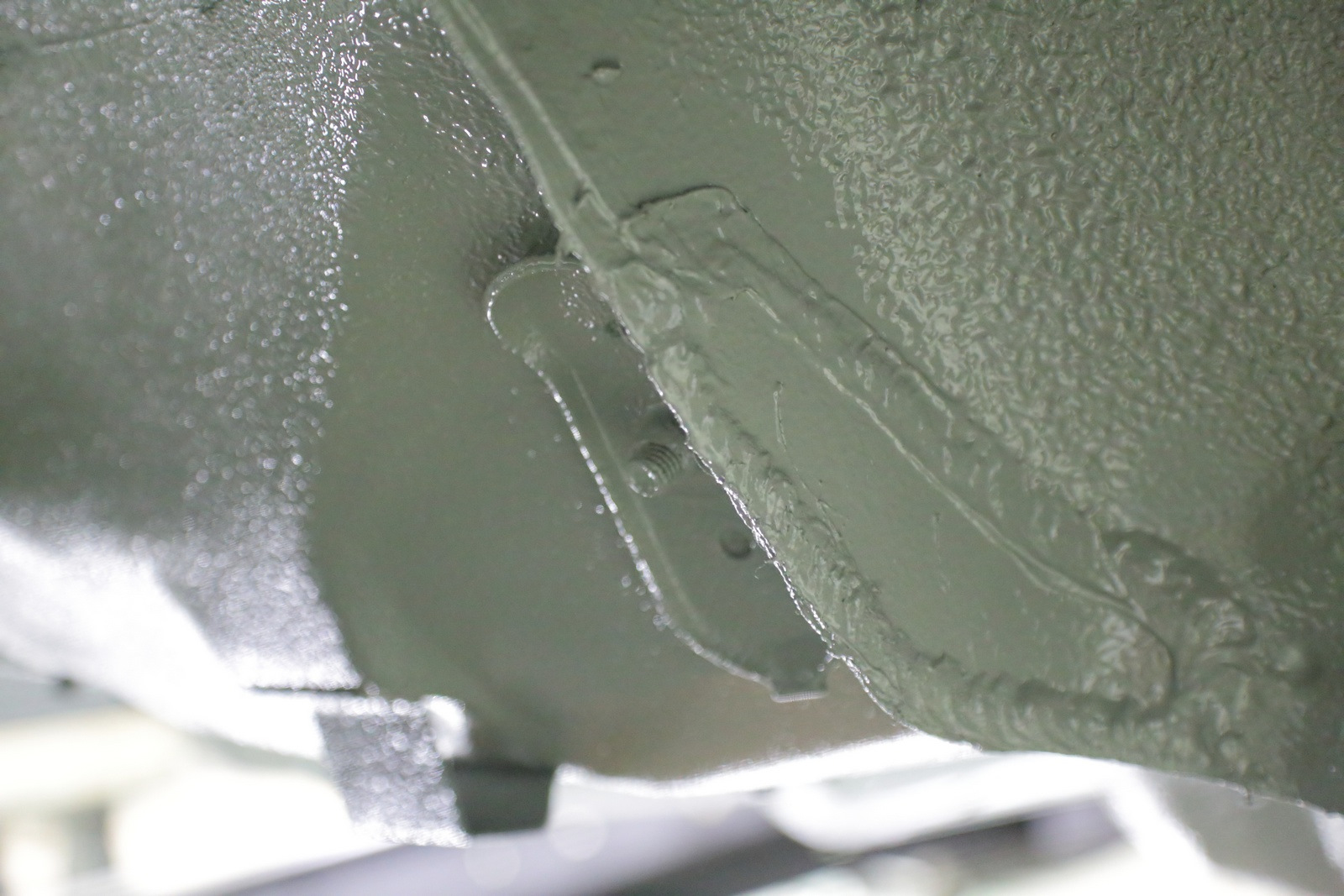

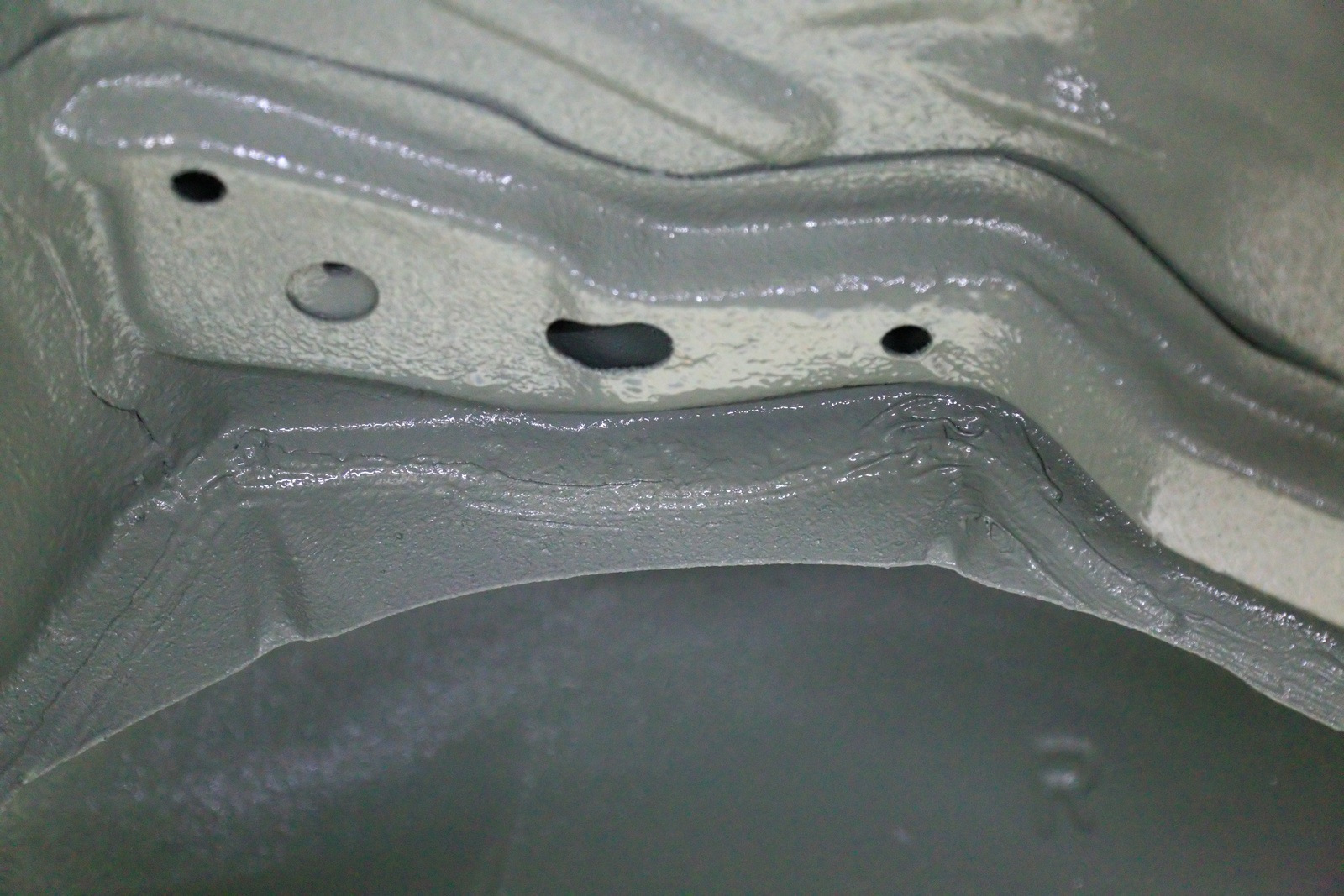

Looks much better than before

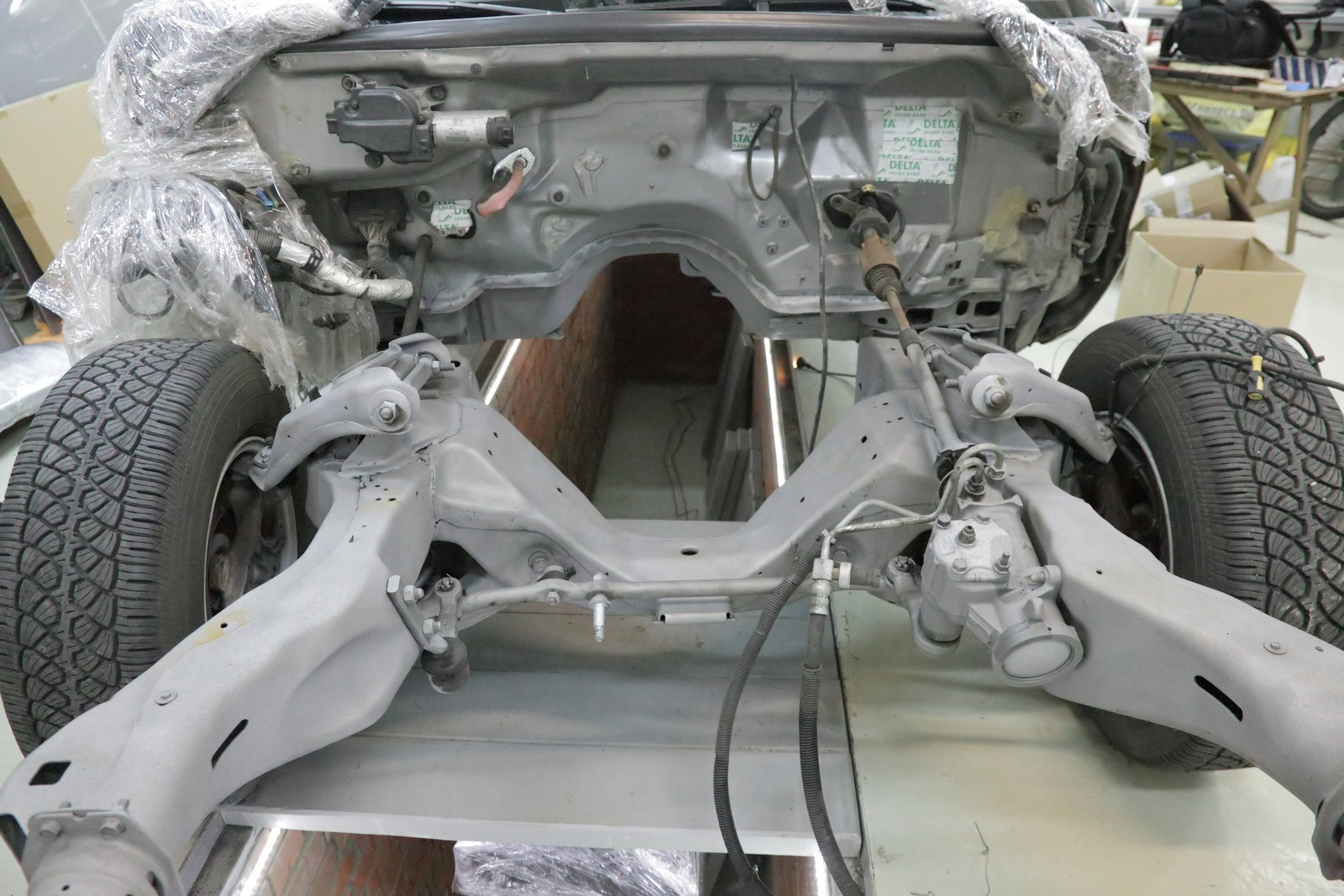

Front suspension will go soon to the sandblasting

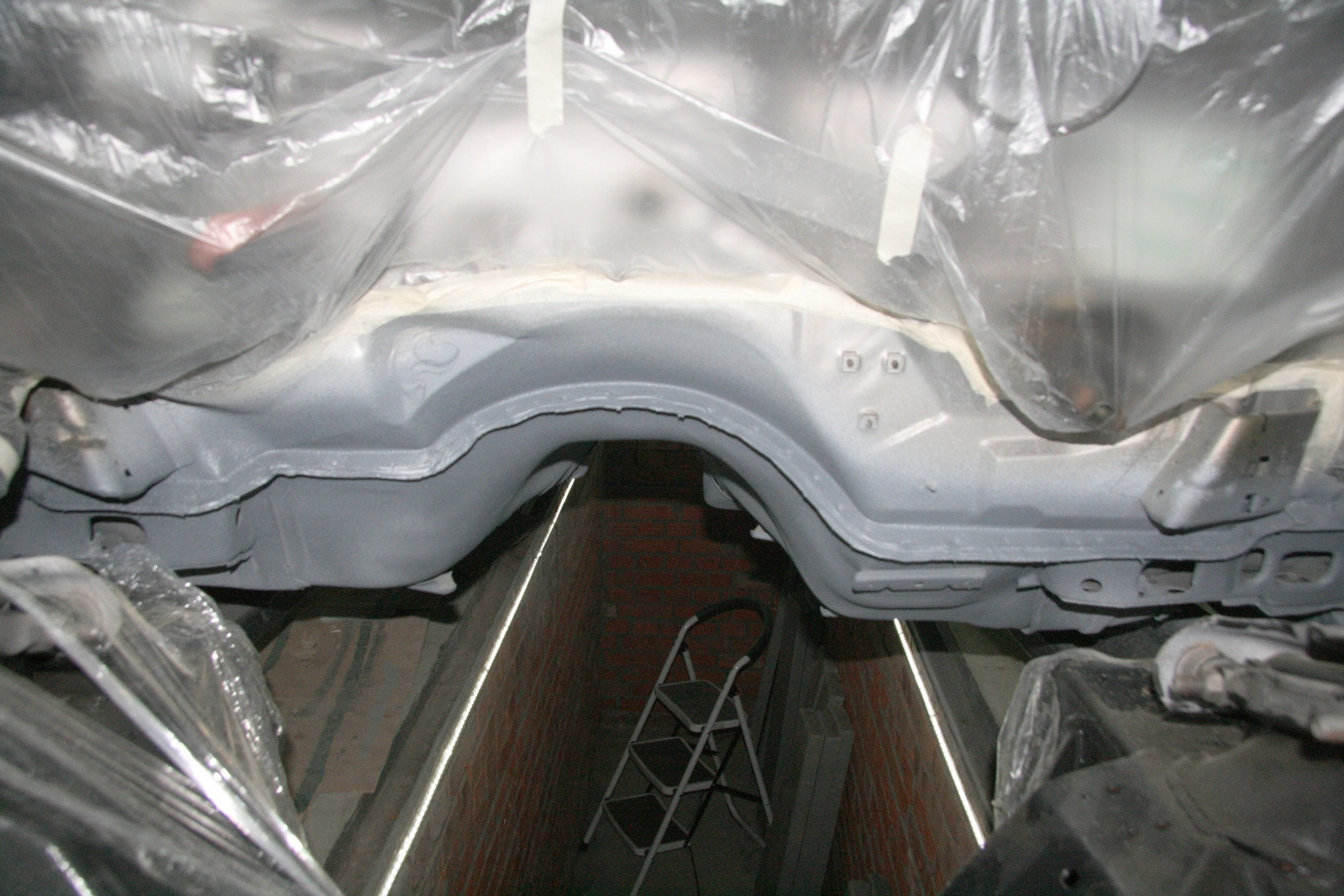

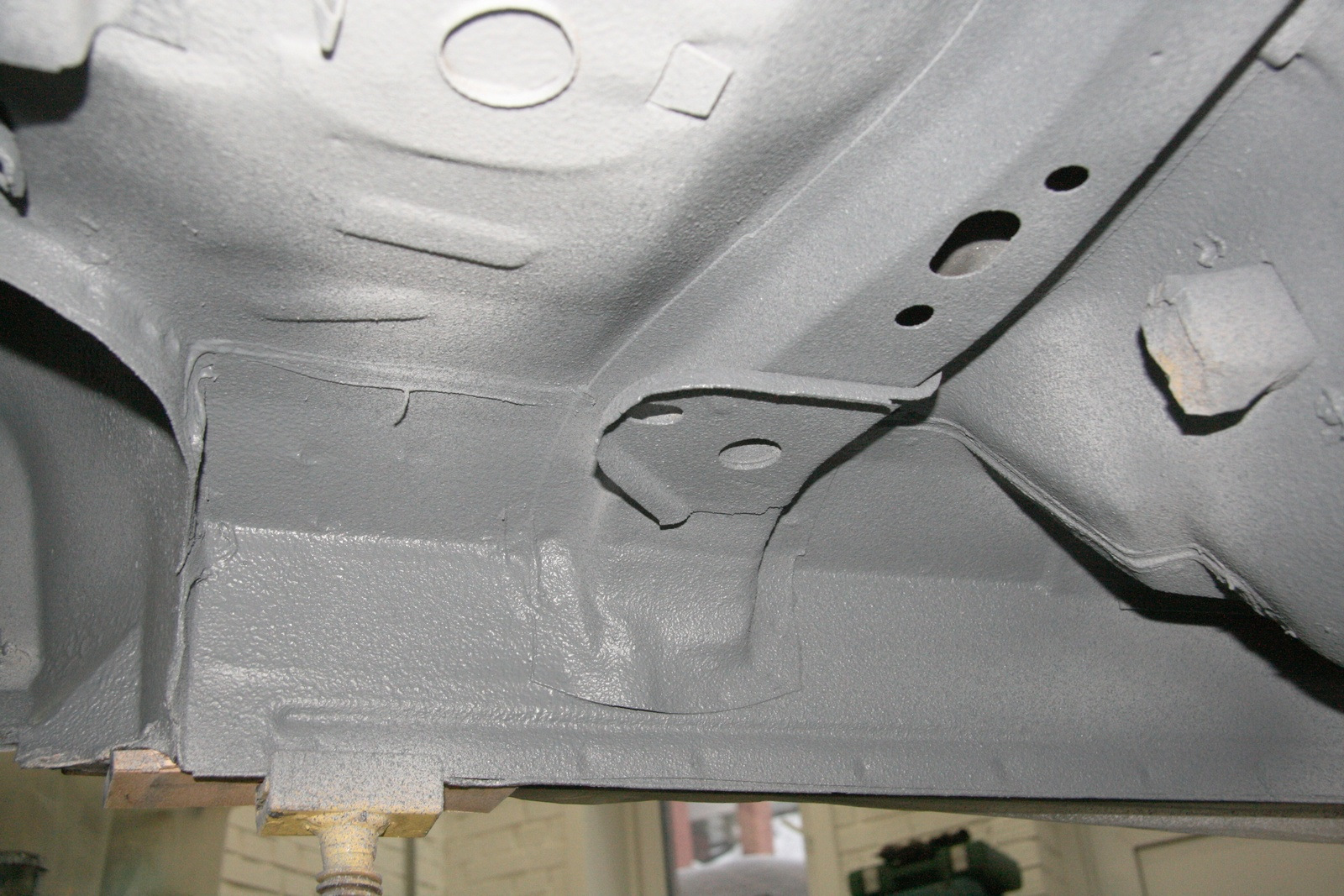

2K final coat is needed to cure all the pores on antigravel, as antigravel can't be the final coat



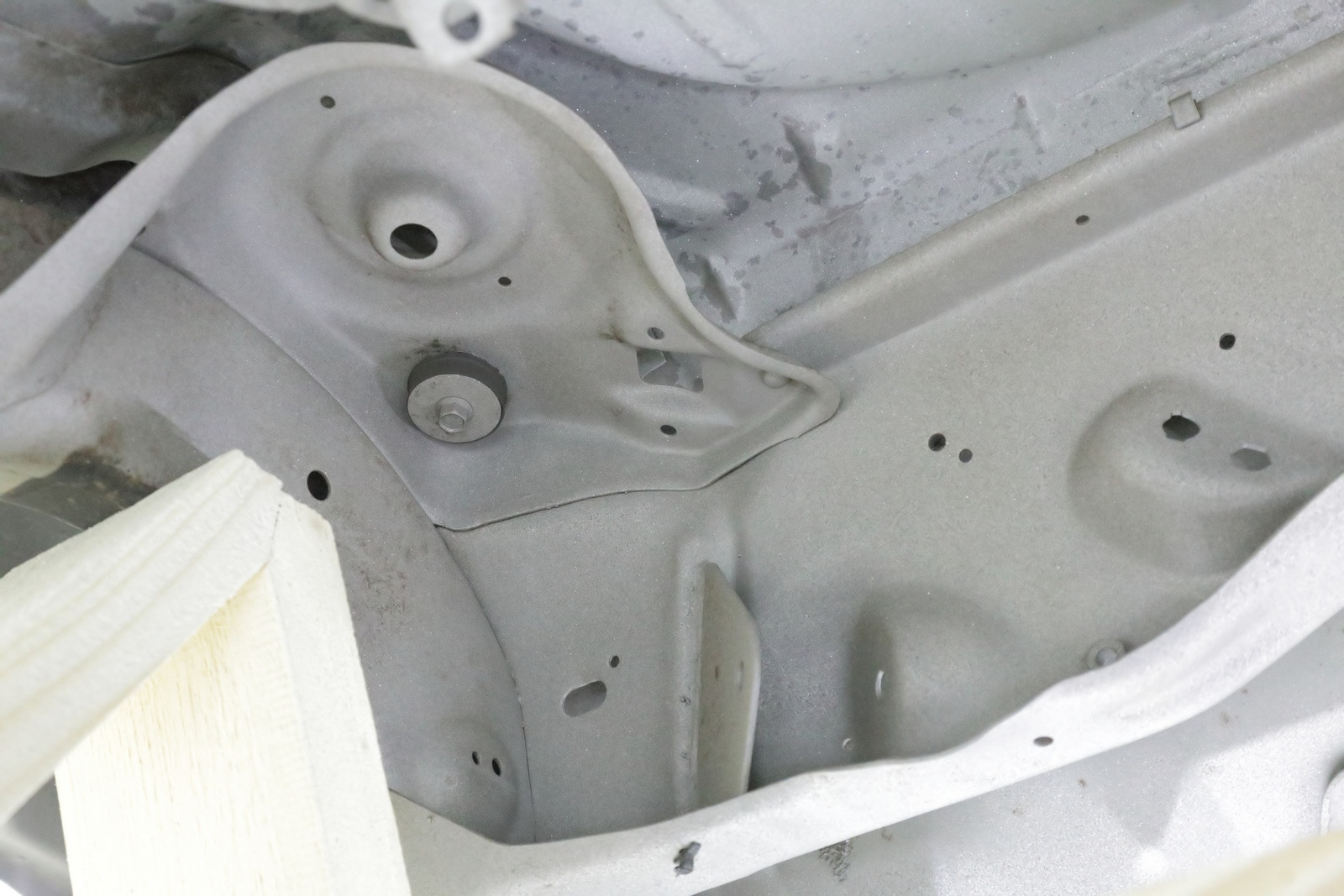

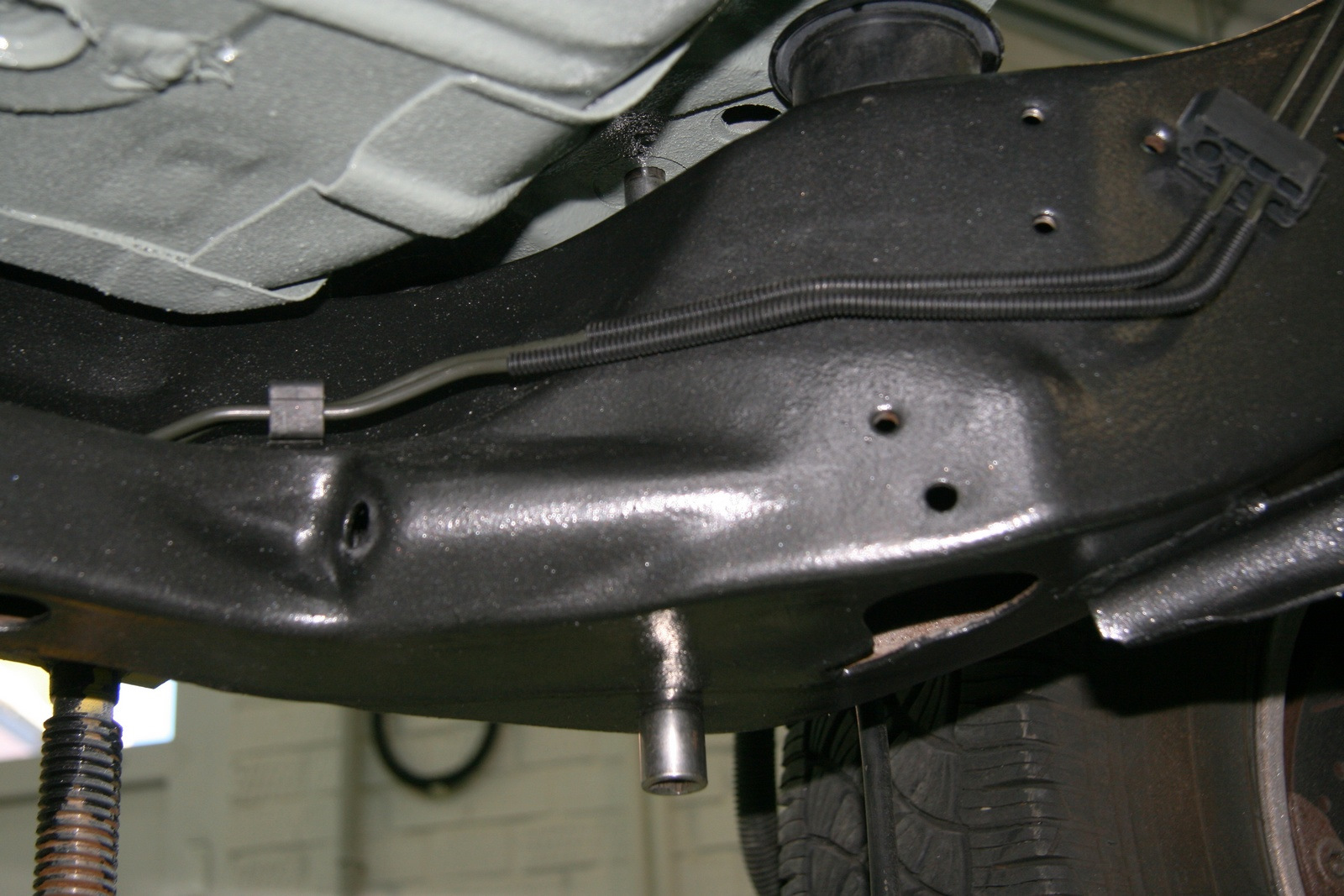

Rear alignment pin location

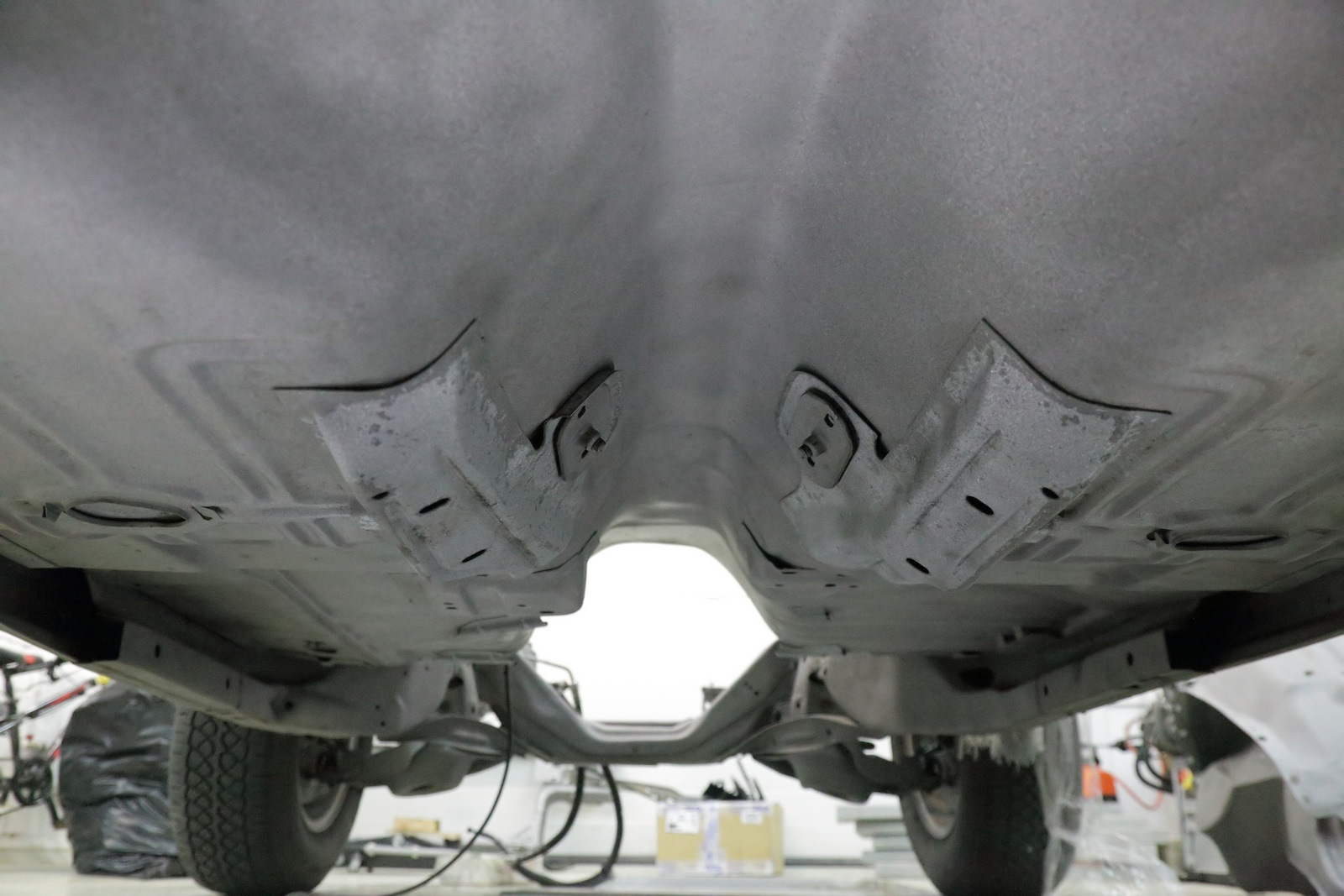

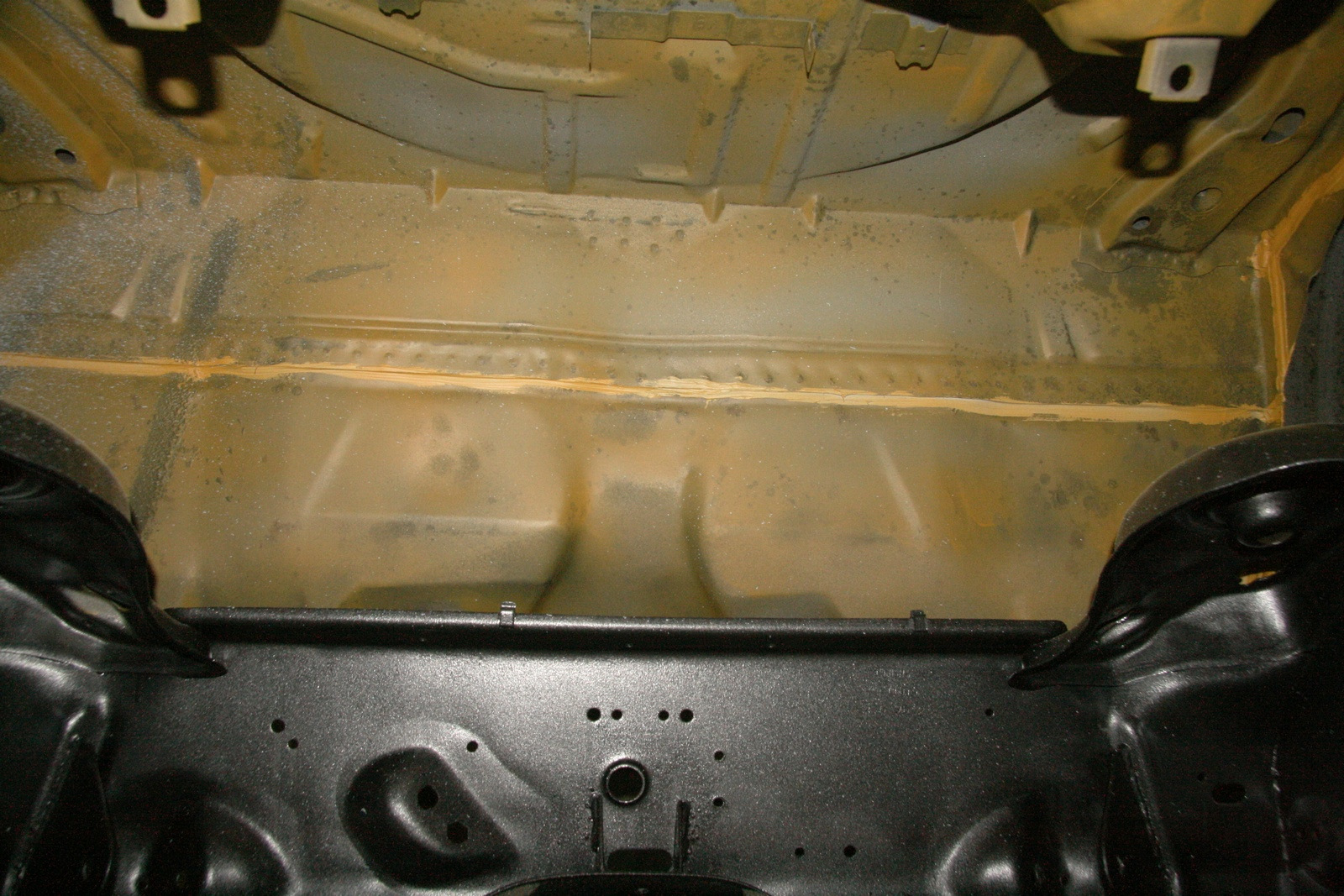

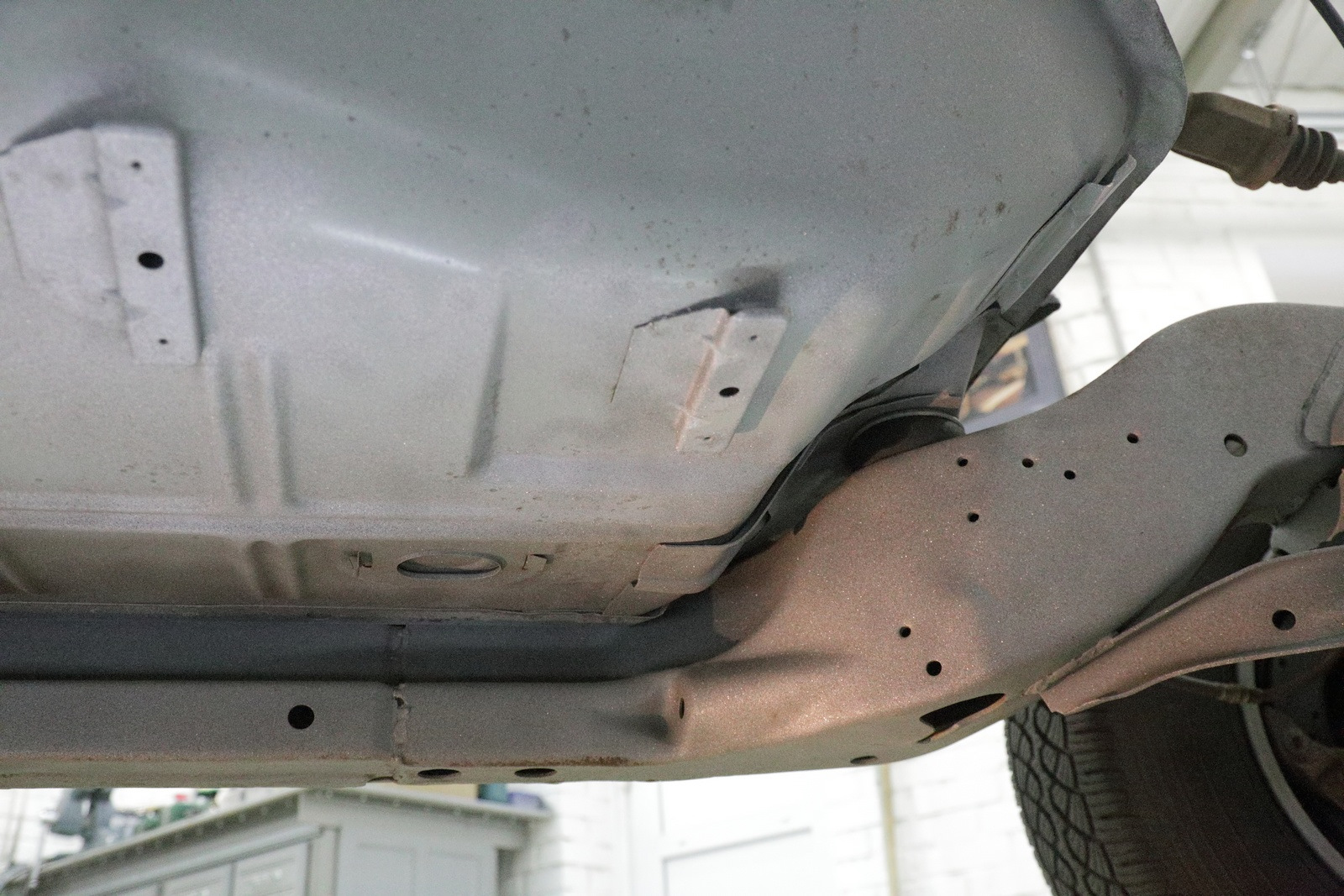

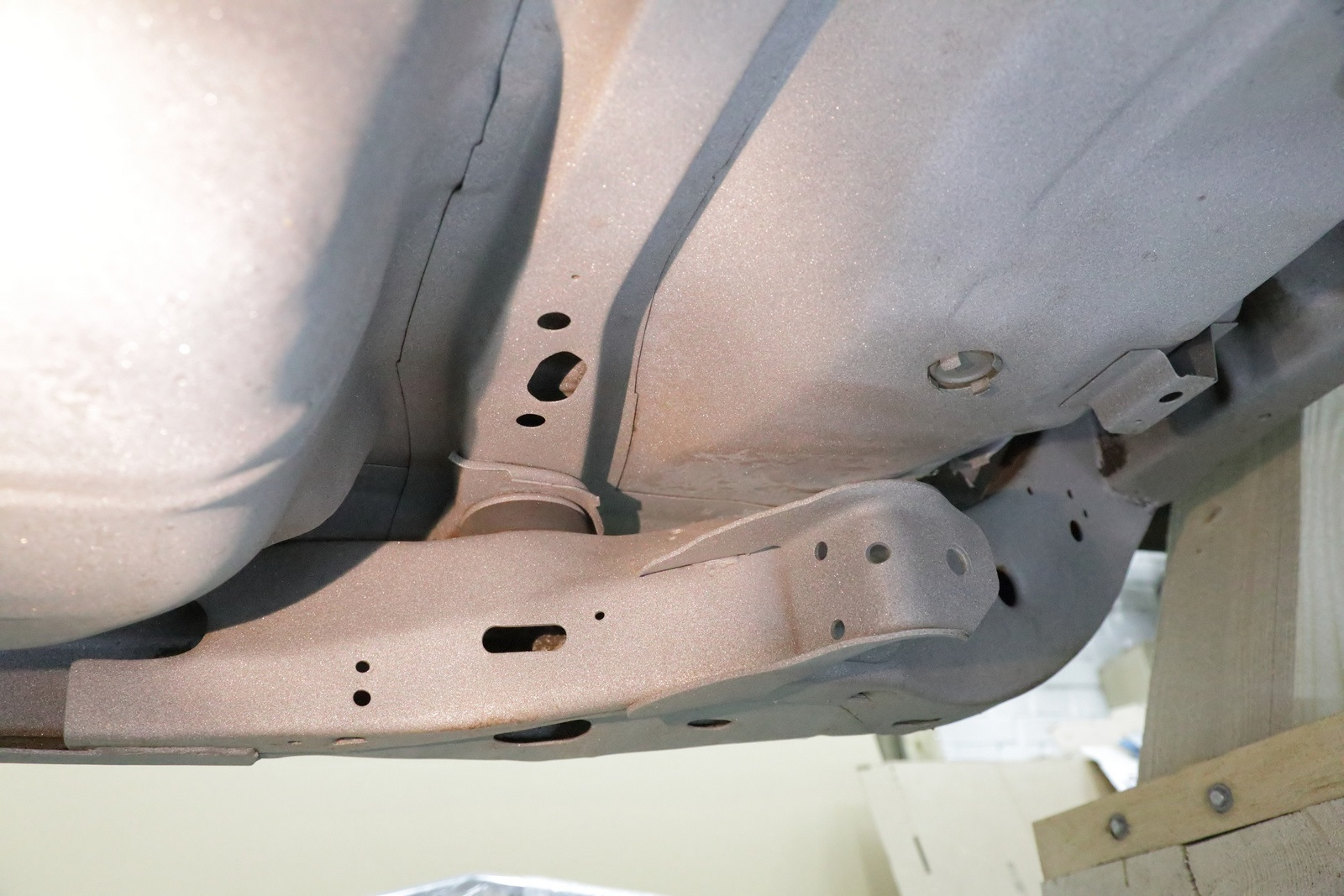

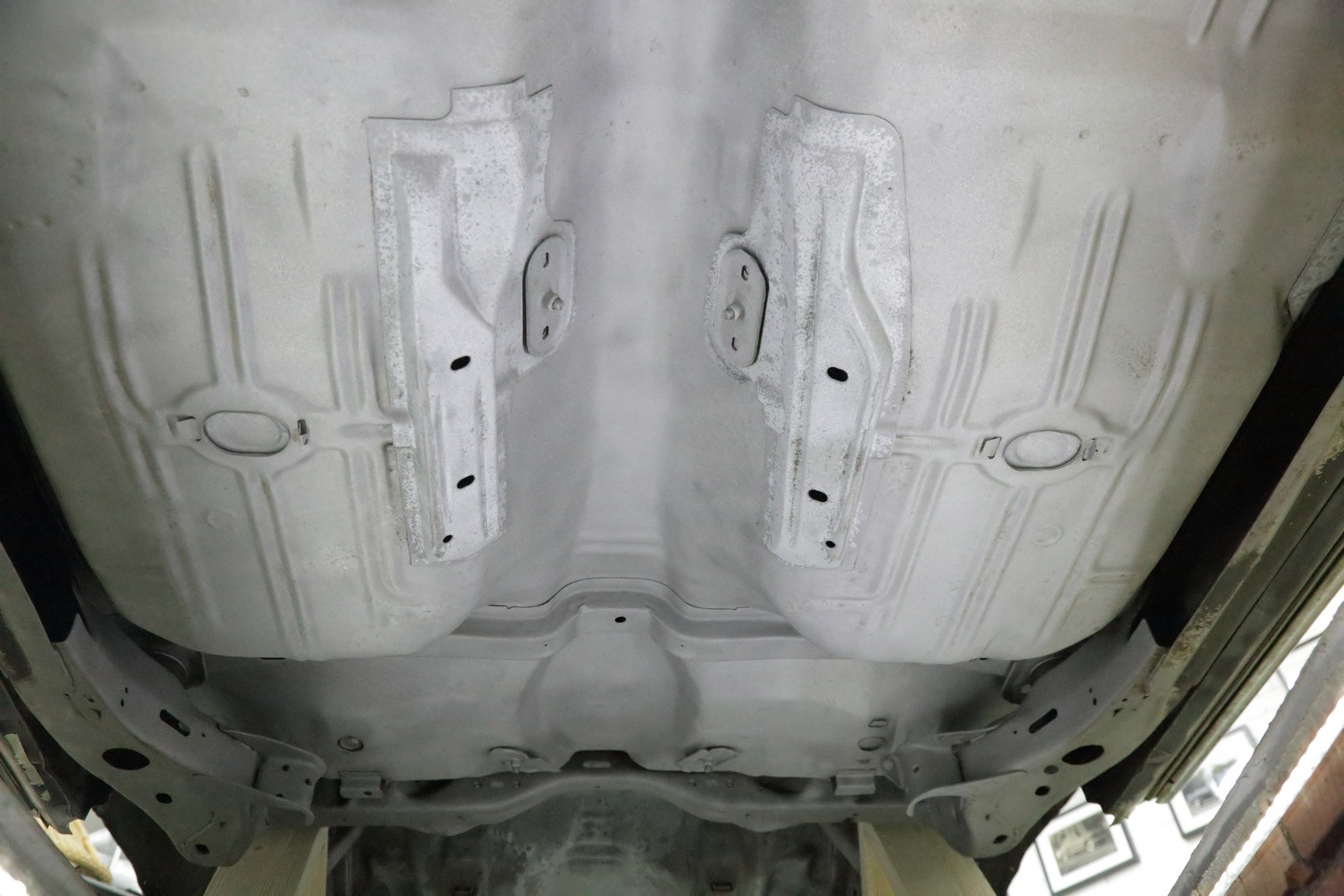

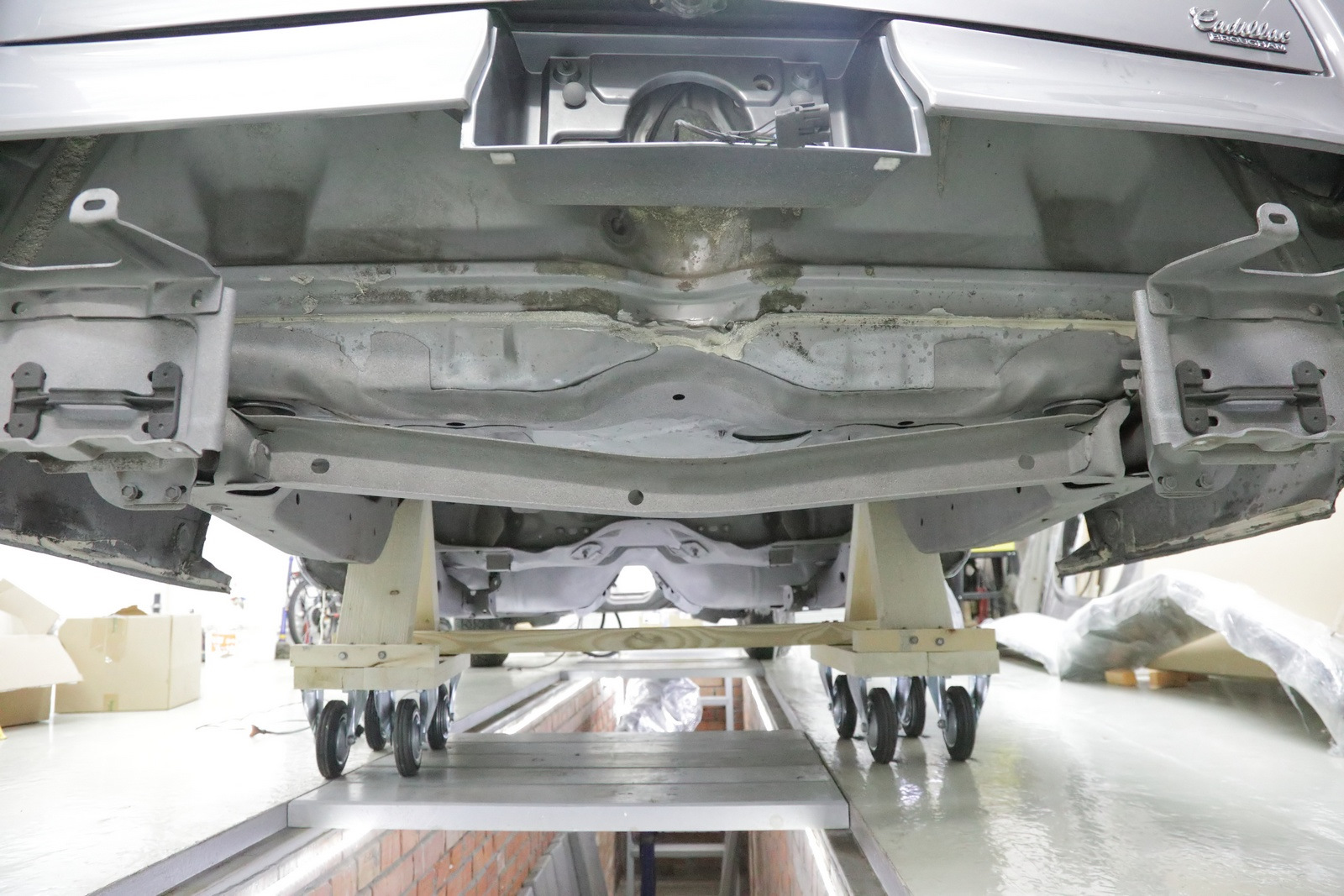

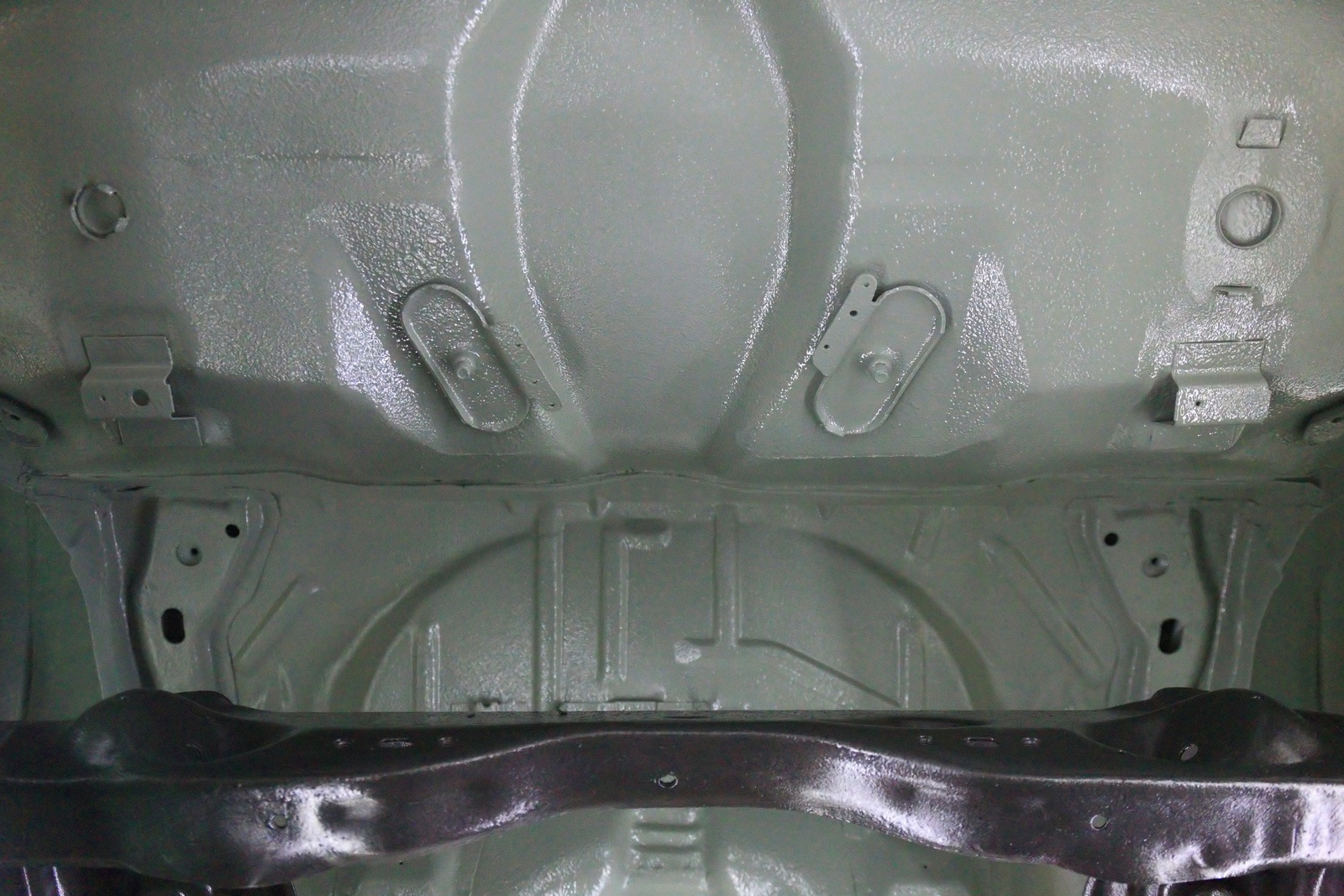

Bottom of the trunk





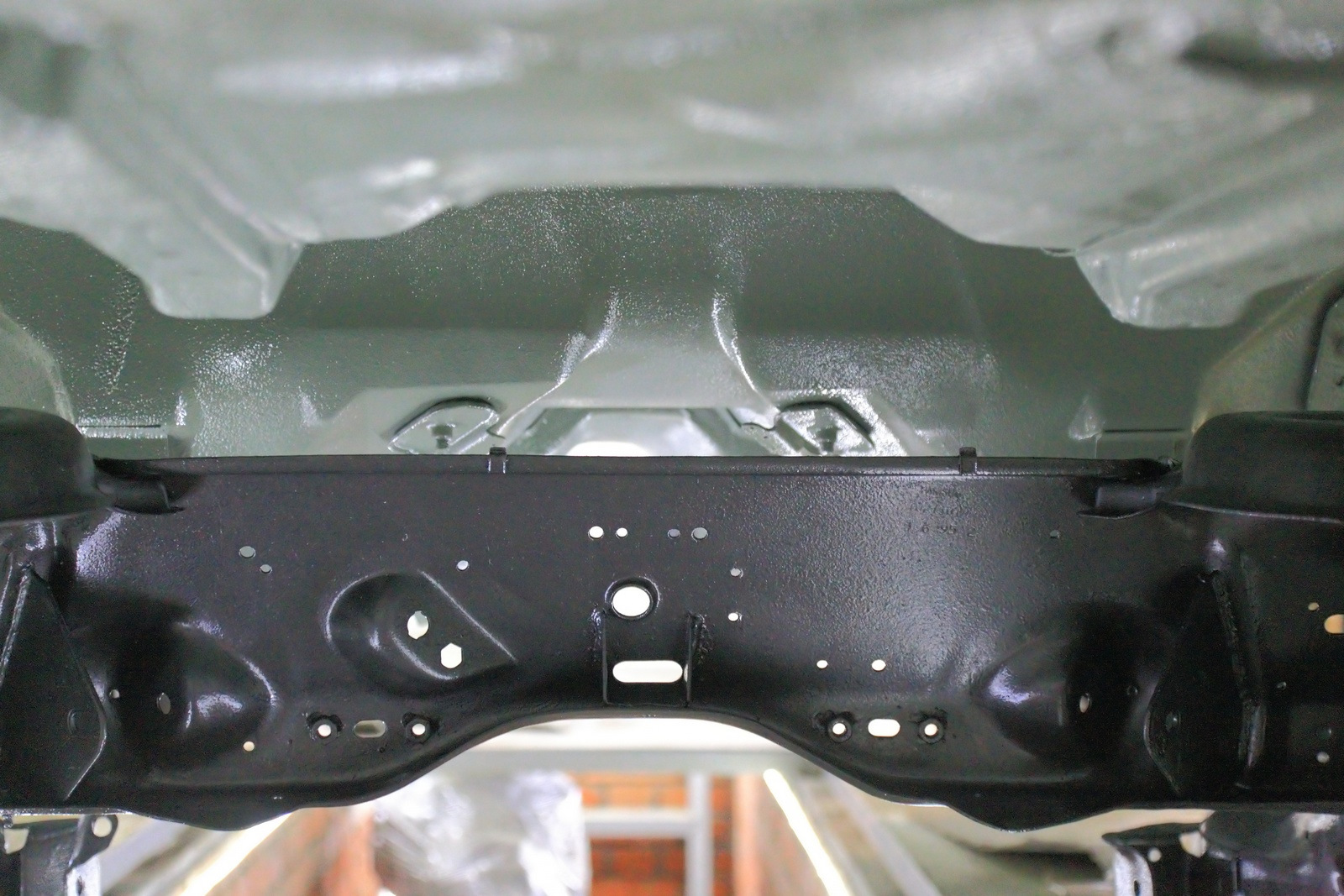

Rear frame crossmember

[Roger Zimmermann]

Impressive work. Something I'm wondering since some time: apparently, the license plates are Russian. But where did you perform the work? In Russia or the US?

[kudims]

Impressive work. Something I'm wondering since some time: apparently, the license plates are Russian. But where did you perform the work? In Russia or the US?

It was in Russia, and I had to sell this car in Russia before relocation

[kudims]

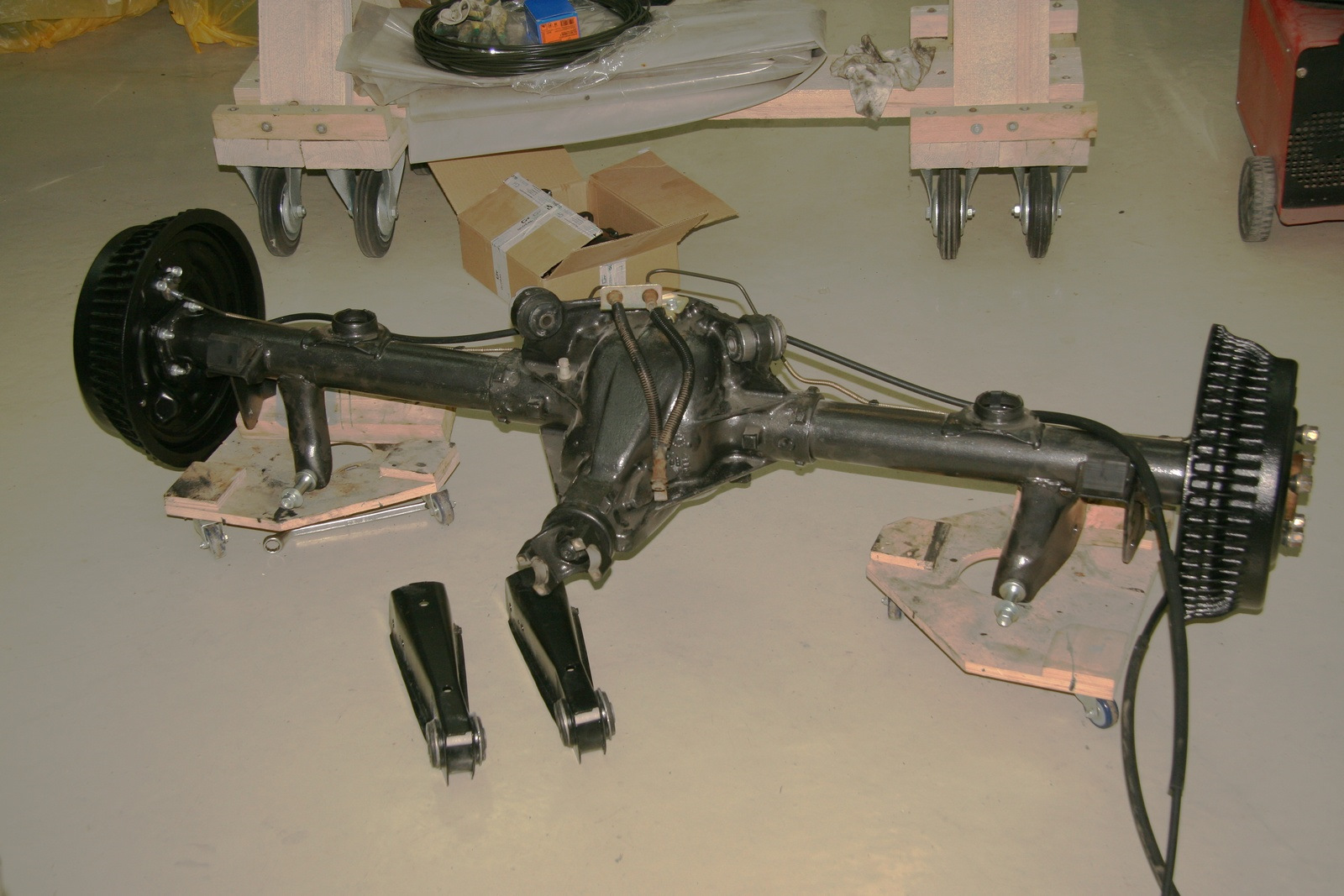

Rear axle

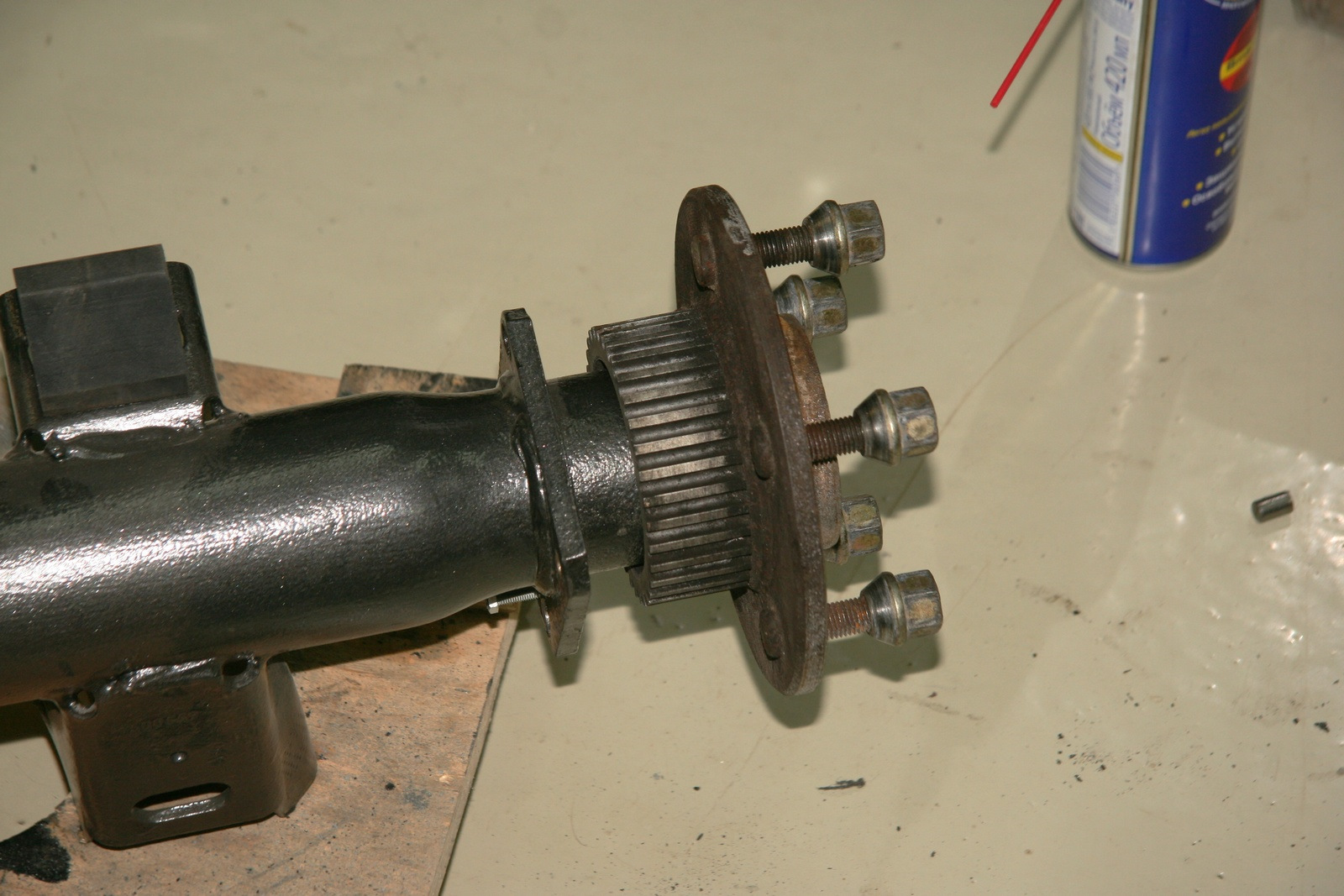

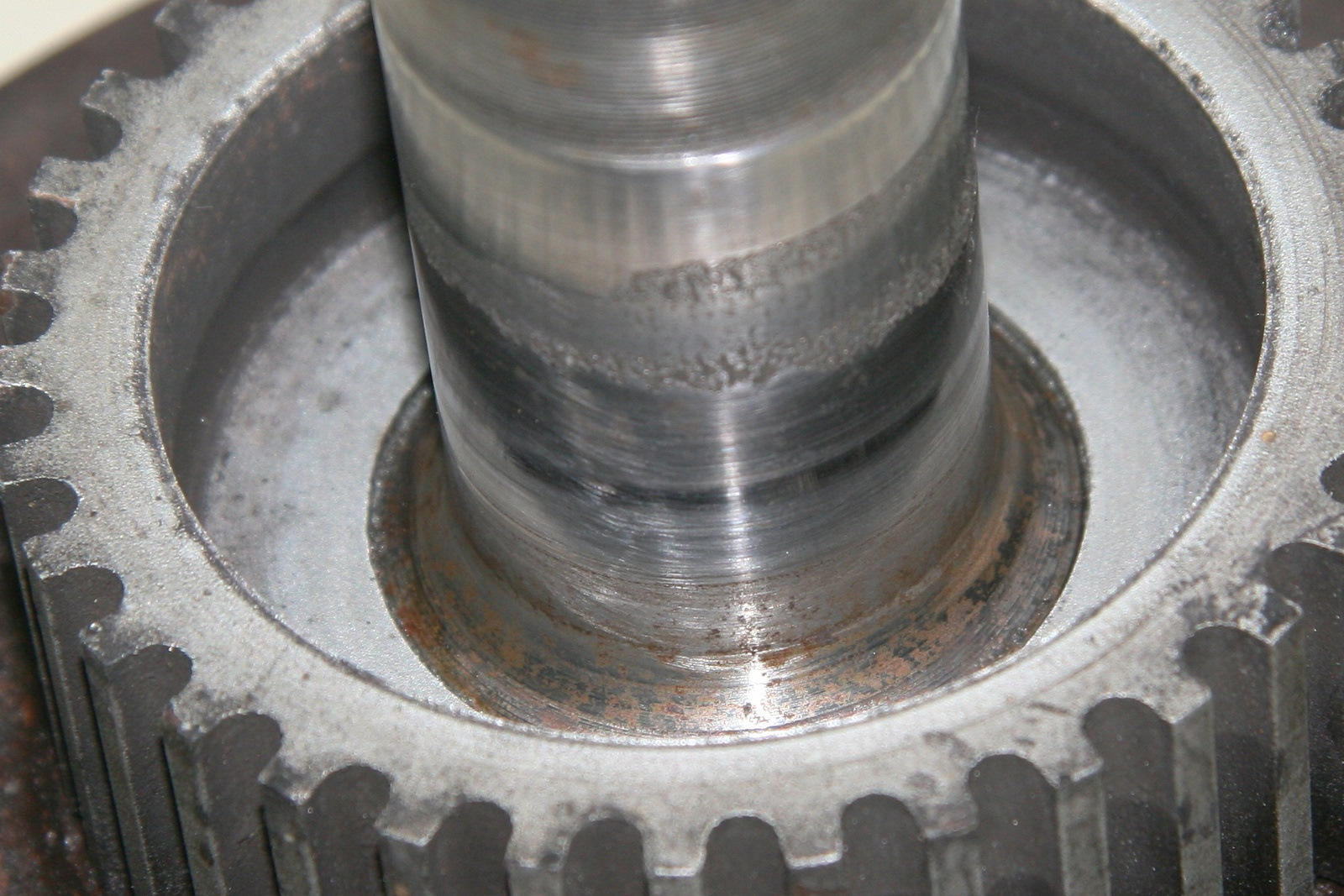

As I mentioned earlier, one of the axle shafts was irreparably damaged. Fortunately, along with the car came another axle shaft—scored by a bearing but without any welds or attempted repairs—which is a huge plus, saving a lot of time and some money. Here's why: in the U.S., you can buy special TIMKEN repair bearings (model TRP1563TAV) that replace the factory bearings. The trick is that they ride on the still-undamaged portion of the axle's machined surface!



Left bearing - new original



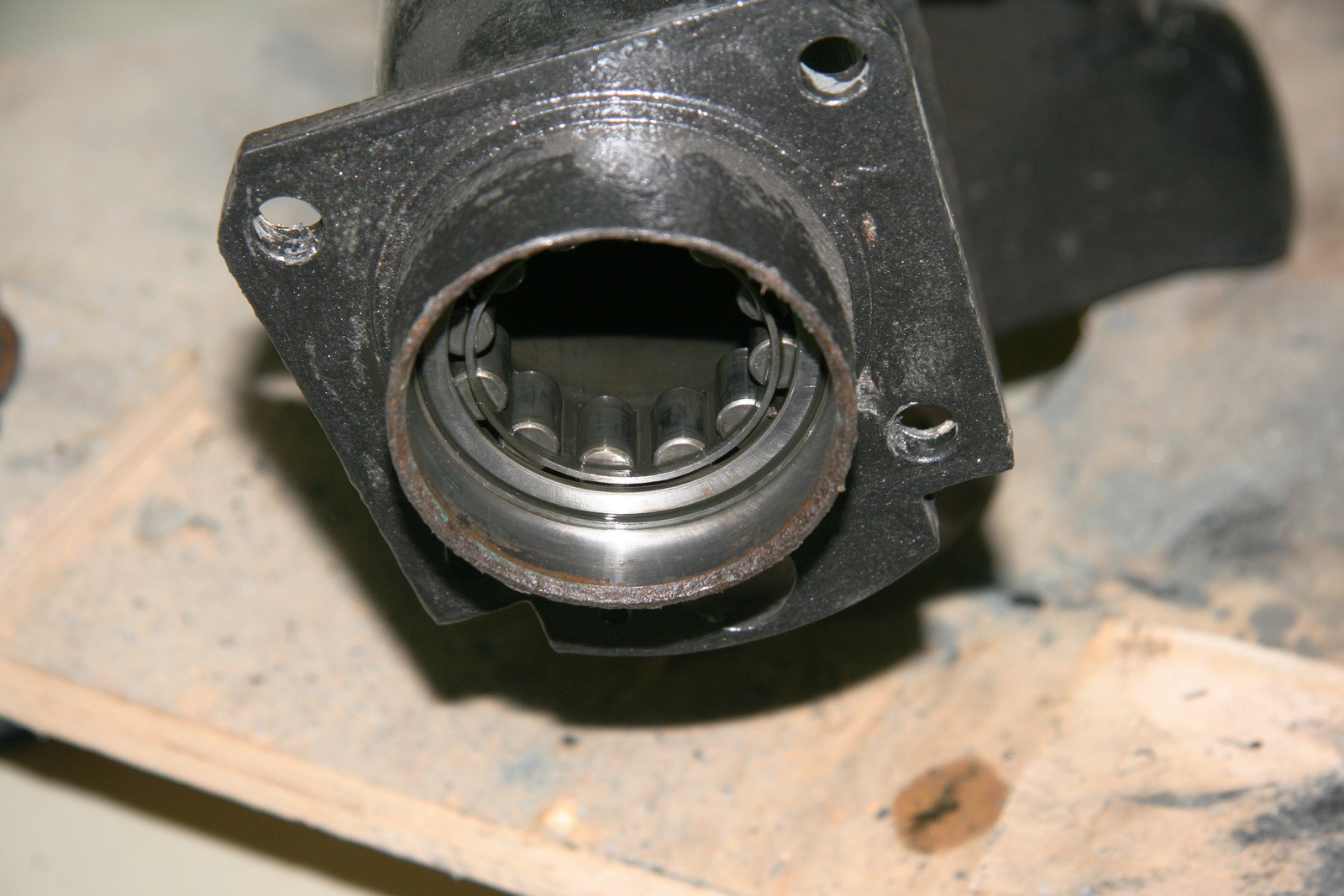

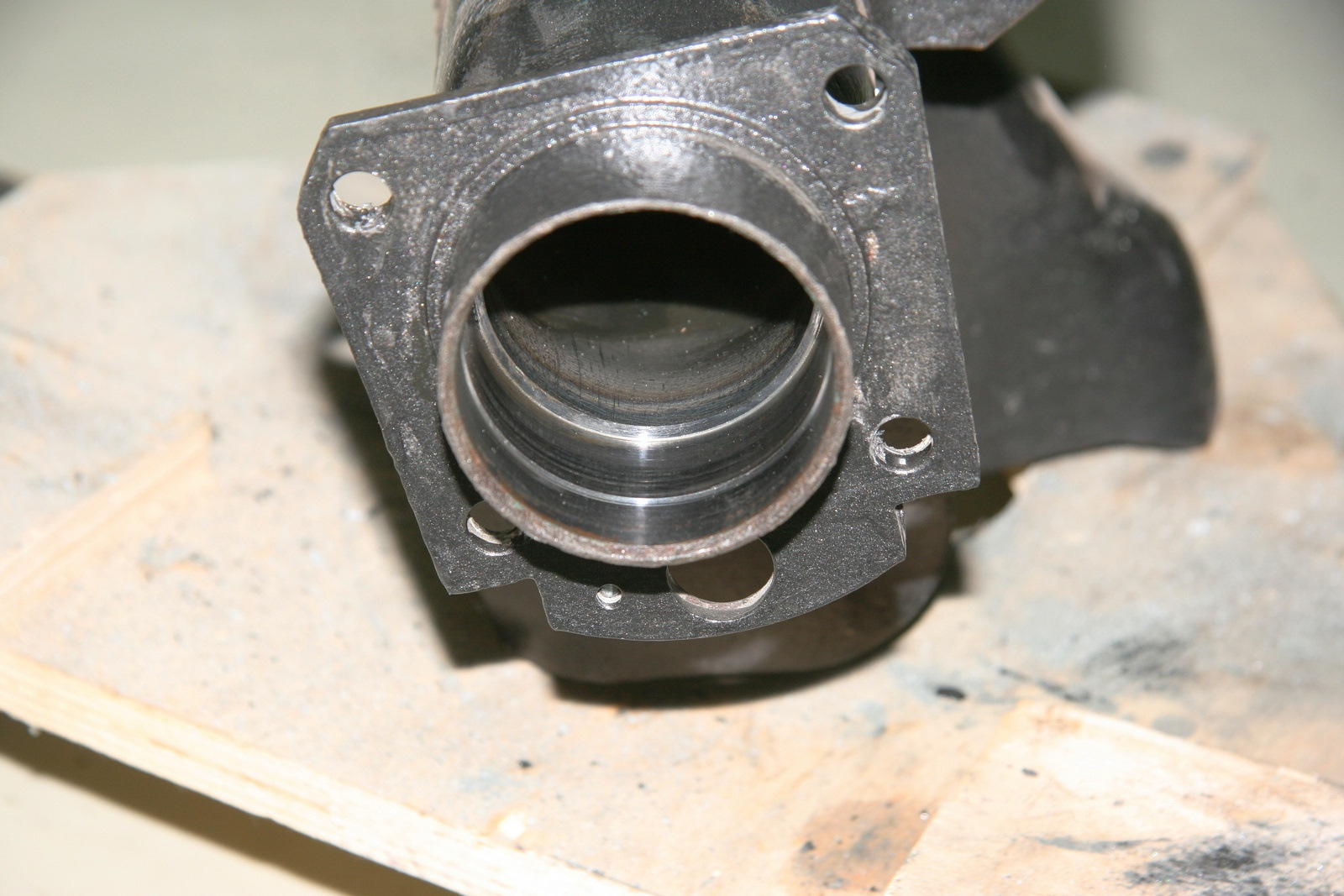

Right bearing housing



This axle will be used from the passenger side. The problem is that these axles for 93-96 Fleetwoods are IMPOSSIBLE to find new. They just do not exist

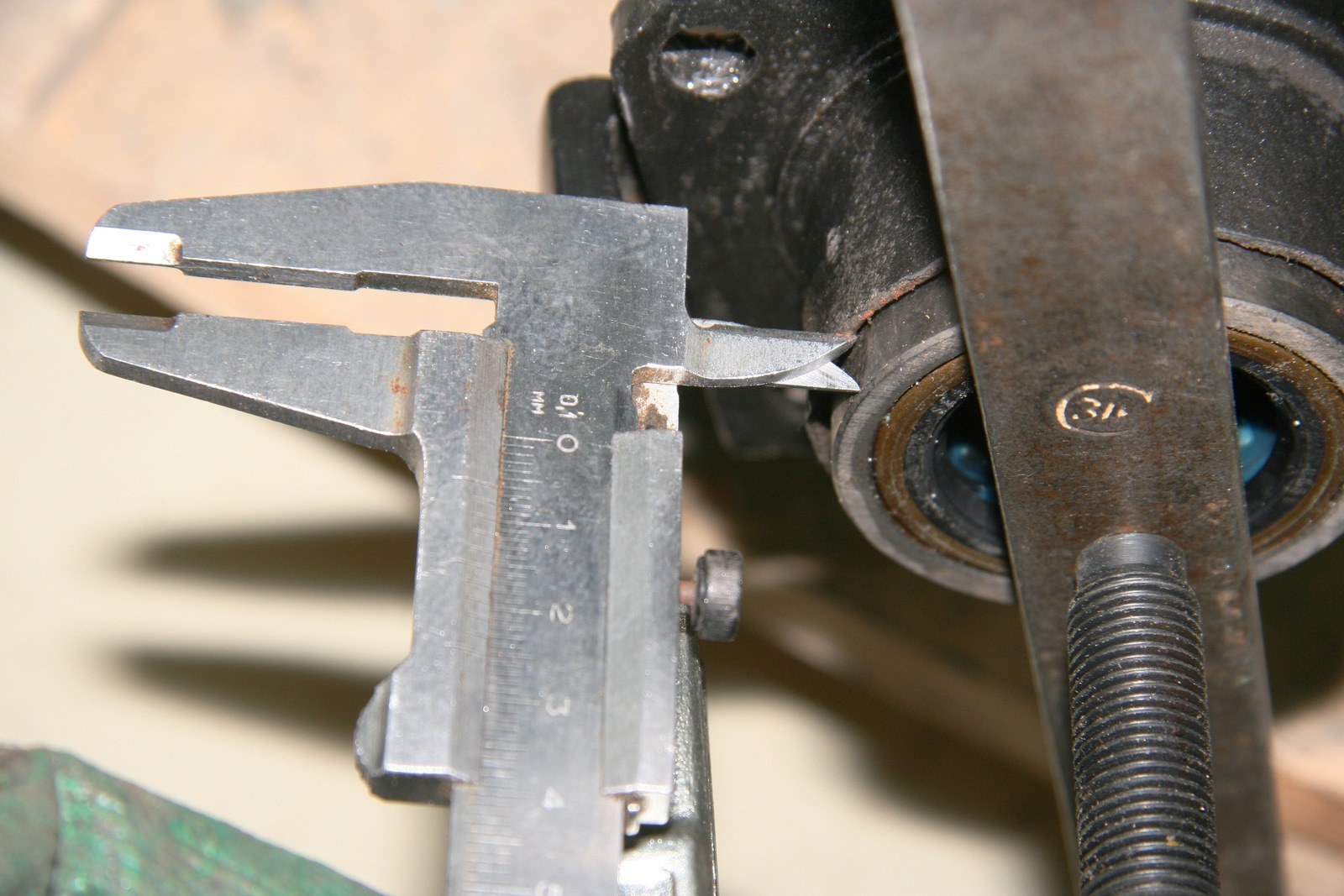

The repair bearing must be positioned 1/4" or 6mm off the housing



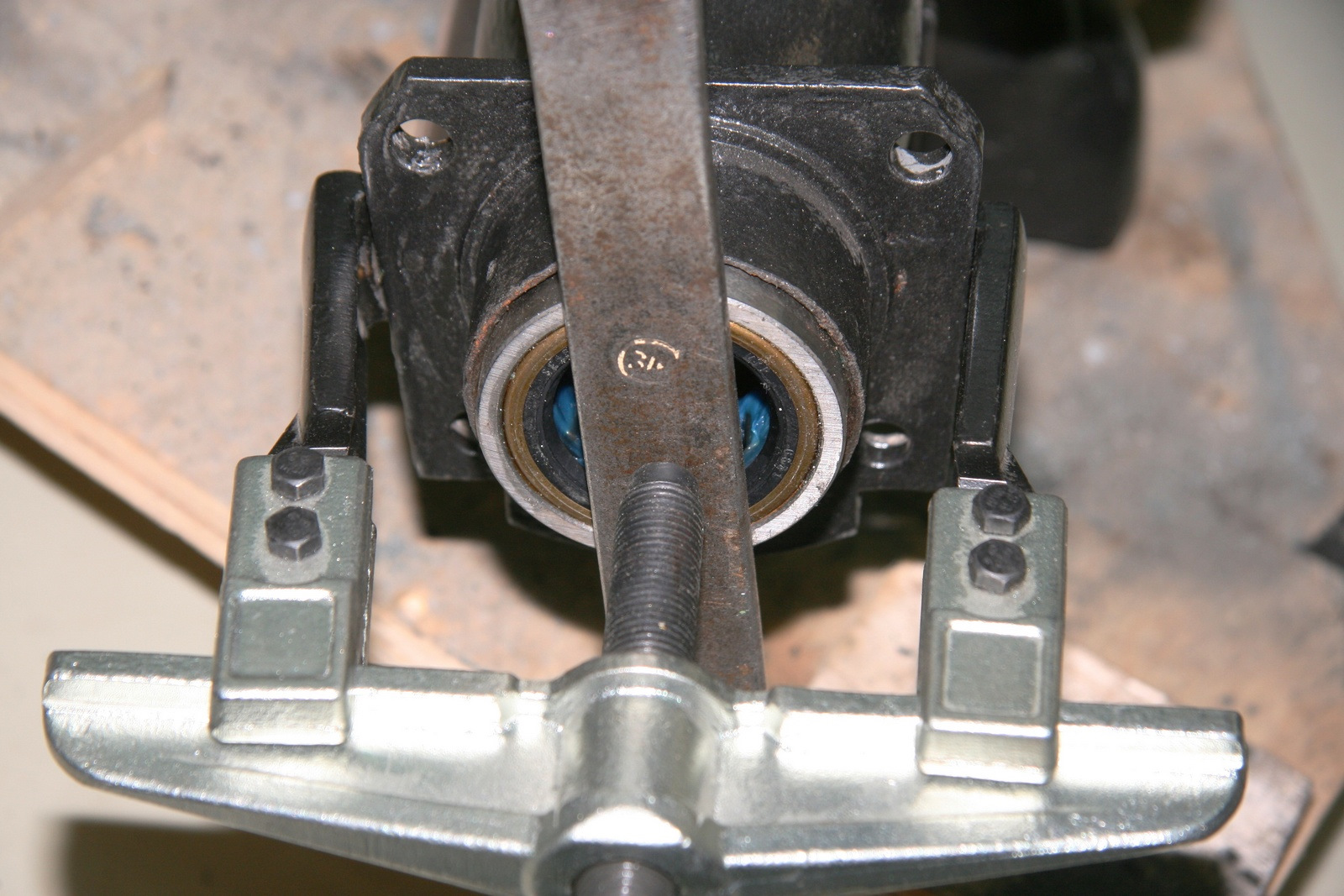

Tool used



Once the bearing is in place, I double checked with a marker that needles run over undamaged part of the axle neck



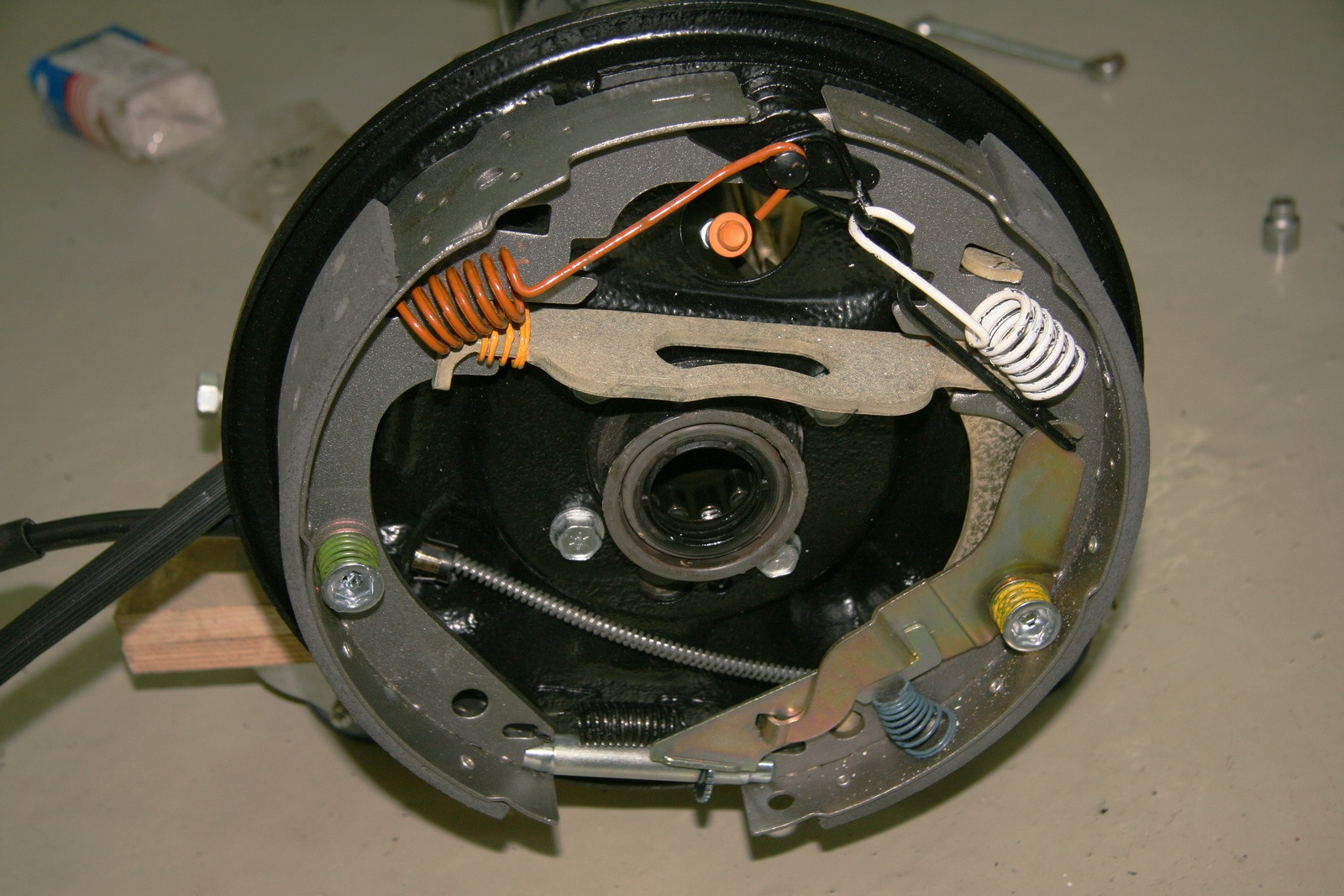

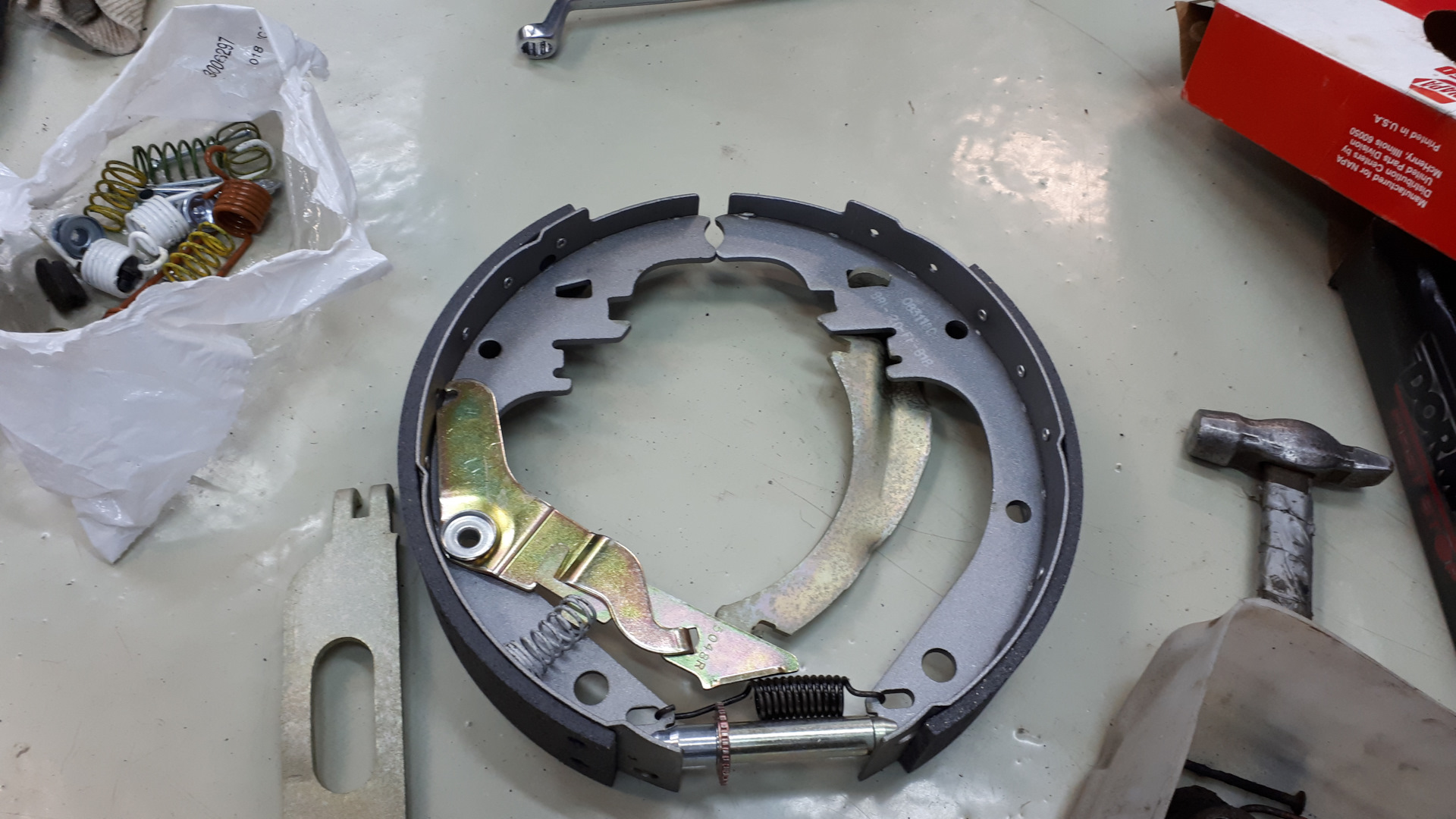

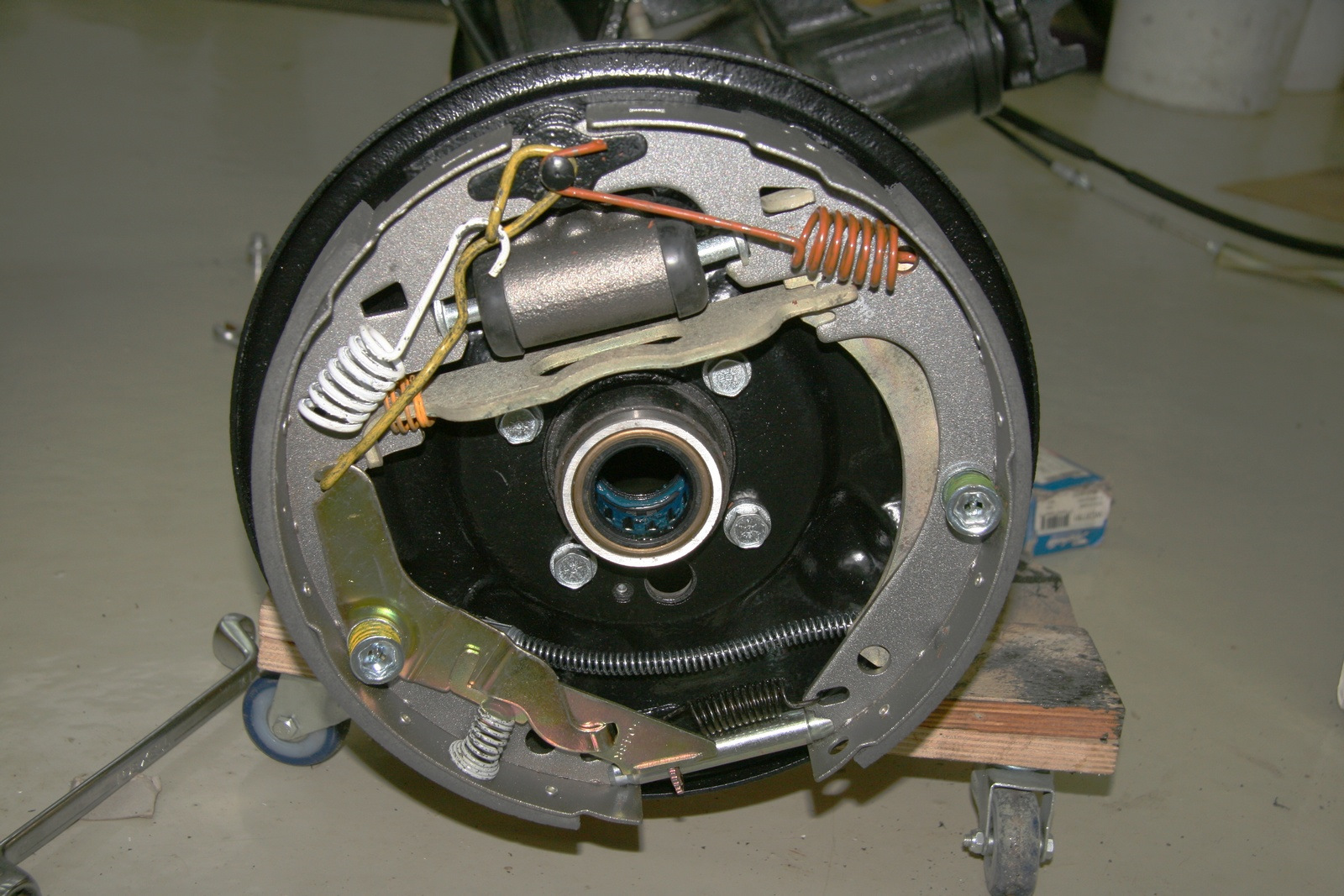

Pre-assembling of the drum mechanisms



It's ridiculous how many people assemble these mechanisms not correctly, after which self-adjusters do not work





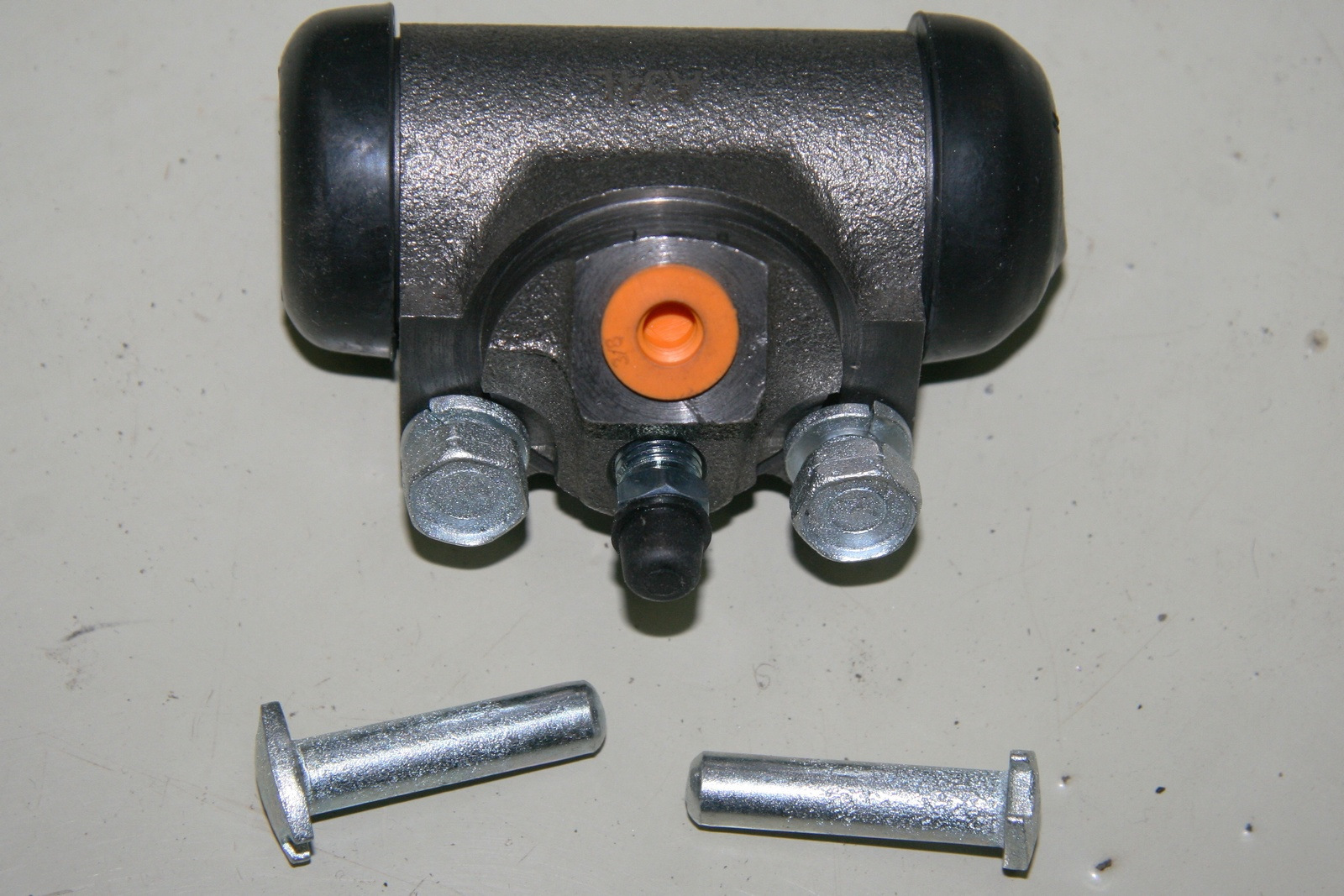

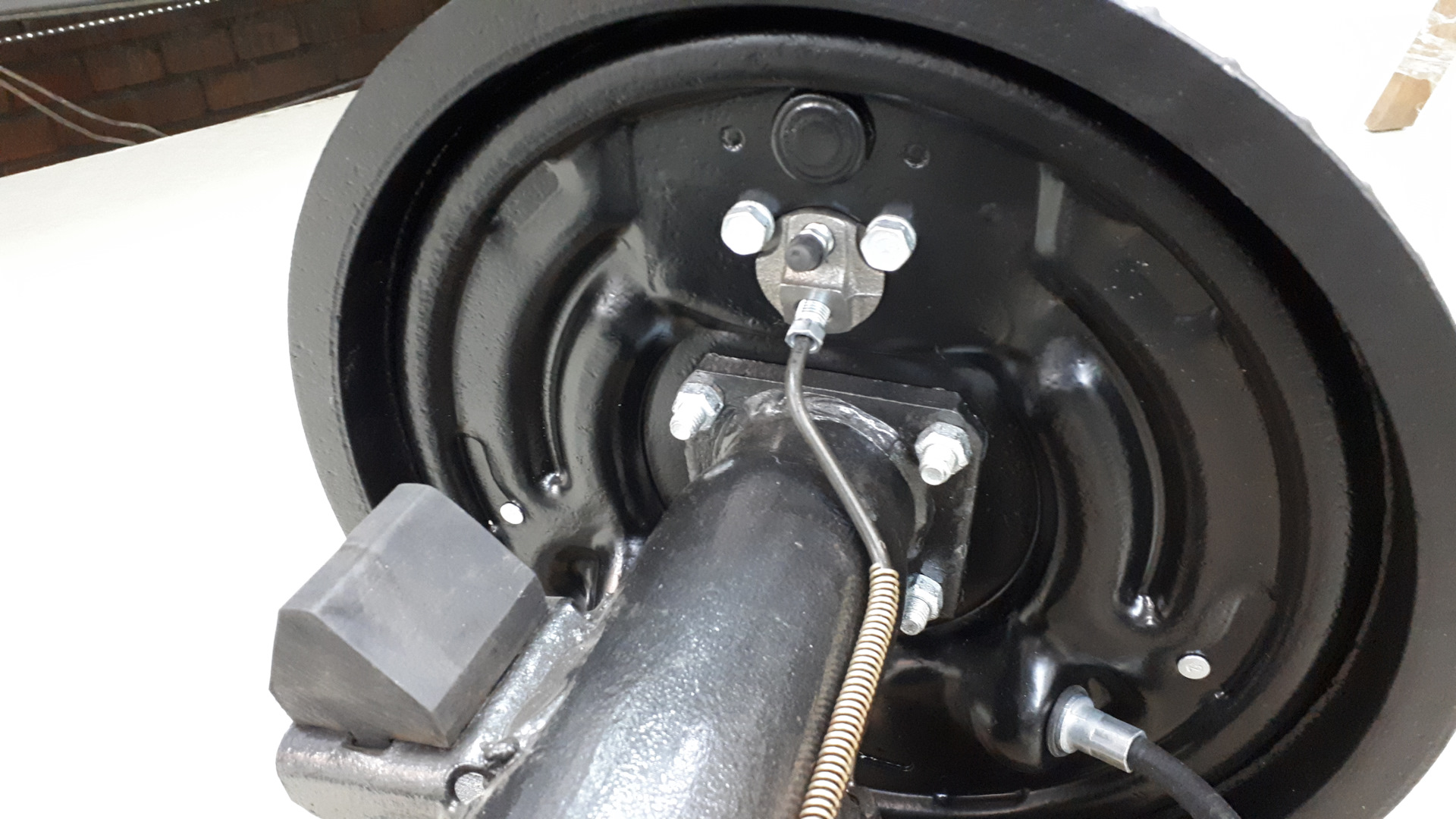

New cylinders and zinc-coated hardware

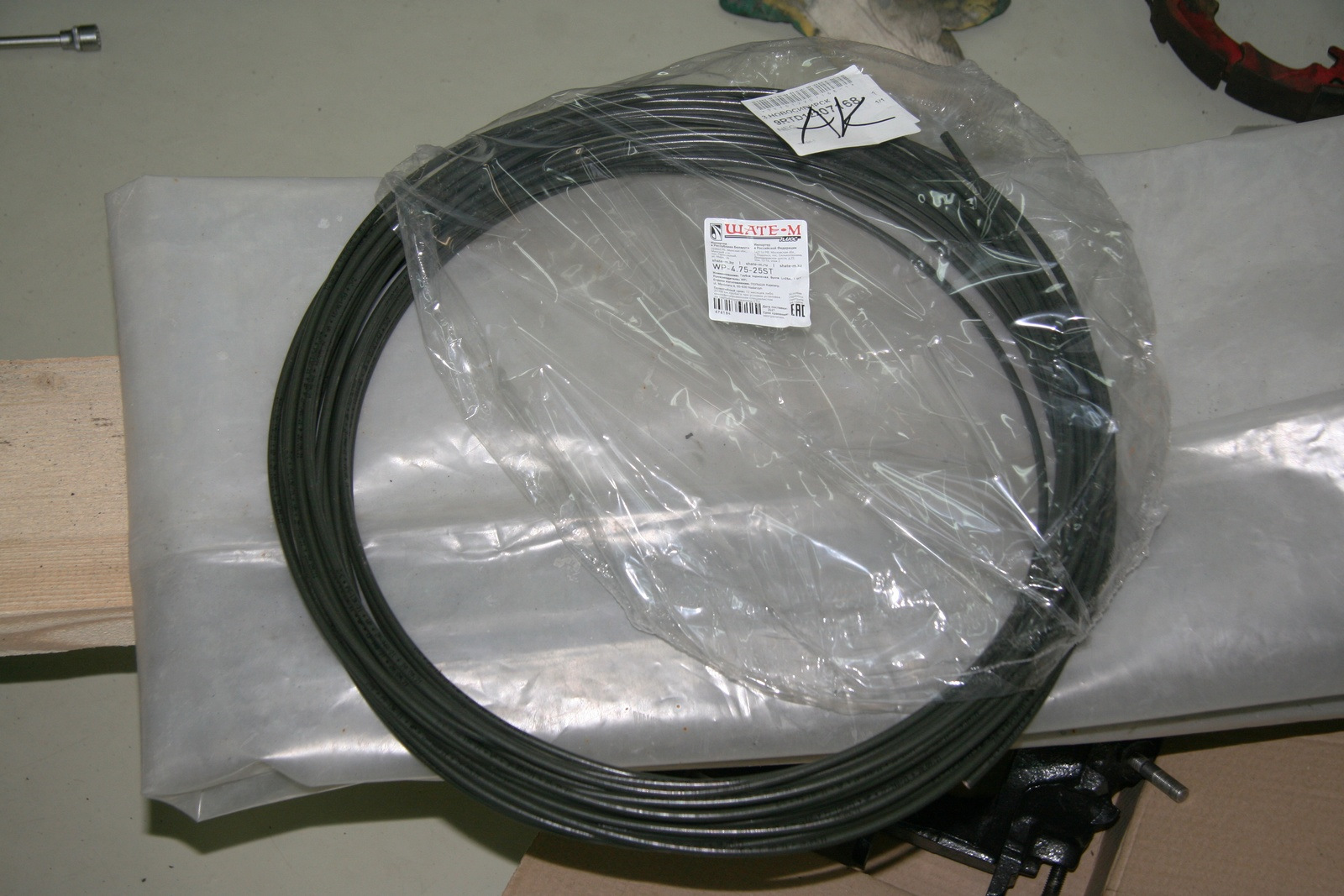

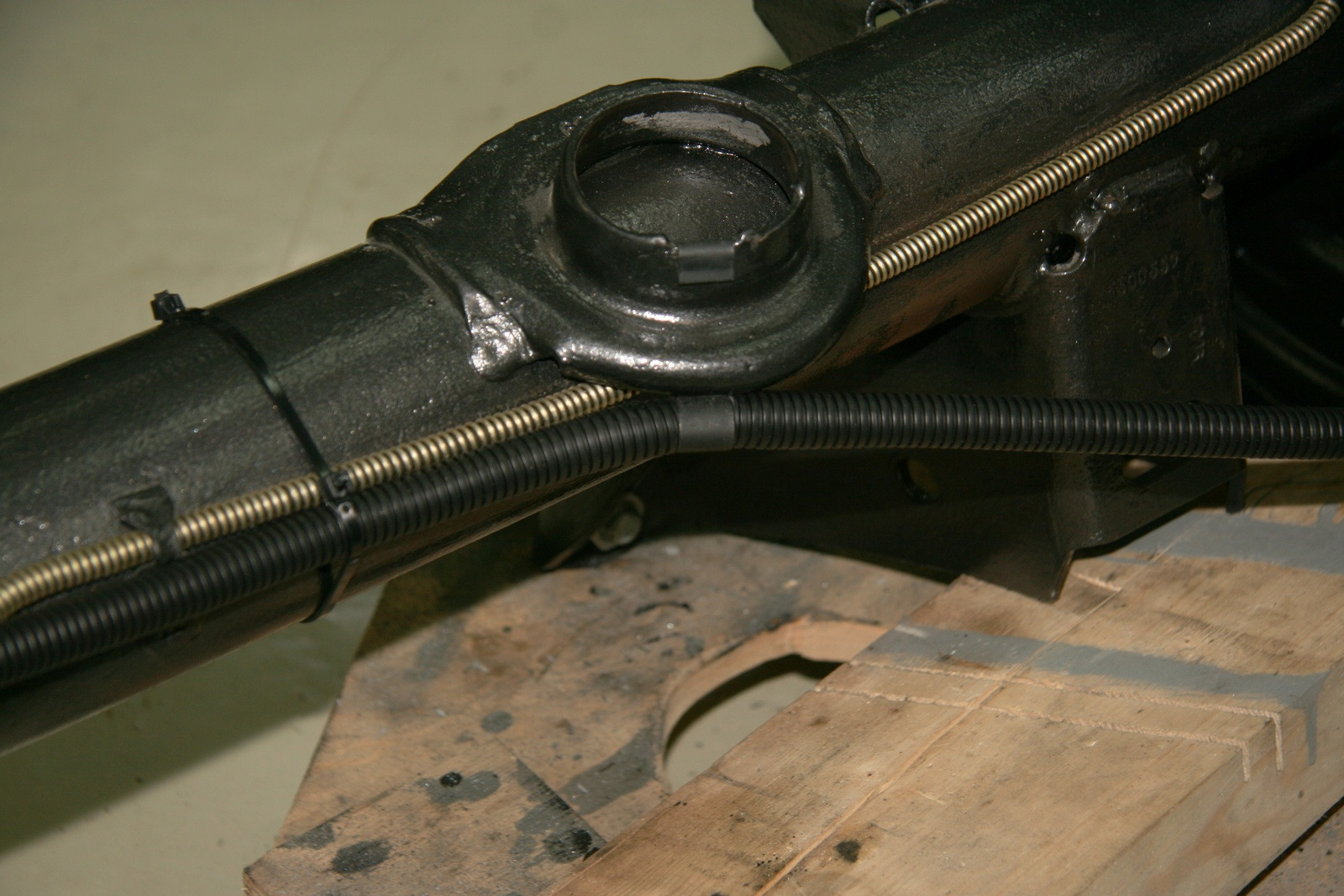

New steel tubes 3/16 with copper coat from inside and vinyl coat from outside



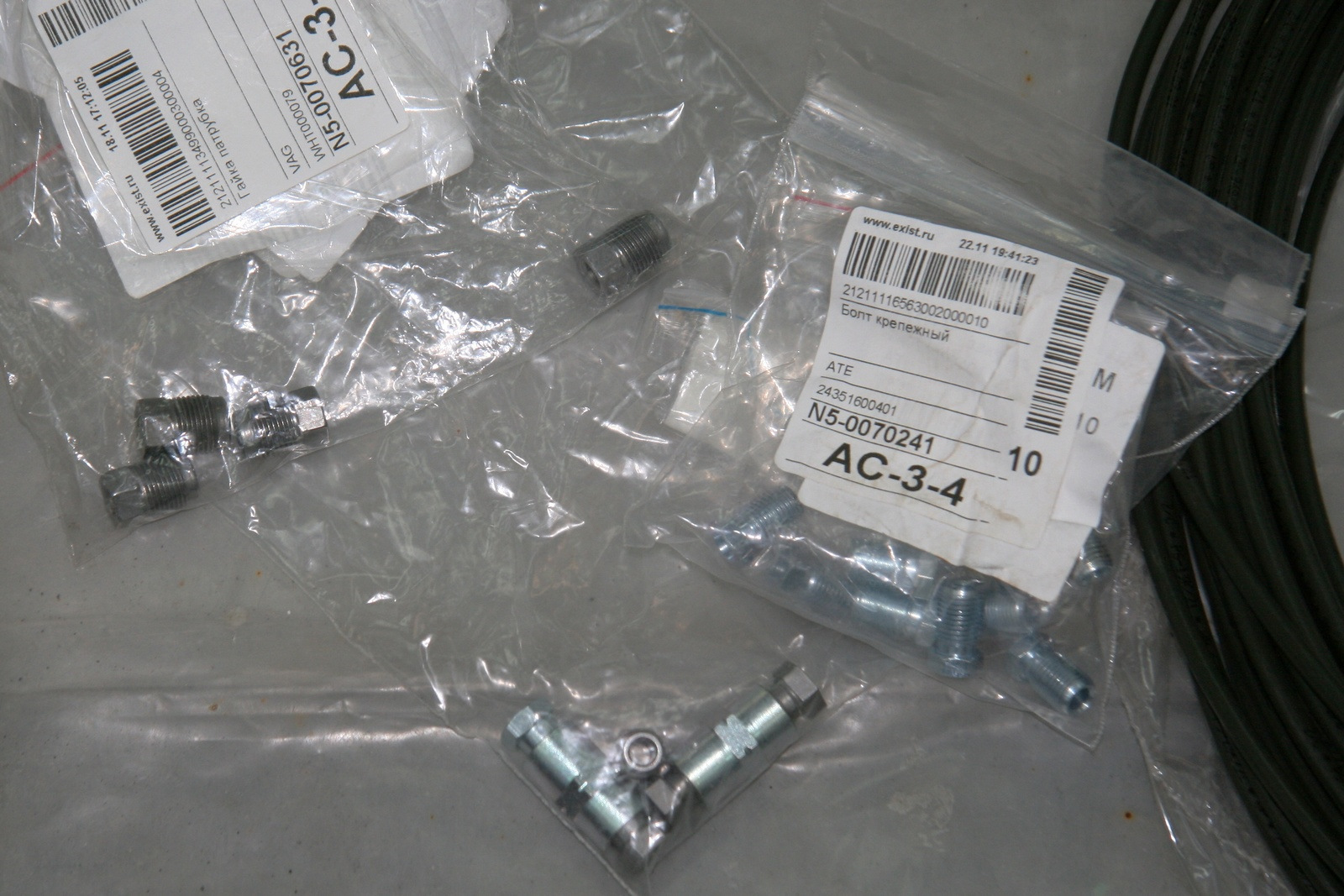

New nuts



Flaring process



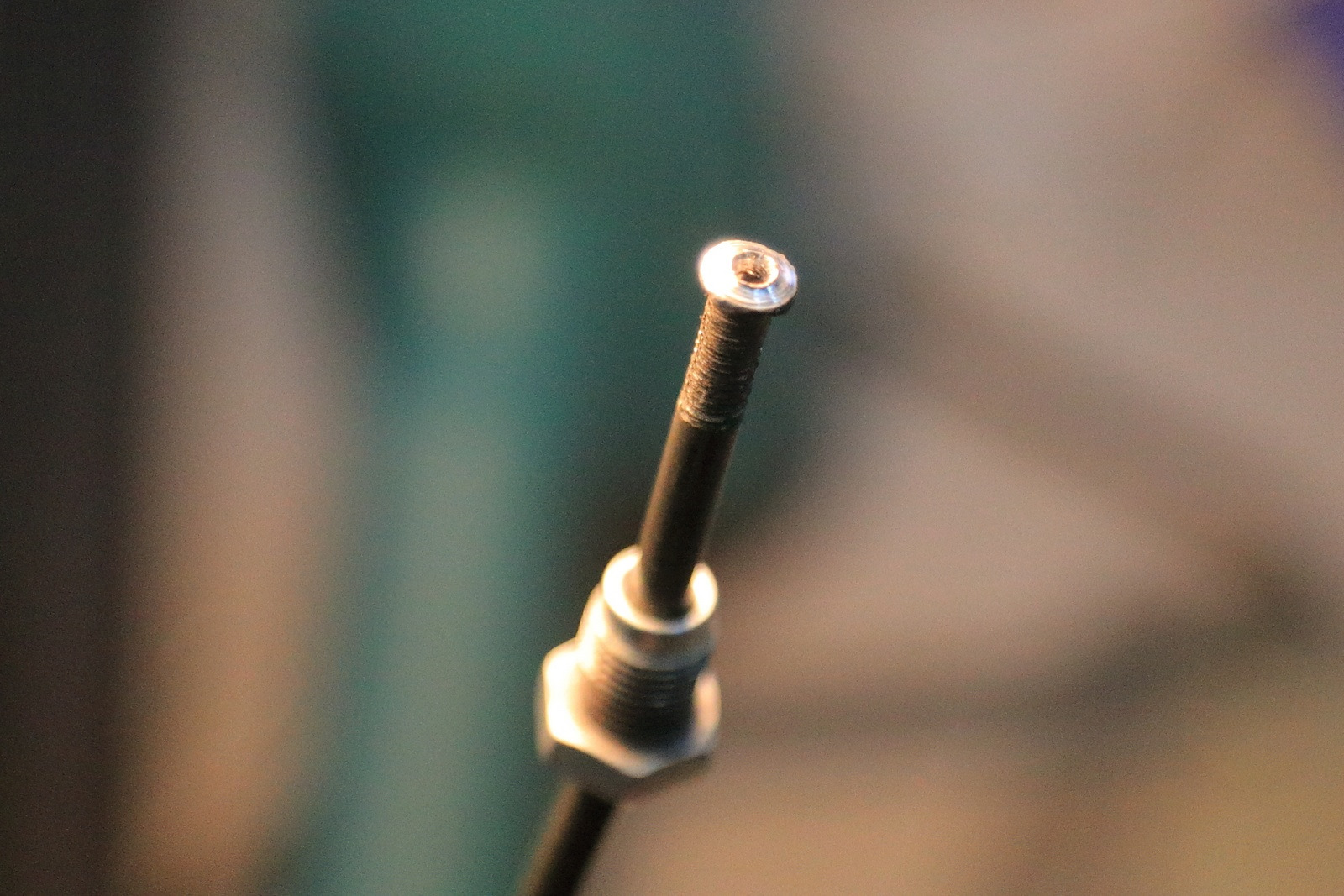

Double flare





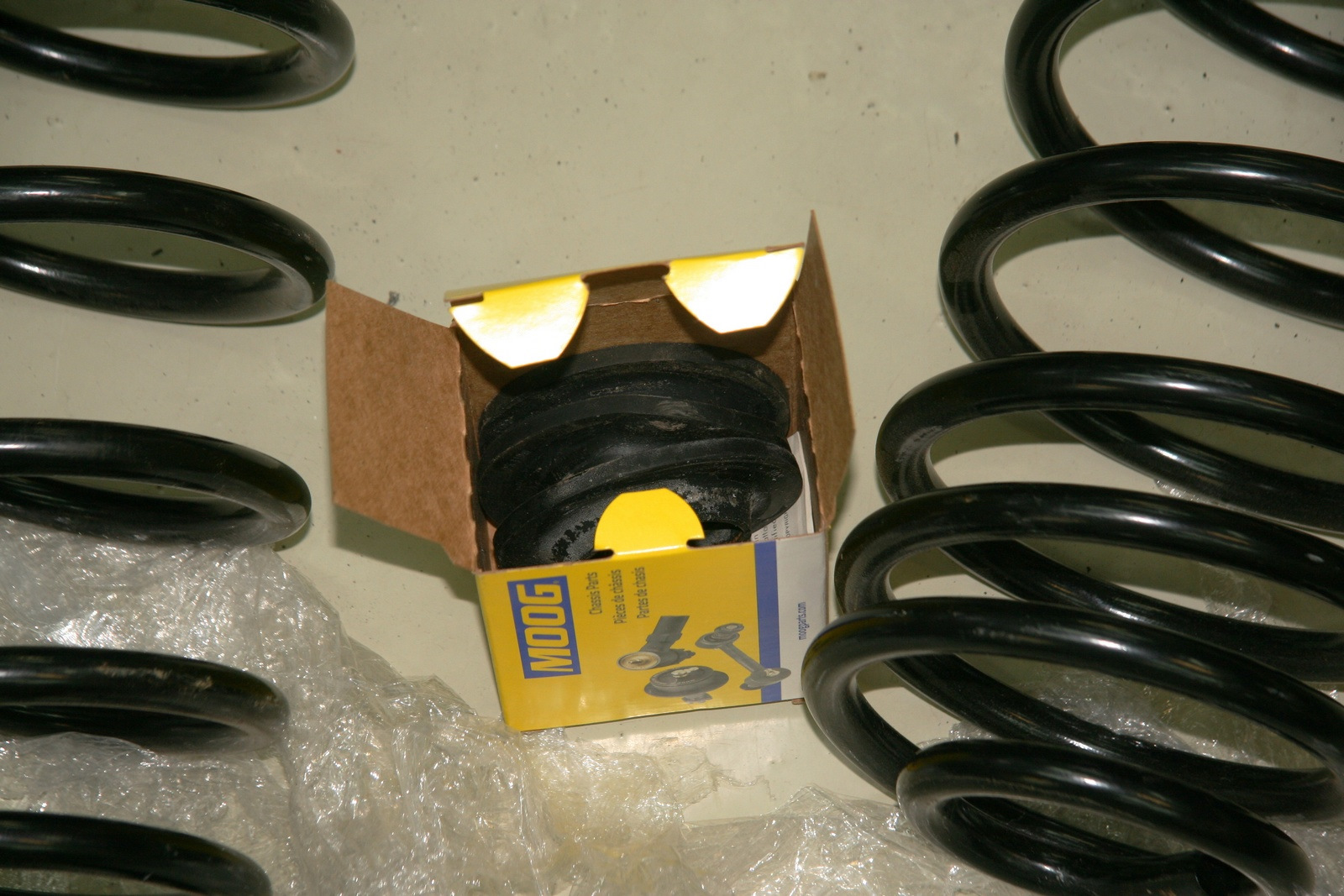

New MOOG bushings

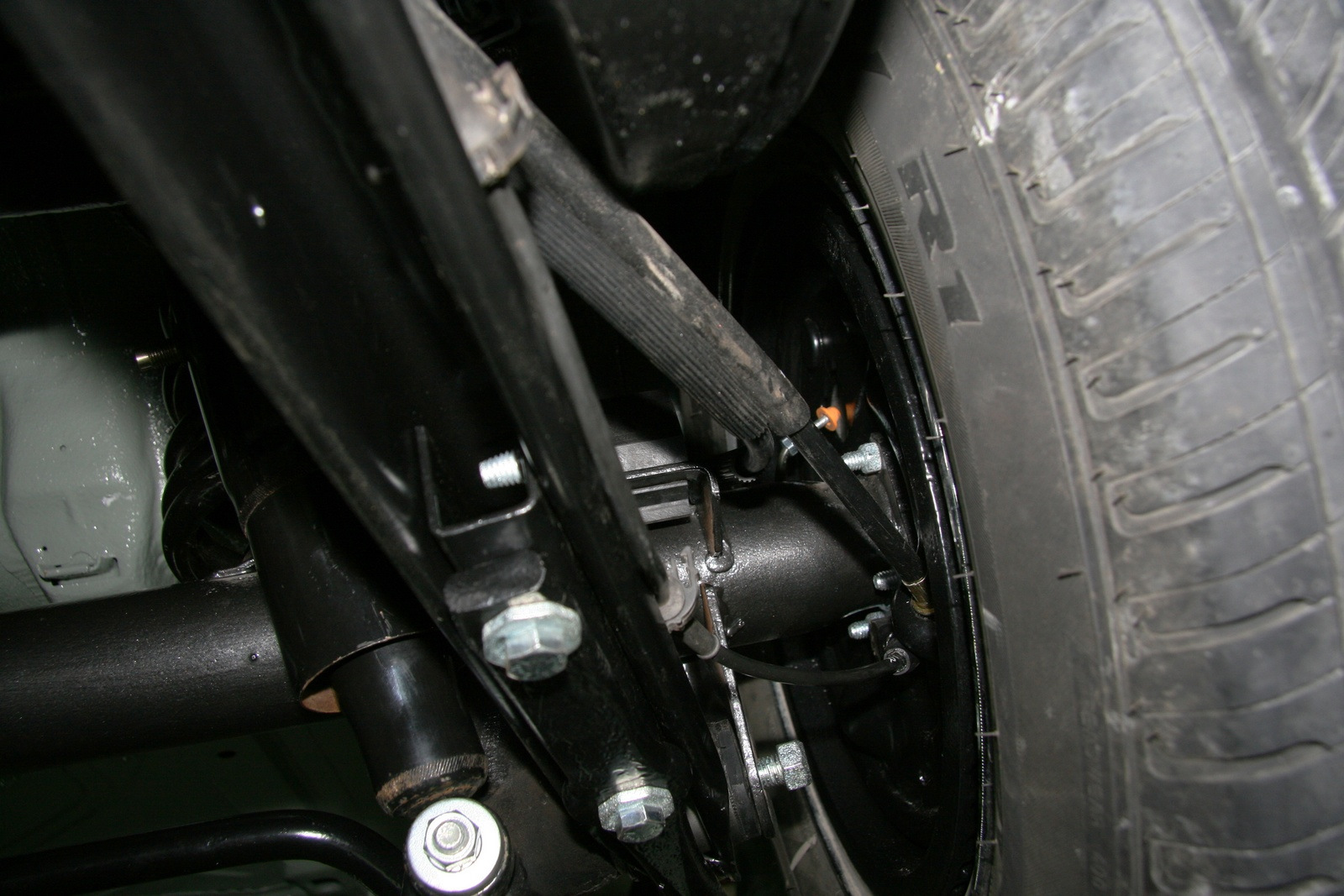

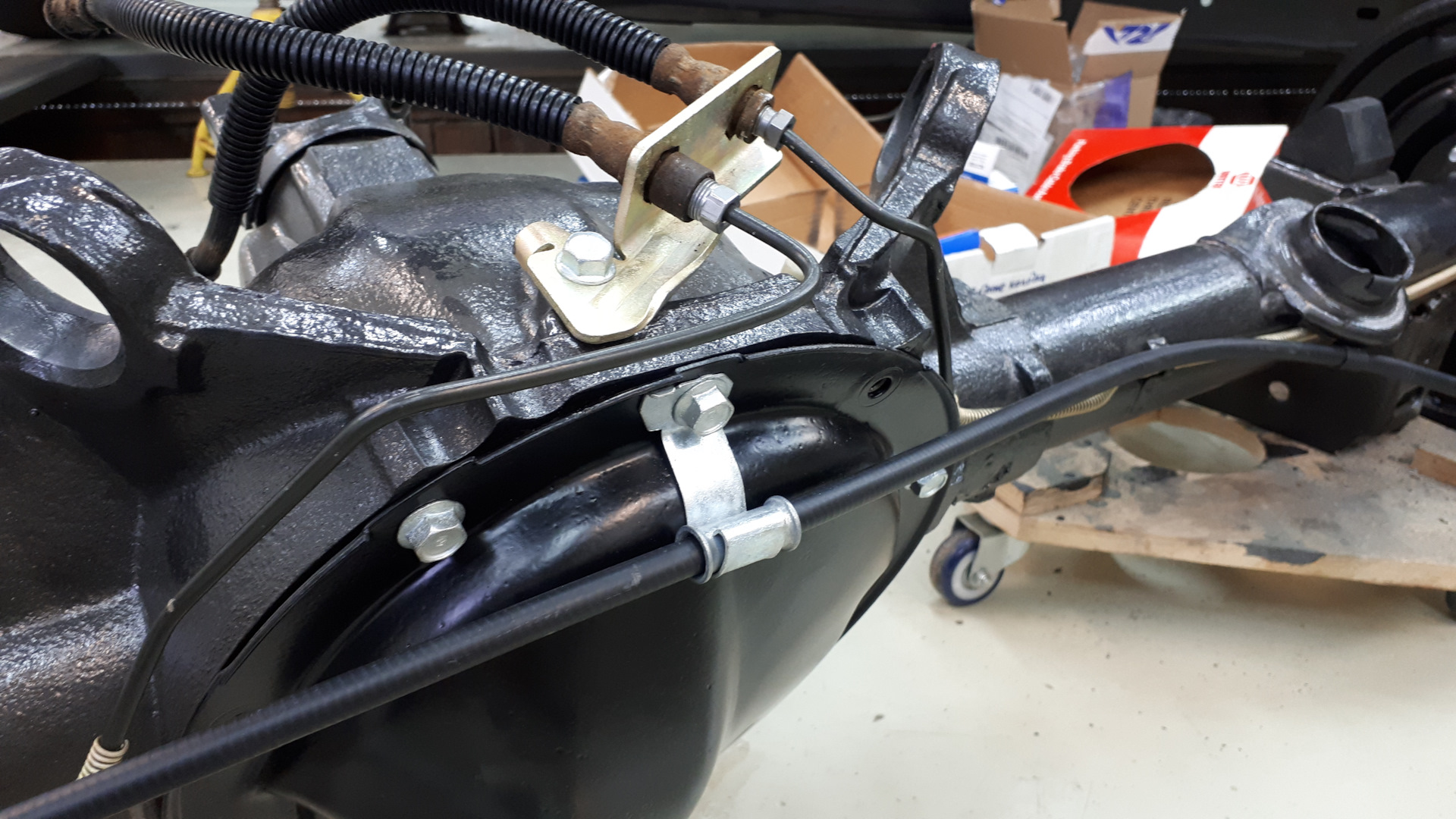

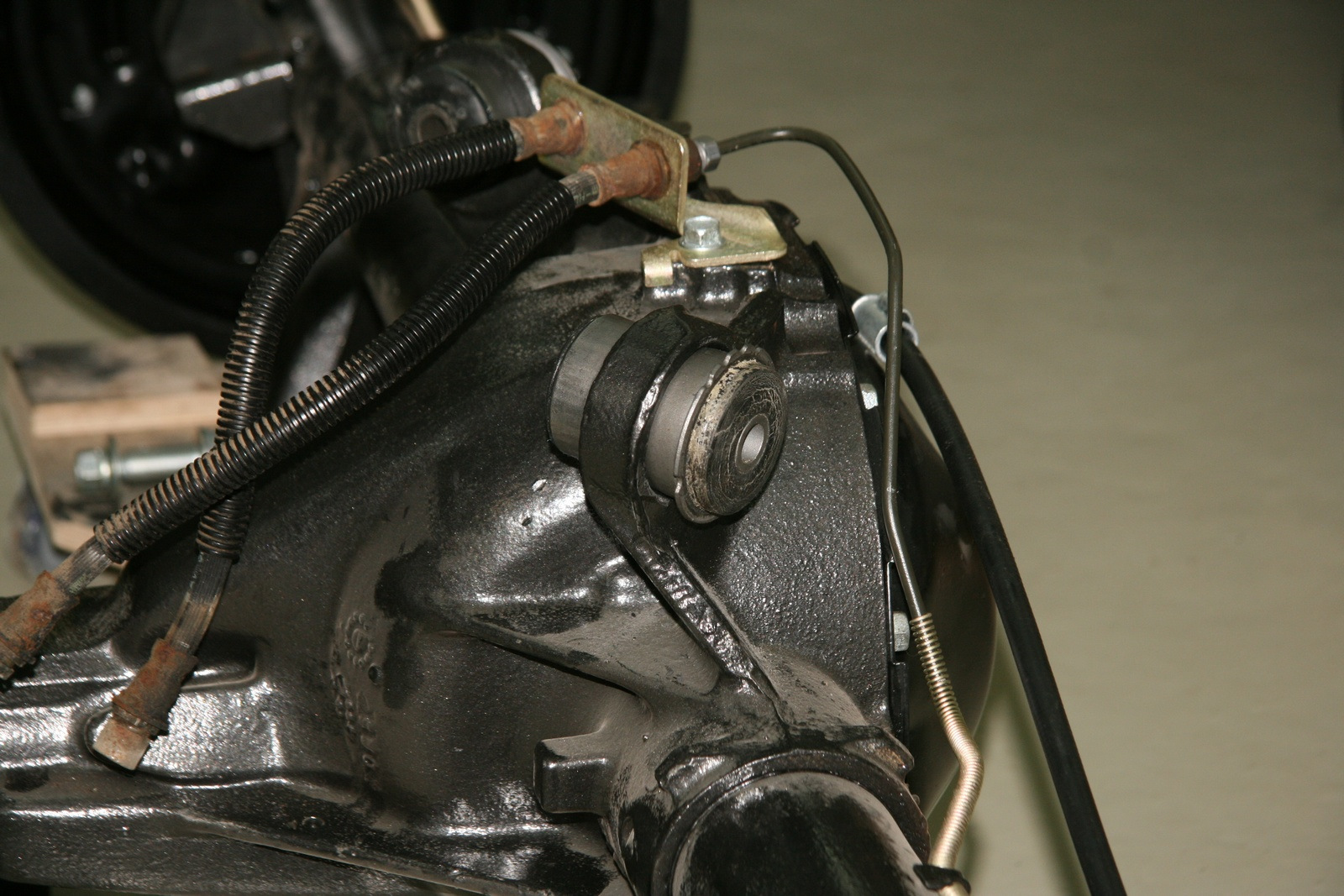

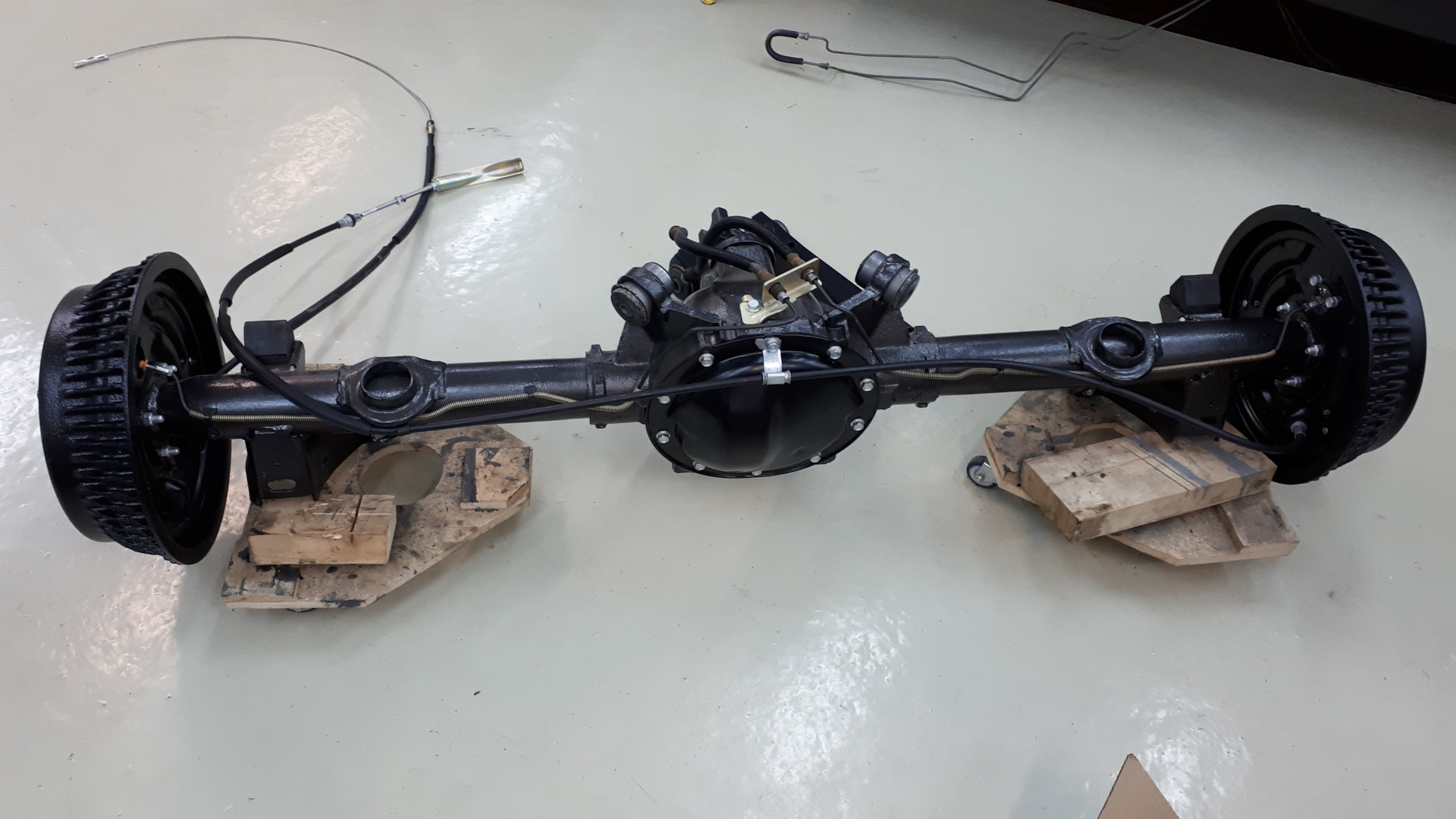

Almost ready. The brake hoses are still old, as new ones were not yet delivered







....

And, some miscellaneous items...

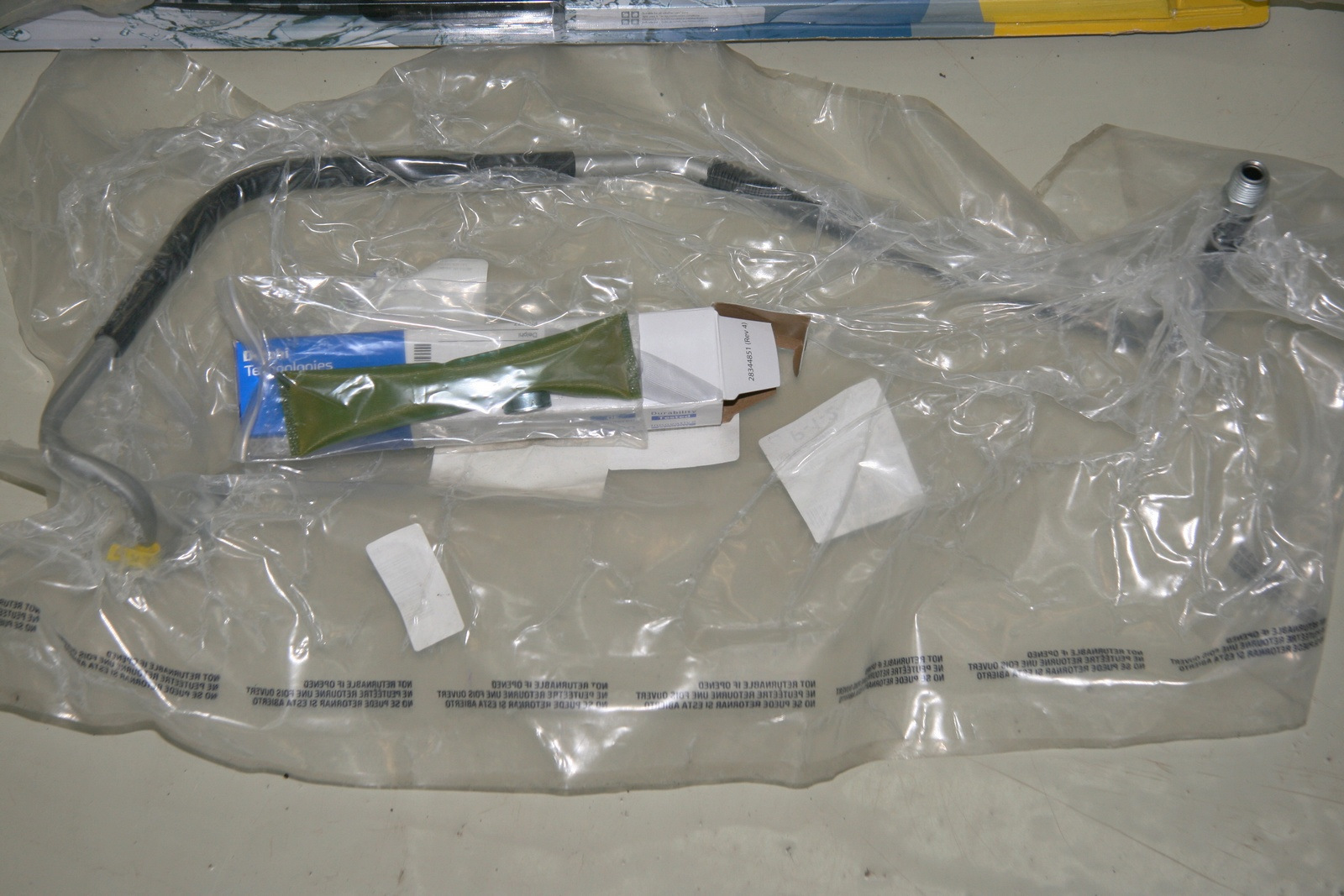

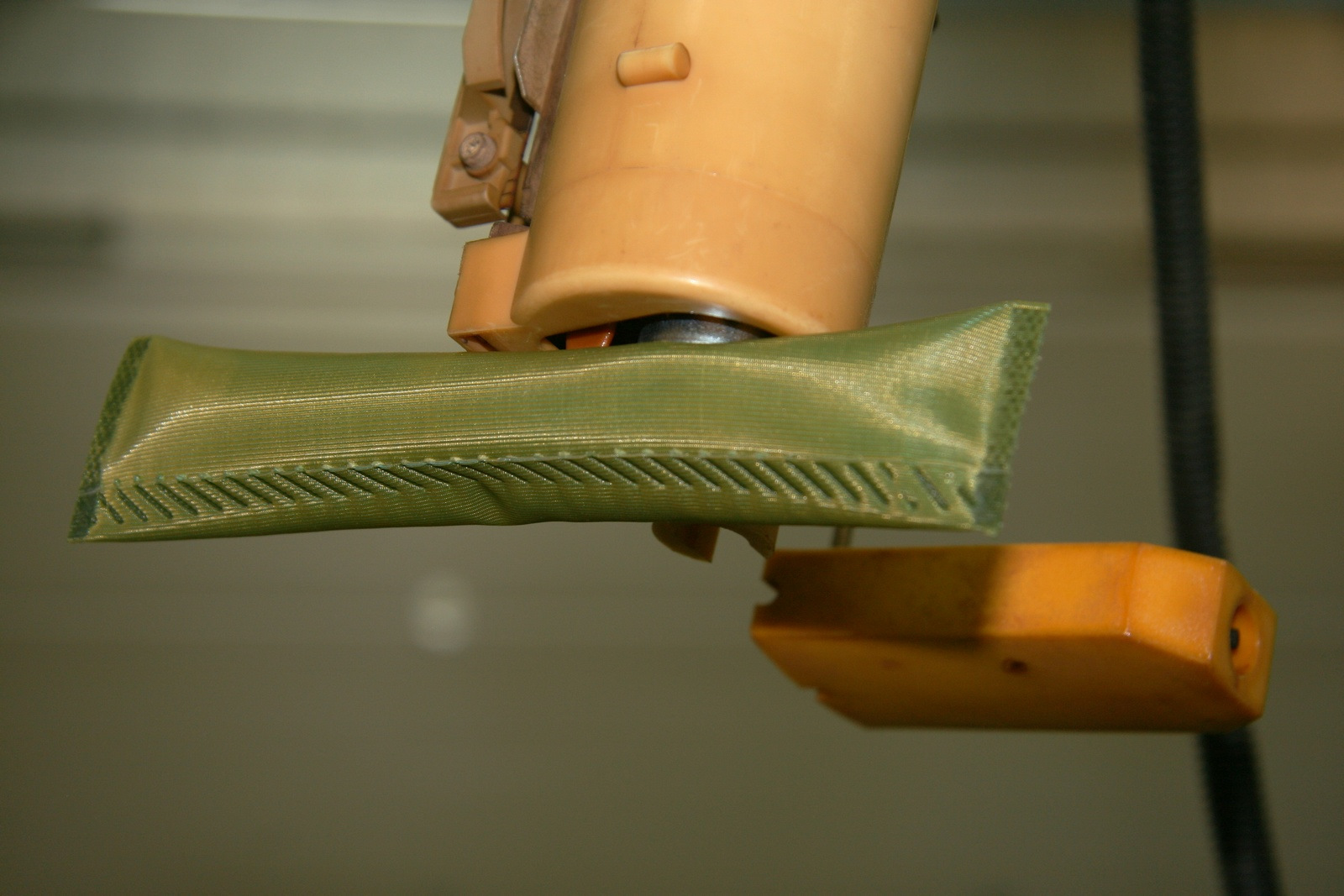

New fuel sender mesh and transmission pipes recieved



Now it's ready to go in tank



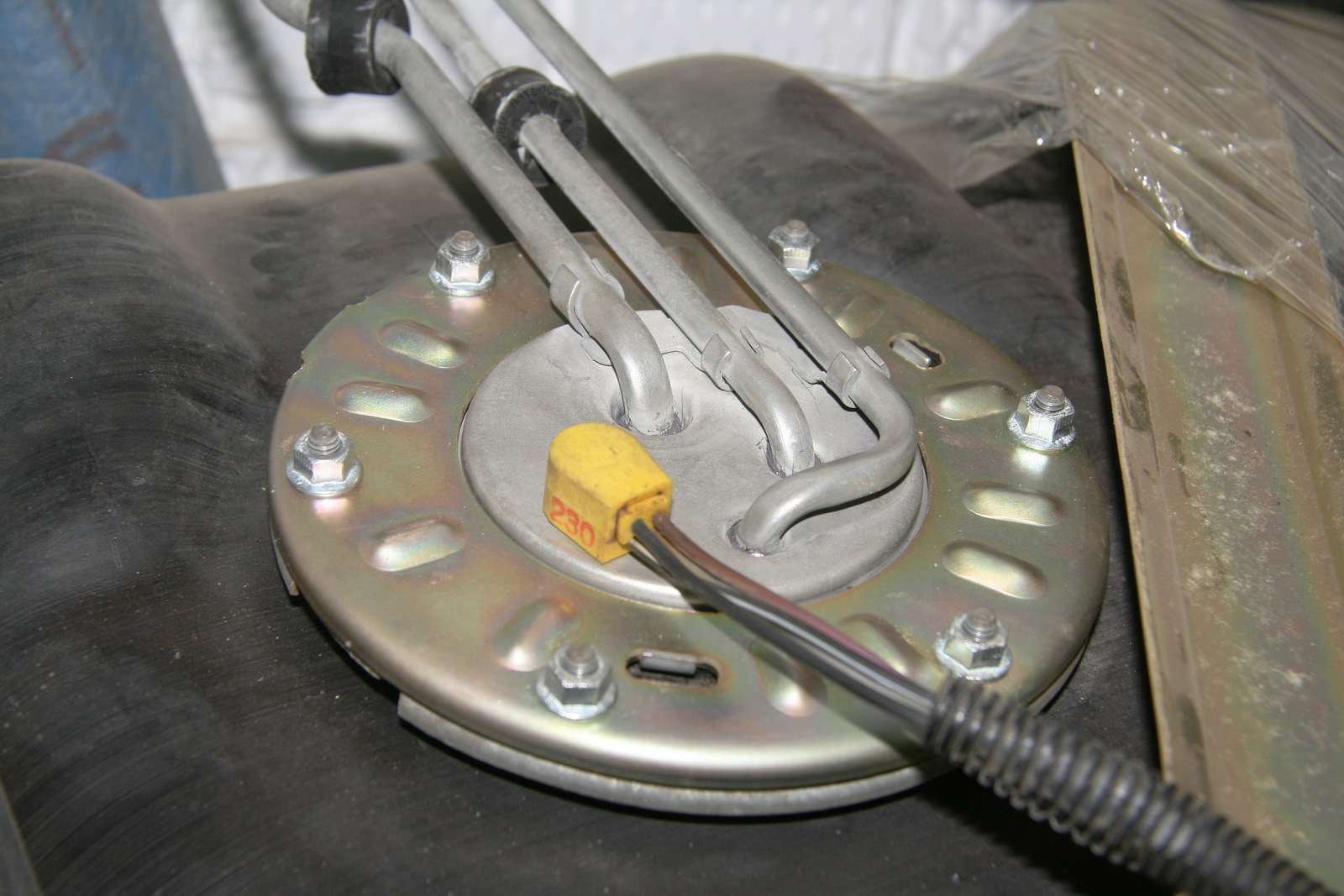

Positioned and tightened

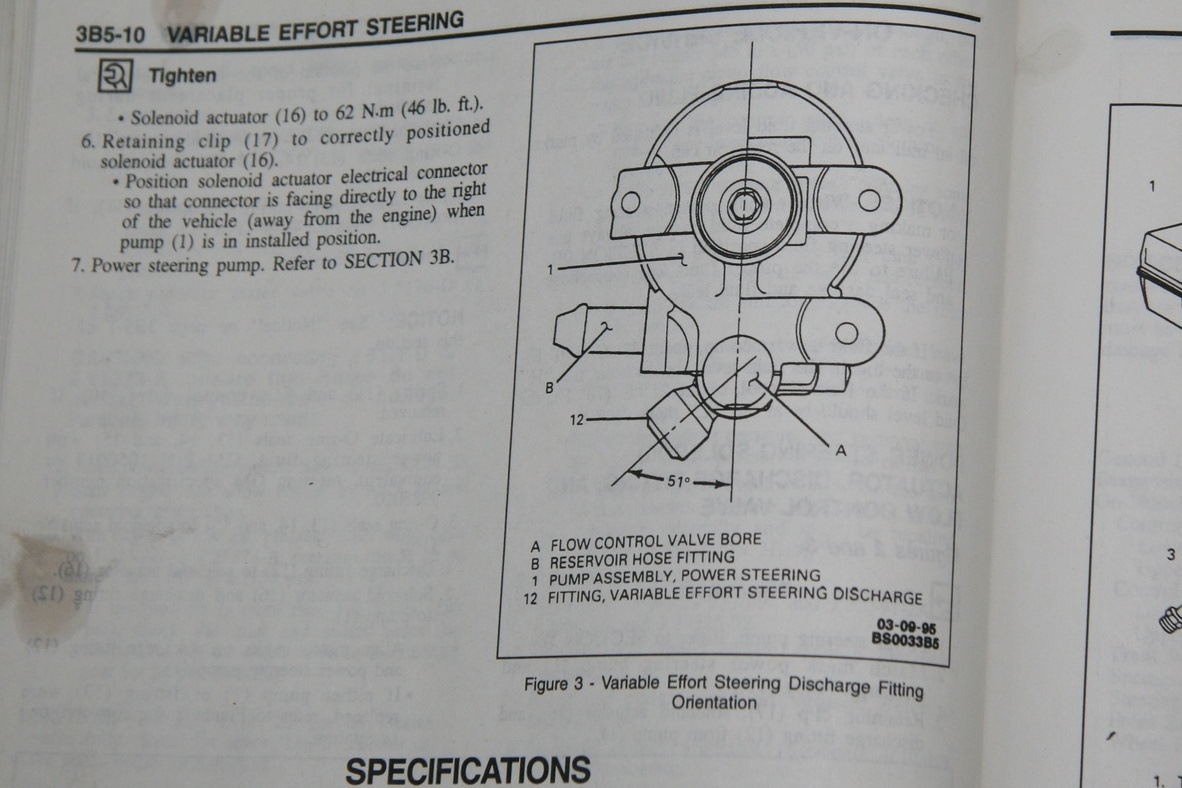

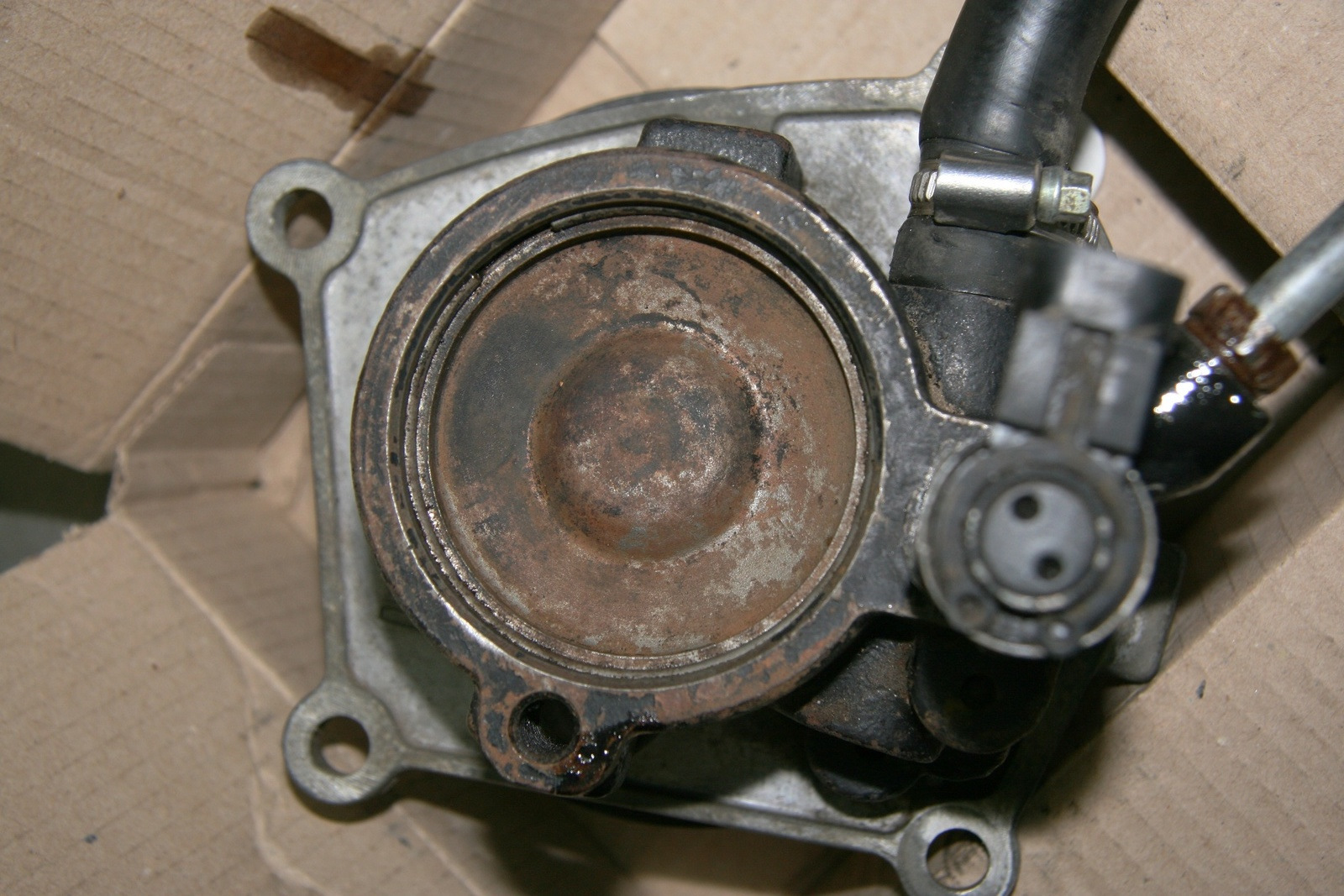

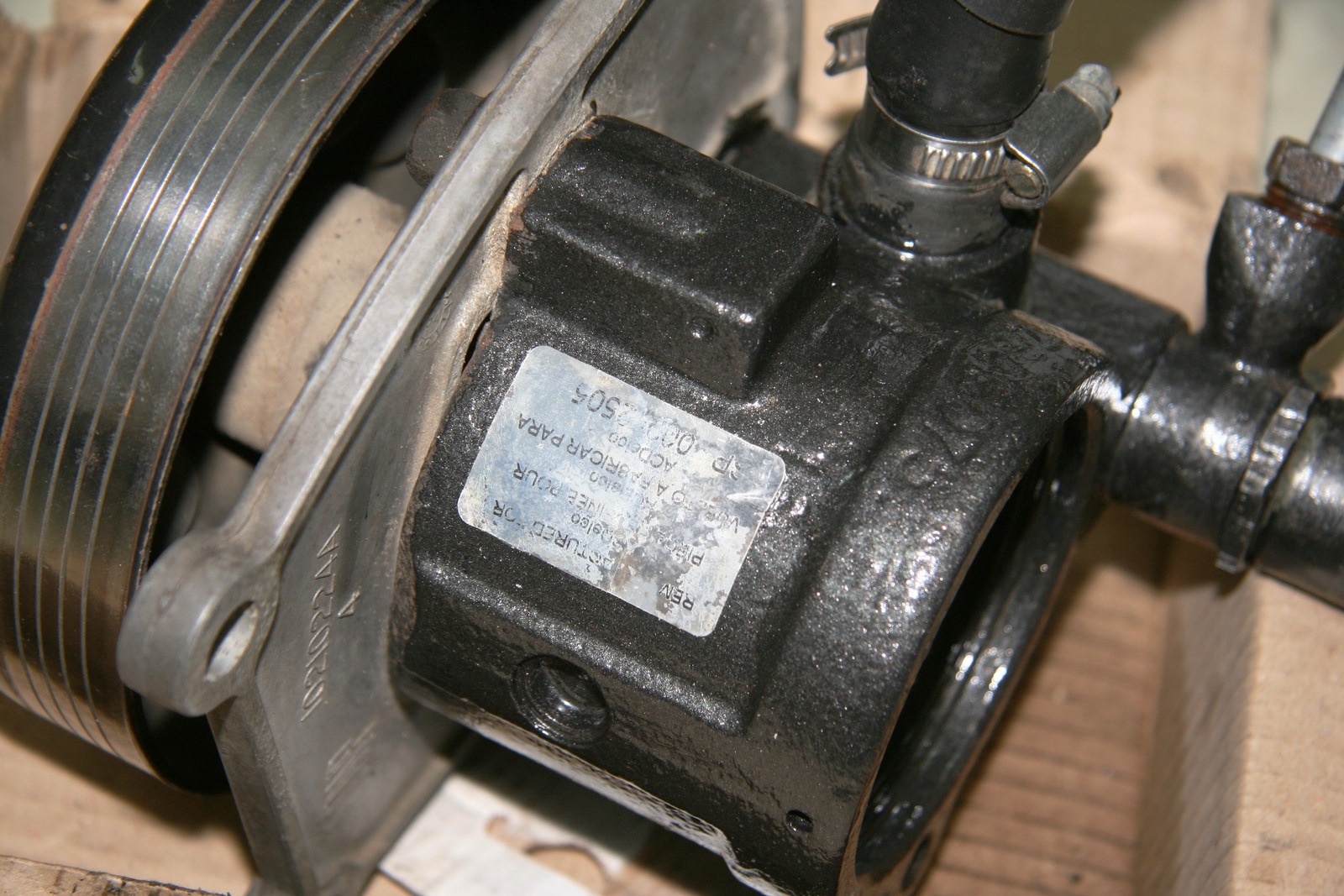

Pressure regulator (for variable effort steering) on the steering pump was not oriented properly



This is how it should be



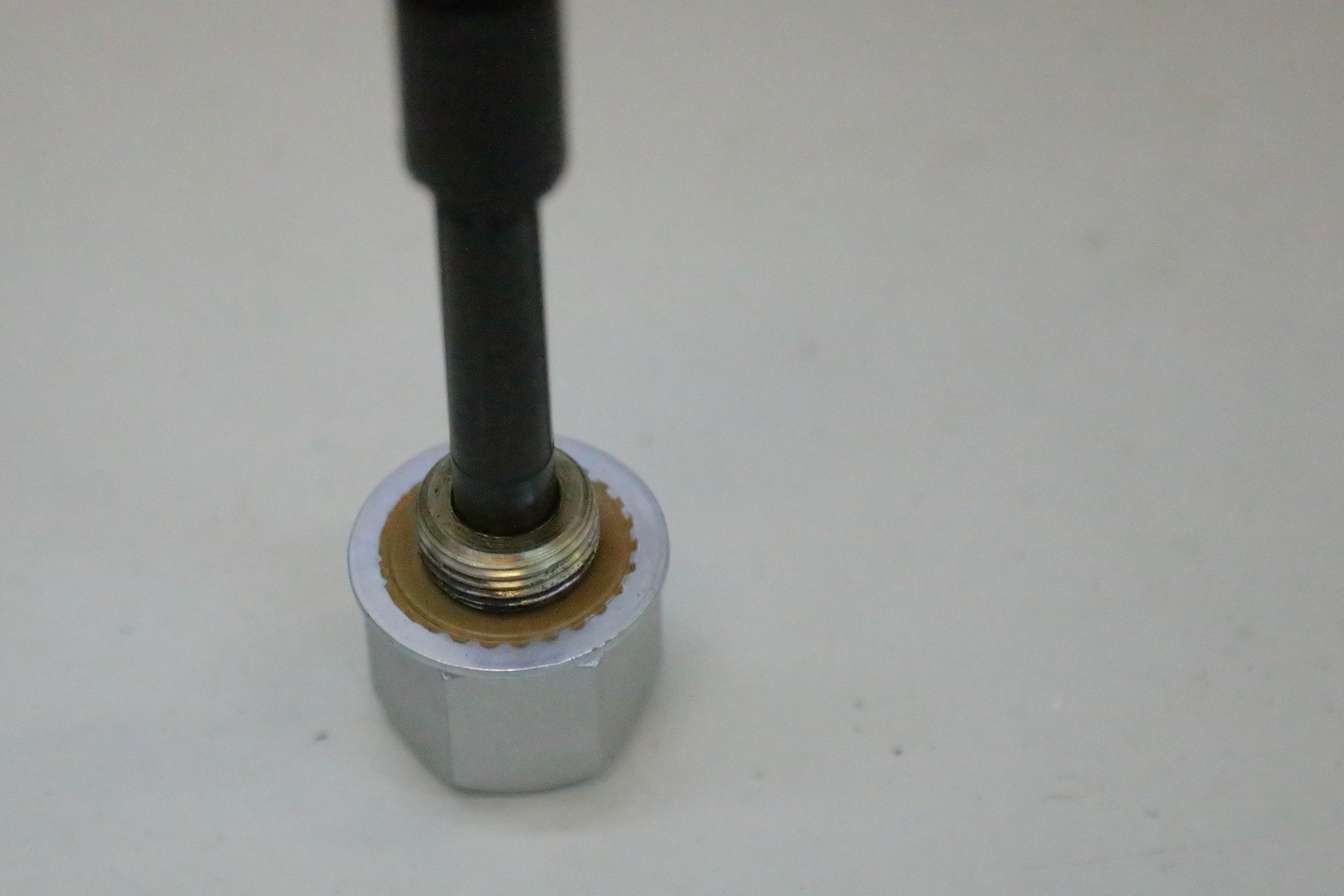

Fixed, cleaned, o-rings changed, painted

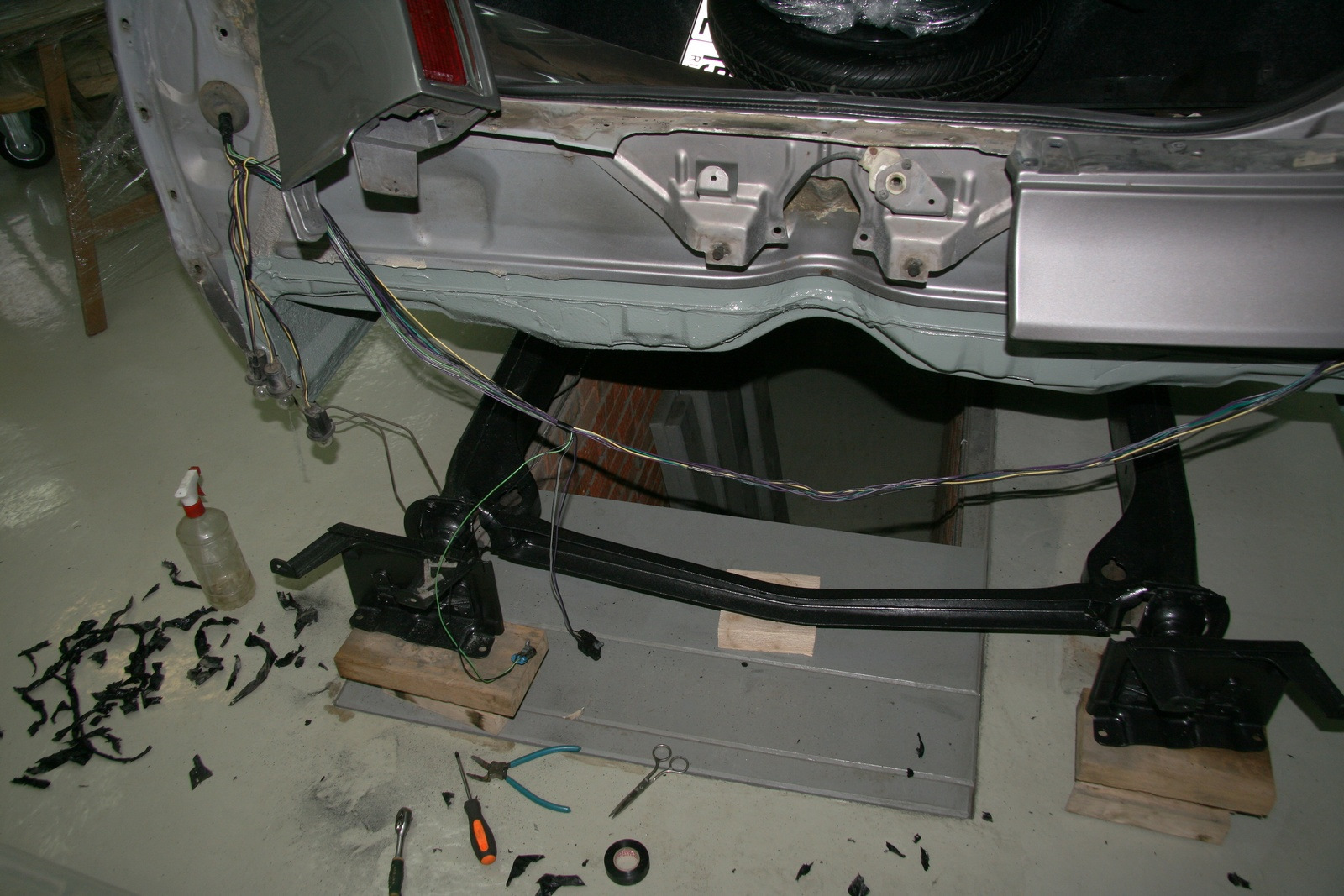

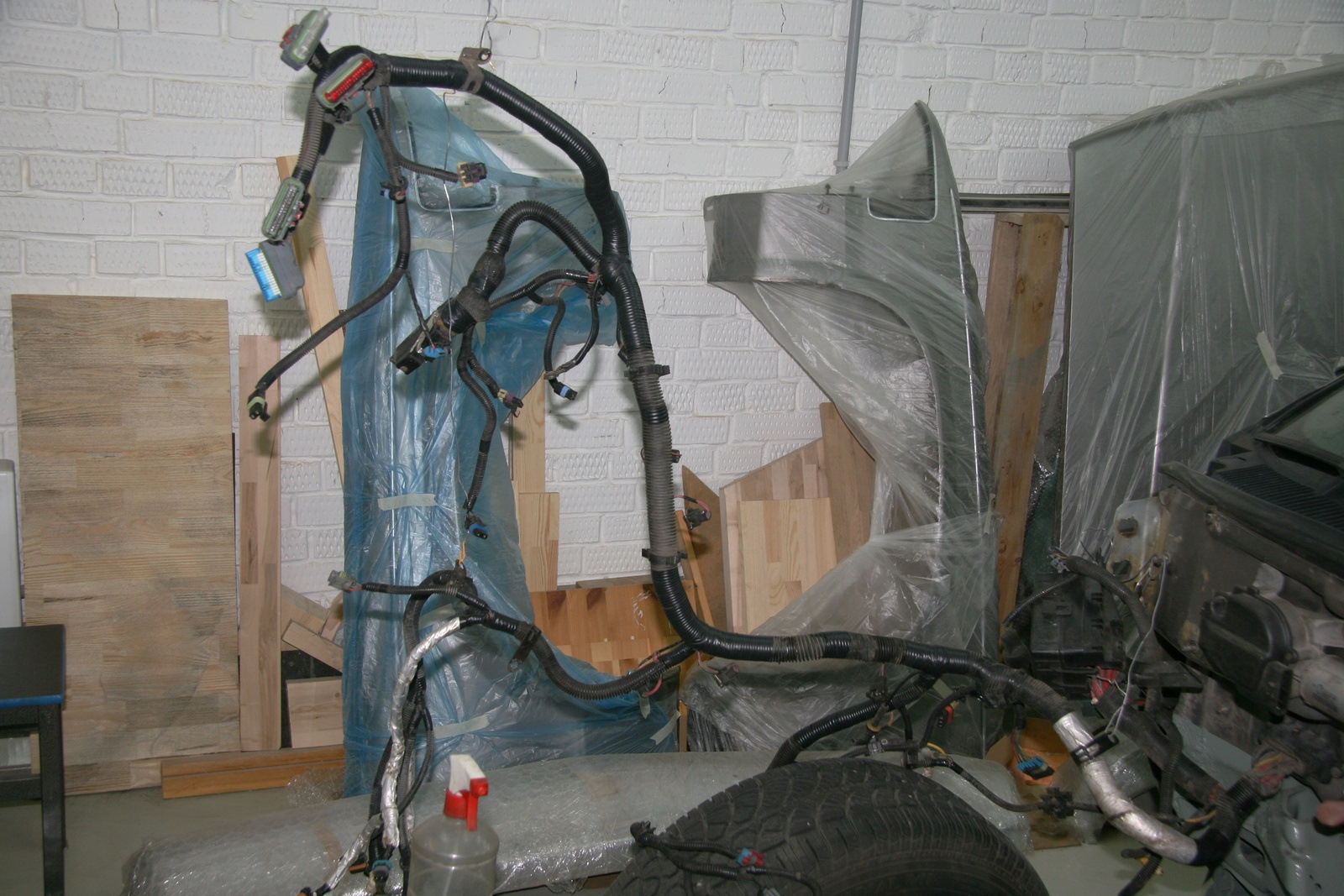

Then I started fixing all the terminals on underhood wiring



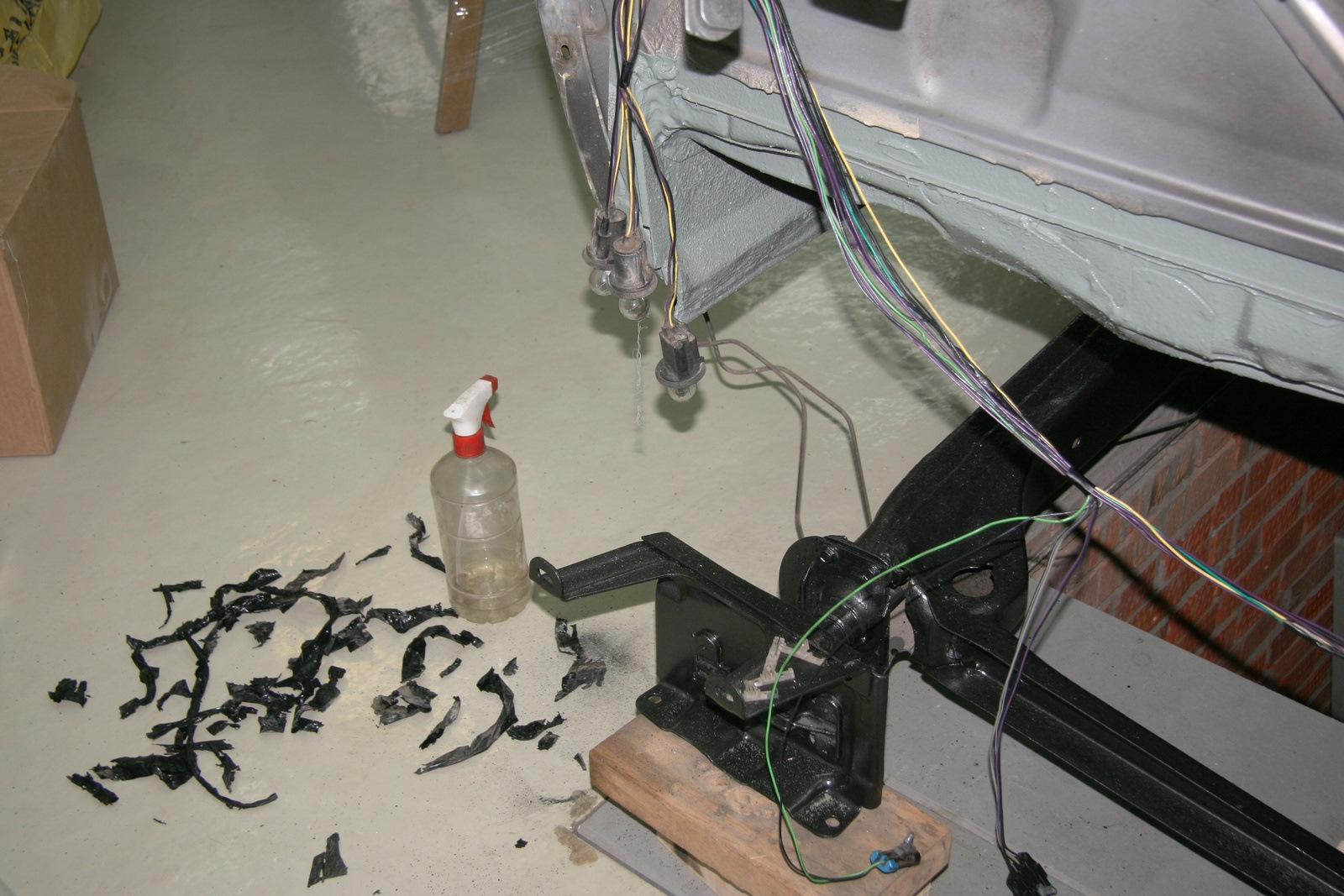

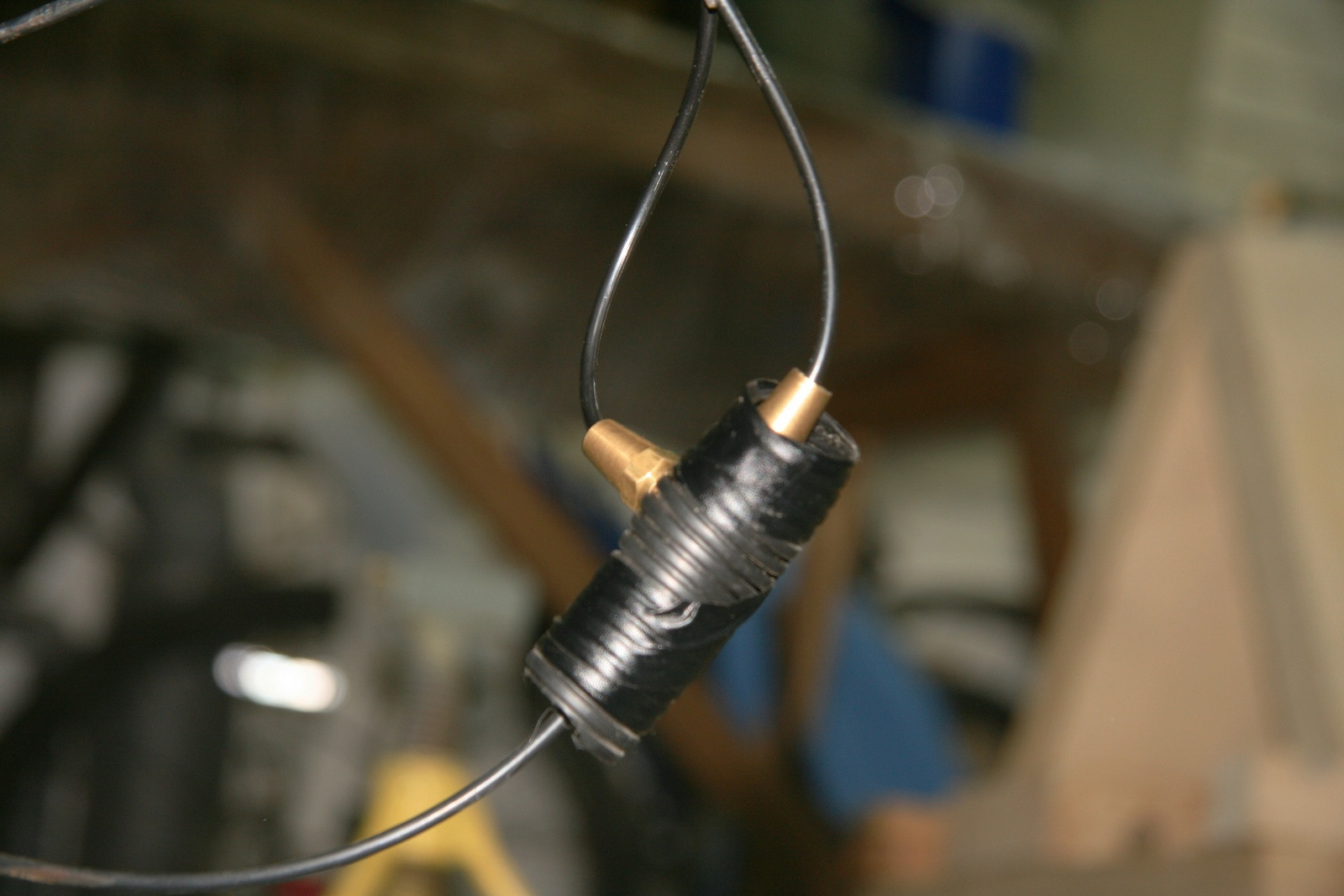

New terminals come with a 10 inches of wires, so you unwrap the braid, solder new, wrap again

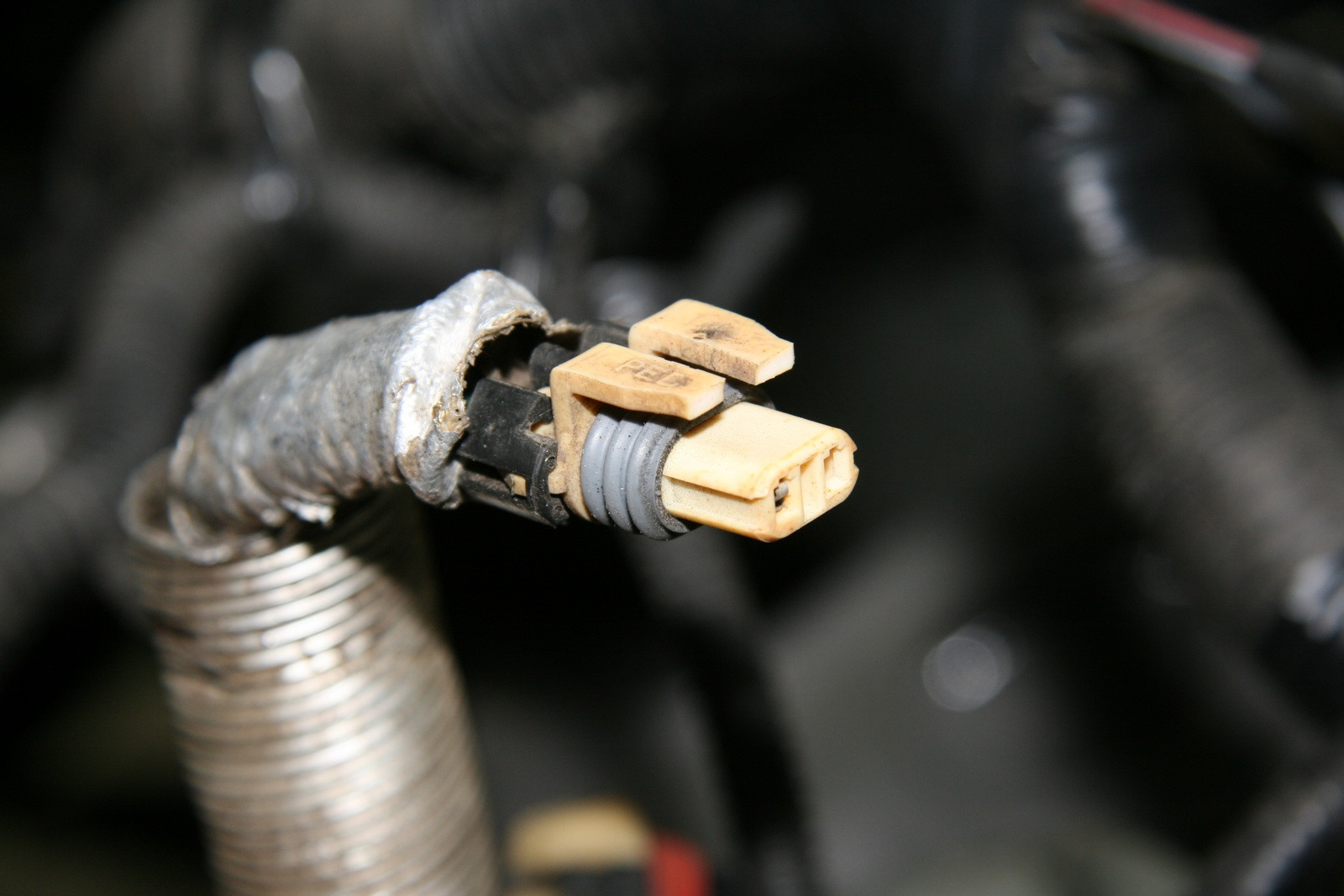

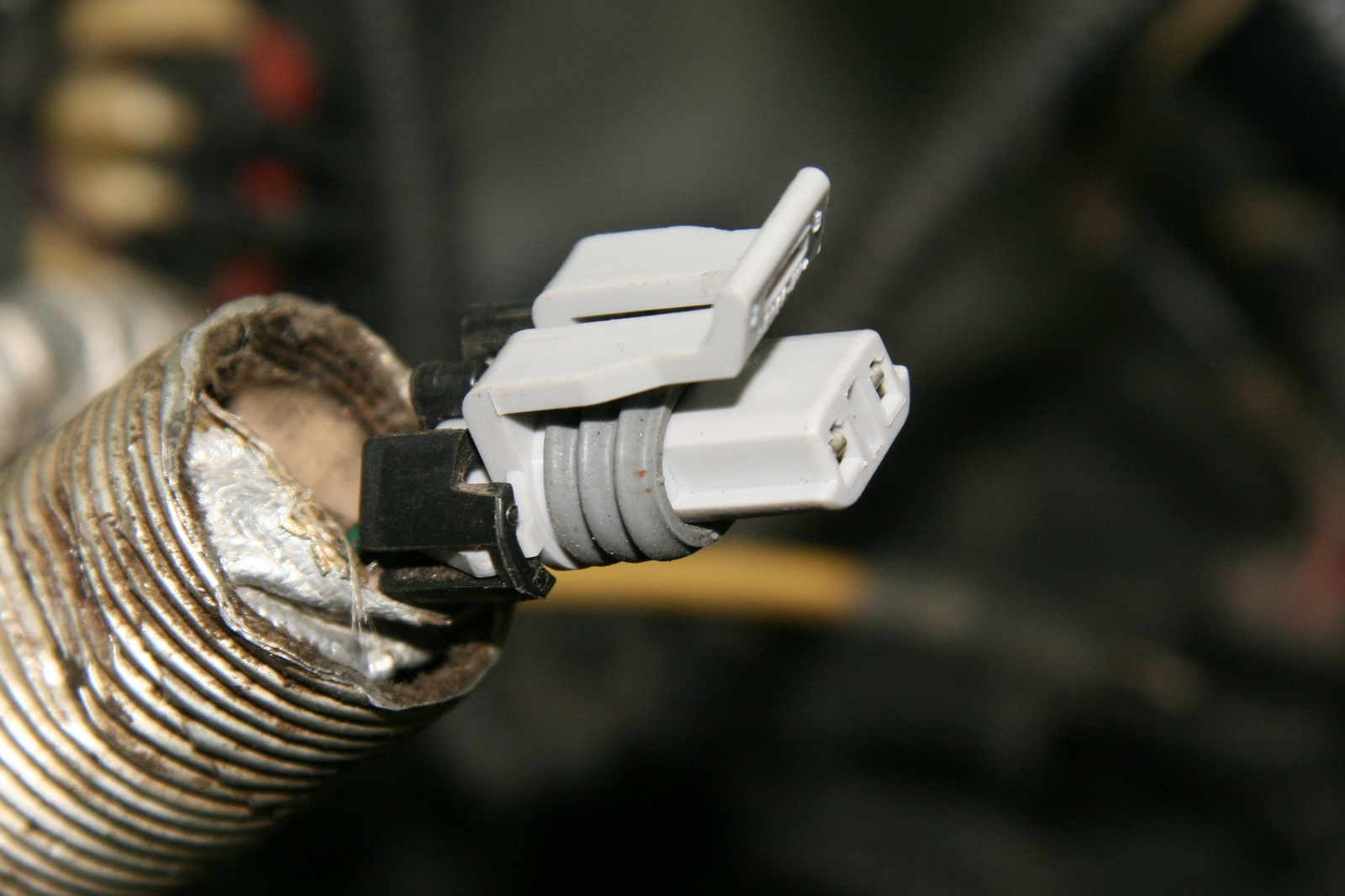

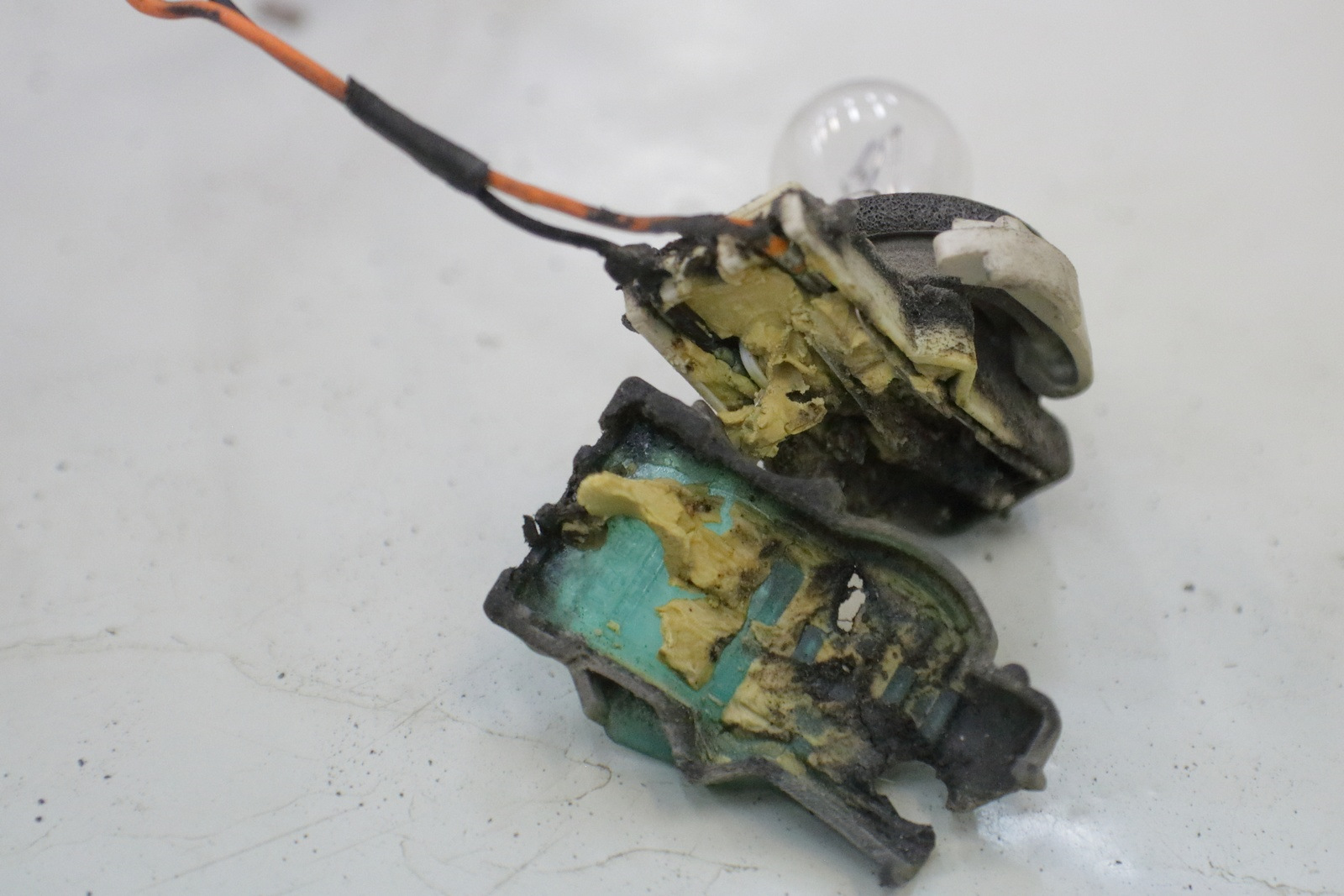

Almost every connector had to be replaced



Some details of the process

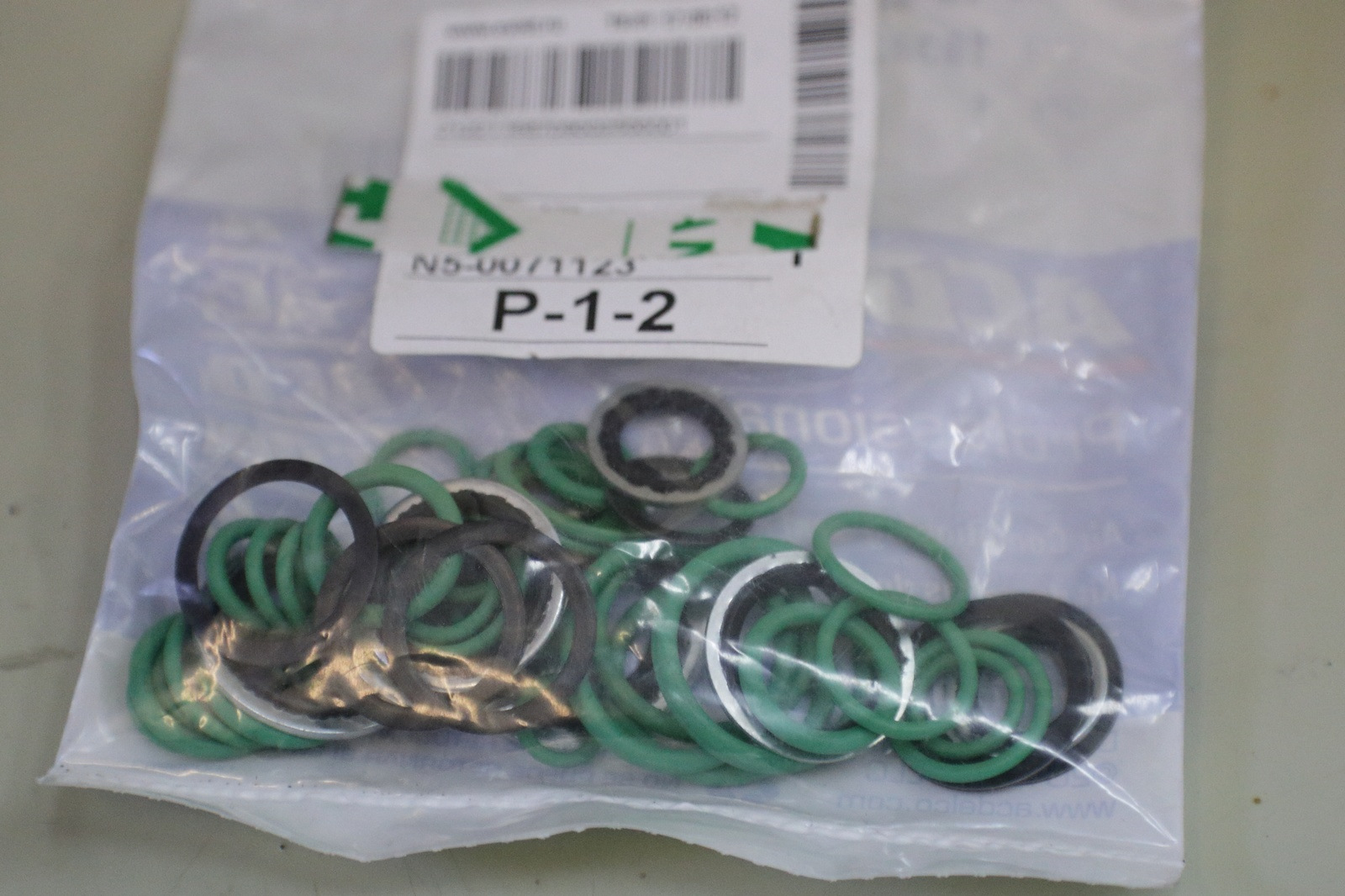

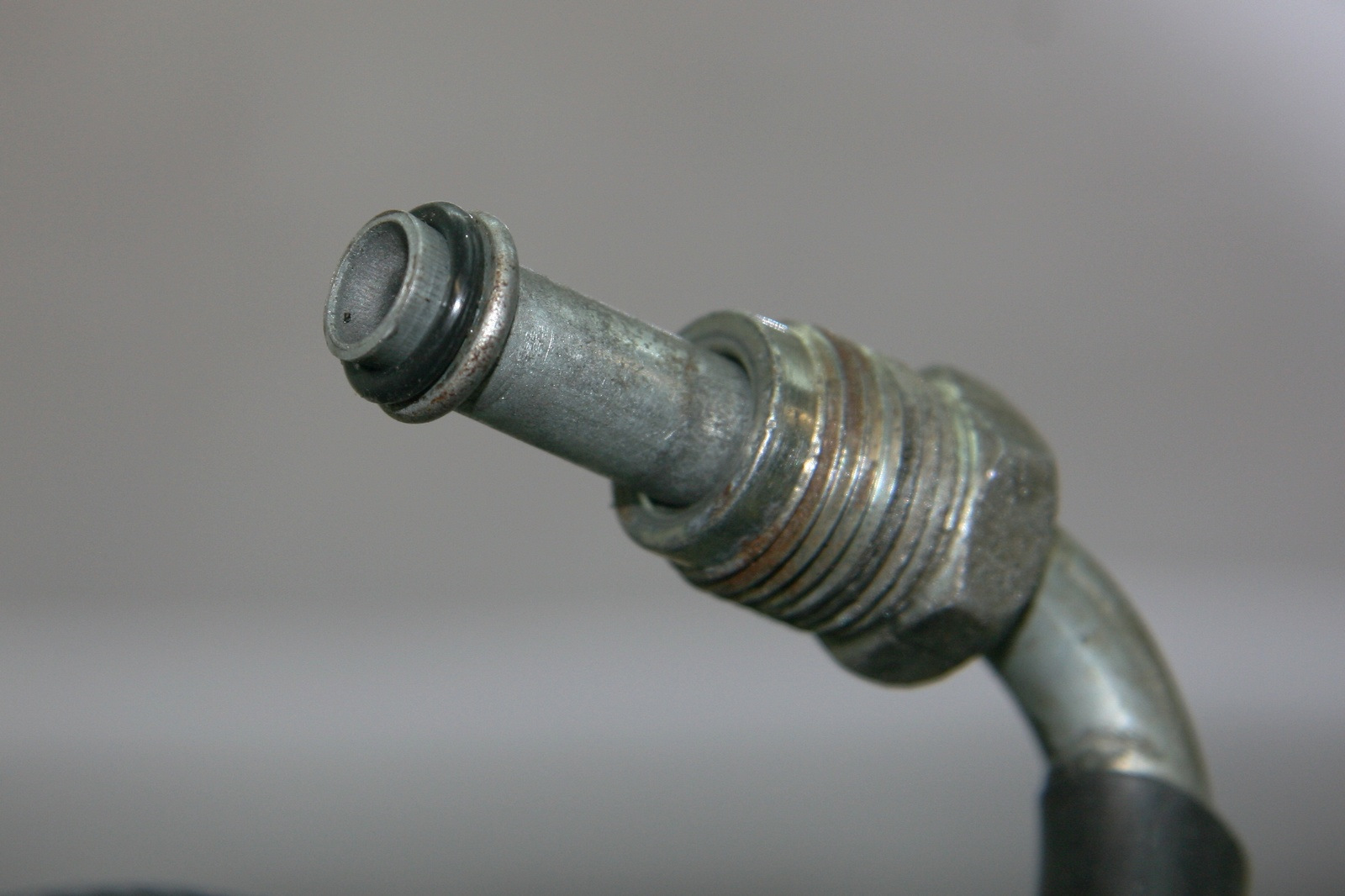

All those o-rings had to be replaced





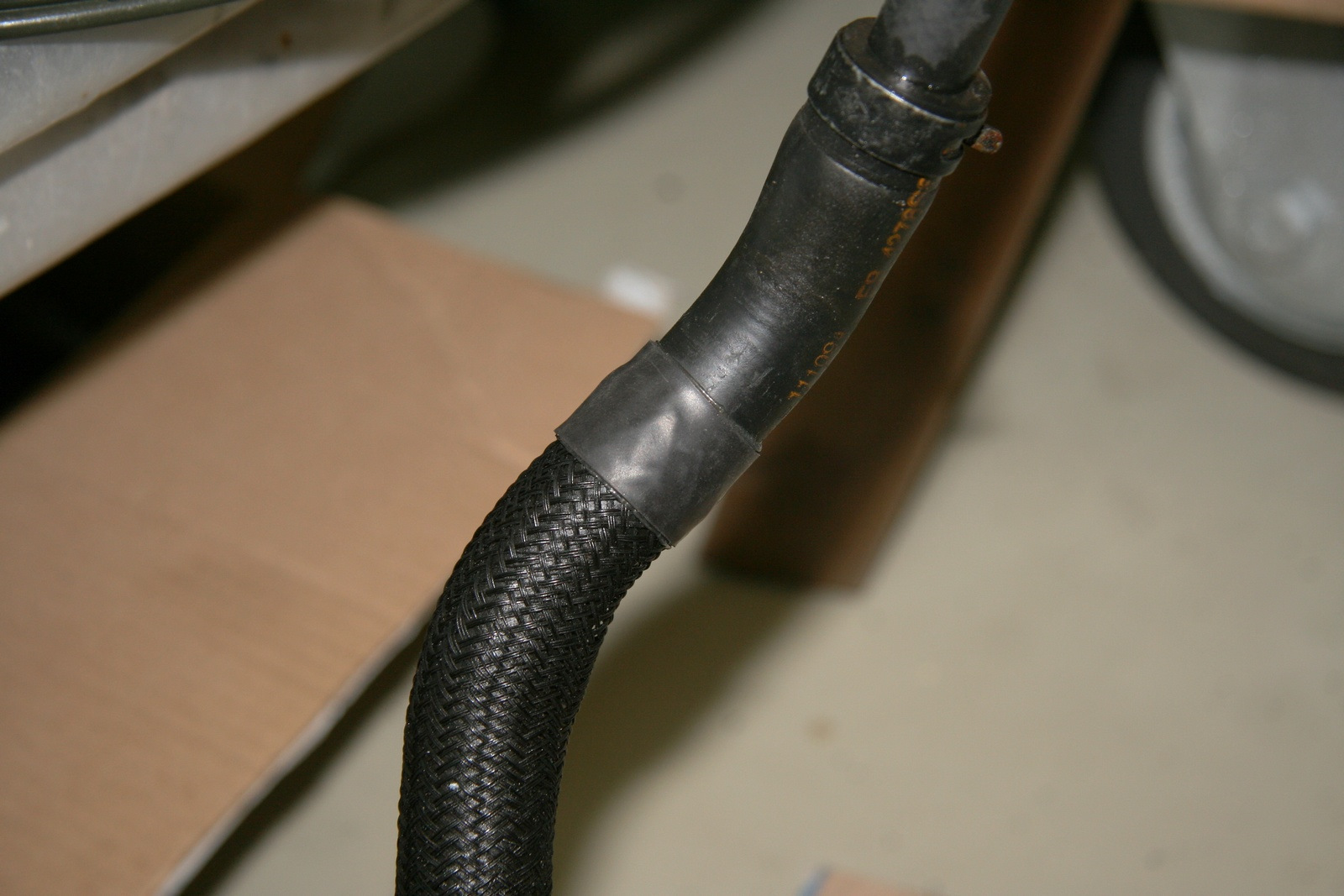

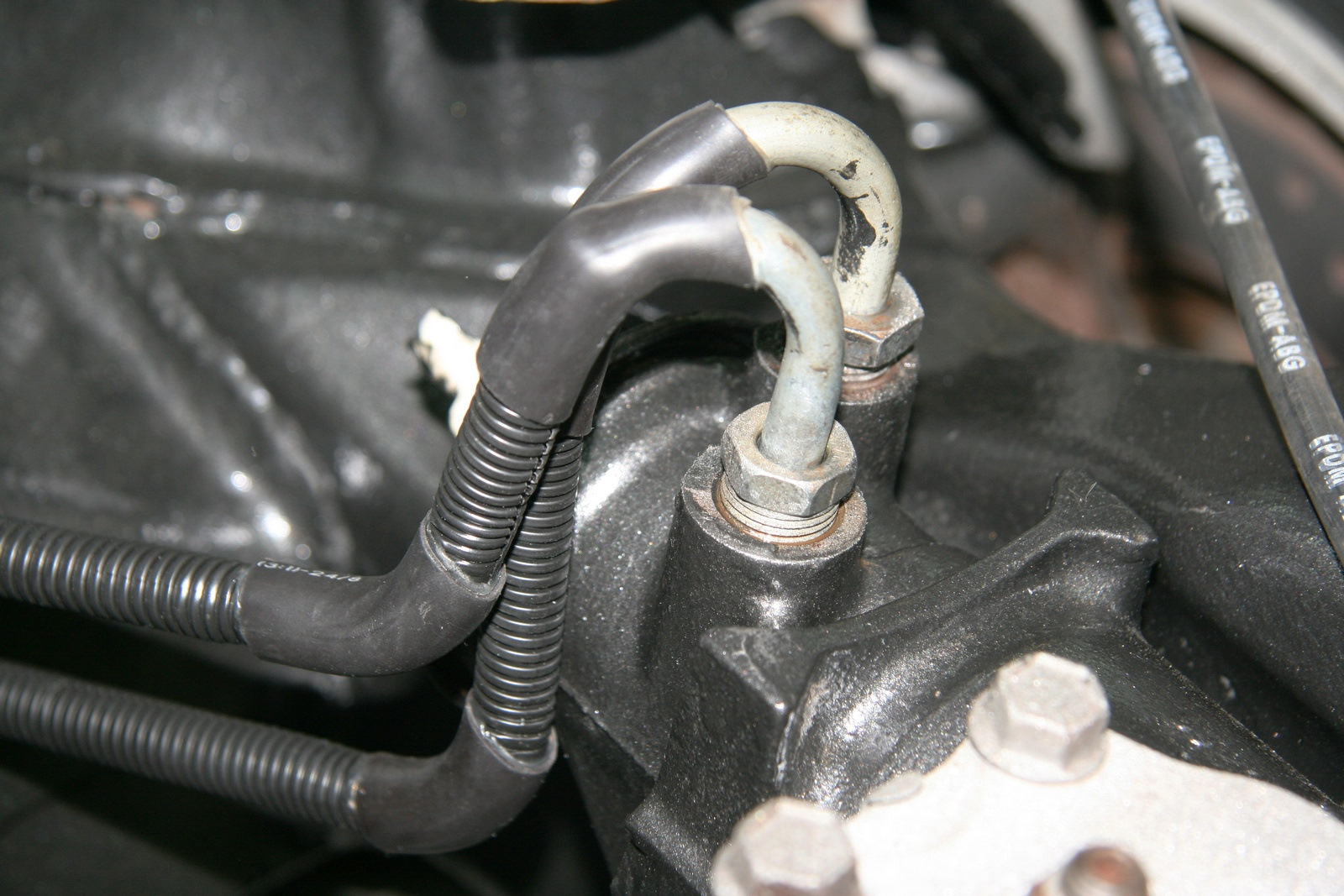

All hoses for the power steering have to be isolated, because if they are not, and if they are touching the frame, you will notice noise from steering gear

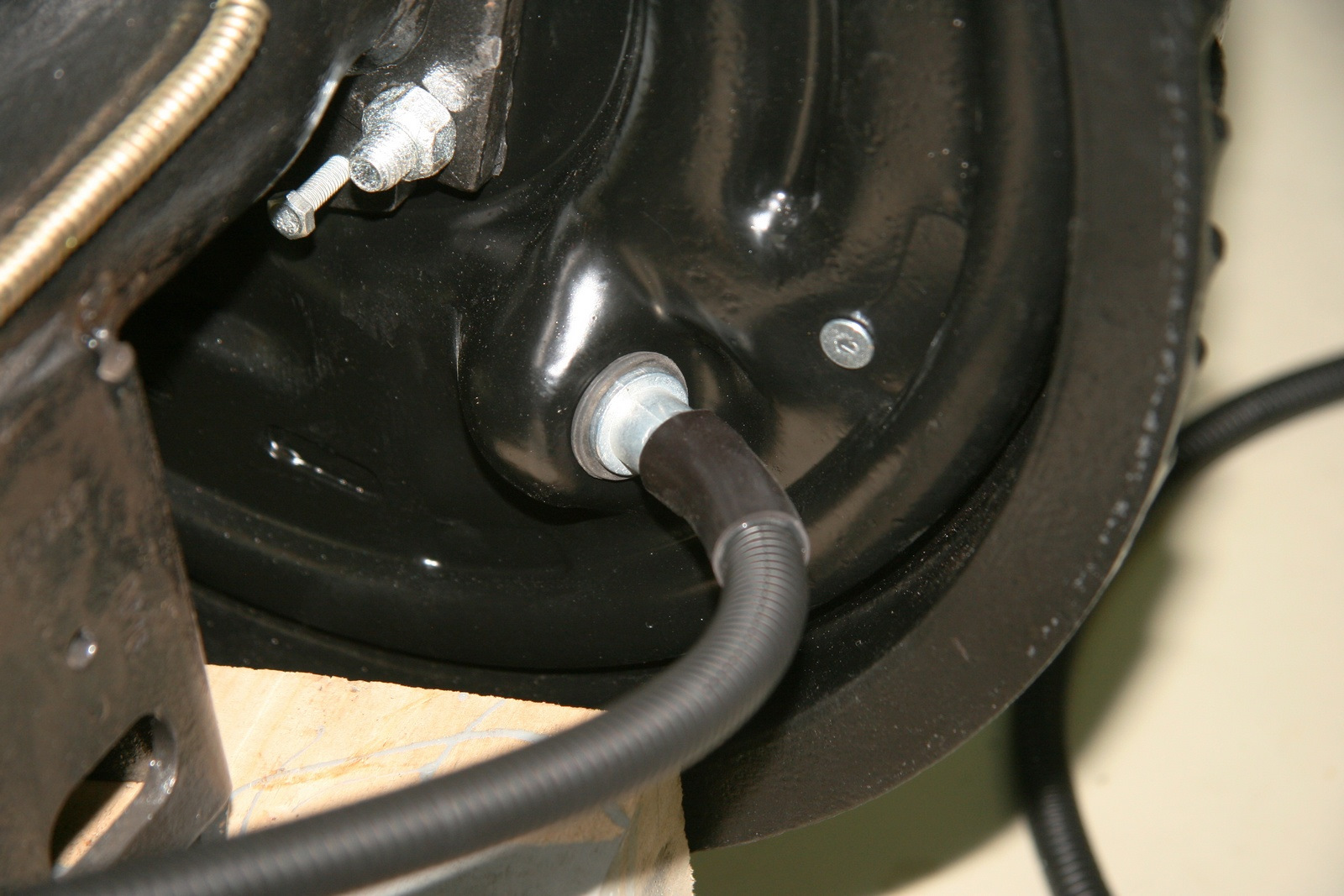

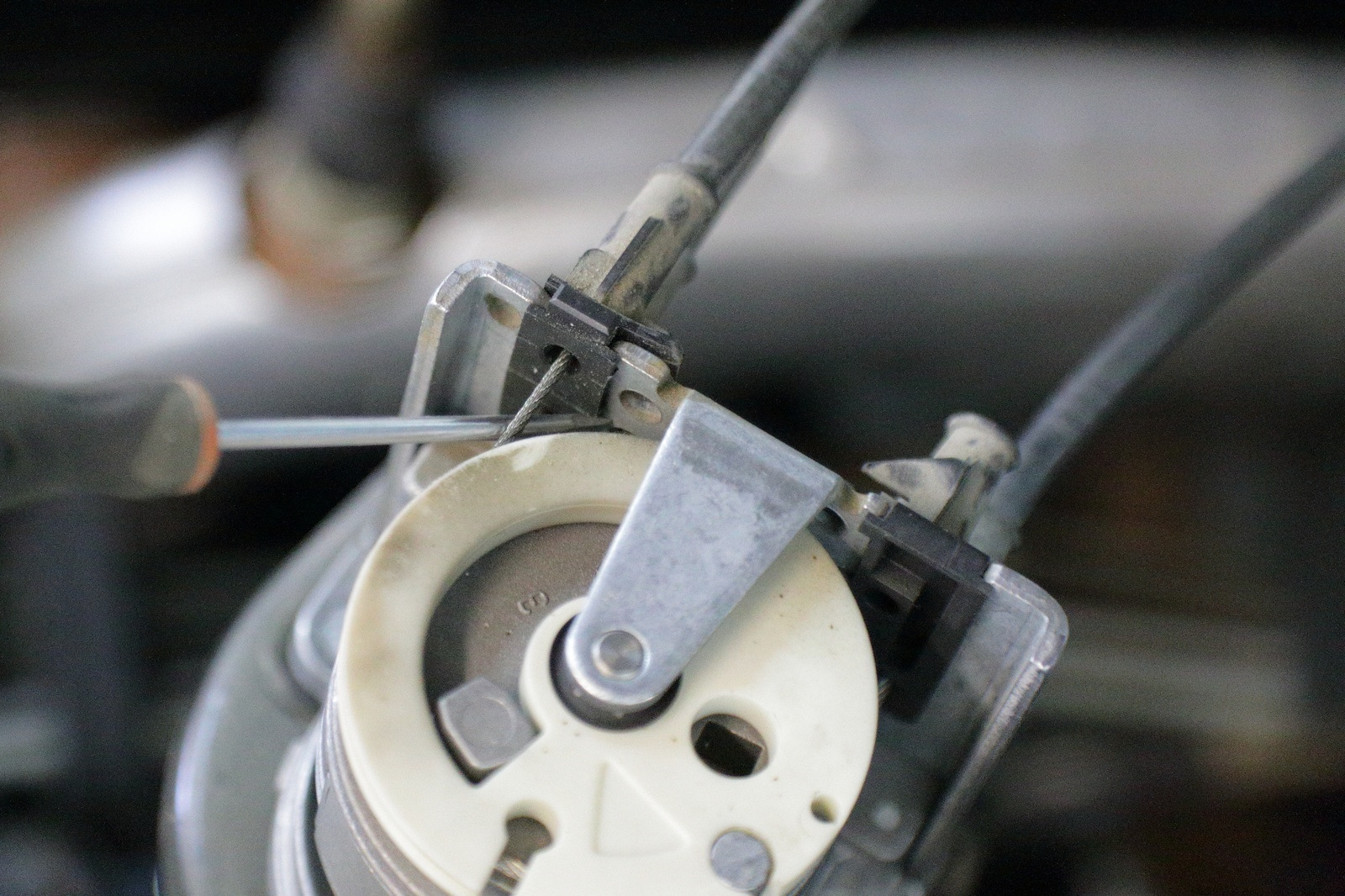

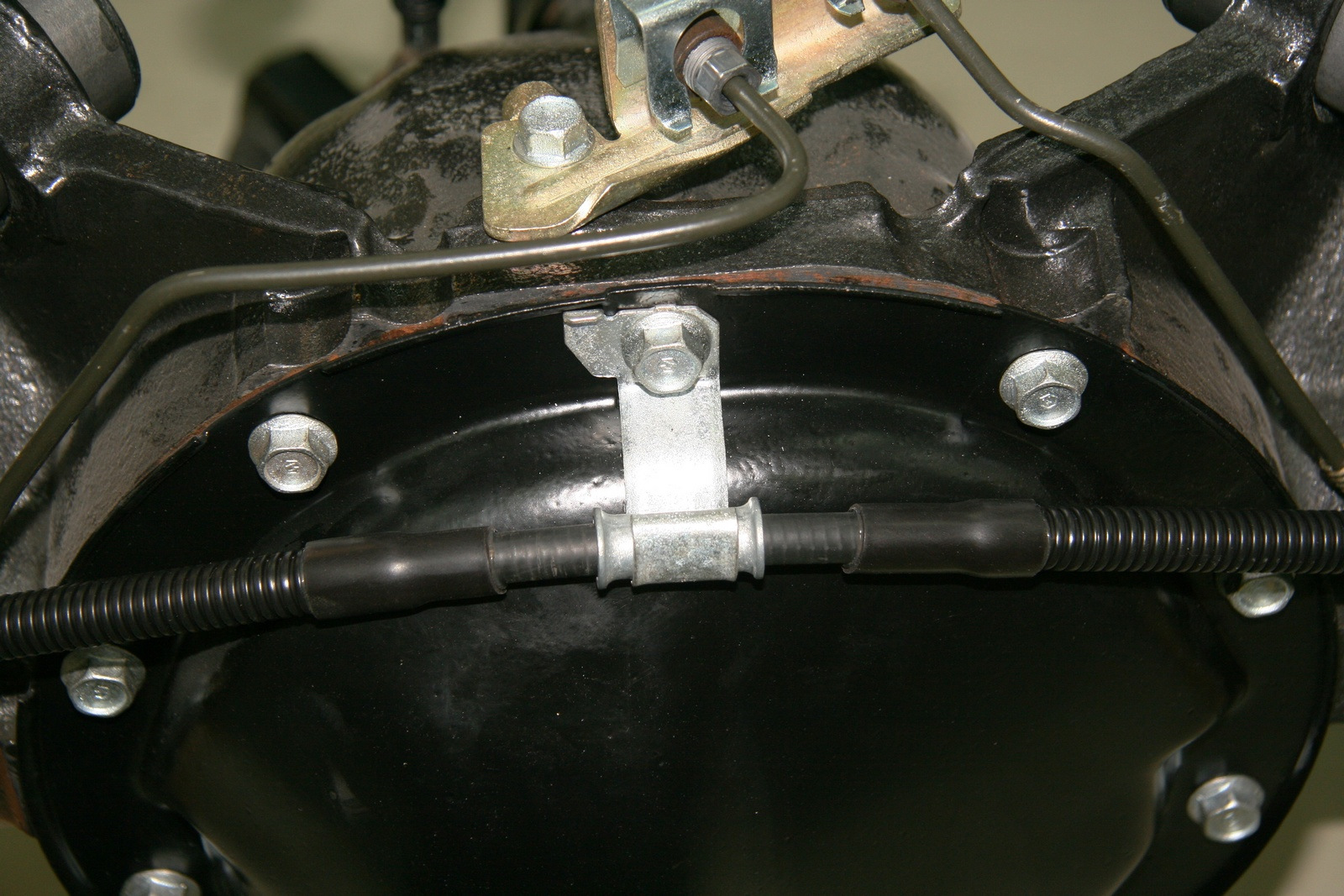

Hand brake cable - sealed

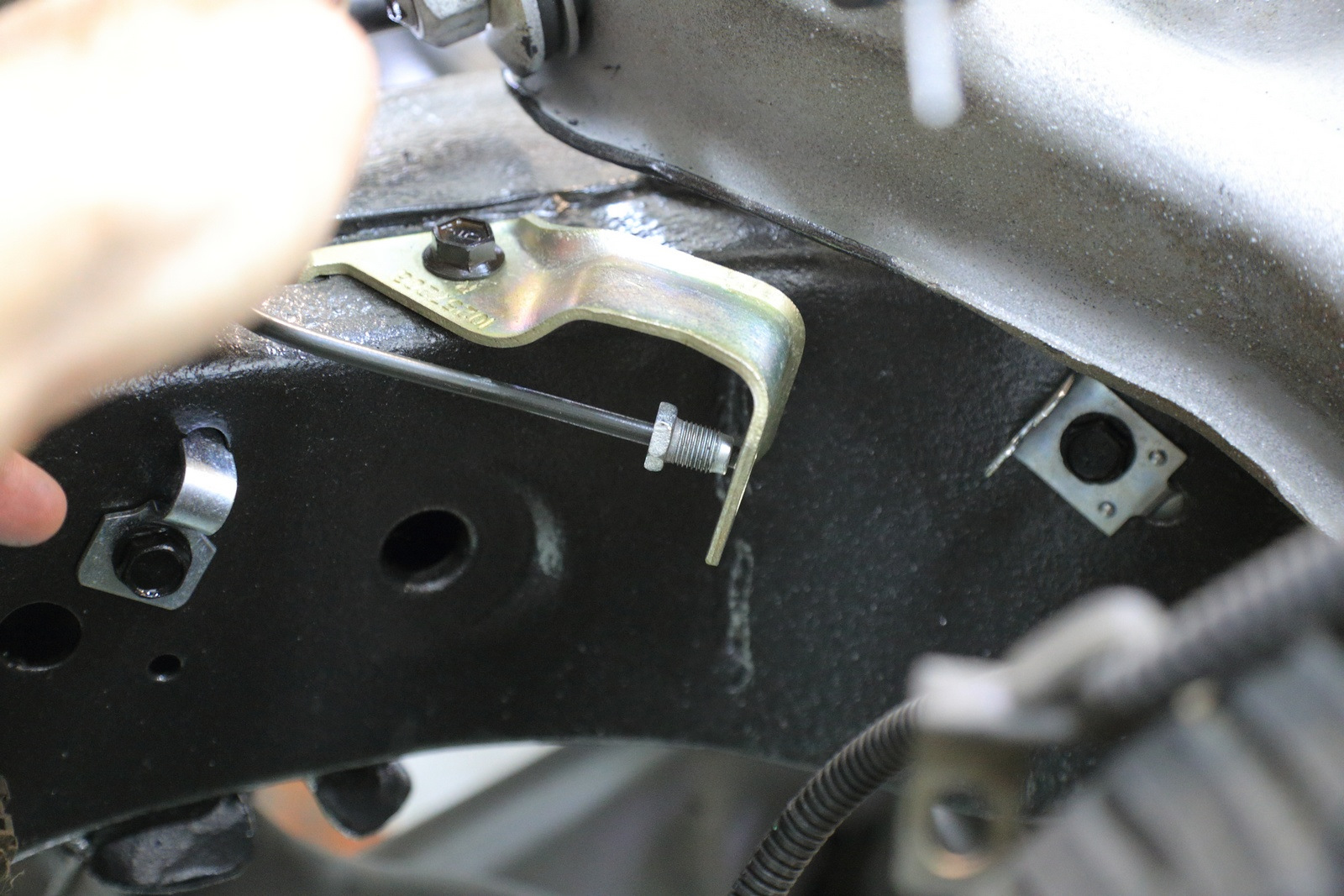

New cables for the rear drum brakes





Looks better and better

[kudims]

Some things to be done before "wedding"



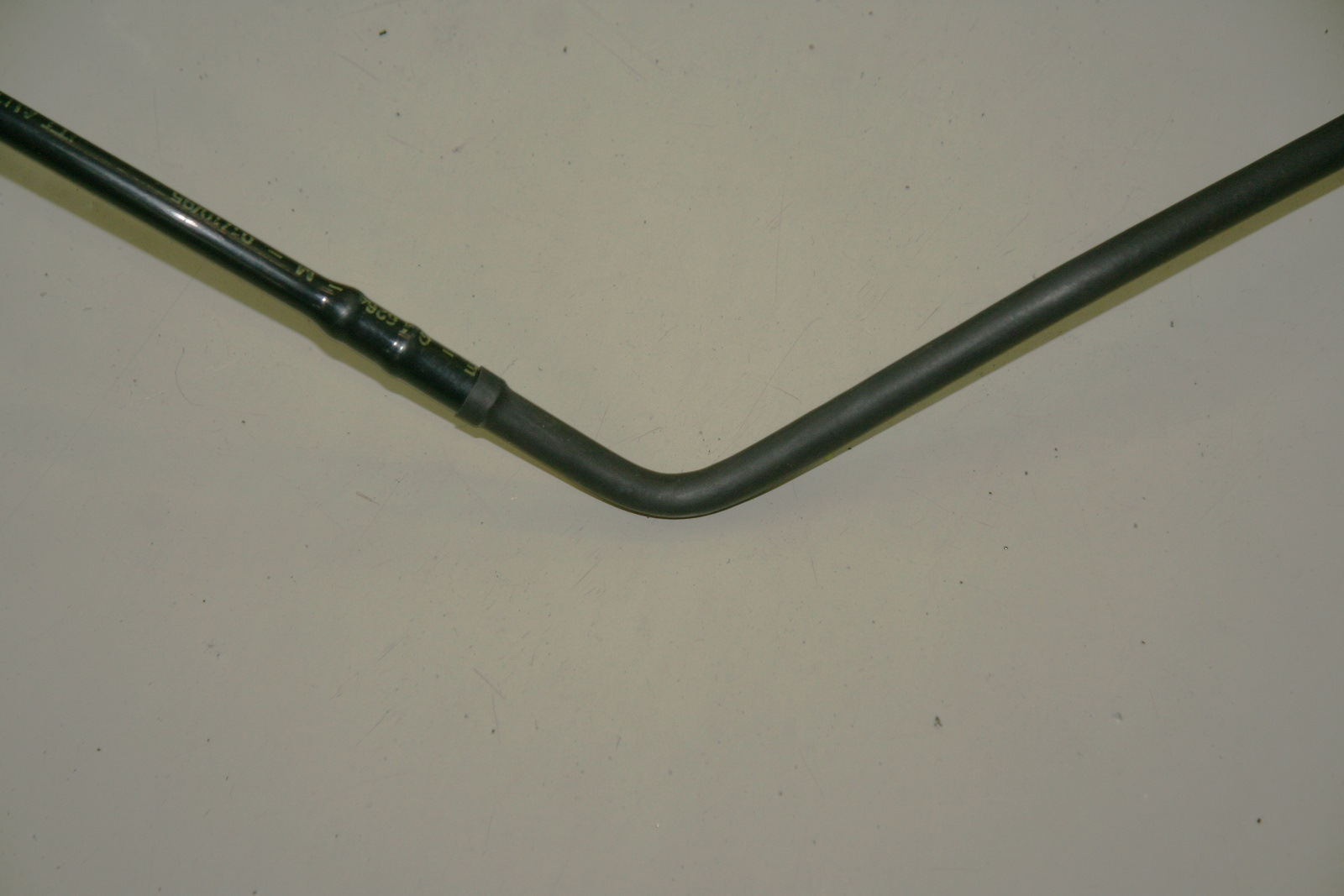

Steel part of EVAP system pipe was put into self-wrapping vinyl



To prevent wear, the part that goes into the frame was protected with crimped sleeve



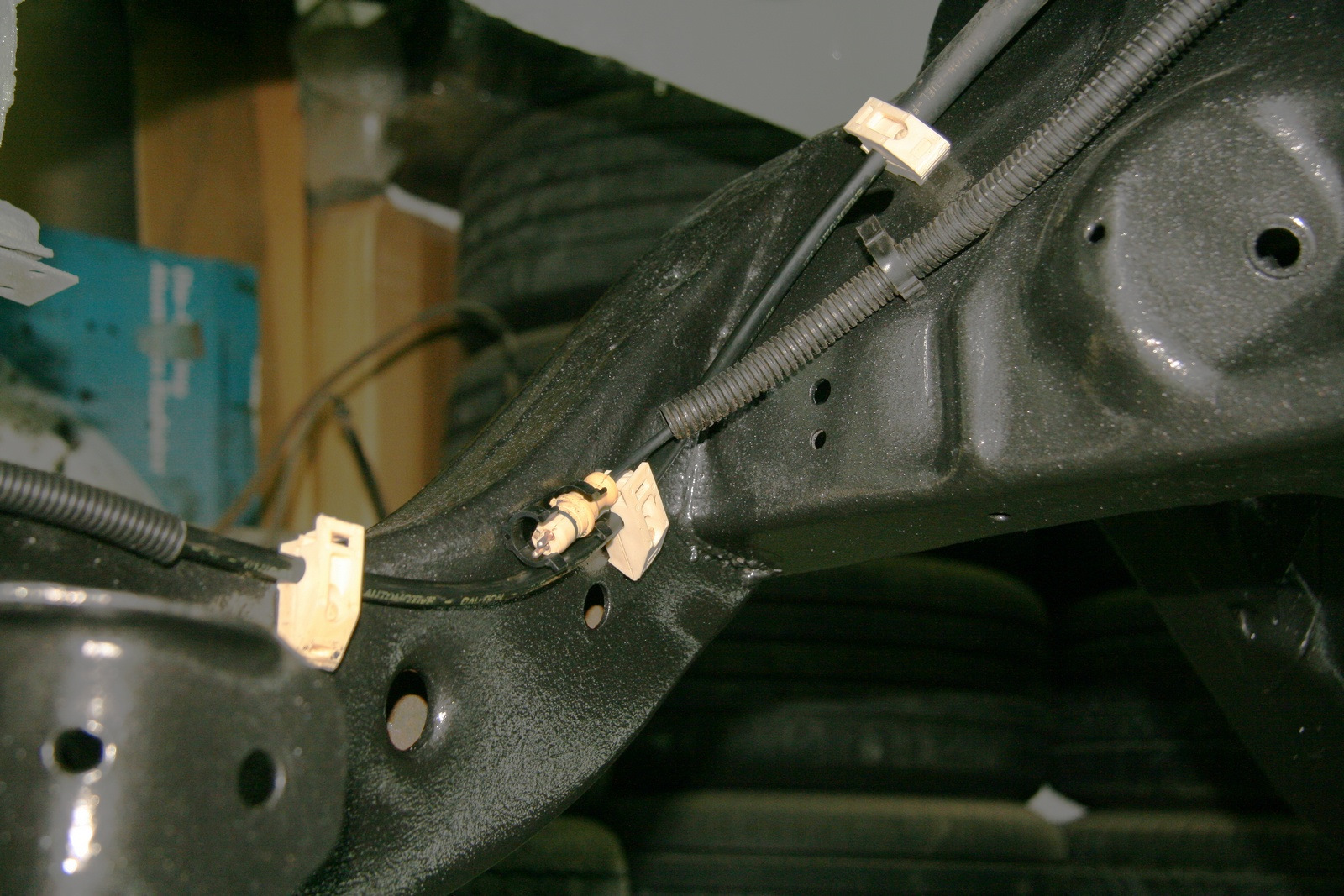

This is how it looks on a frame

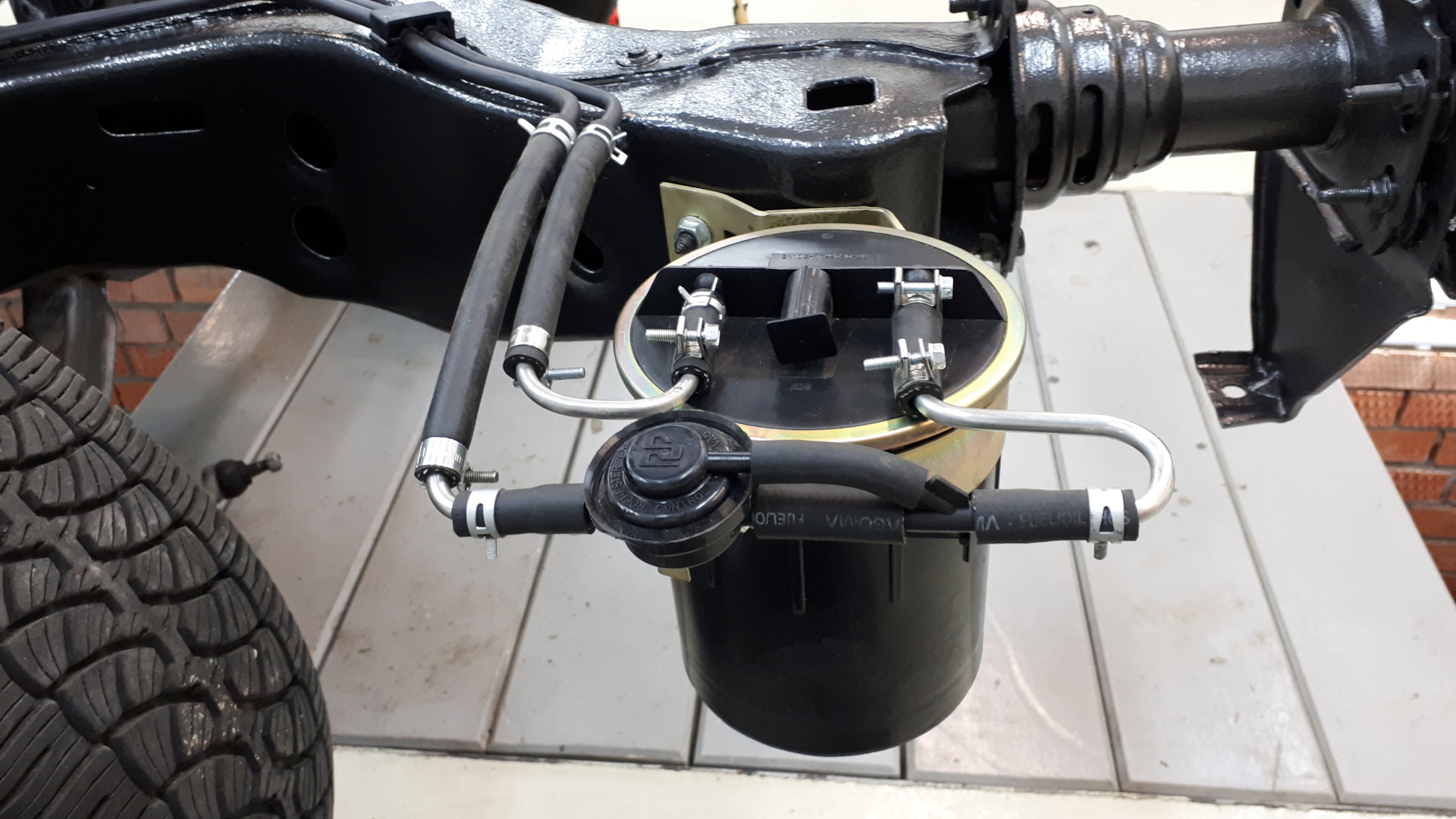

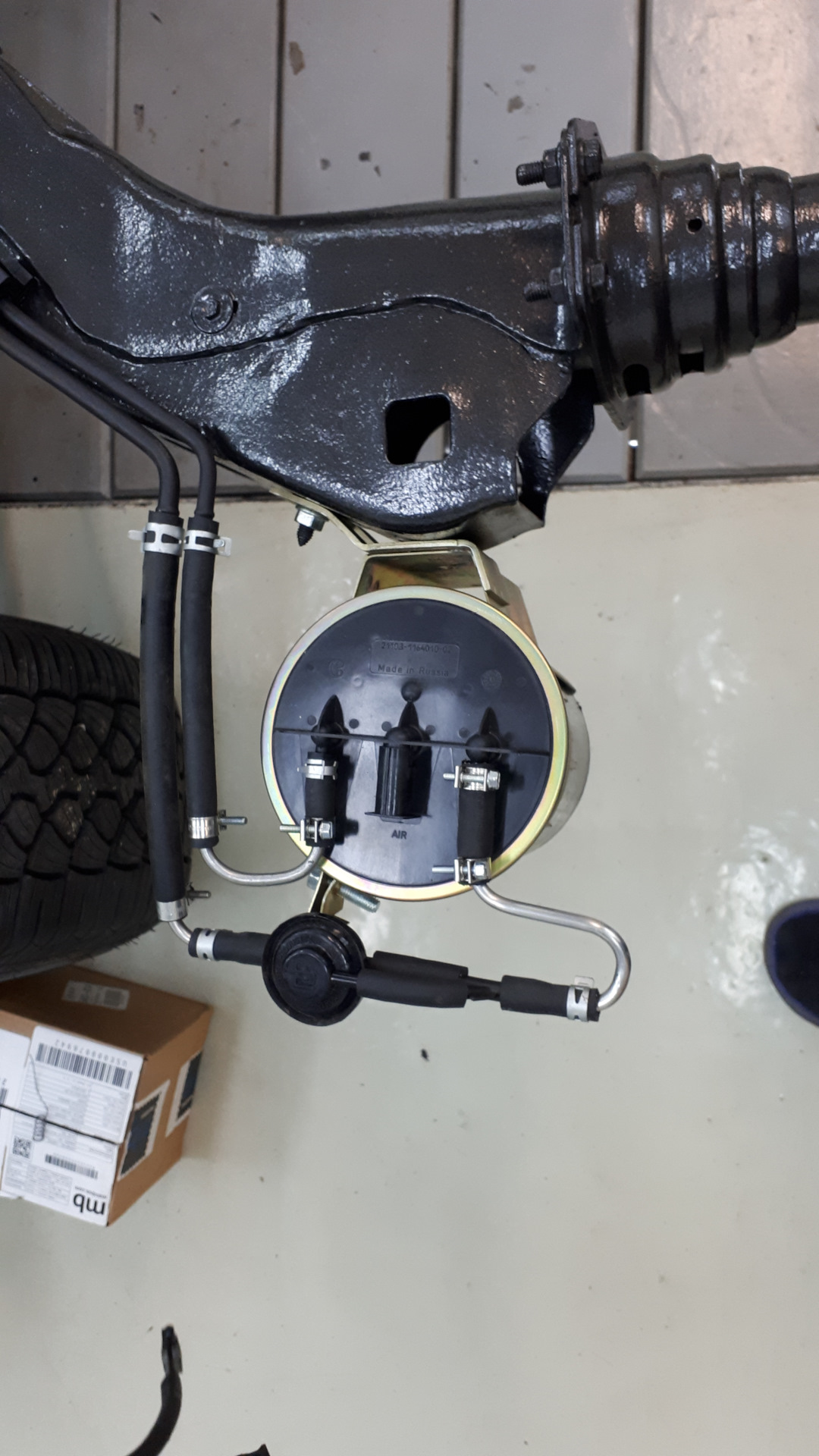

And finally I put back in place the EVAP canister, from which the whole process has begun





Left side: new brake lines. More details about brake lines



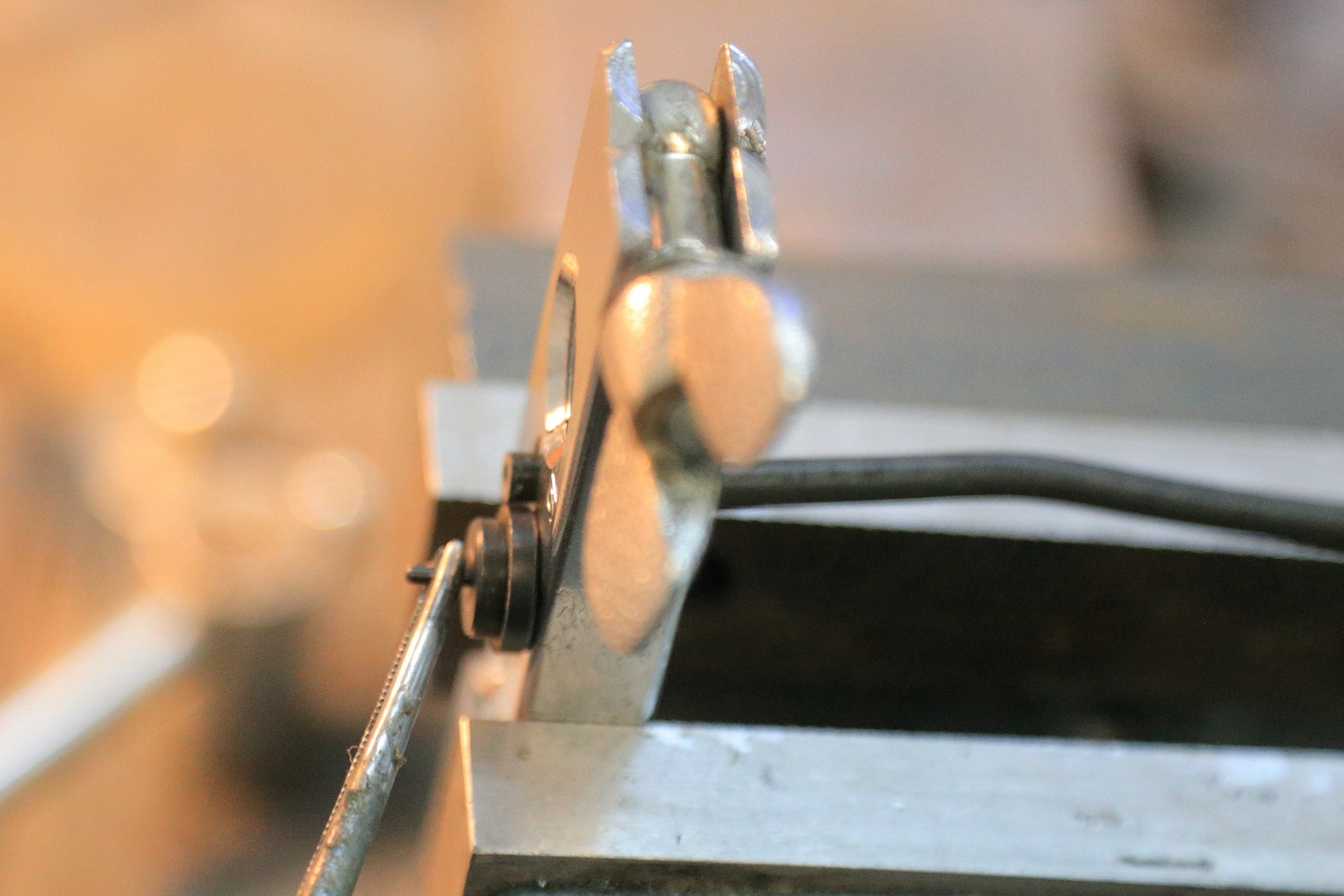

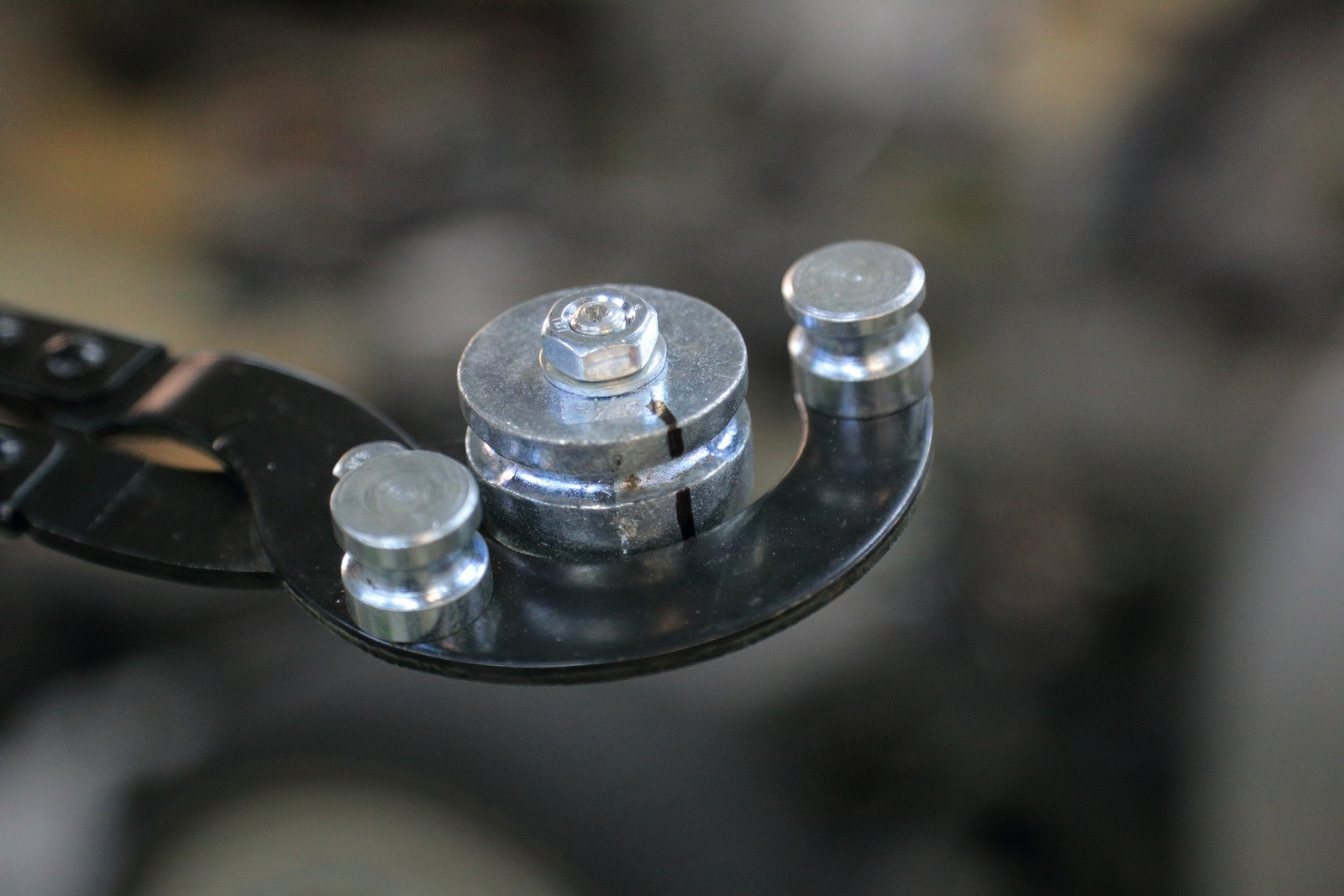

Bender for 3/16 tube. Works good. Black mark corresponds to the center of the bended radius

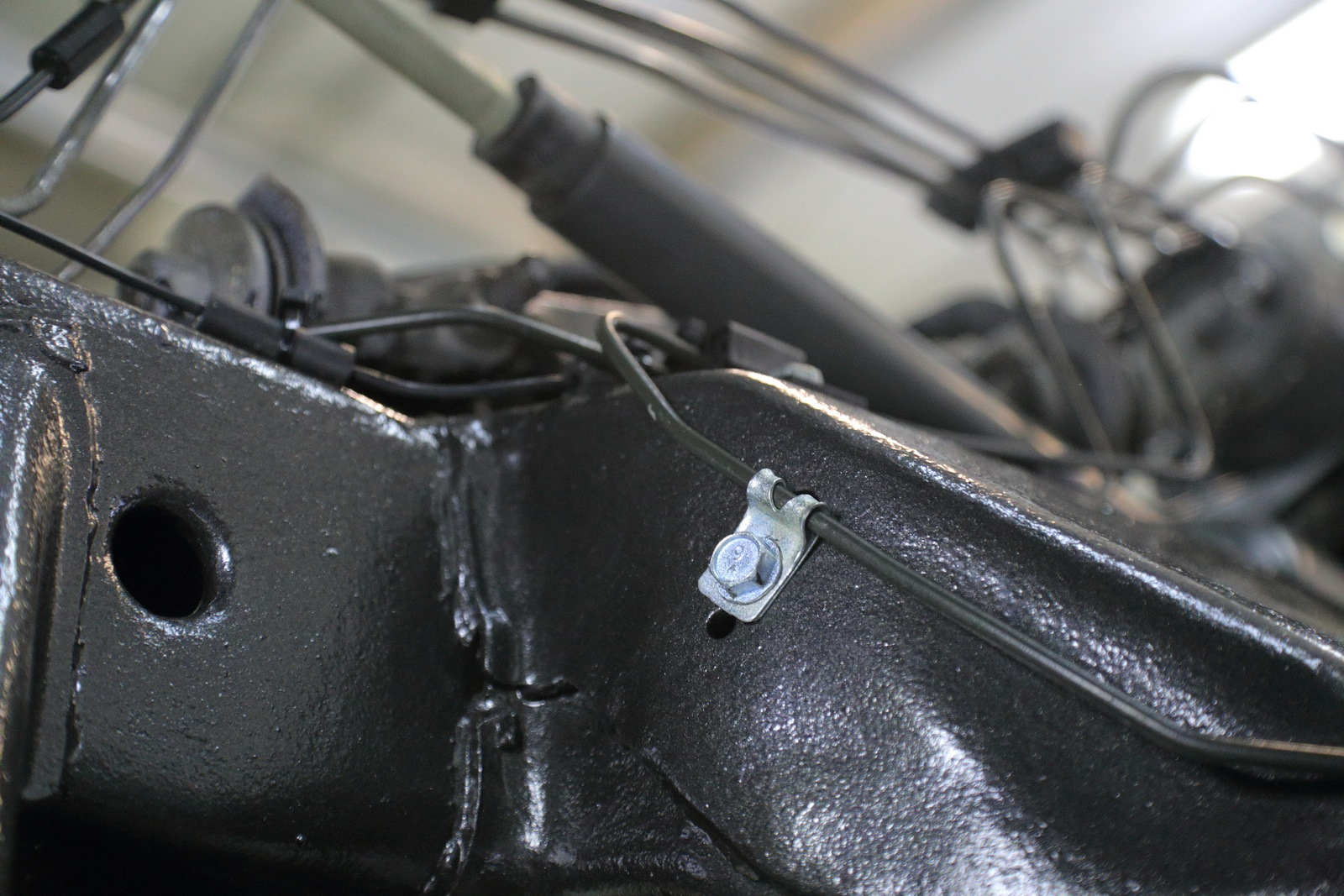

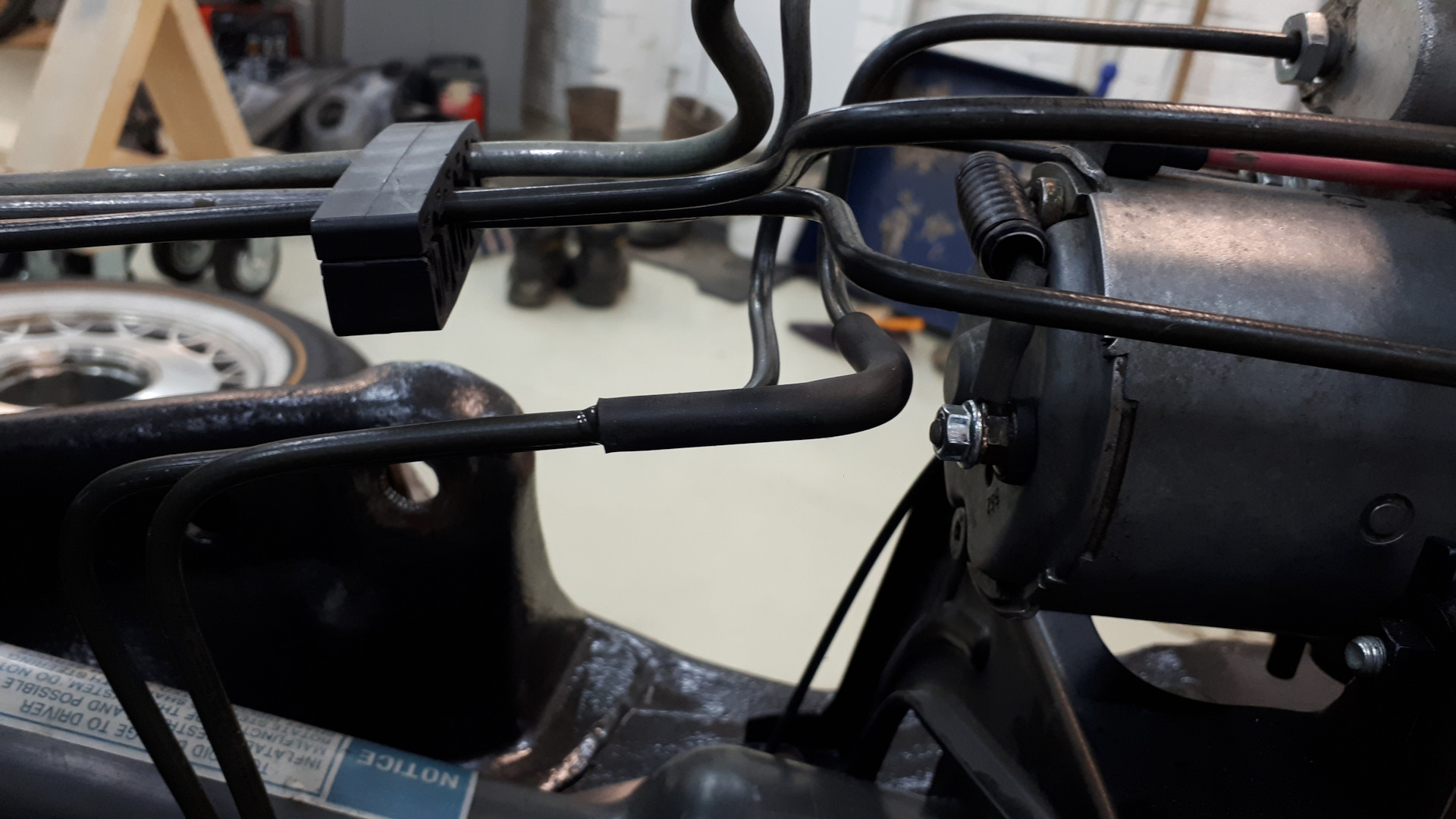

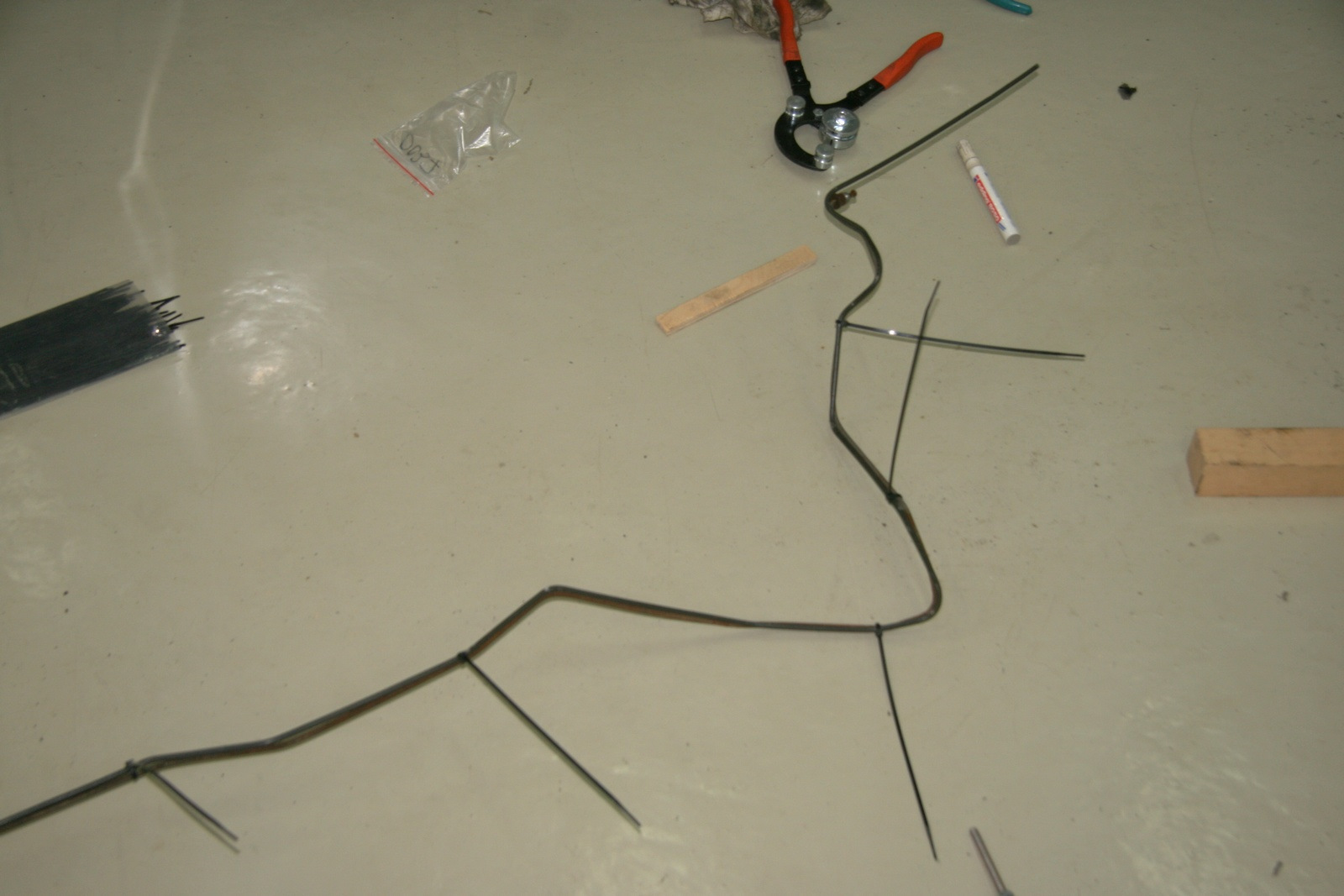

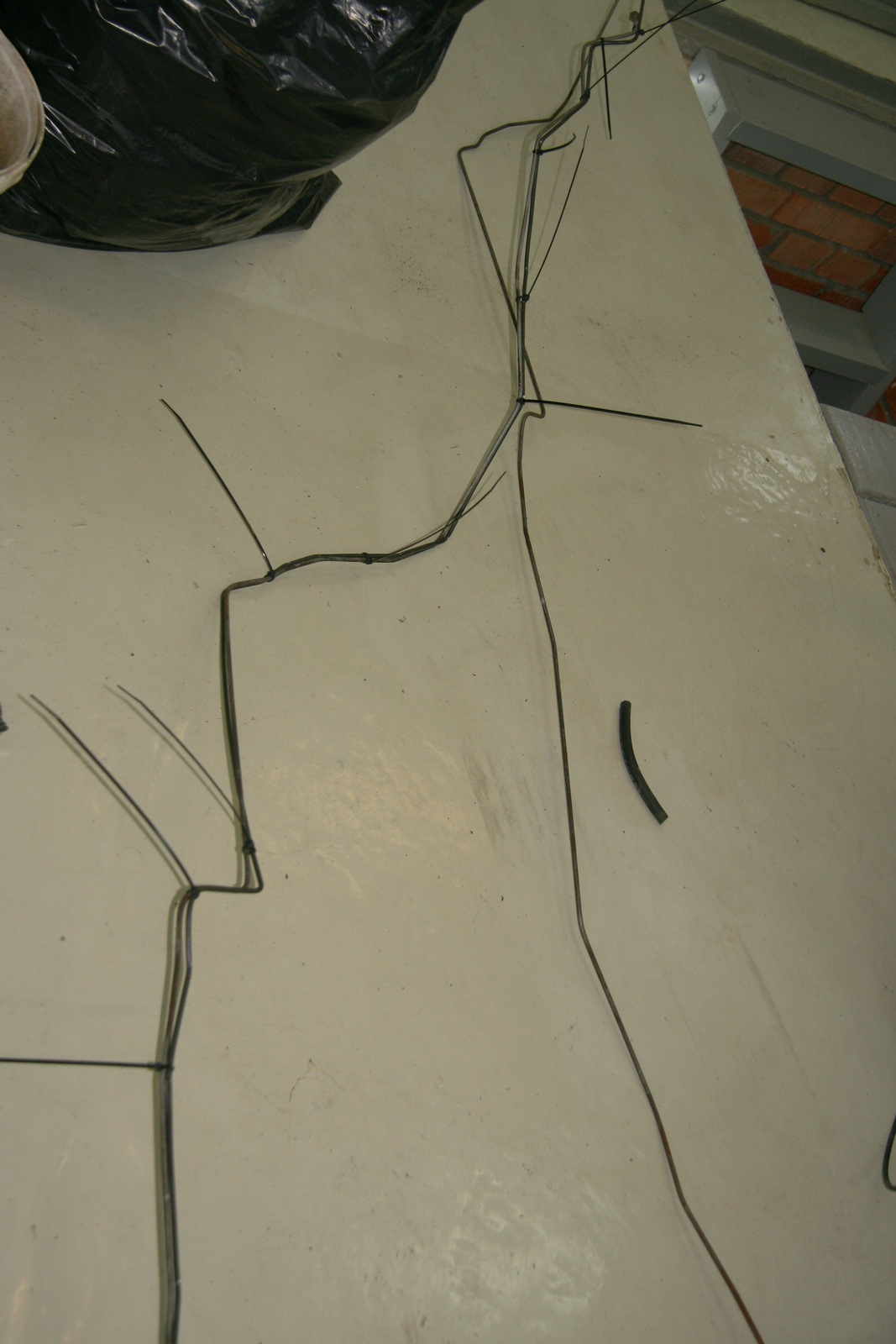

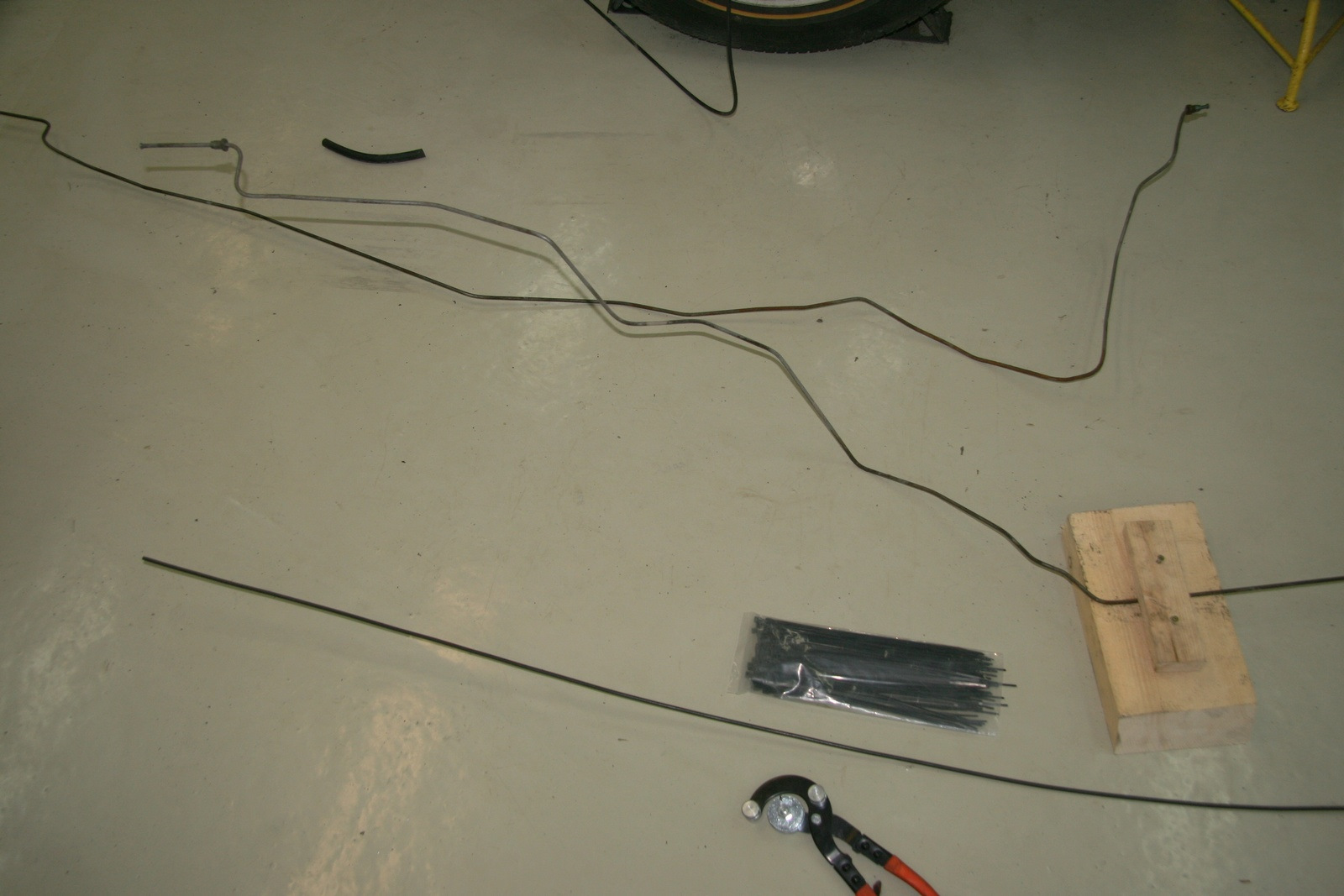

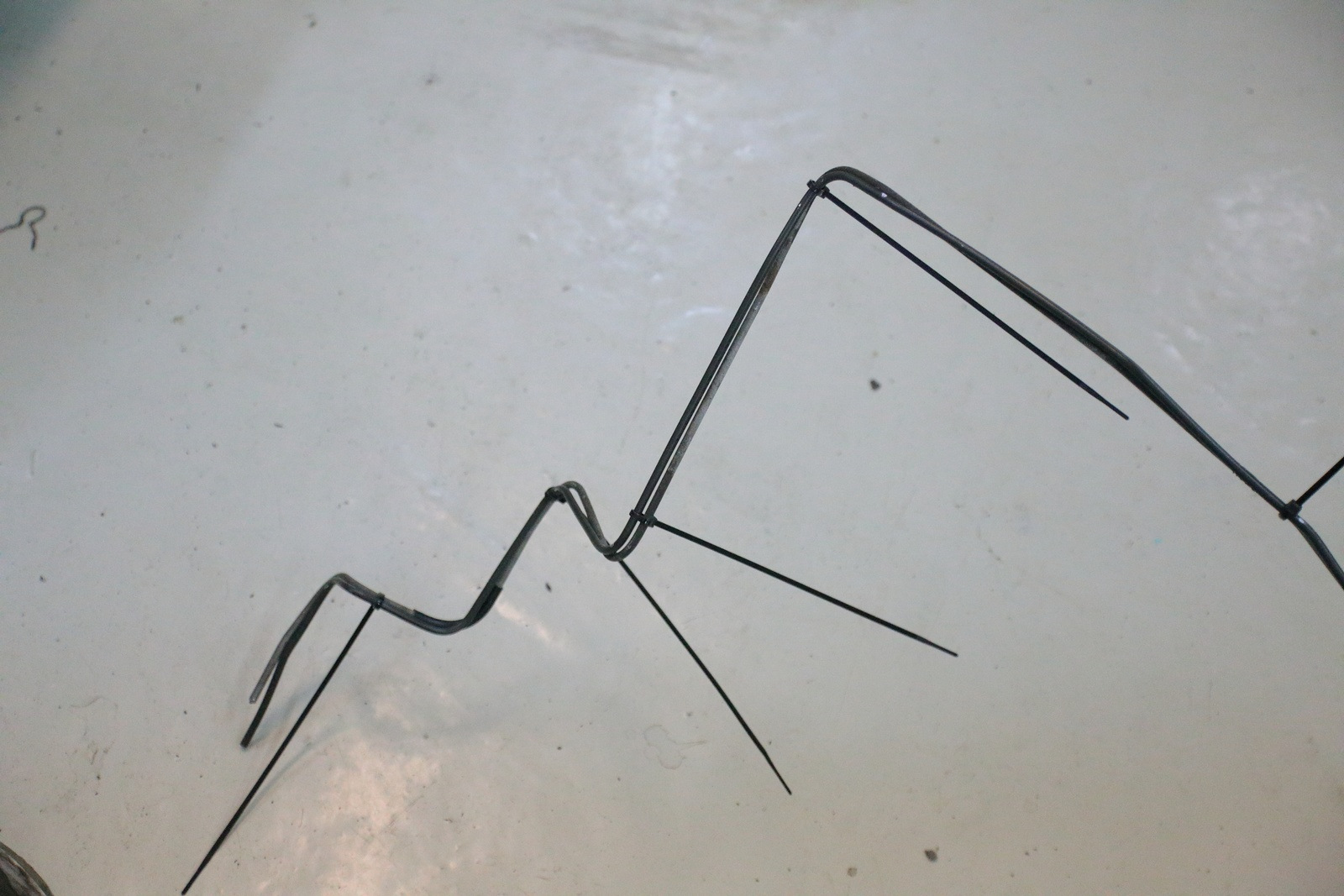

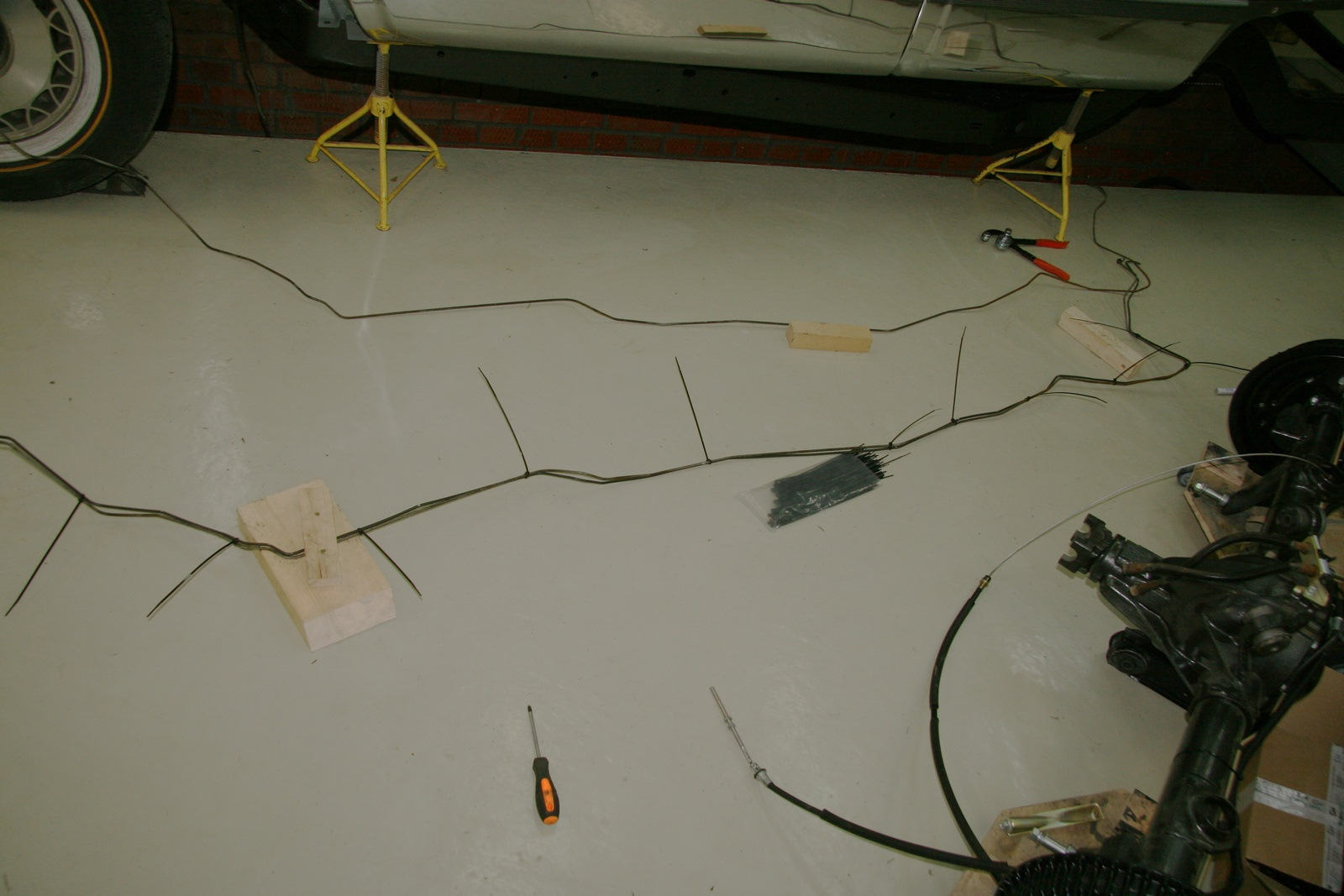

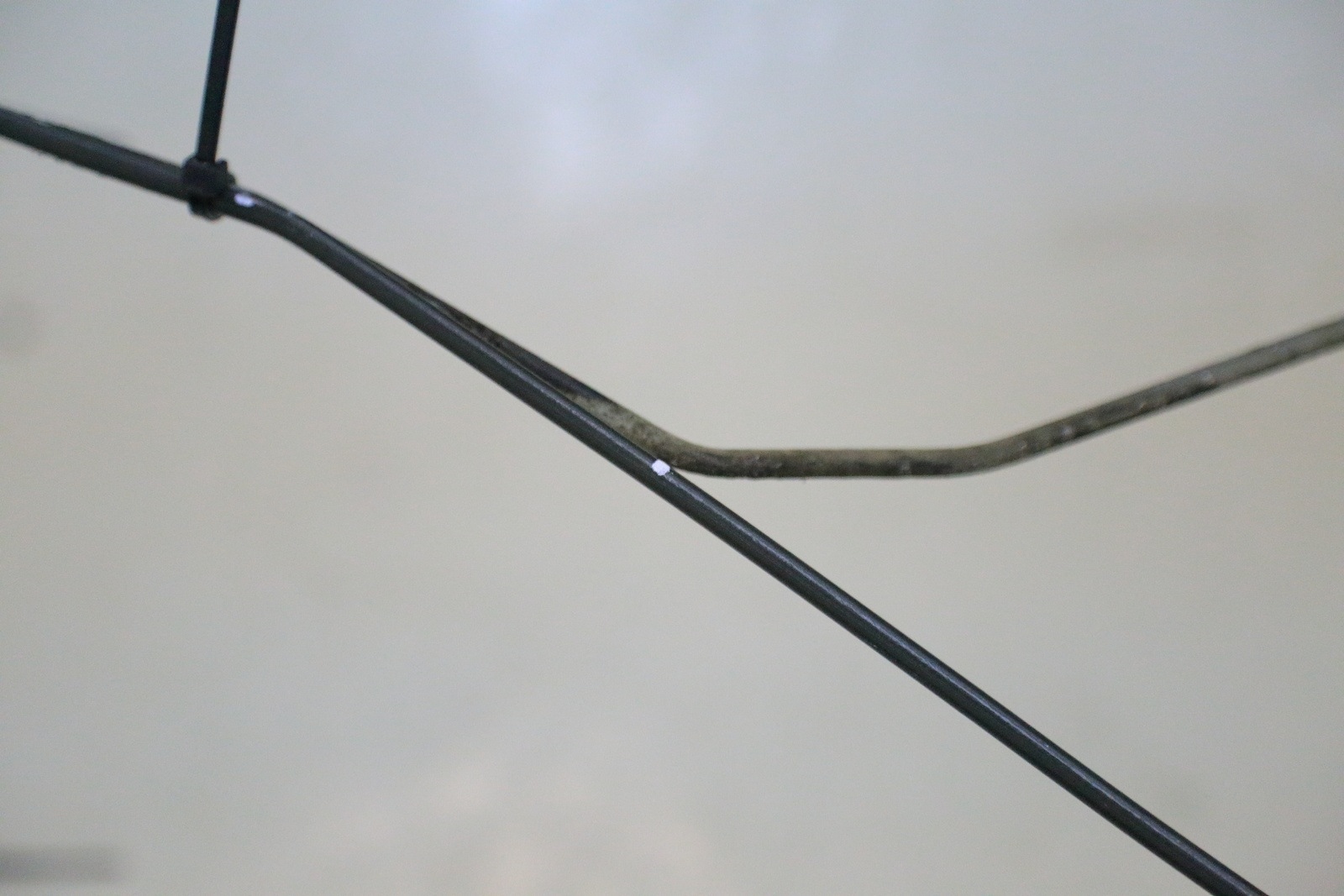

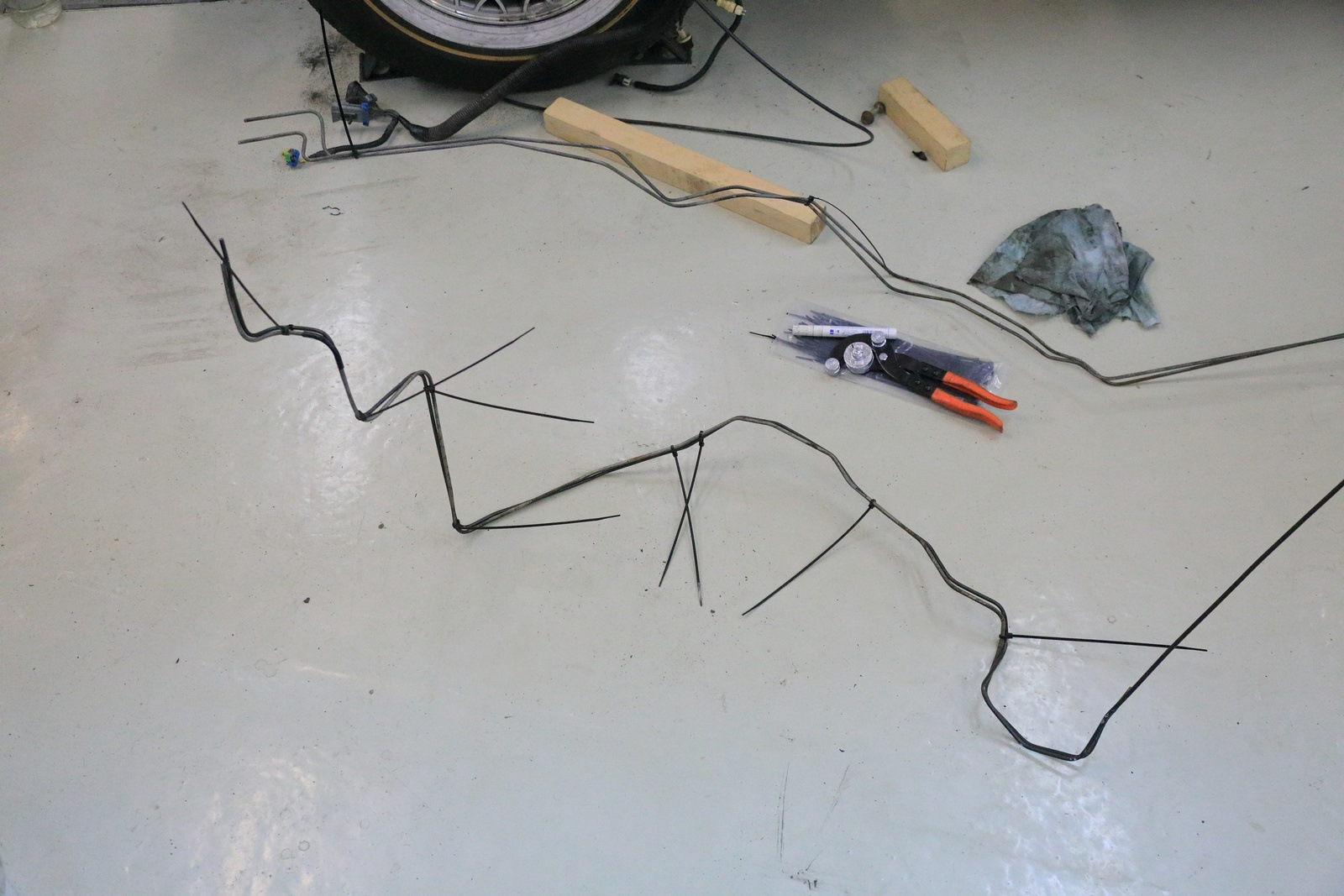

I used the plastic straps to fix the tube and repeat as close as it is possible the trajectory of the original tube



Another device (right corner) was used to secure the tubes



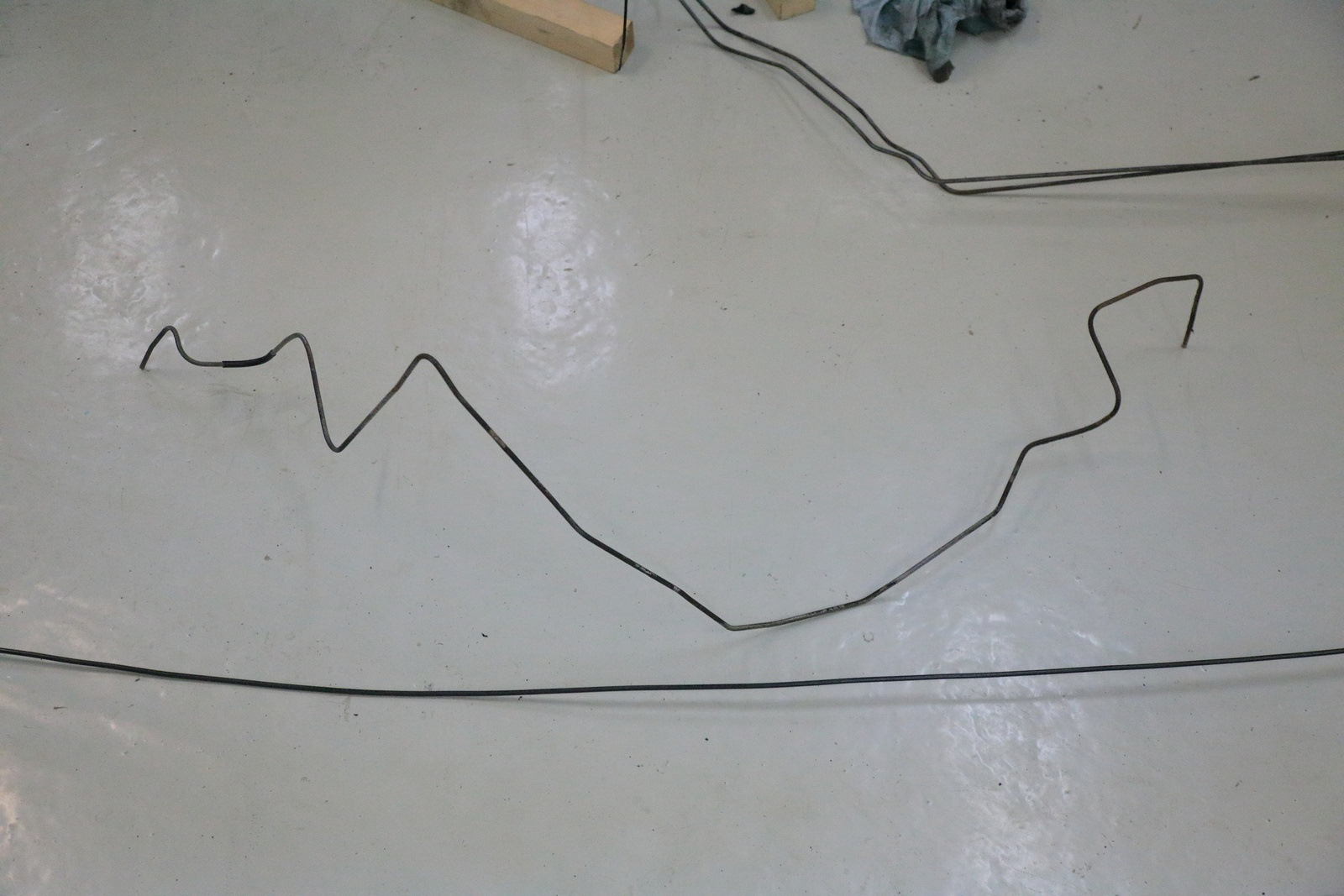

Almost done with one pipe

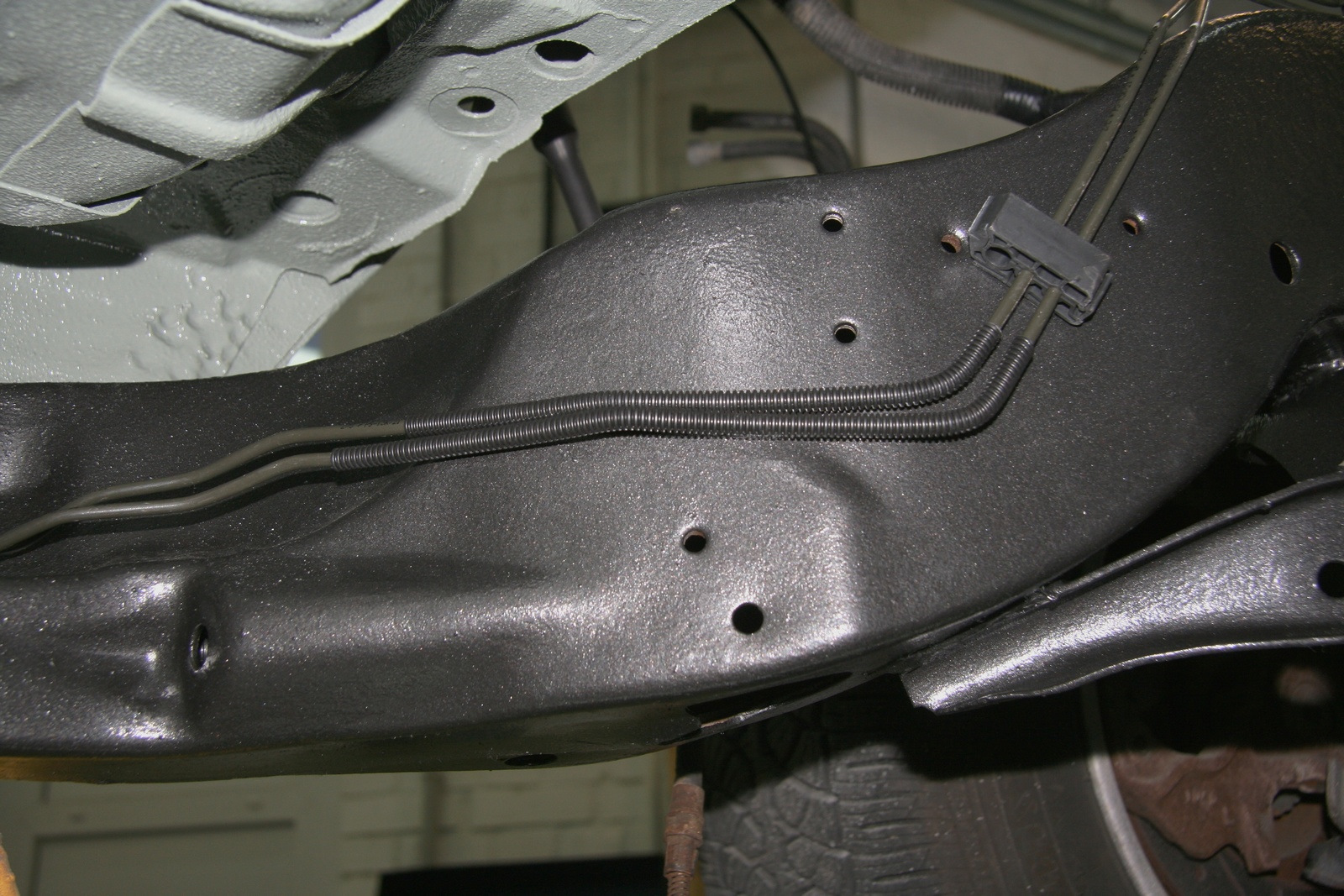

The trajectory is very complex, so securing both tubes together is a must





Short tube to the right wheel



Just the same process



I mark the center, then slip the strap a bit to have more flexibility, and bend in the proper direction

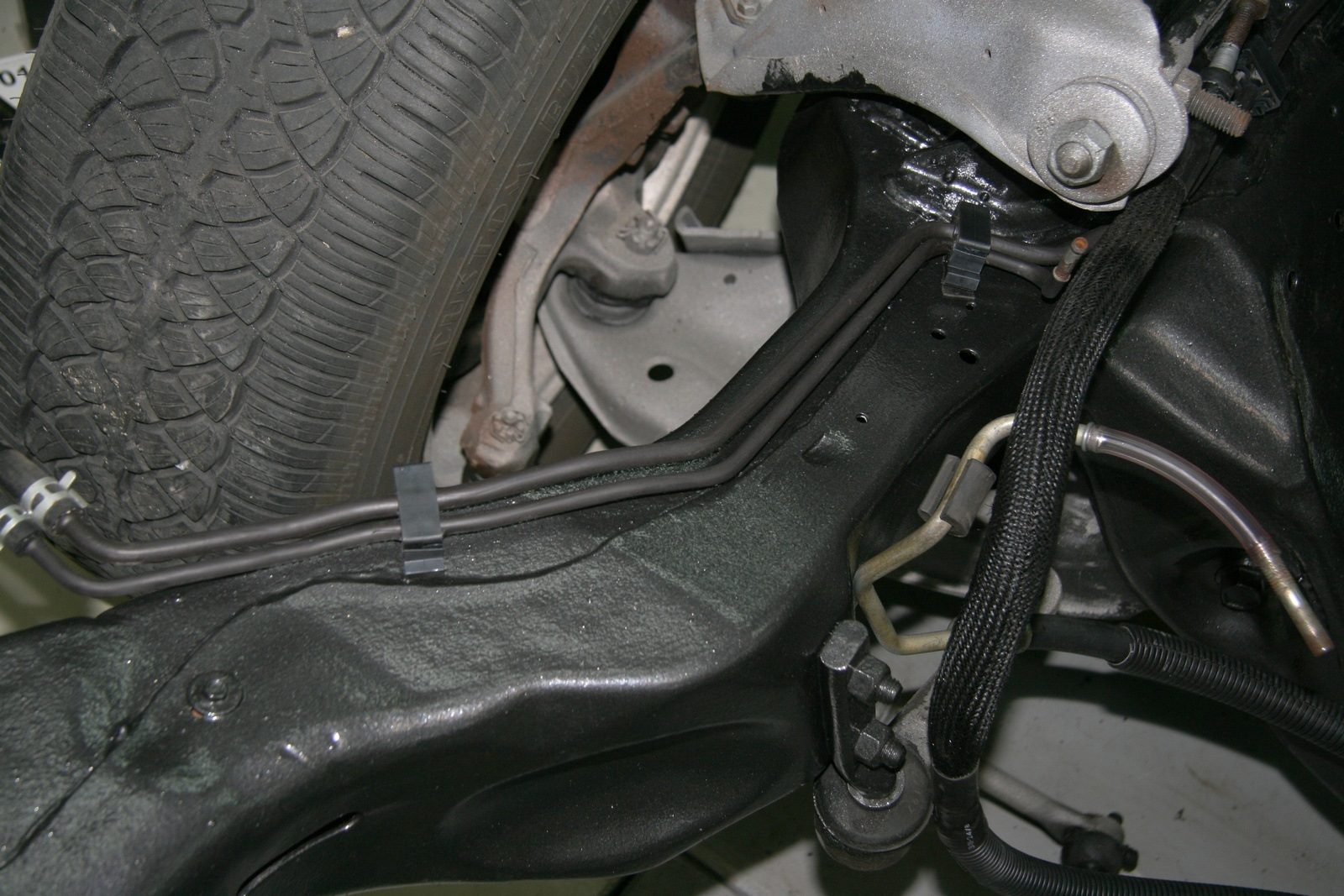

Done



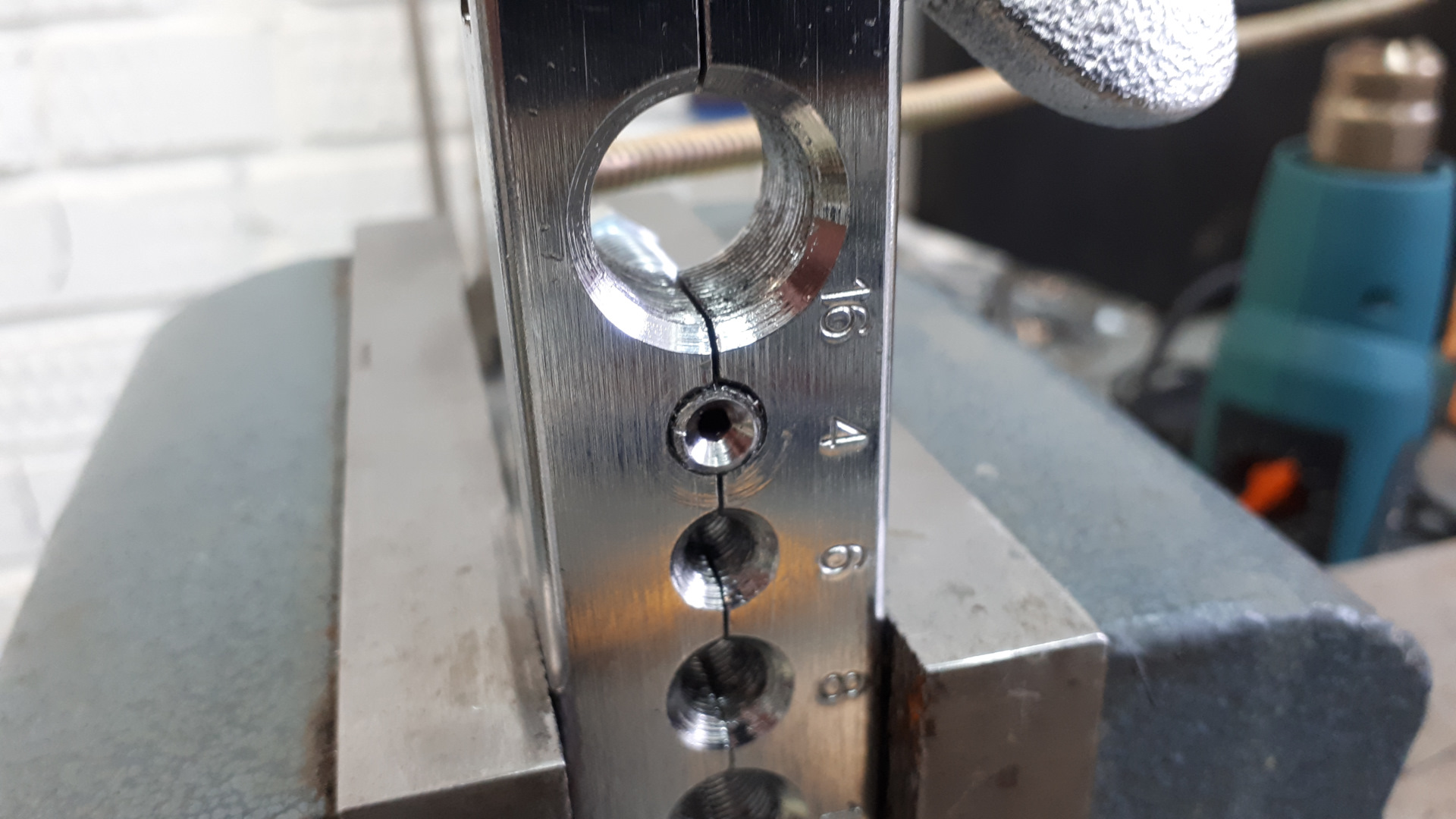

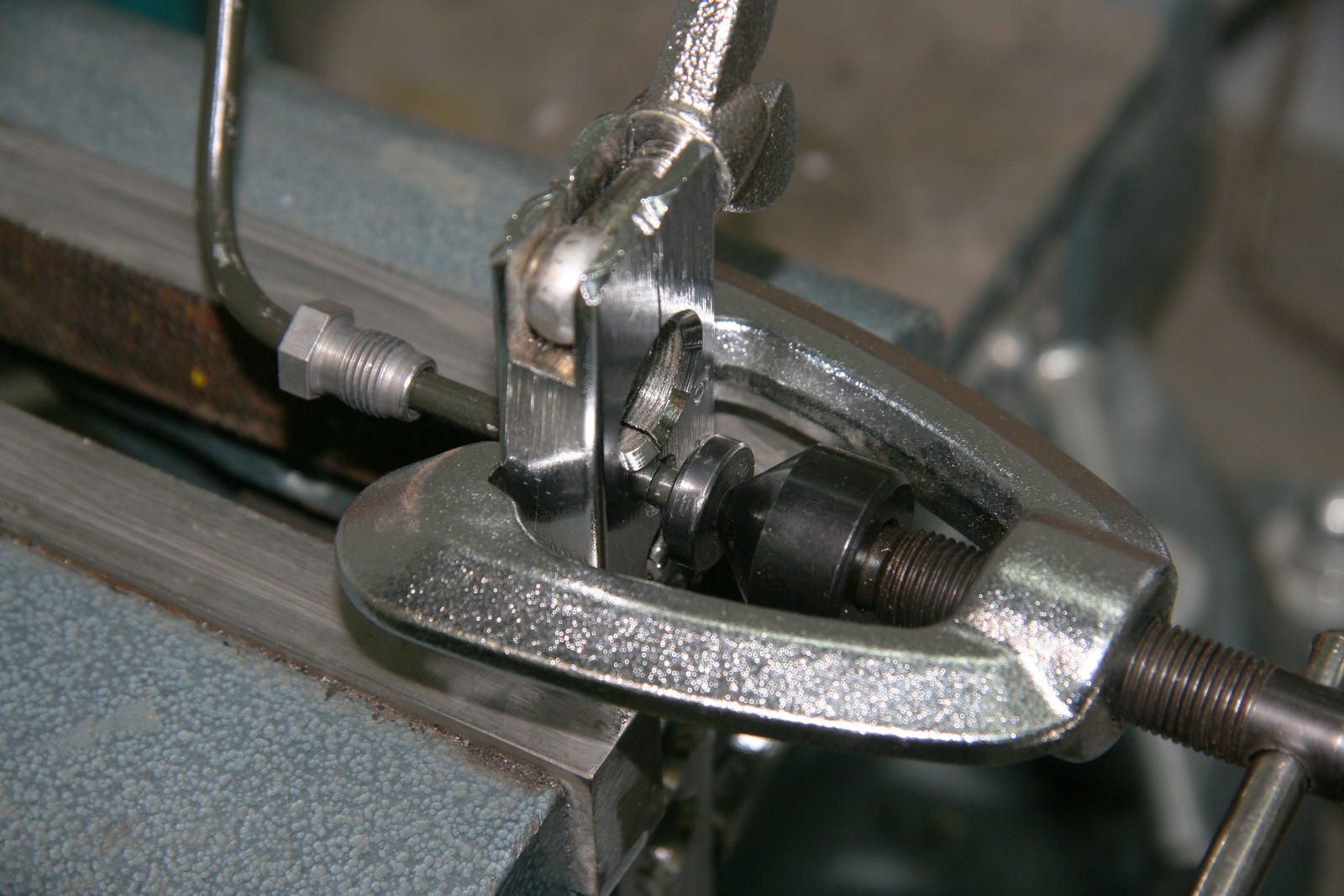

Simple flaring tool



Mushroom flare type. By the way, both types of flares are used on this car as well as both imperial and metric inverted nuts for the brake lines!!!

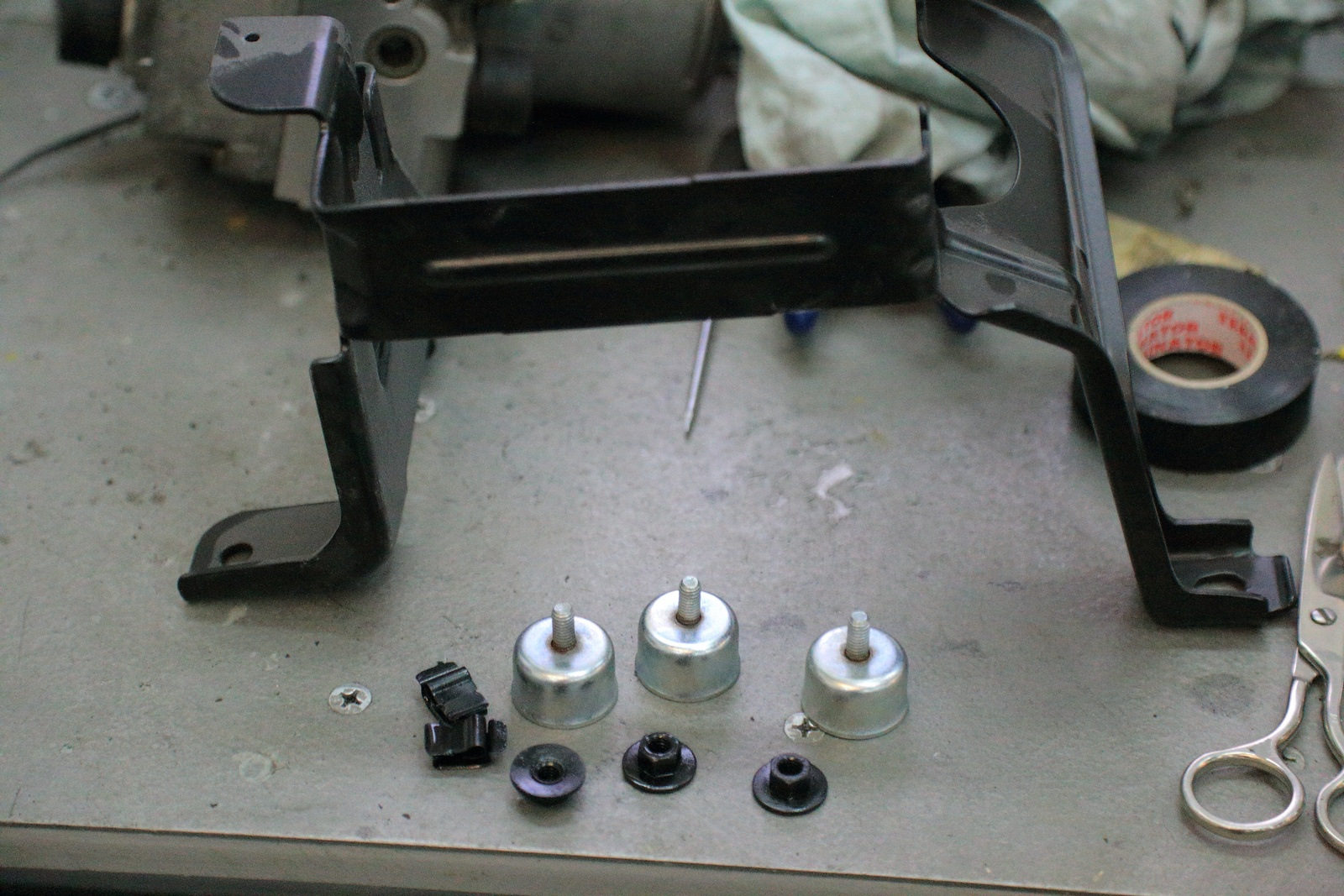

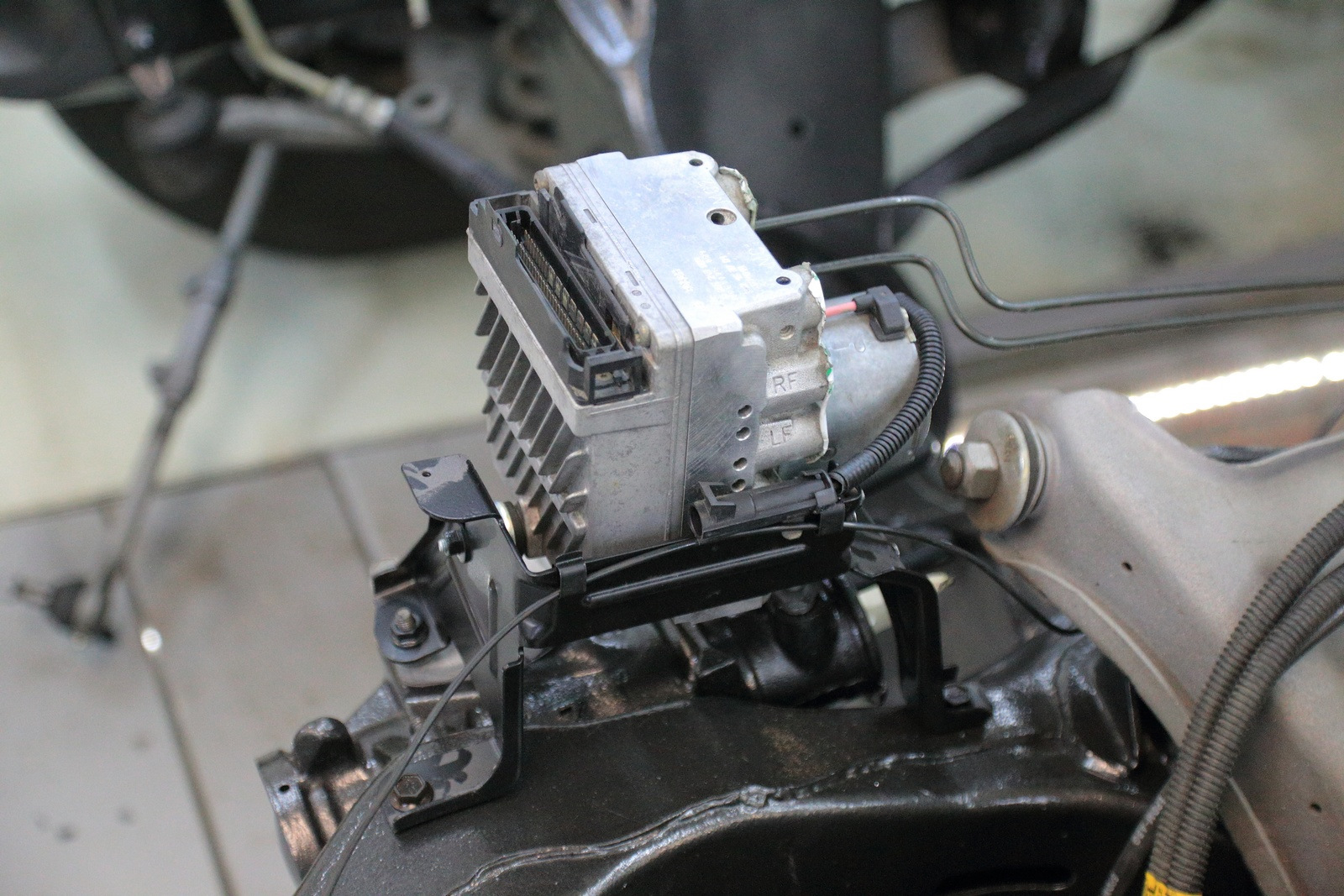

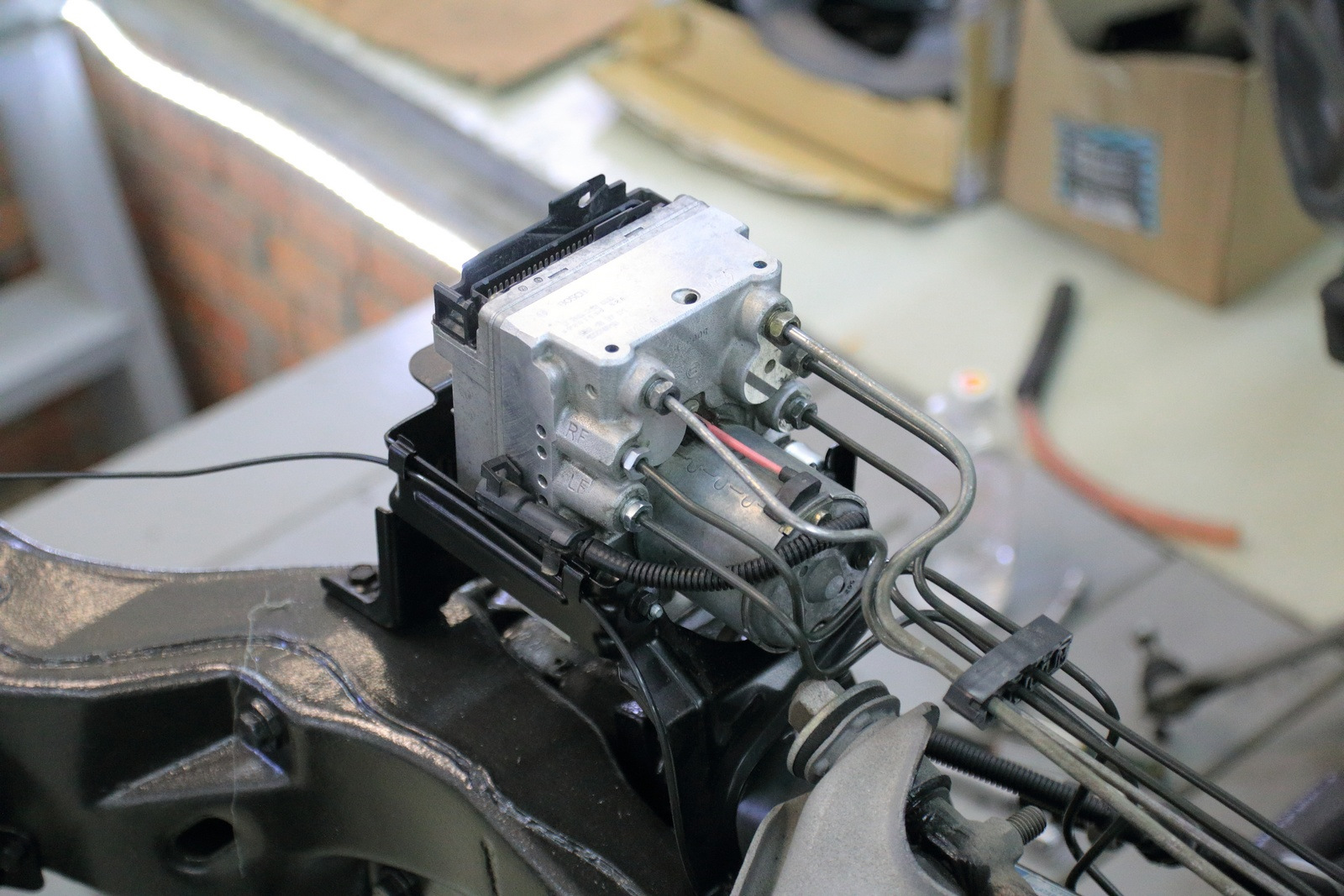

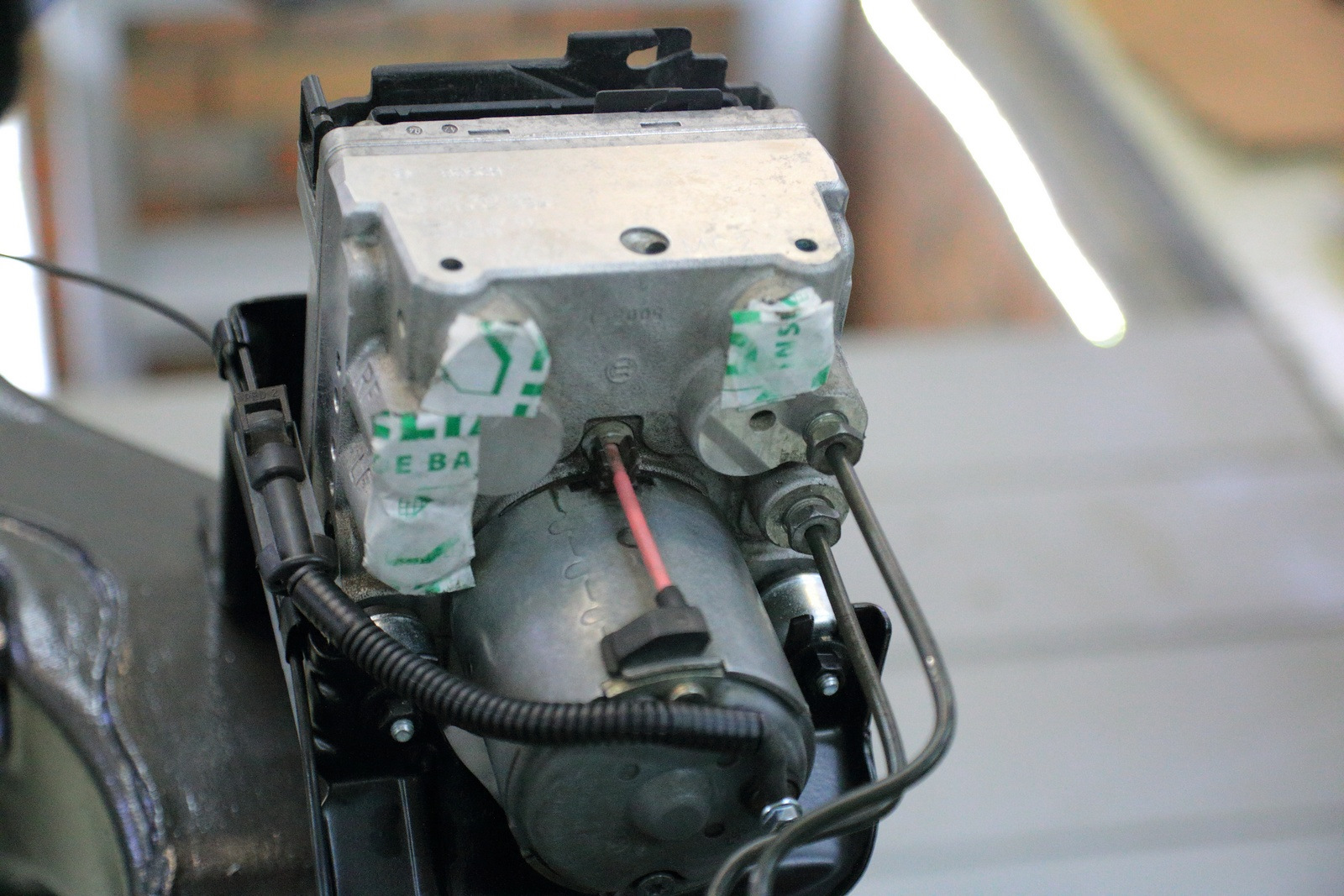

Anti-lock brake system assembly



Installed



Start wrenching the pipes



All done



Here is the vinyl protector against shortcut between the tube and ABS positive terminal. Factory solution





New line to the right wheel







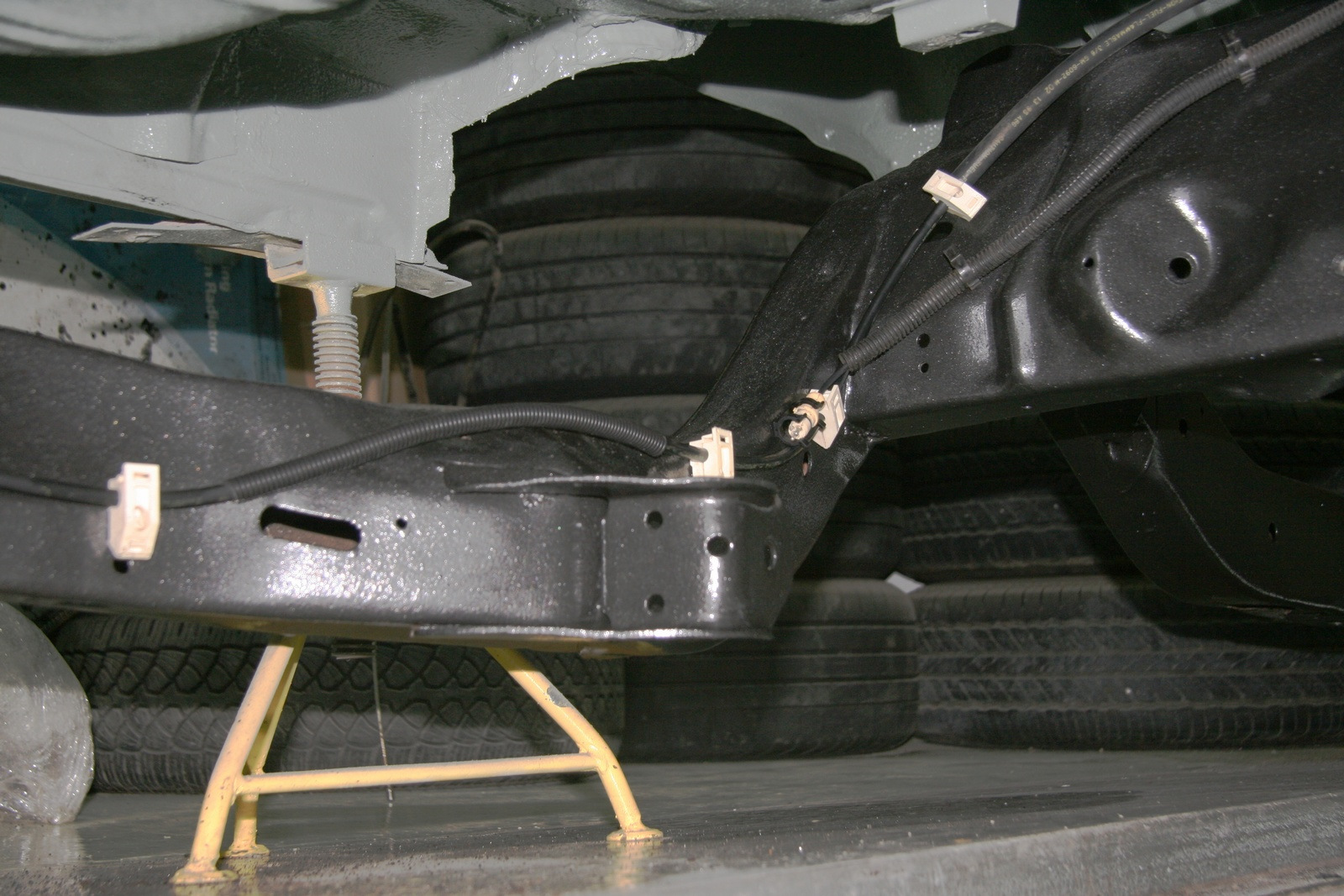

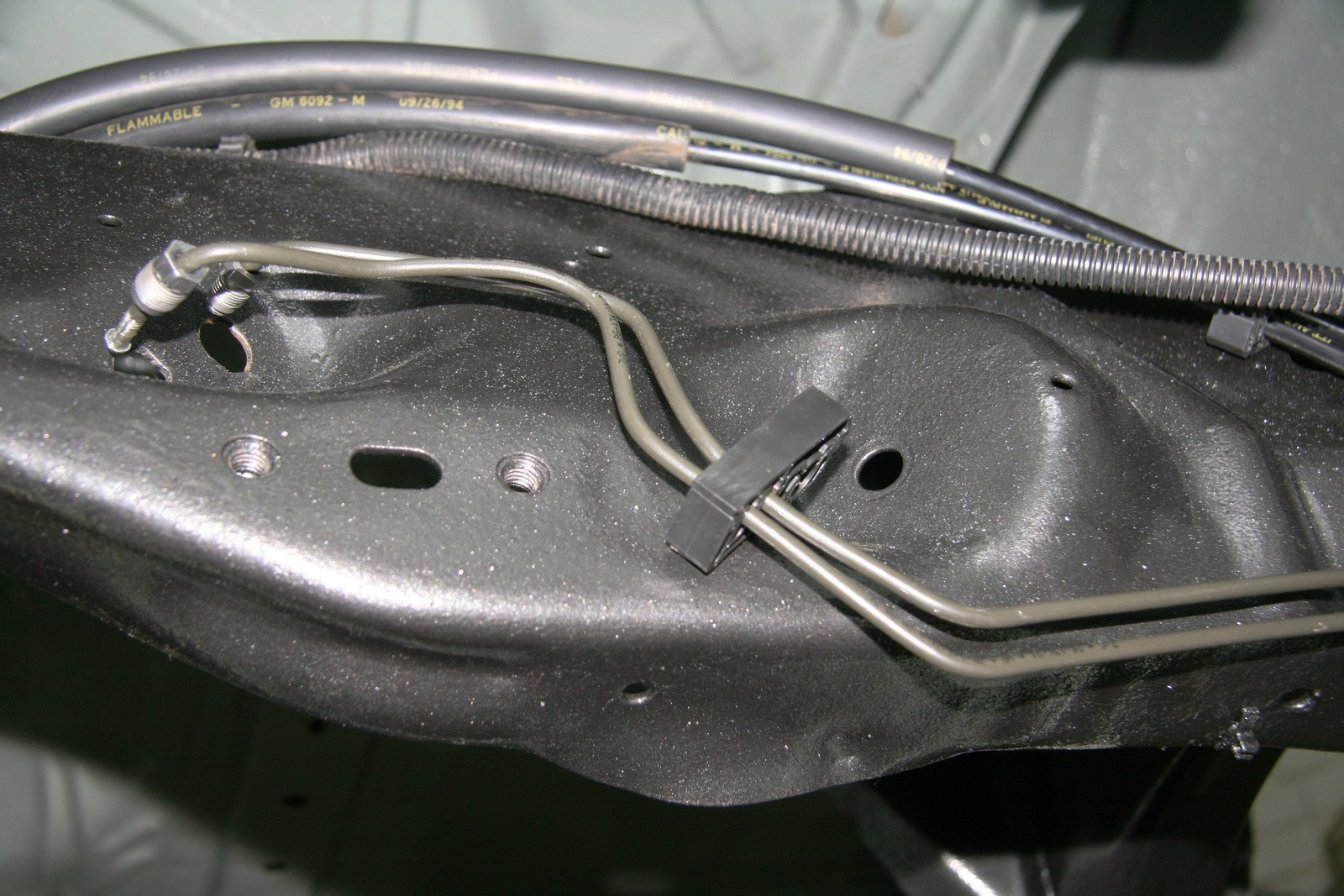

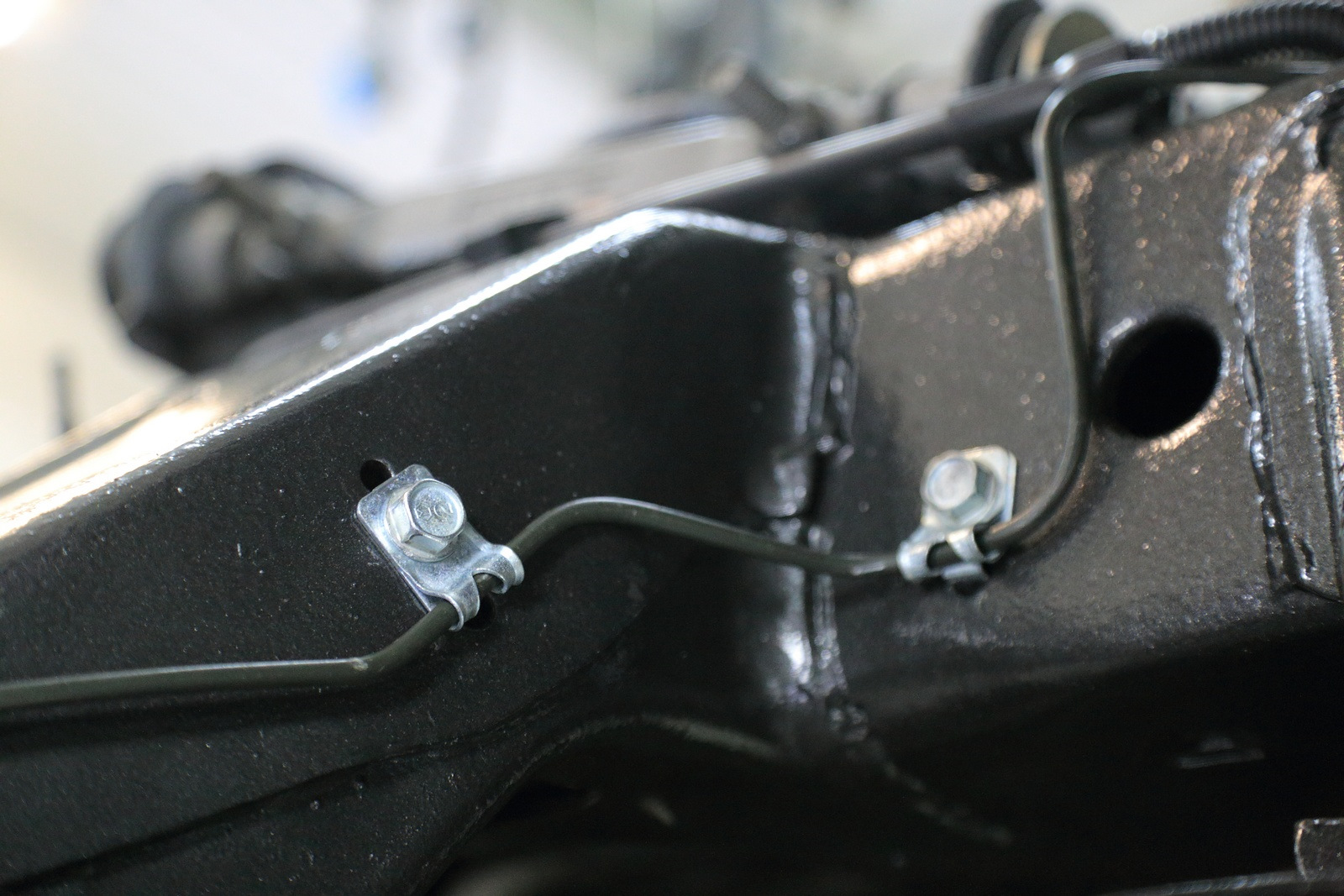

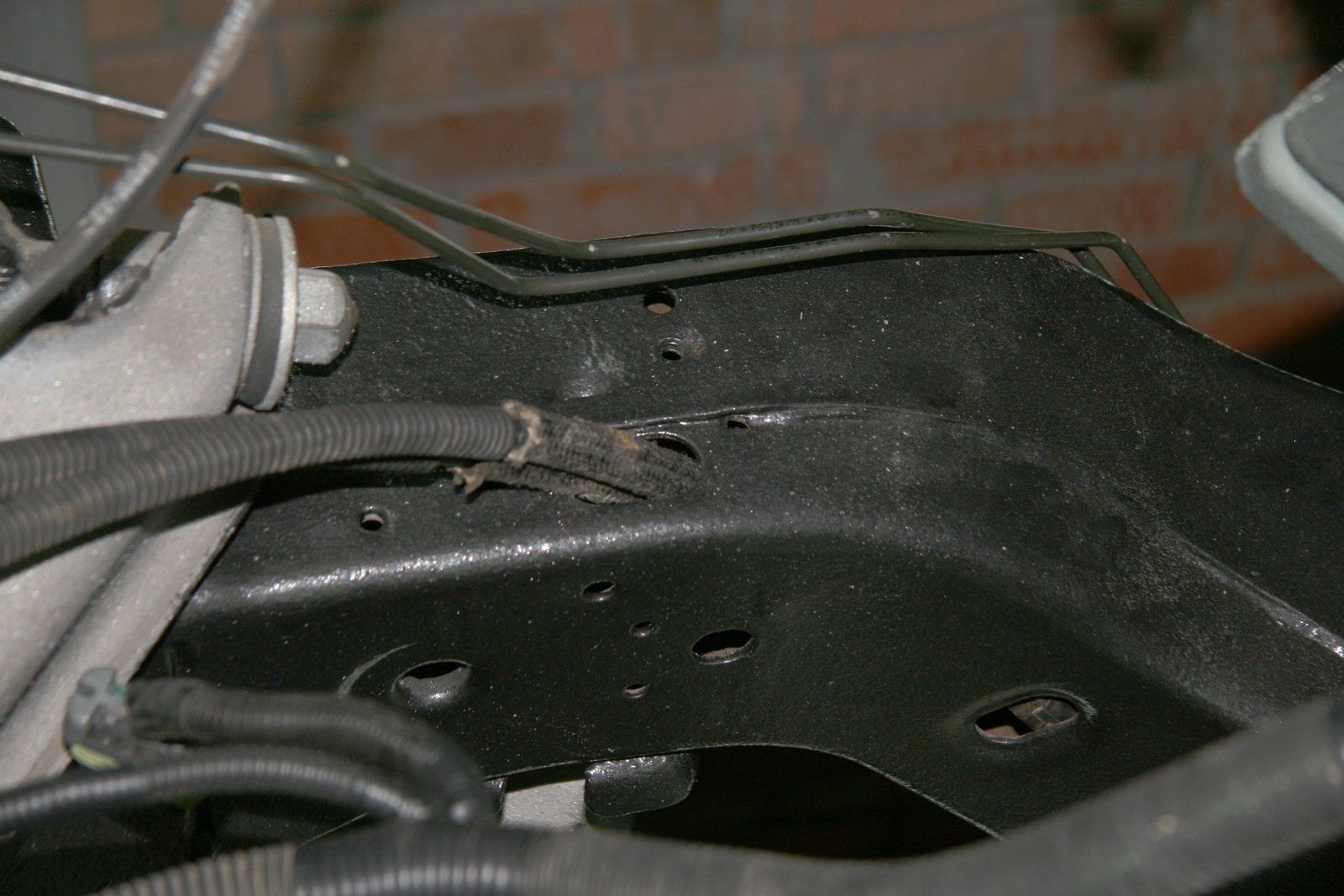

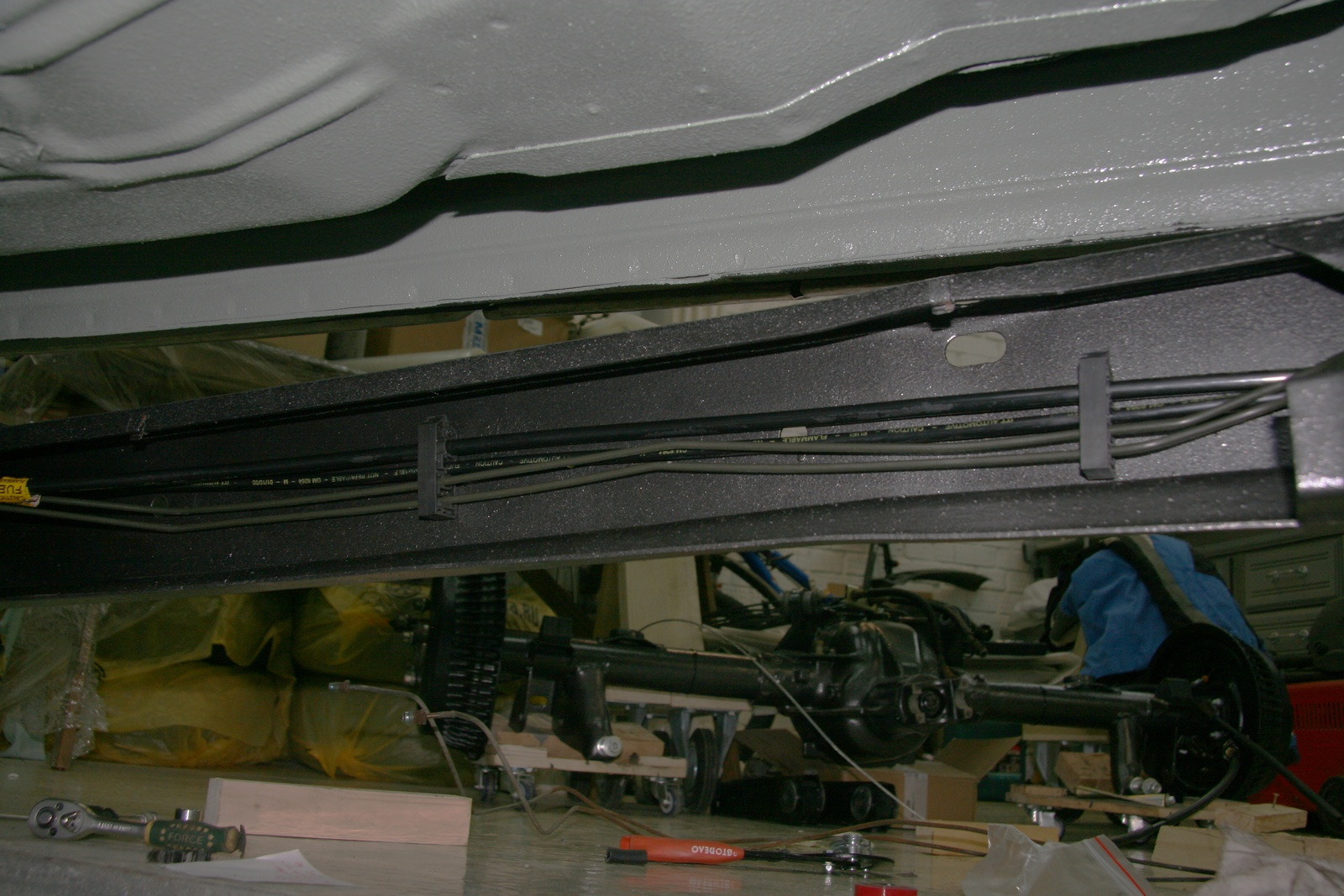

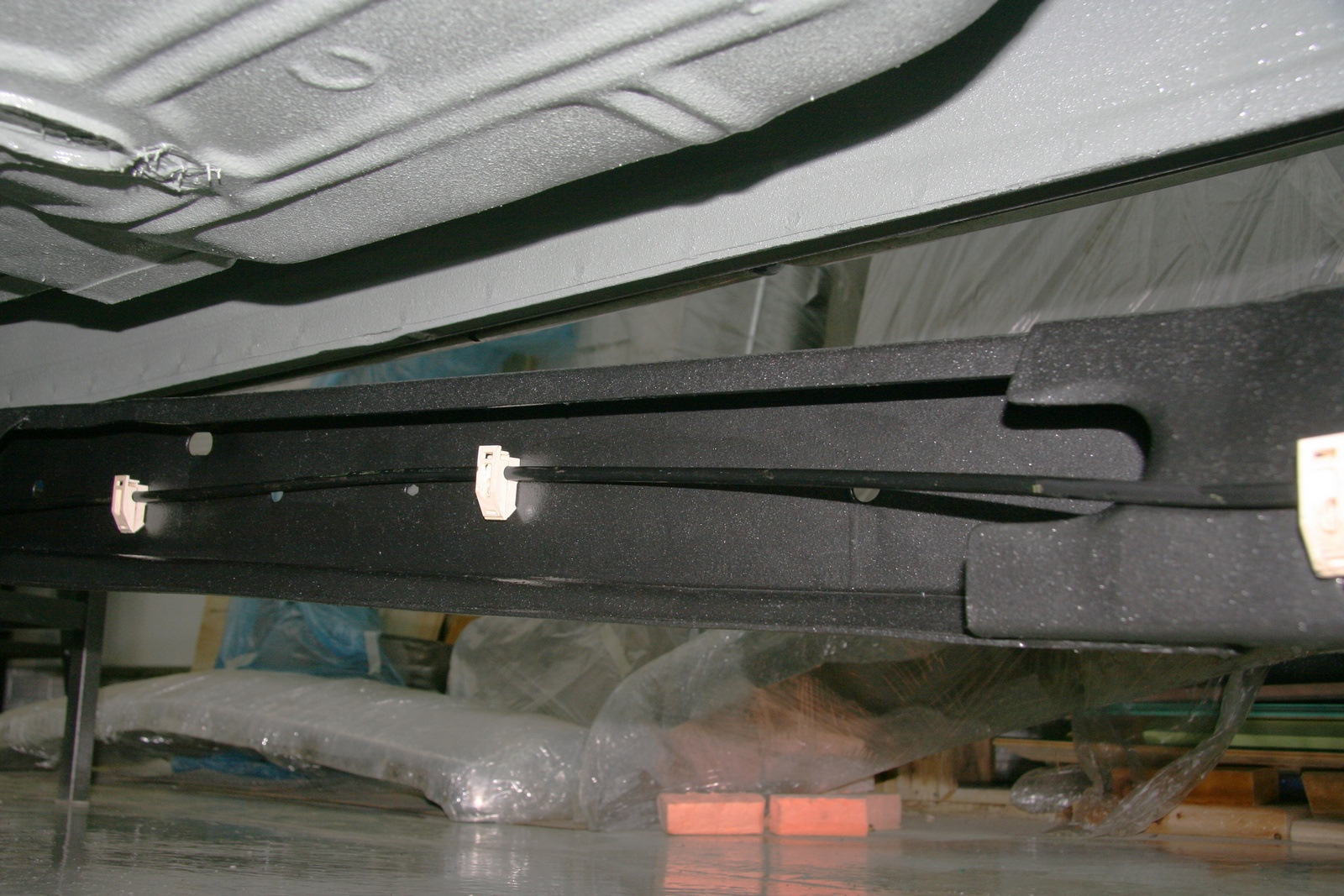

Brake lines to the rear wheels



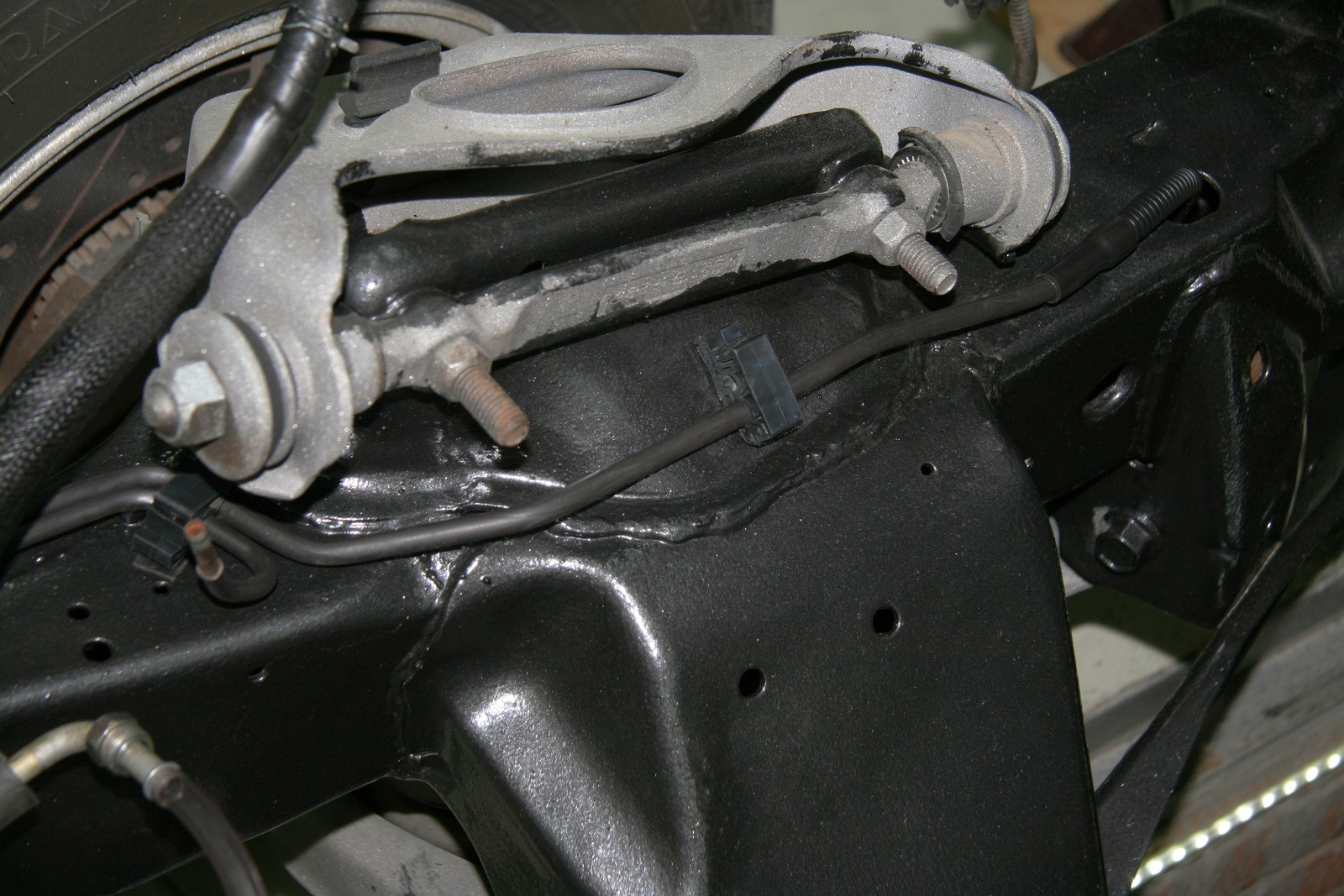

I don't know why, but this is the correct bending... Factory pipes were also not just straight along the frame

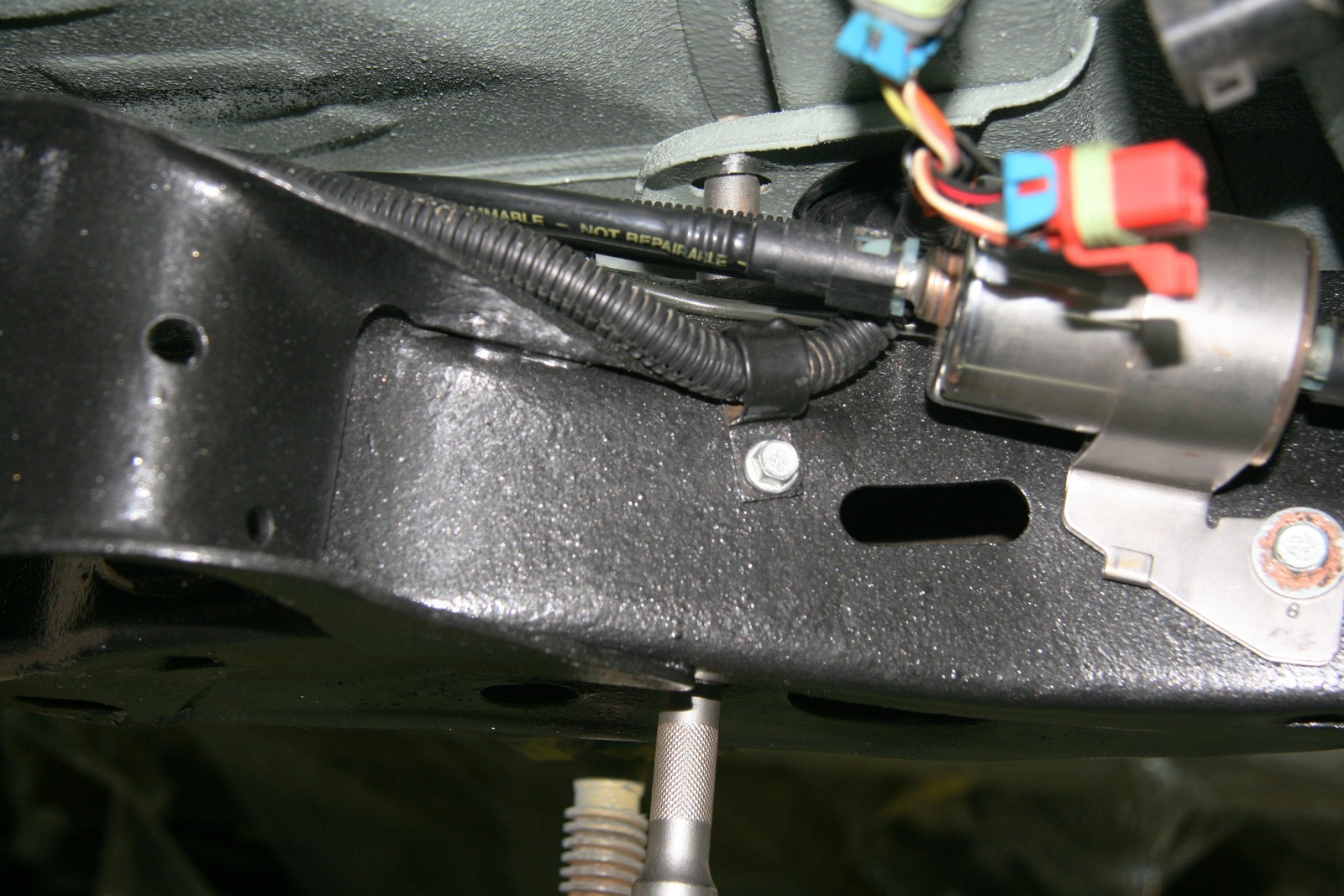

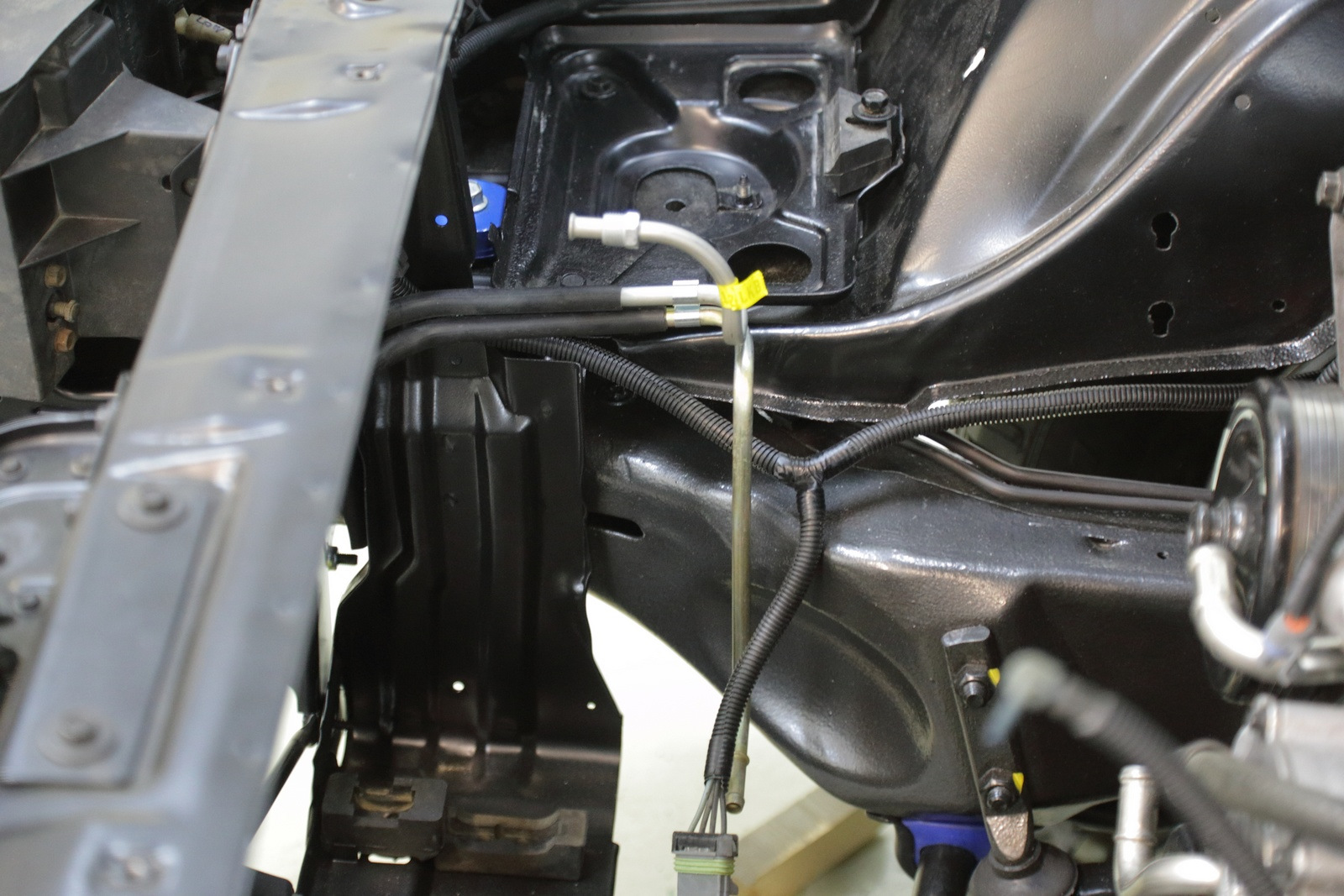

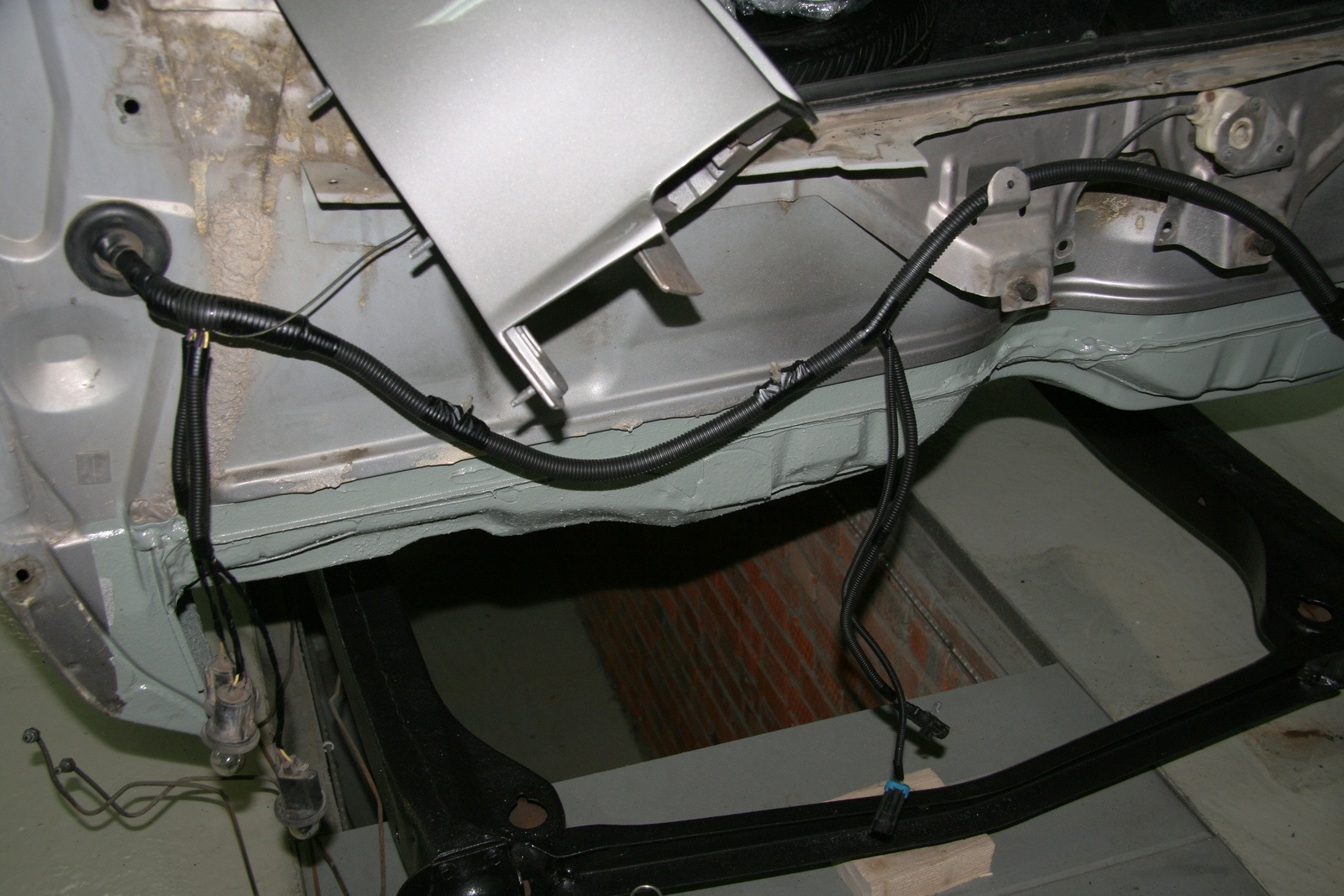

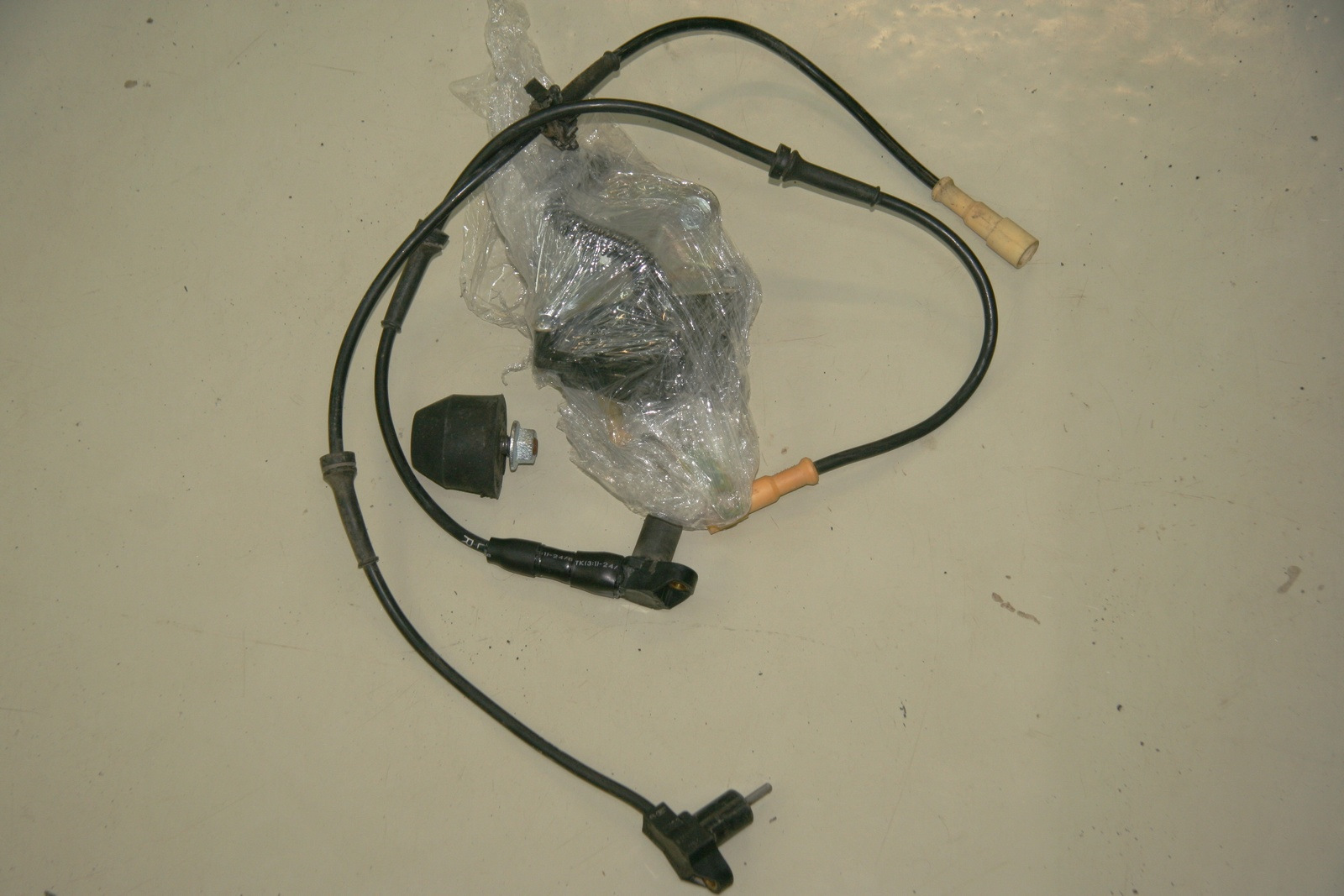

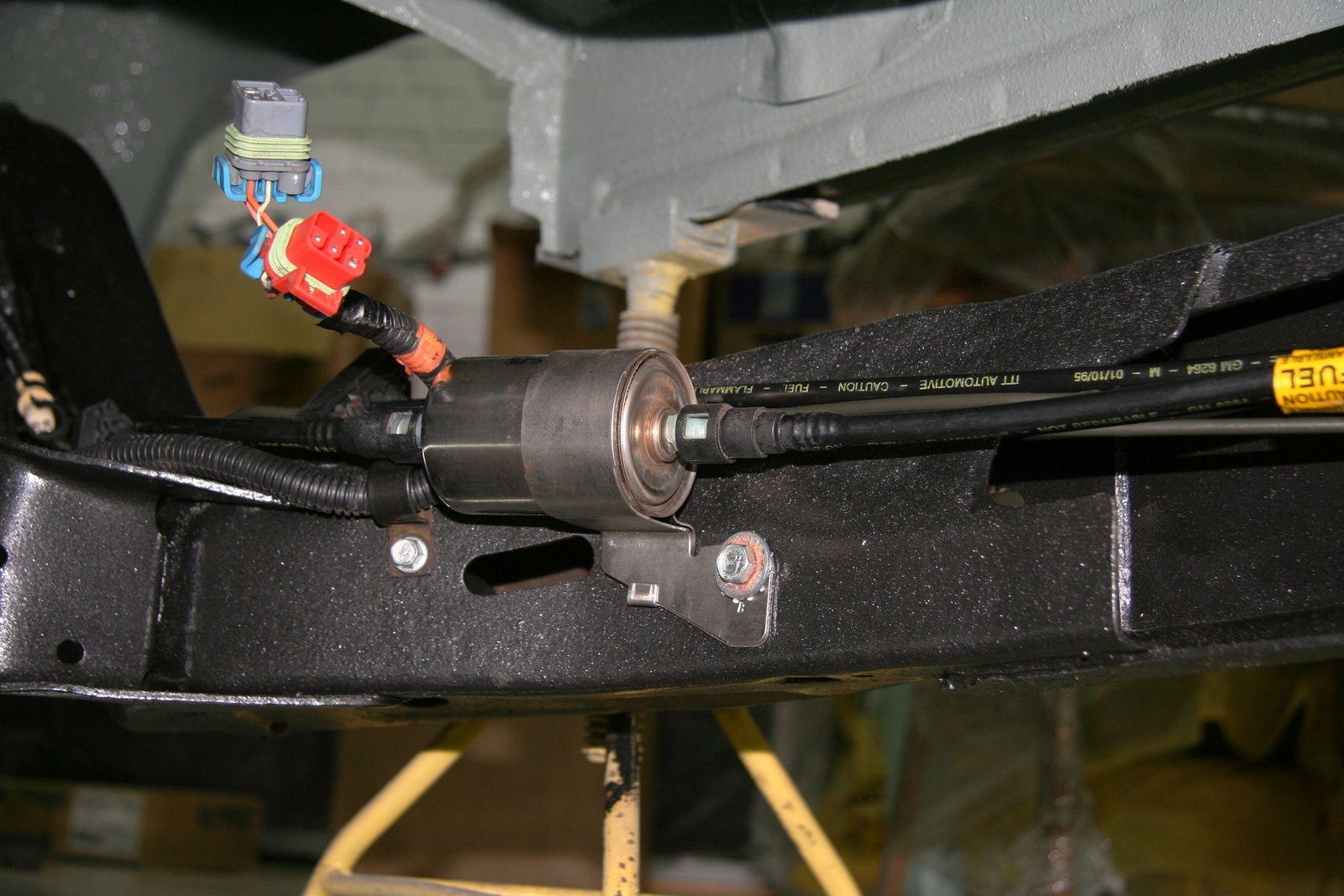

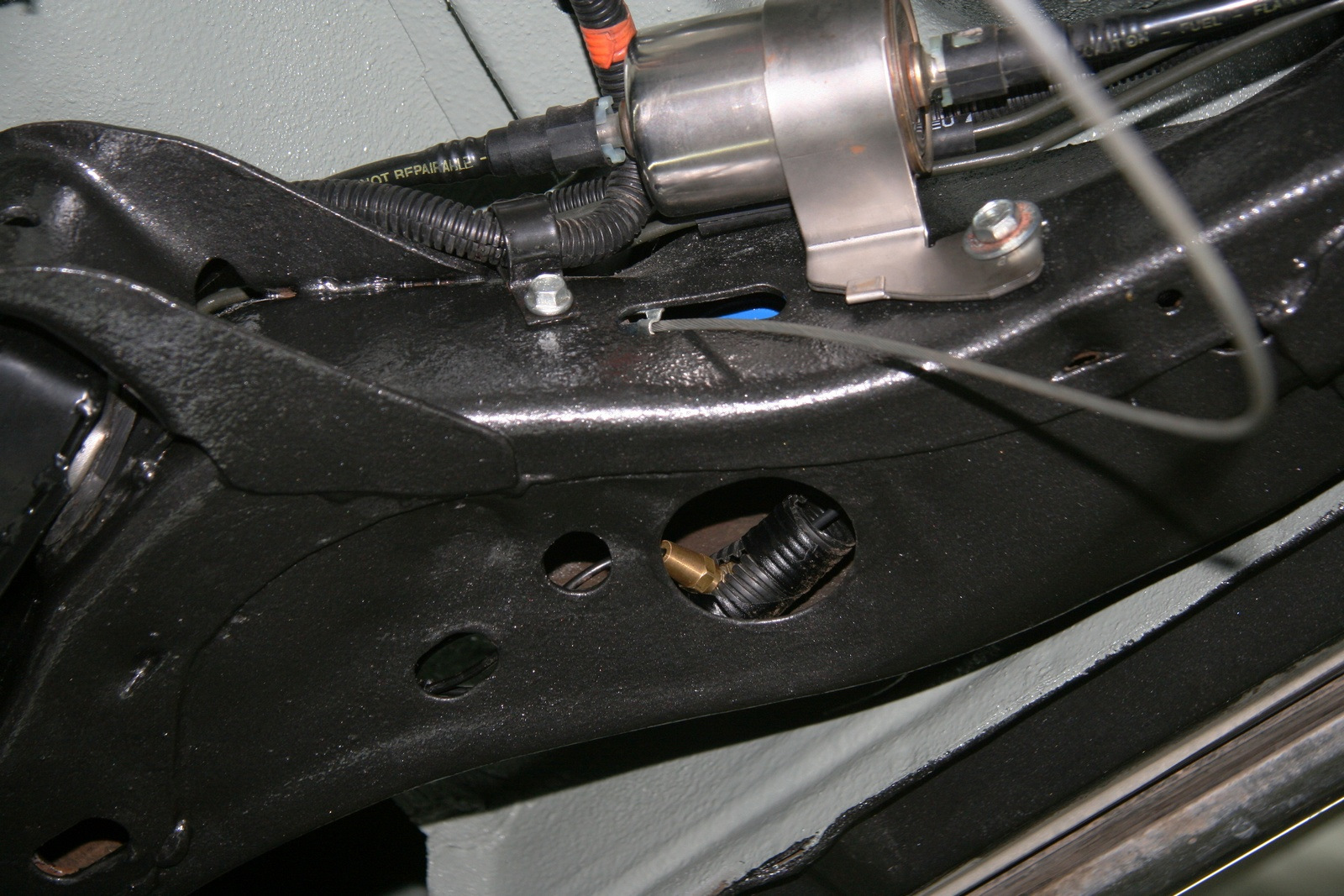

New fuel filter and wiring to the ABS sensors and suspension level



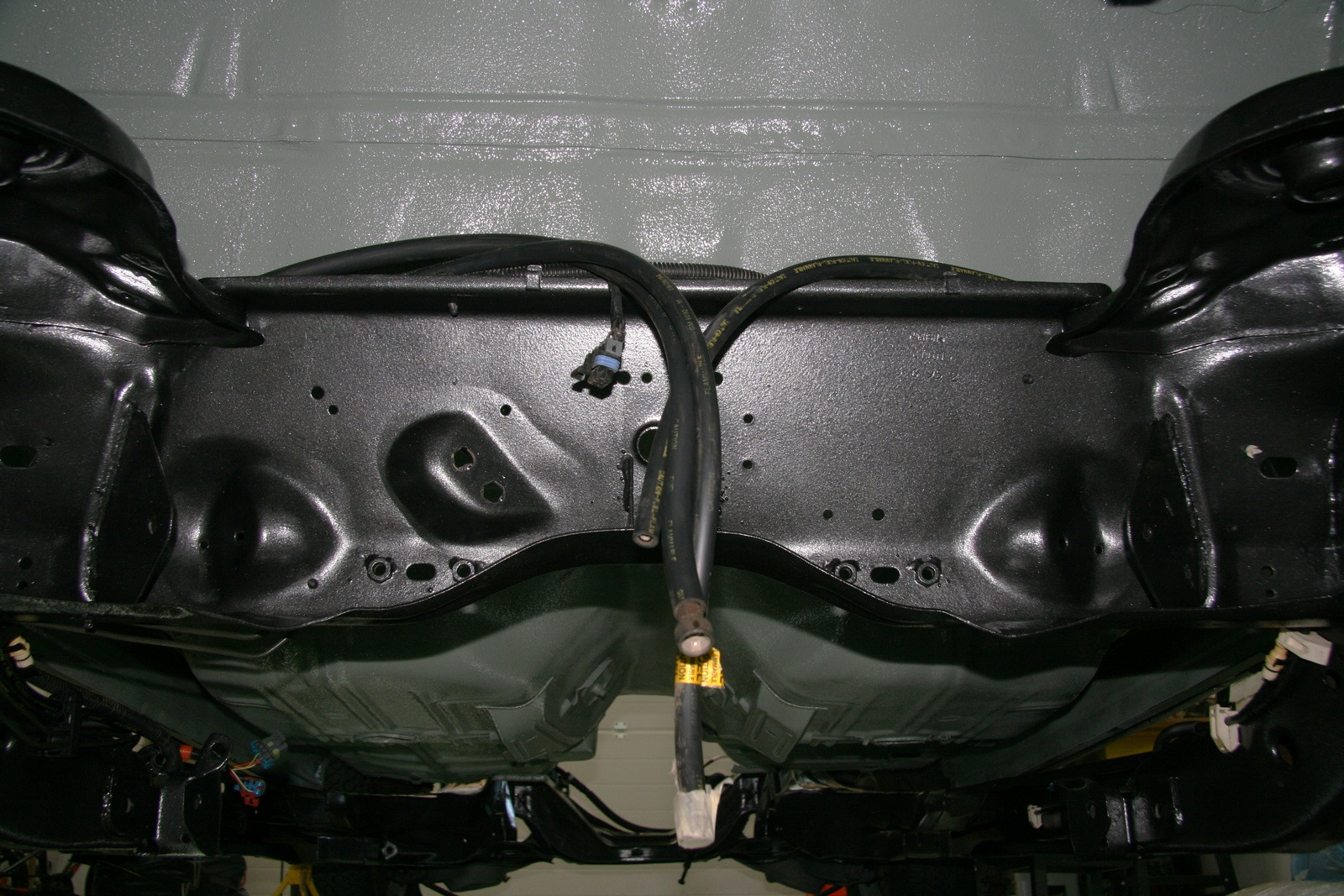

There will be a connection with rear brakes hoses



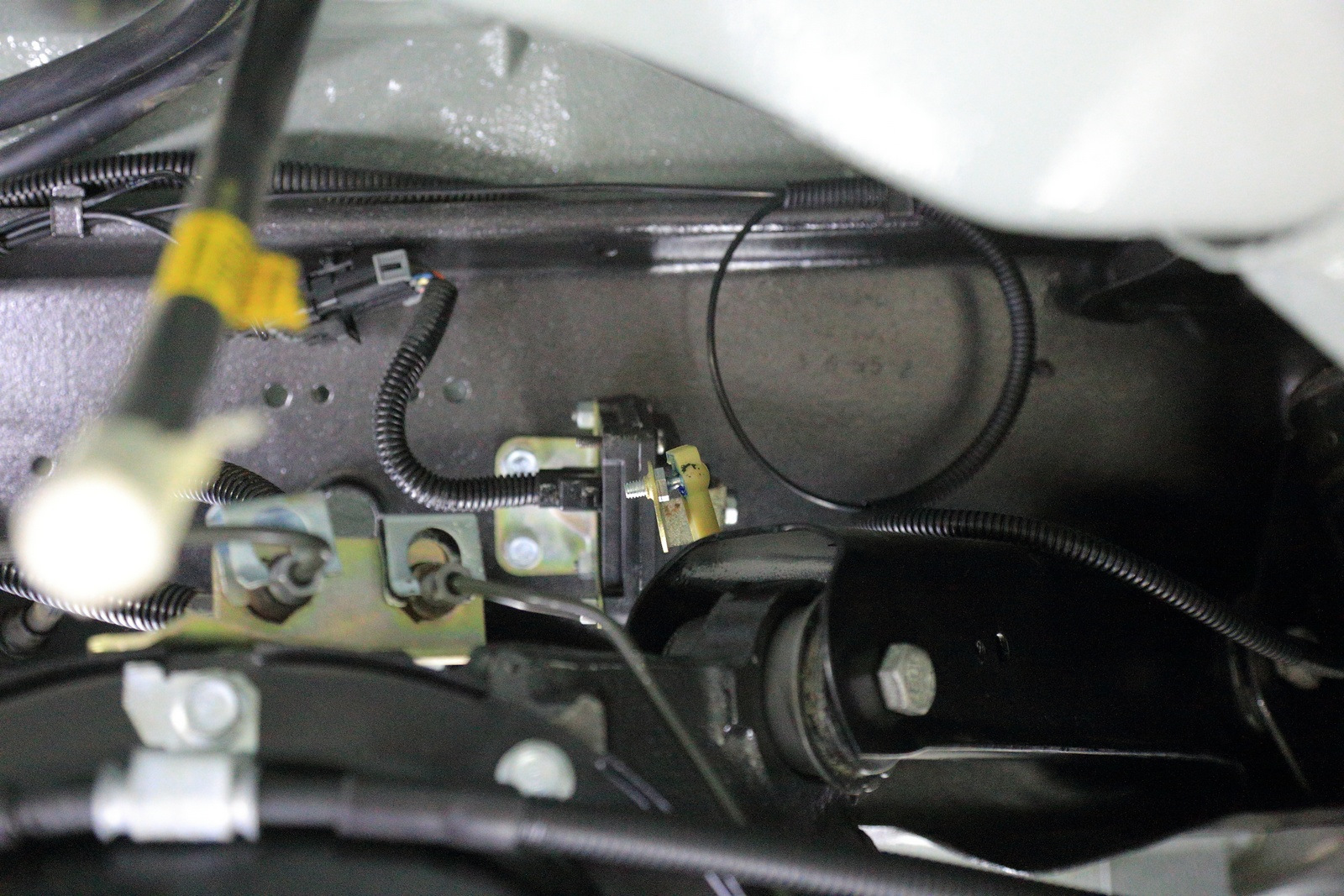

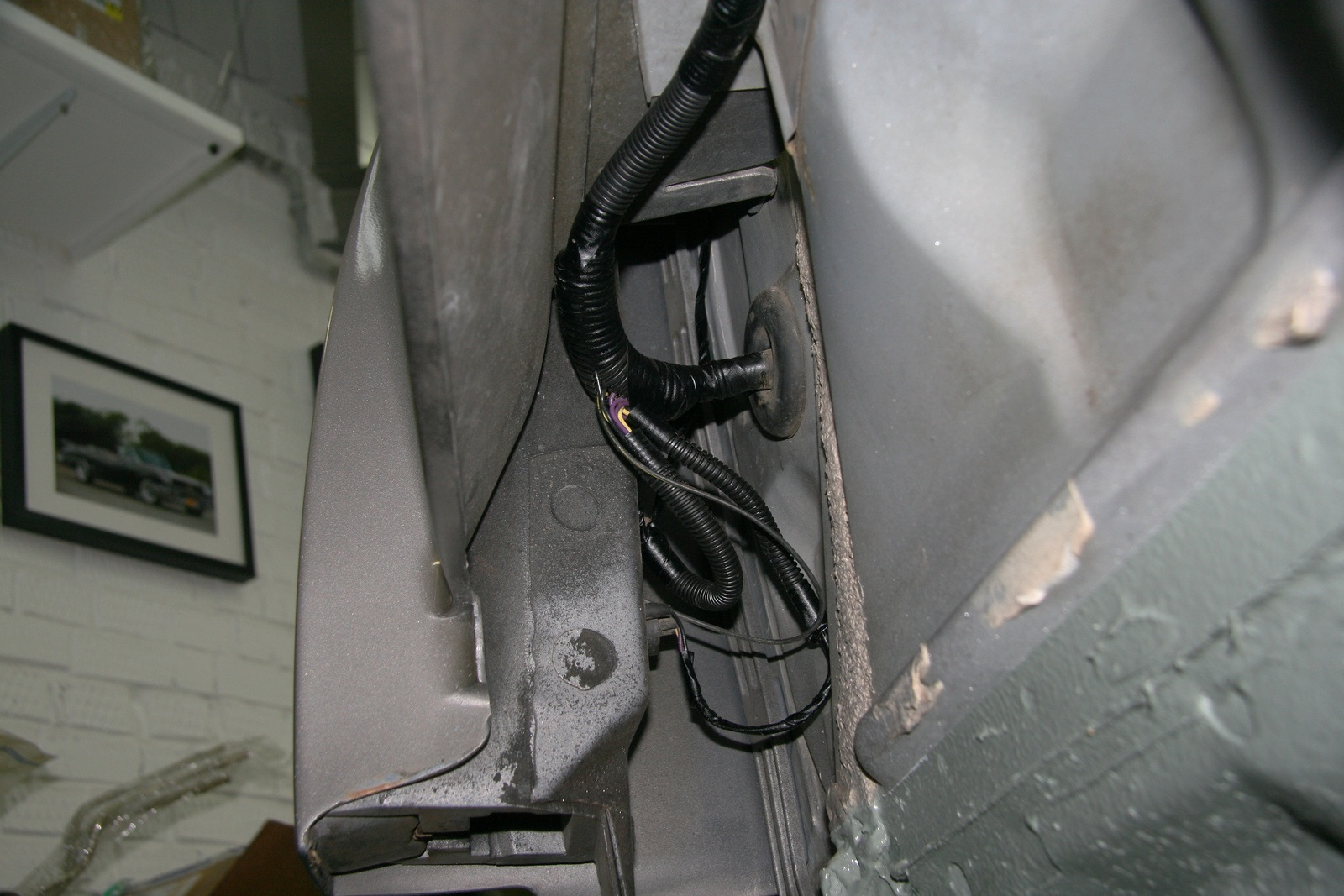

Terminal for the rear right ABS sensor



EVAP line

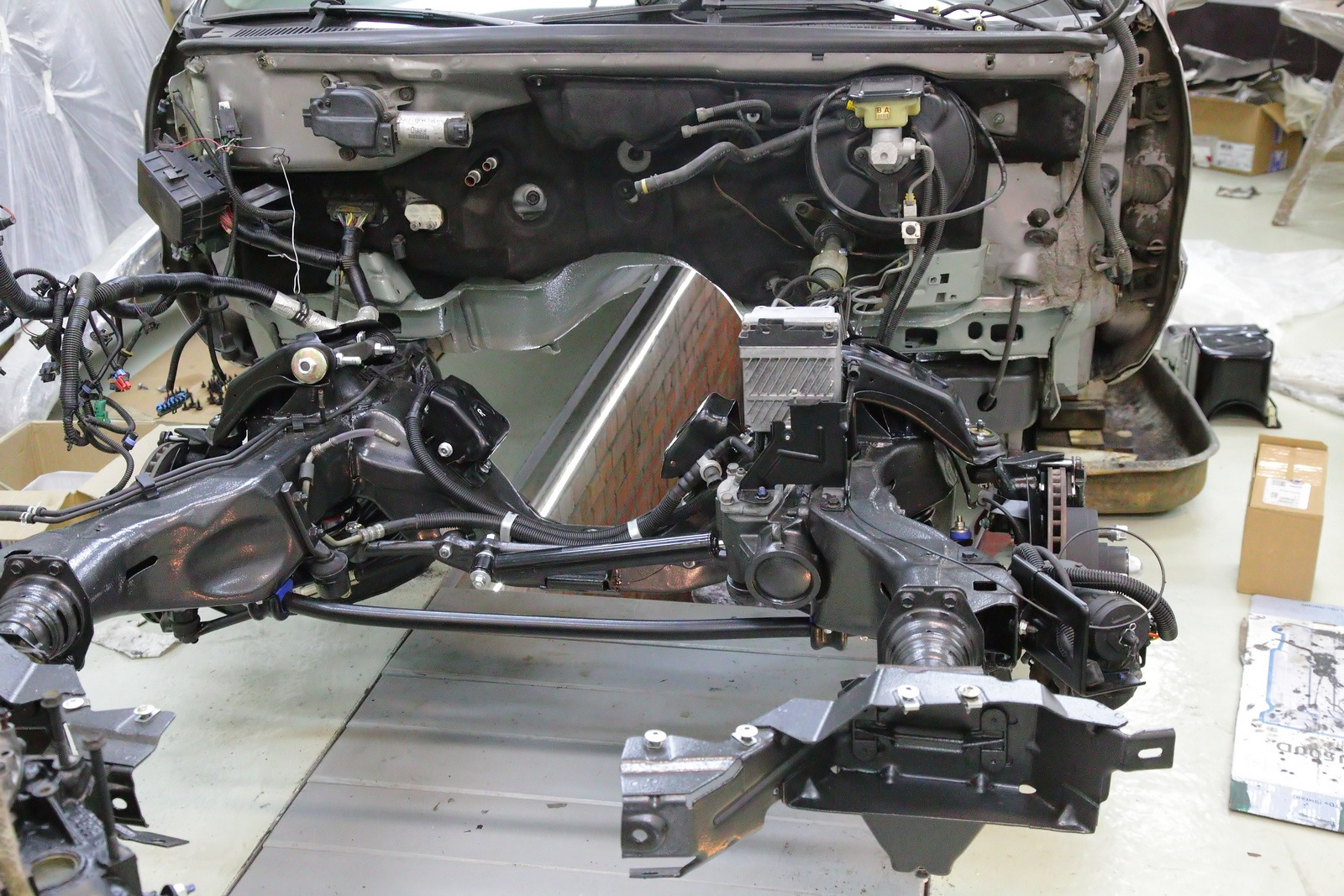

Almost ready to connect body with the frame

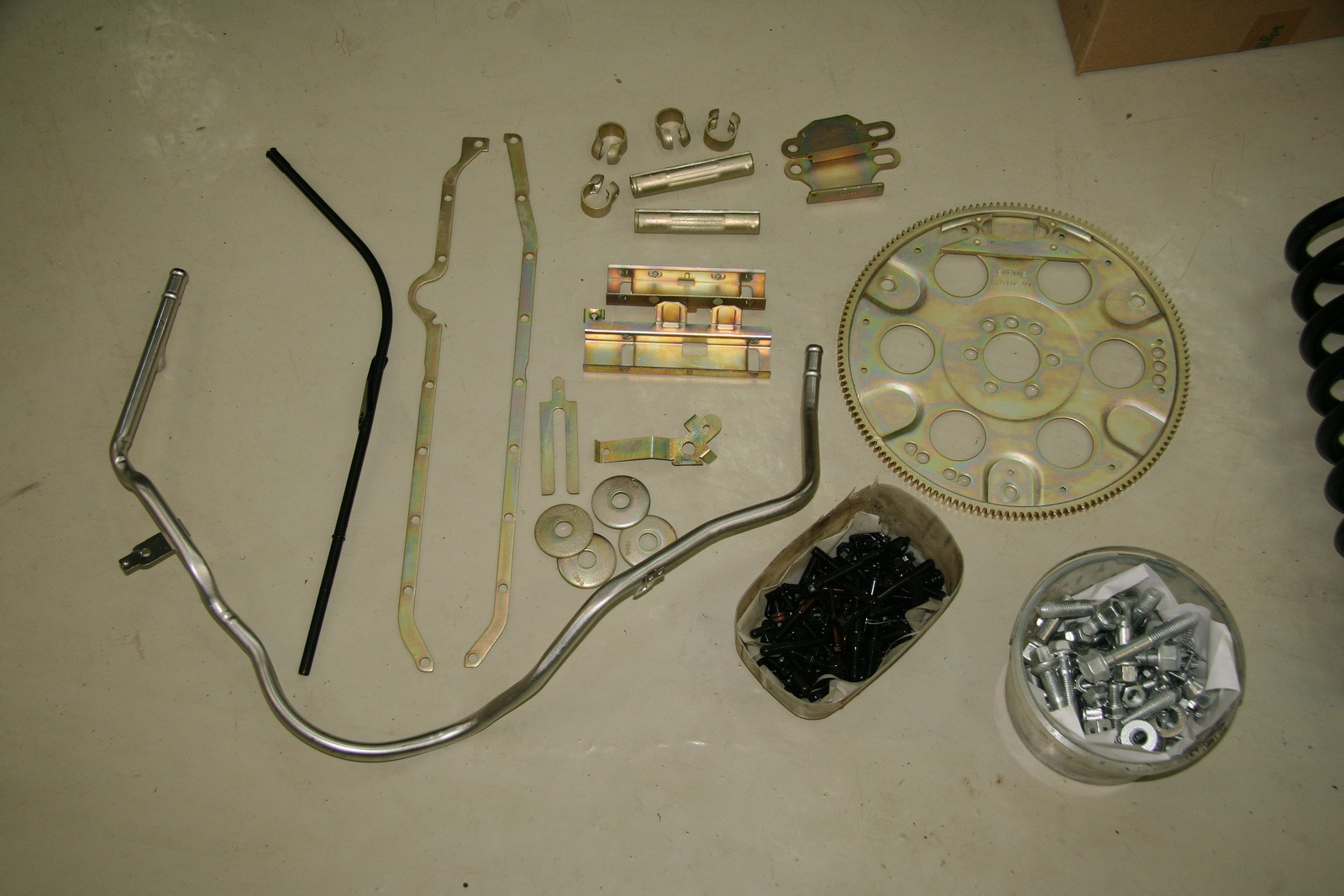

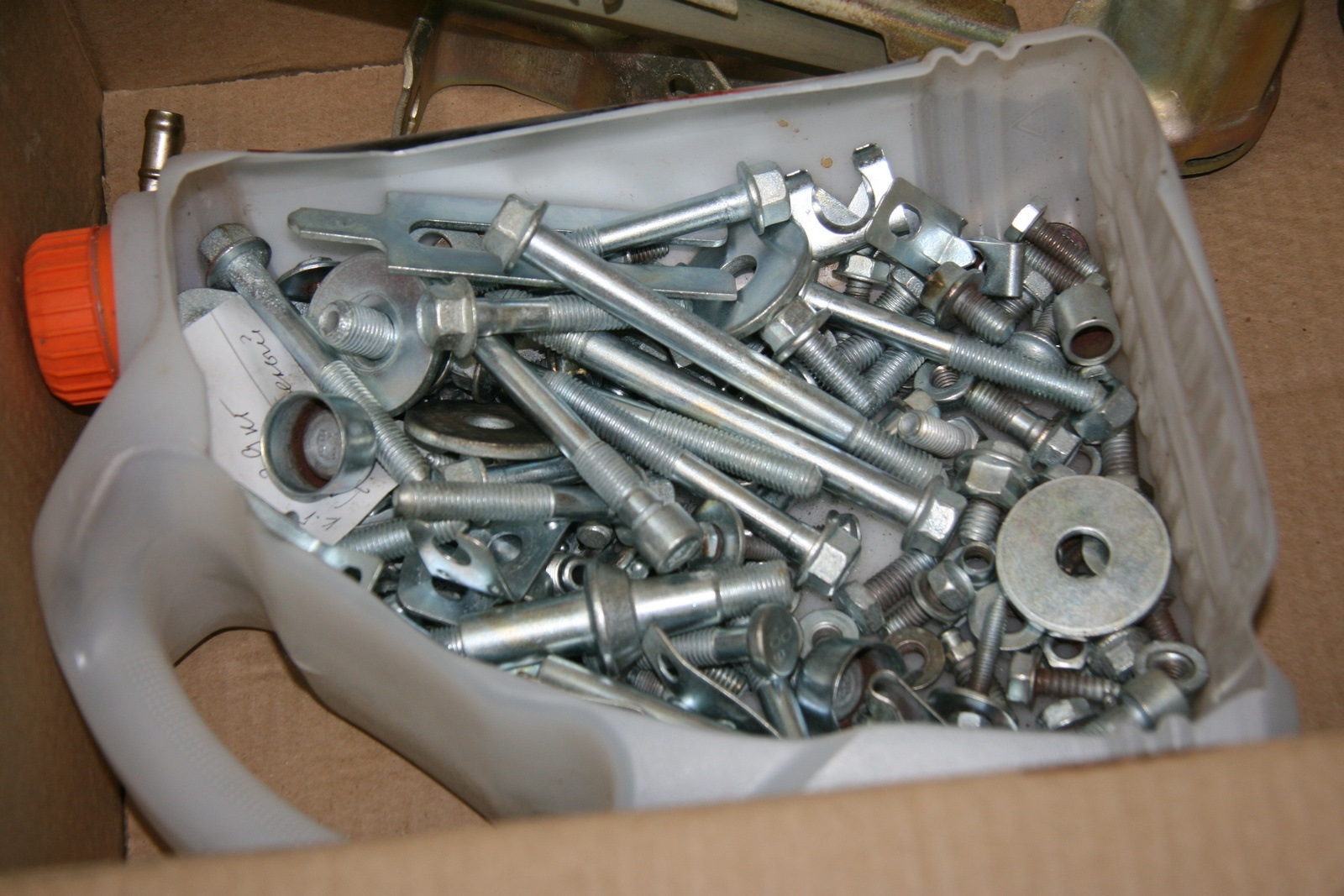

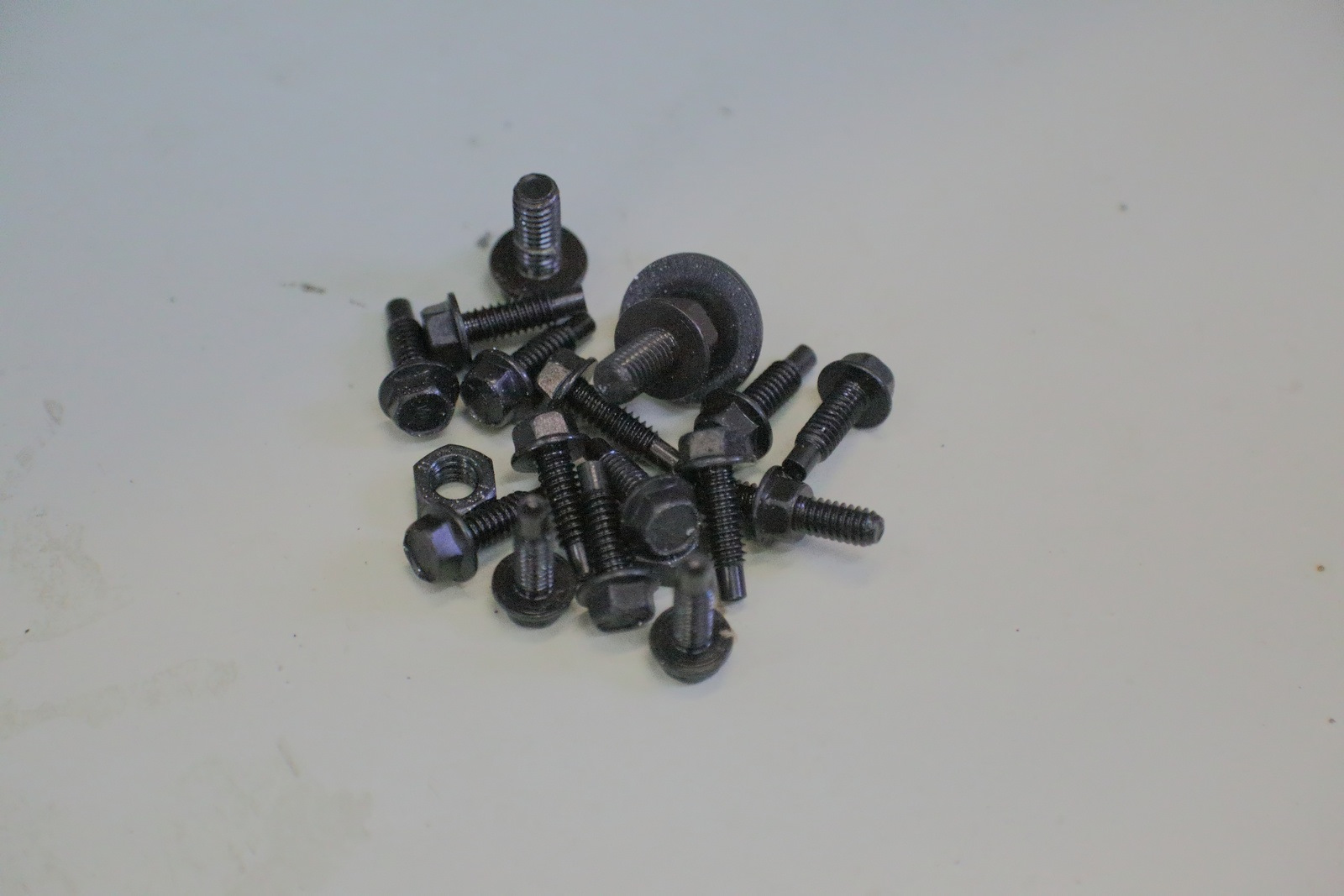

Hardware



More hardware



After powder coating



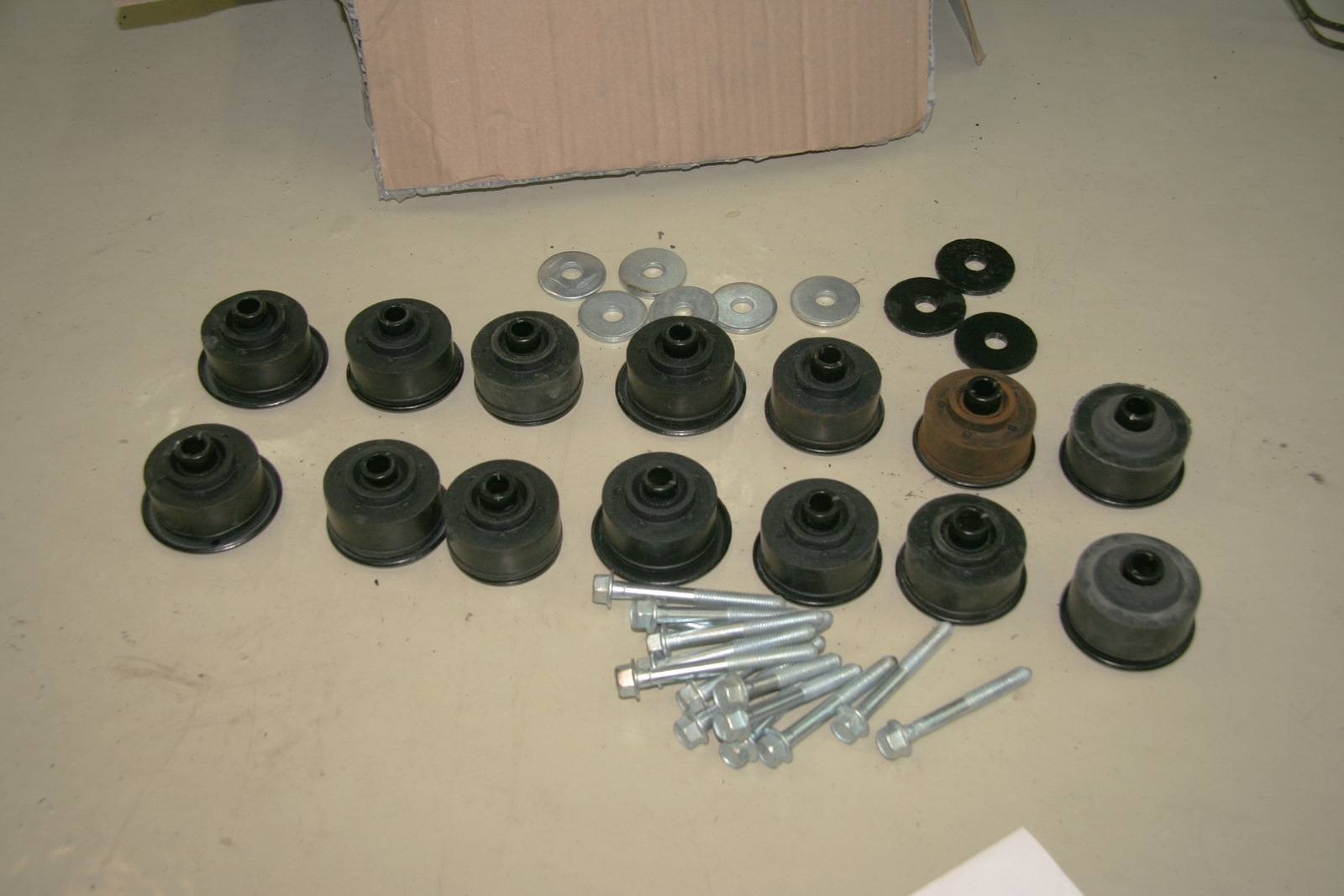

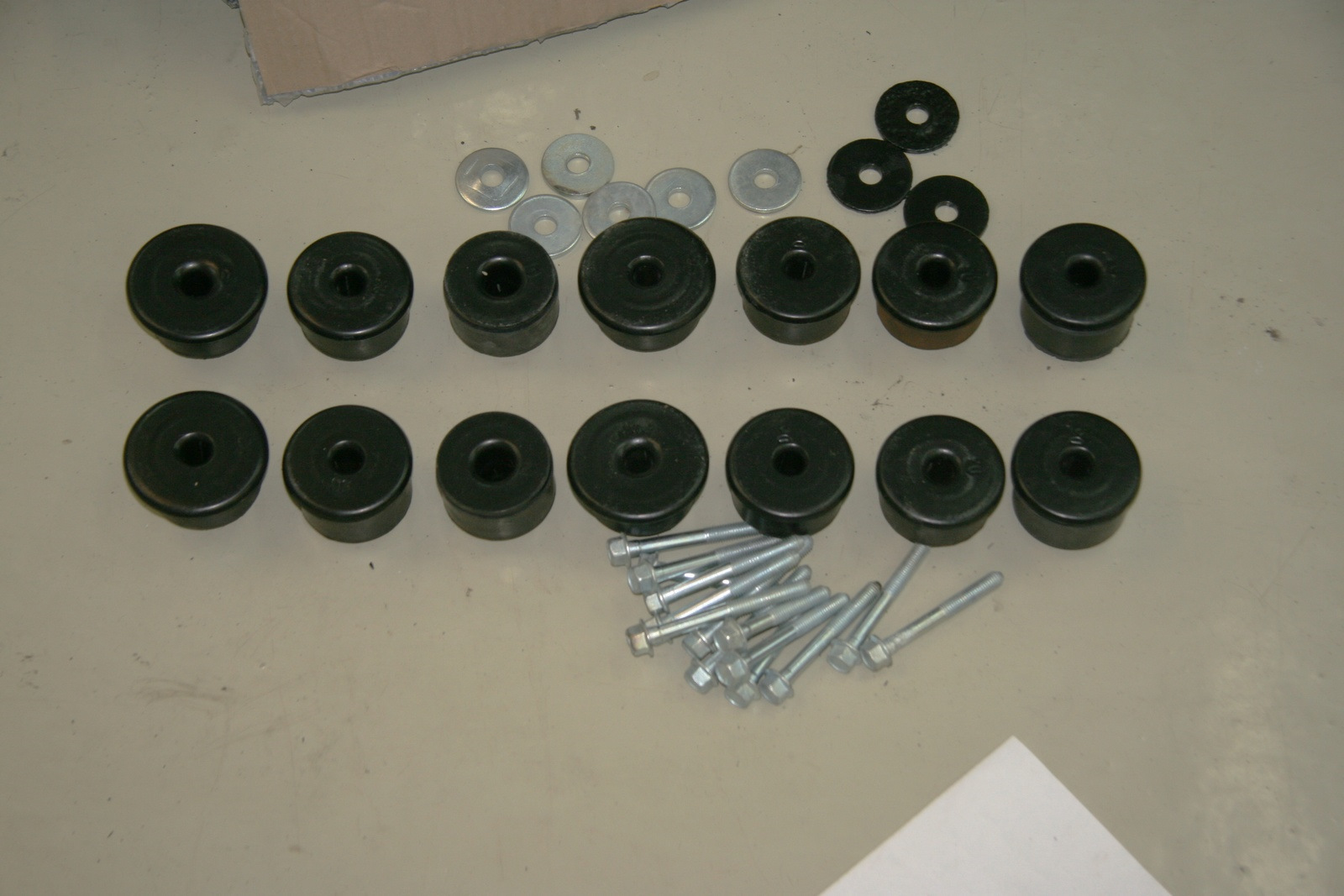

New frame bushings

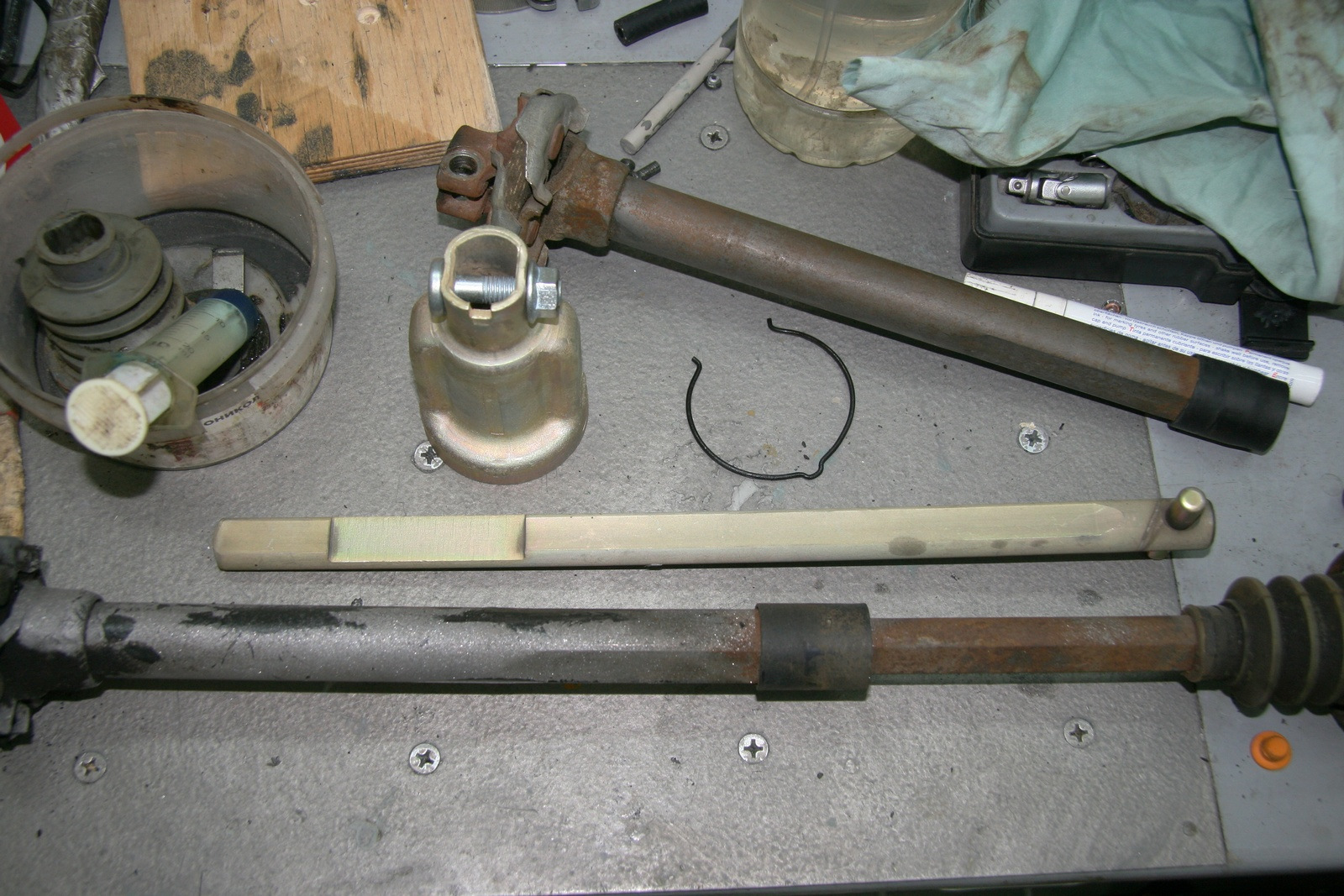

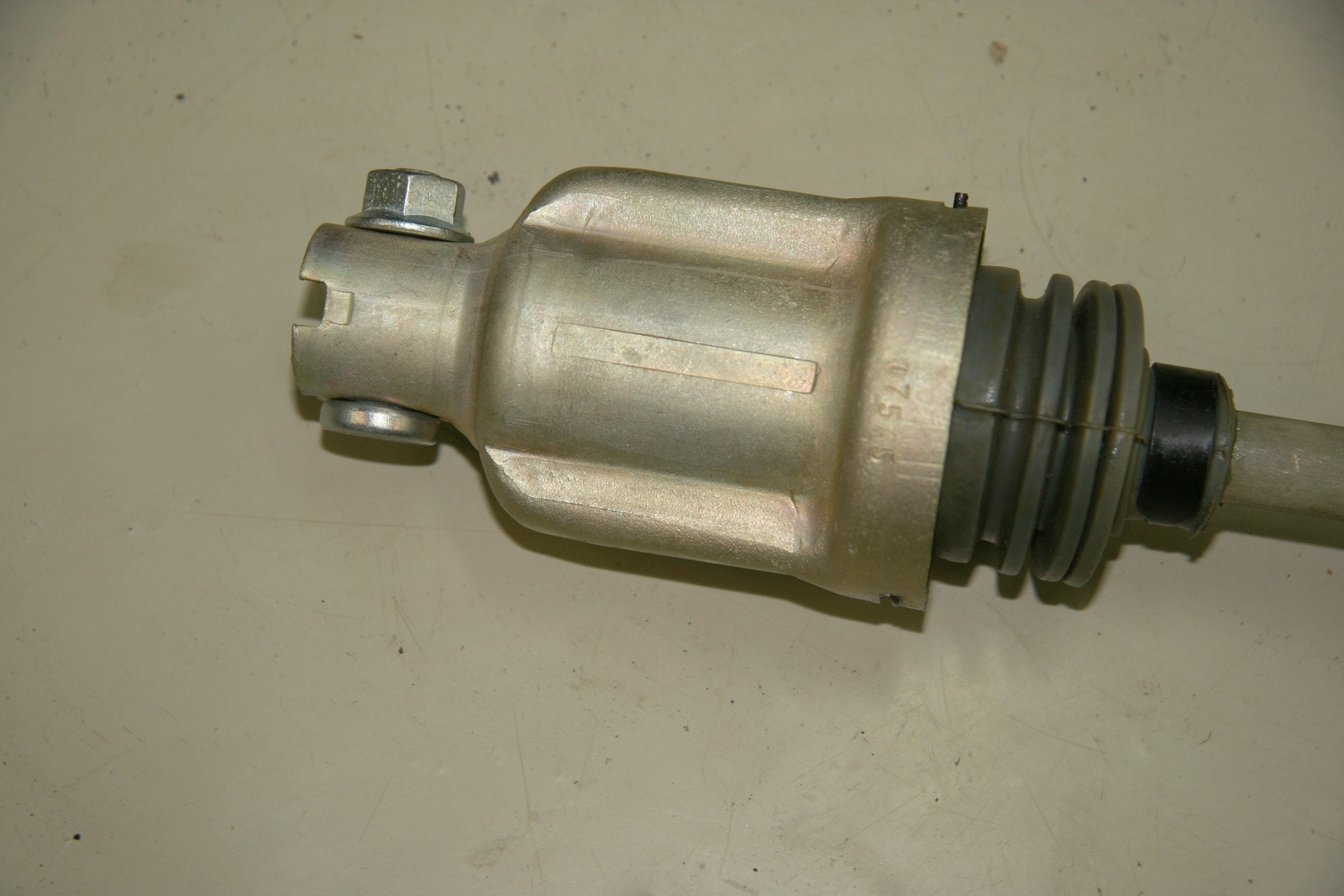

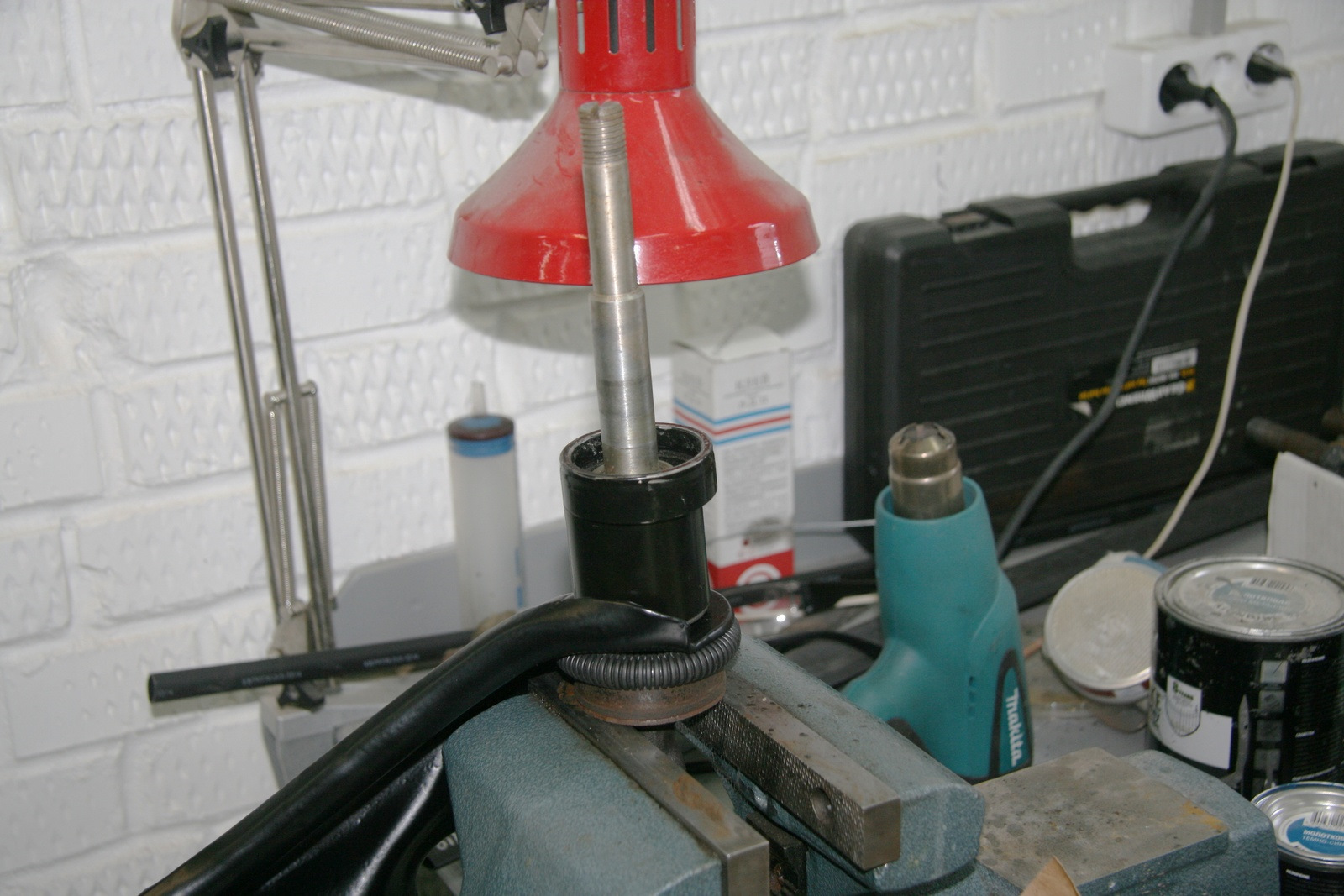

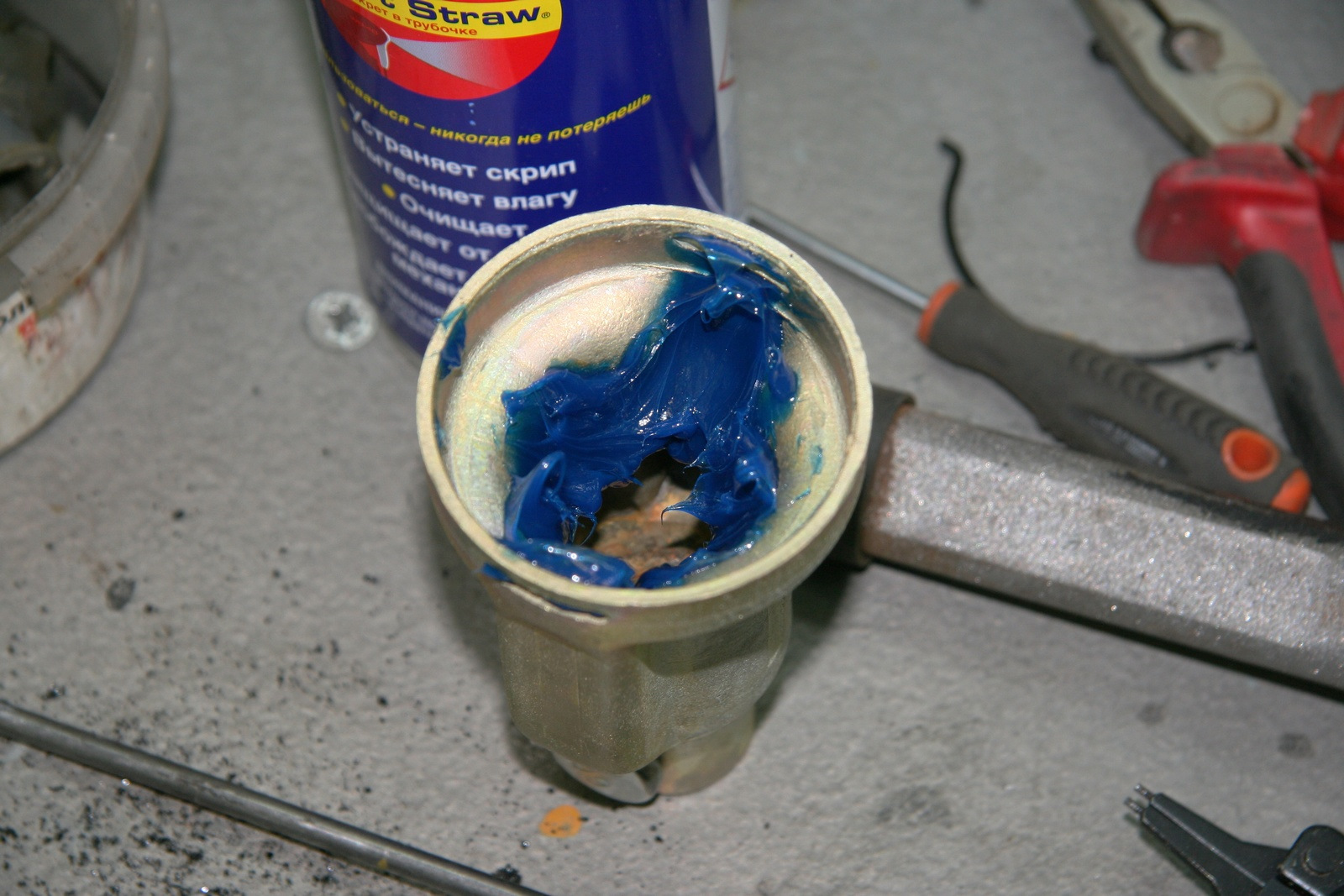

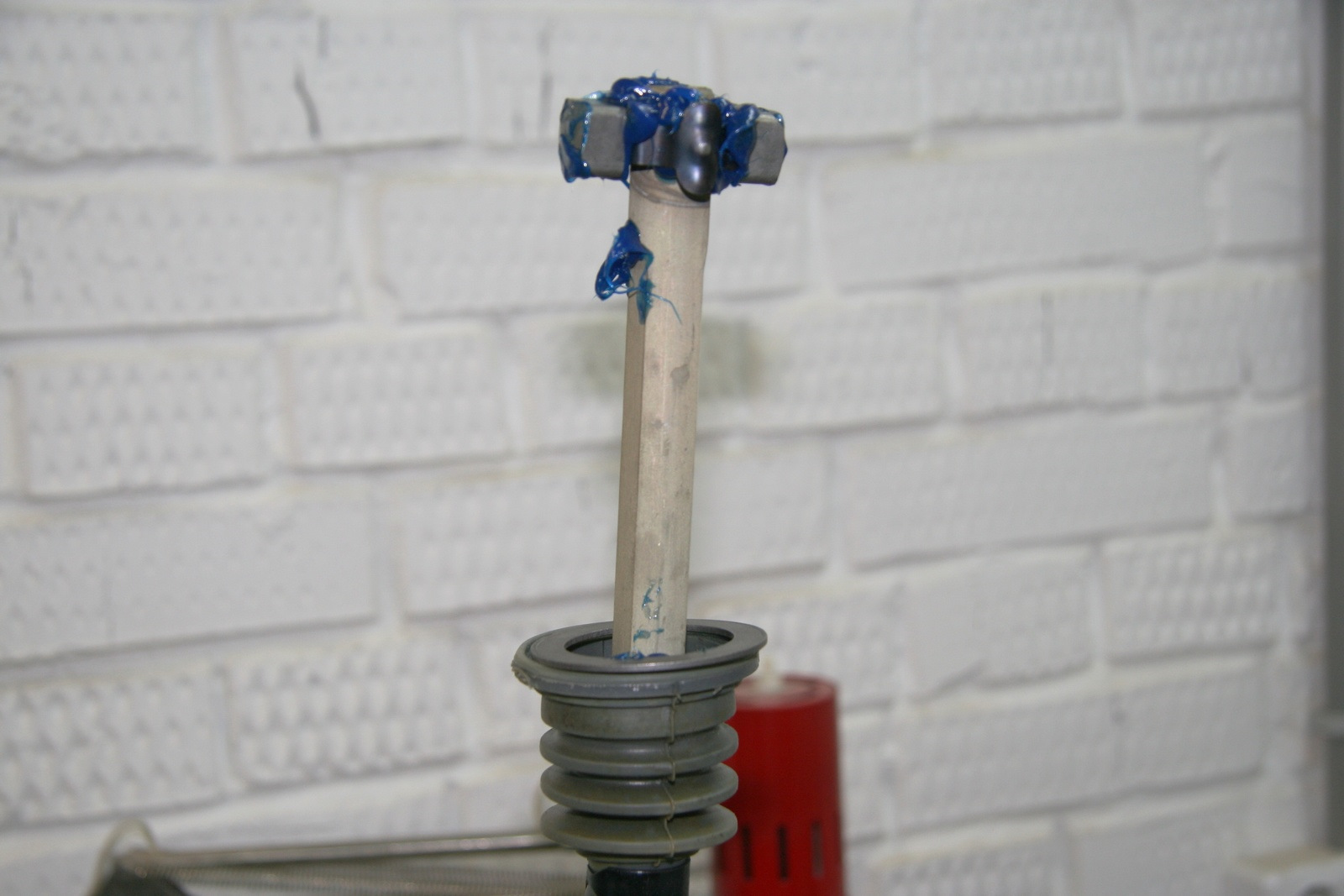

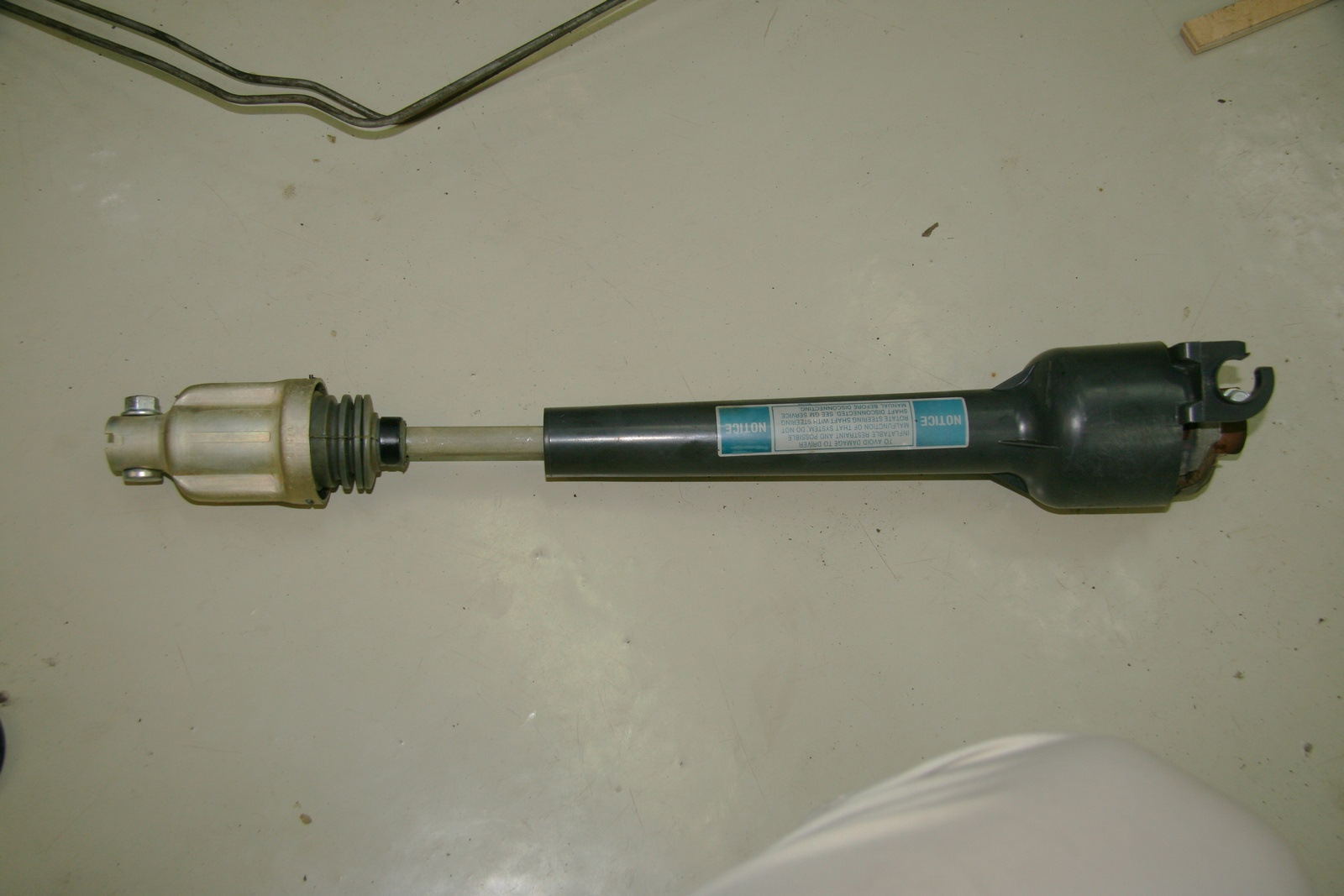

Steering shaft assembly. I had two of them. there was a need to replace the boot from one to another







Ready to be installed

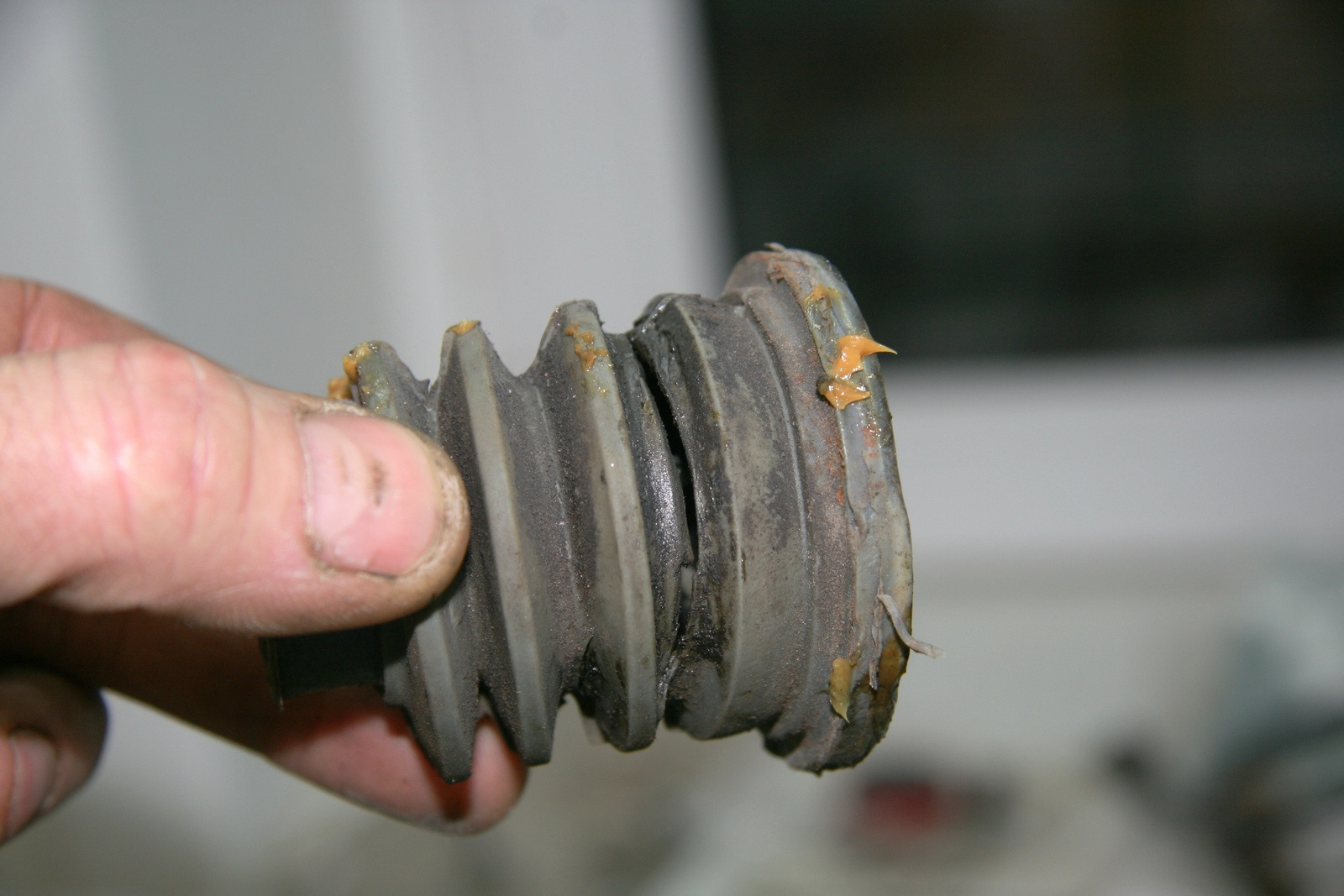

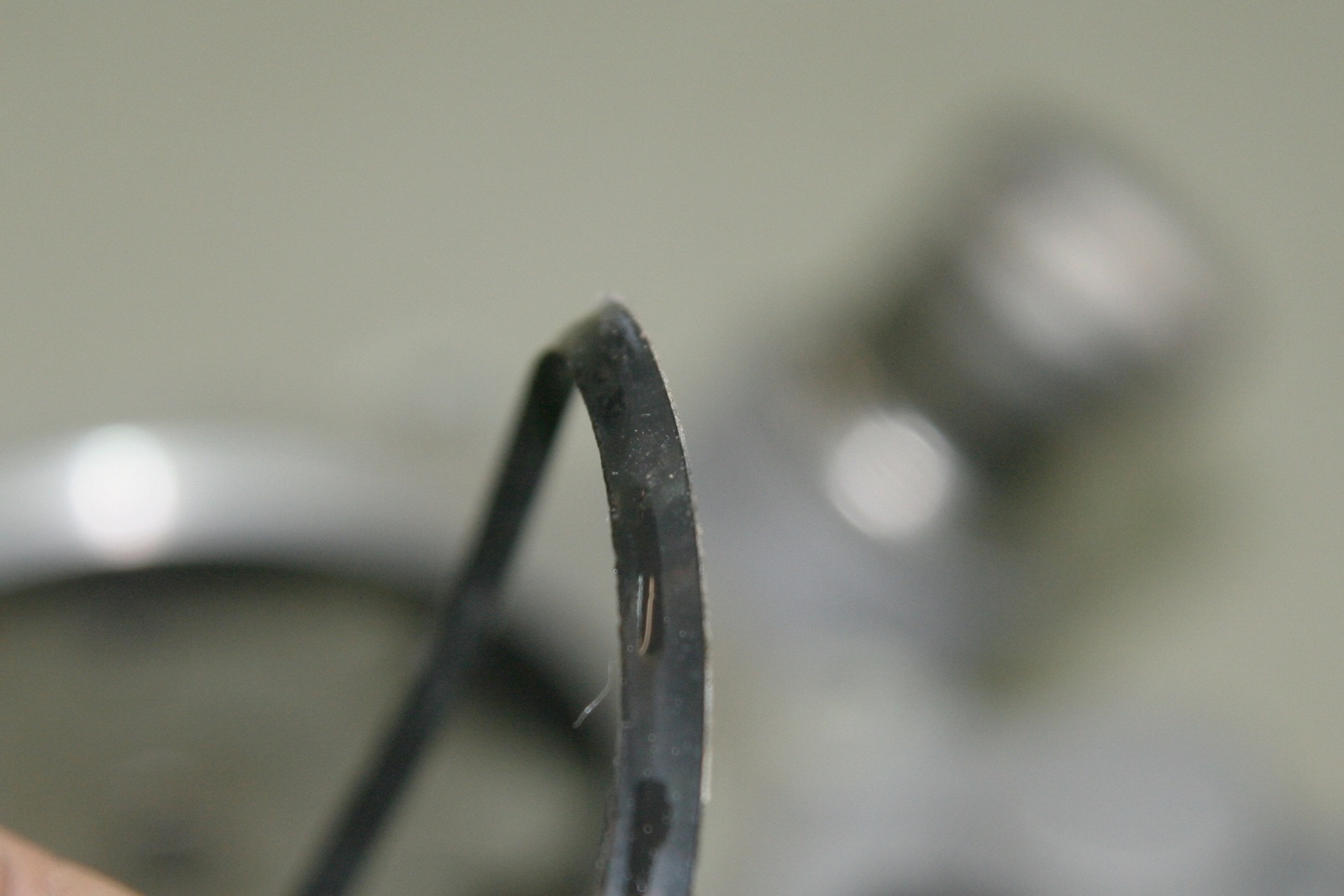

Cracked boot



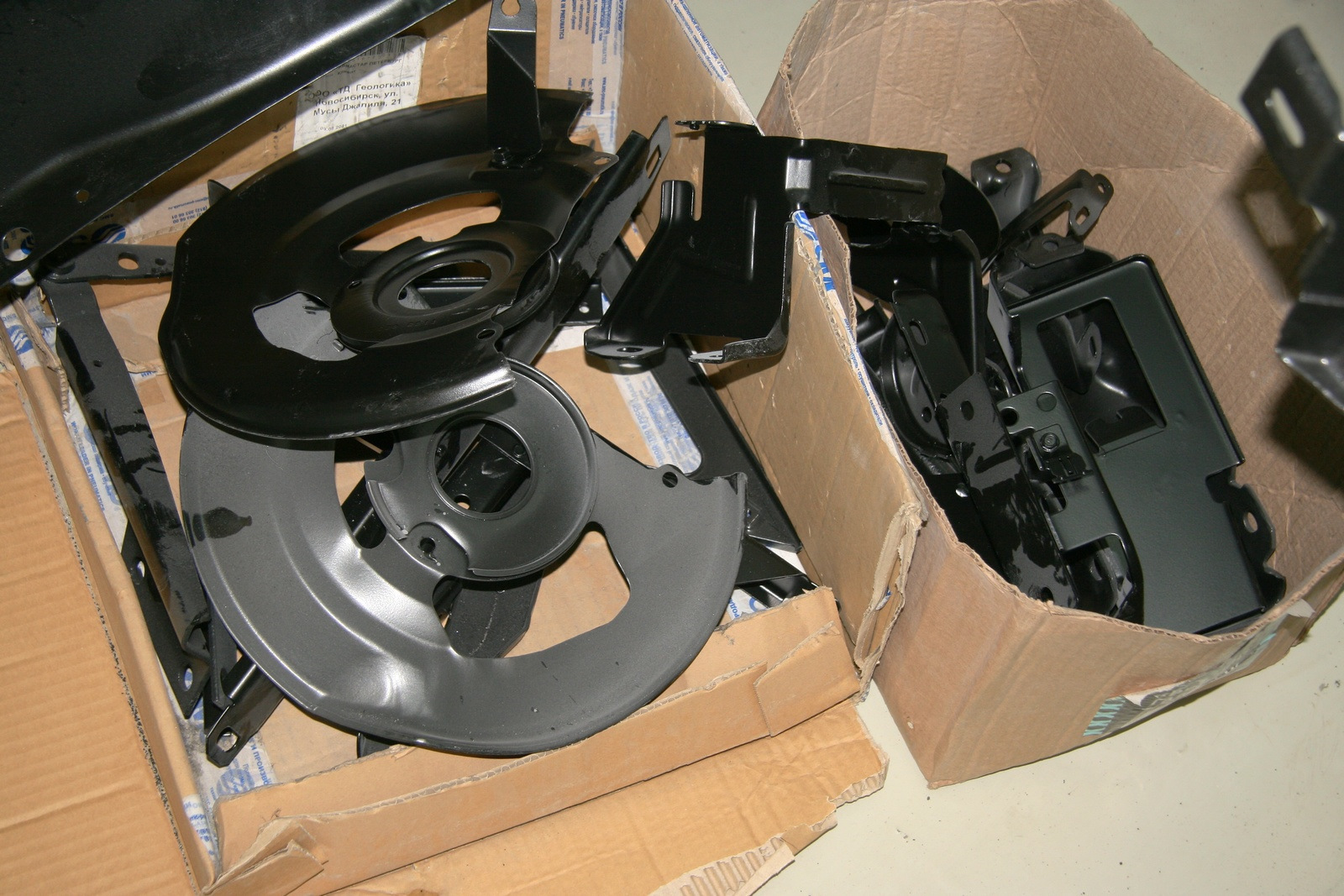

More parts have returned from the powder coating.

[tcom2027]

Good morning,

Spectacular job. What is equally impressive is you did it outside the US. I can't imagine the difficulty you had sourcing parts.

I like your indicator mount. My mill has been idle for a couple of weeks. Time to give it some exercise.

 We had a '96 Brougham for many years. SAme color, It was fast, reliable, easy on fuel, 22-23 highway, 14-15 in town and uber comfortable. When we sold it in 2016 it had 266,000 miles on it. Very little oil consumption, a quart every 5000 miles when it got changed. No drive train problems. Normal maintenance items and few electrical glitches. We live in mountain country. Six percent grade,four people,sixty miles per hour,wanna go faster,simply press the foot feed a little harder. No drama.

My wife drove it and as we got older it became ,in her words,"difficult to dock". She drives a Northstar engined Deville now.

Congrats on a fabulous job.

tony

[kudims]

Wedding



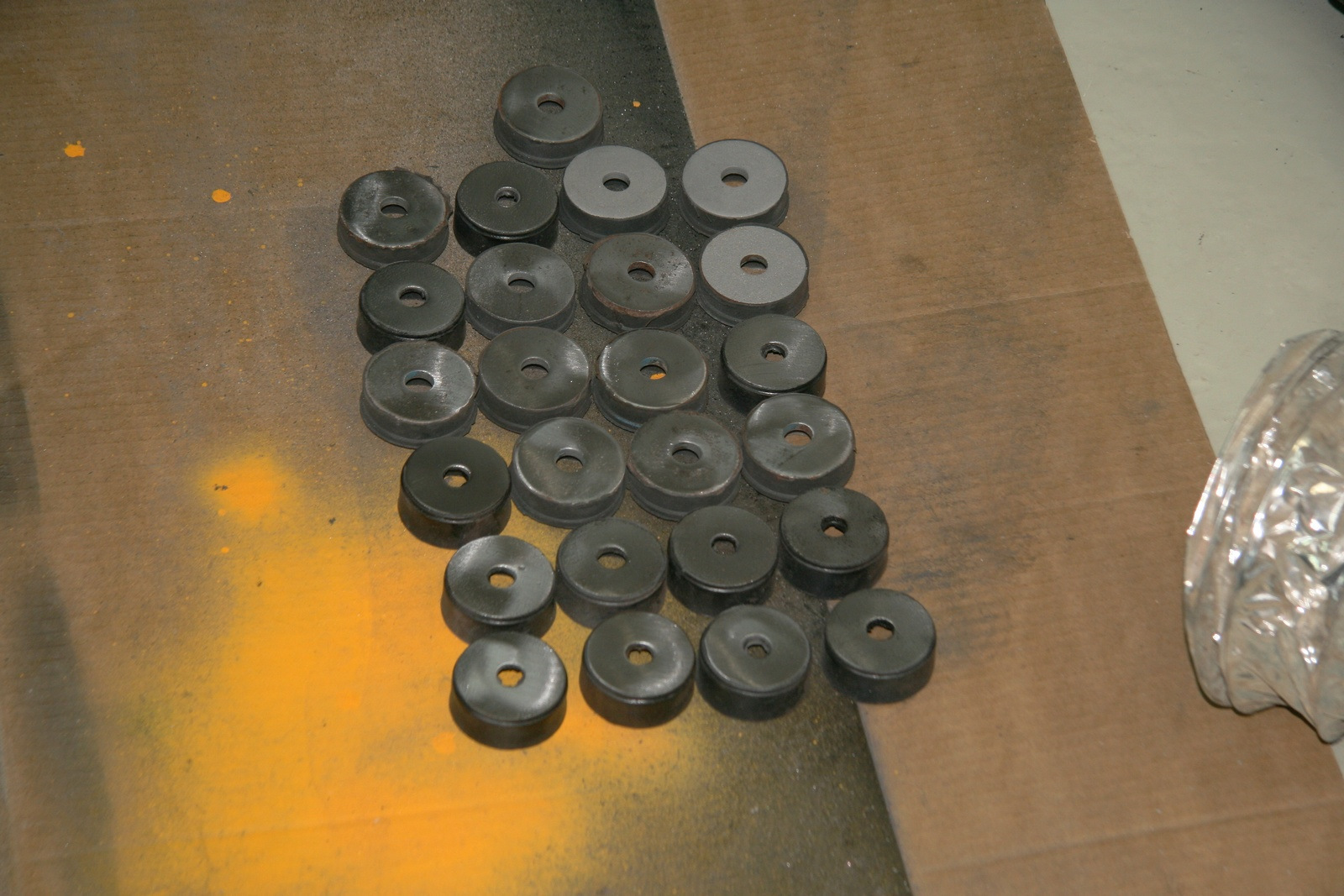

All 16 washers for the body mounts were sandblasted



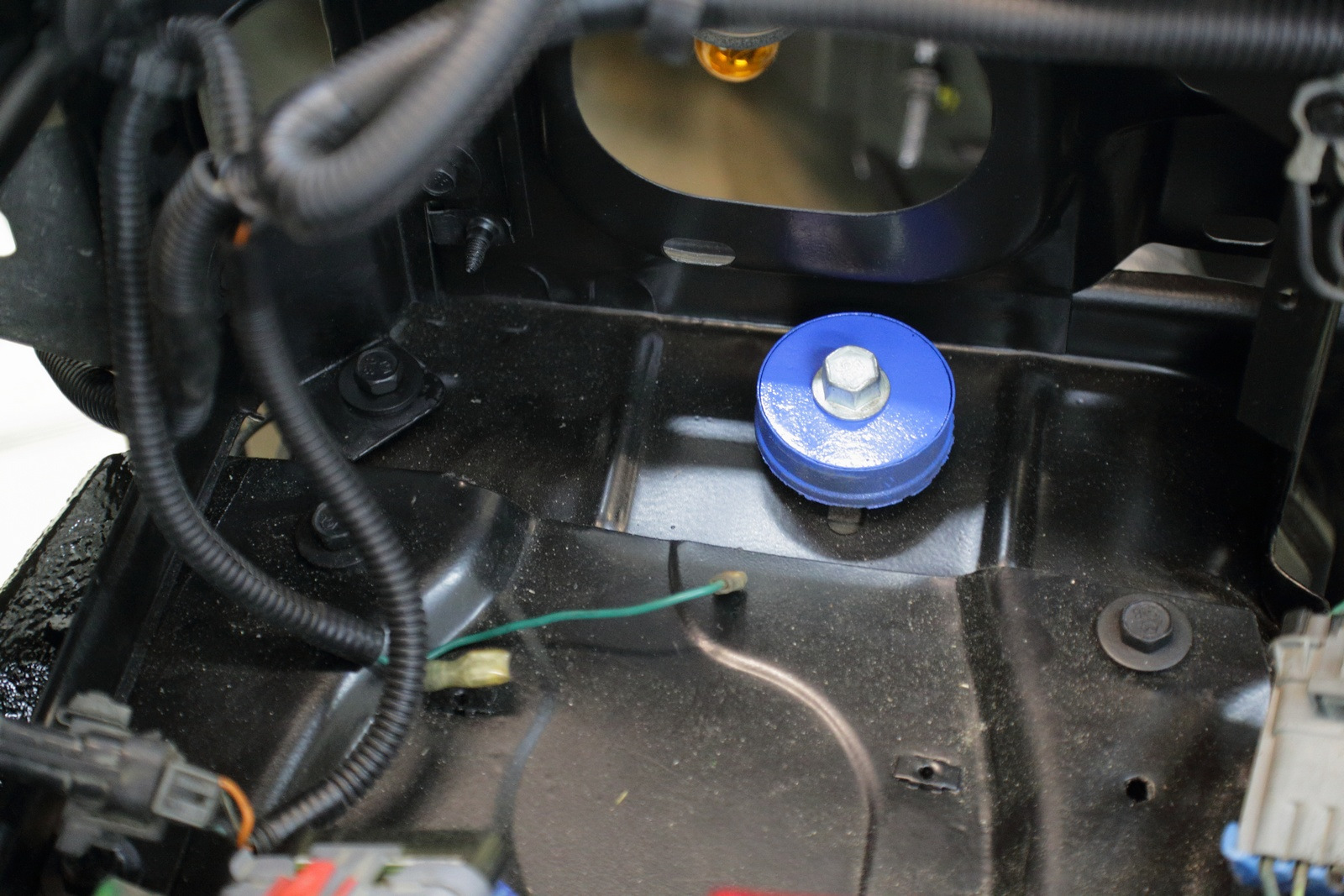

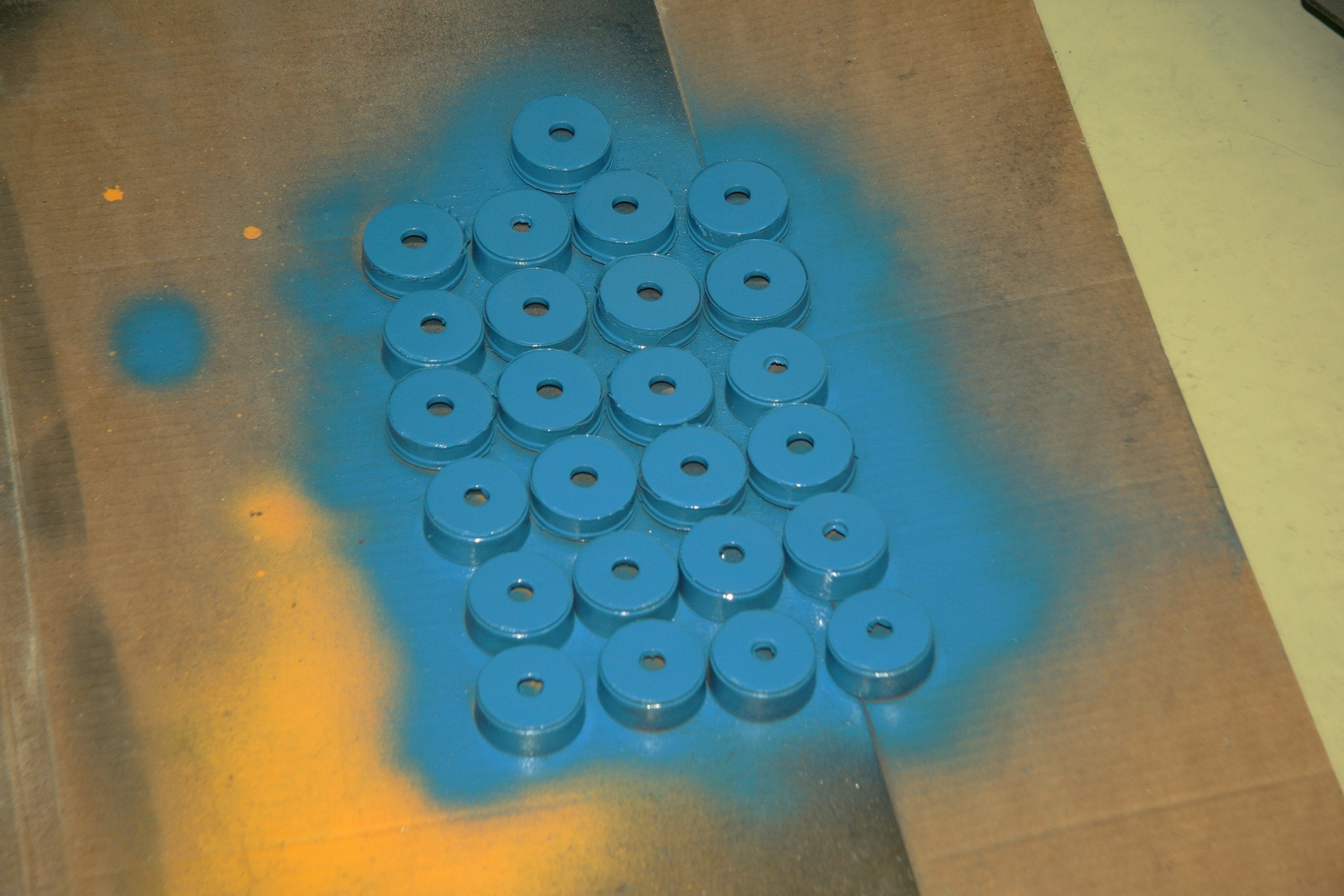

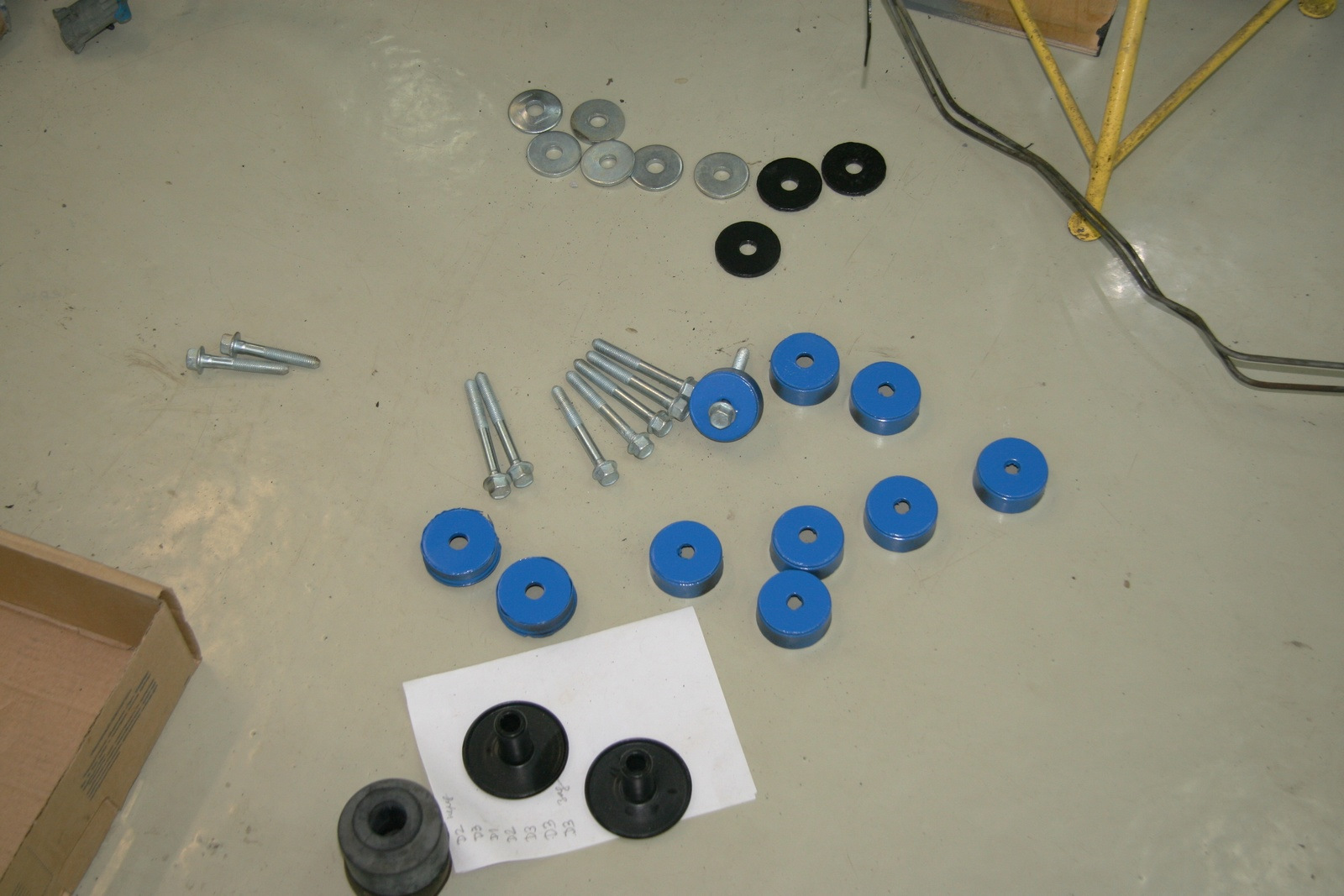

Then they were painted in correct blue original color. The picture does not represent the true shade



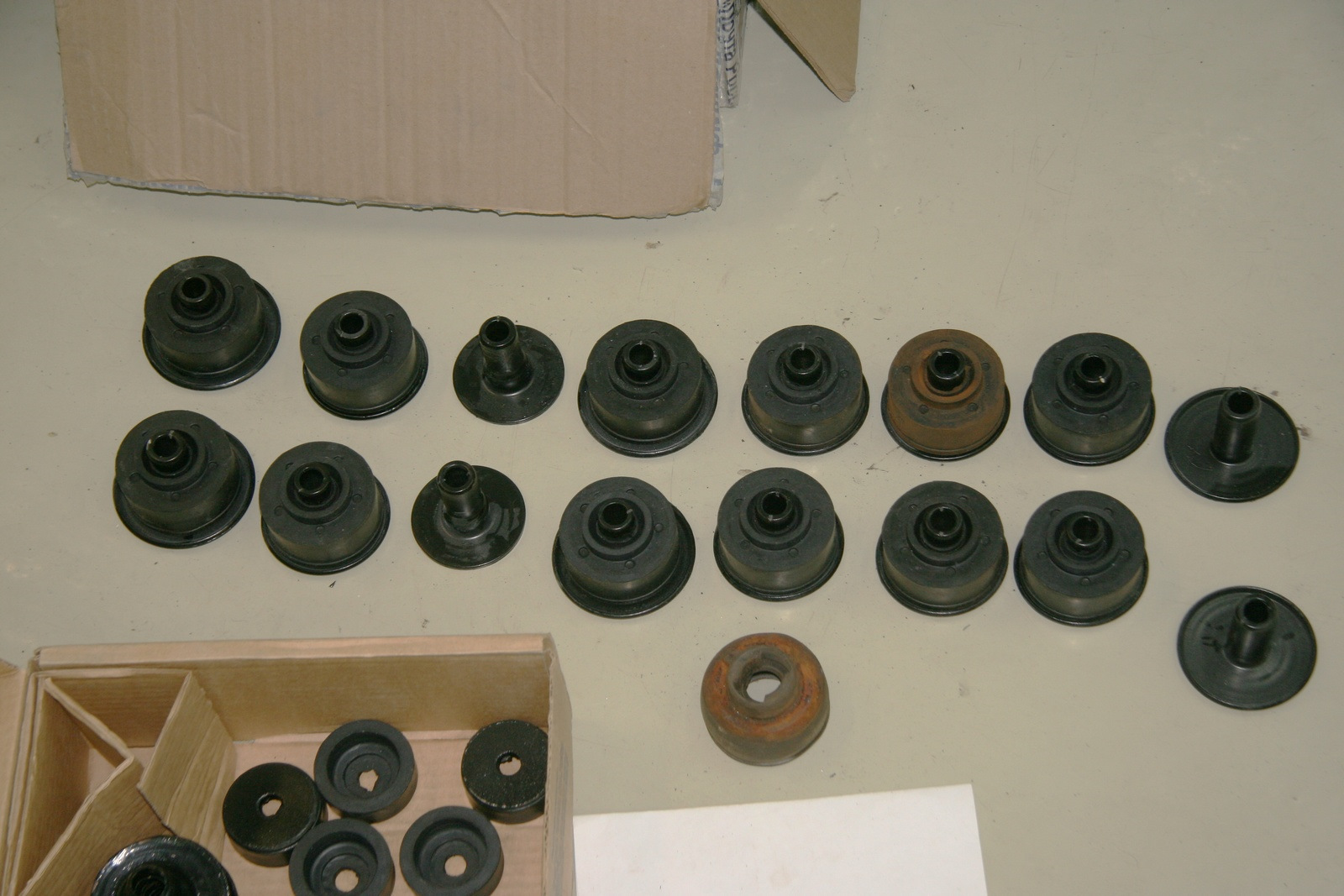

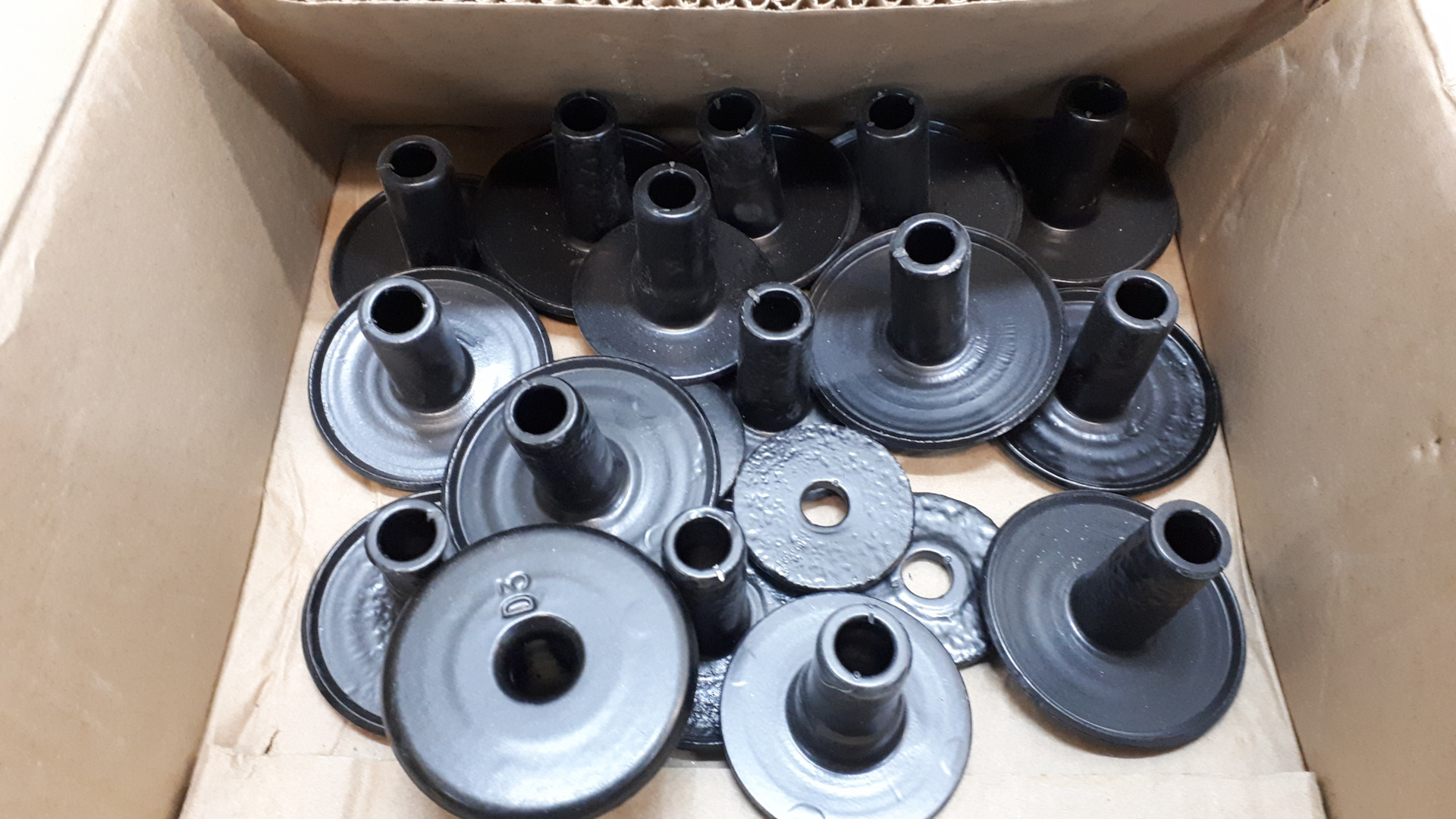

New bushings and powder-coated mushroom type sleeves

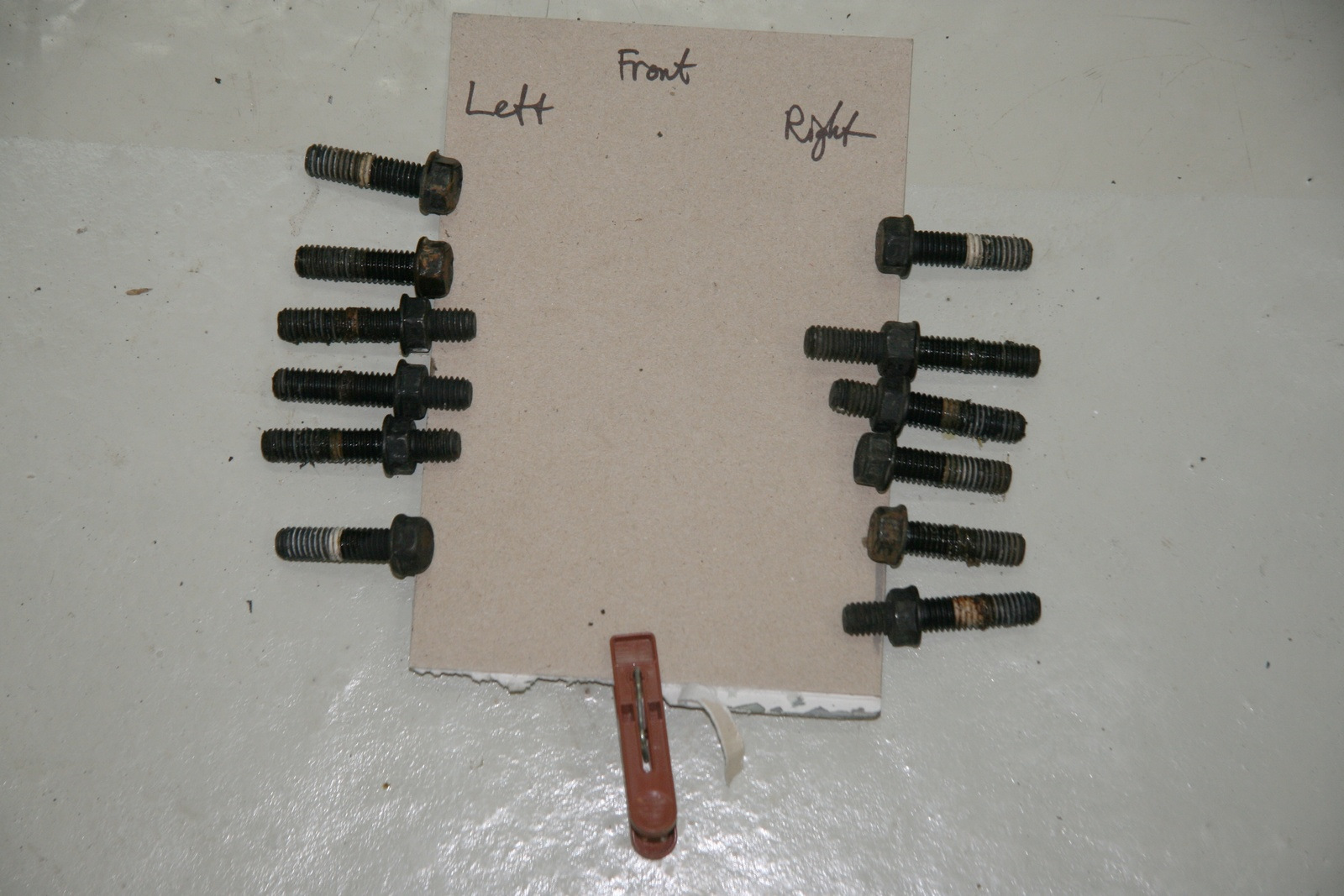

Here they are. All marked
The sequence is the following (one side, from front to the back): D2, D3, D1, D2, D3, D3, D3



Put them in the correct sequence

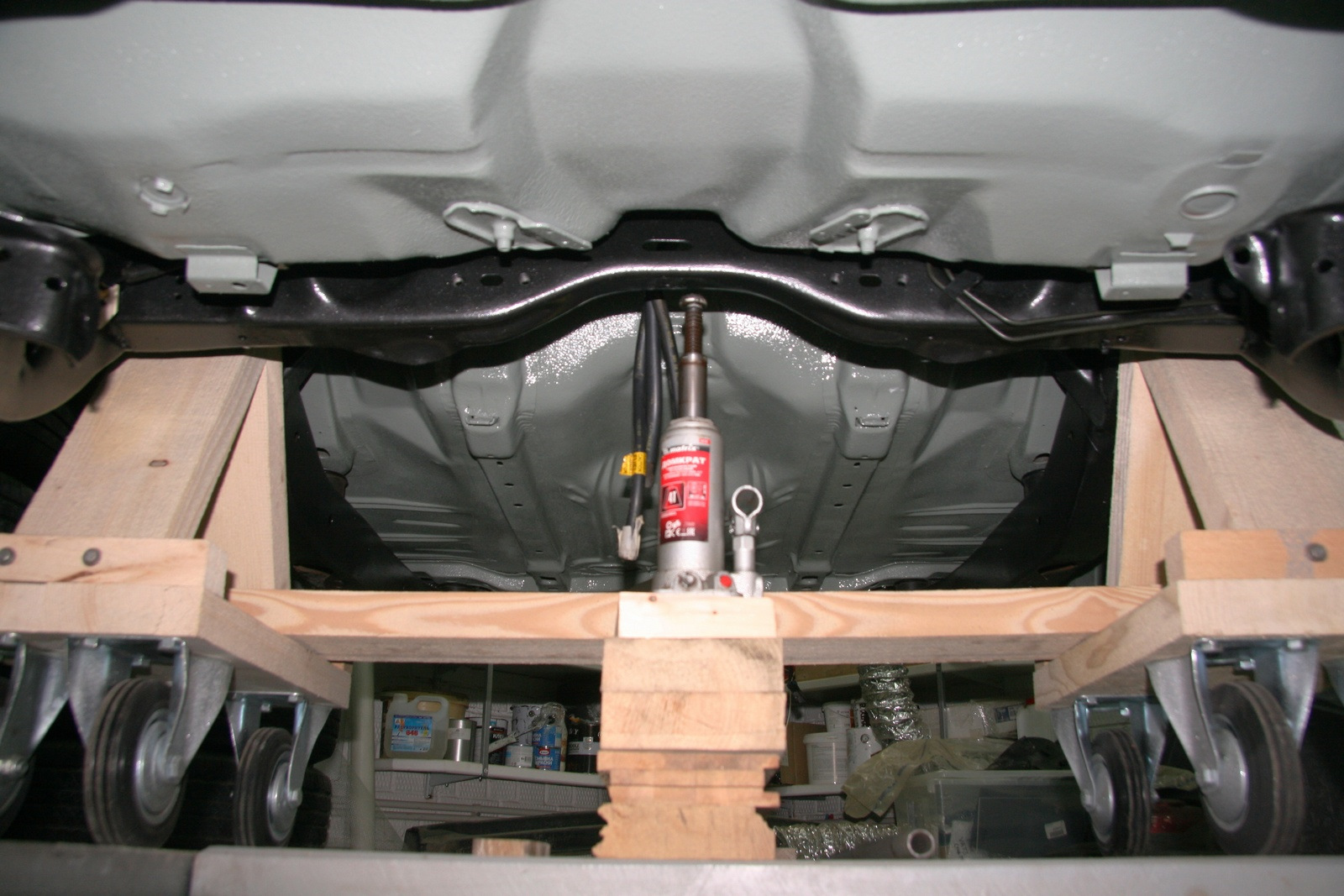

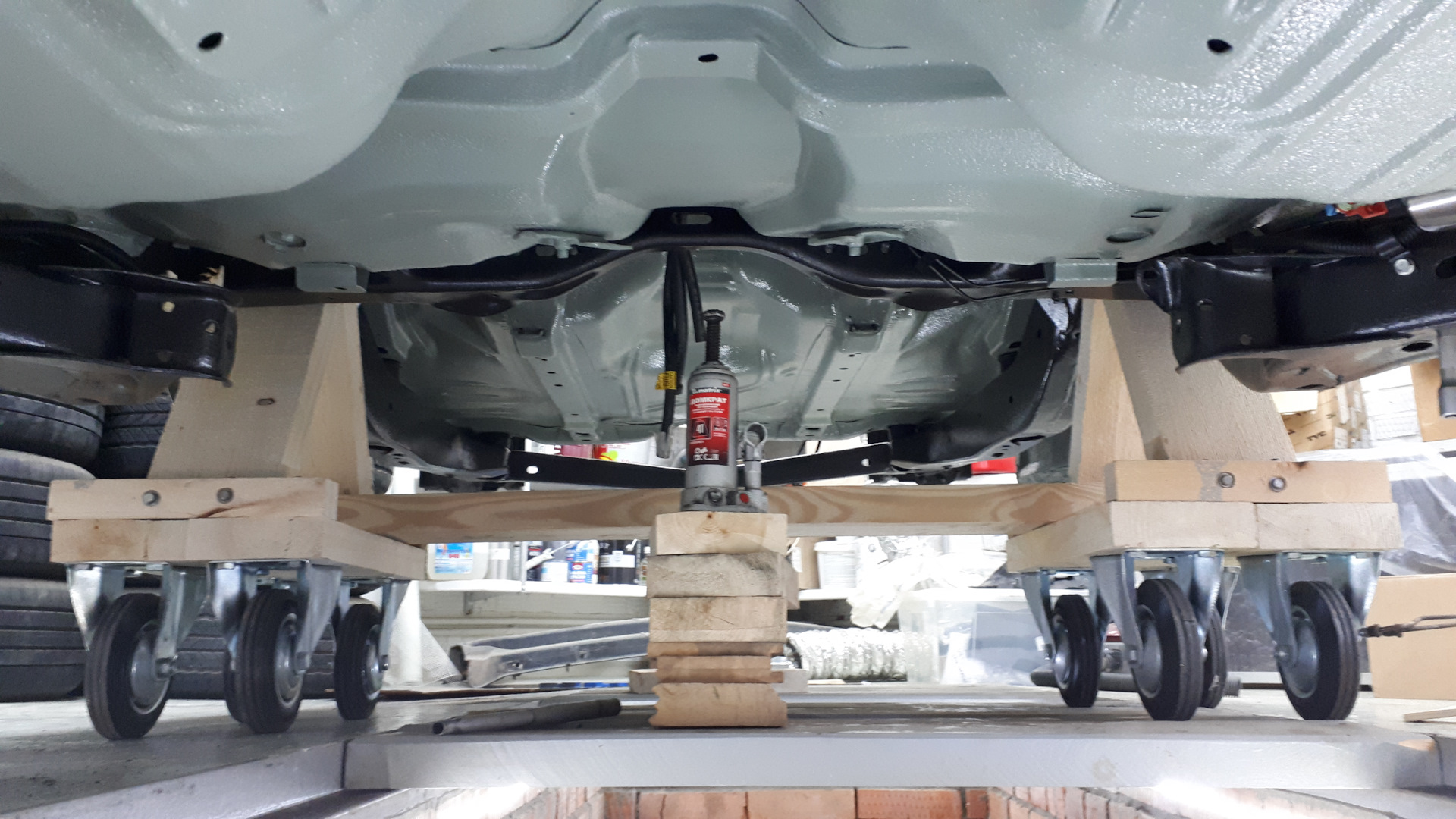

Start lifting the frame with 2 jacks. One in the front, one under the rear crossmember



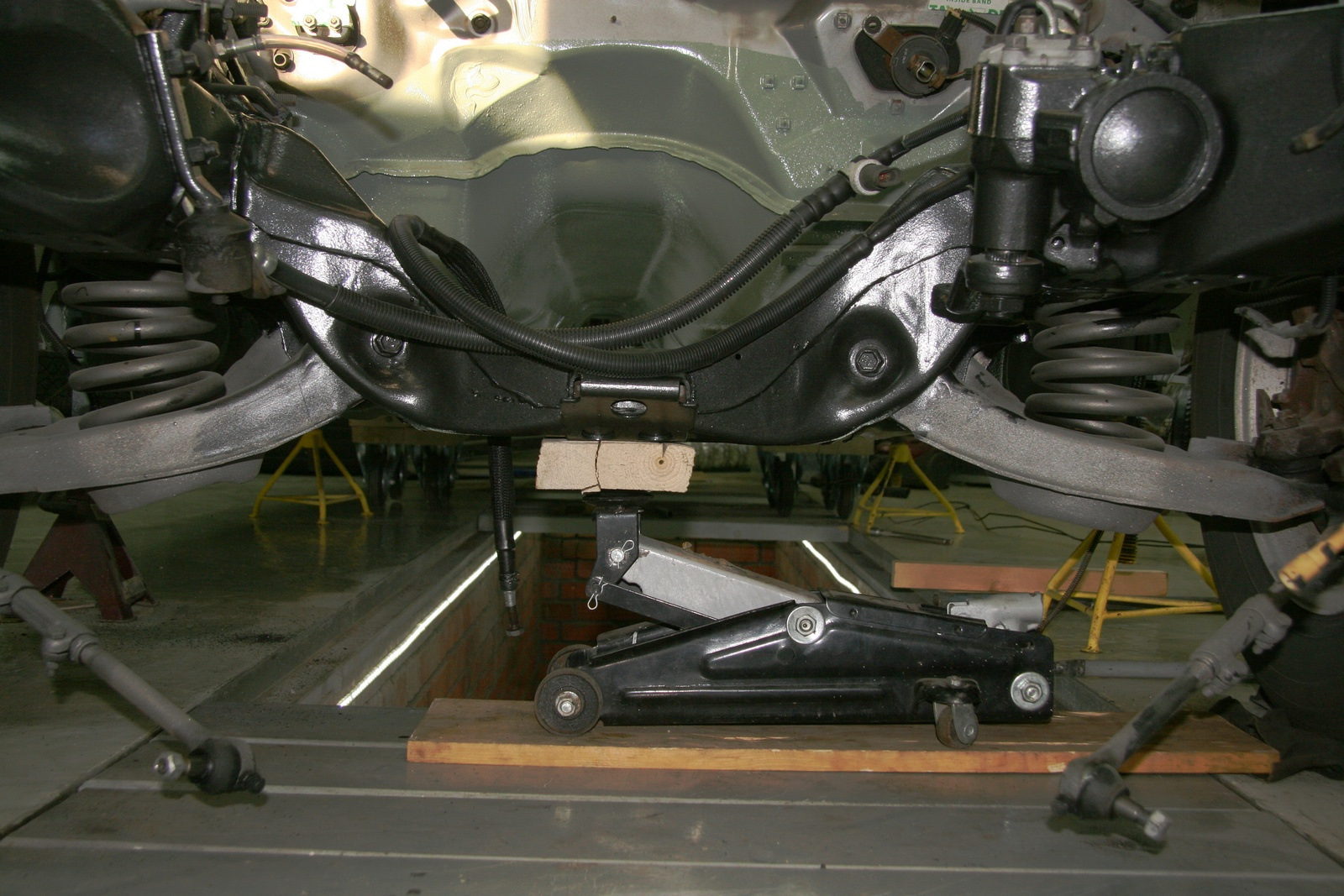

Alignment pin = socket extender with 1/2" square



Another jack



And another alignment pin



Tighten to the frame @ 70Nm

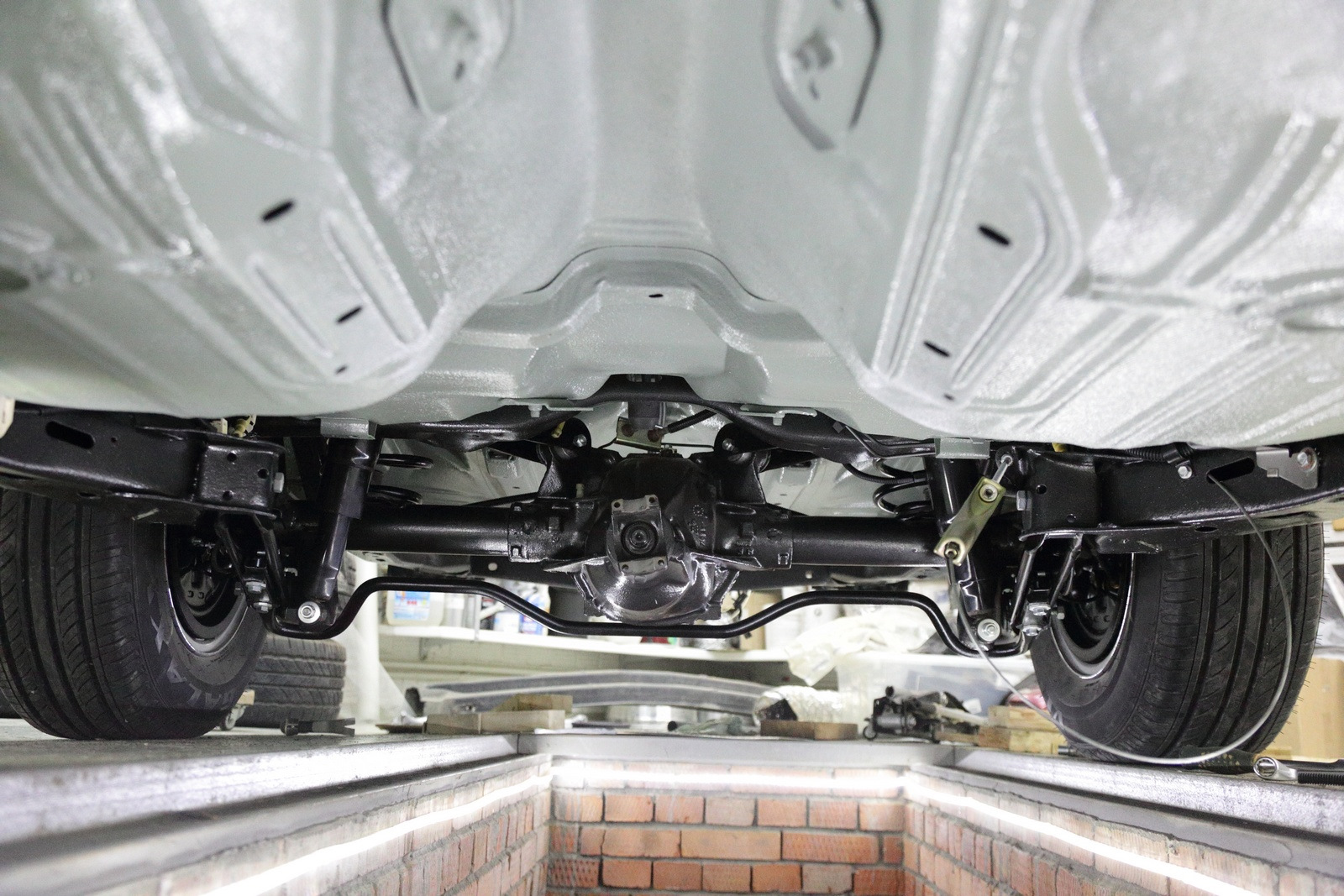

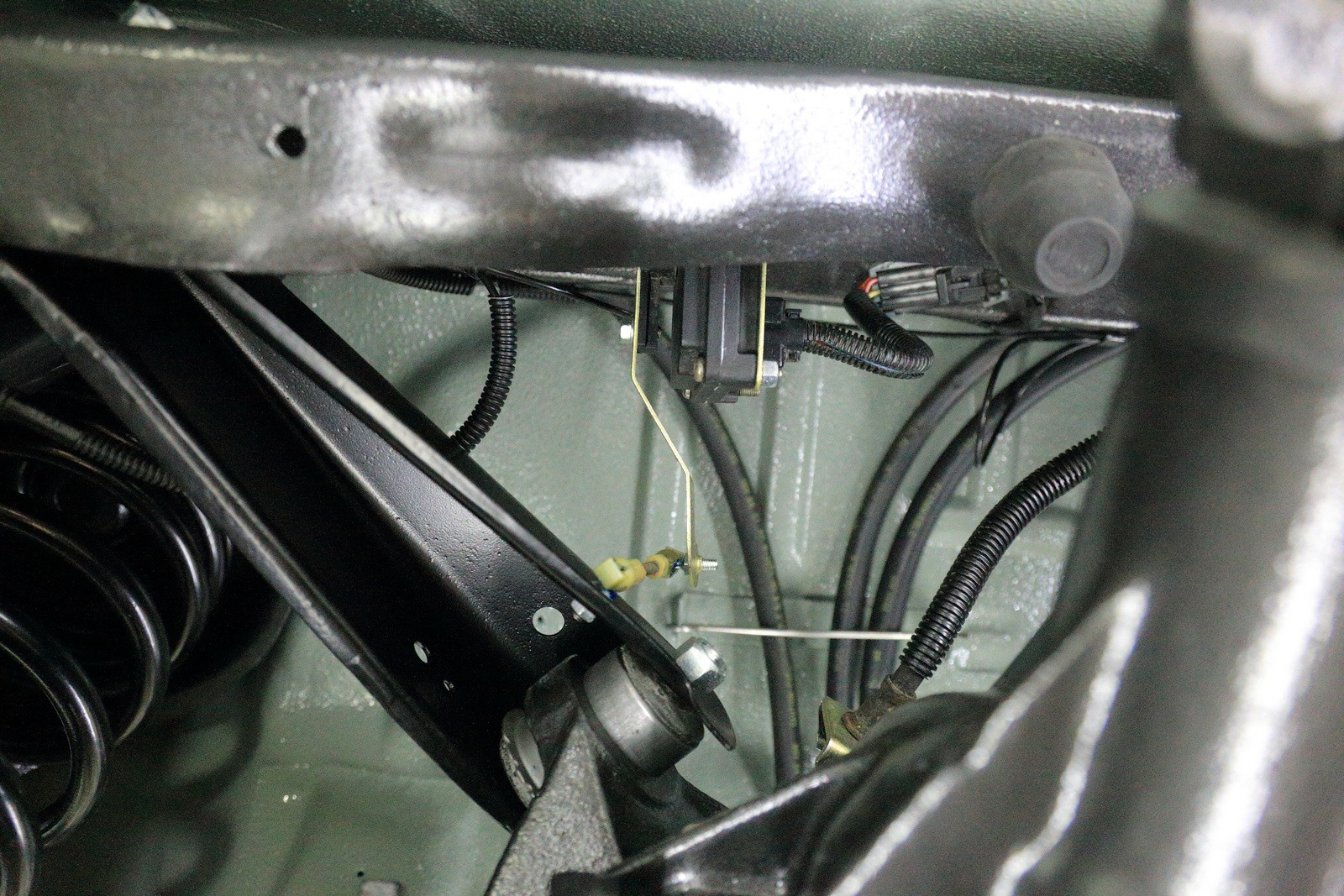

Rear suspension

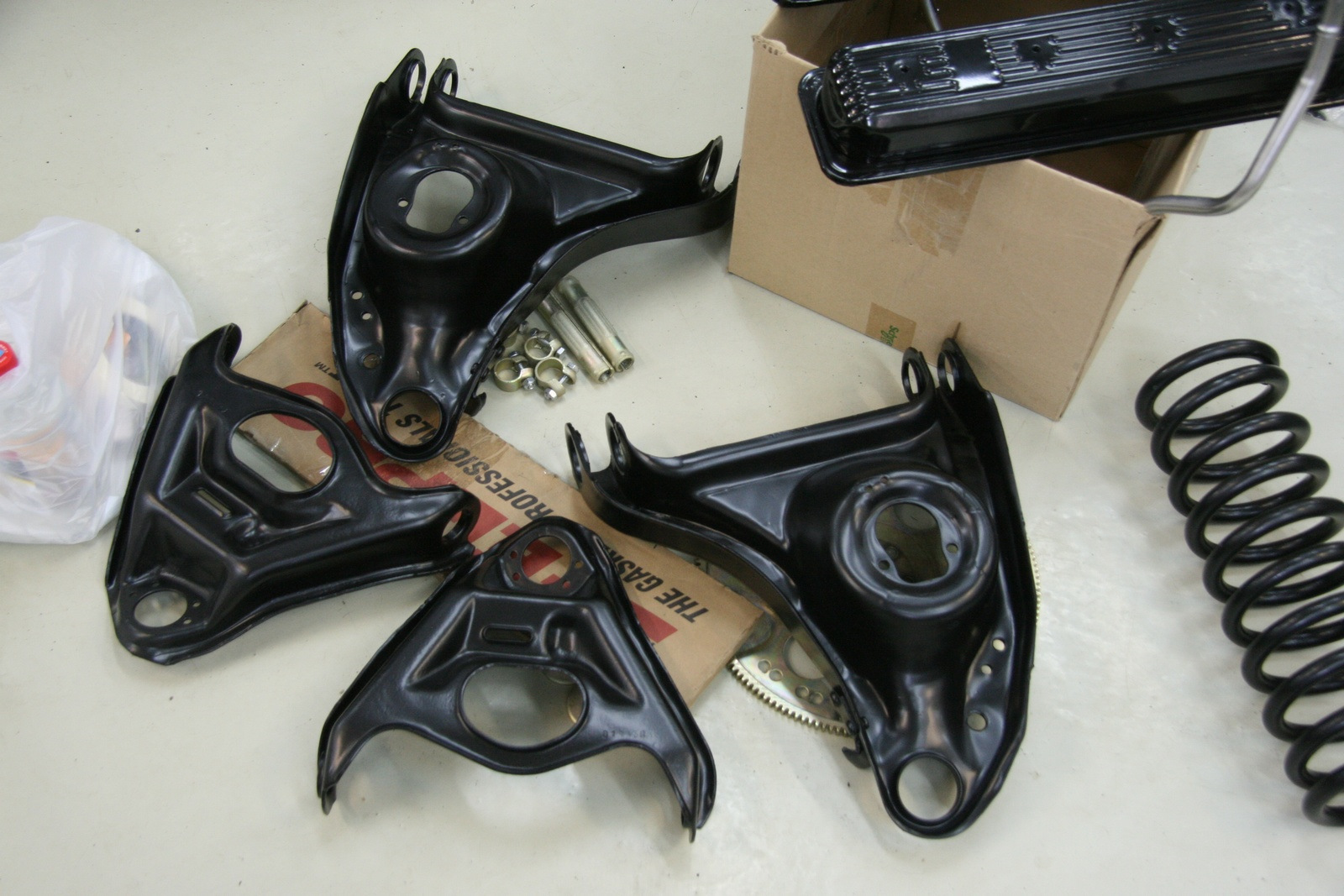

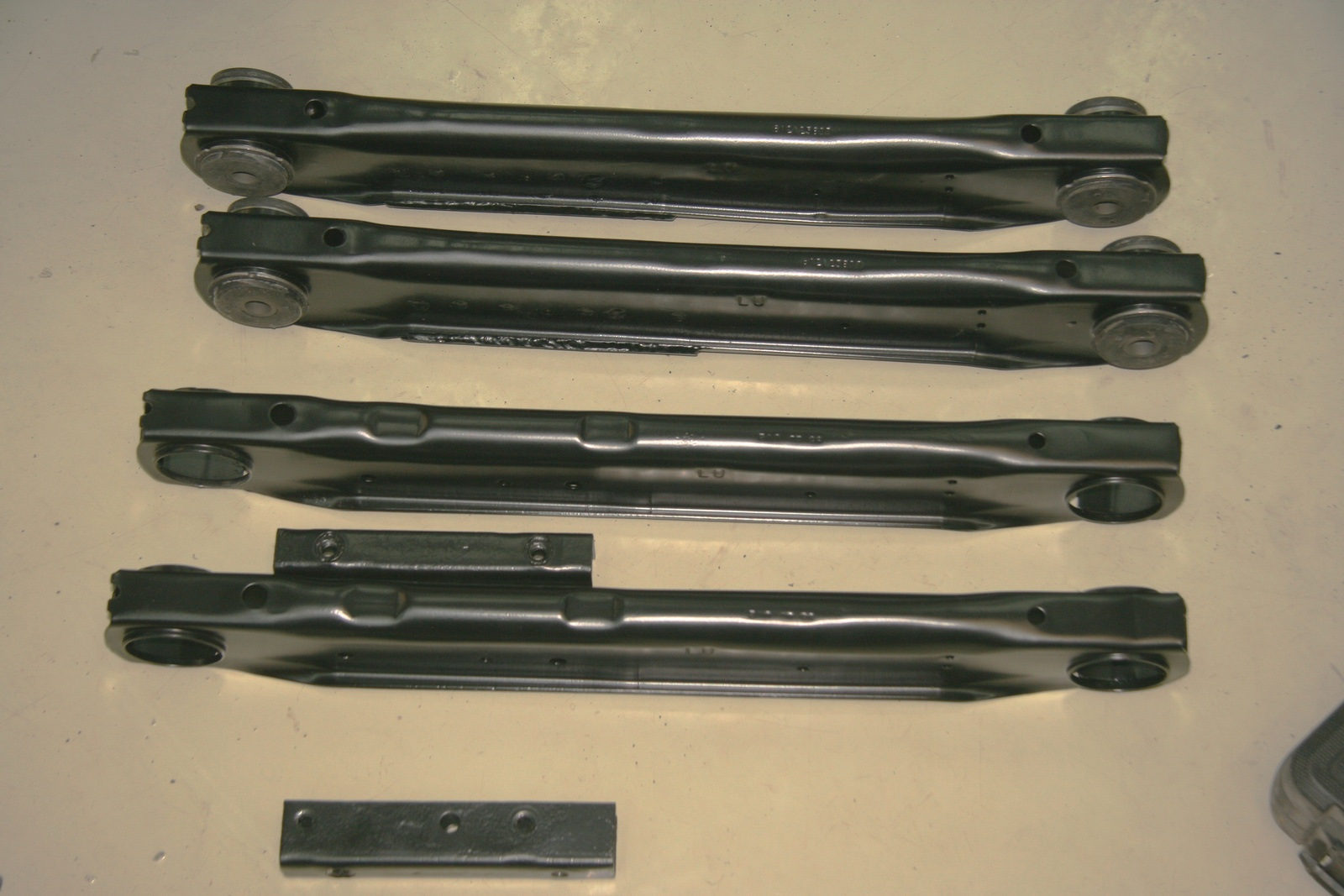

Two sets of lower arms. One set was enforced



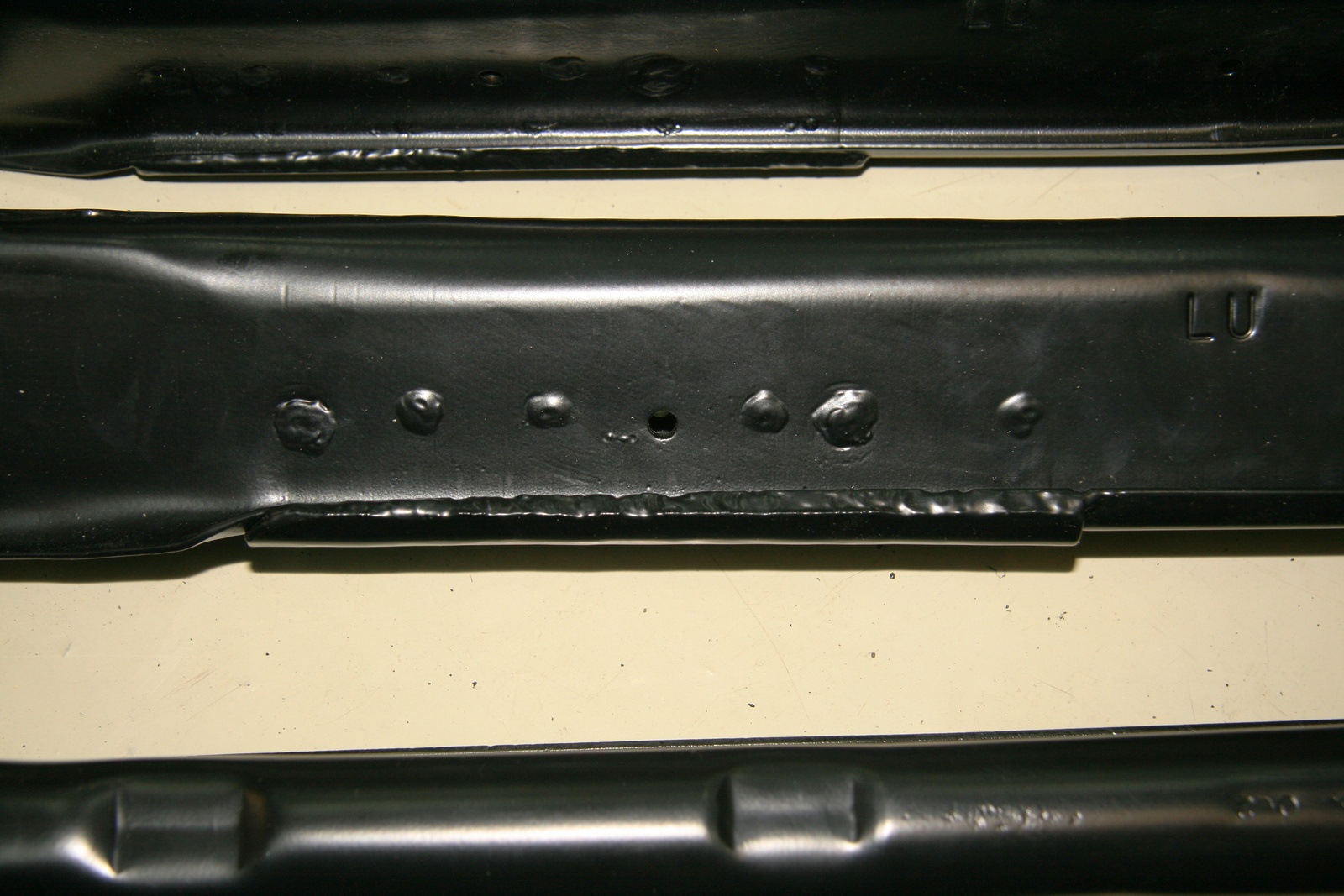

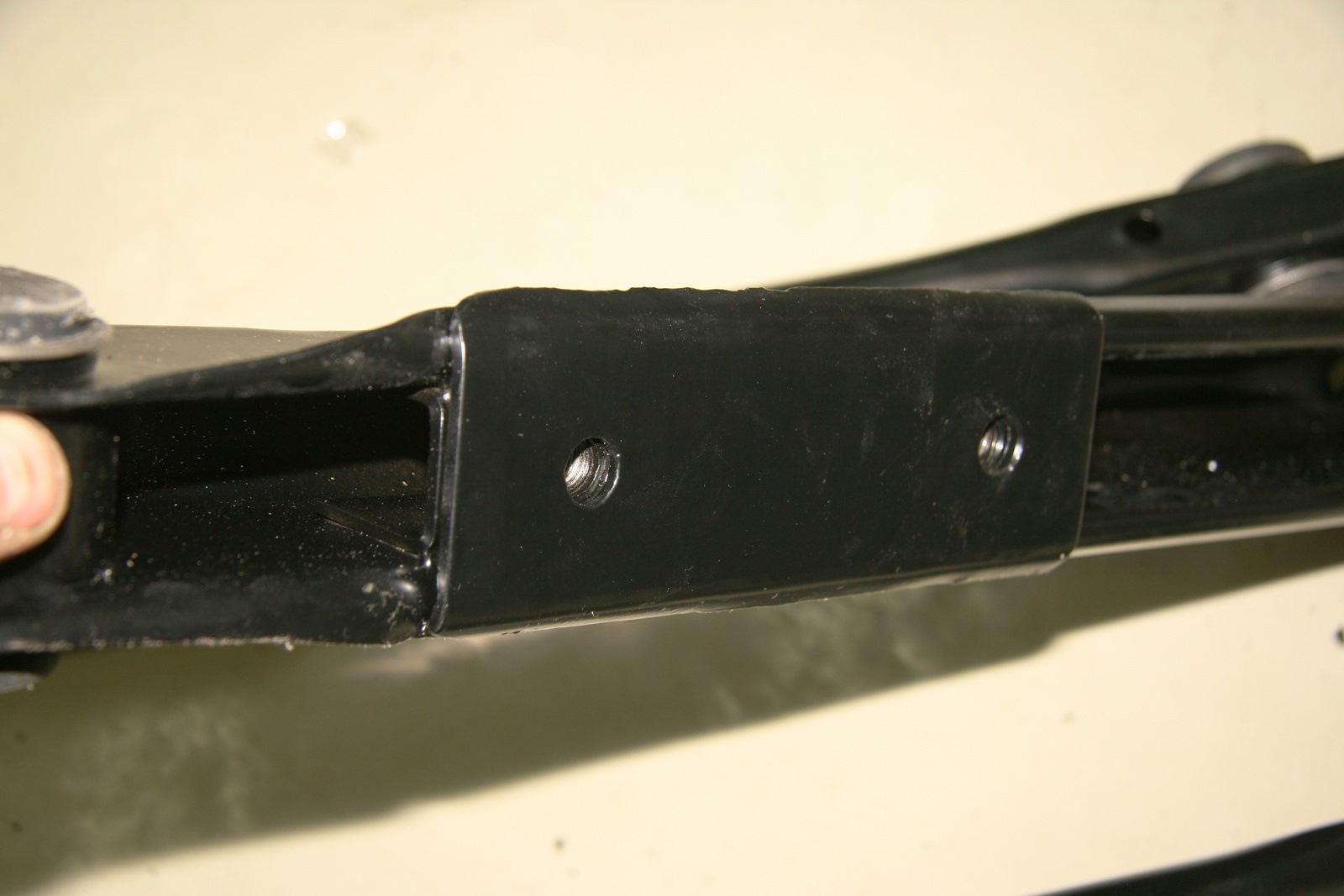

Like this





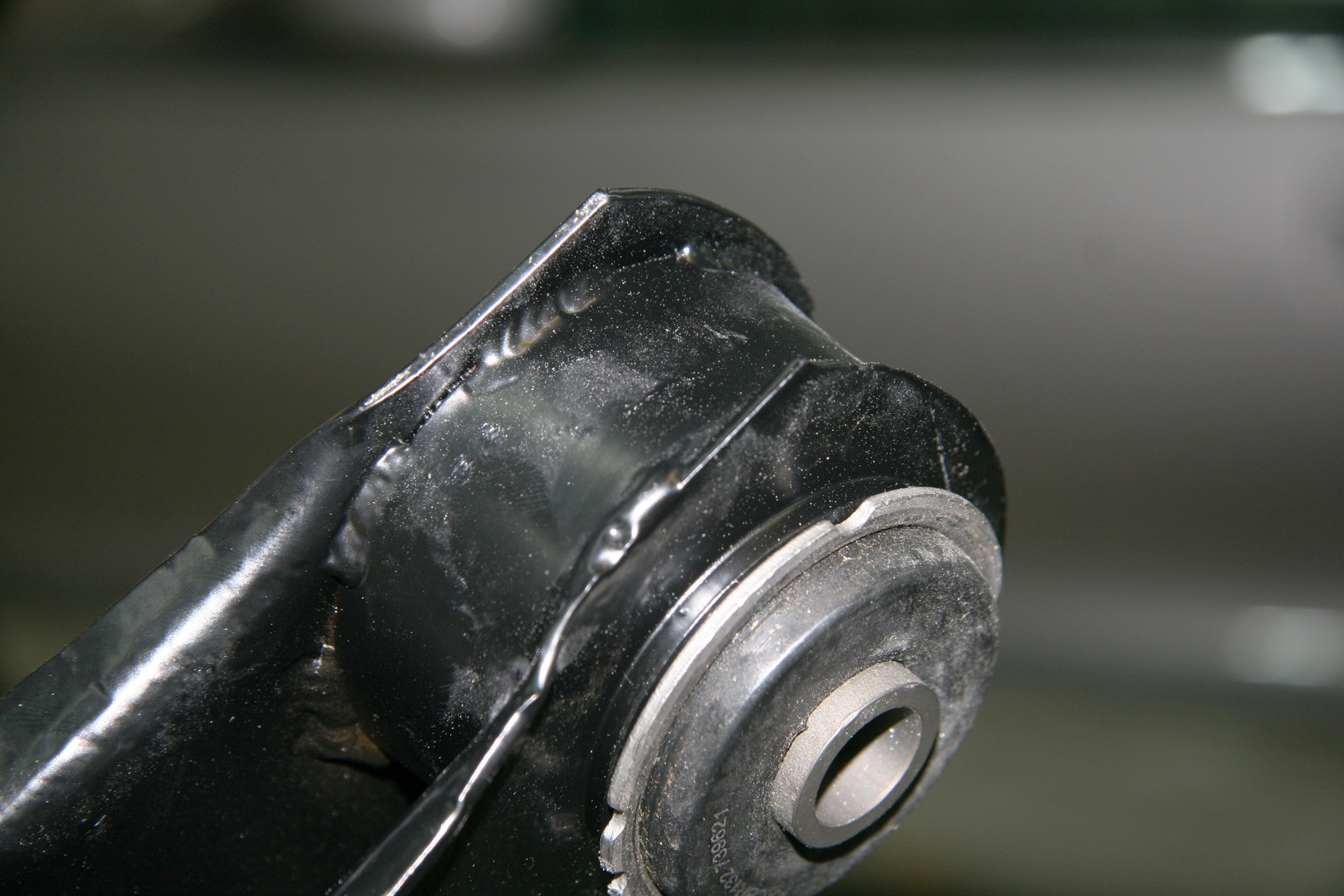

Also, these arms are really weak near the bushings. We have enforced it there as well



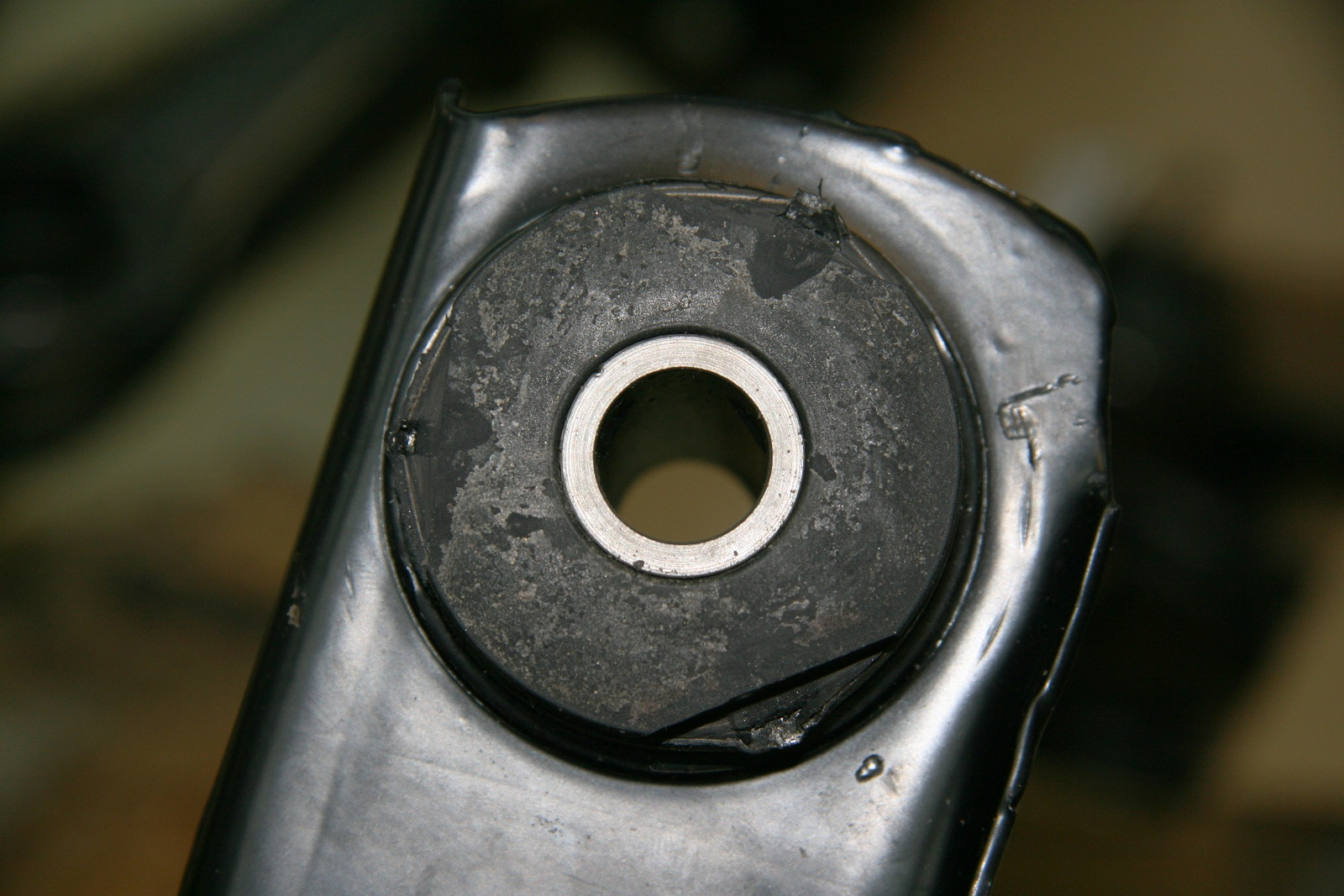

According to the Manual, you need to flare the bushing sleeves in 3 places at 120 degrees

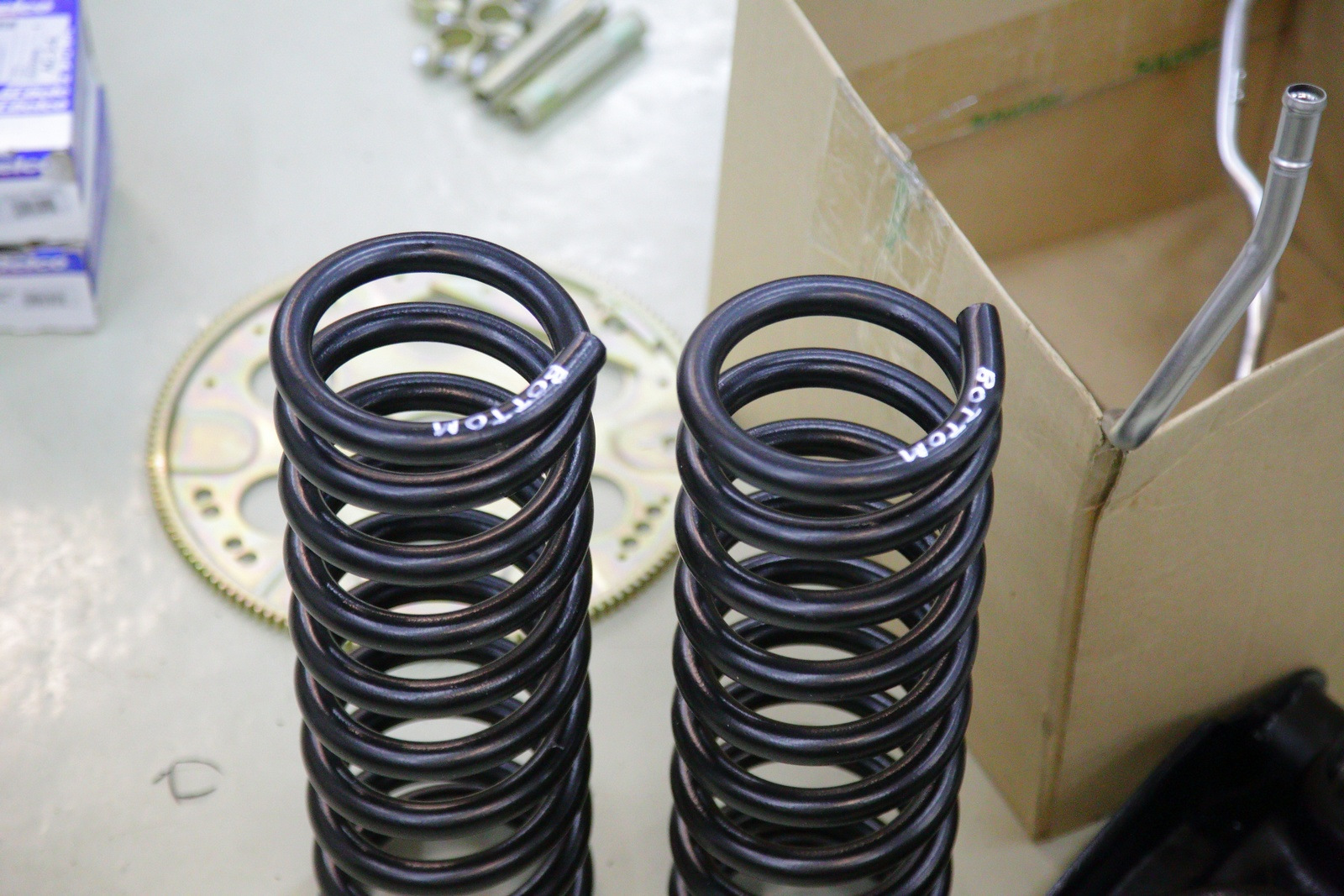

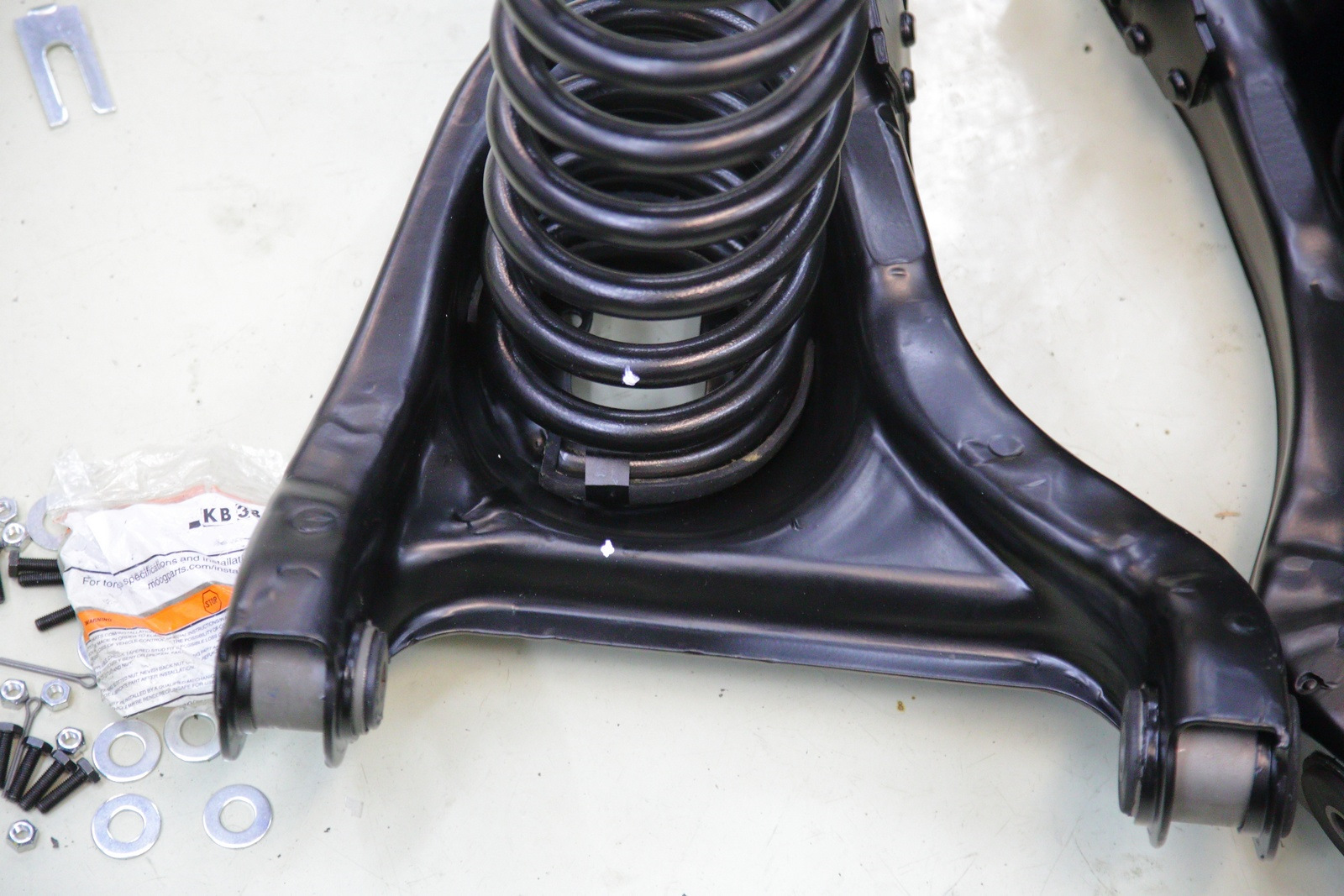

New coil springs and new washers



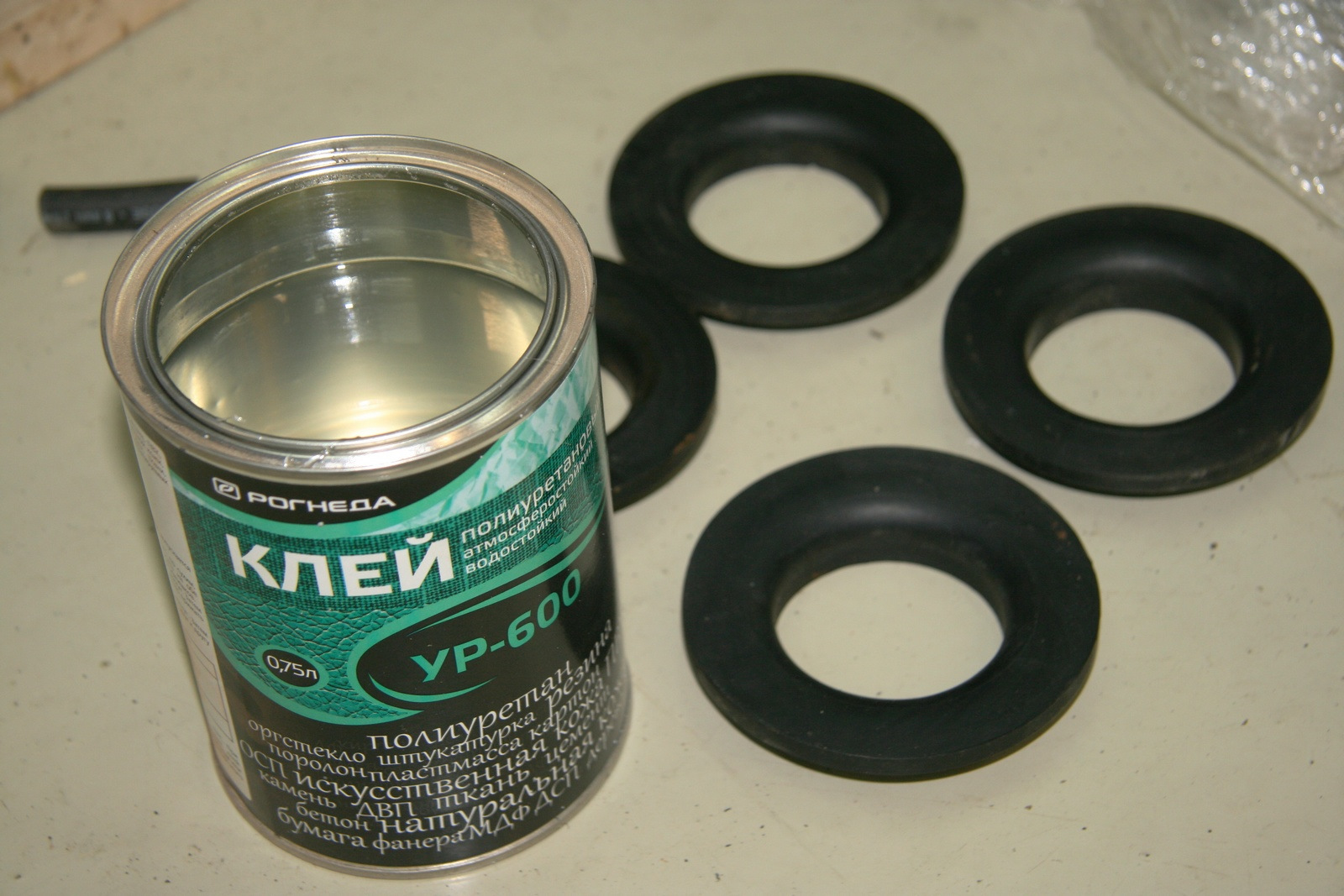

Use polyurethane glue to secure the washers

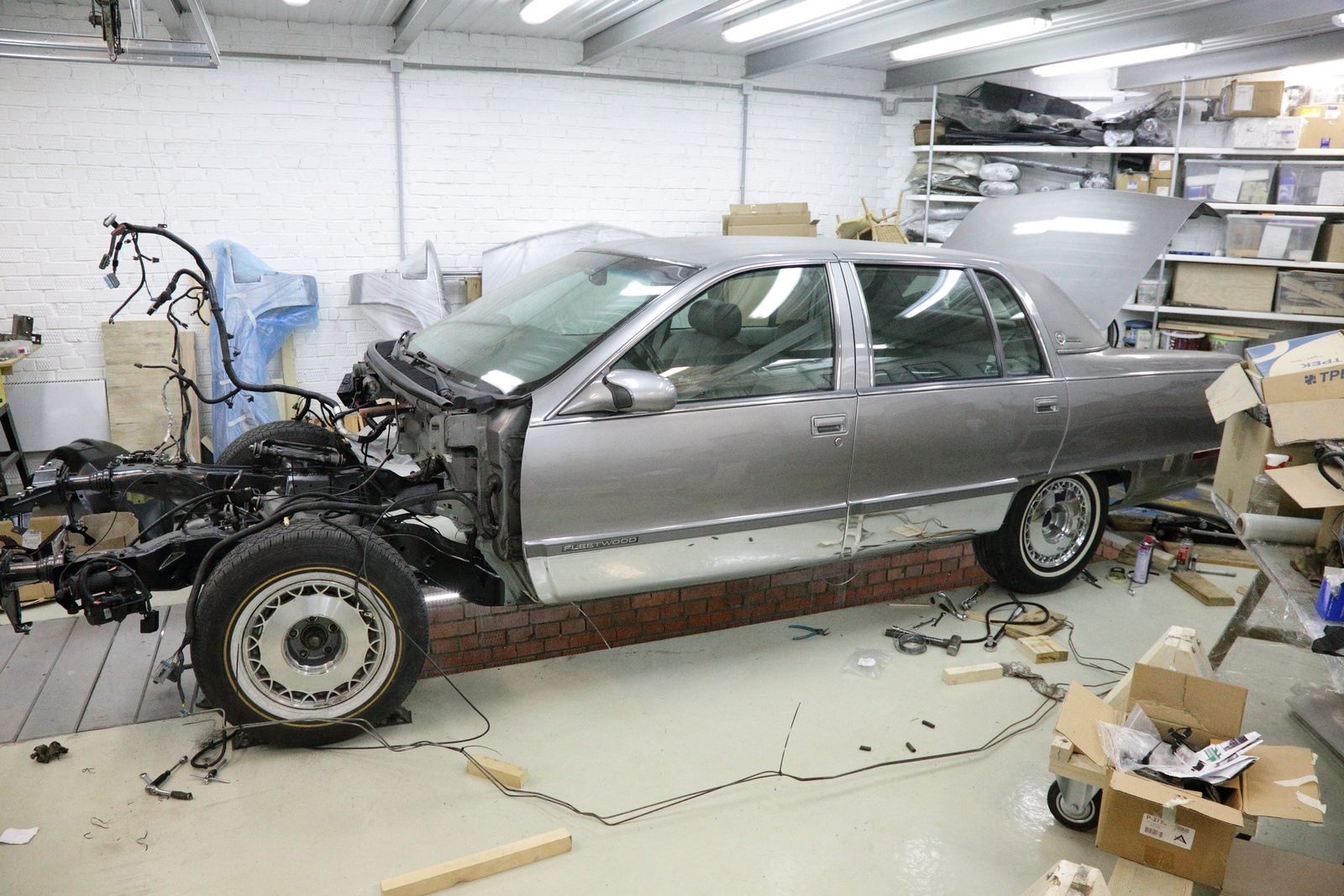

And... the car is on its wheels



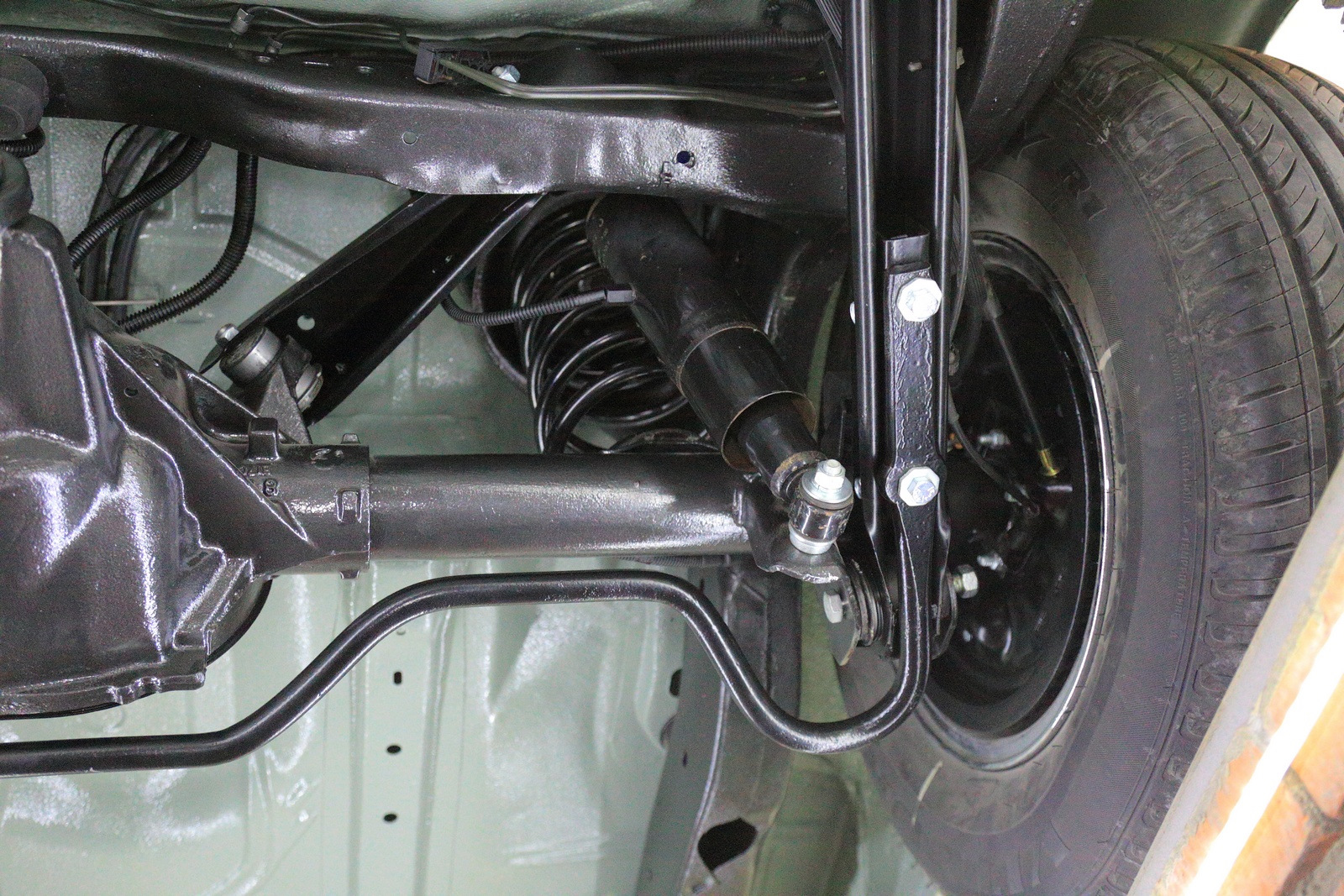

Bolts for sway bar



And here we go



Take all the pieces from the shelf



And put them back on a car







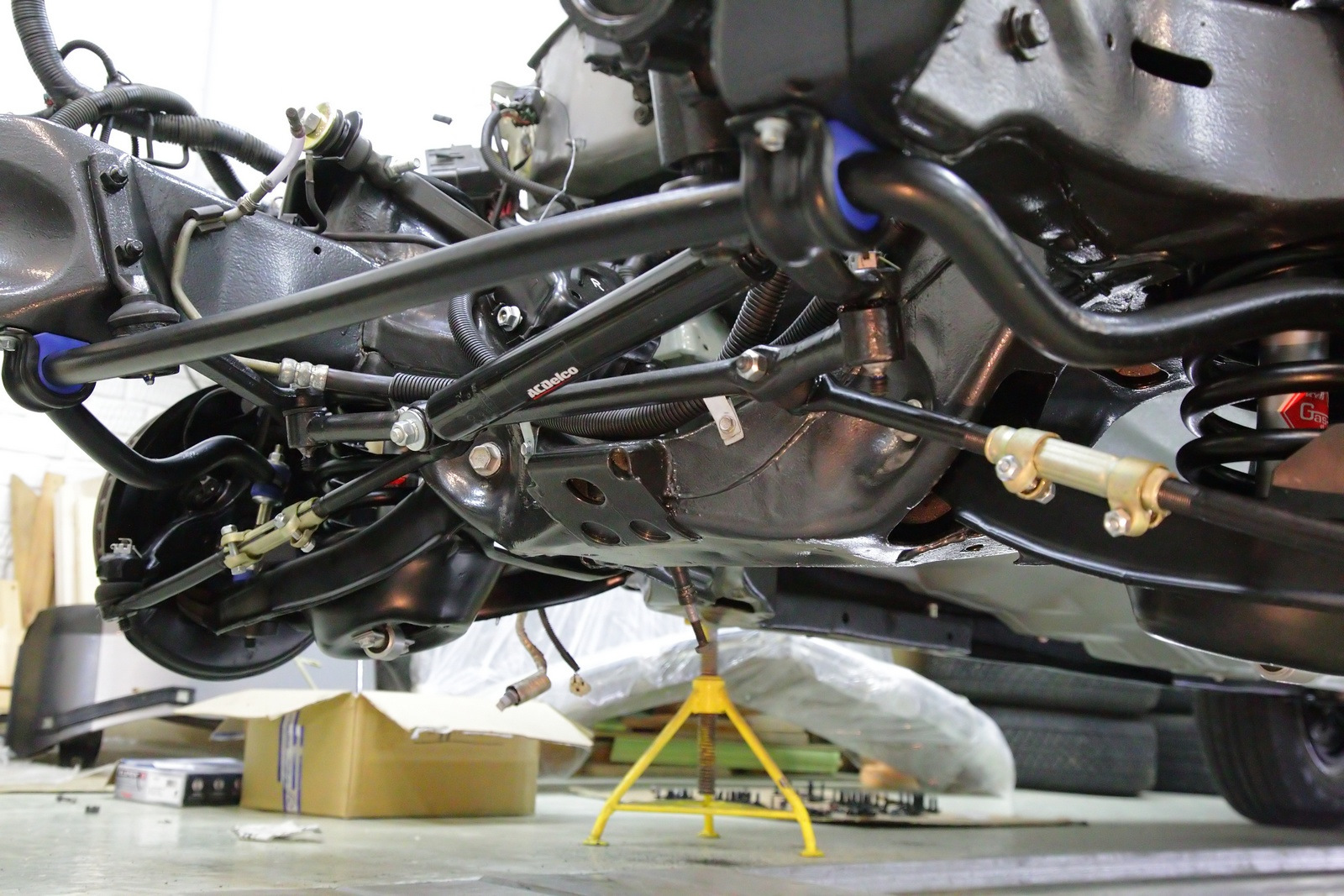

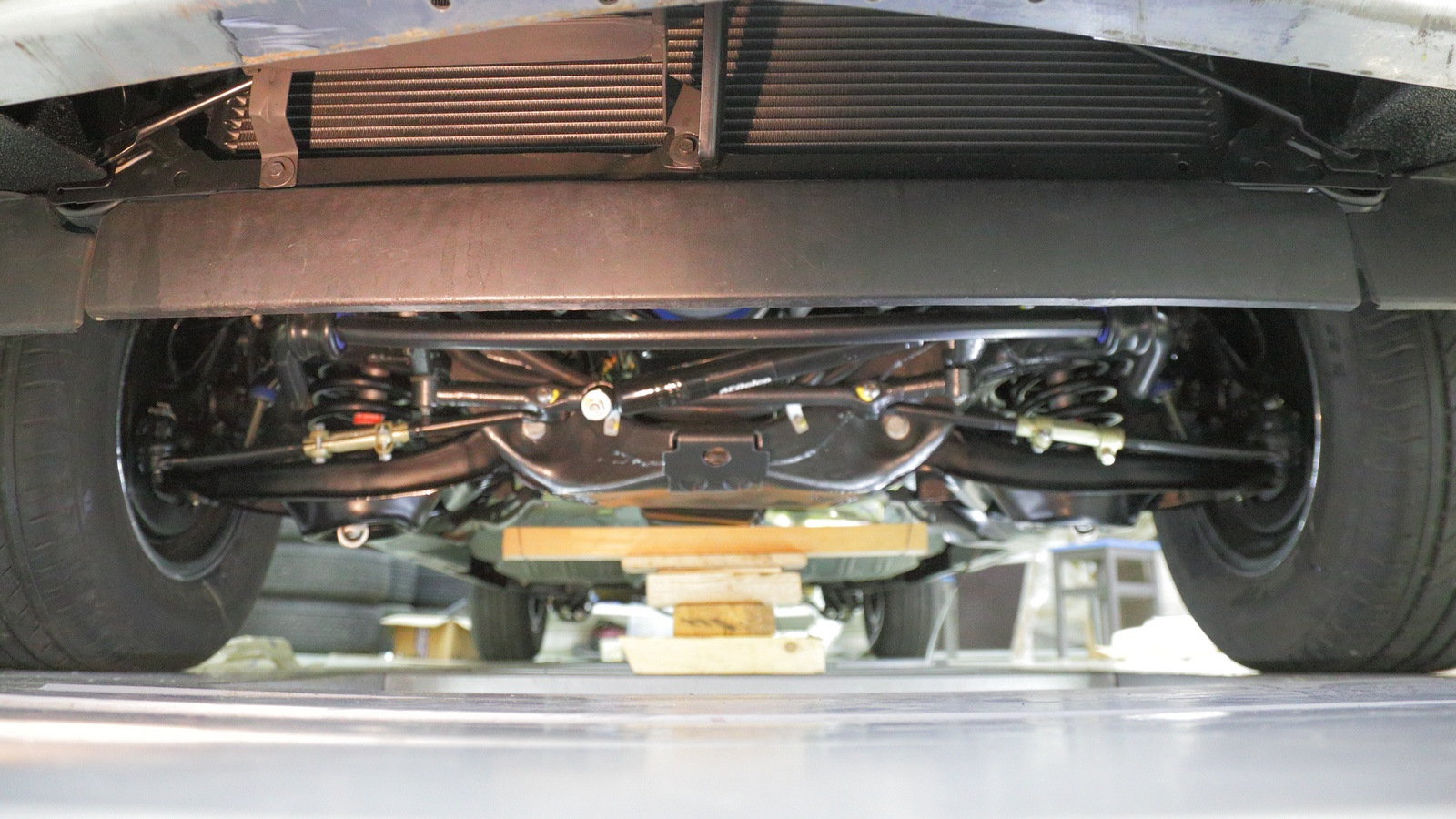

Looks different from what it was



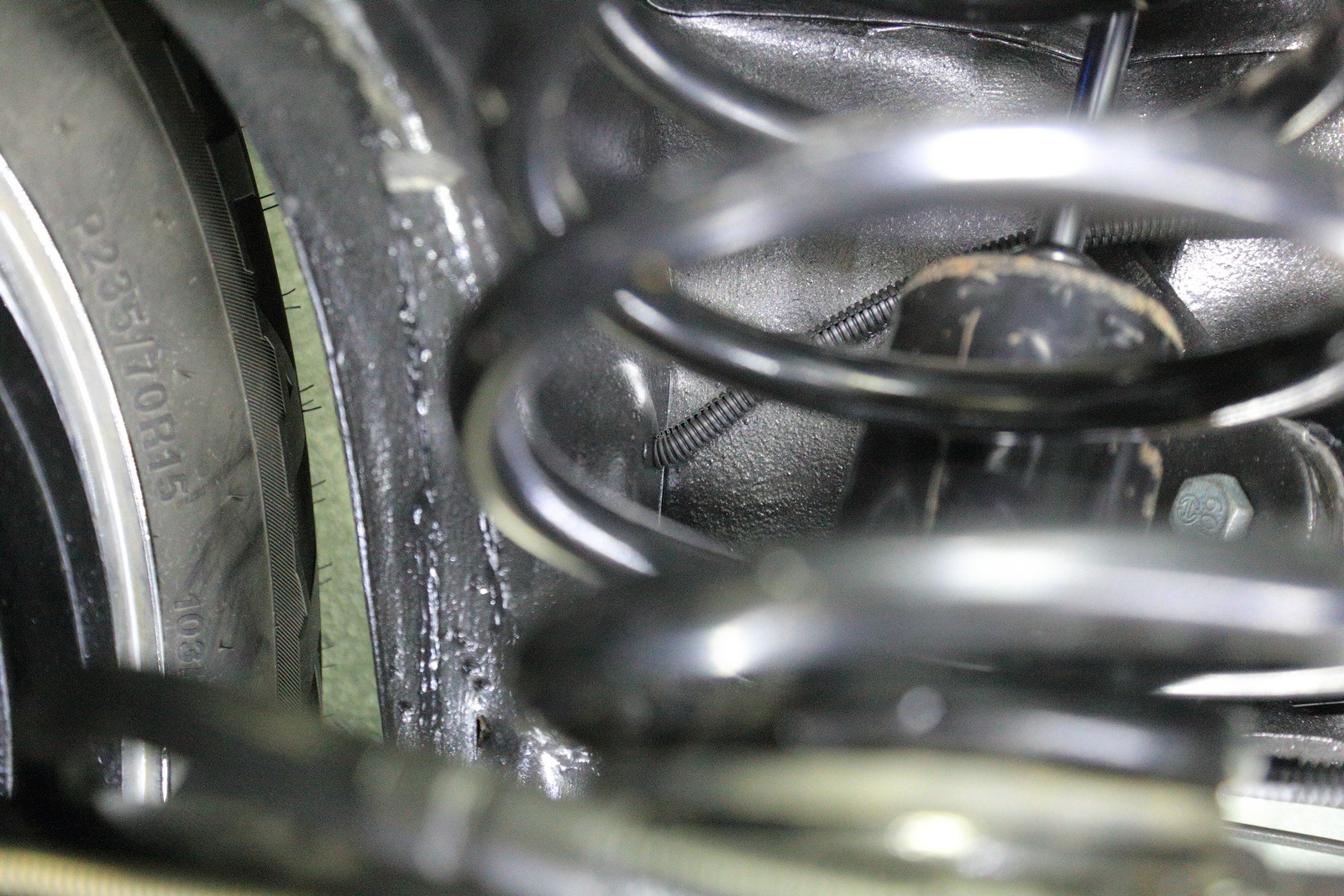

The attentive reader will notice that the coils are put with the opposite side up ))) Not a big deal to change it



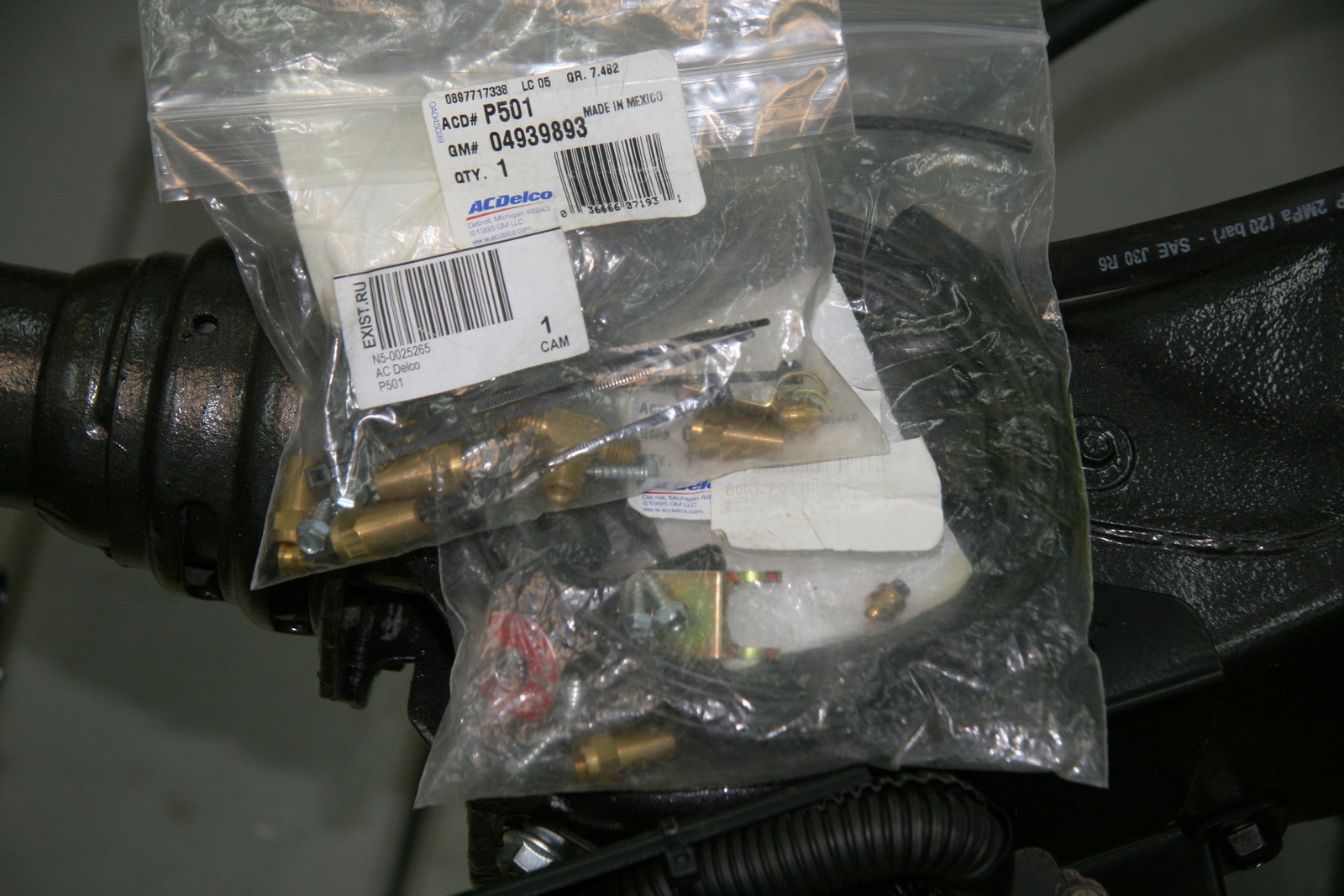

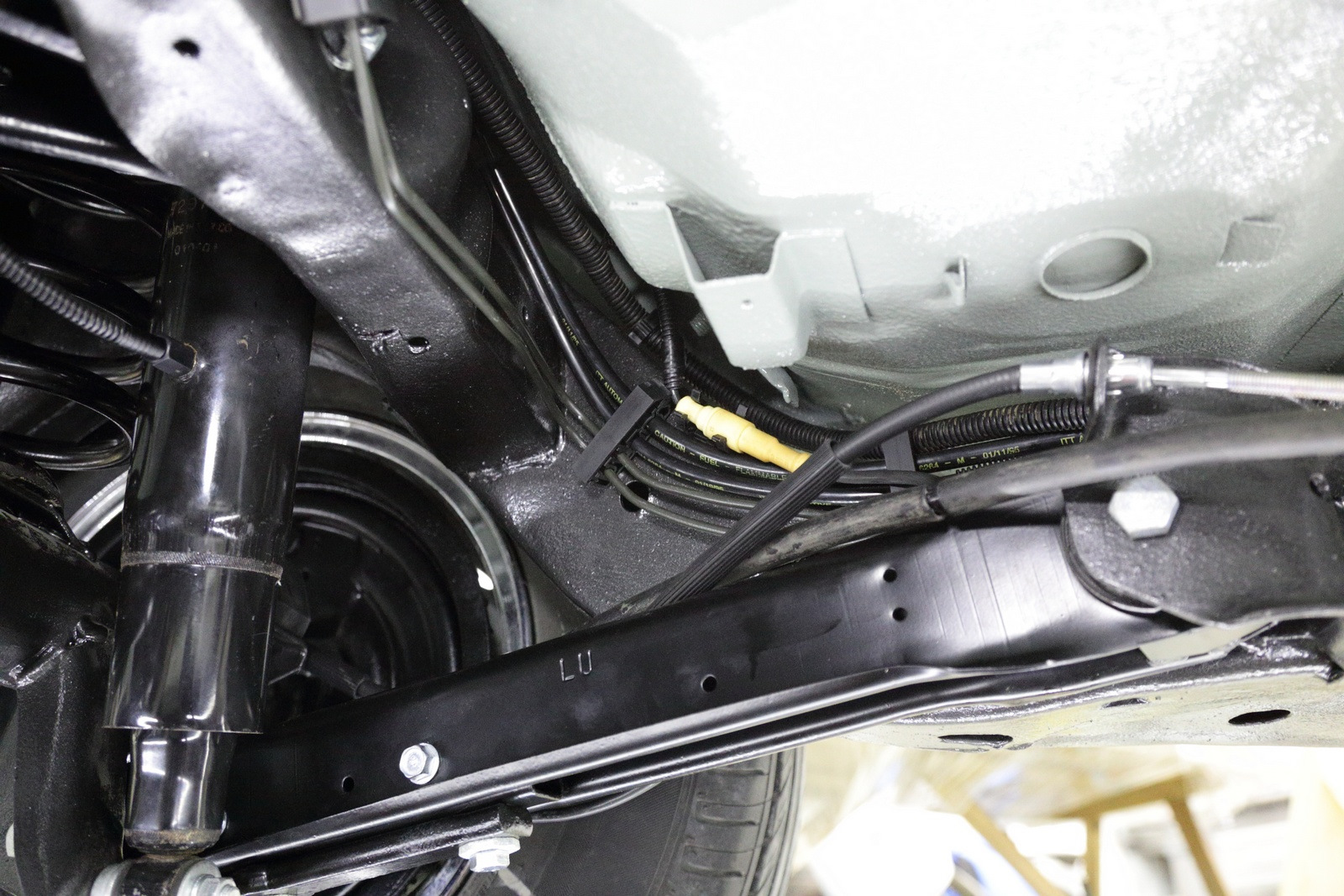

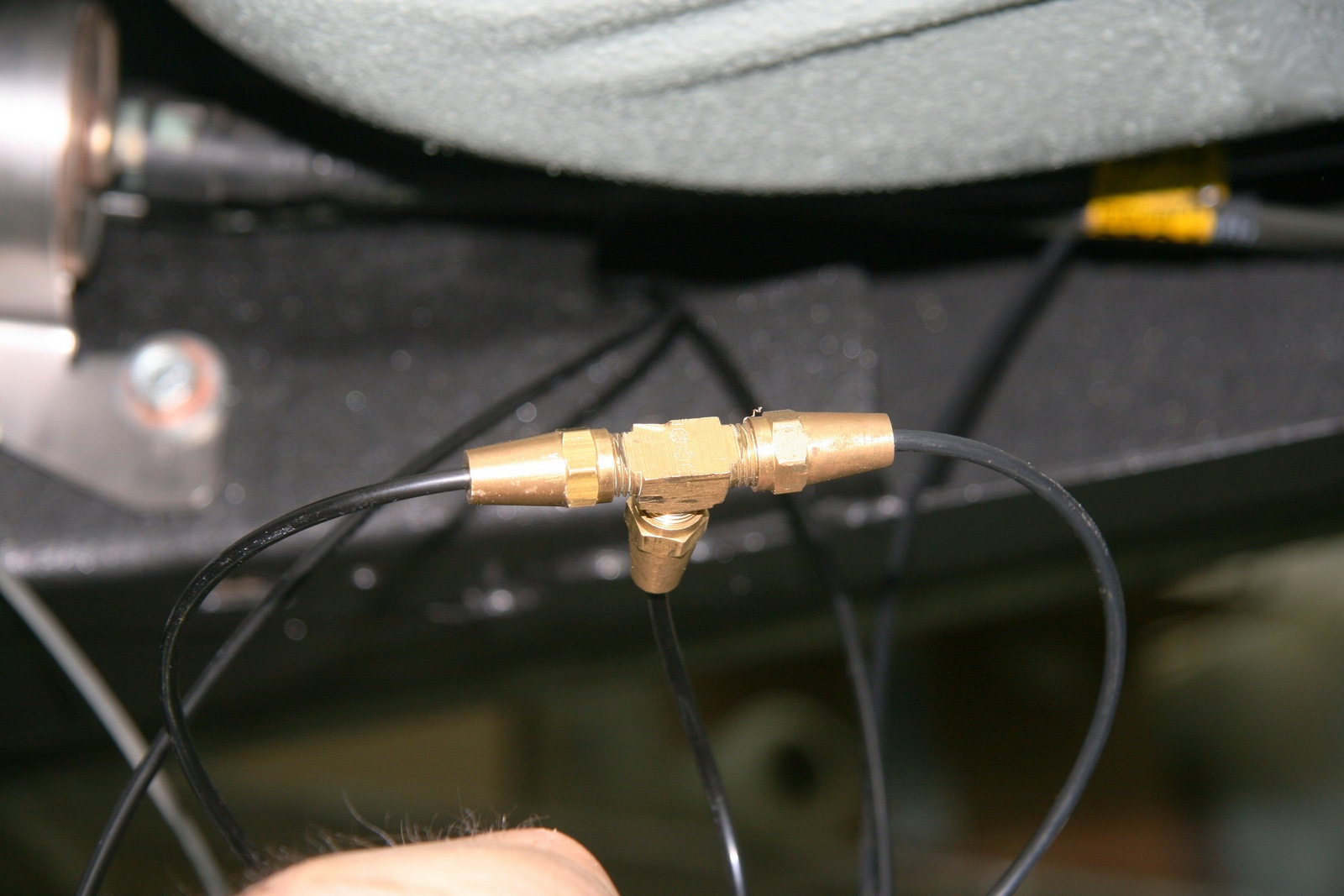

Air lines connectors





Against wear and noise



Hide them inside the frame



Made extra pigtail



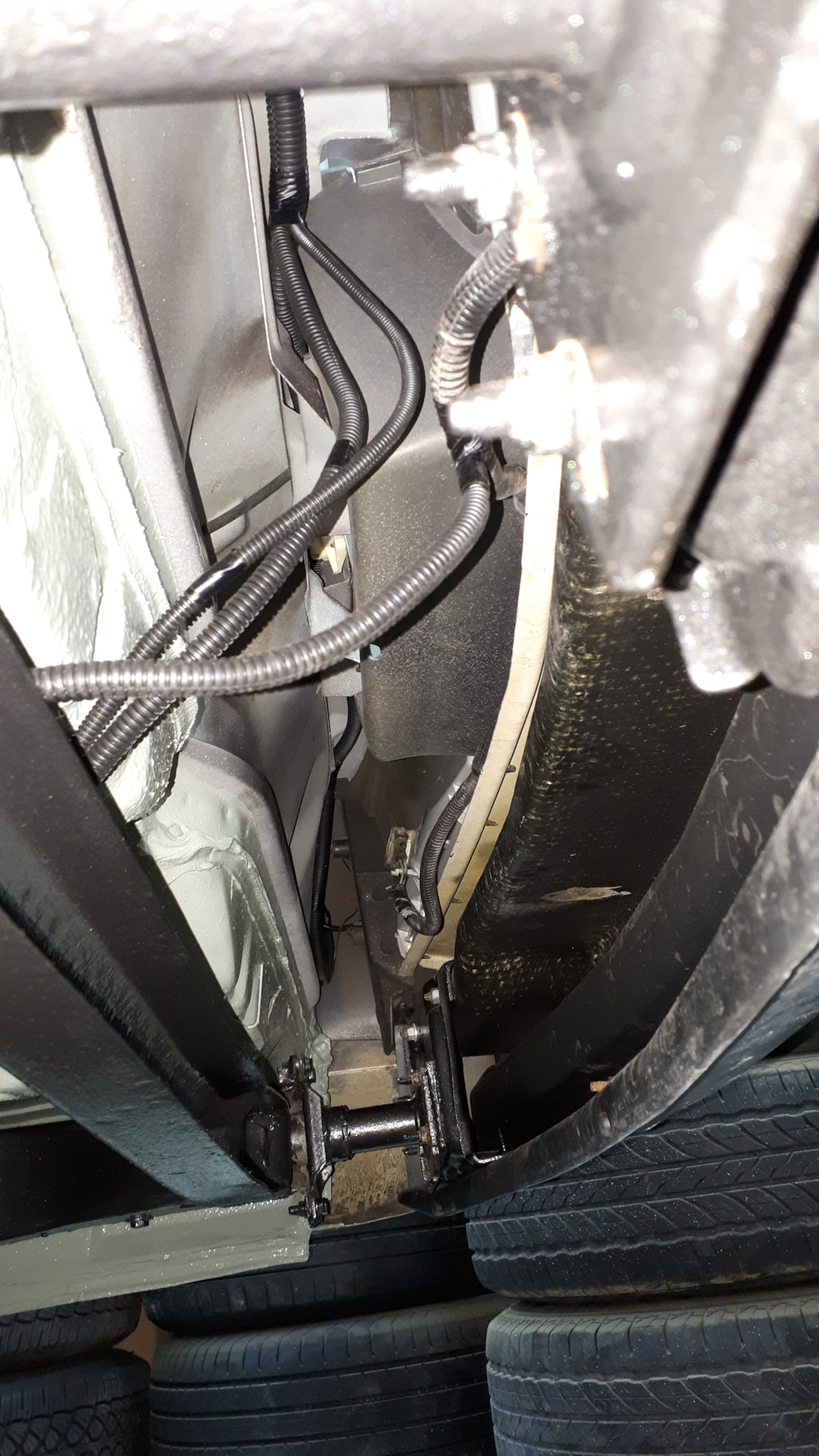

Airline in protective sleeve goes inside the frame



Bolts on the arms will be tightened once the car will have its full weight

[kudims]

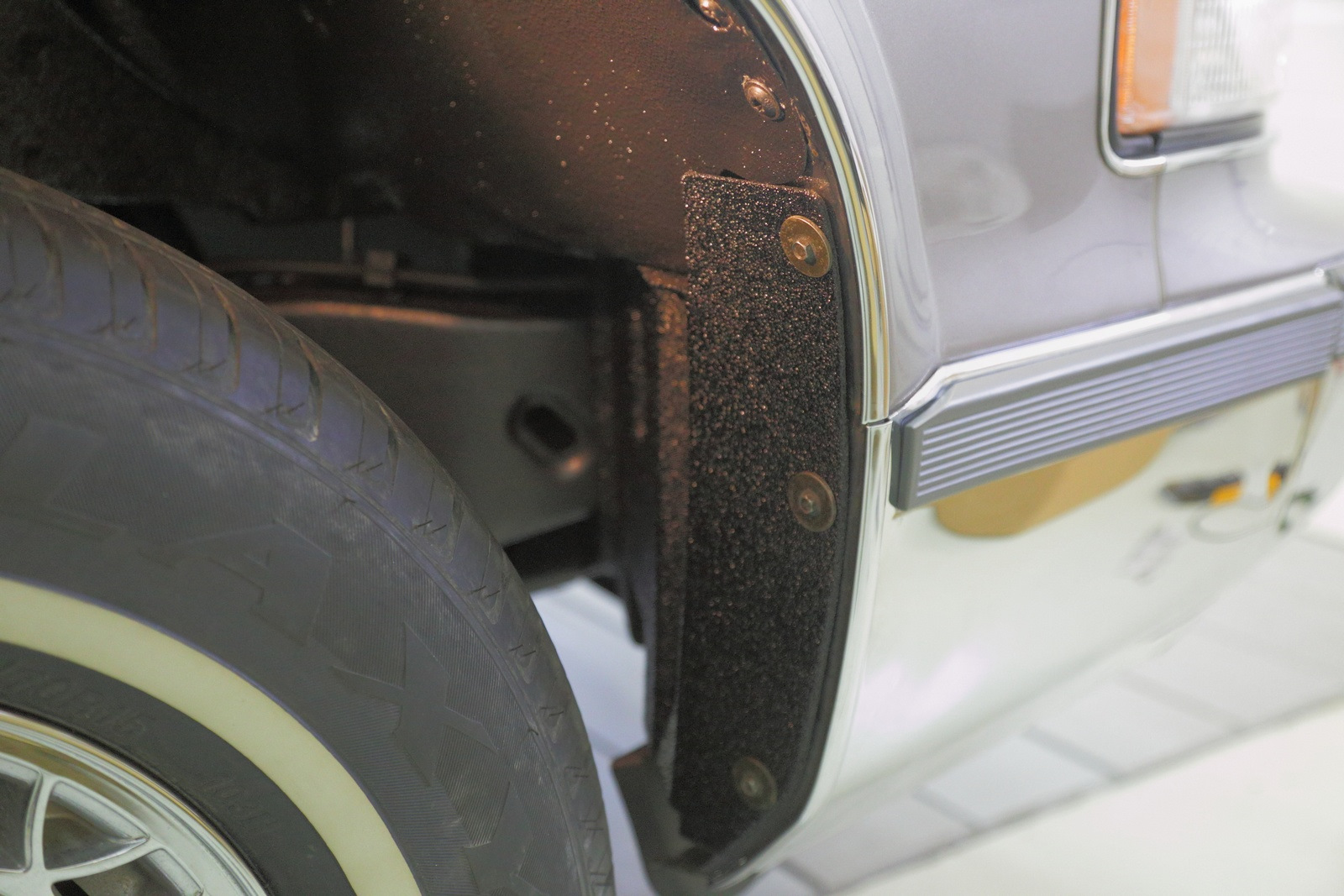

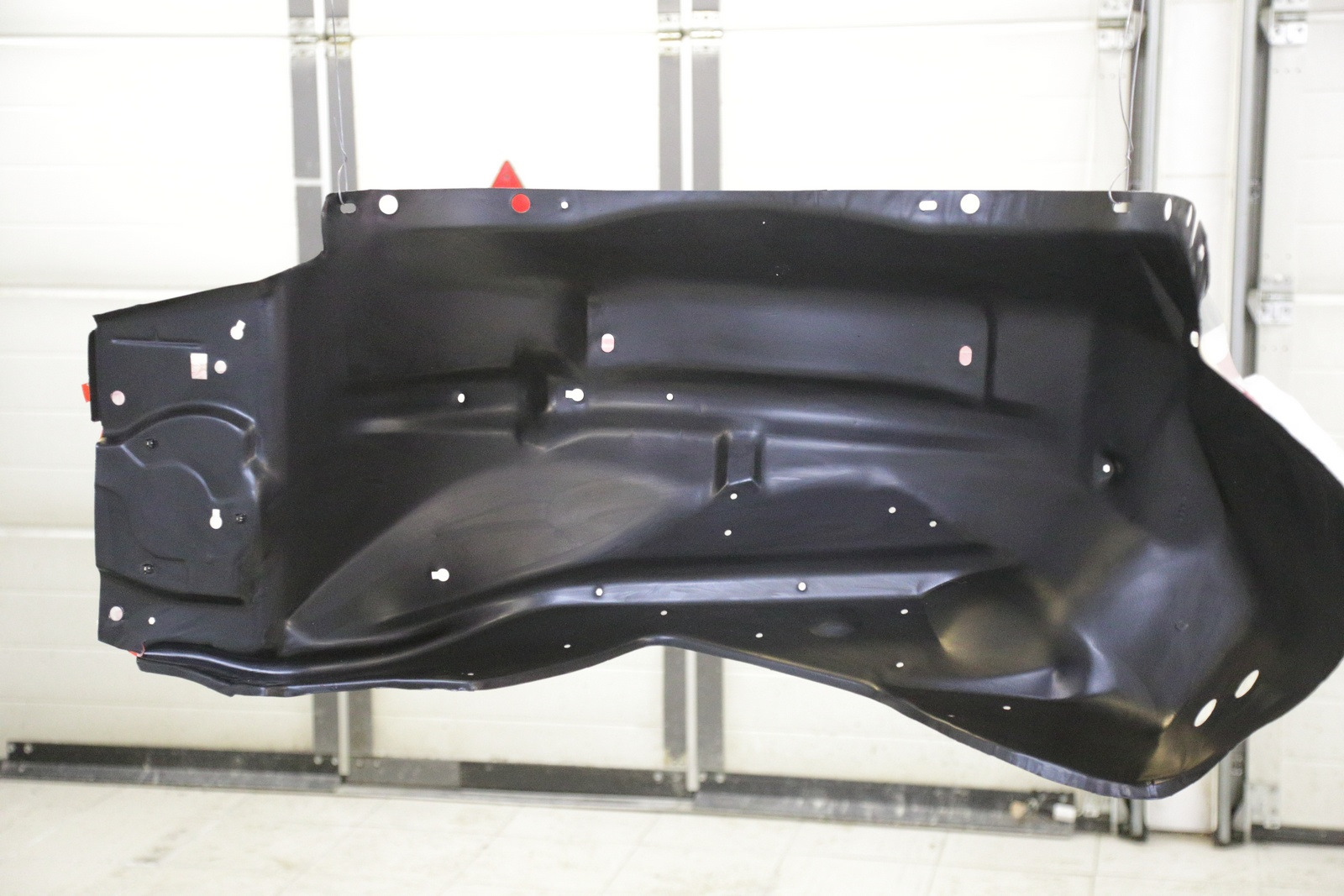

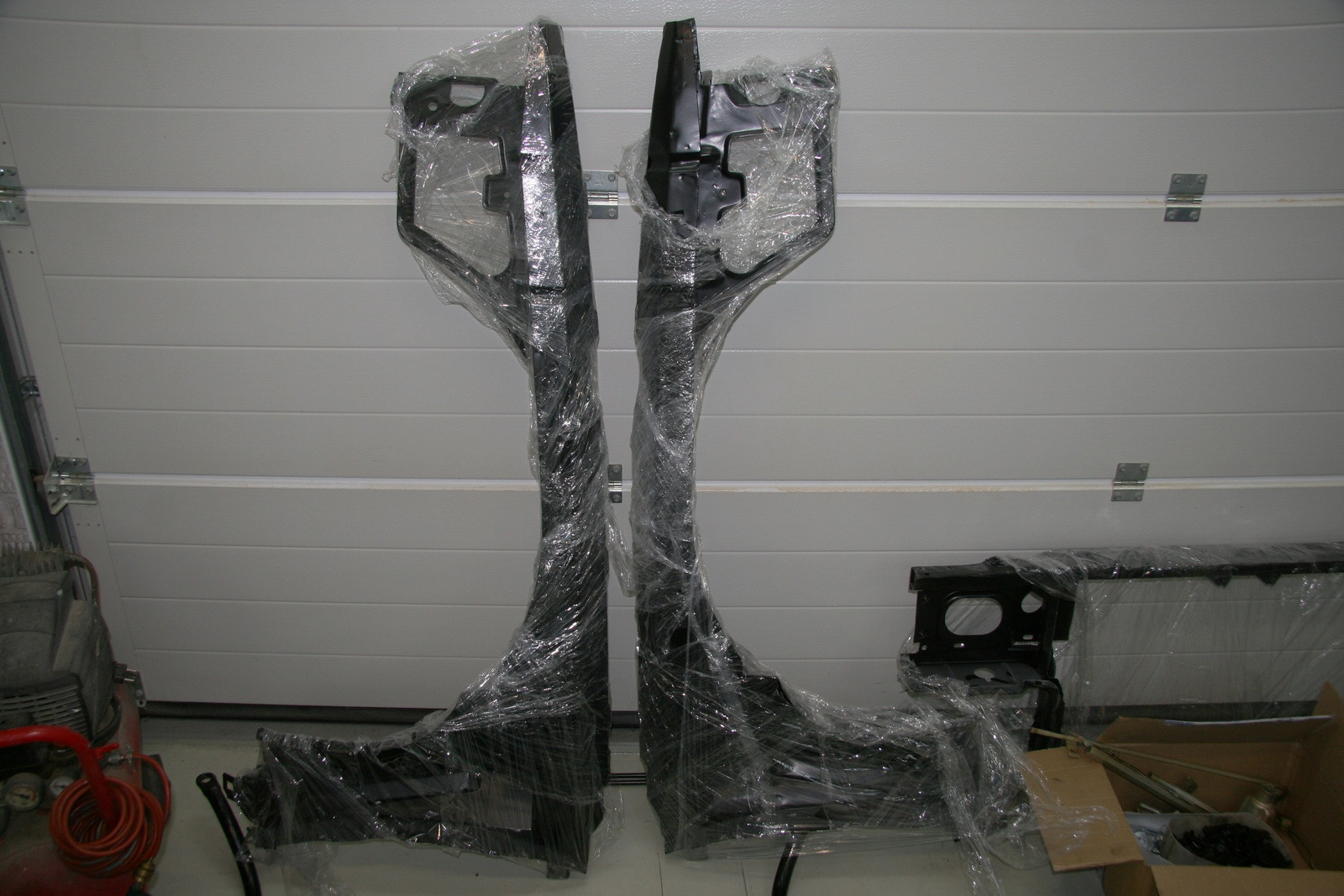

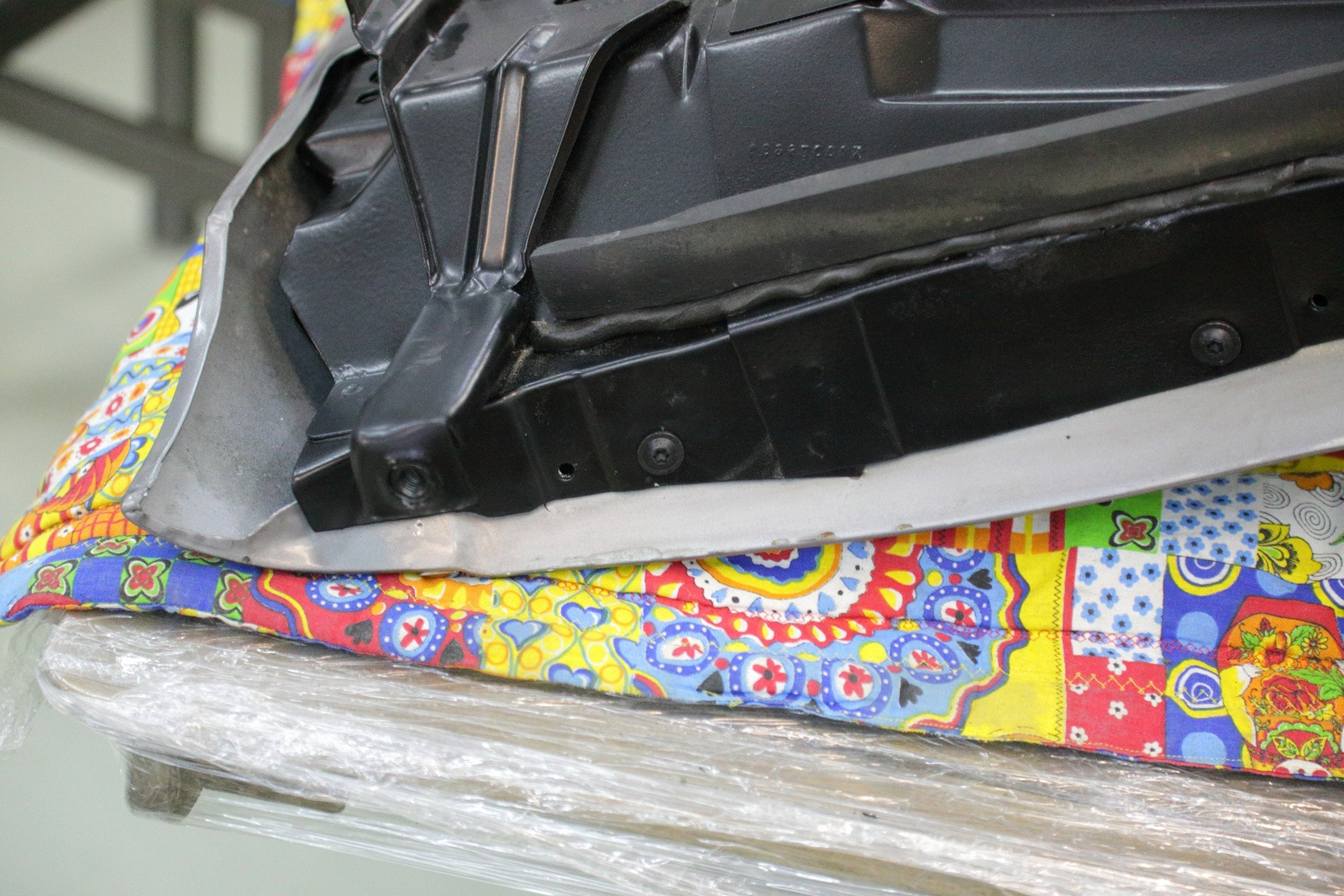

Front fender splash shields after powder coating in correct black satin



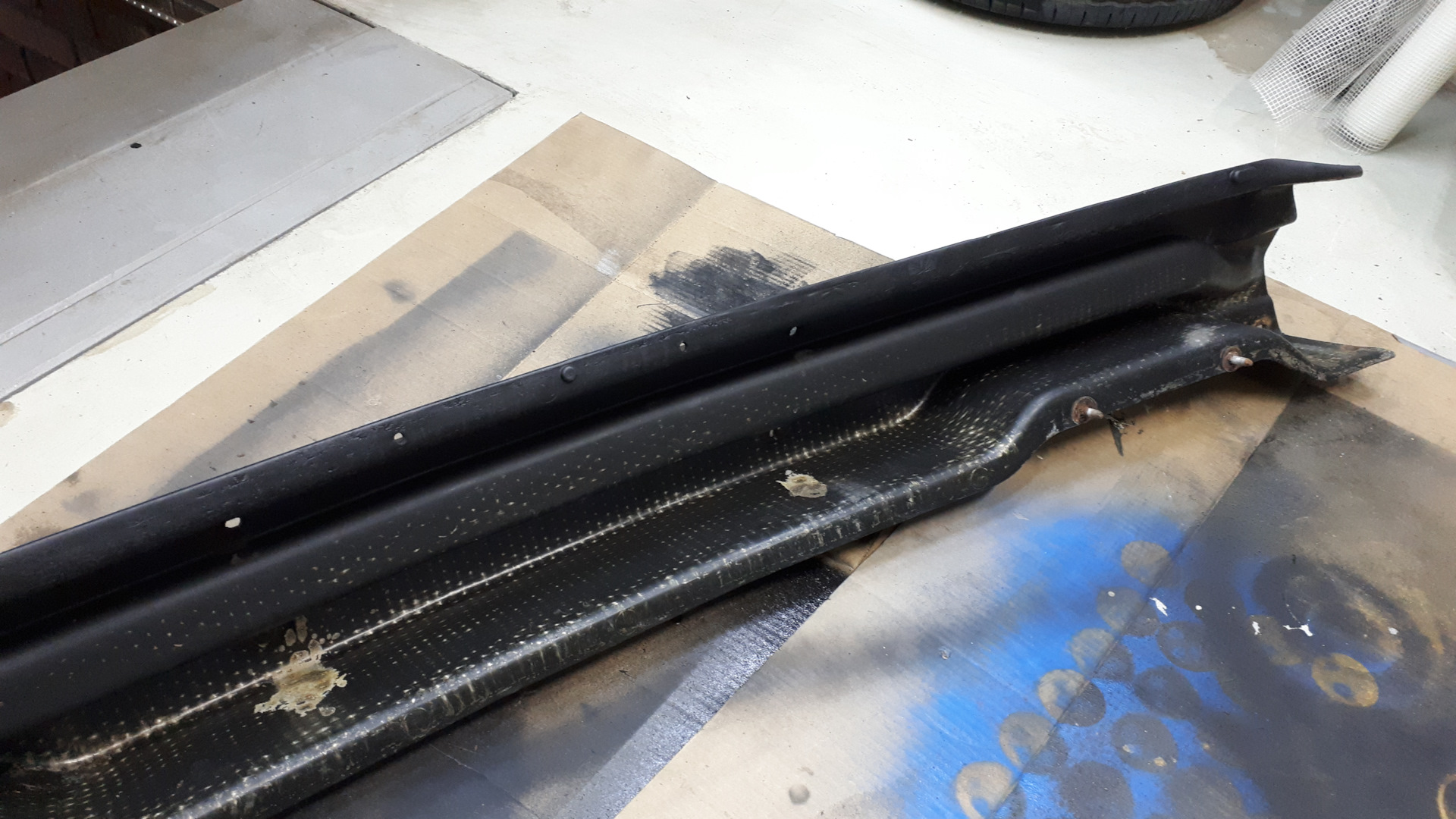

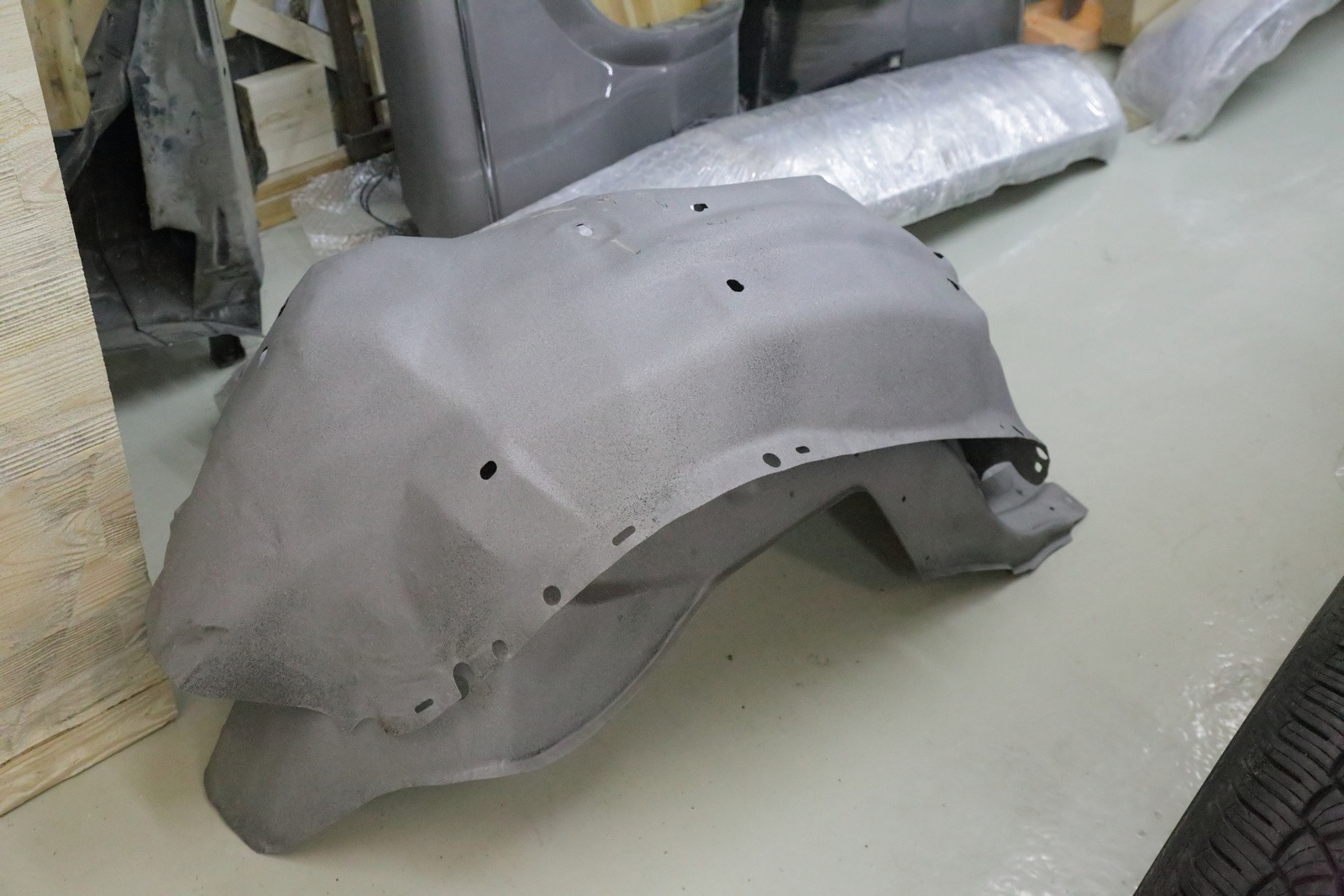

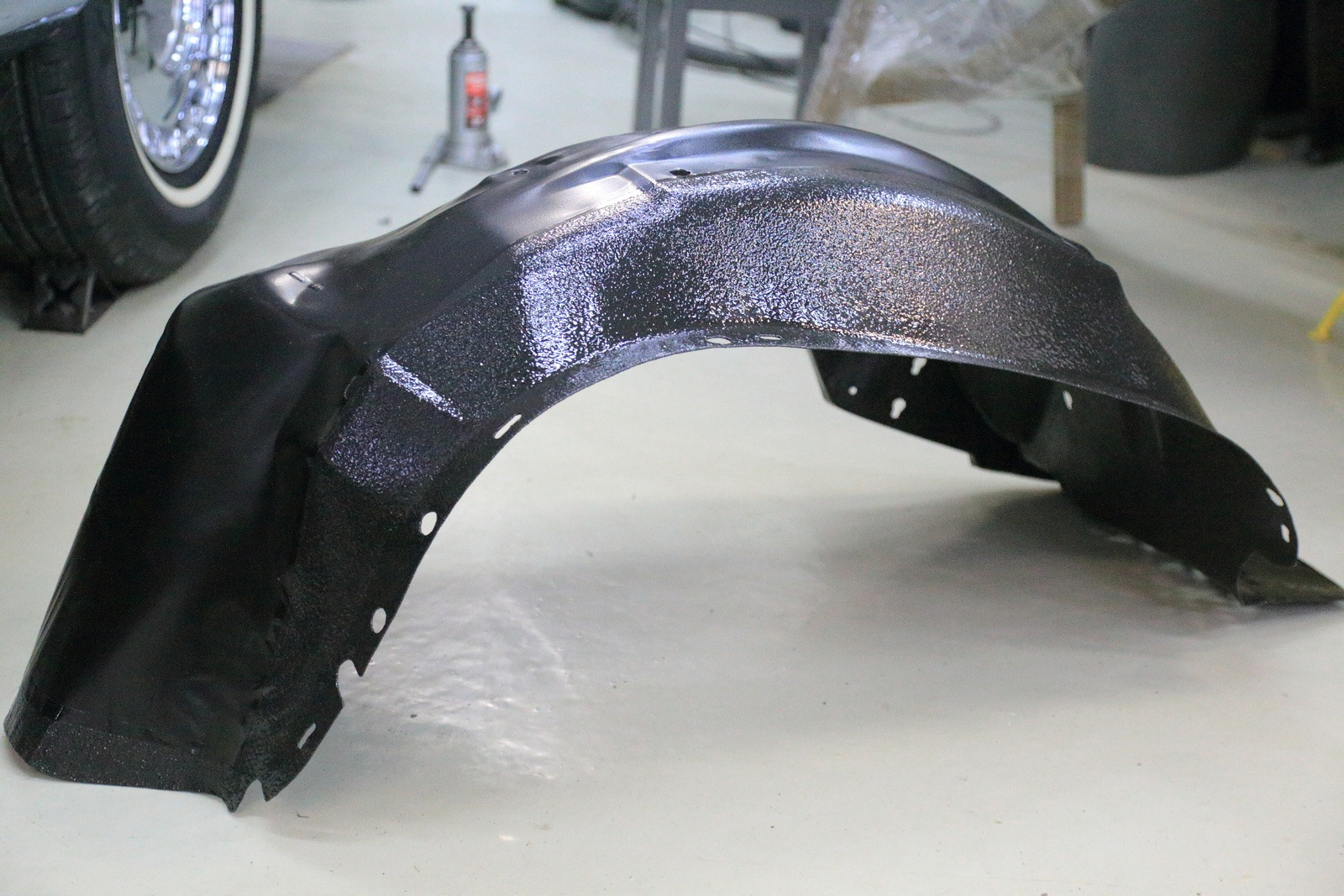

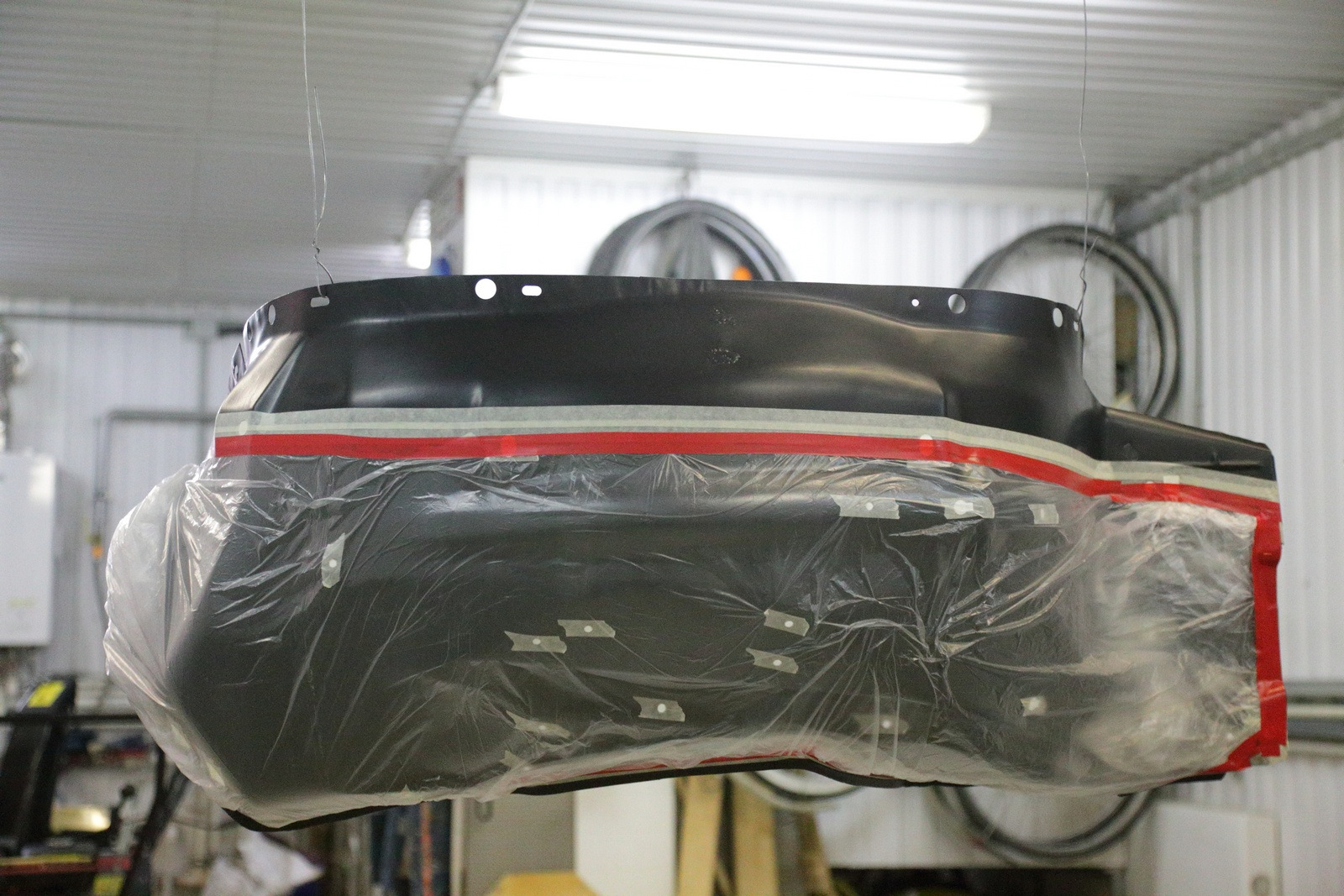

I decided to coat them in anti-gravel + 2K clear coat from the wheel side



At the same time I wanted to keep them just matte black from the engine bay side



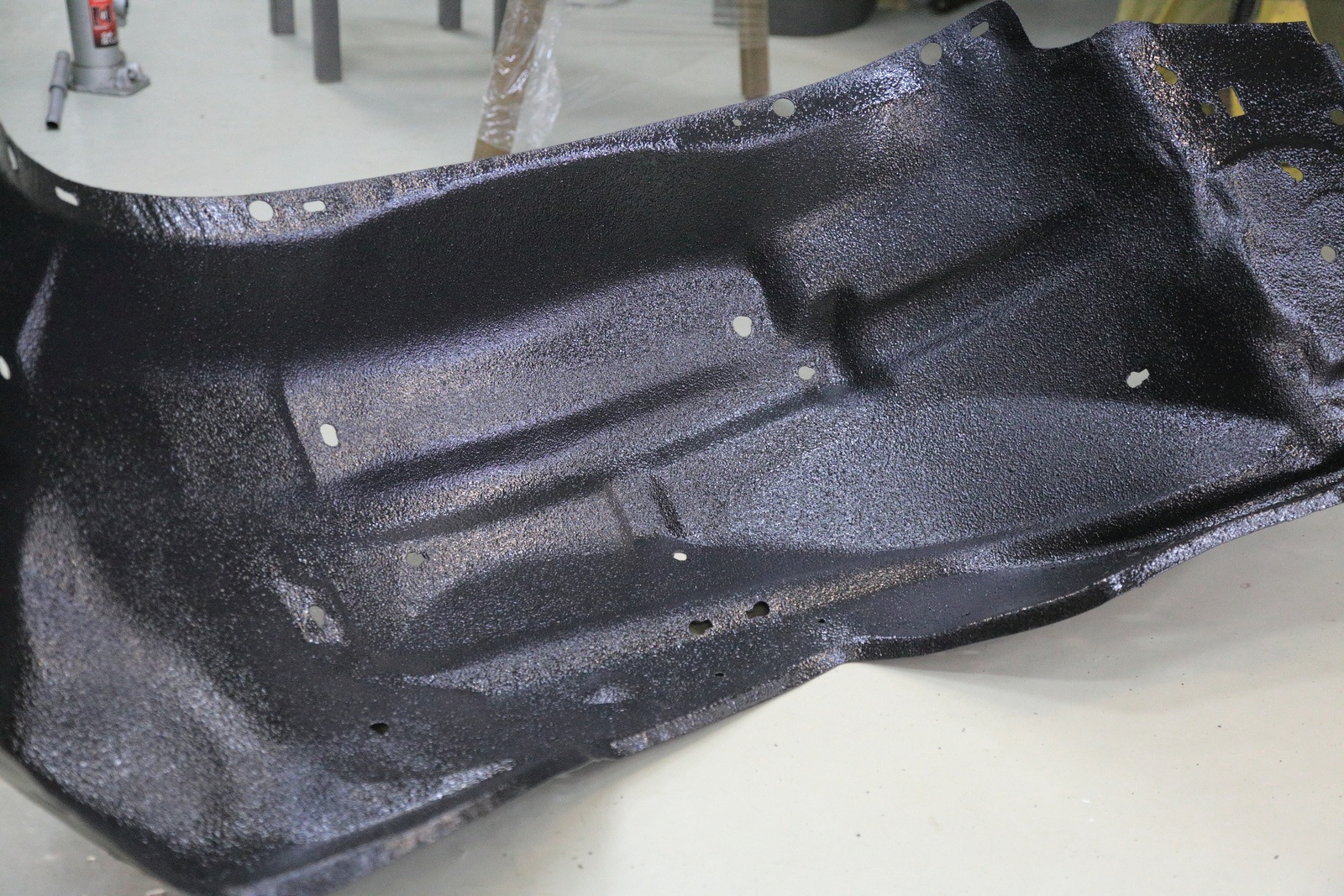

The part that will be invisible inside the fender was also coated



The edge of the anti-gravel is not equal to the edge of clearcoat. Clearcoat is broader



From inside

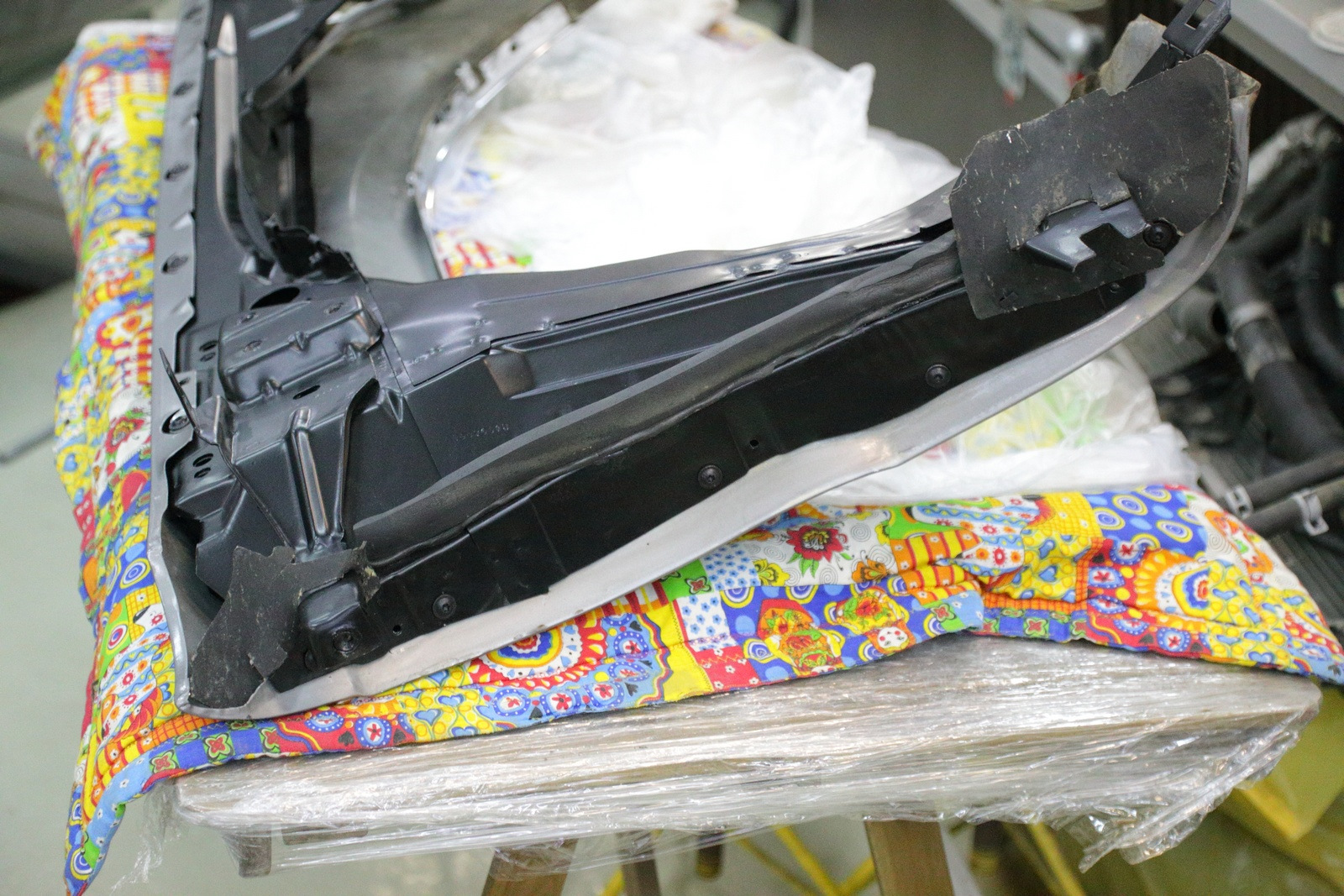

Now fender assembly. Inner + outer parts



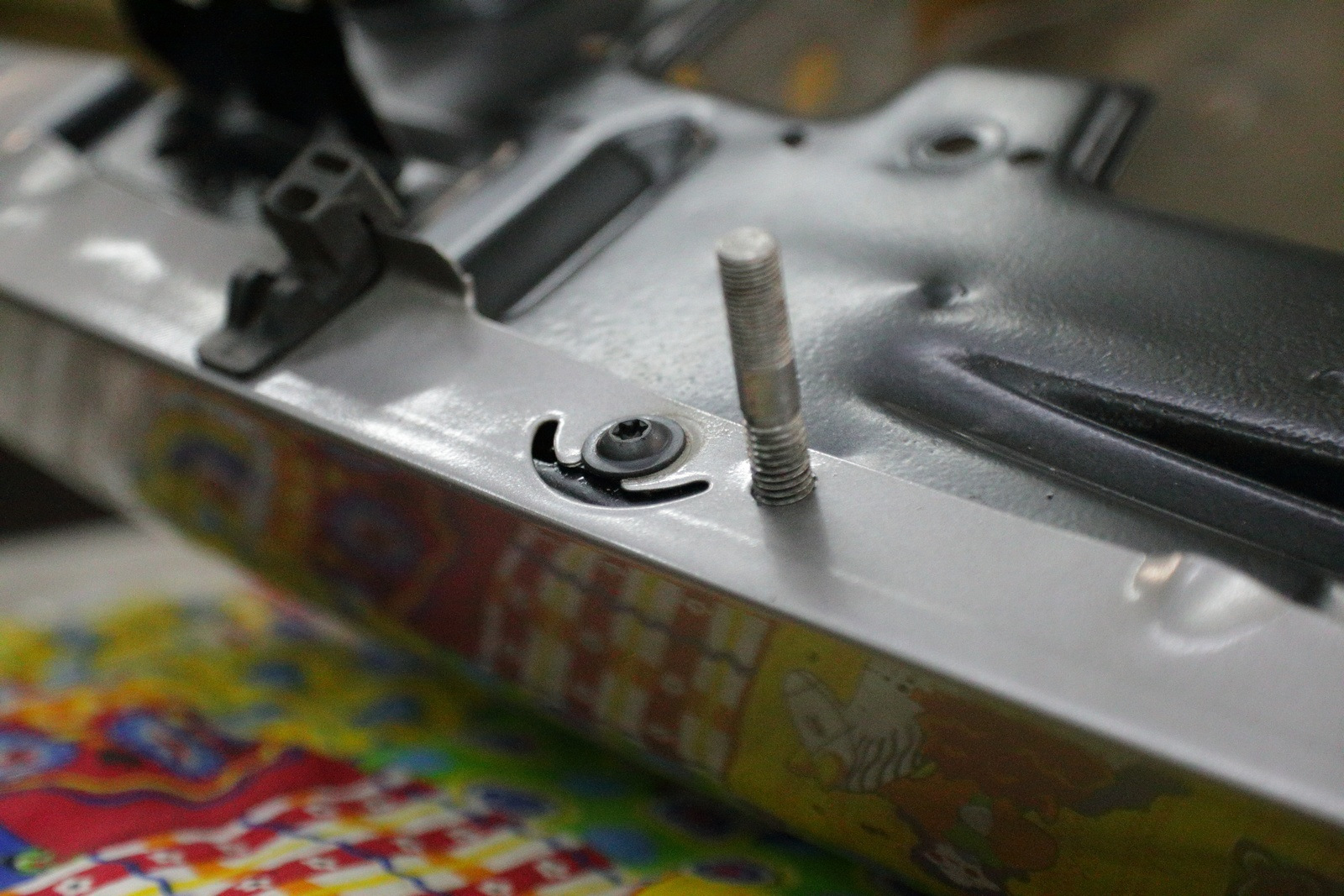

Use simple pins to position parts correctly

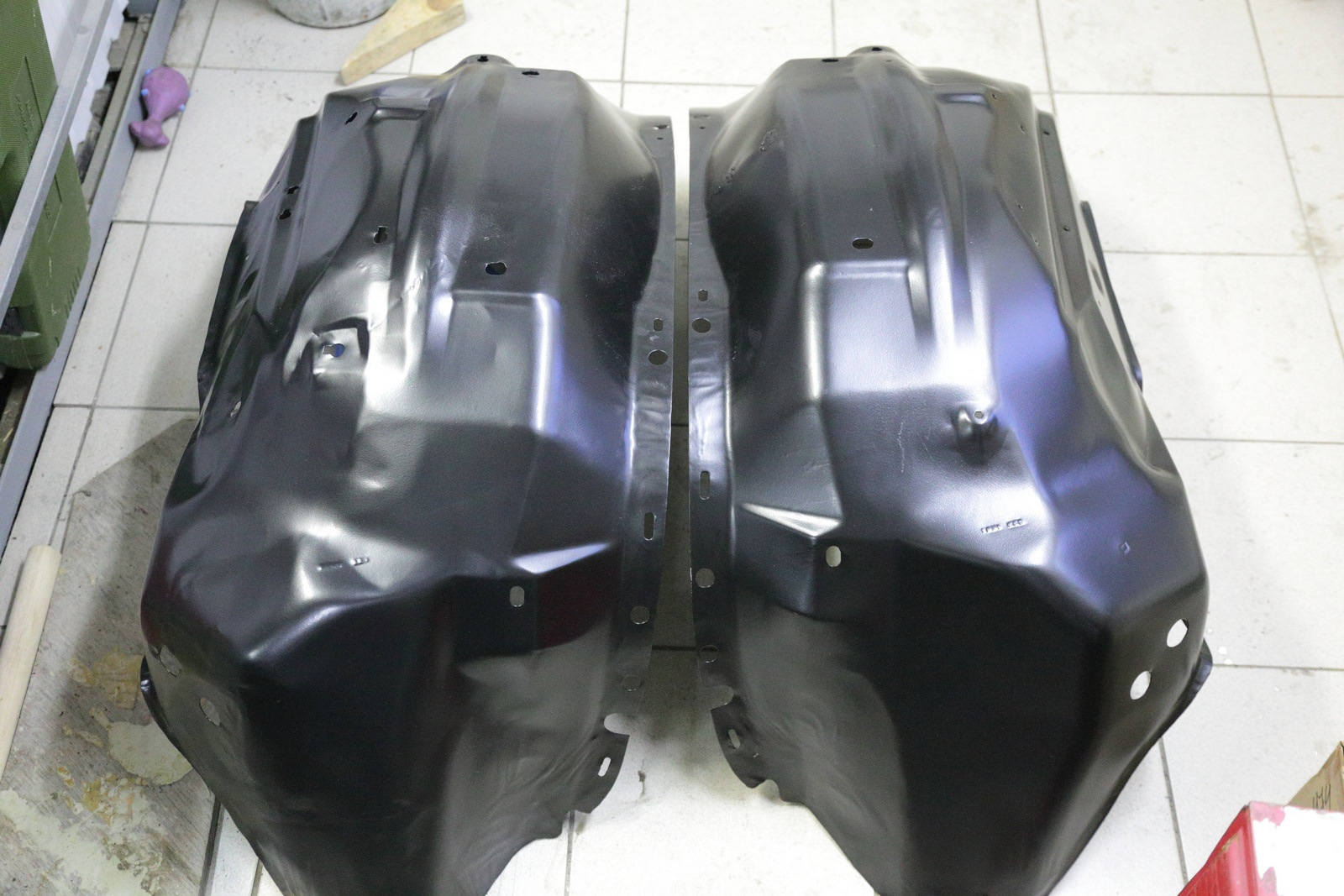

New protective shields



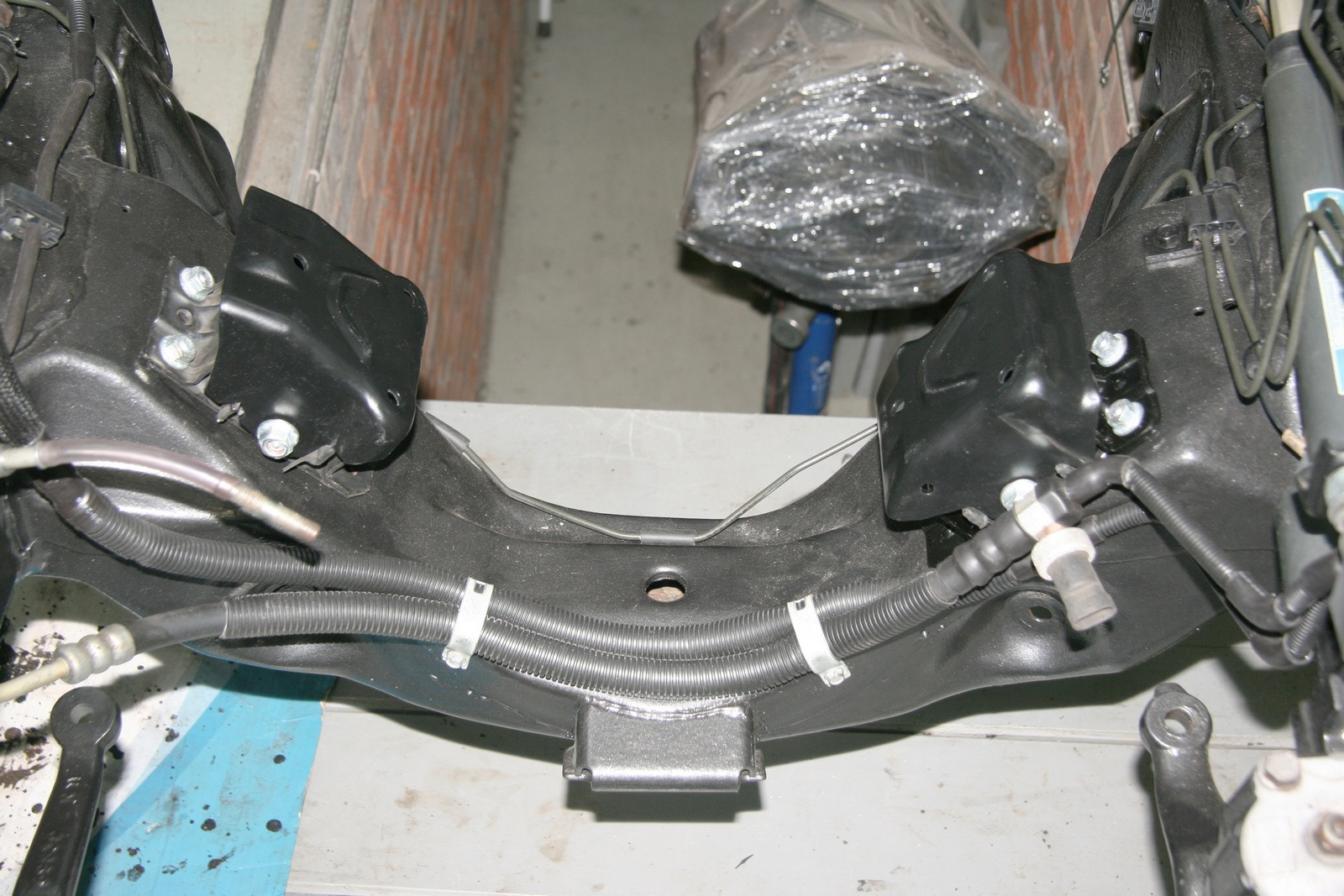

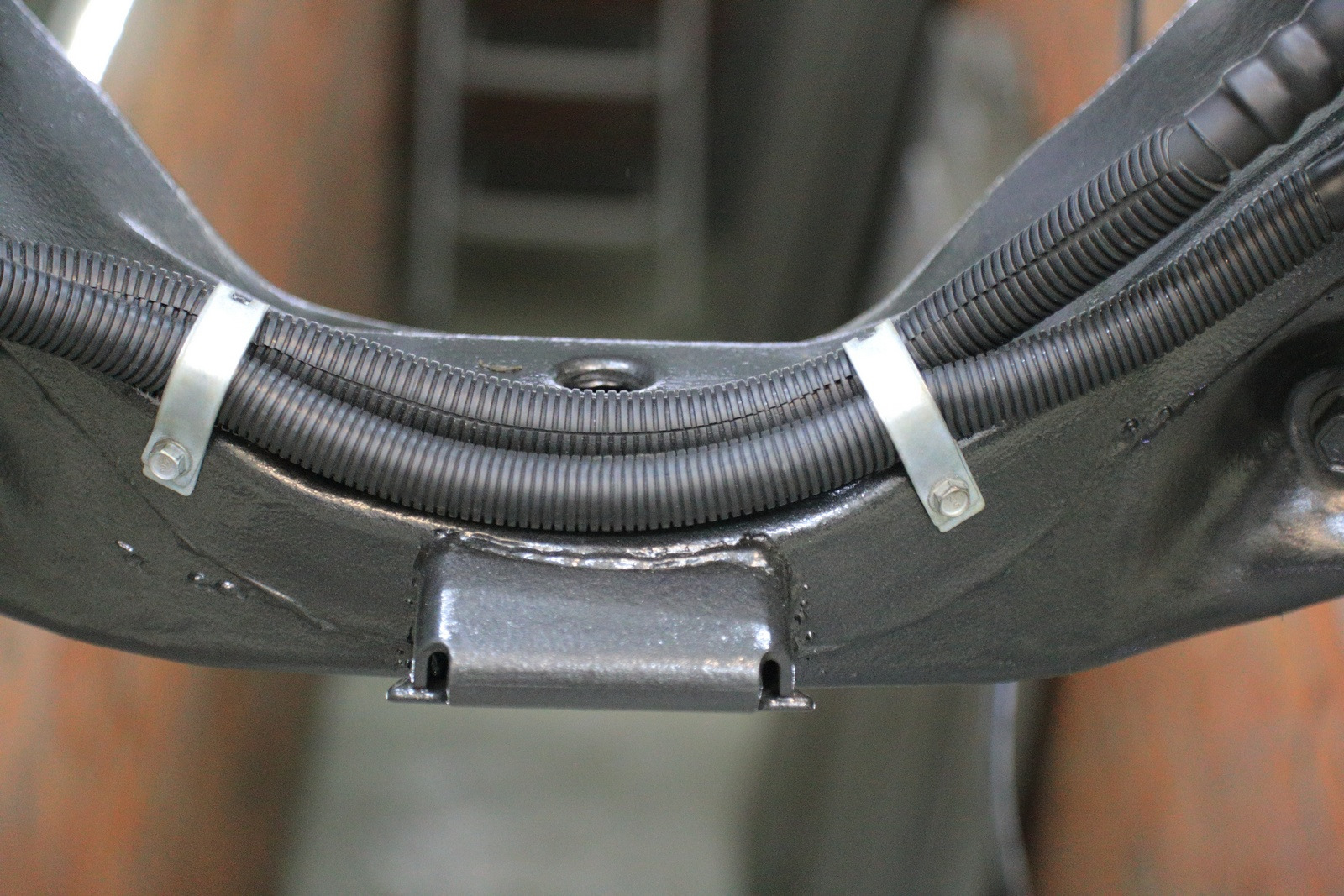

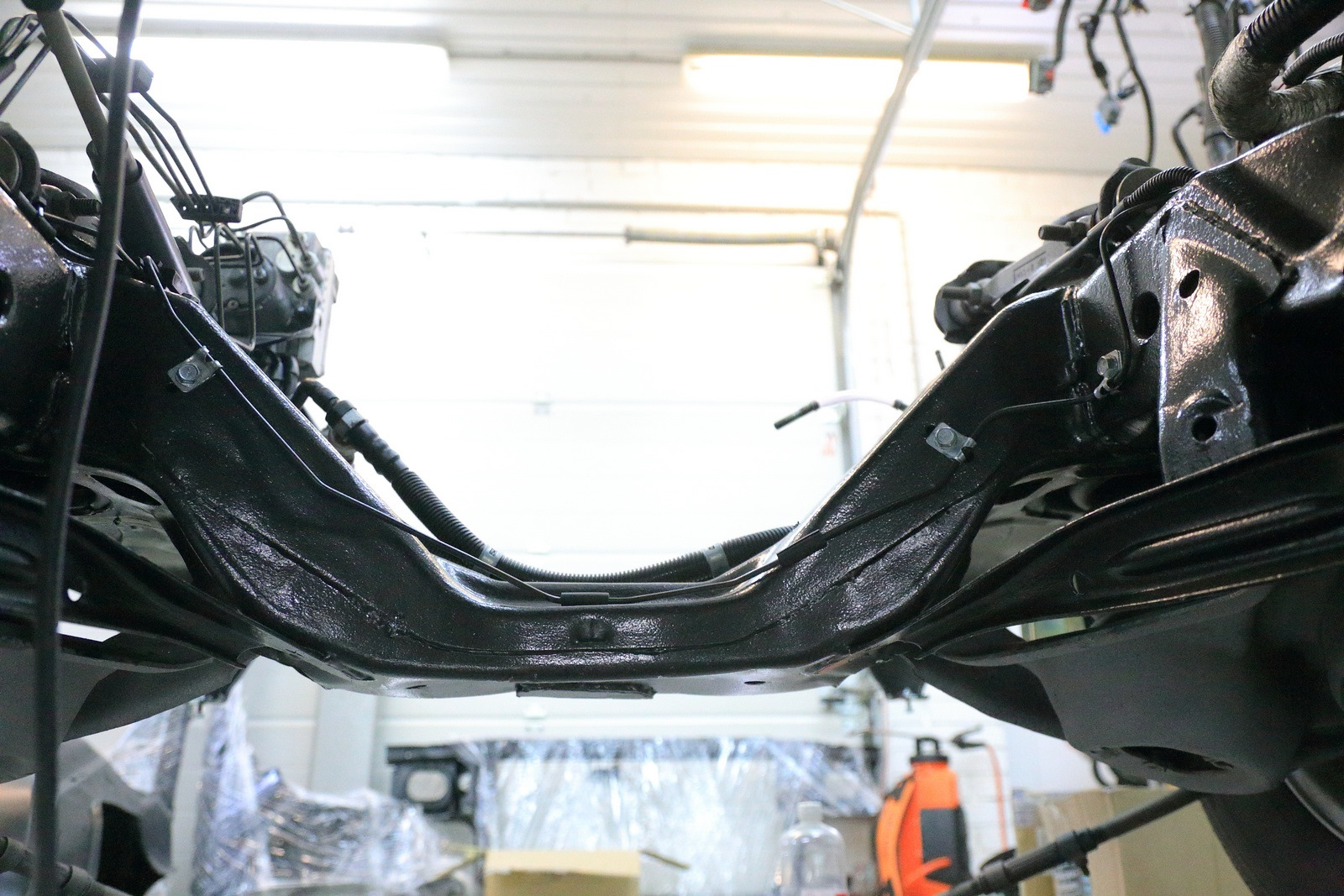

Meanwhile, power steering lines were secured at the front crossmember

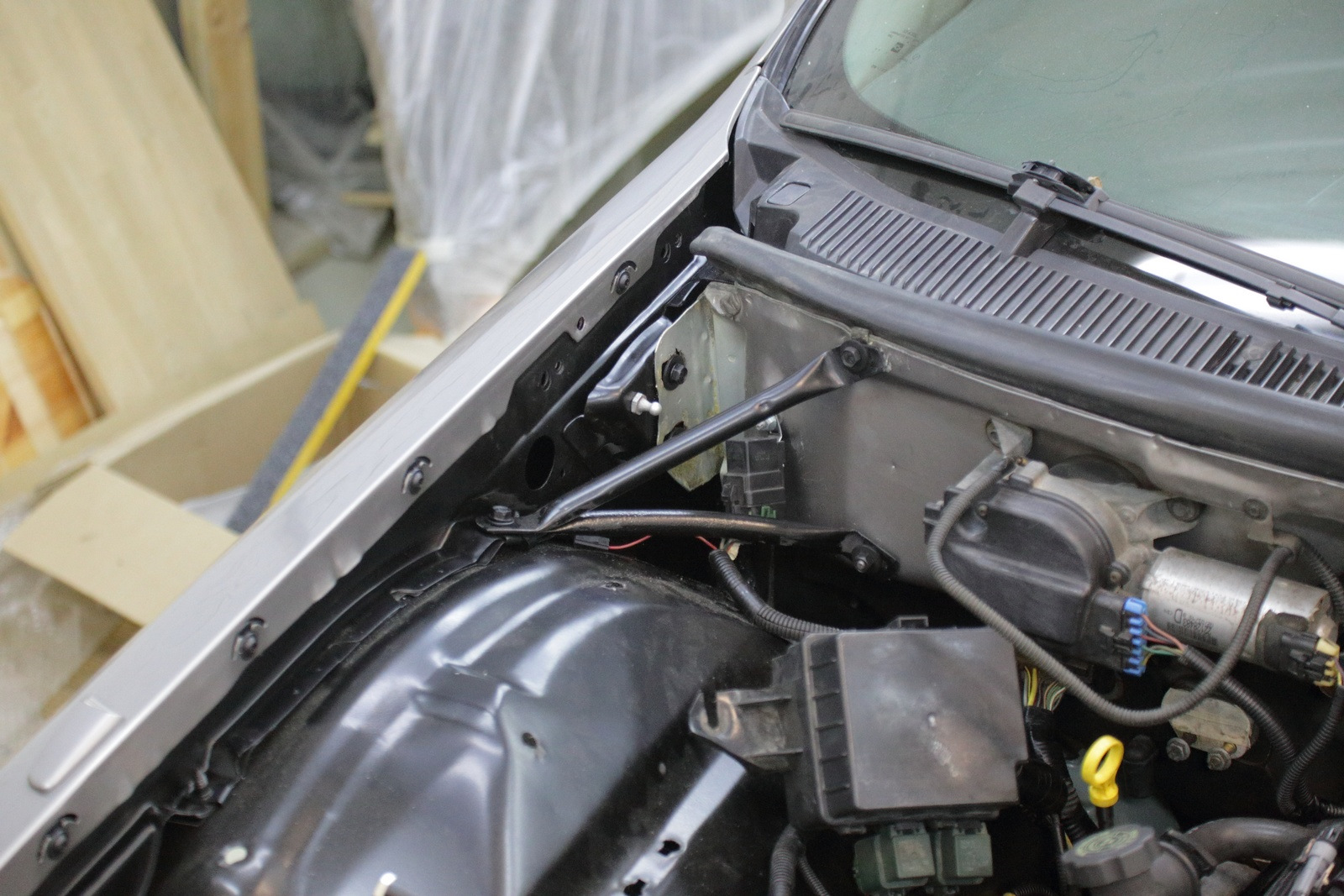

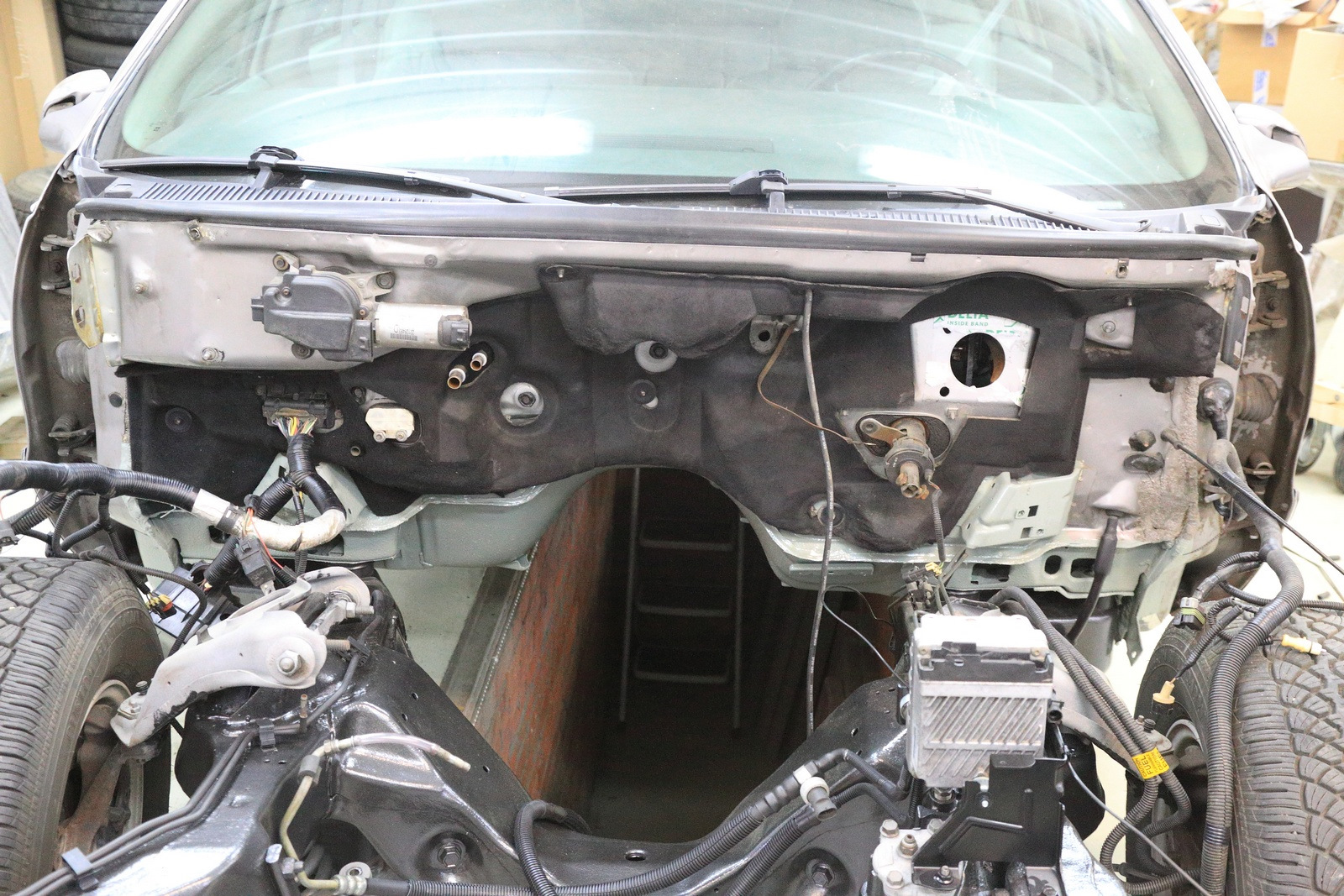

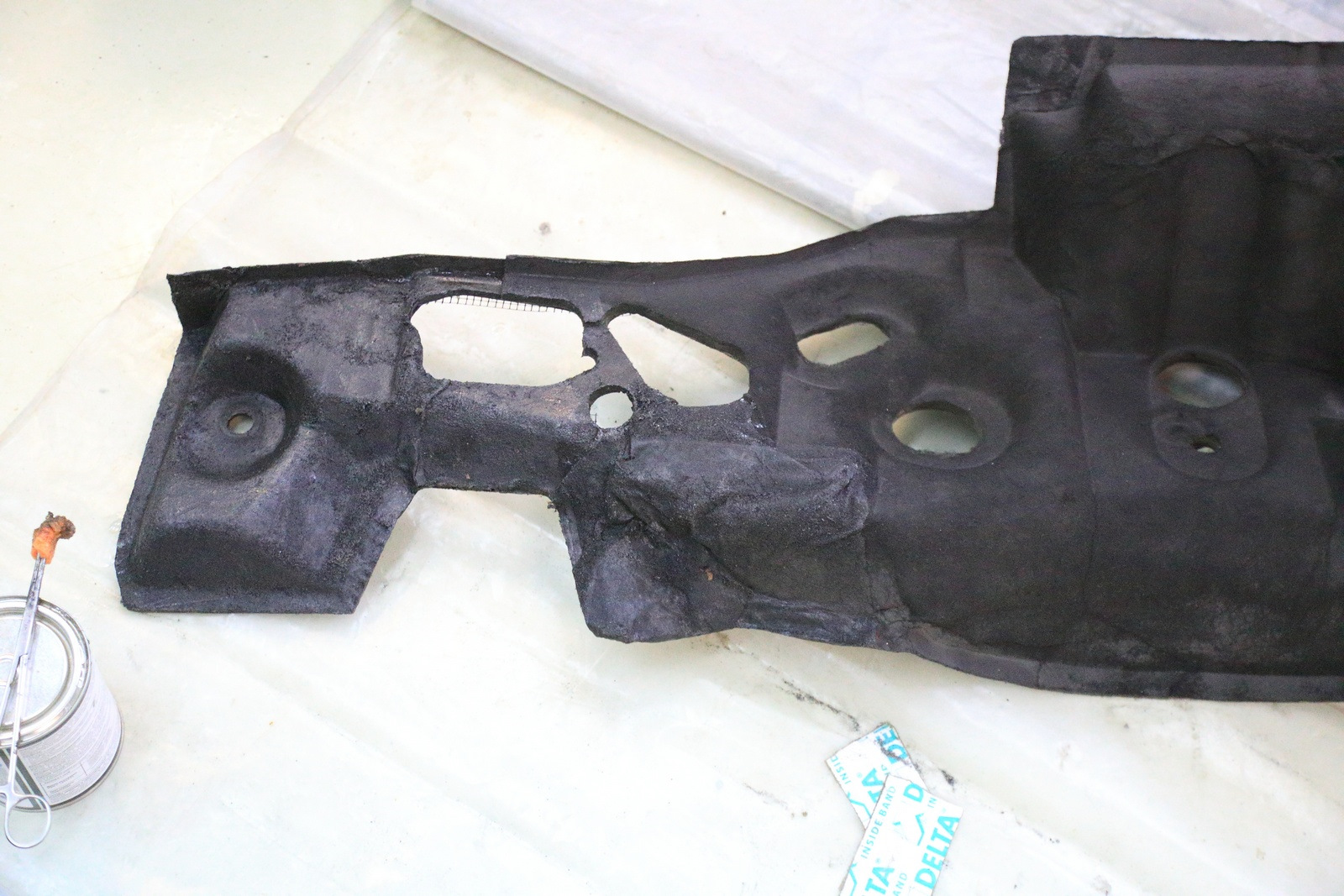

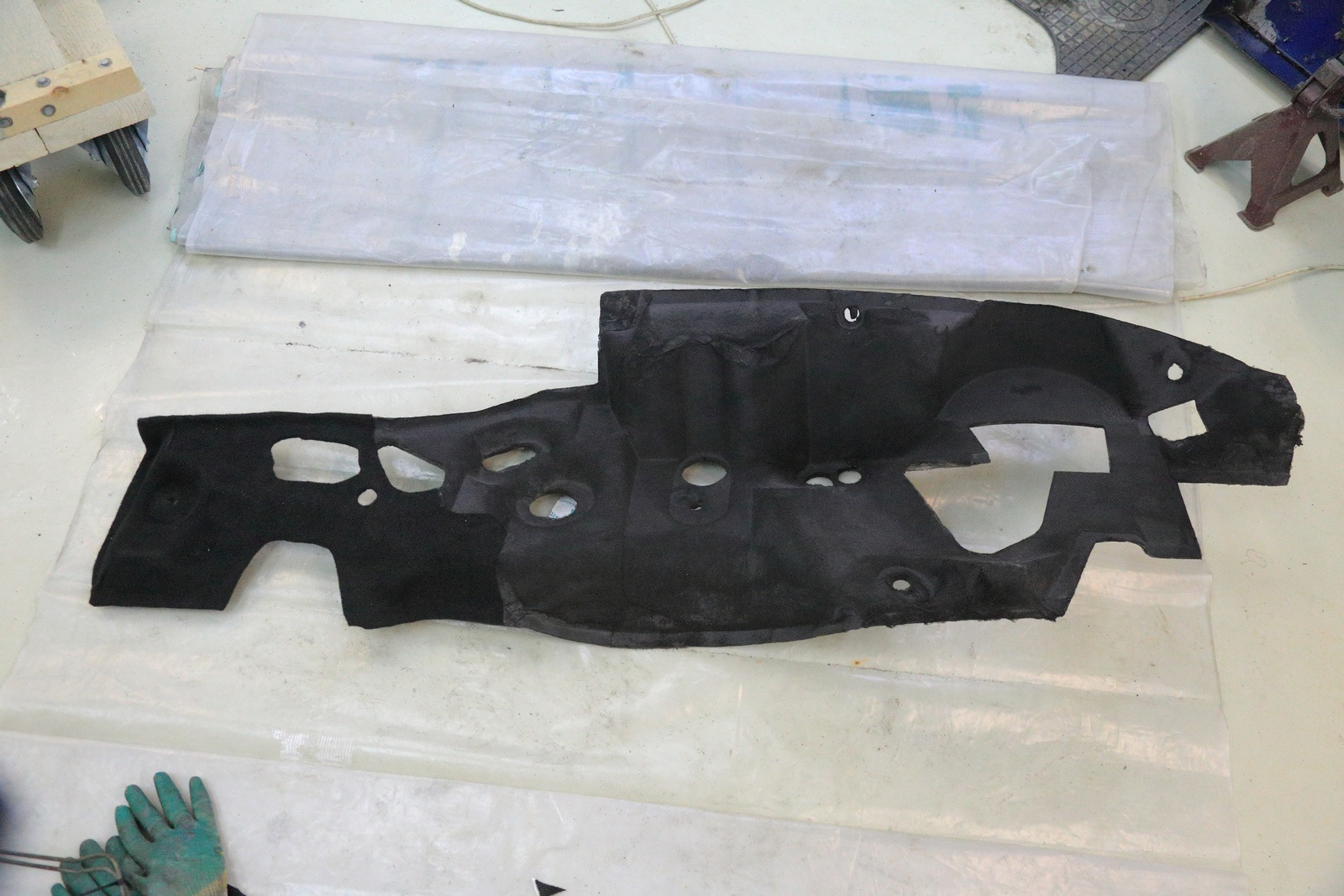

Now fixing the firewall insulation. I used non-damaged piece from another insulation that I had



And covered it with a special material



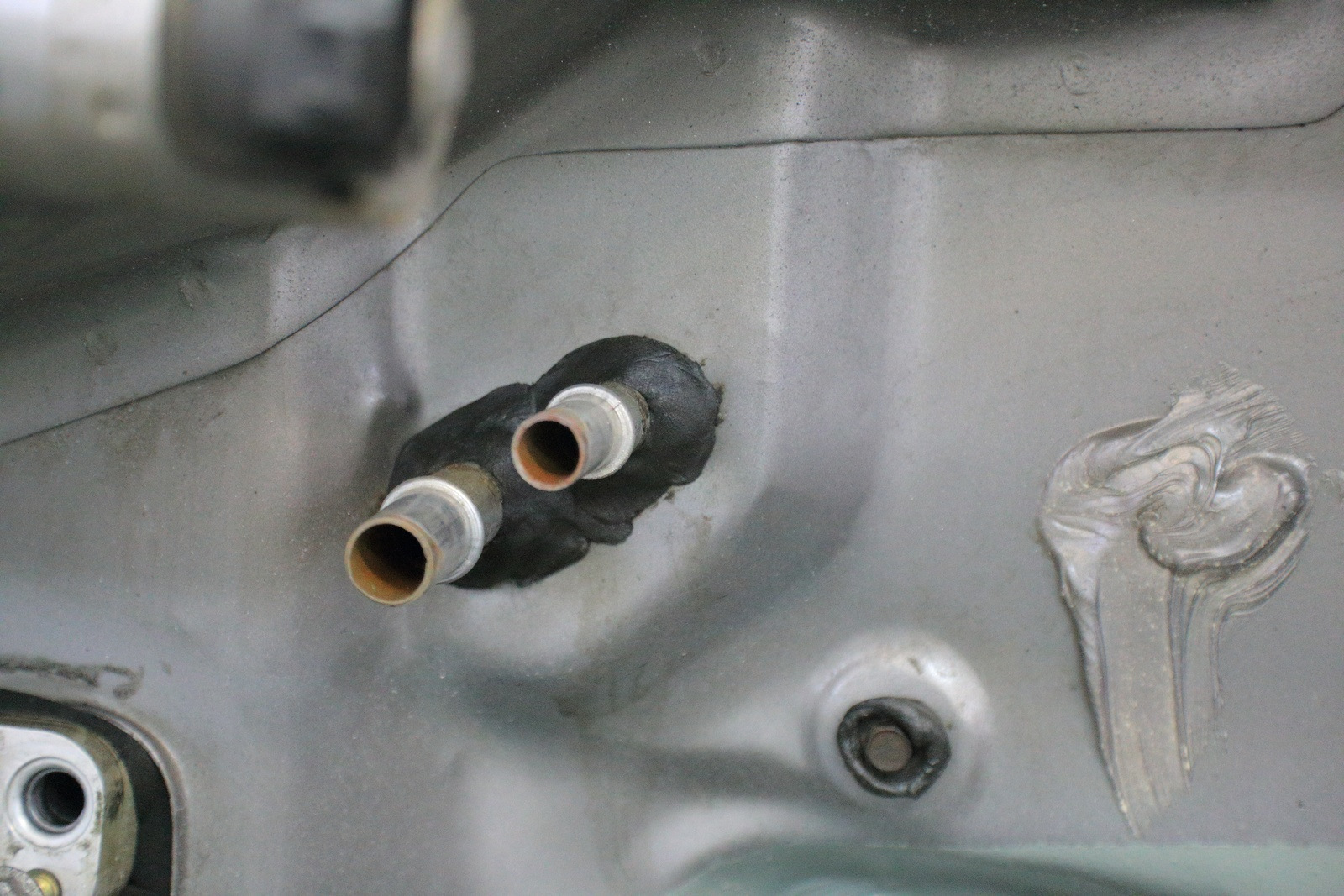

New butil sealer on heater pipes



Covered by the decorative square piece



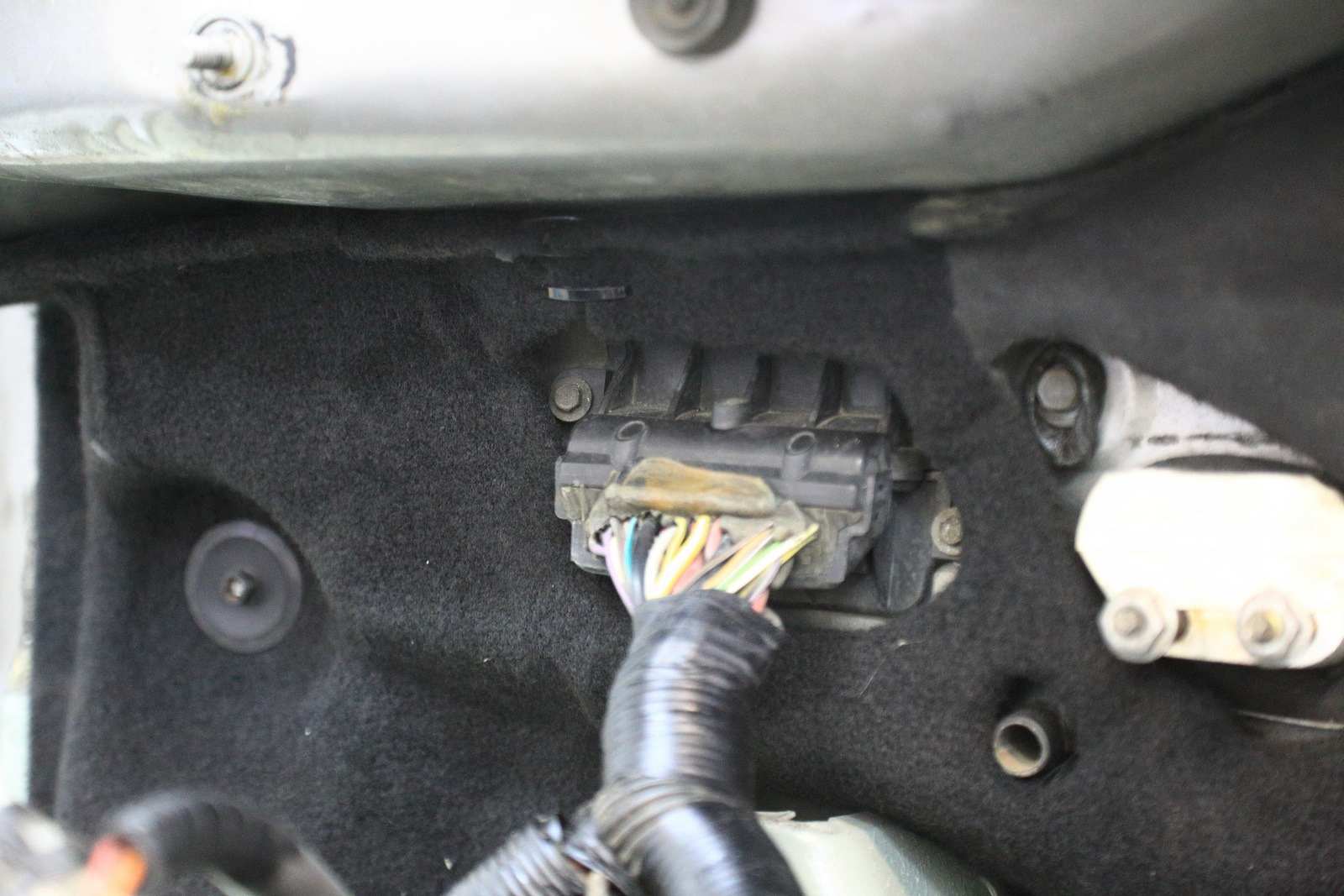

And then I put the insulation back in place



This part, which was restored, will be almost invisible after full assembly



Not new (new is impossible to find), but still much better than before



Front suspension goes to sandblasting and black powder coat



This hardware goes to the zinc shop

Now let's turn our attention to the rear end...



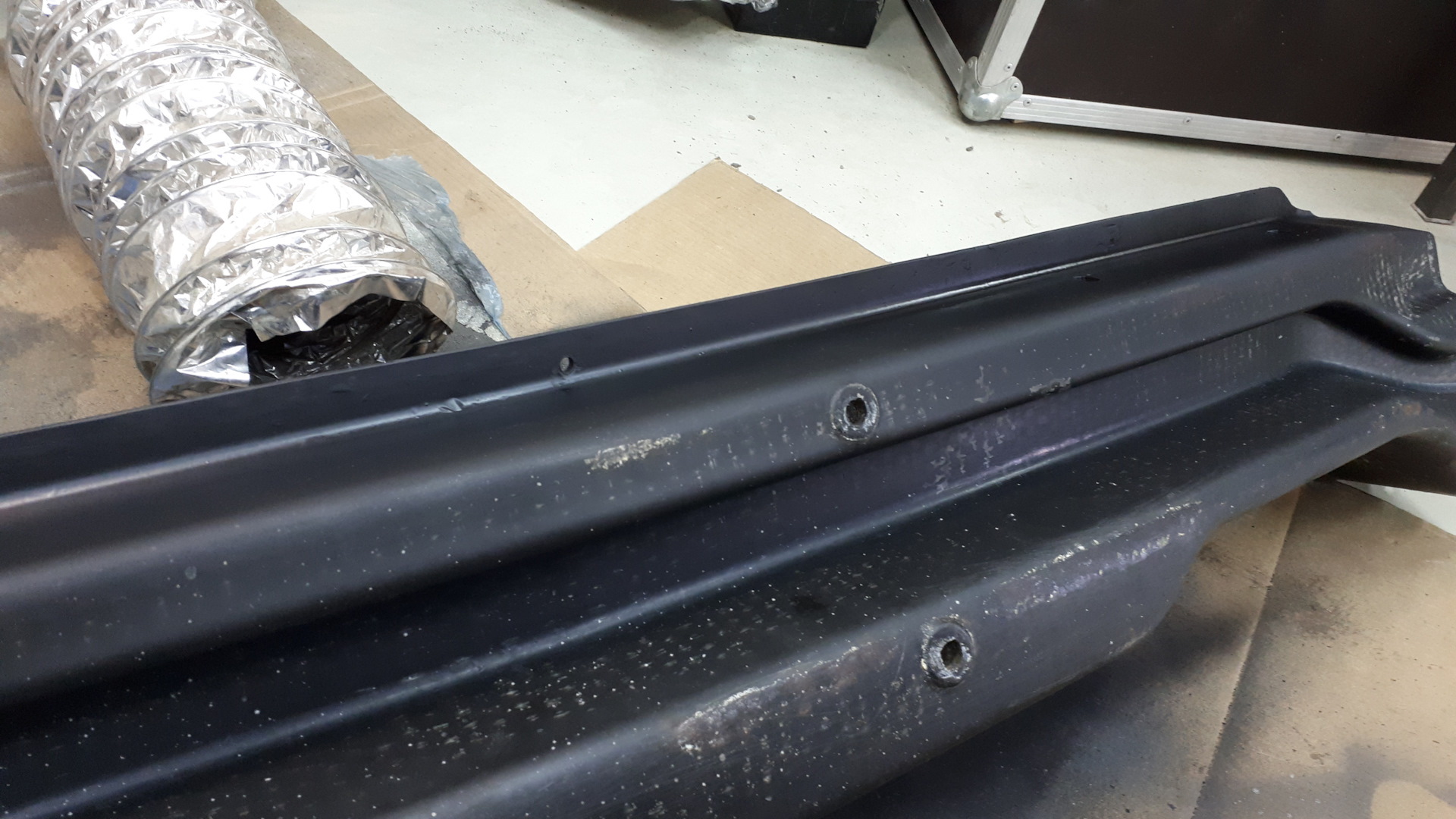

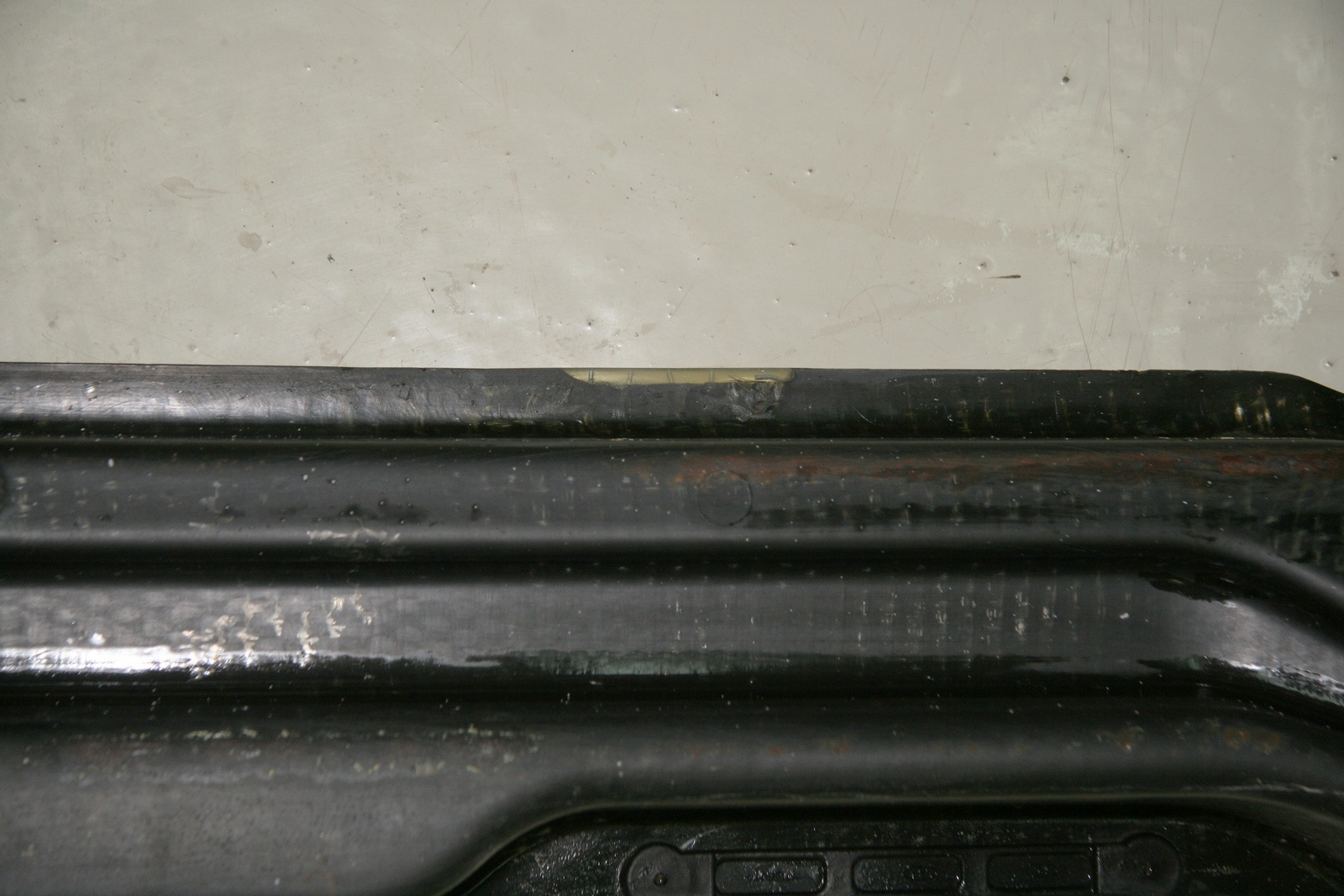

This is the damaged enforcement of the rear bumper



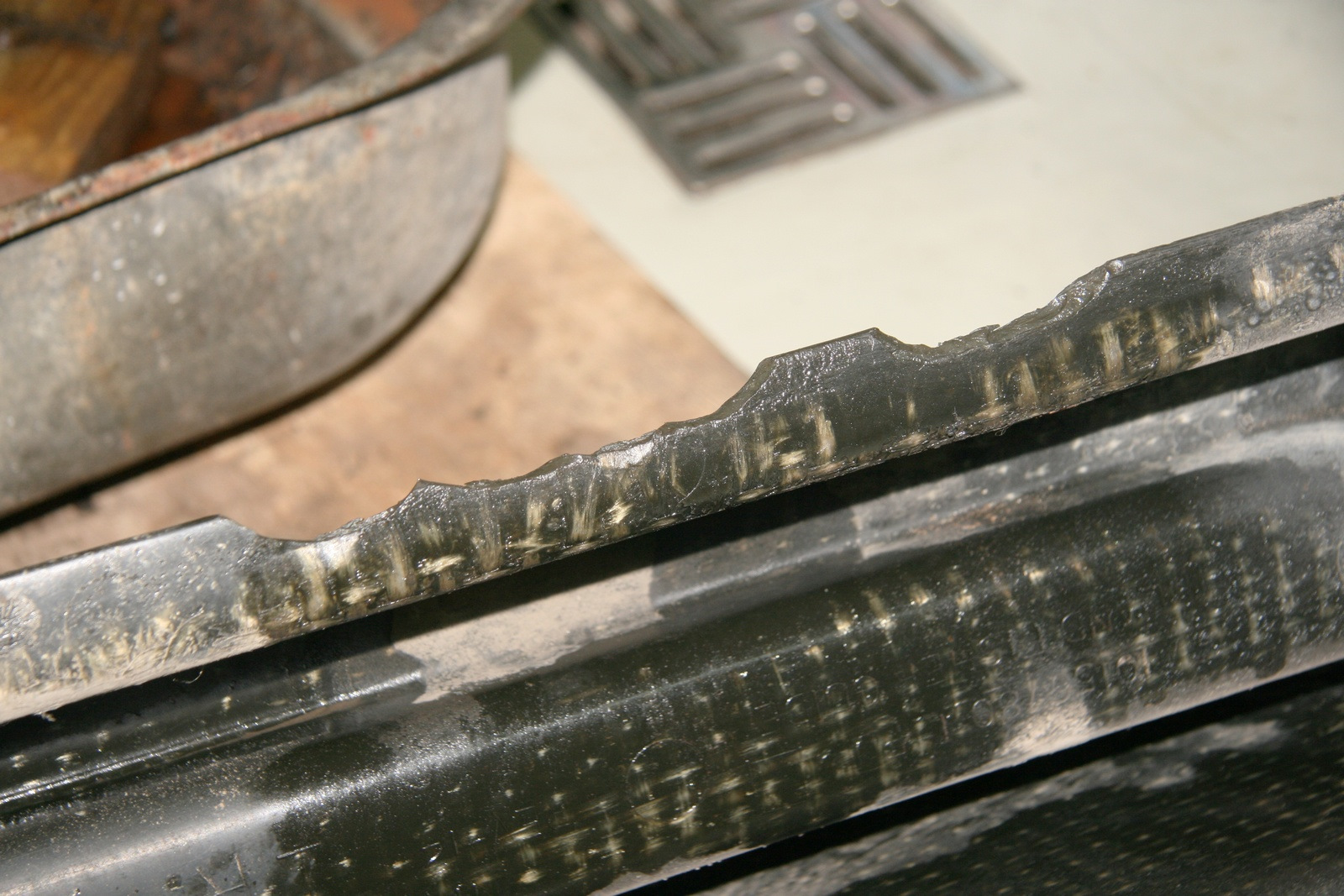

Broken pieces that need to be fixed somehow...

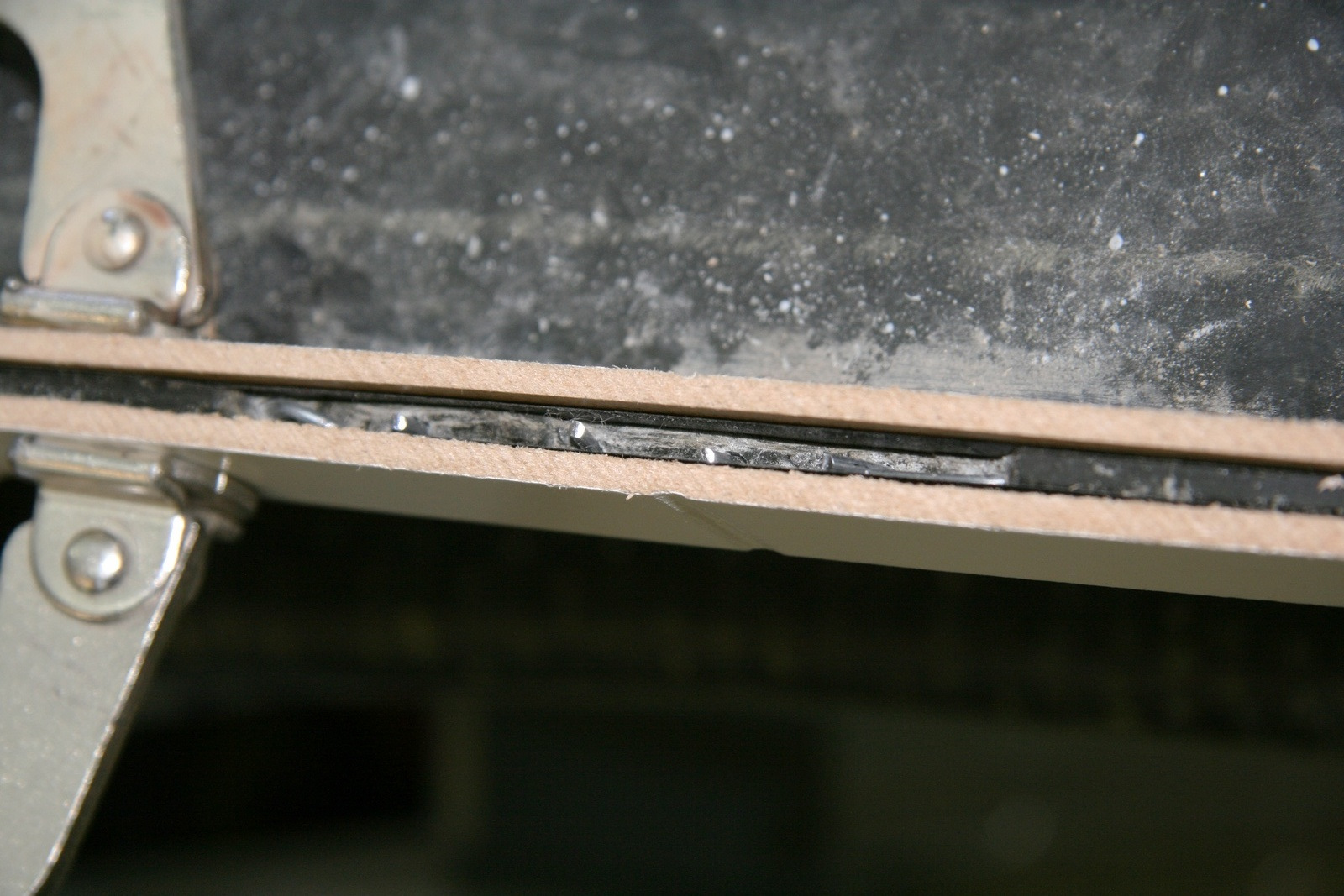

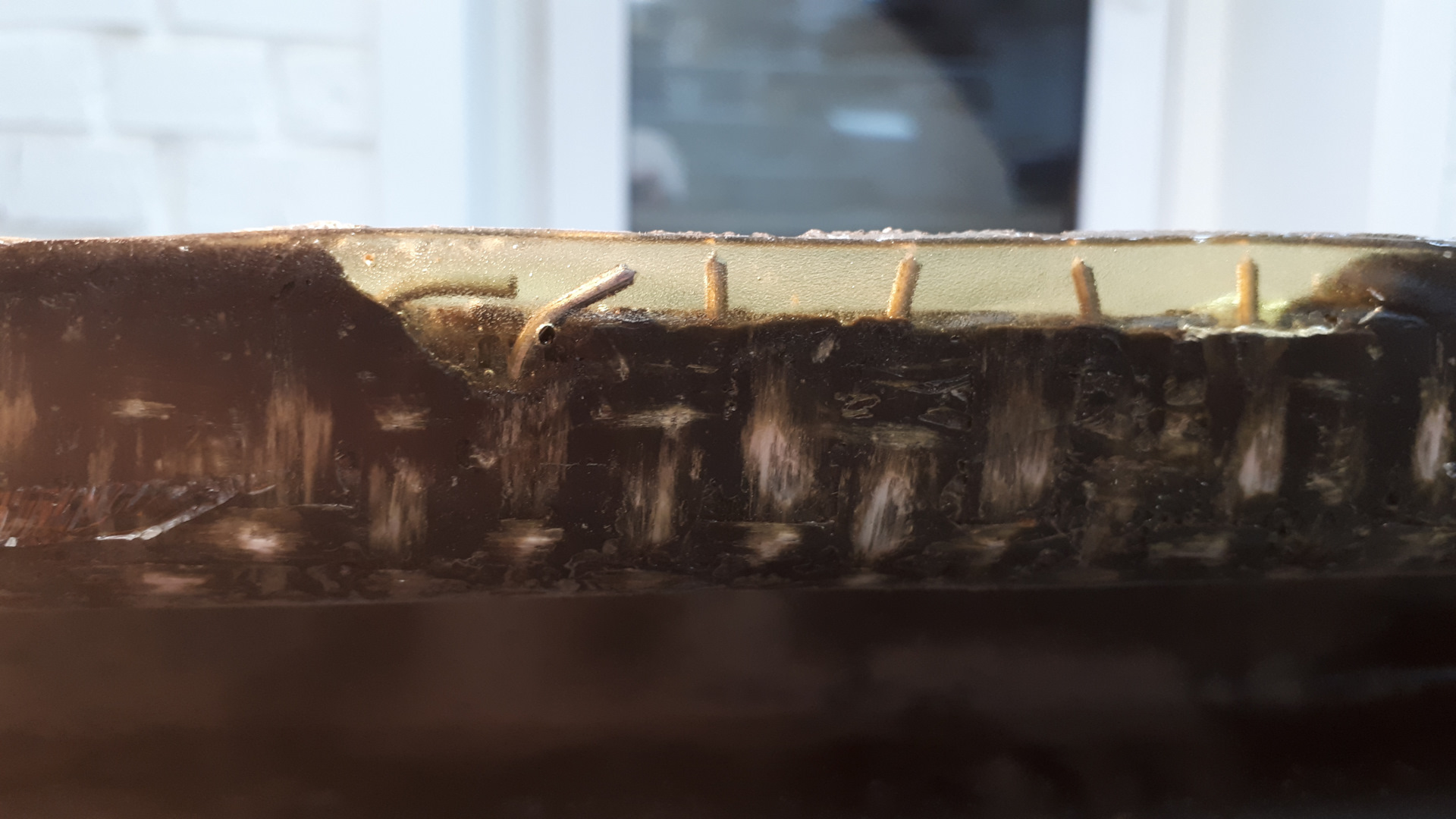

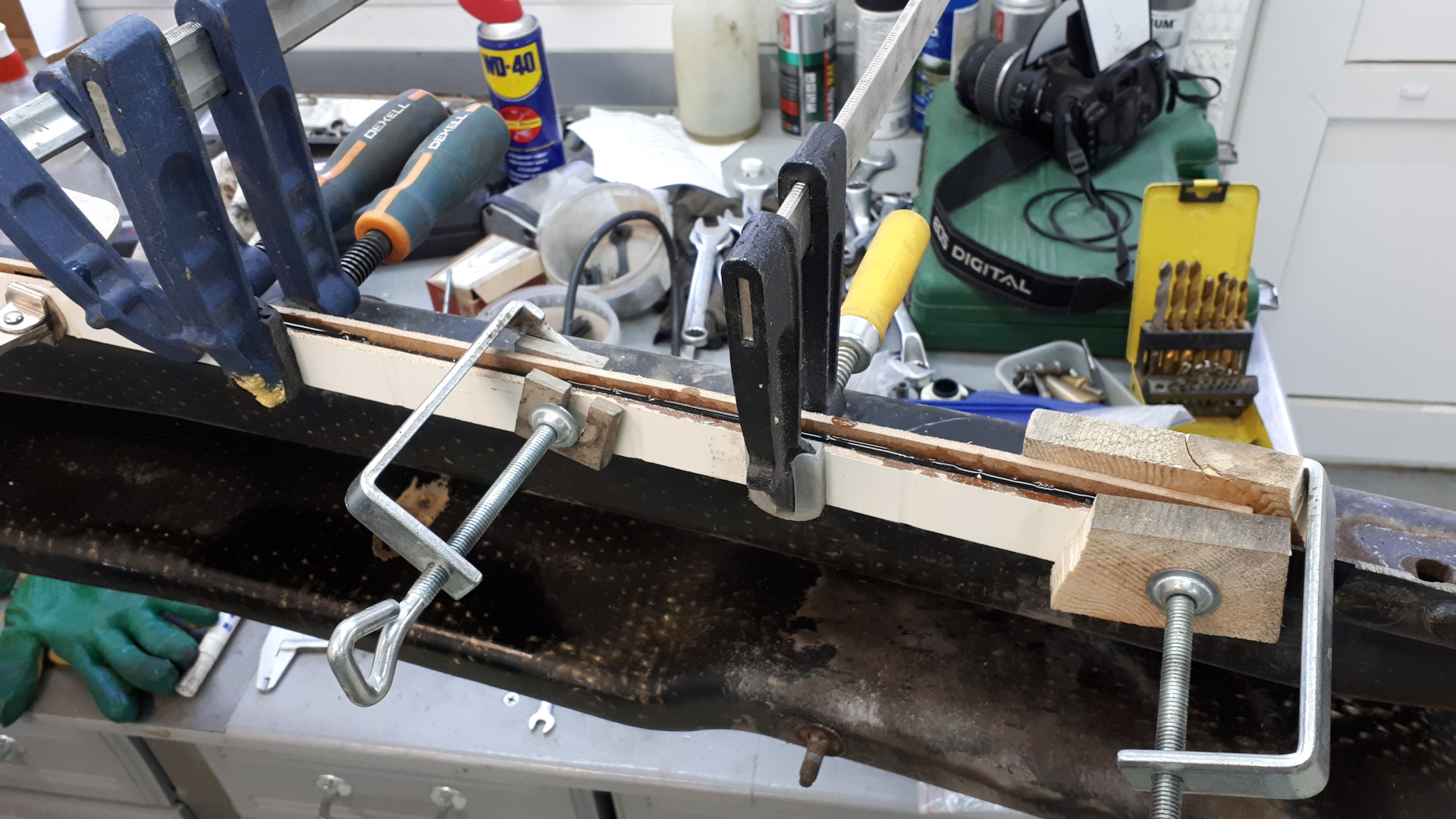

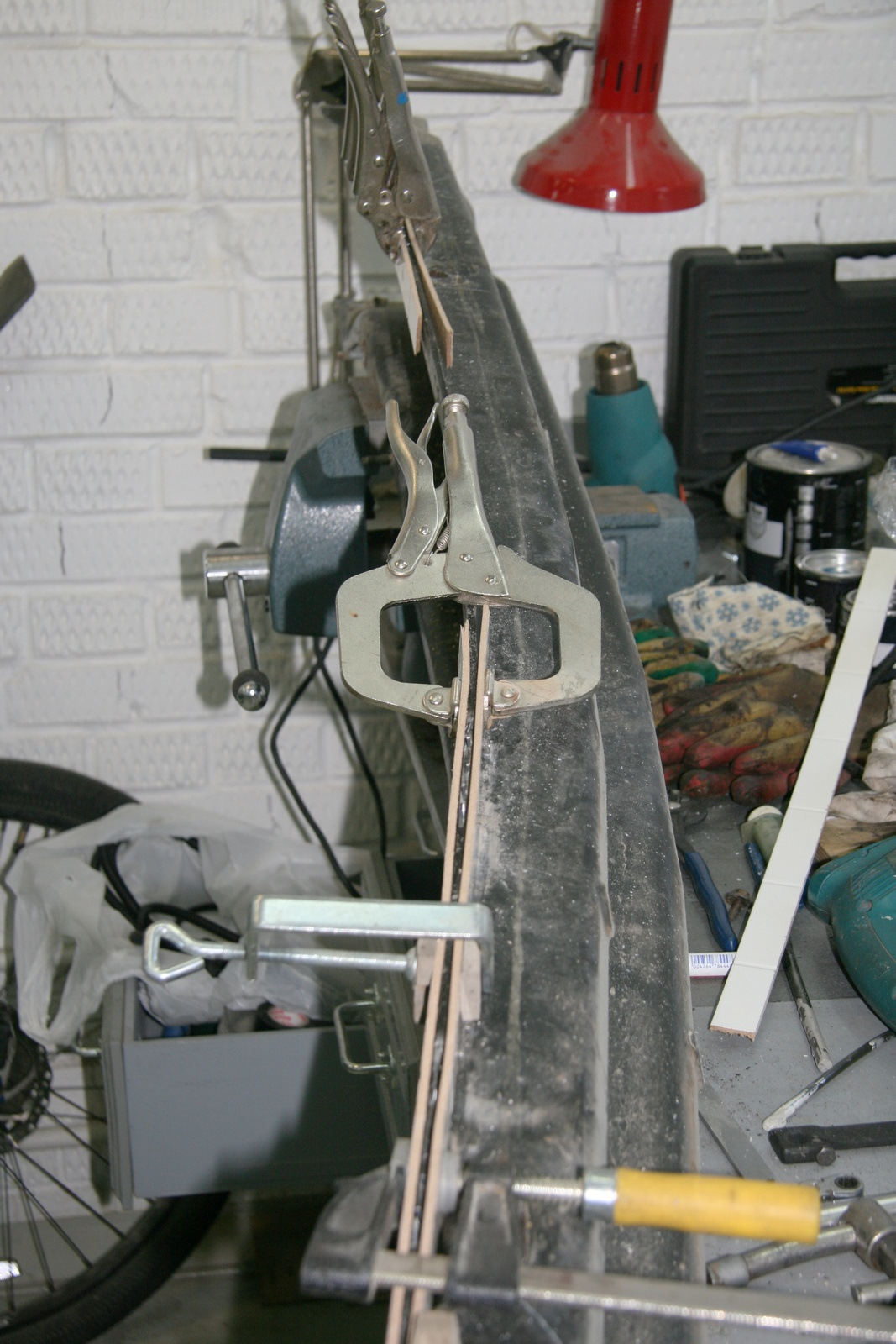

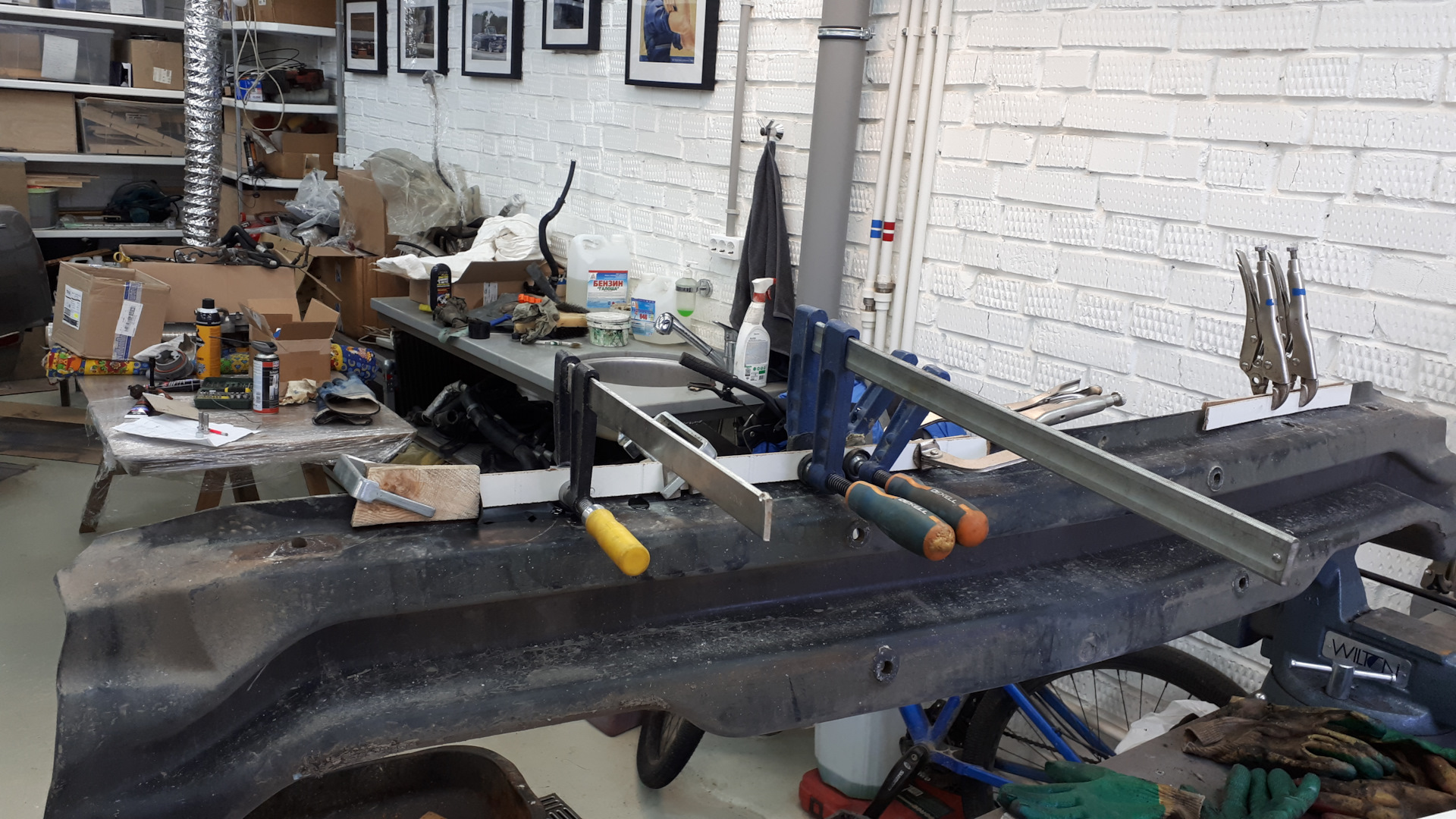

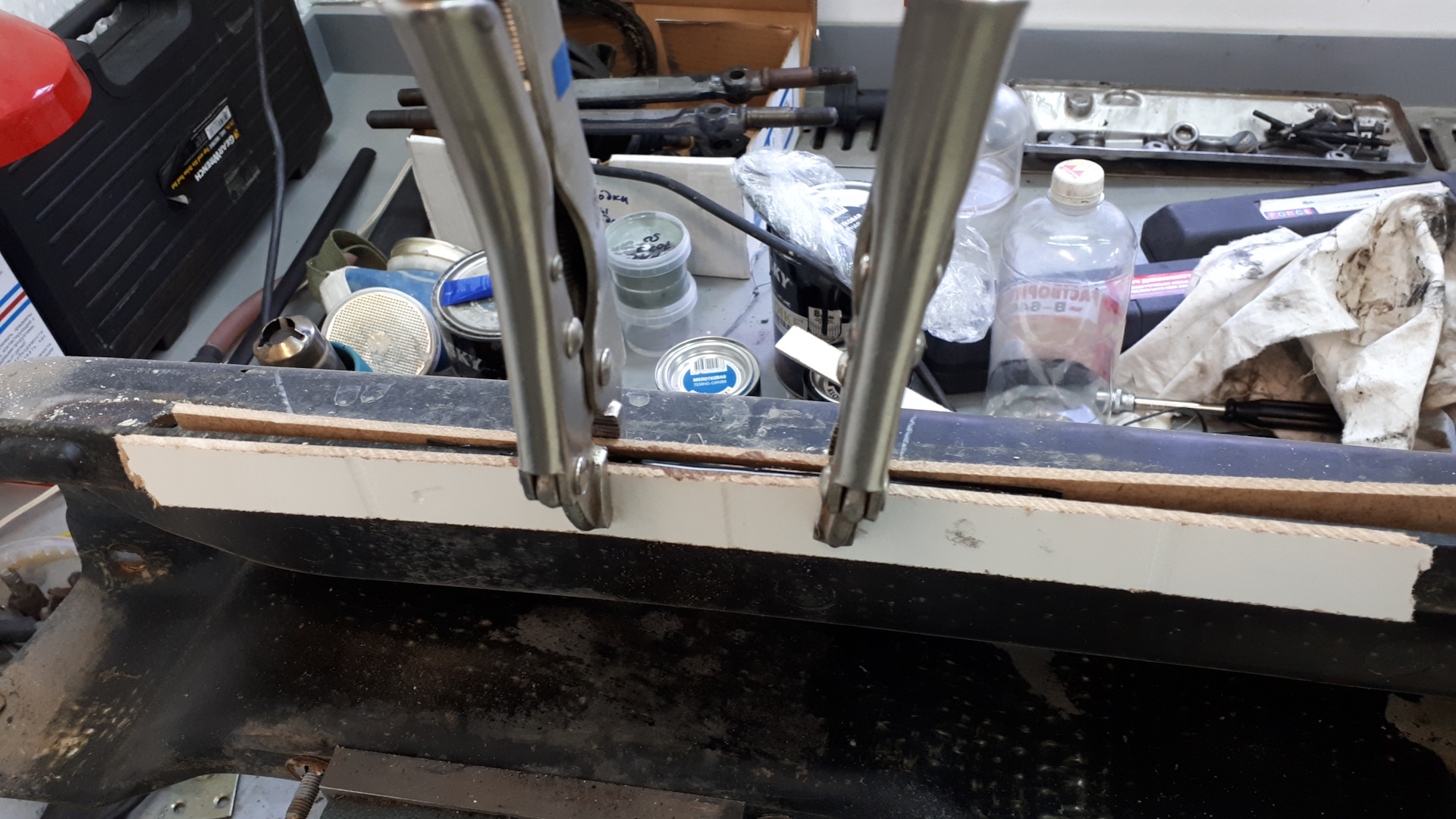

I used 2 pieces of MDF clamped to the enforcement, also I drilled many holes and put there 1/8" steel wires



Prepared for the epoxy cure



This channel will be filled with epoxy



Mixing

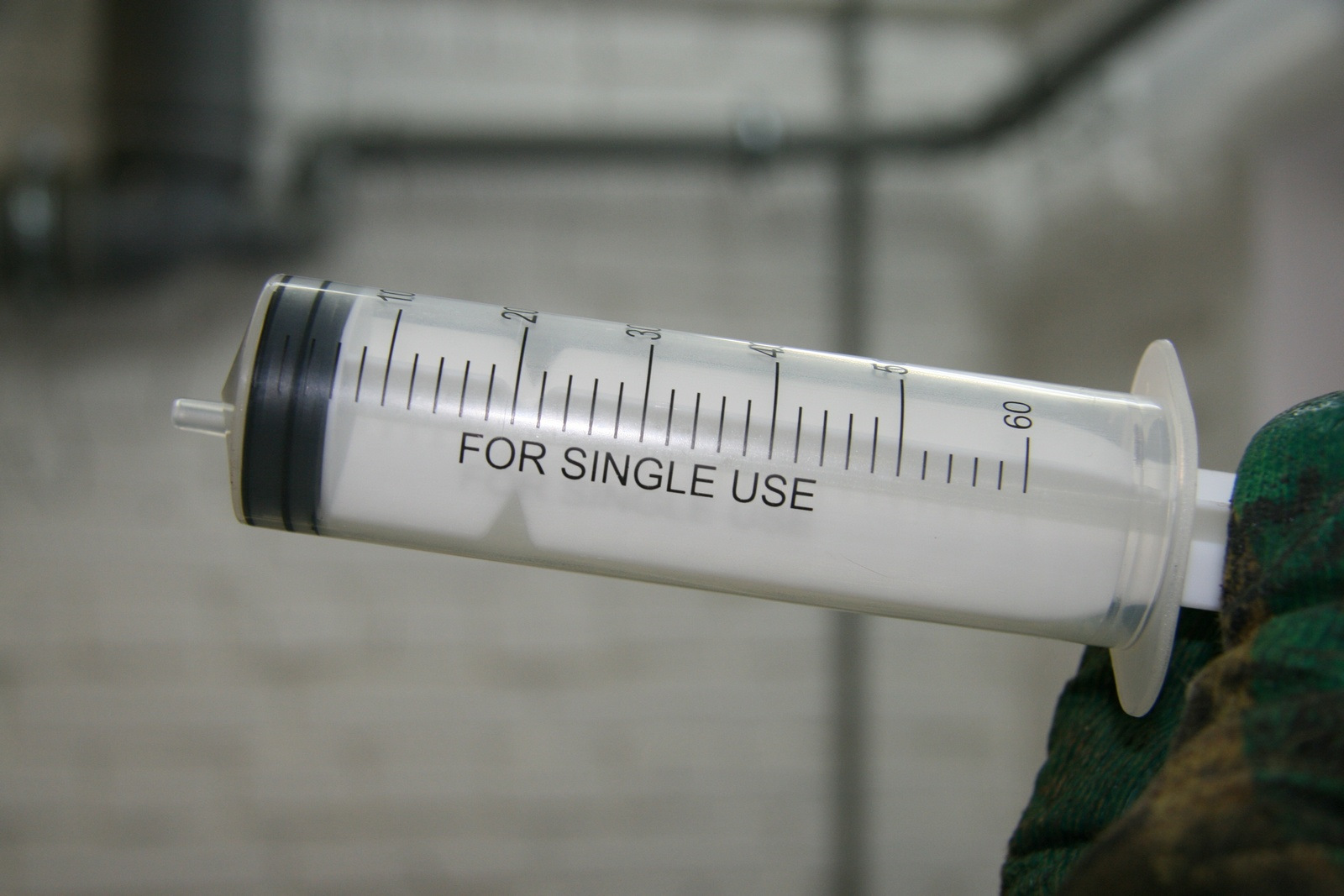

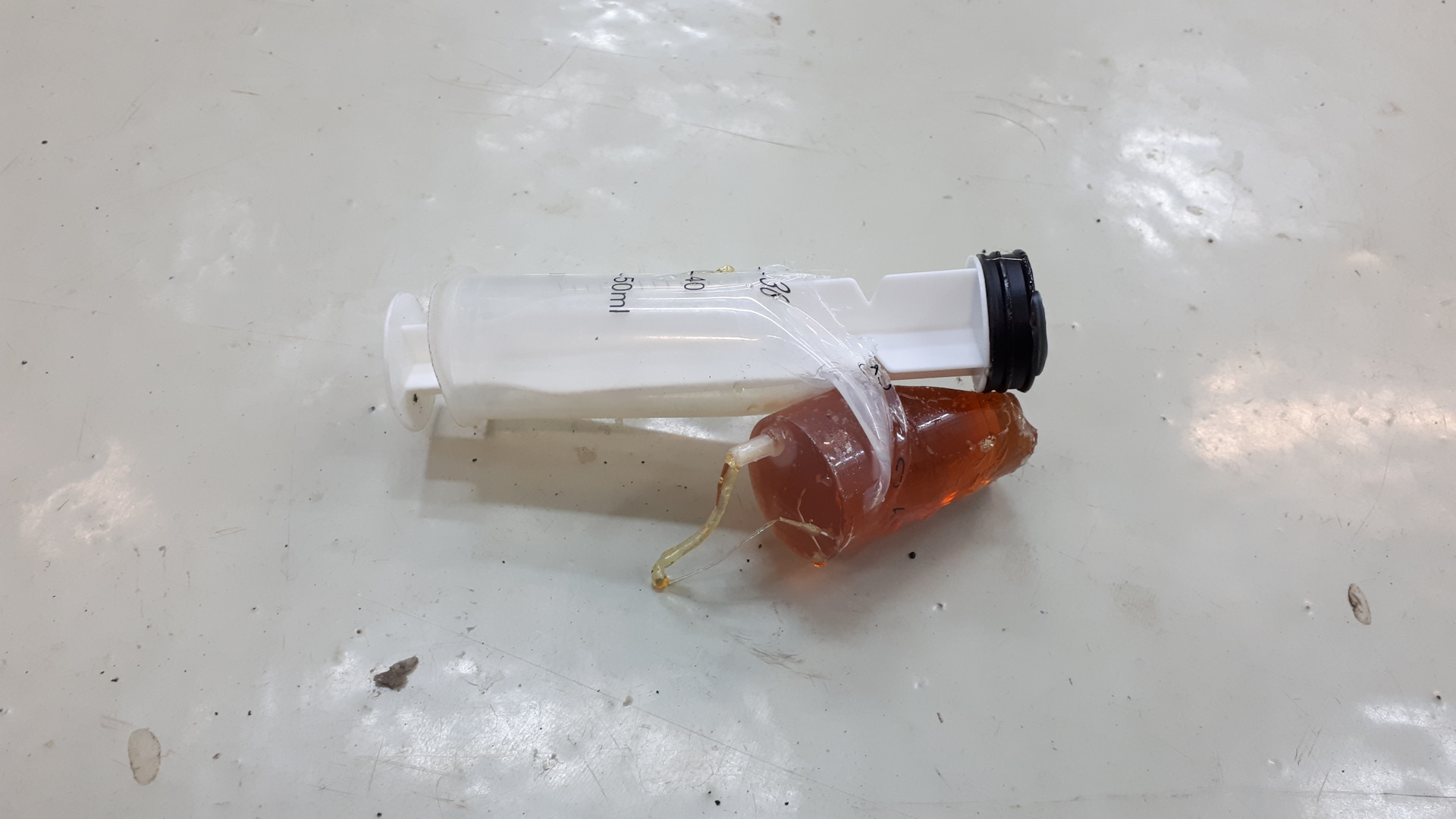

Syringe will be used for pouring



Pouring process





The remainings of the epoxy started to heat (hardening process), and rapidly the syringe had melted ))), which means that the epoxy is good



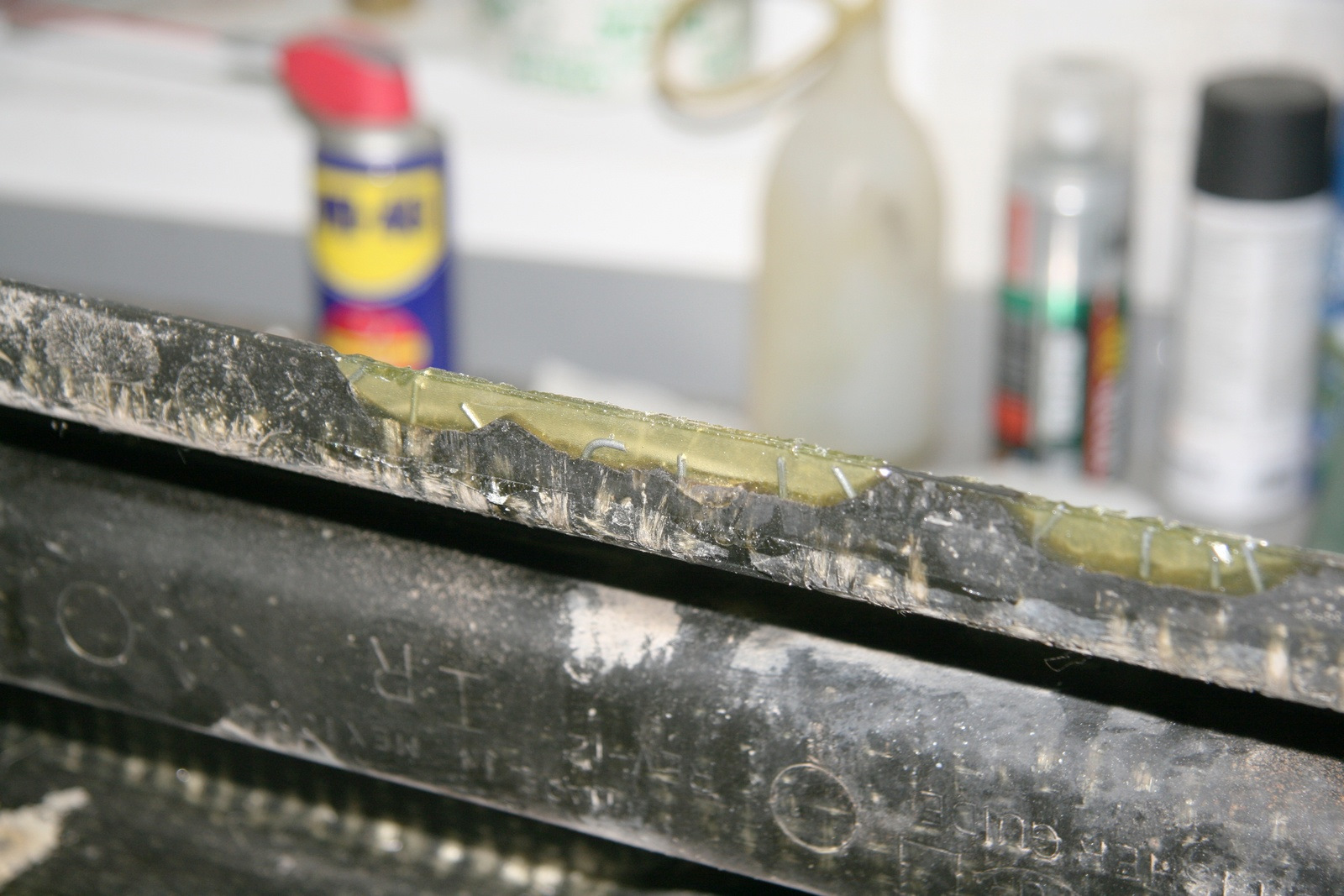

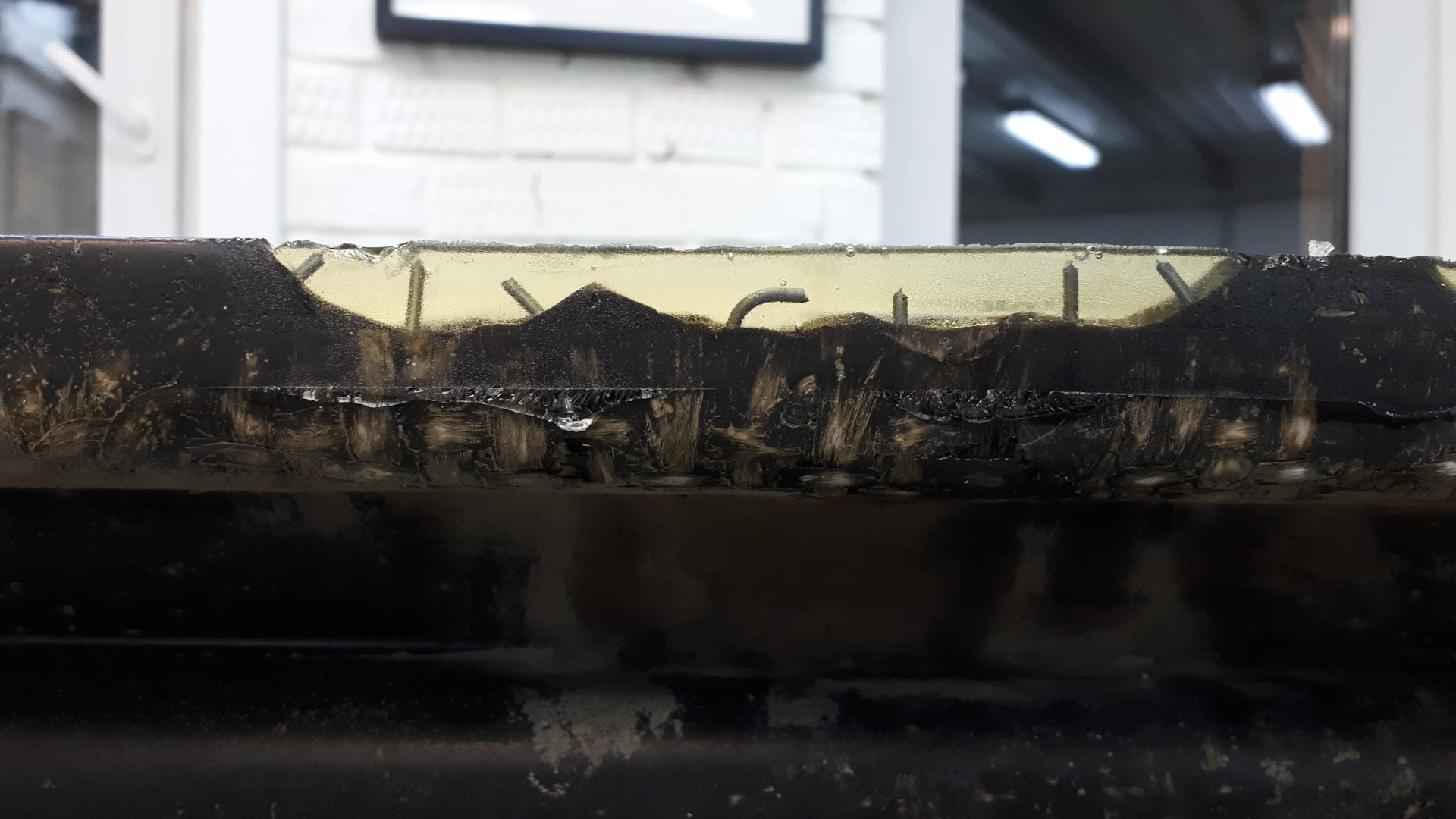

Next day view



Exactly what I wanted to have





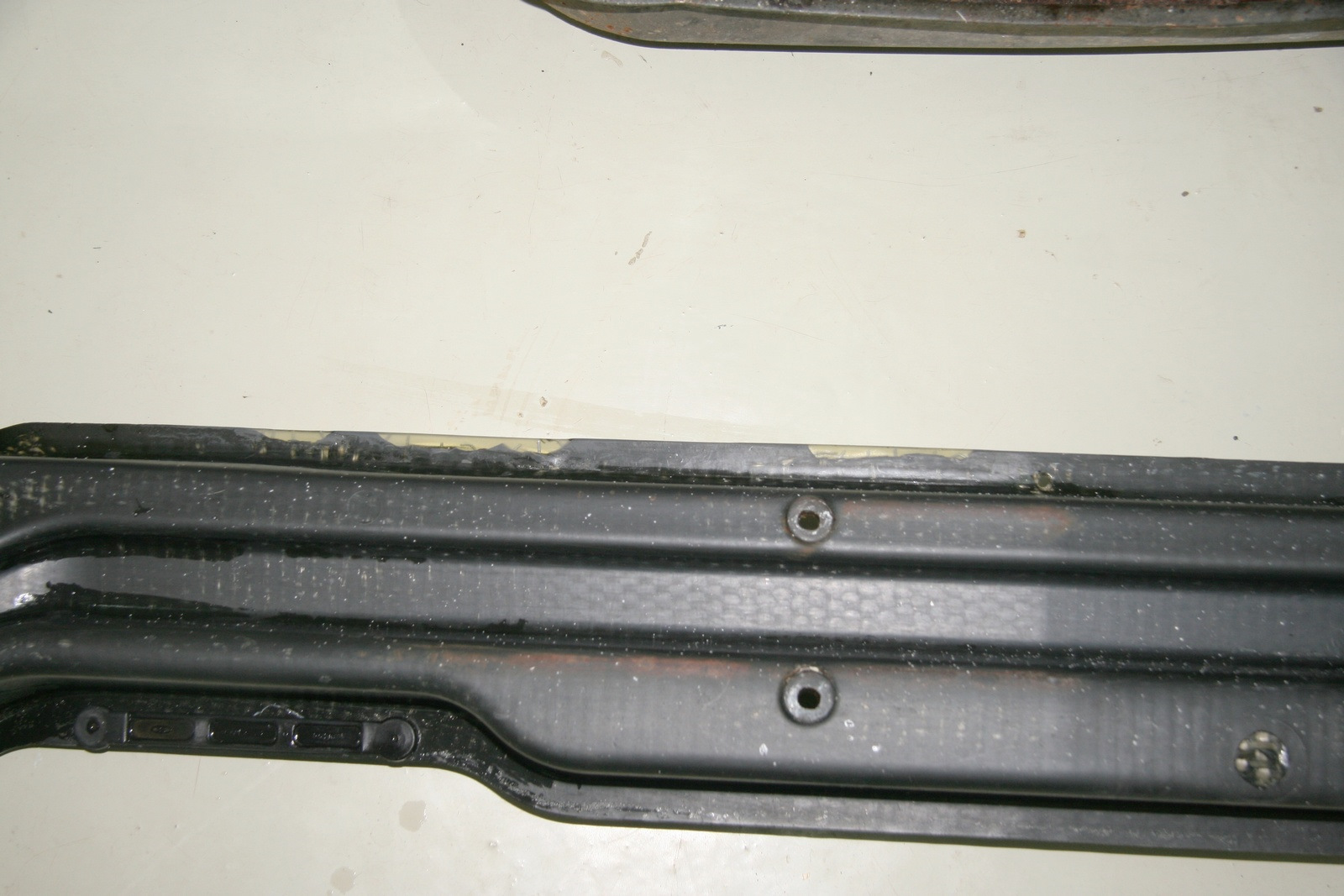

After some sanding



Ready for paint



Painted in black matte





Hardware for the bumper assembly



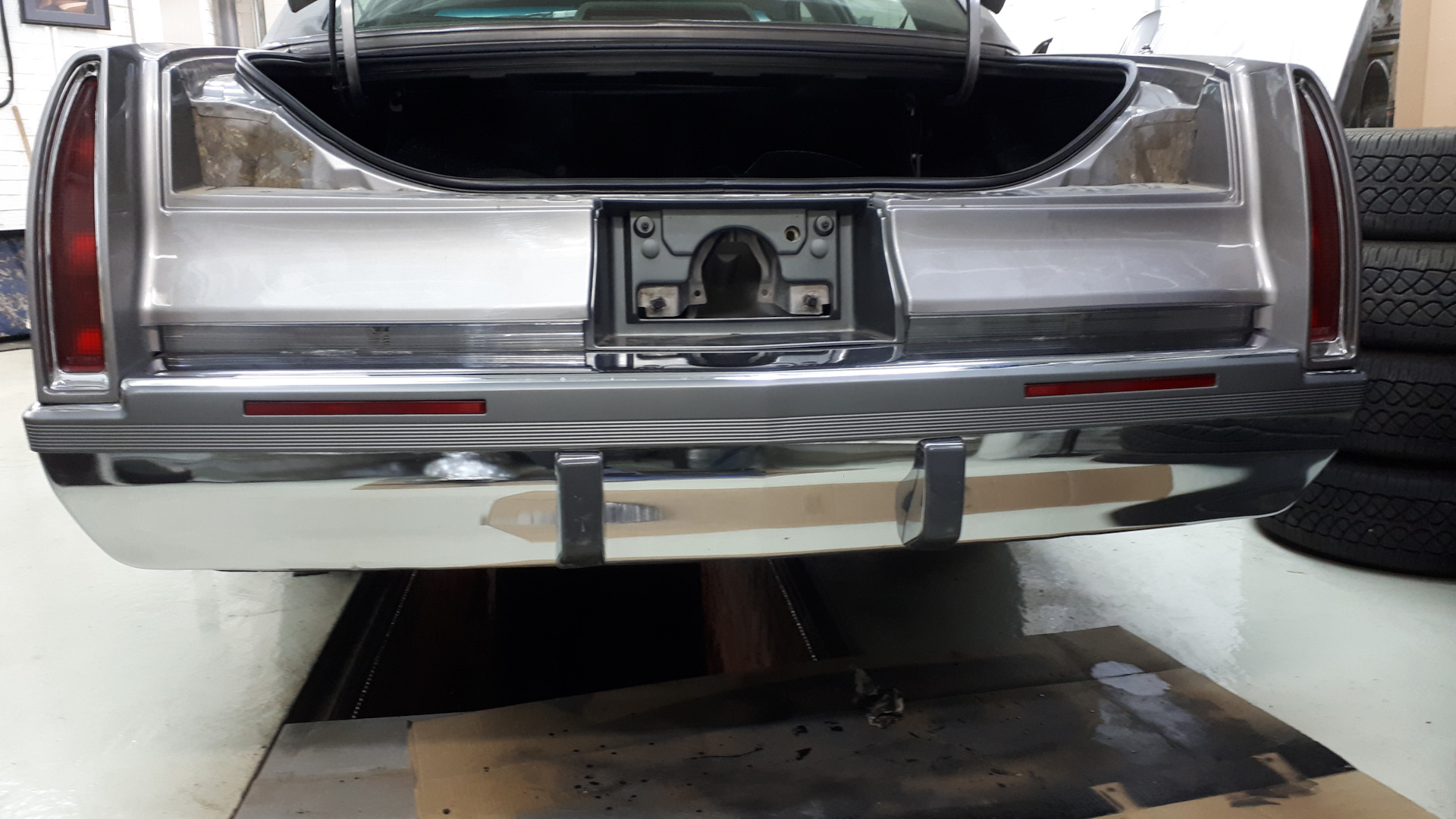

Installed on a car



The enforcement looks good



Almost as new...



Right rear quarter chrome panel installed

[kudims]

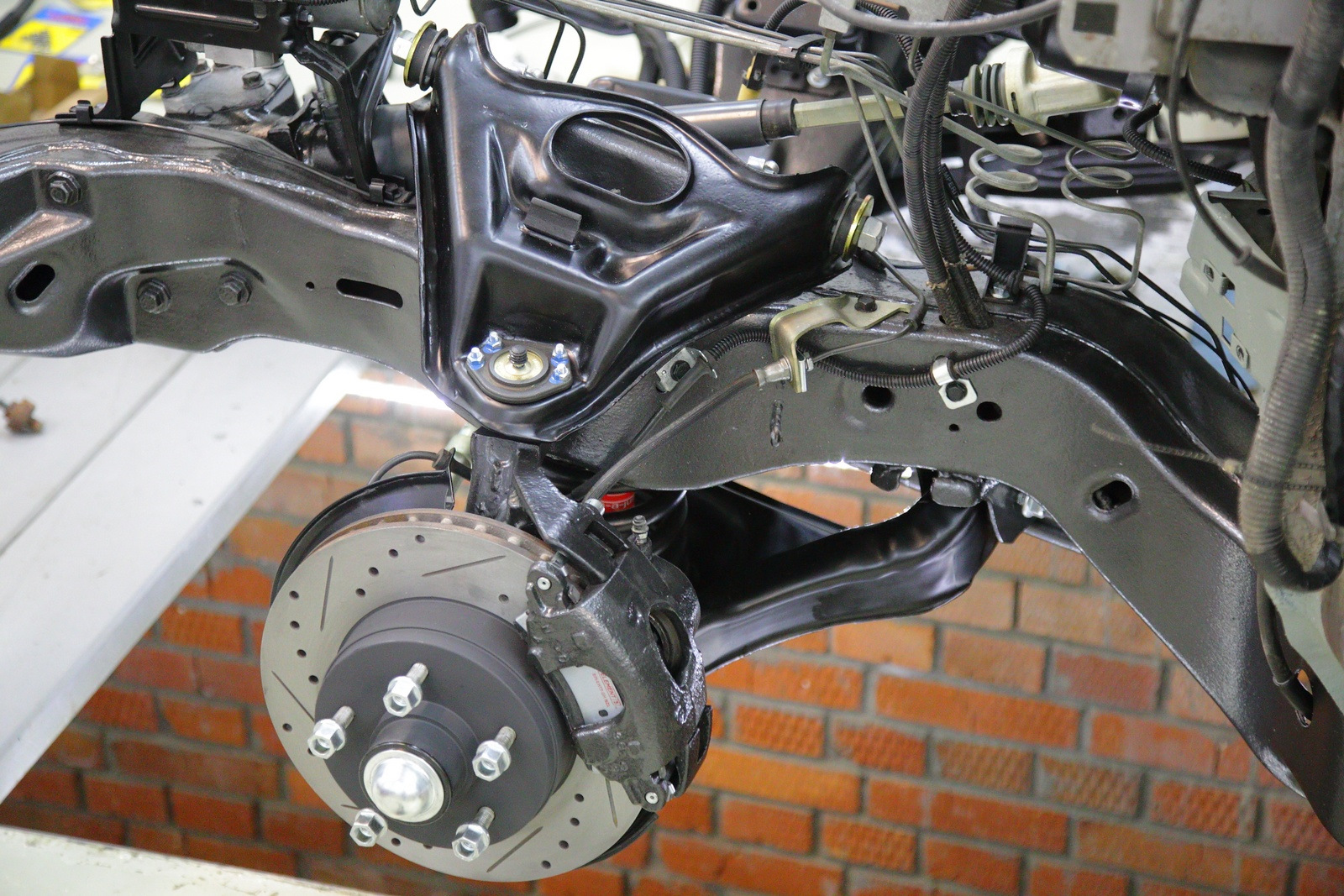

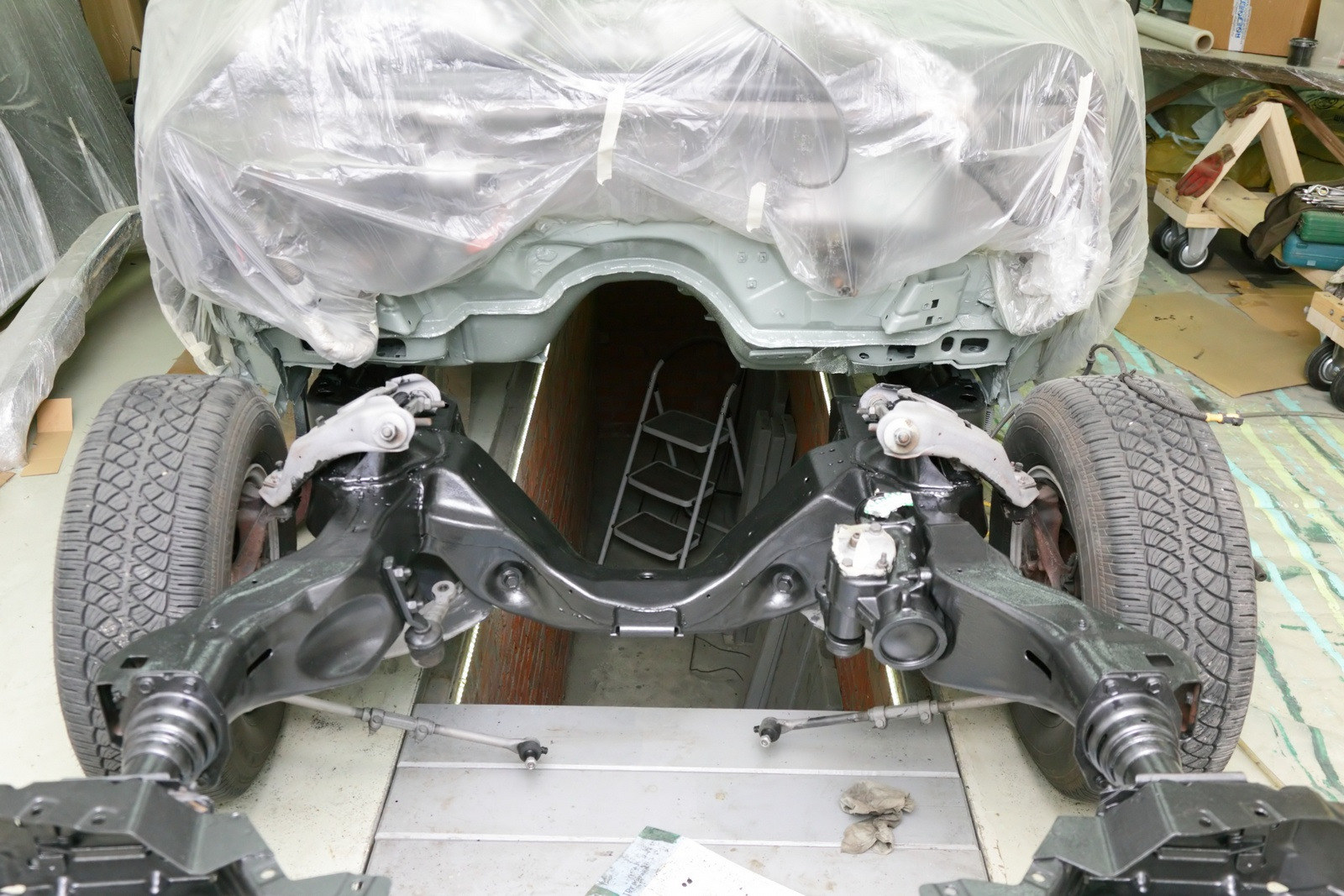

Front suspension

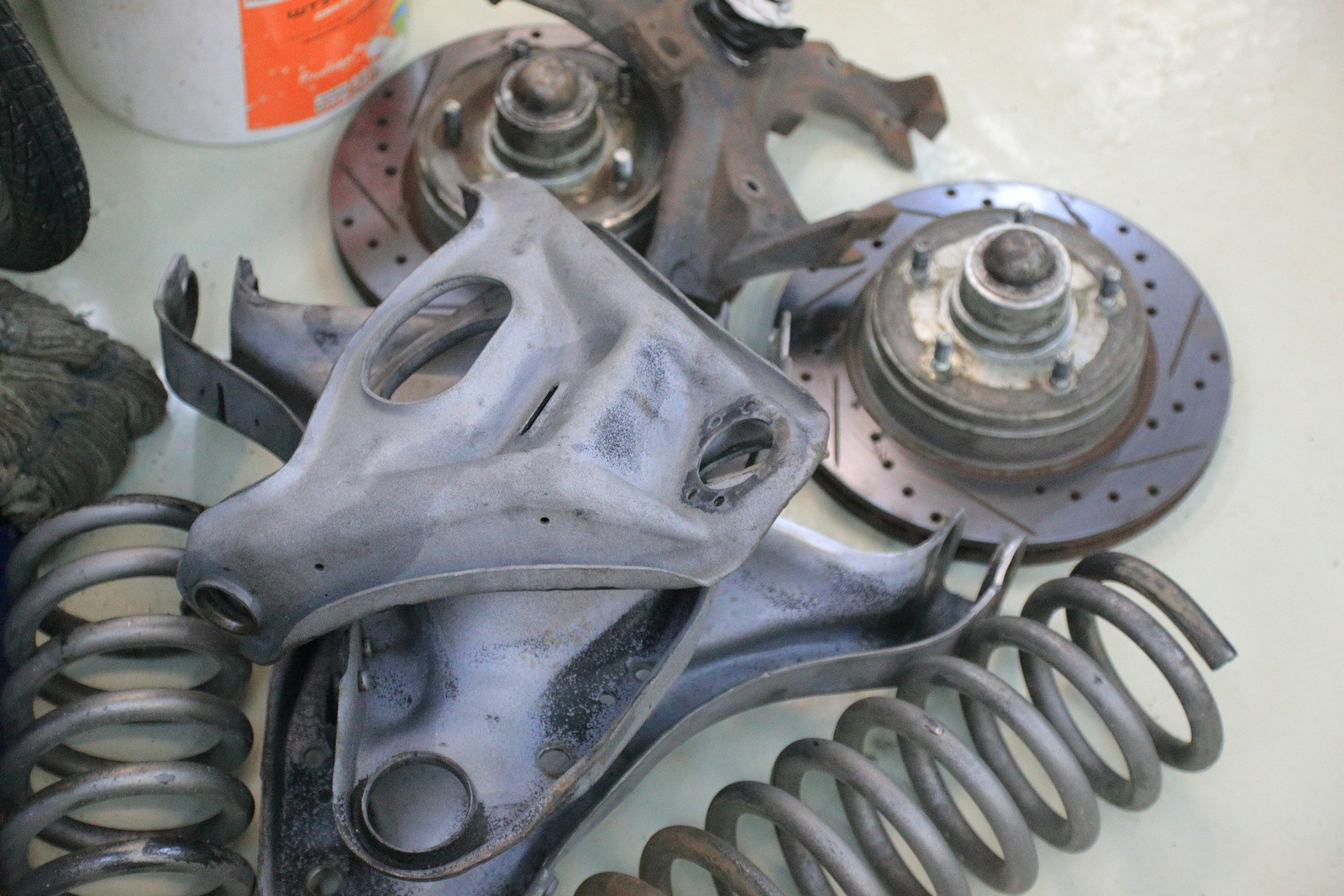

Some parts after powder coating



Some NOS parts from 1980-s (Cadillac and Chevrolet suspensions were unchanged in 80-90-s)



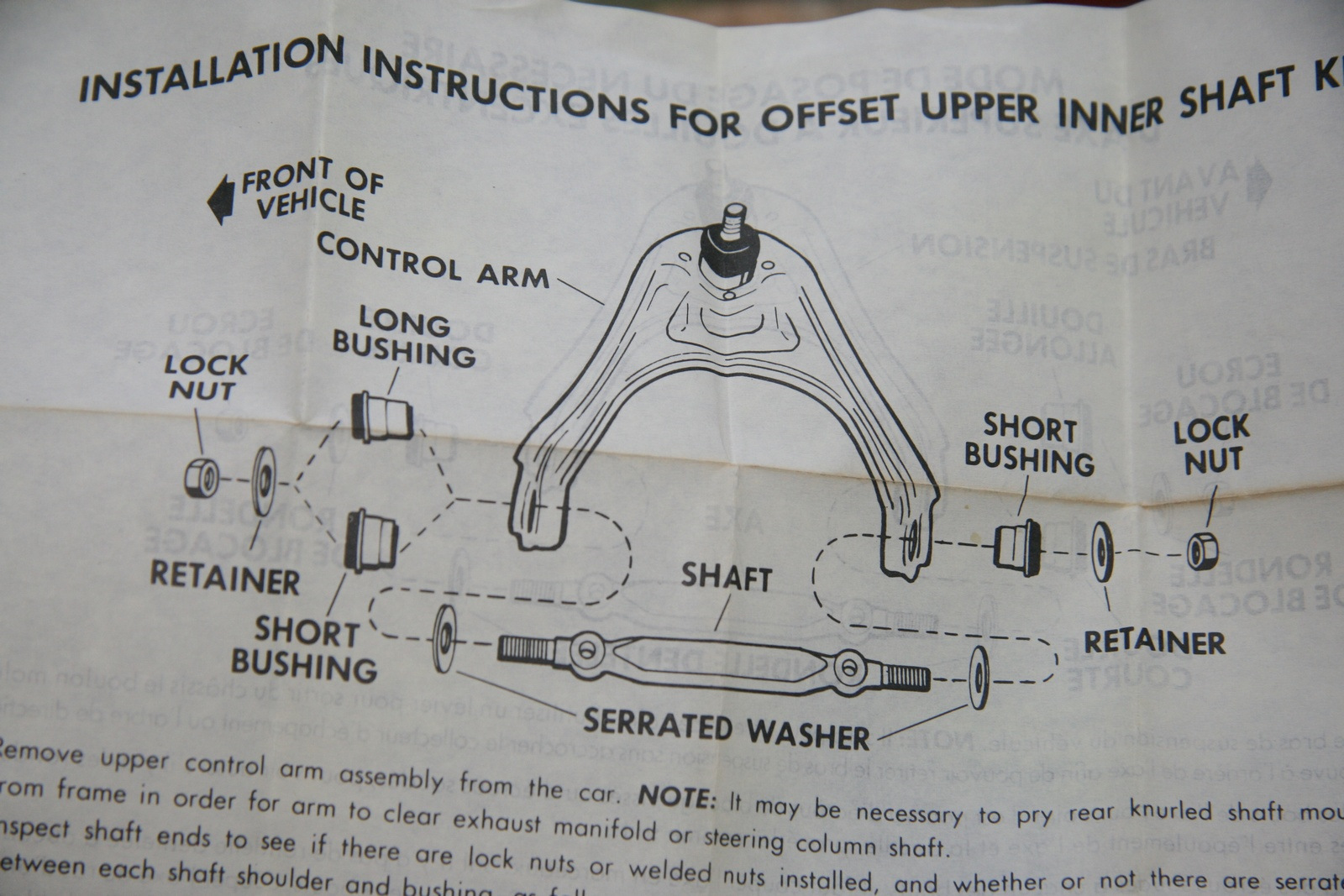

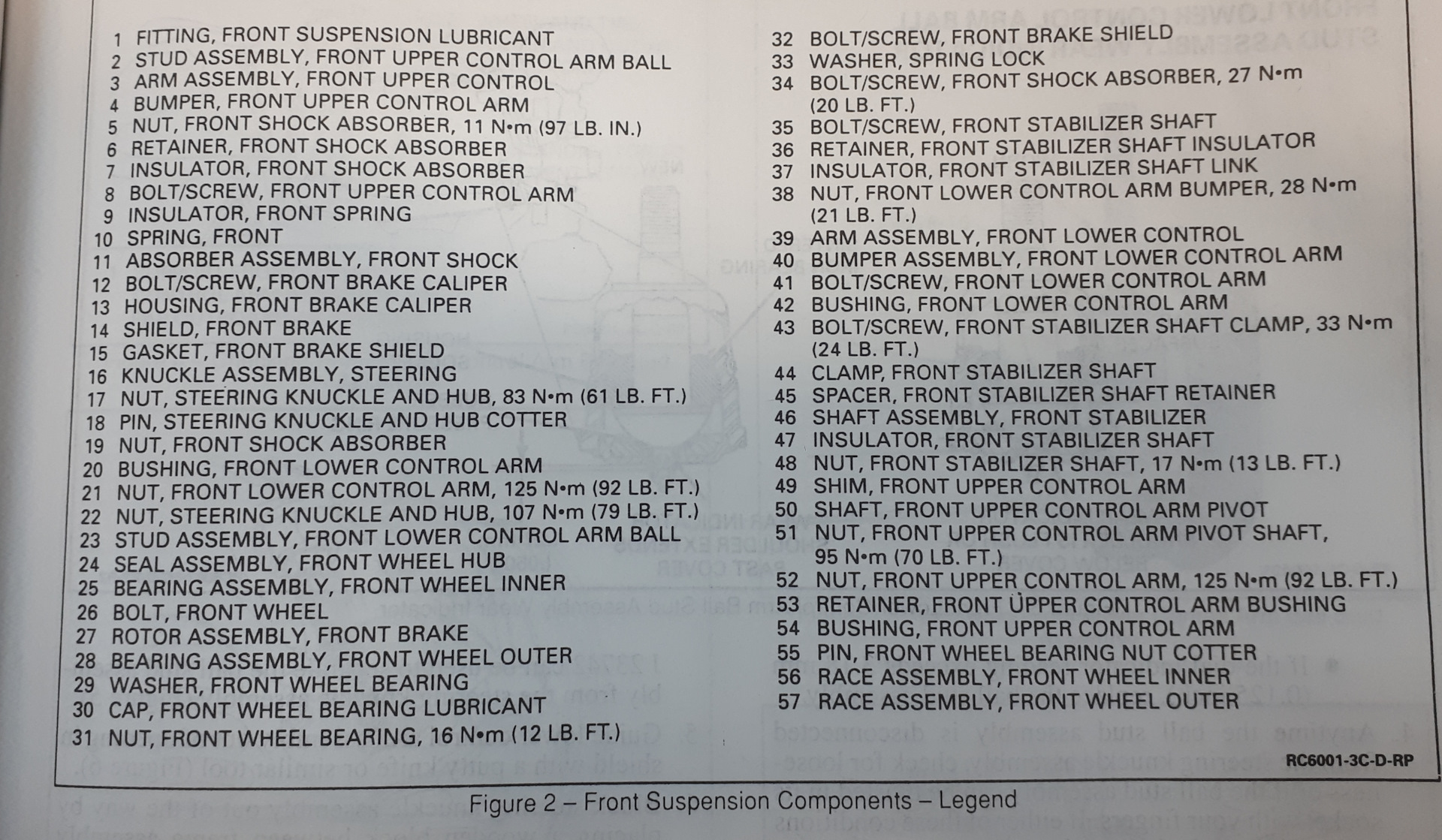

Instructions

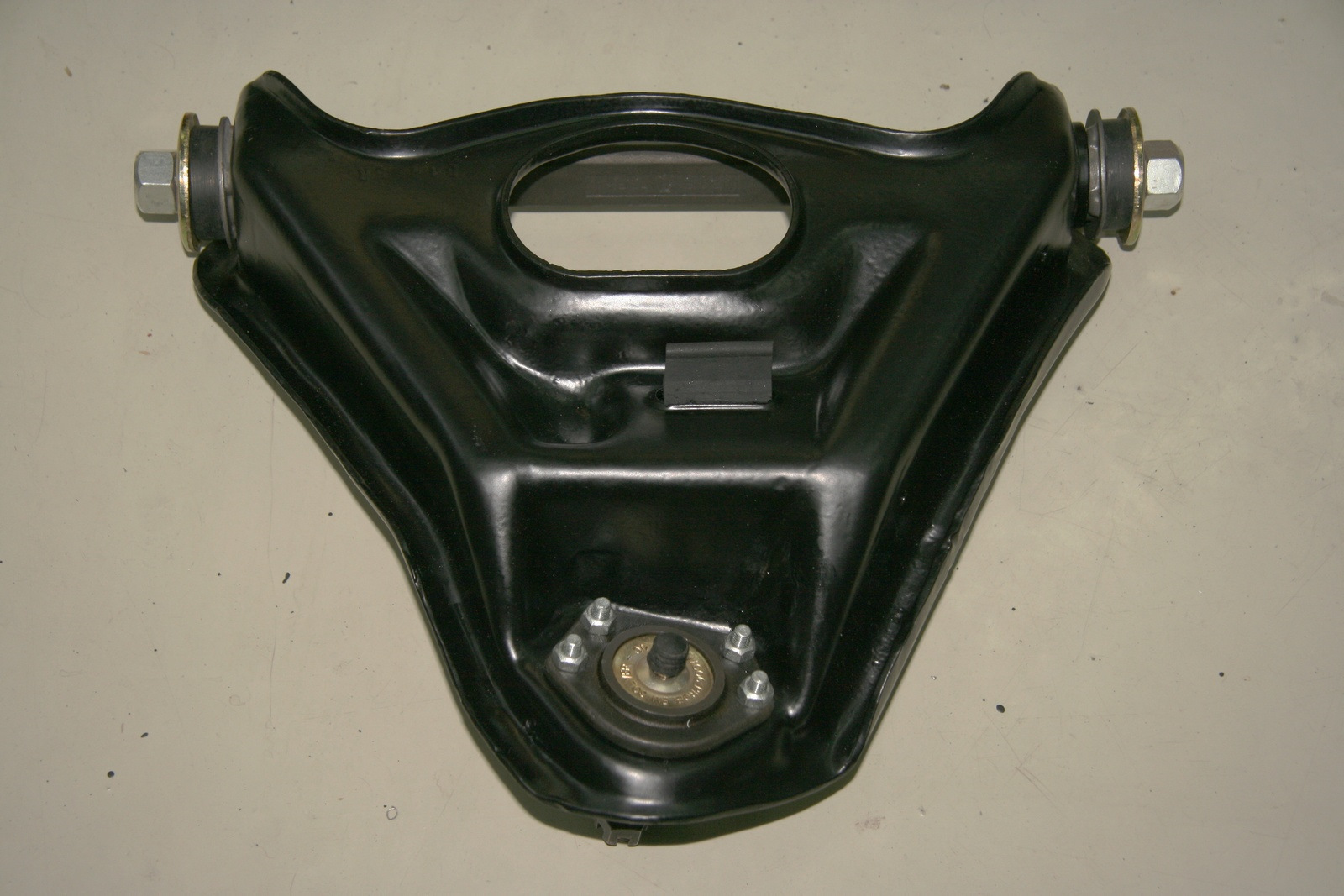

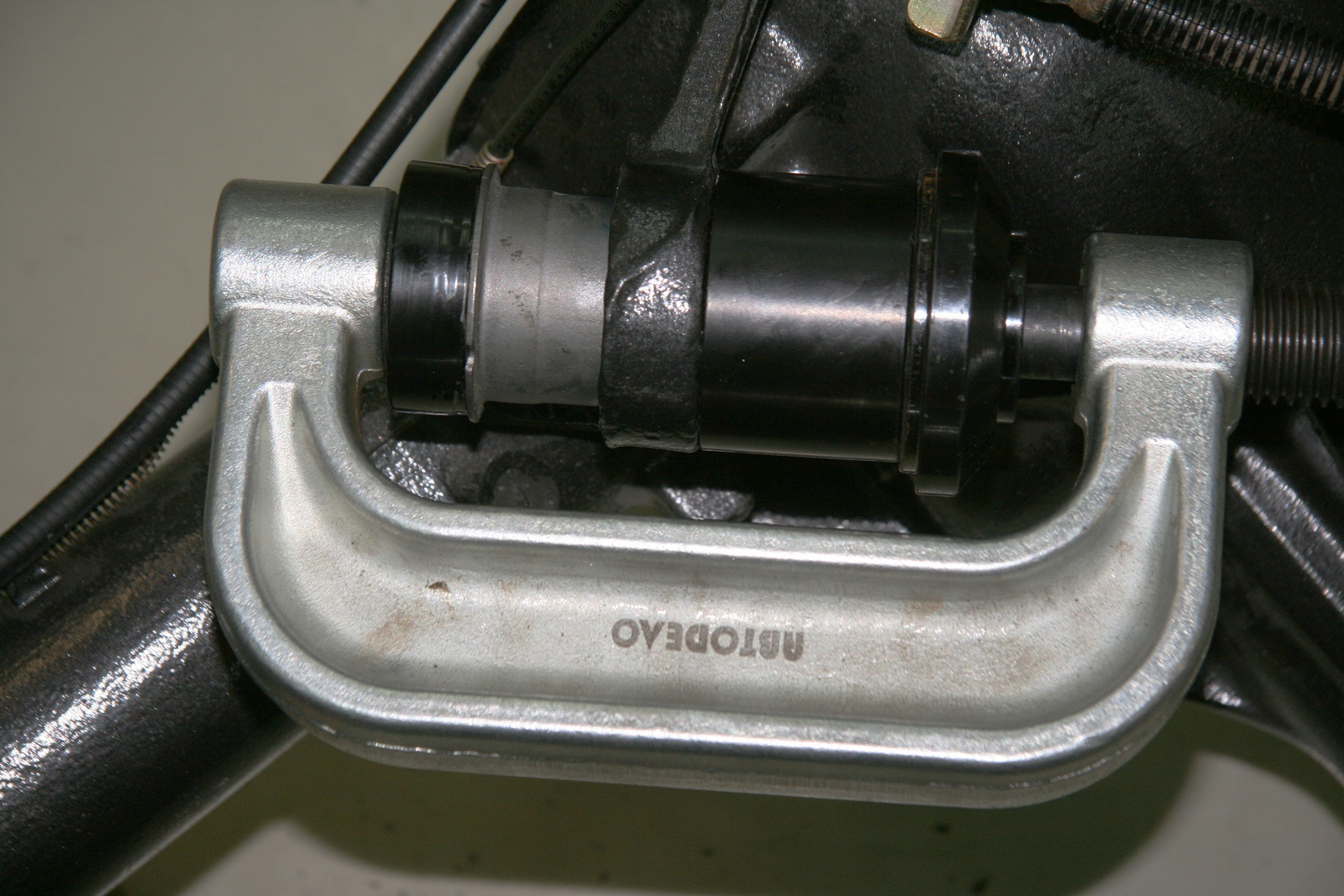

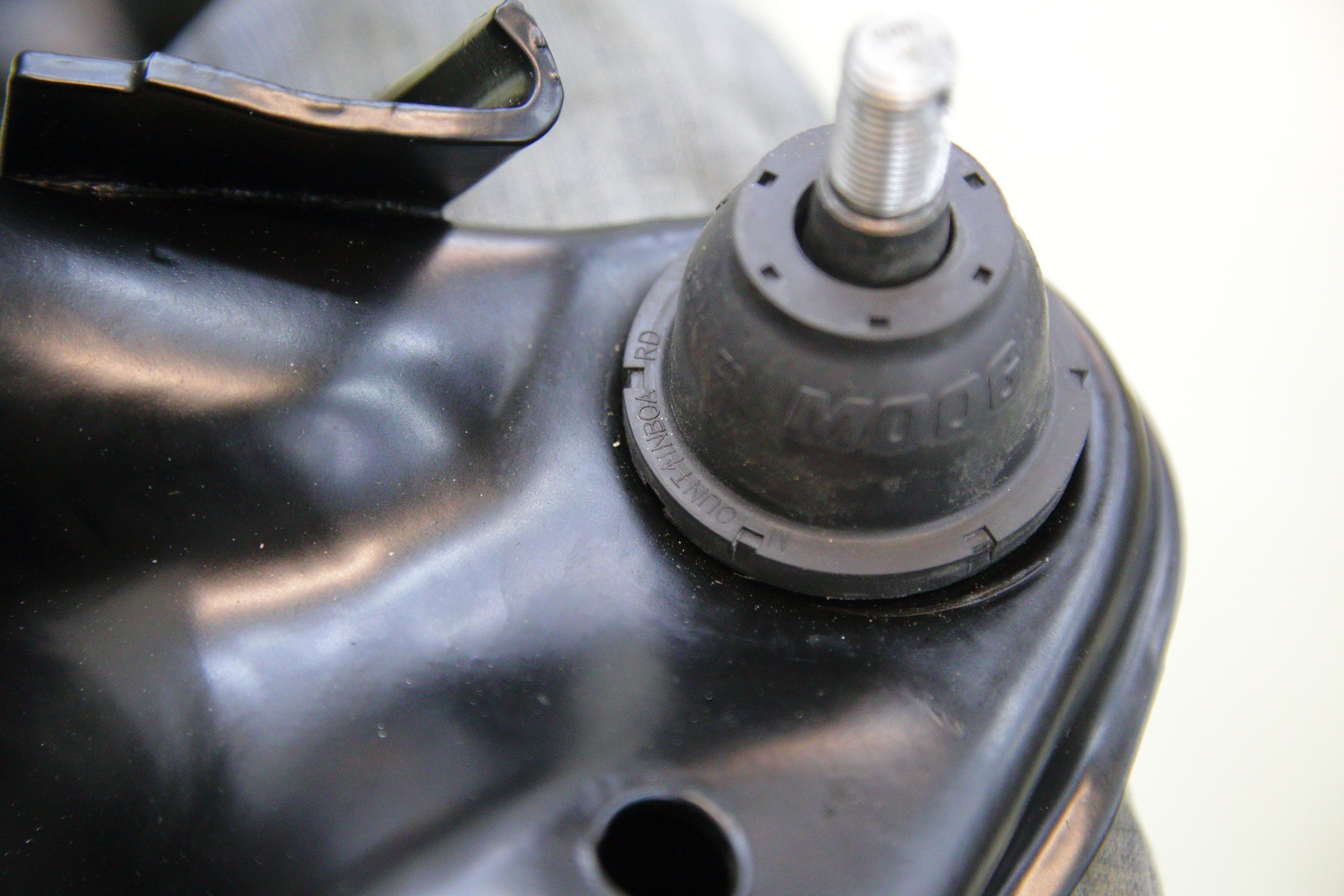

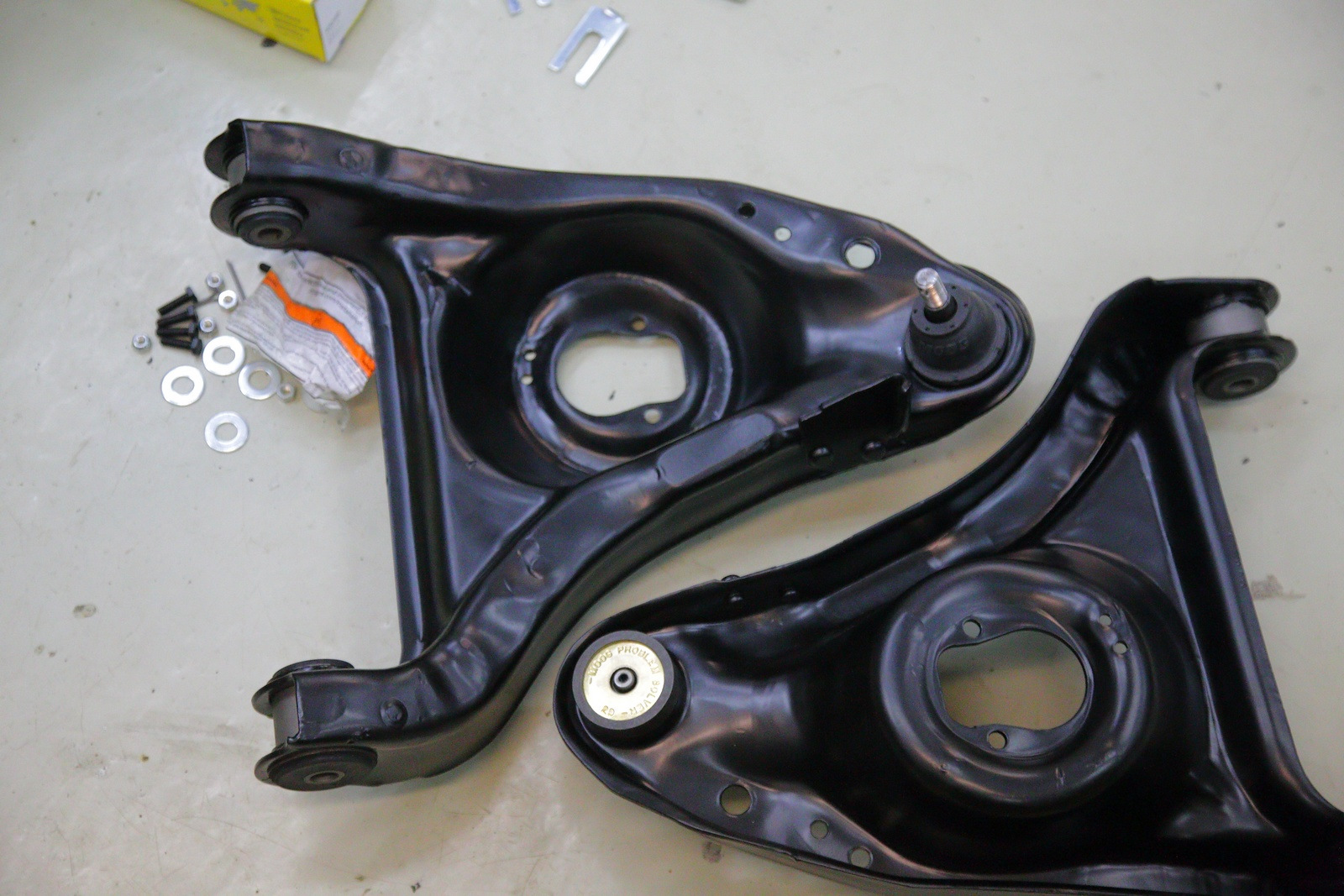

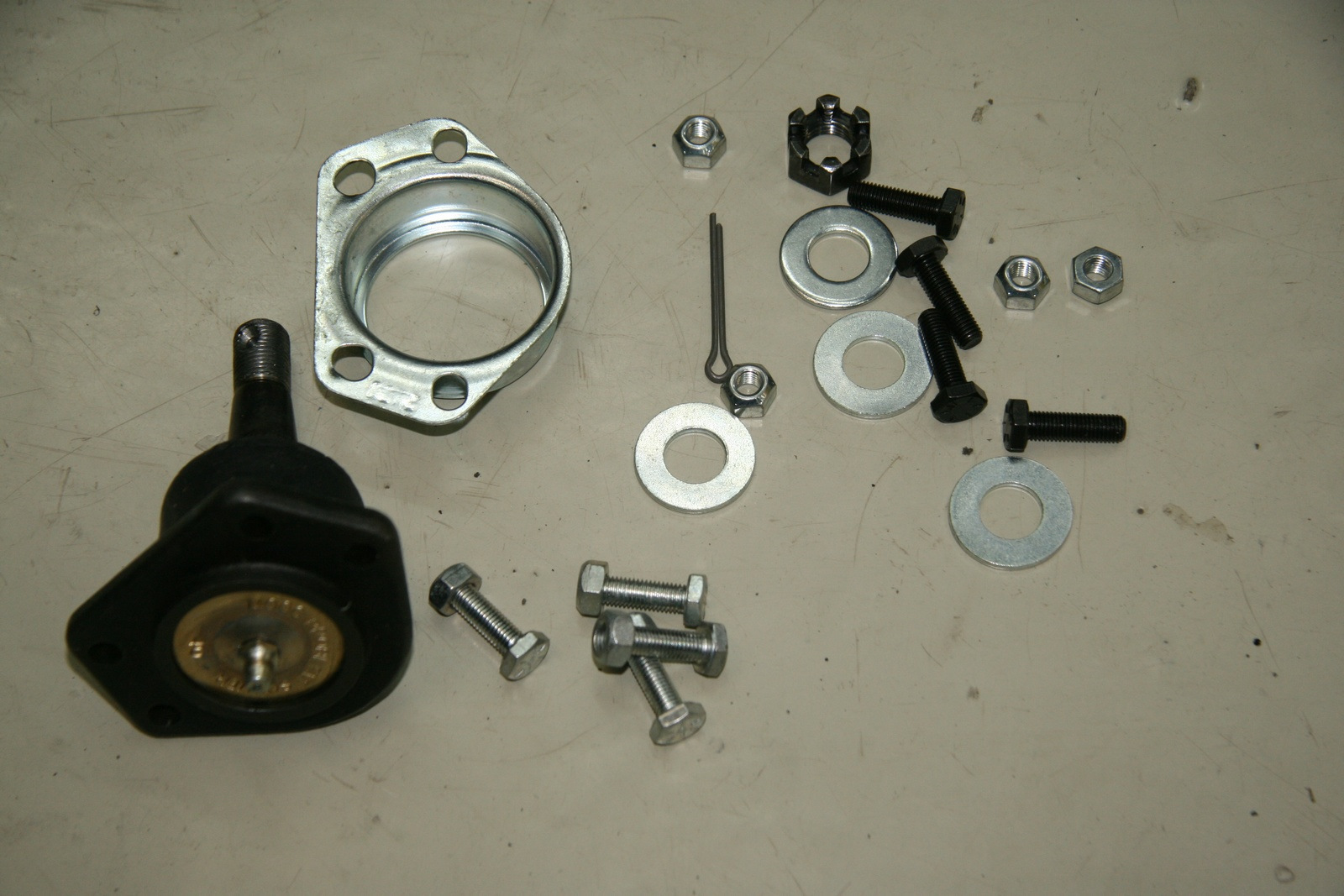

Ball joints



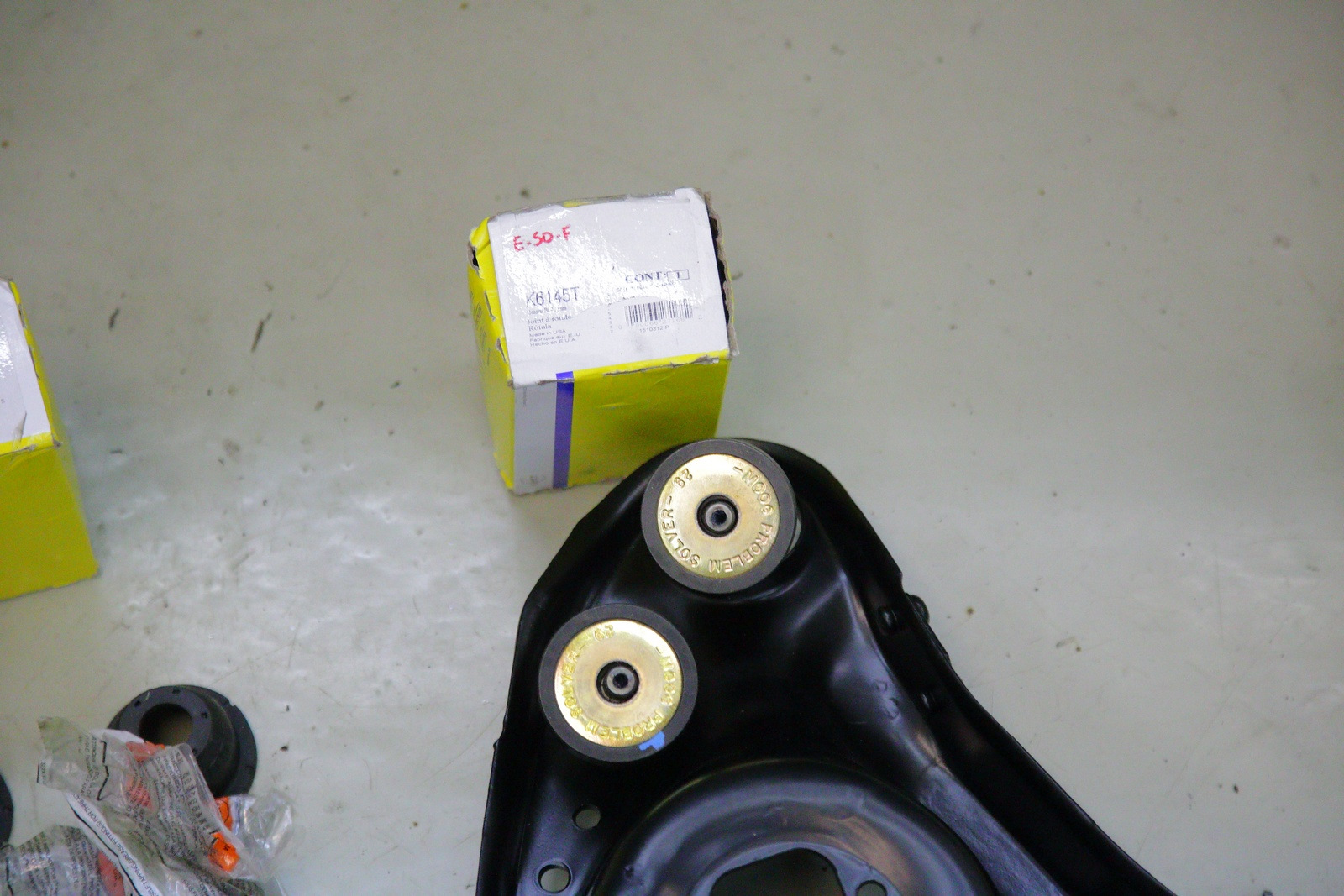

Installation of bushings





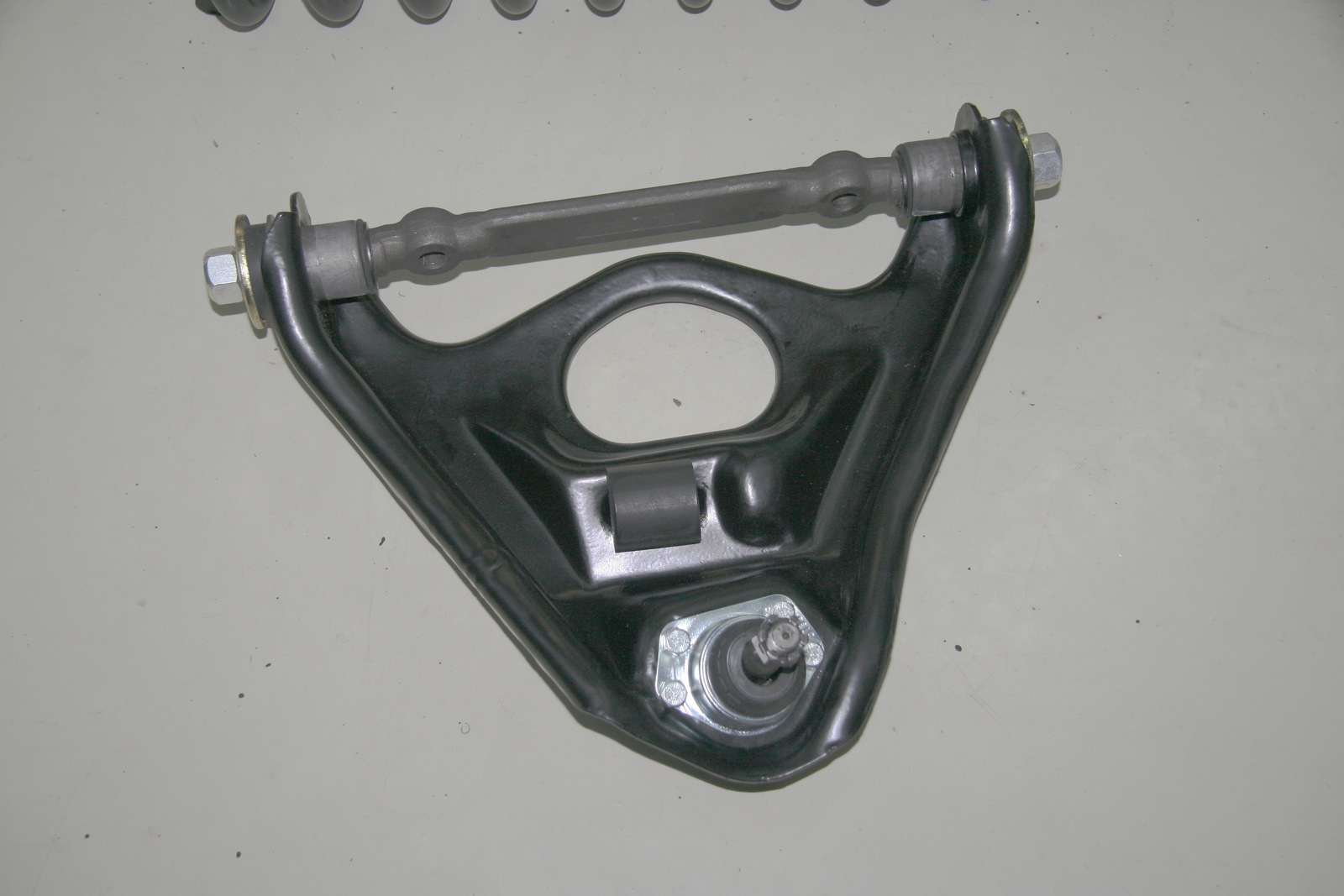

Installed



Ball joints have orientation







Ready to go

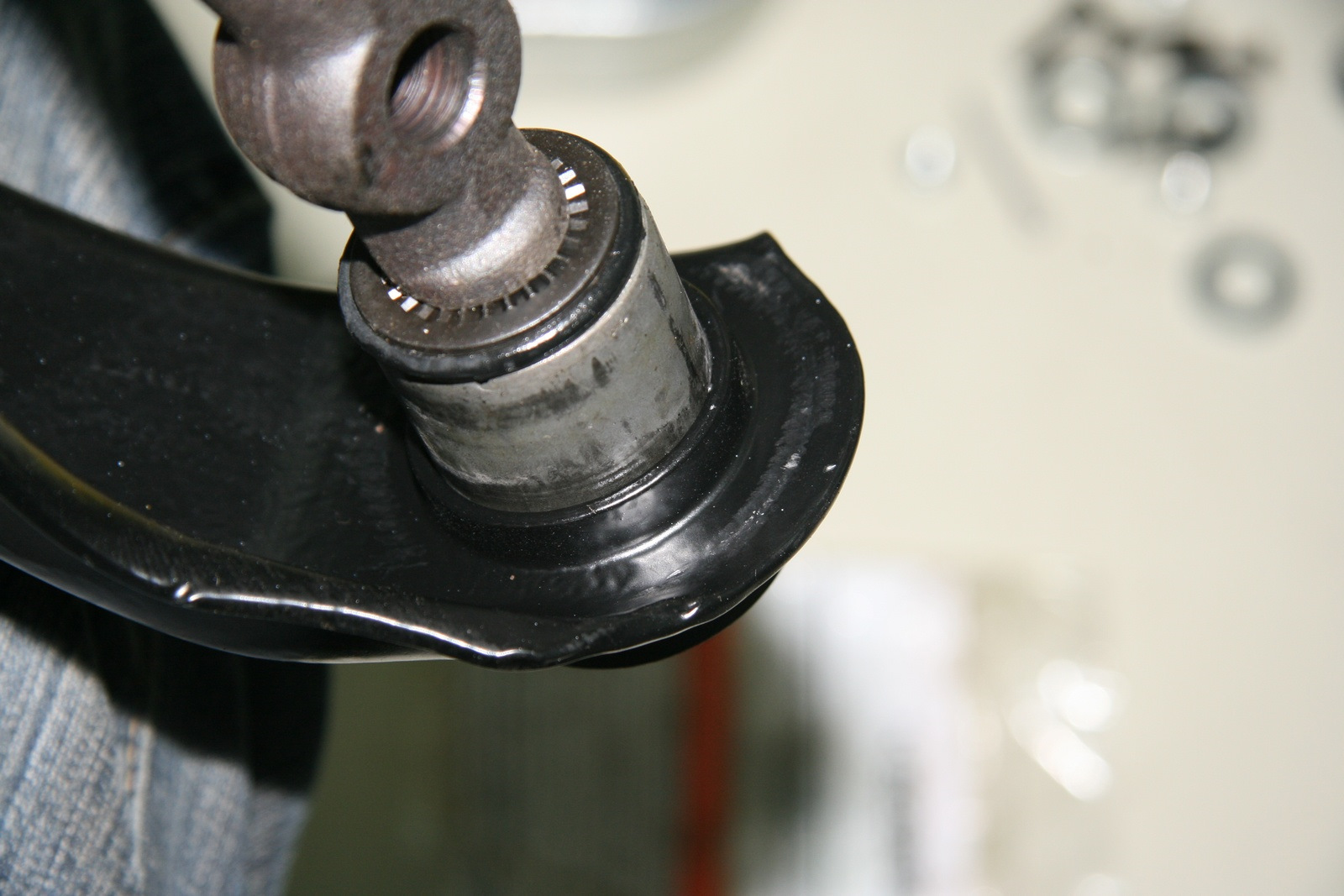

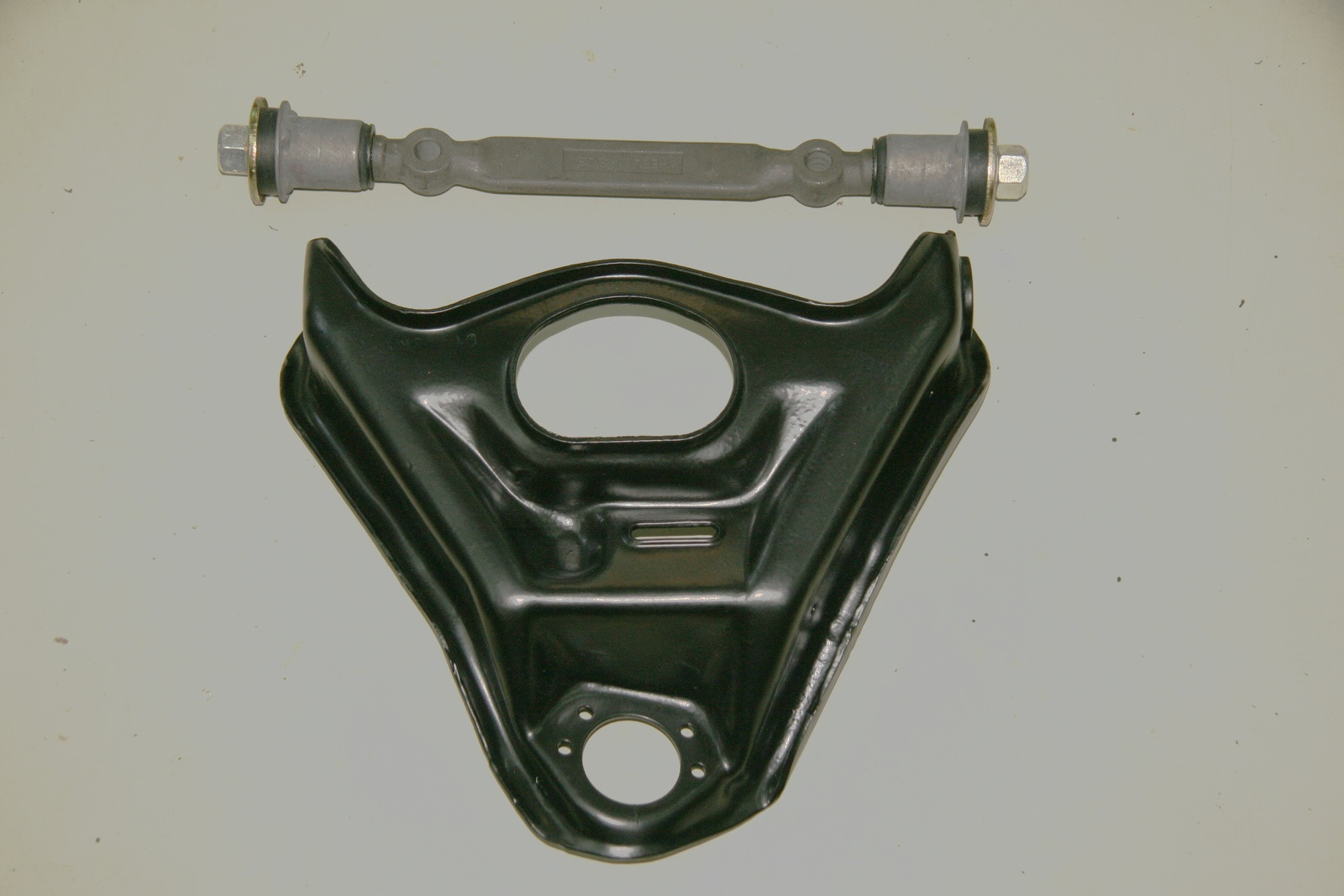

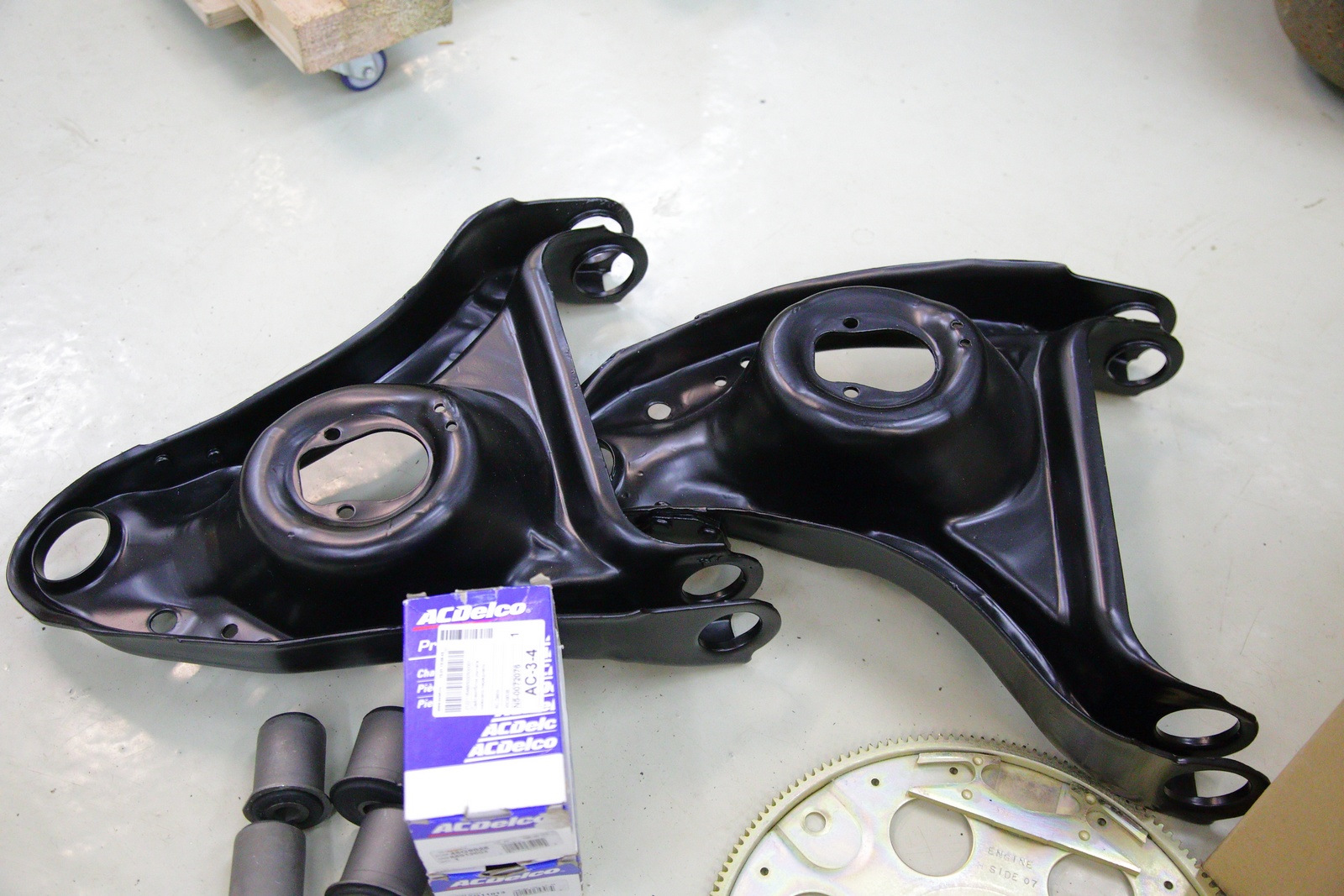

Lower arms bushings



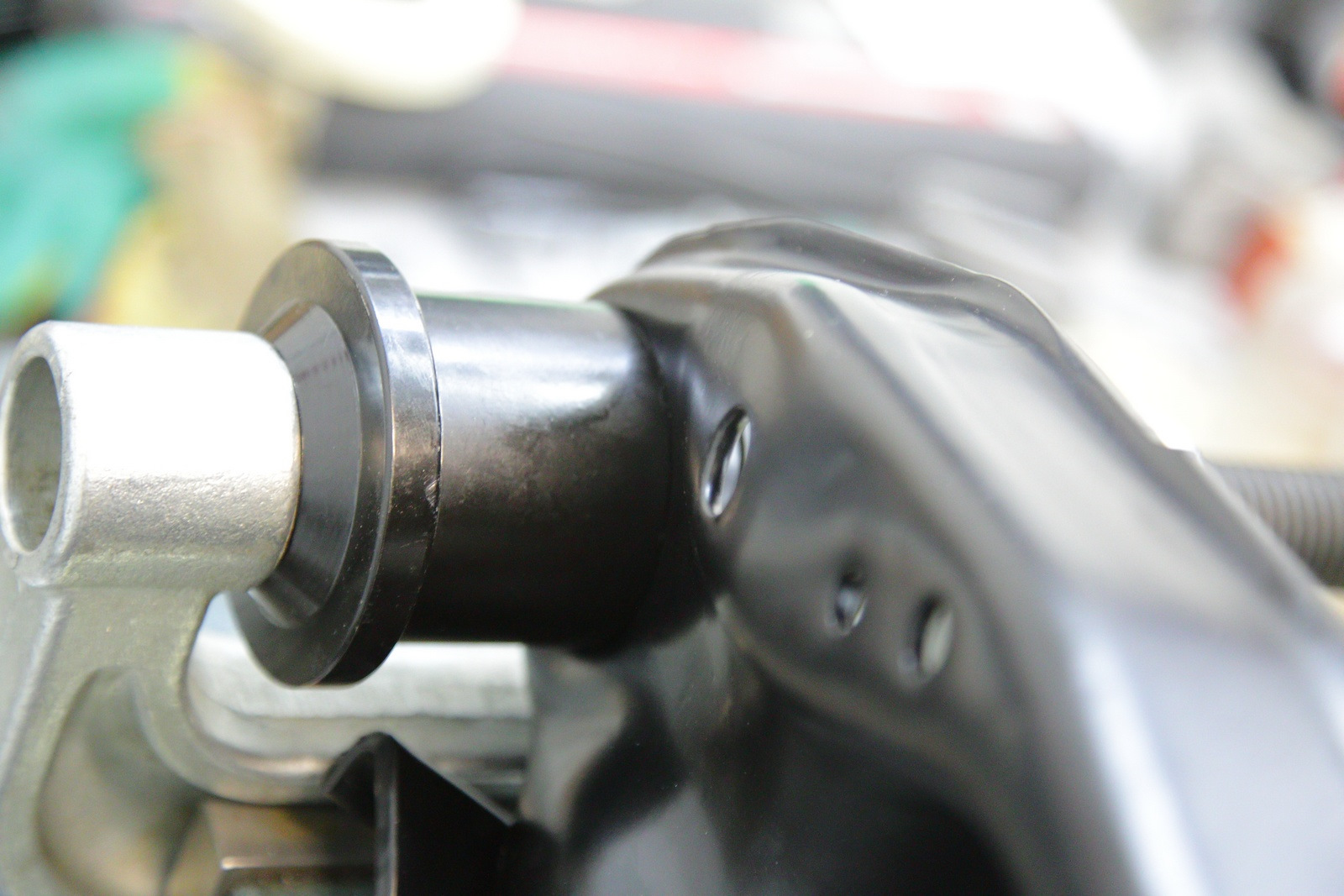

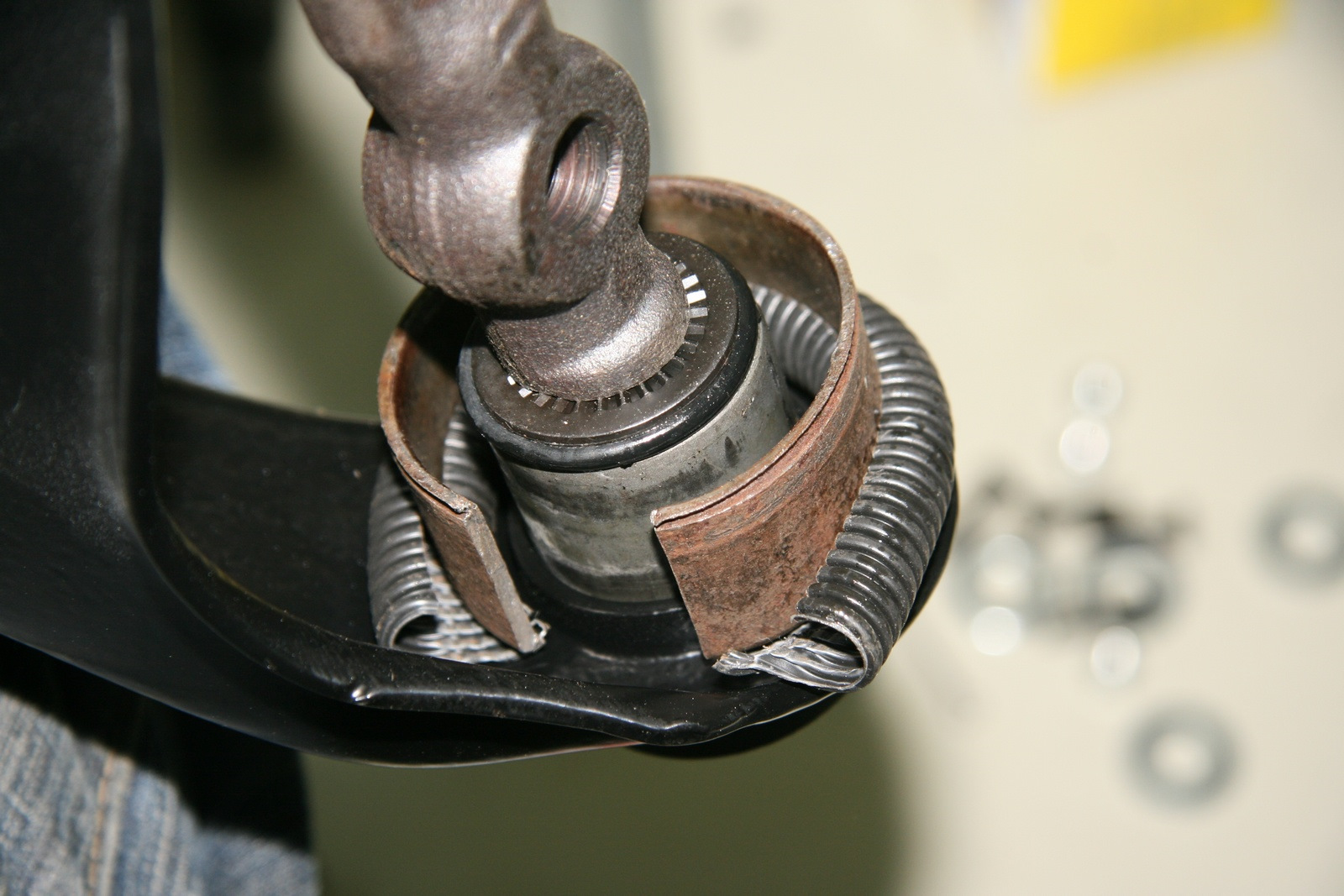

Using special spacers in order not to damage the arm





Pressing in



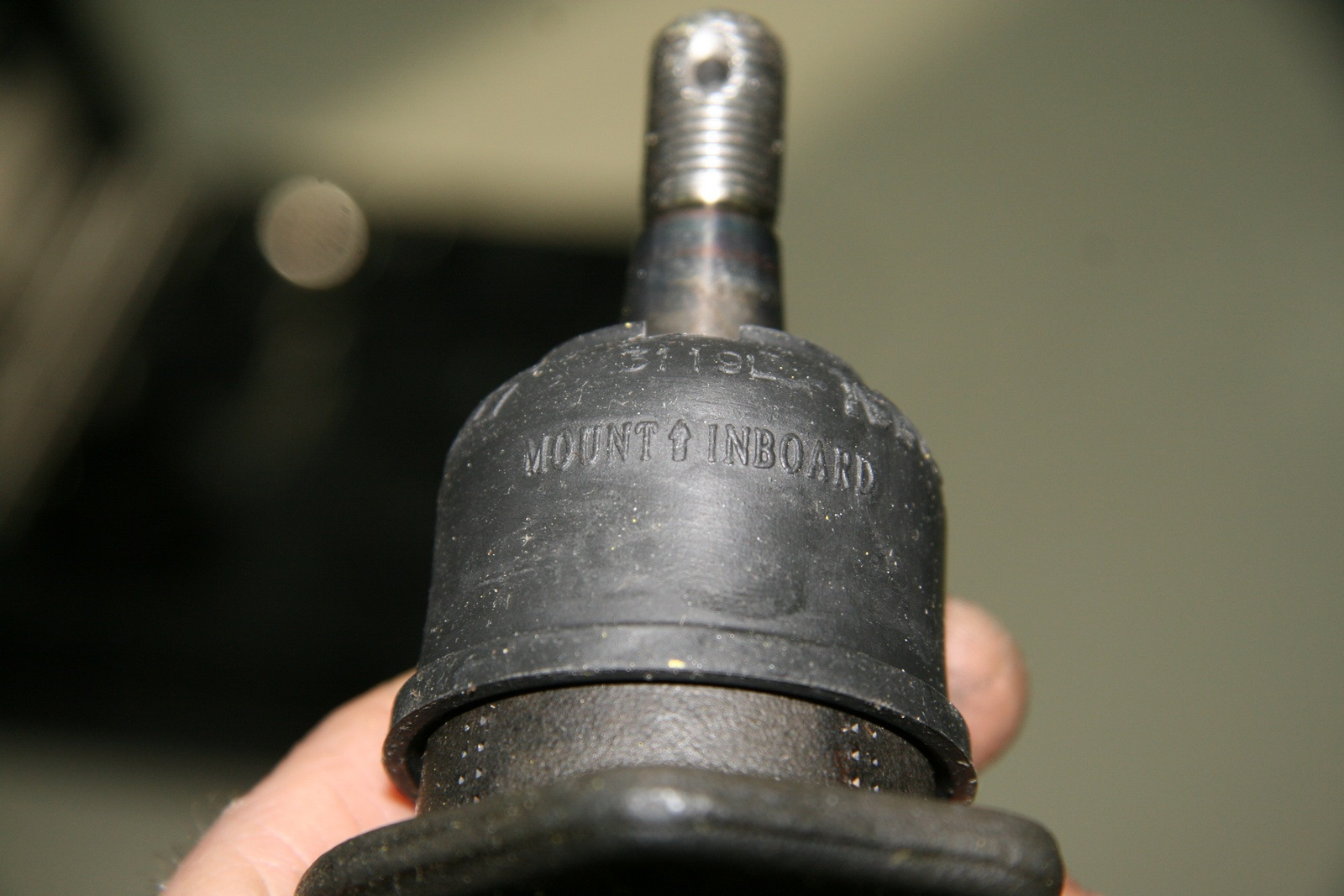

Mount inboard





Coils are specific for Fleetwood and are different from Chevrolet





Mercedes-Benz spring compressor

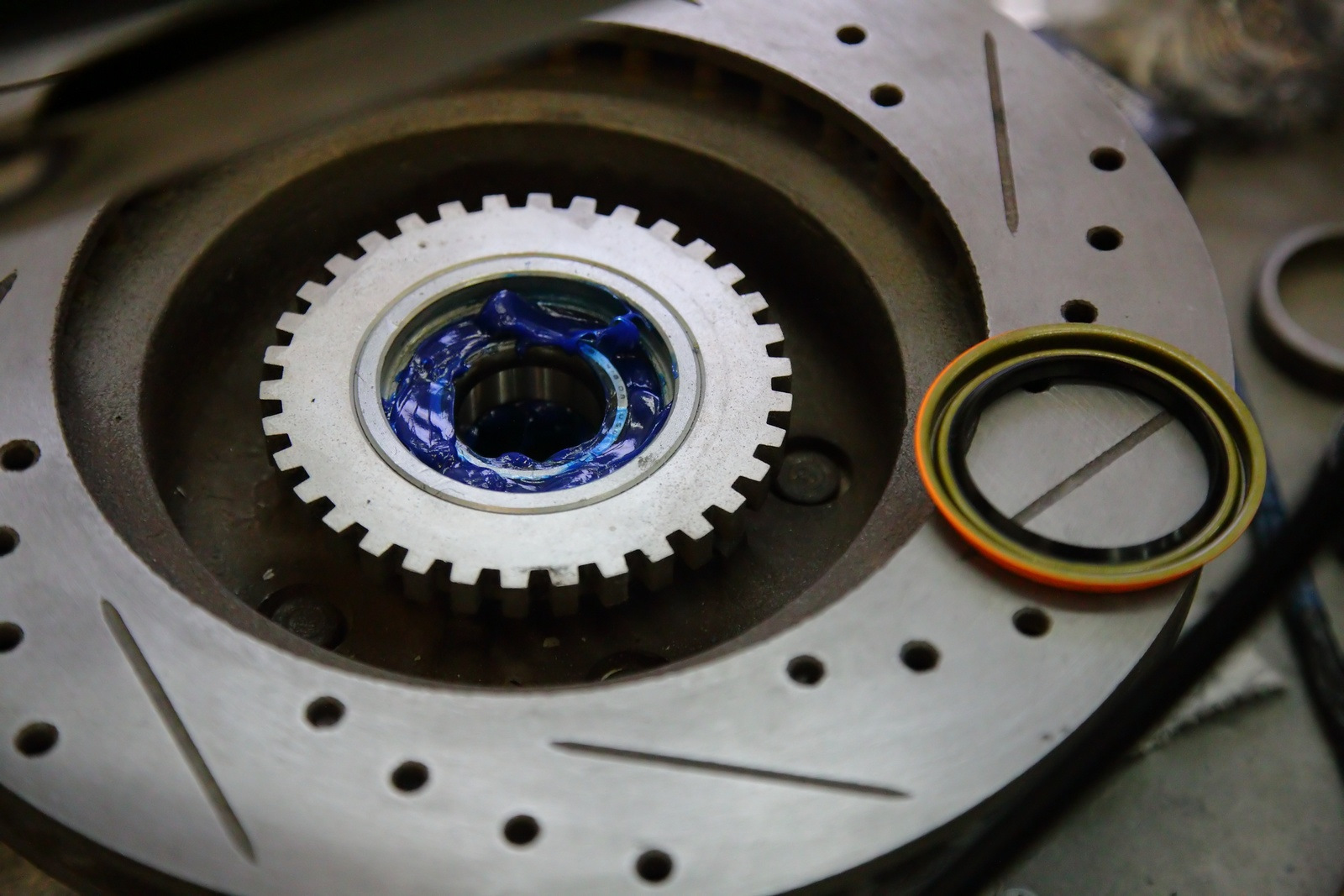

New bearings and seals



Adjusted as per manual



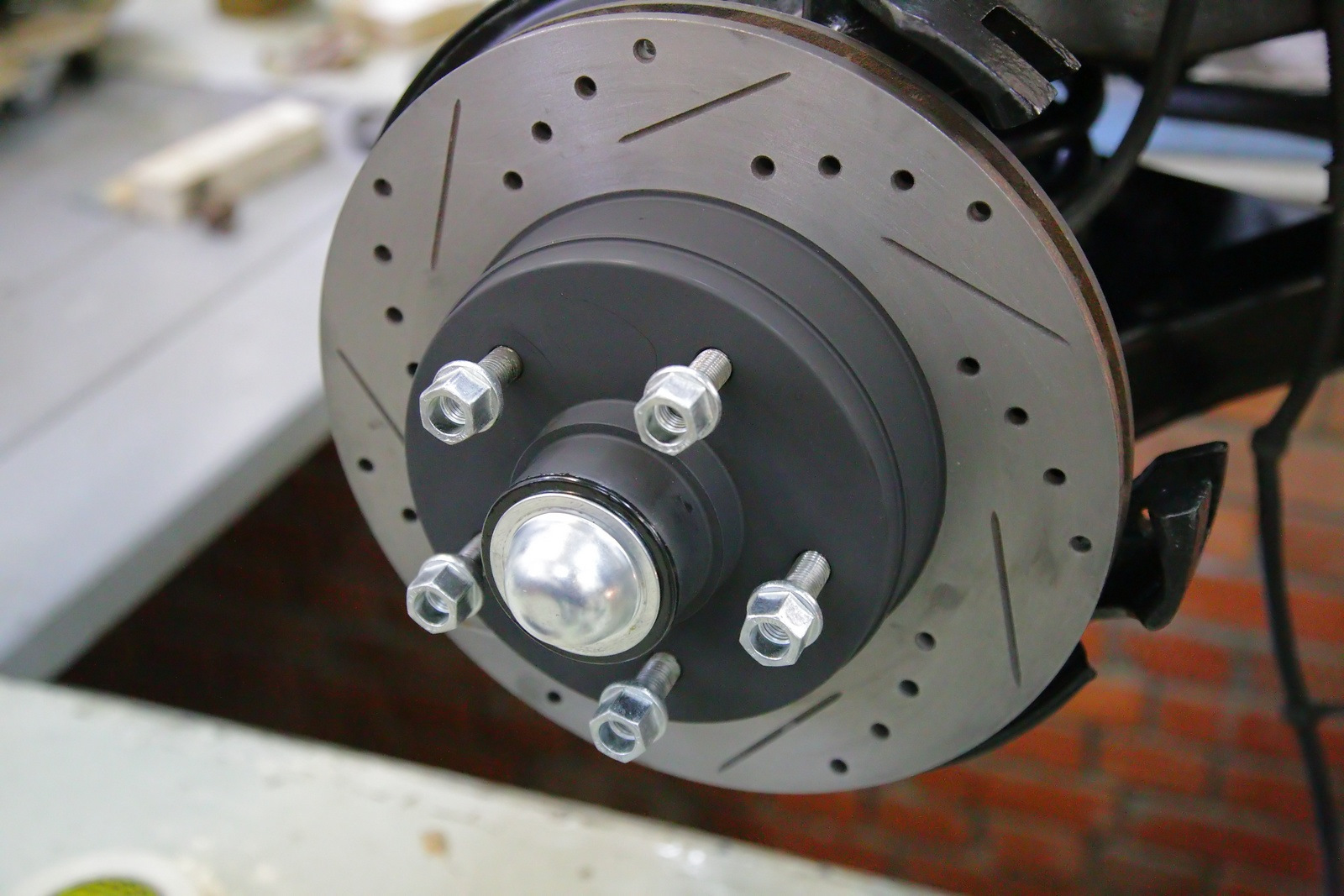

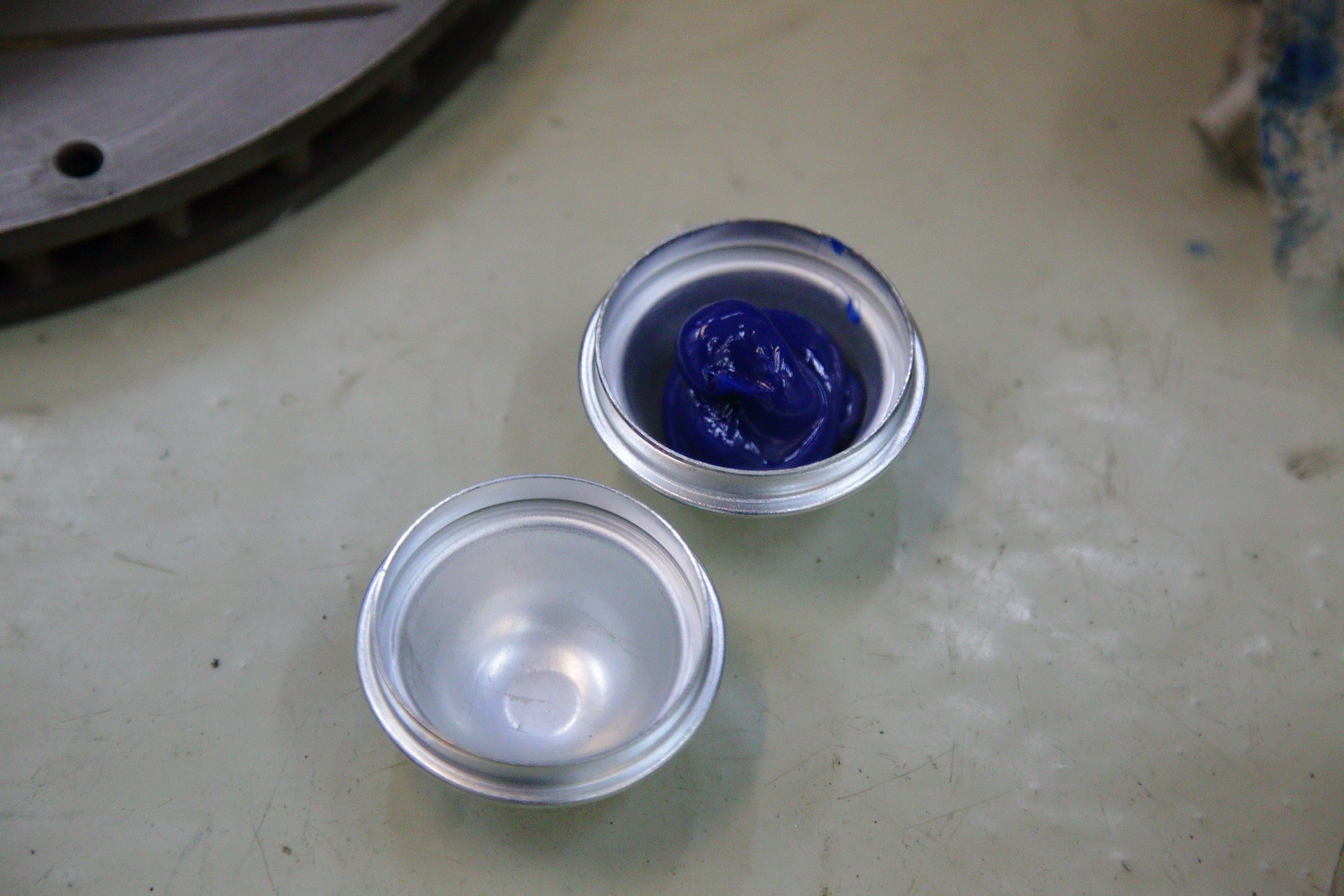

New caps



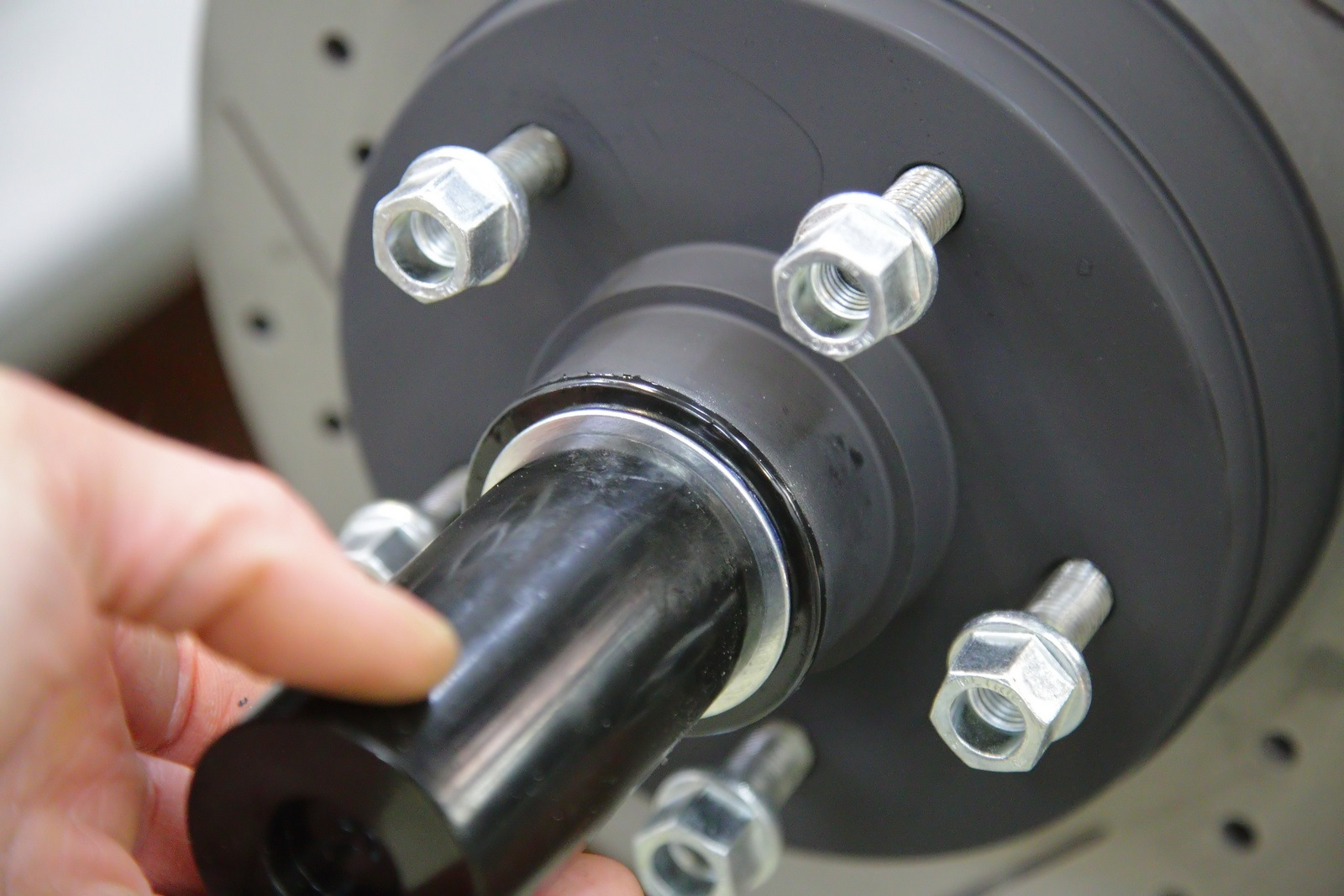

and press it in using the tool





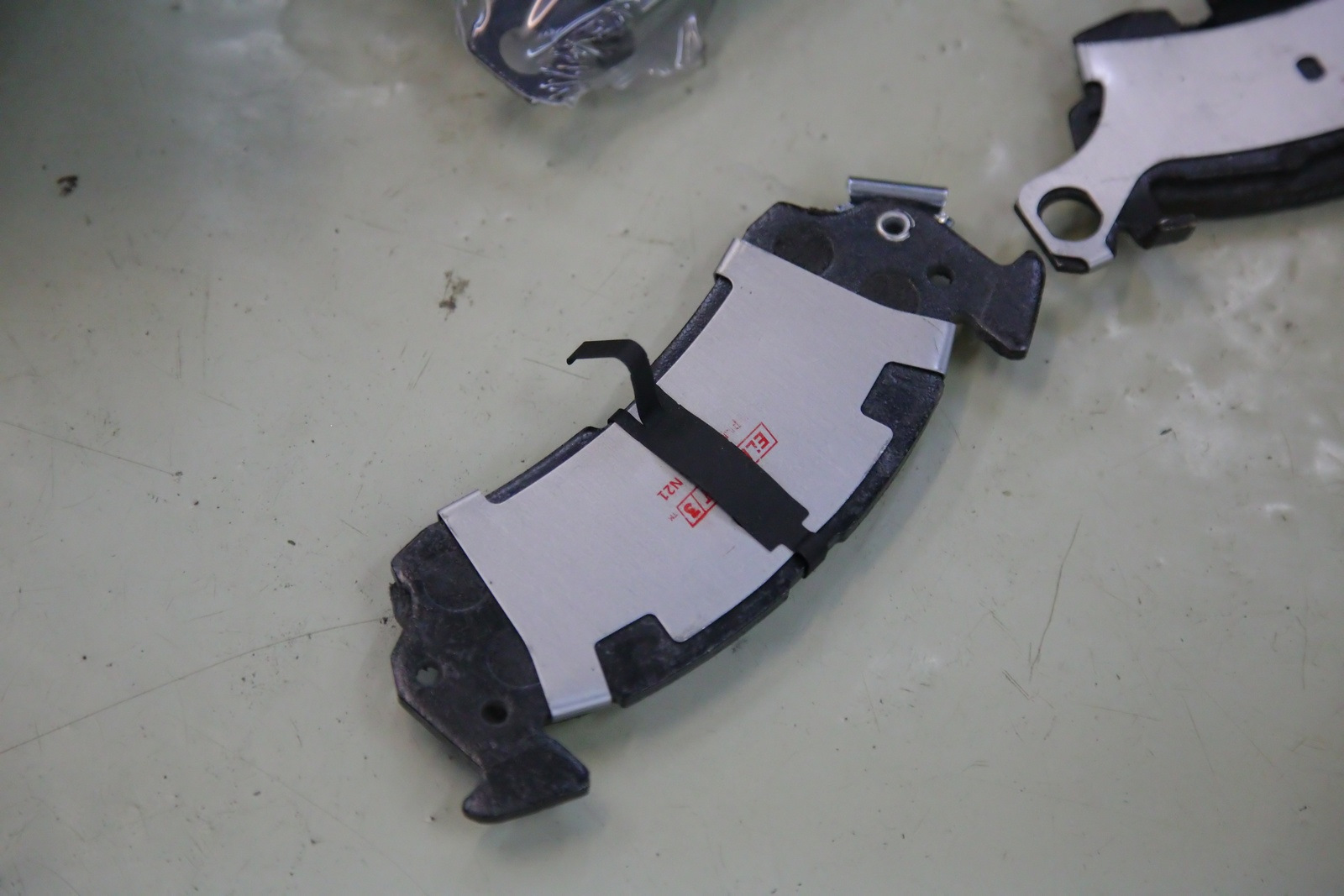

Brake pads - Raybestos Element3 - the best in class







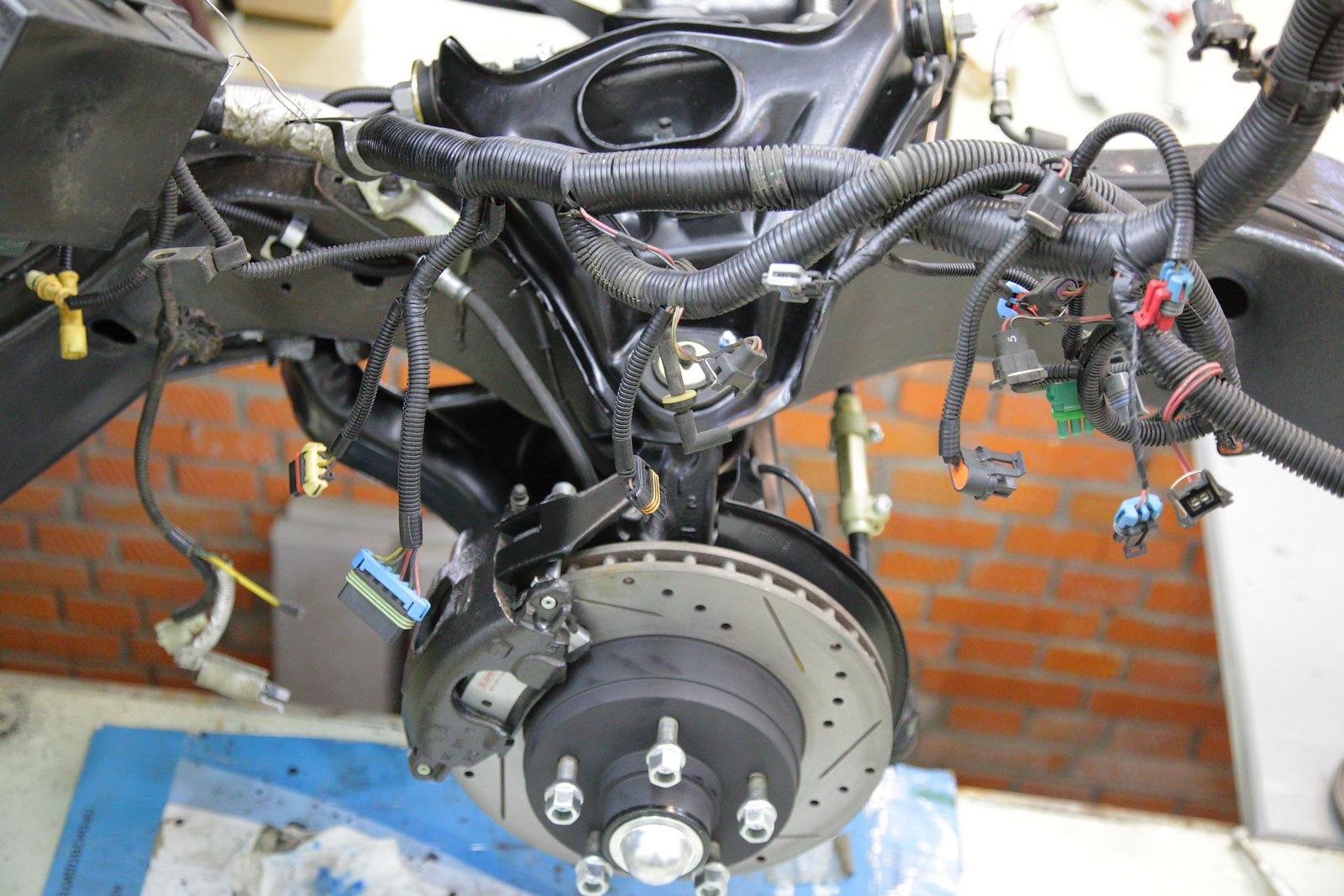

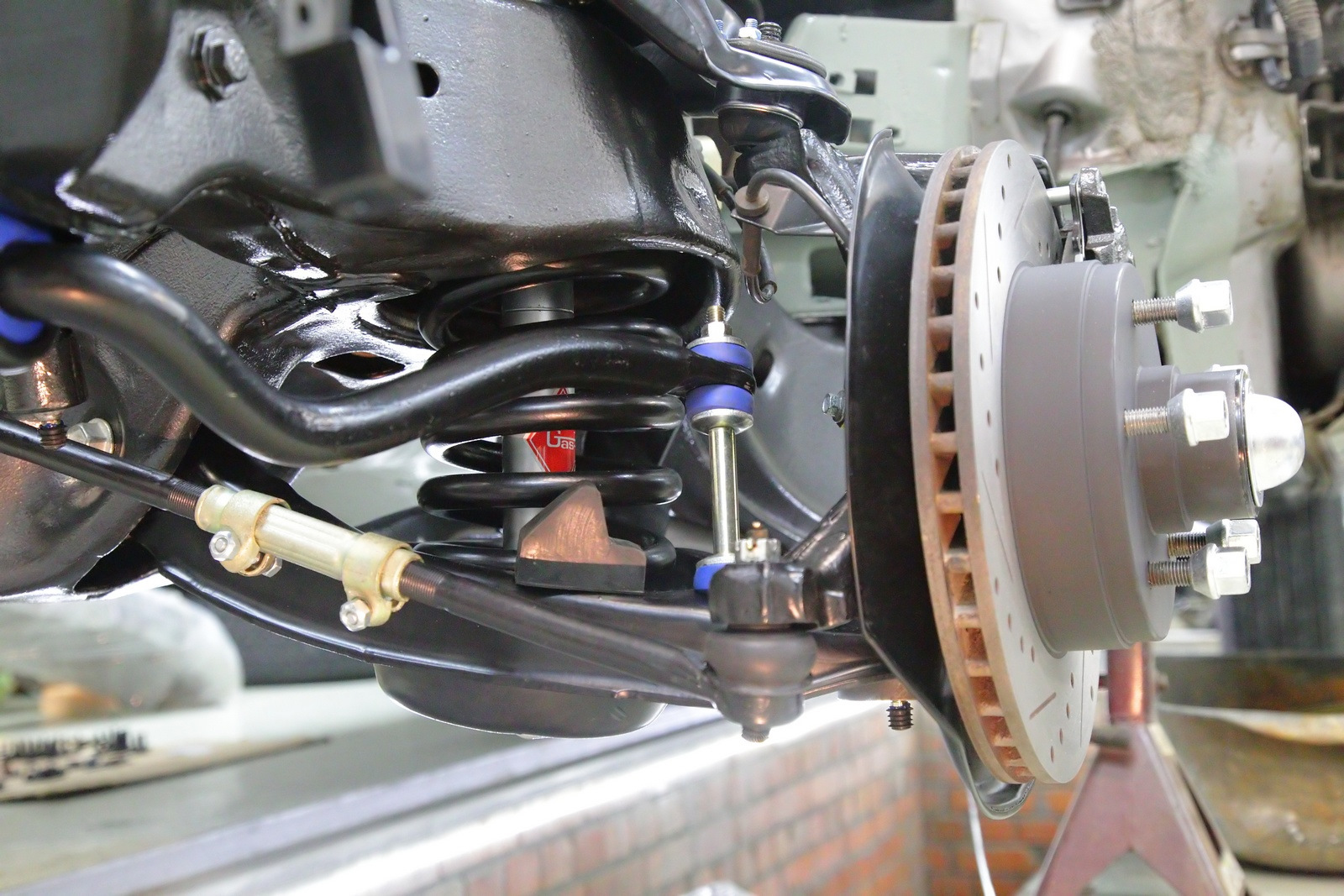

These pictures do not need any comments







Shocks that are excellent for Fleetwood. Both steering and soft ride in one can



How about that?



Scroll to what it was before

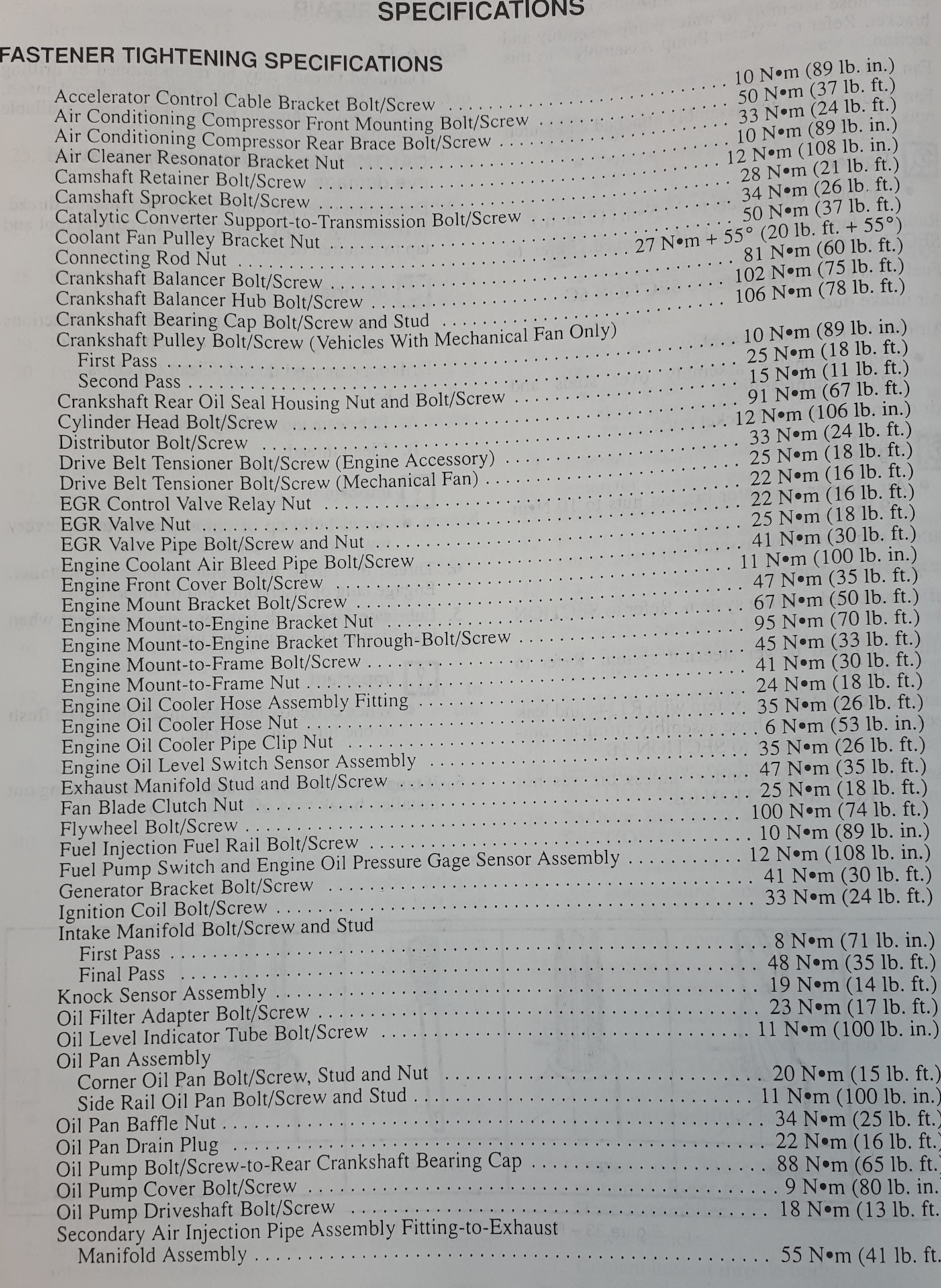

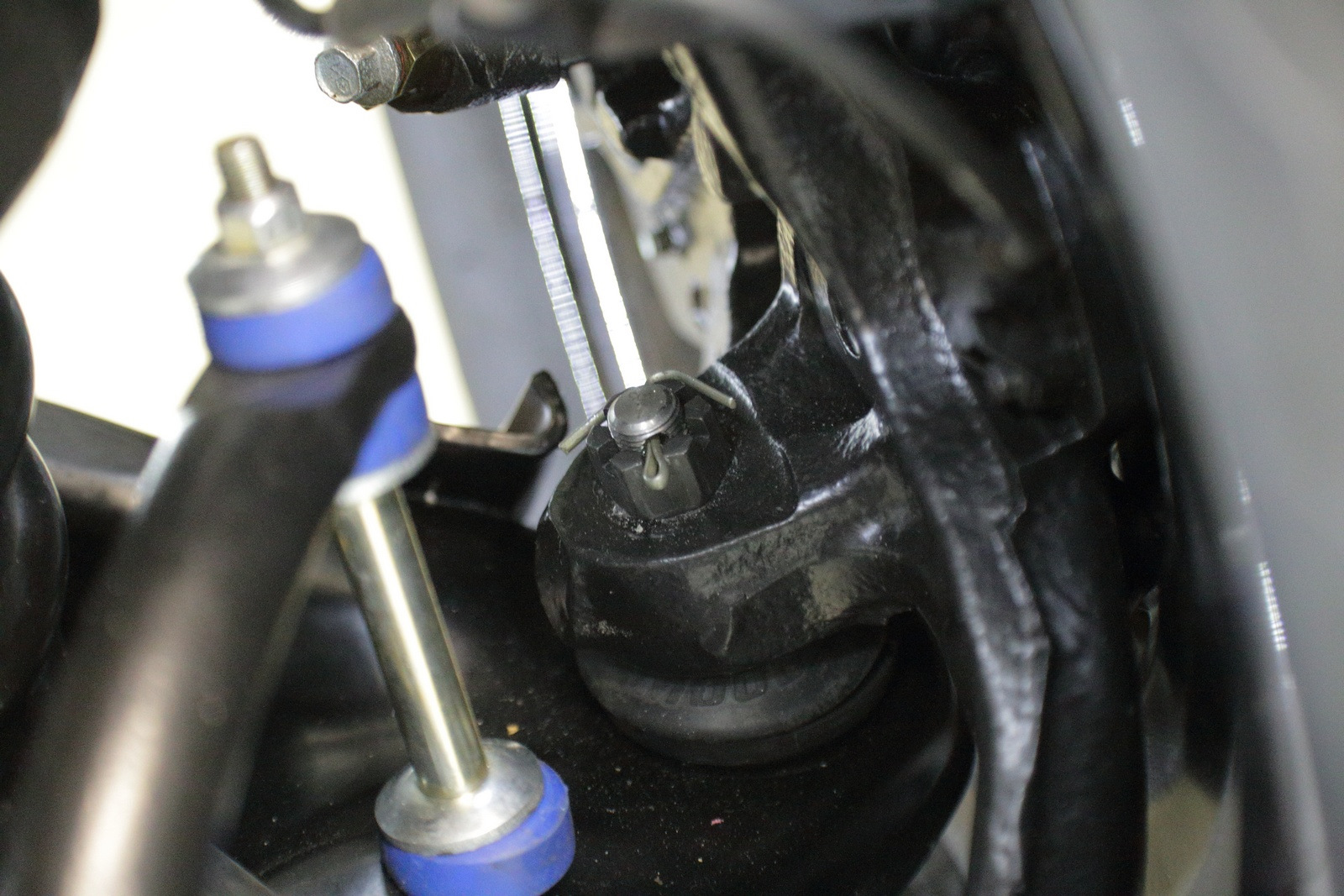

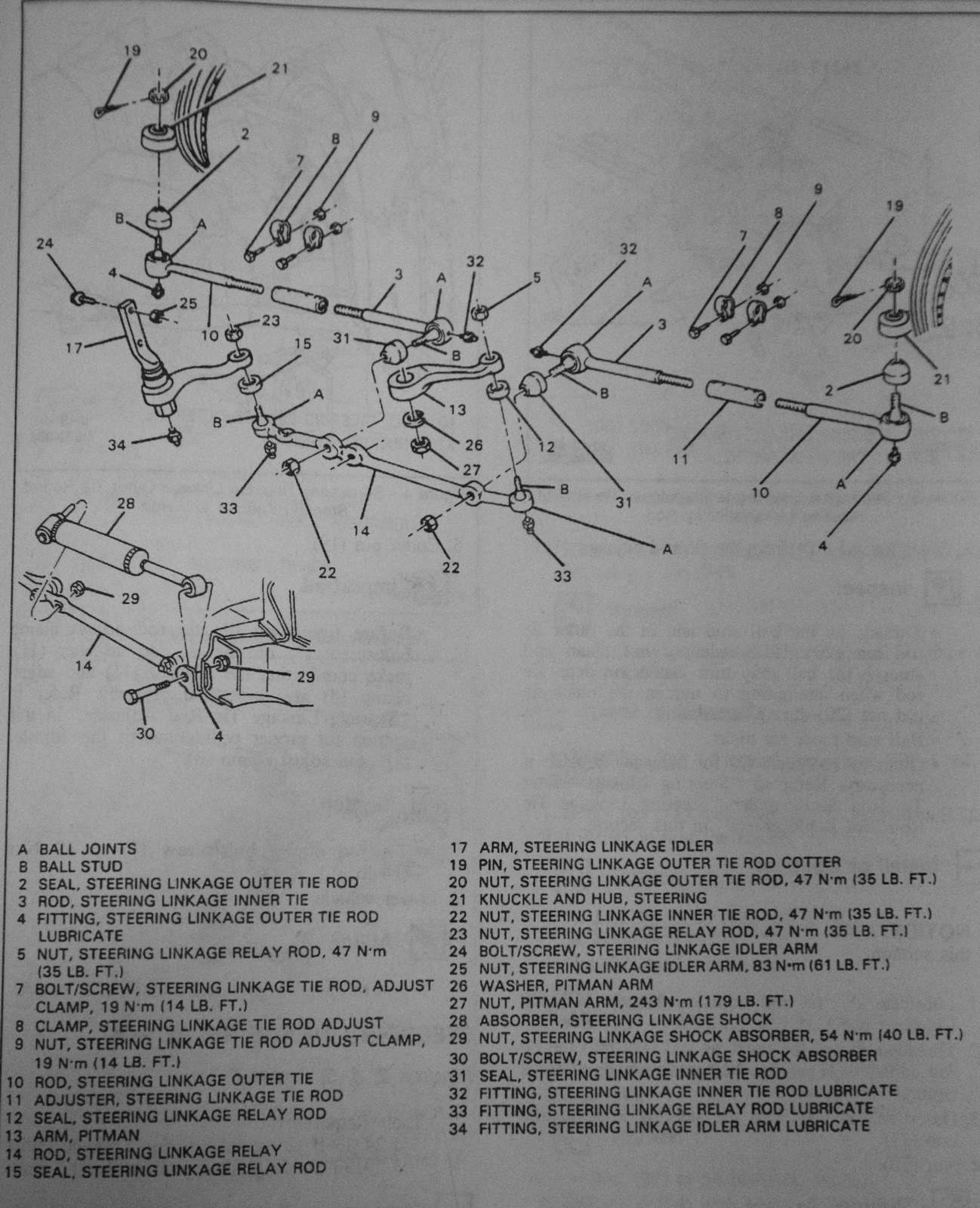

Tightening torques





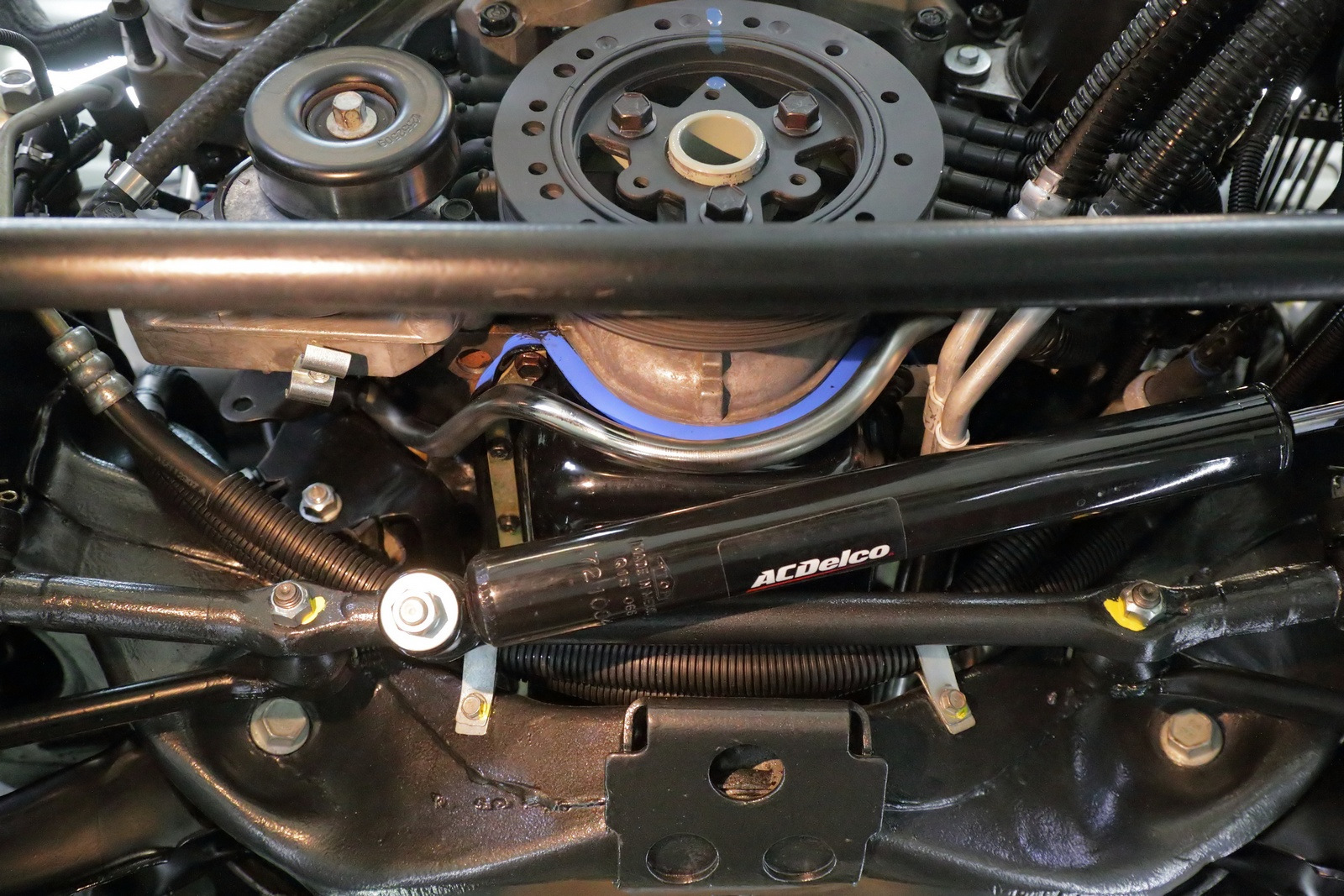

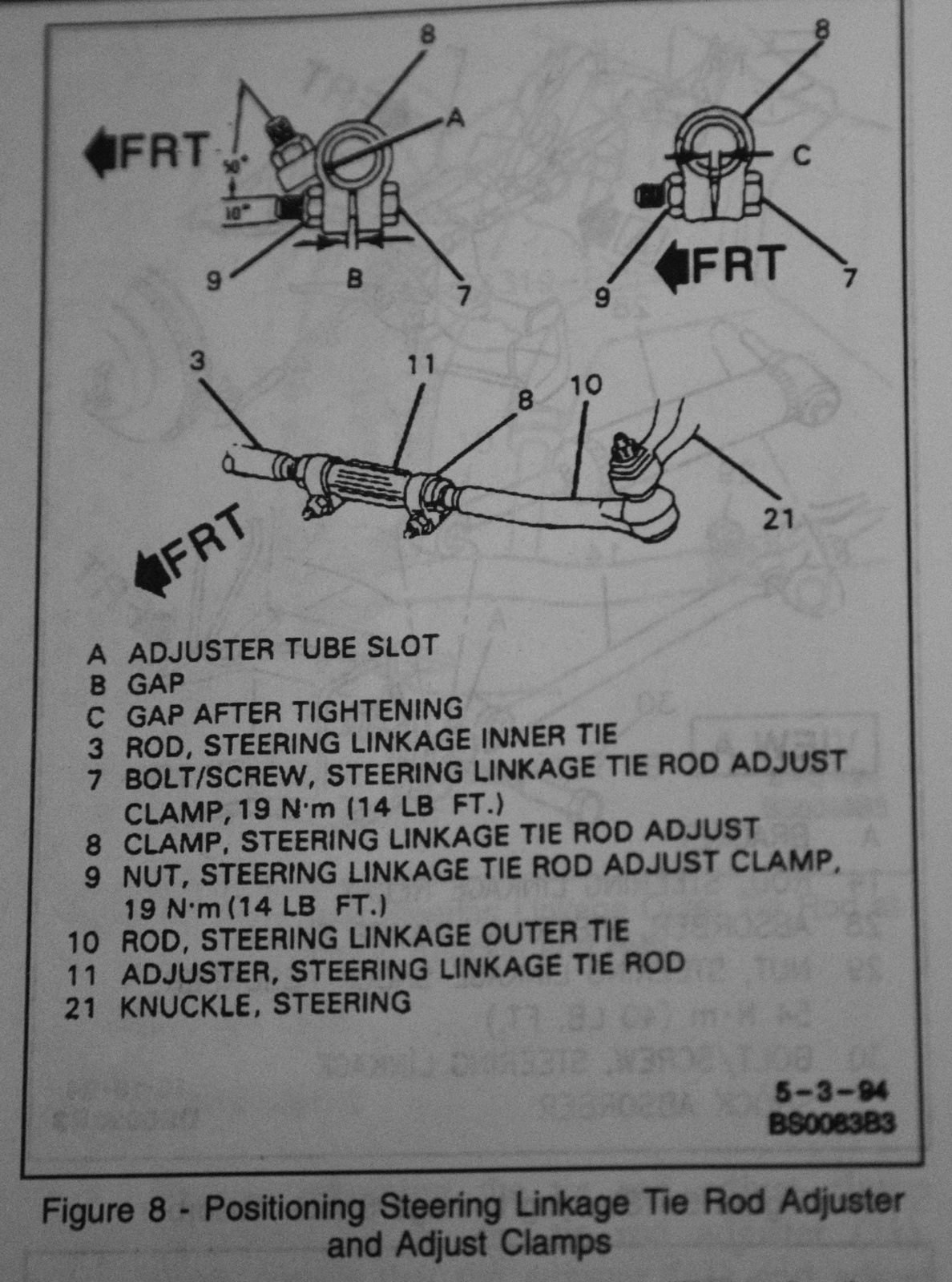

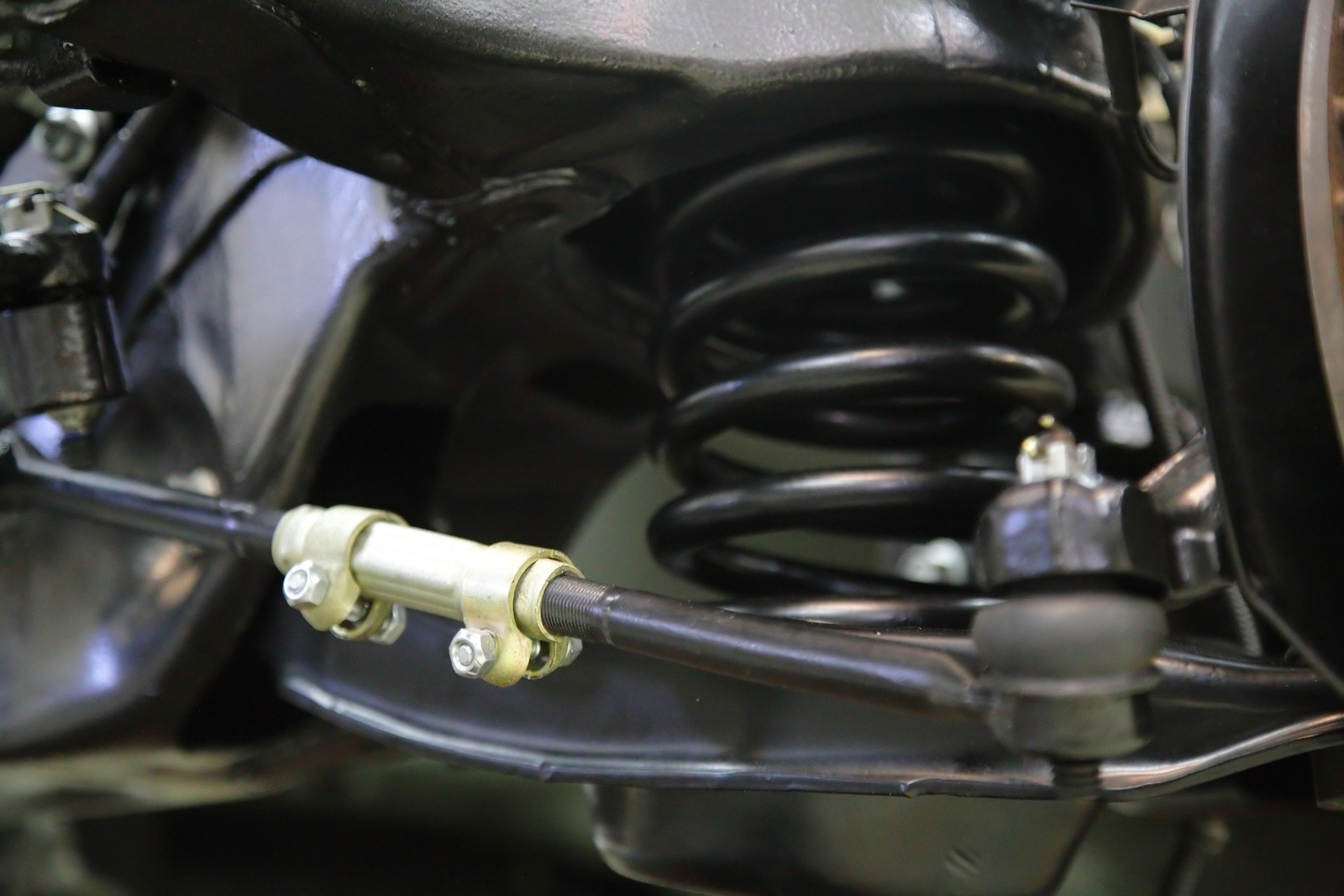

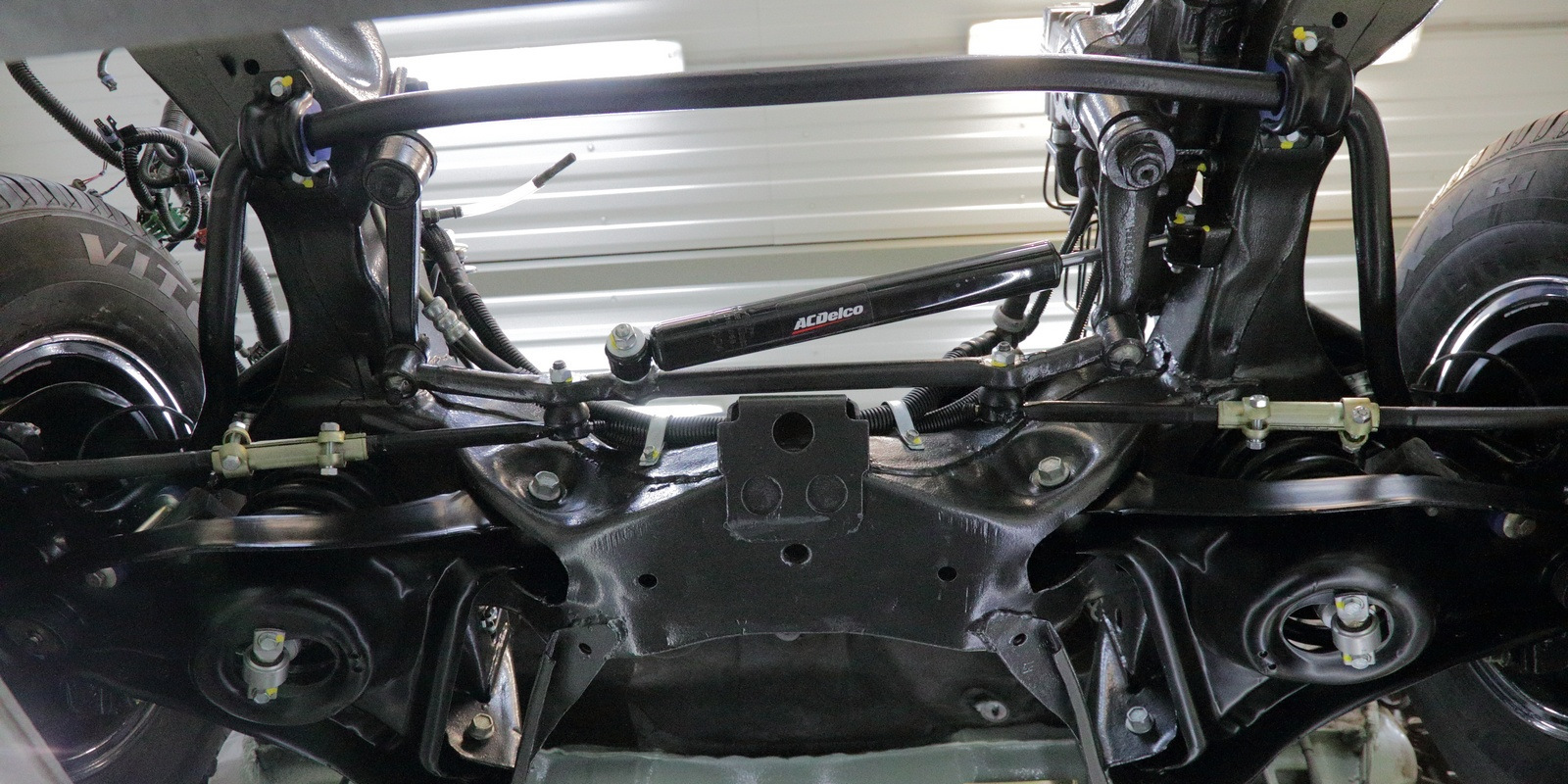

Correct orientation of steering links



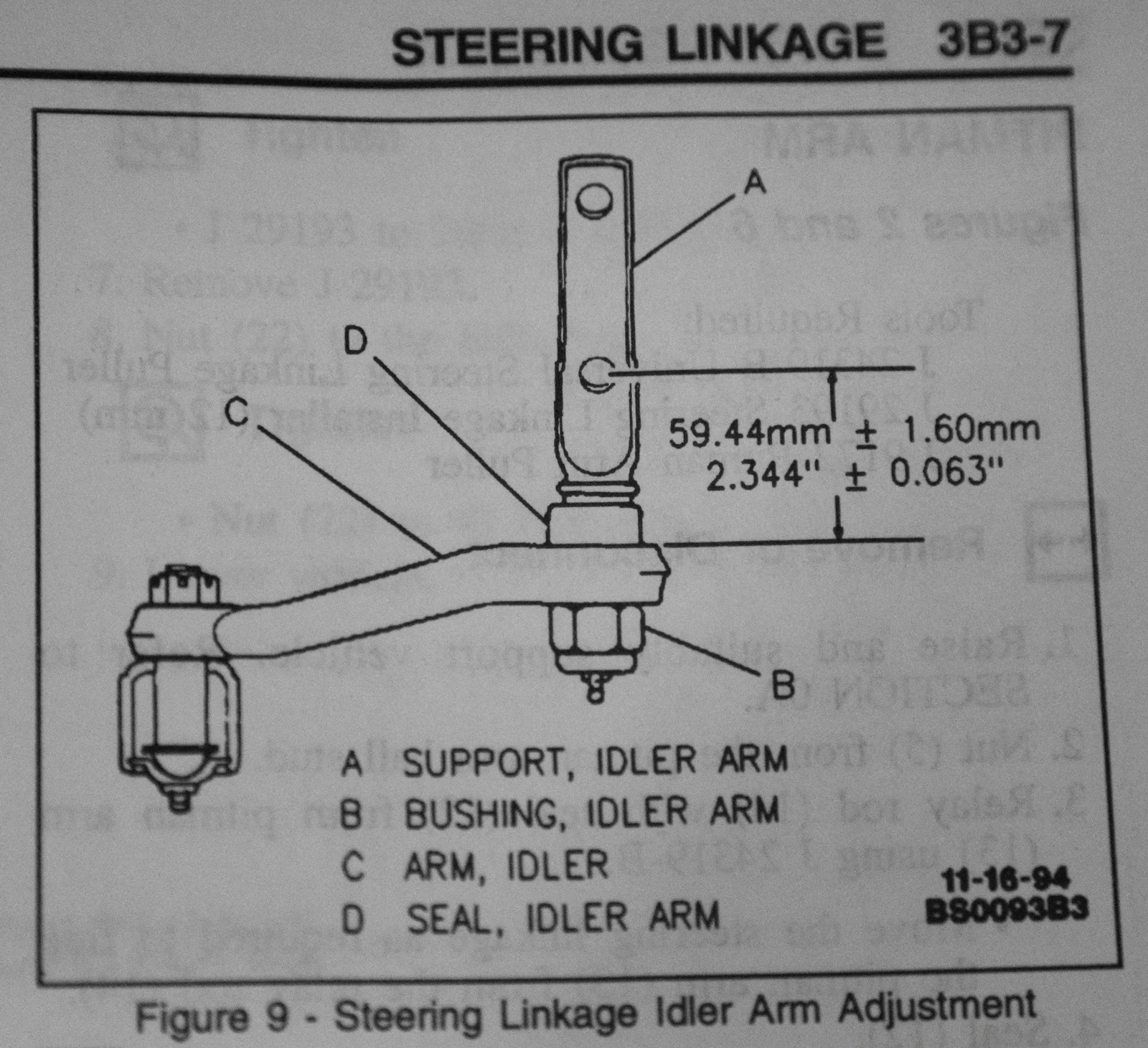

Idler arm correct adjustment



Hello, Ukraine. That was done in January 2022

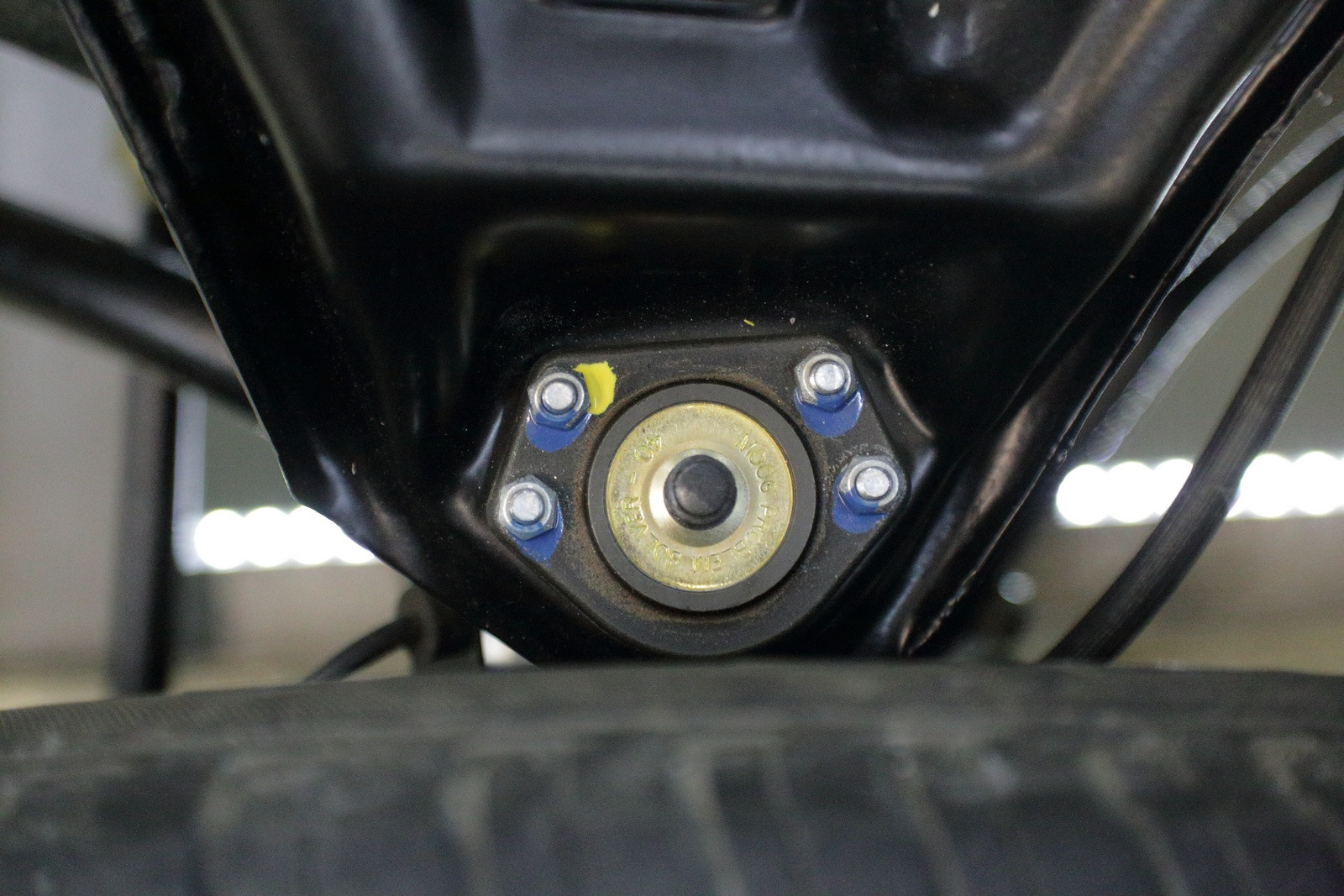

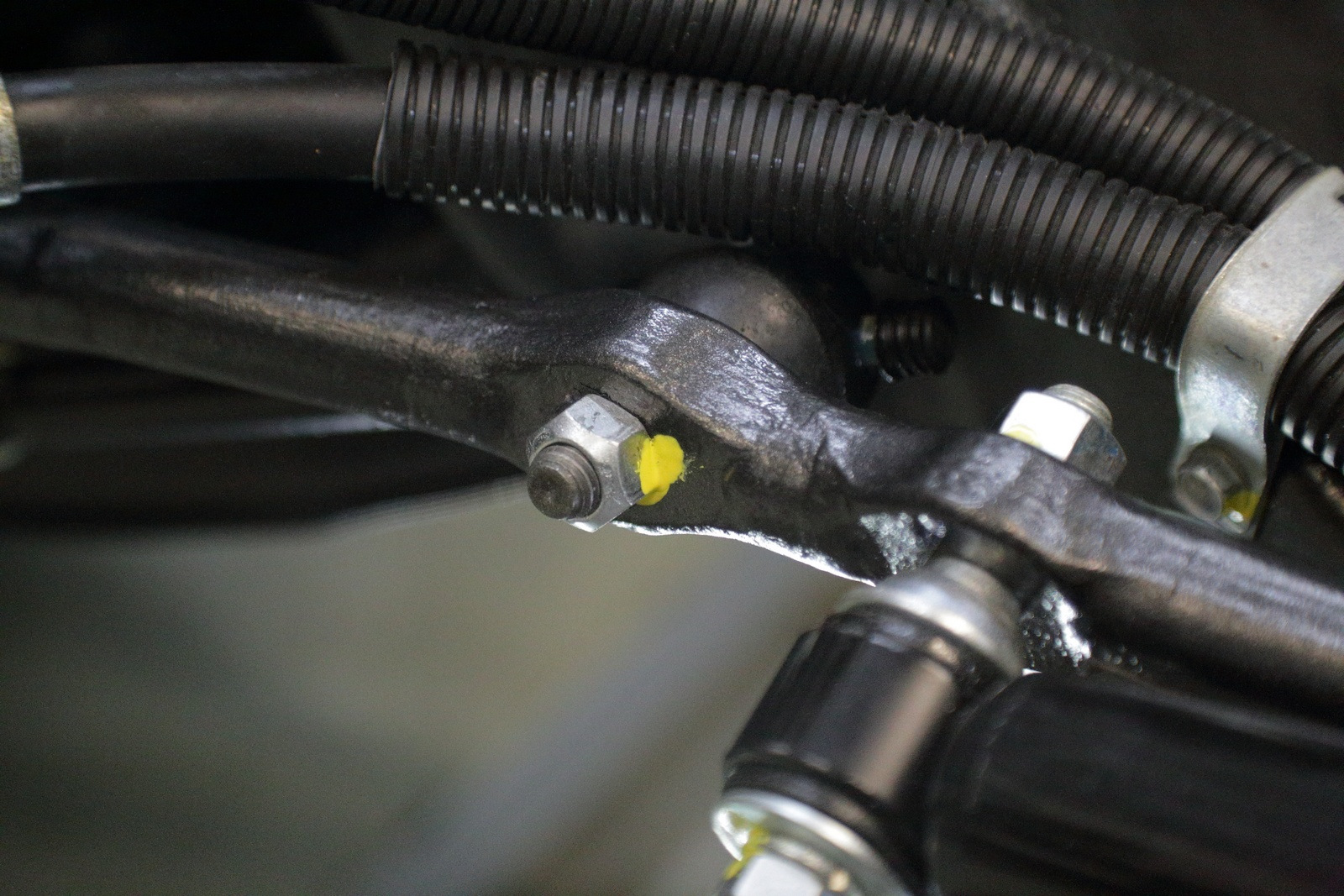

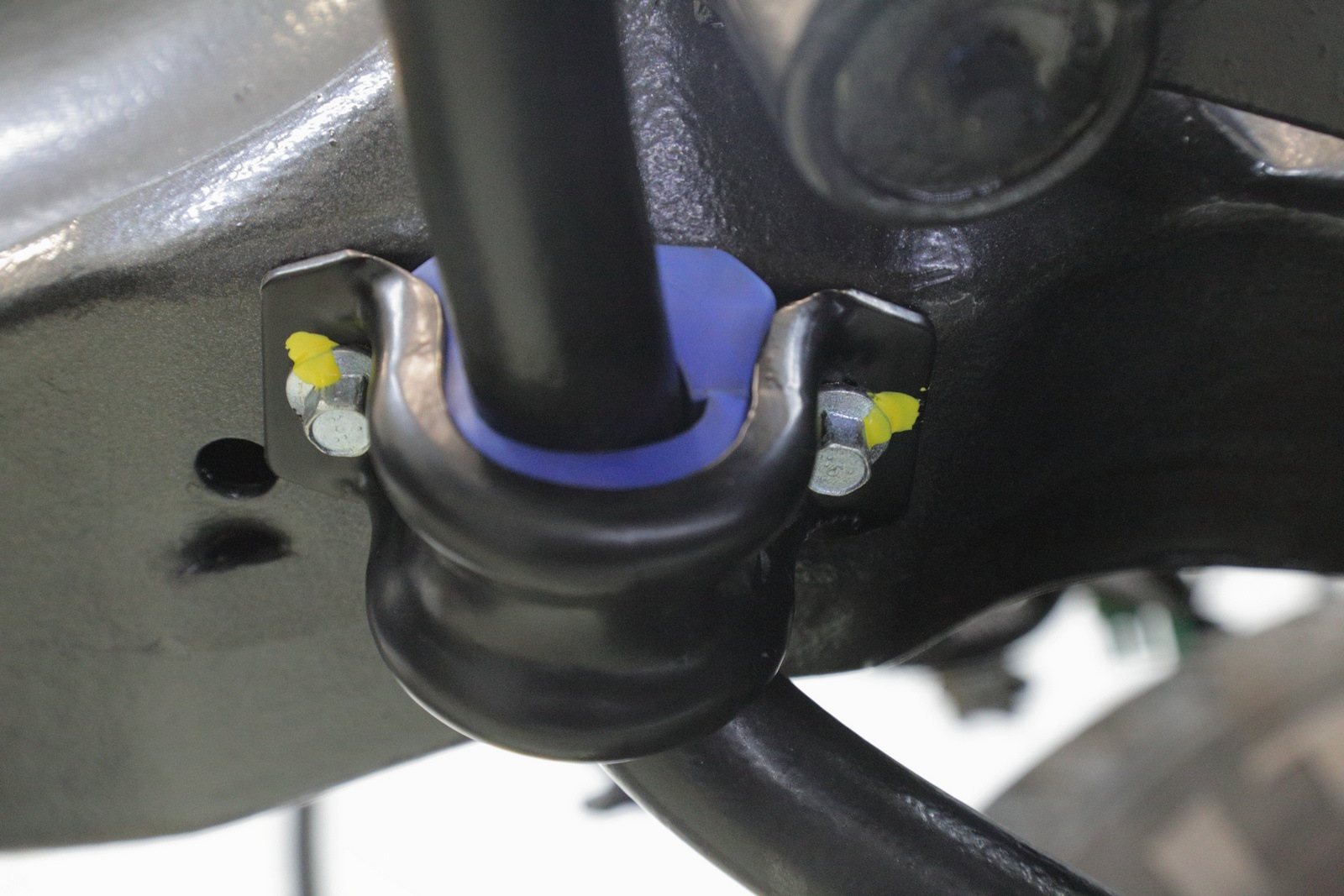

Mark all the bolts and nuts to easy monitor if they become loose

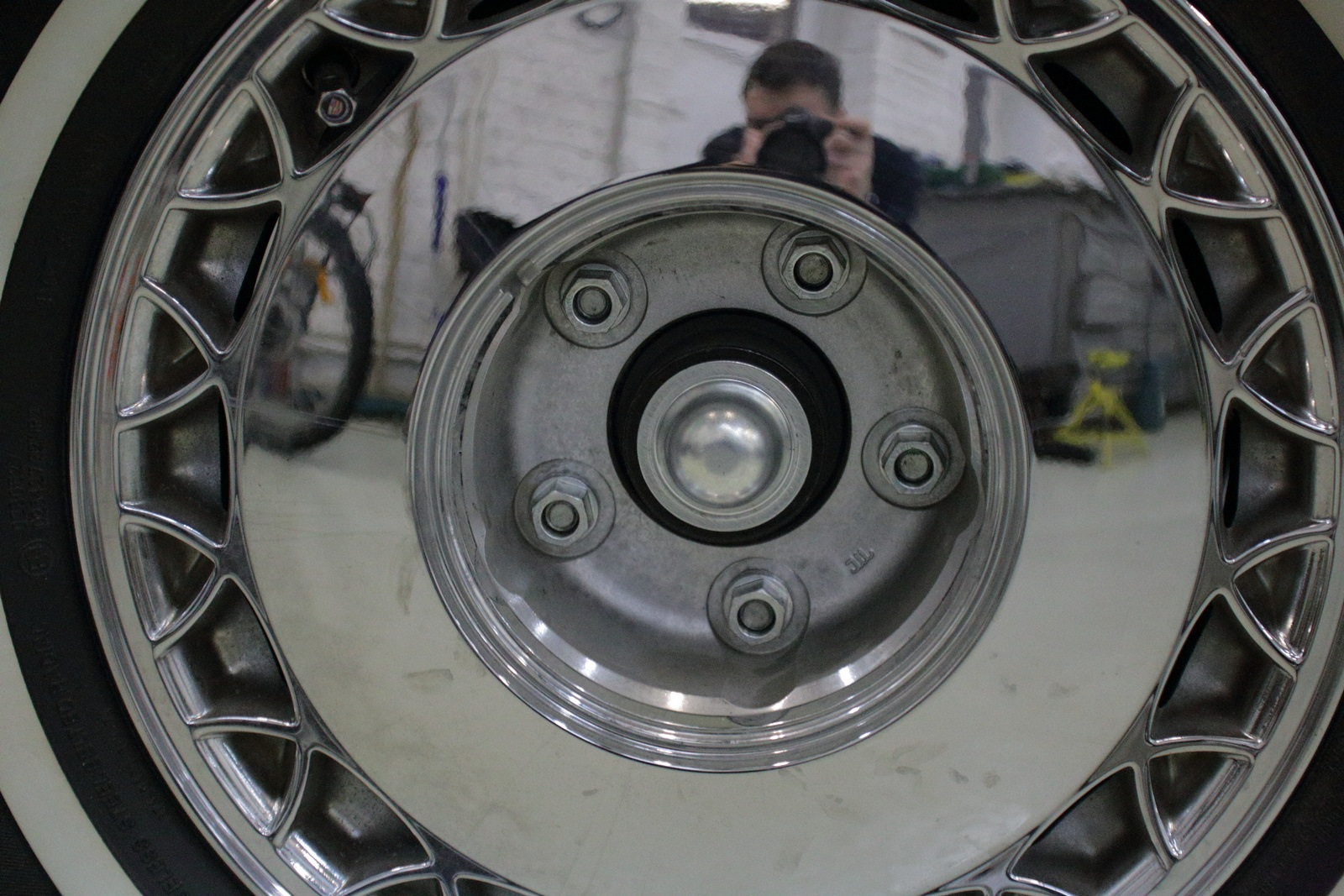

On wheels again

[James Landi]

Impressive discipline and workmanship.  As you roll out these images, it's clear that you left nothing untouched.

[kudims]

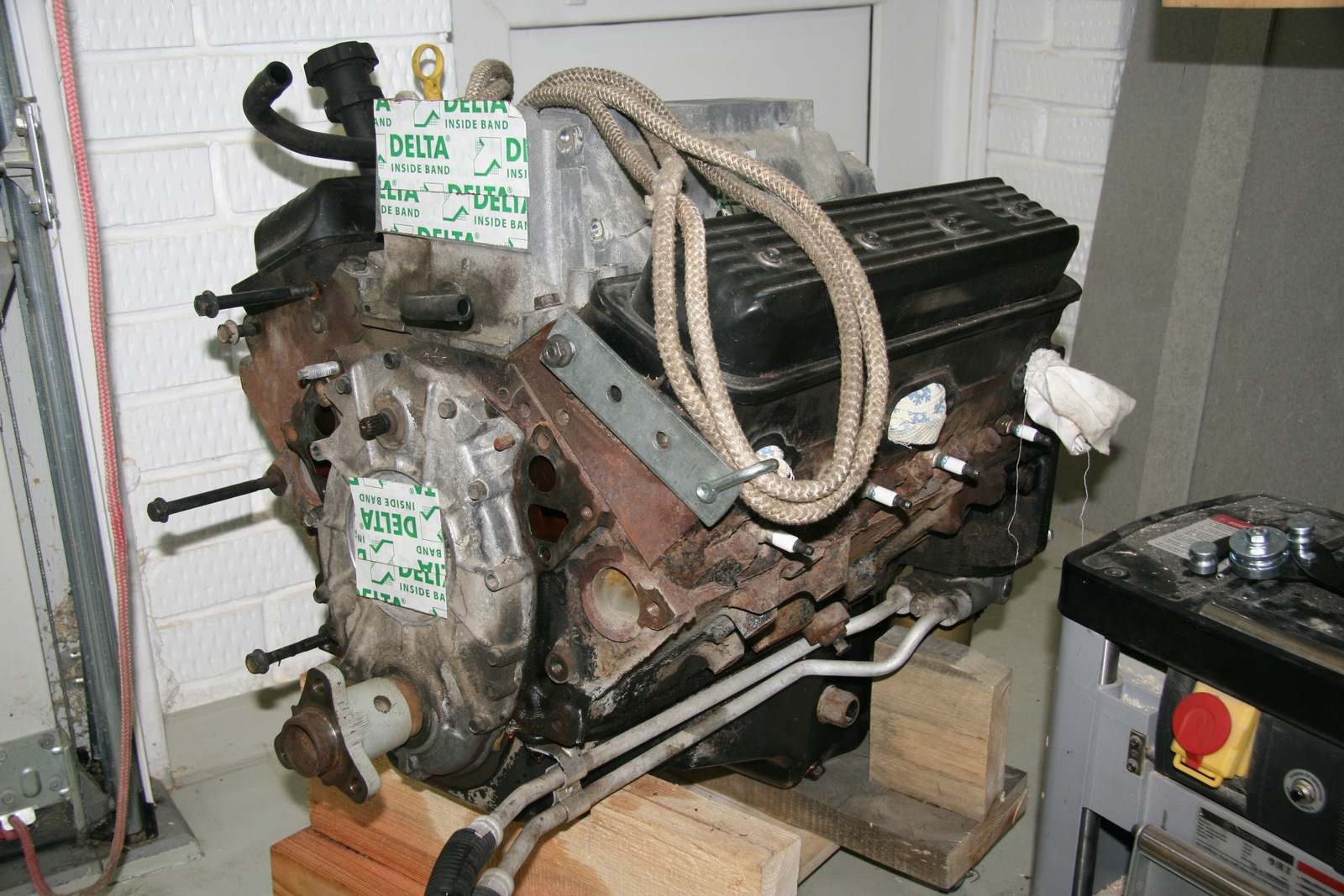

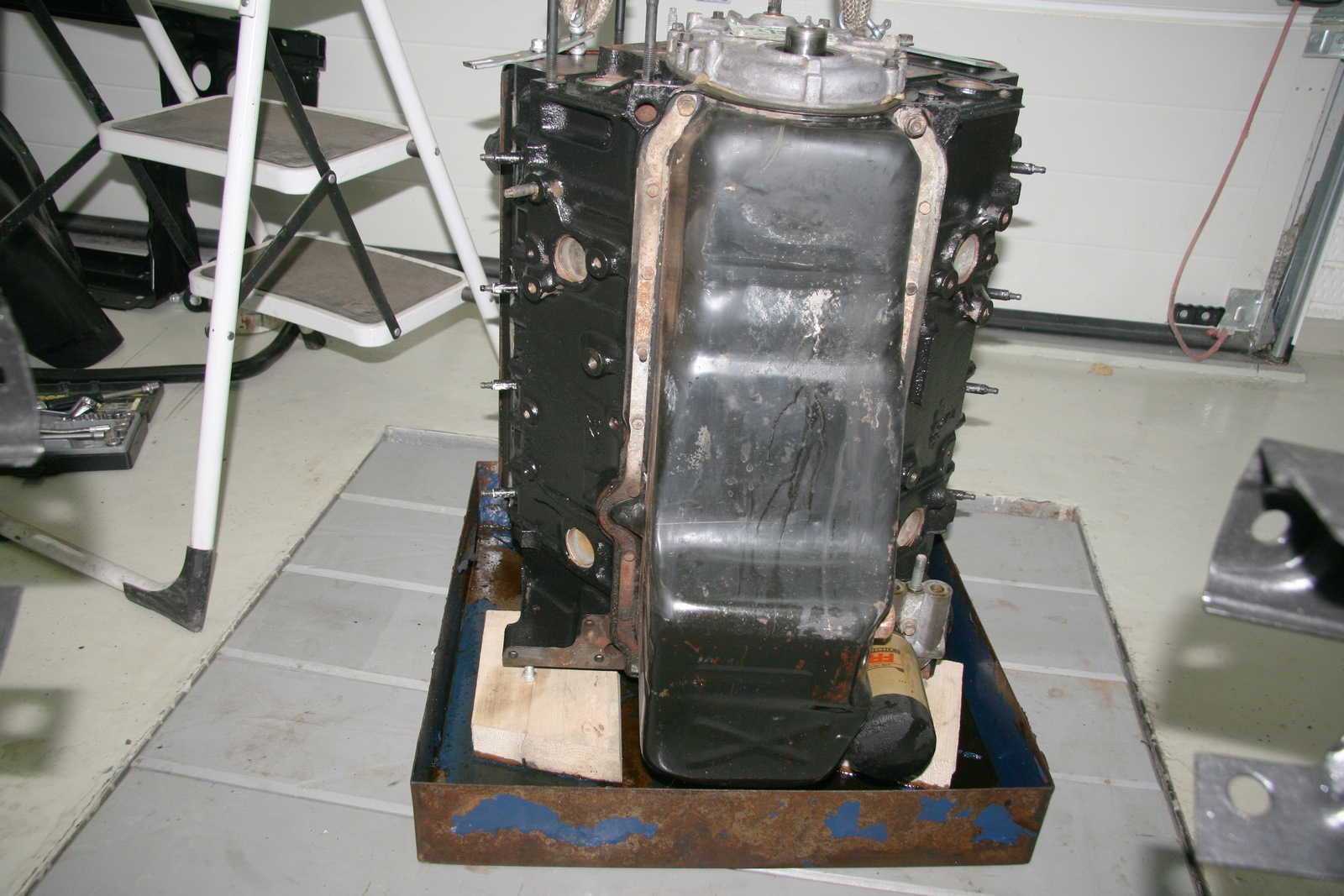

Now start working on engine

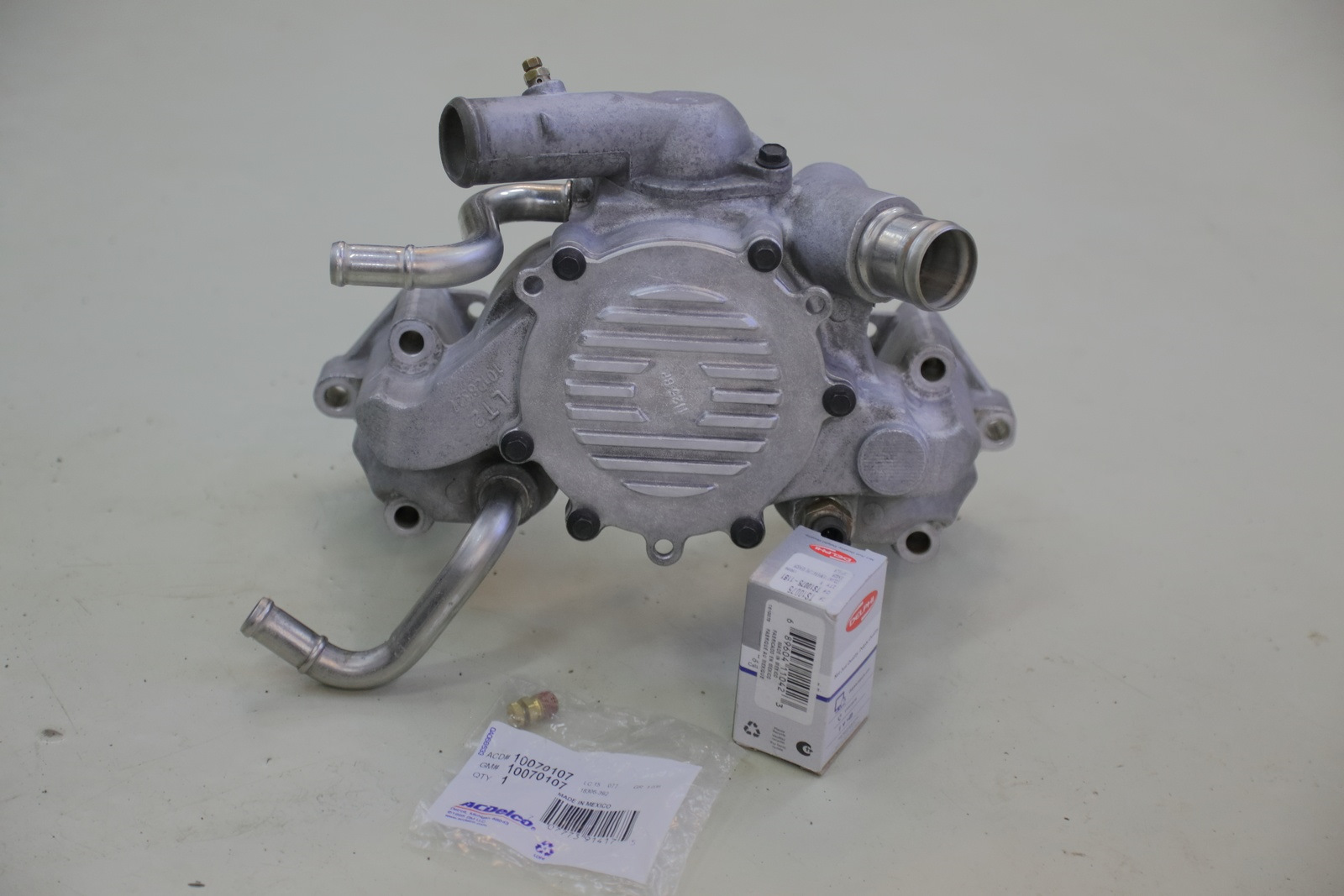

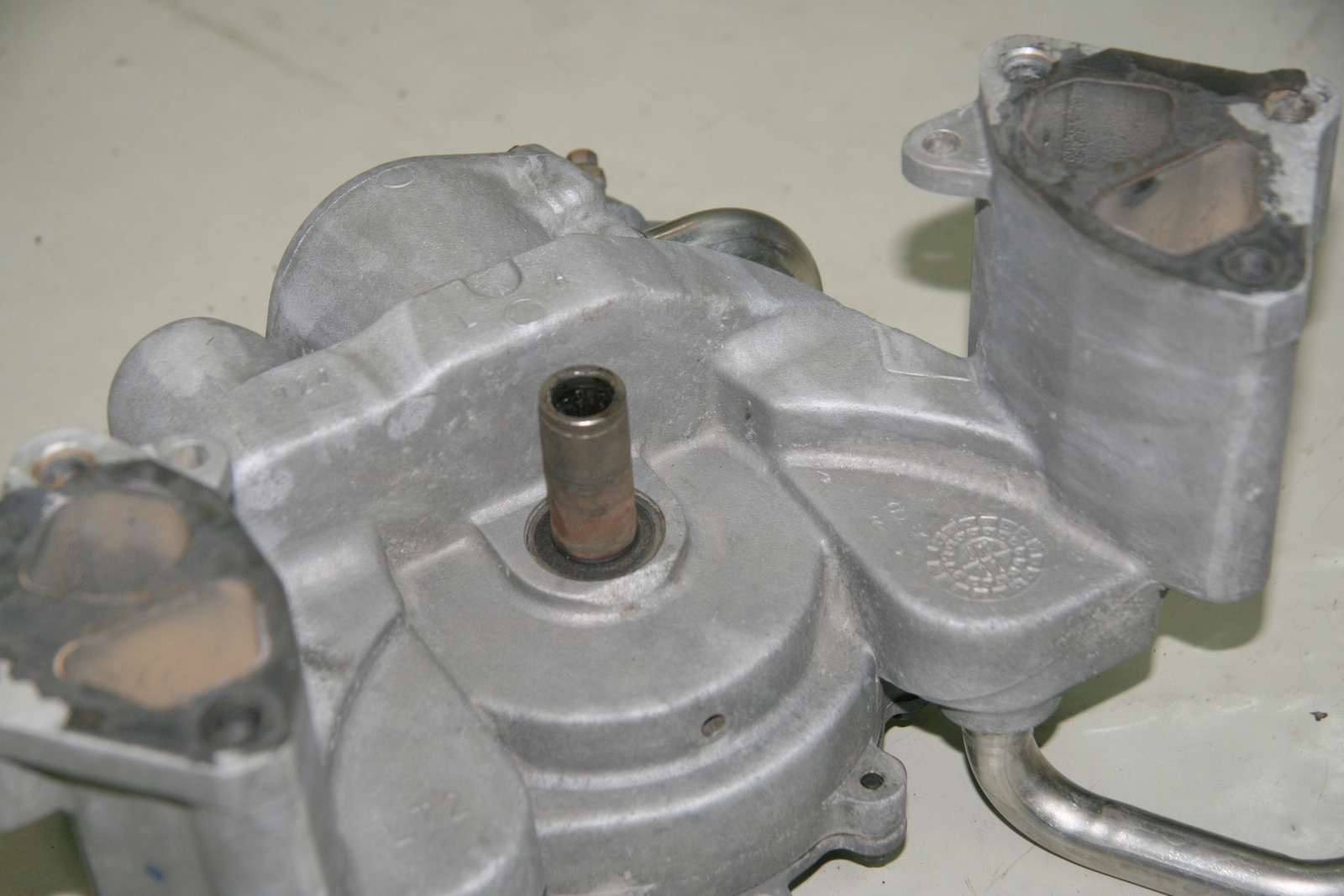

Water pump: I had a new ACDelco "Made in China", though I decided to reuse the one that was on a car, as the pump was changed not long ago by he previous owner, and it was GM Genuine





However, the o-ring had to be replaced



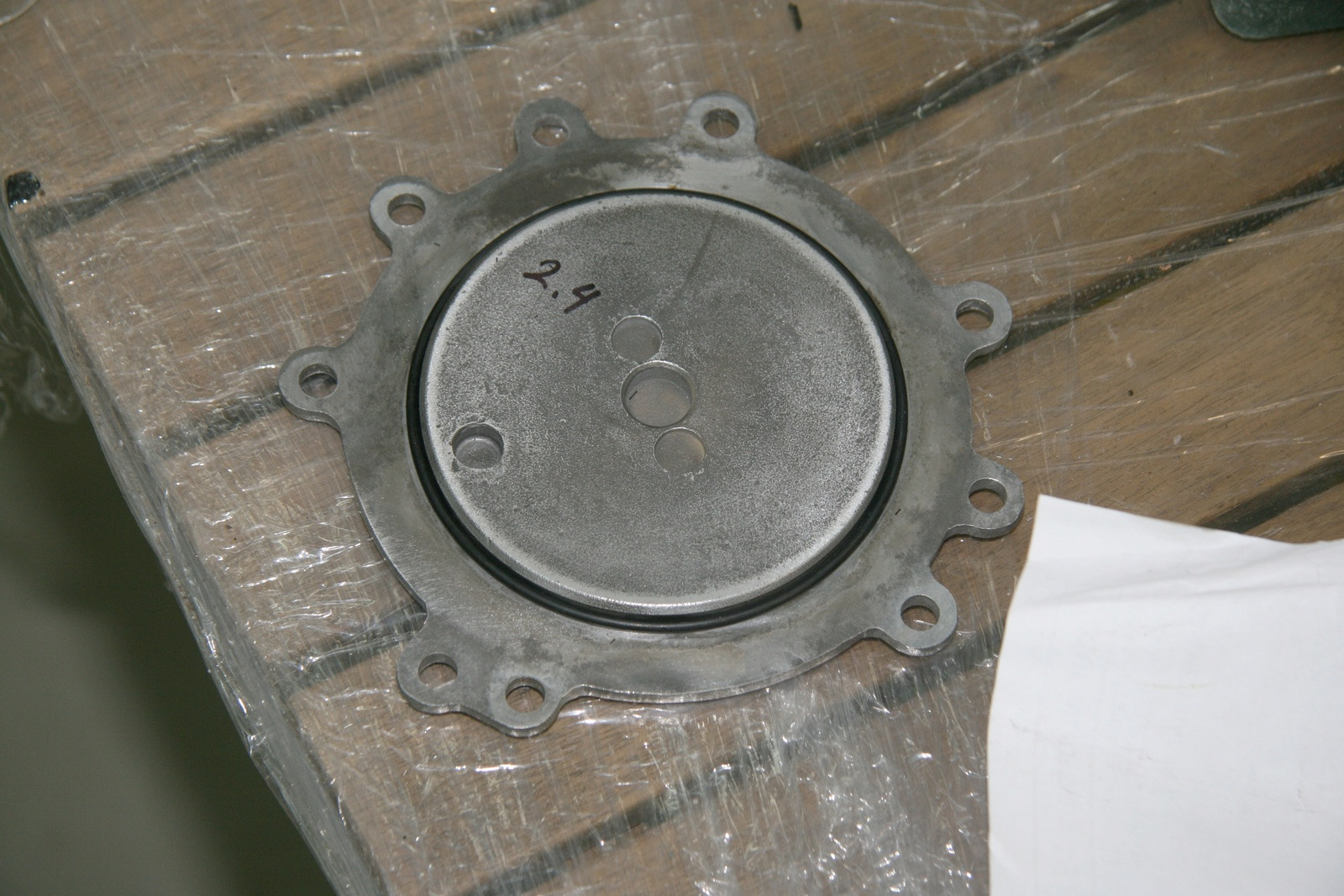

New o-ring must be 2.4mm thick ~0.1"

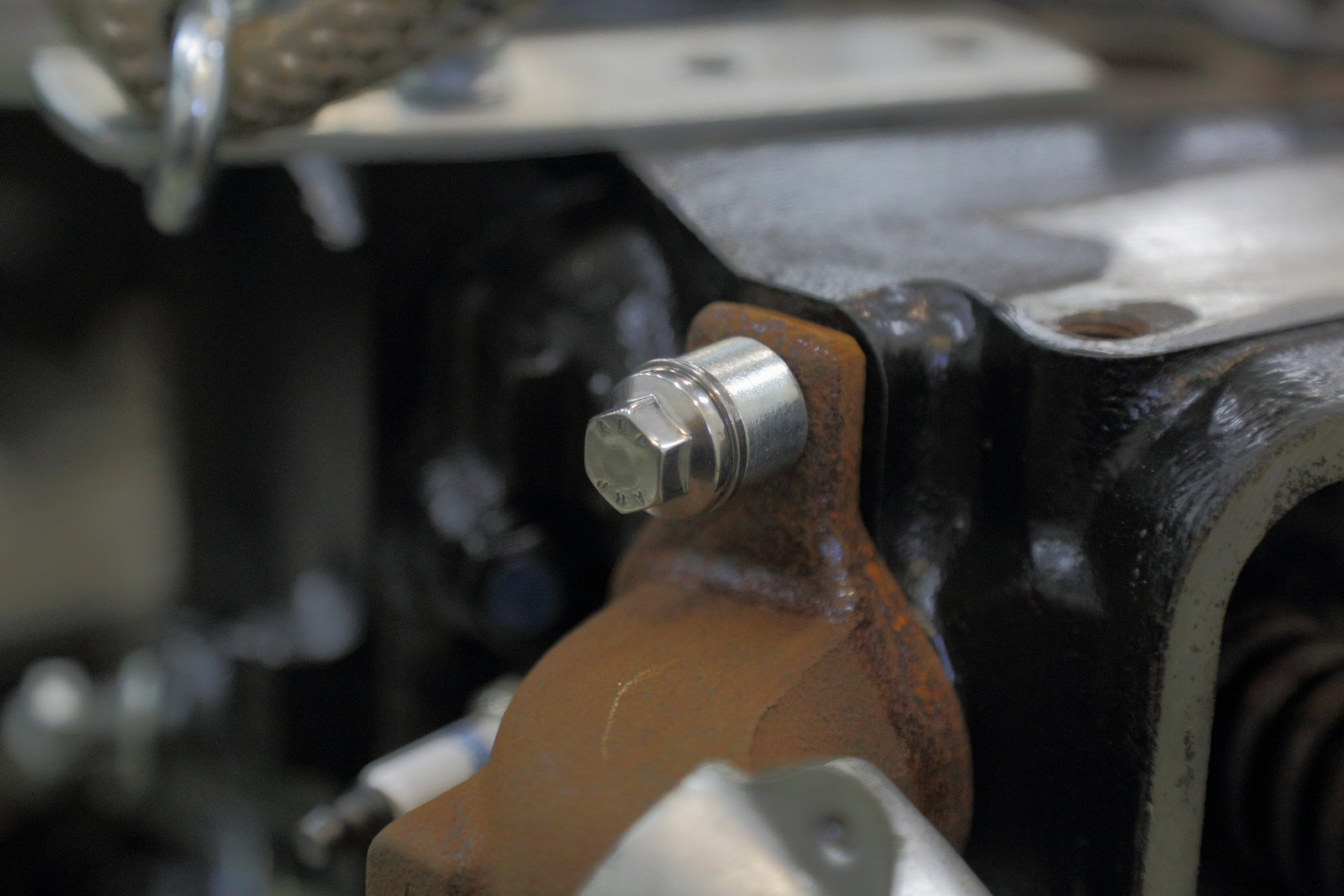

Bolts after black plating



Ready

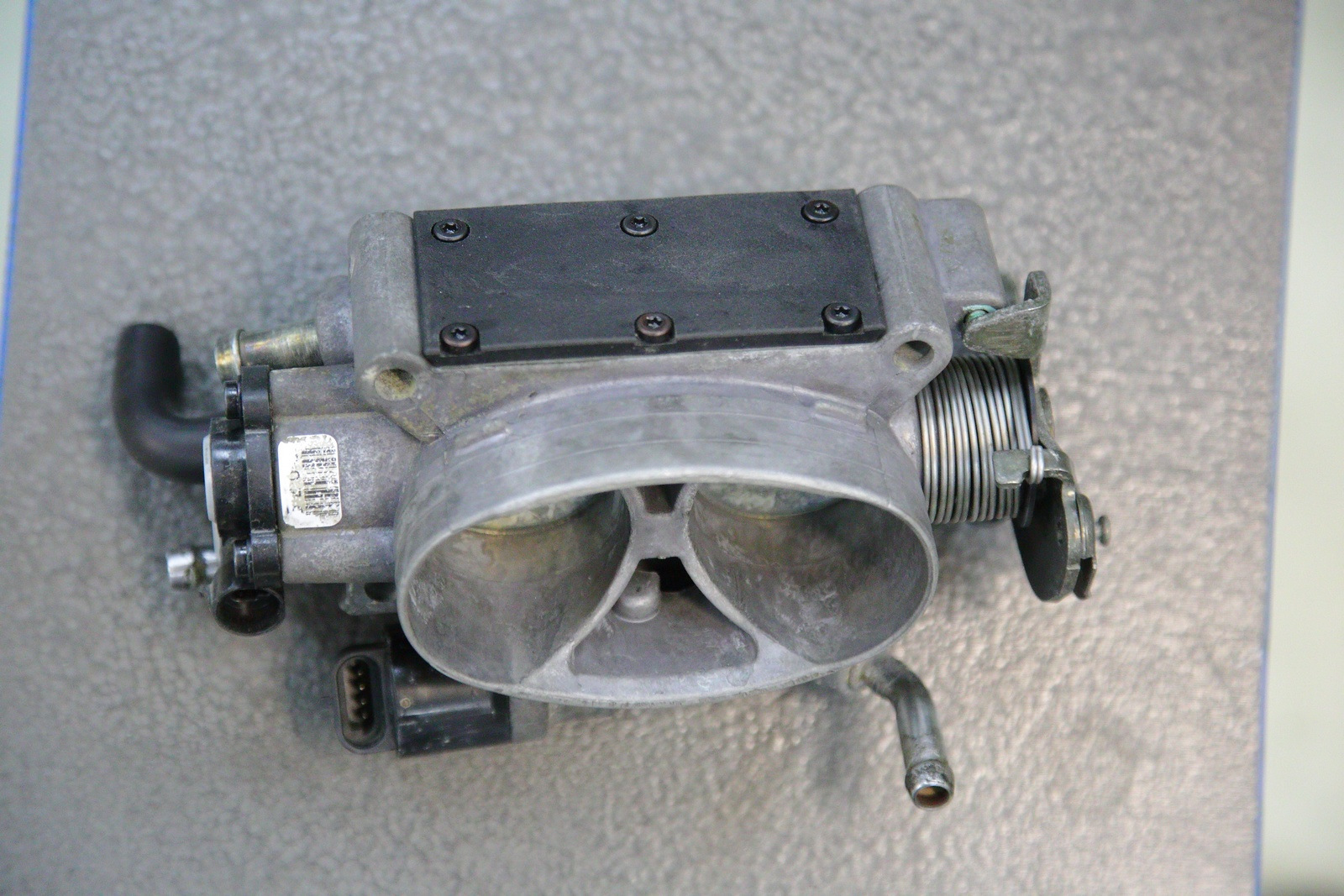

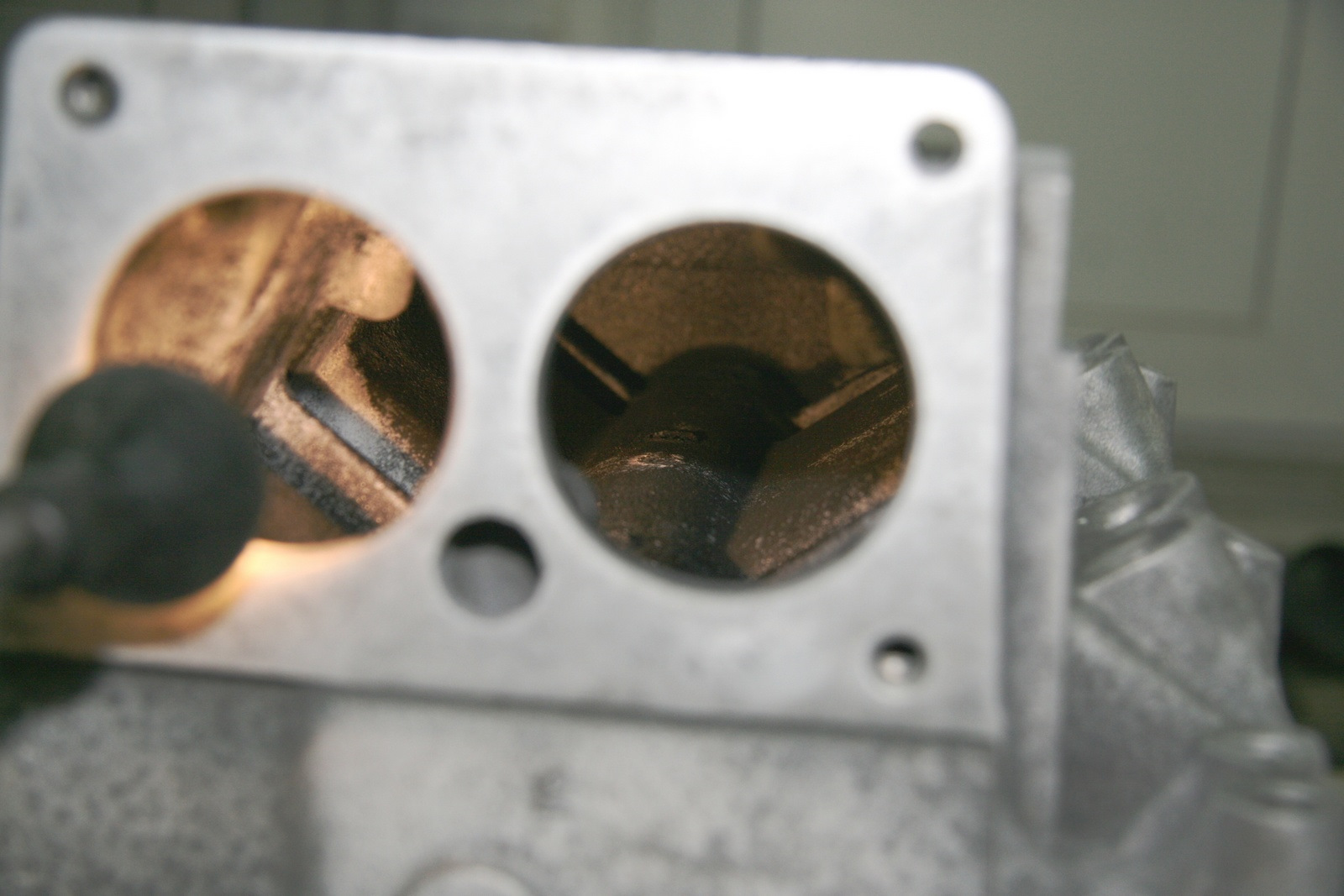

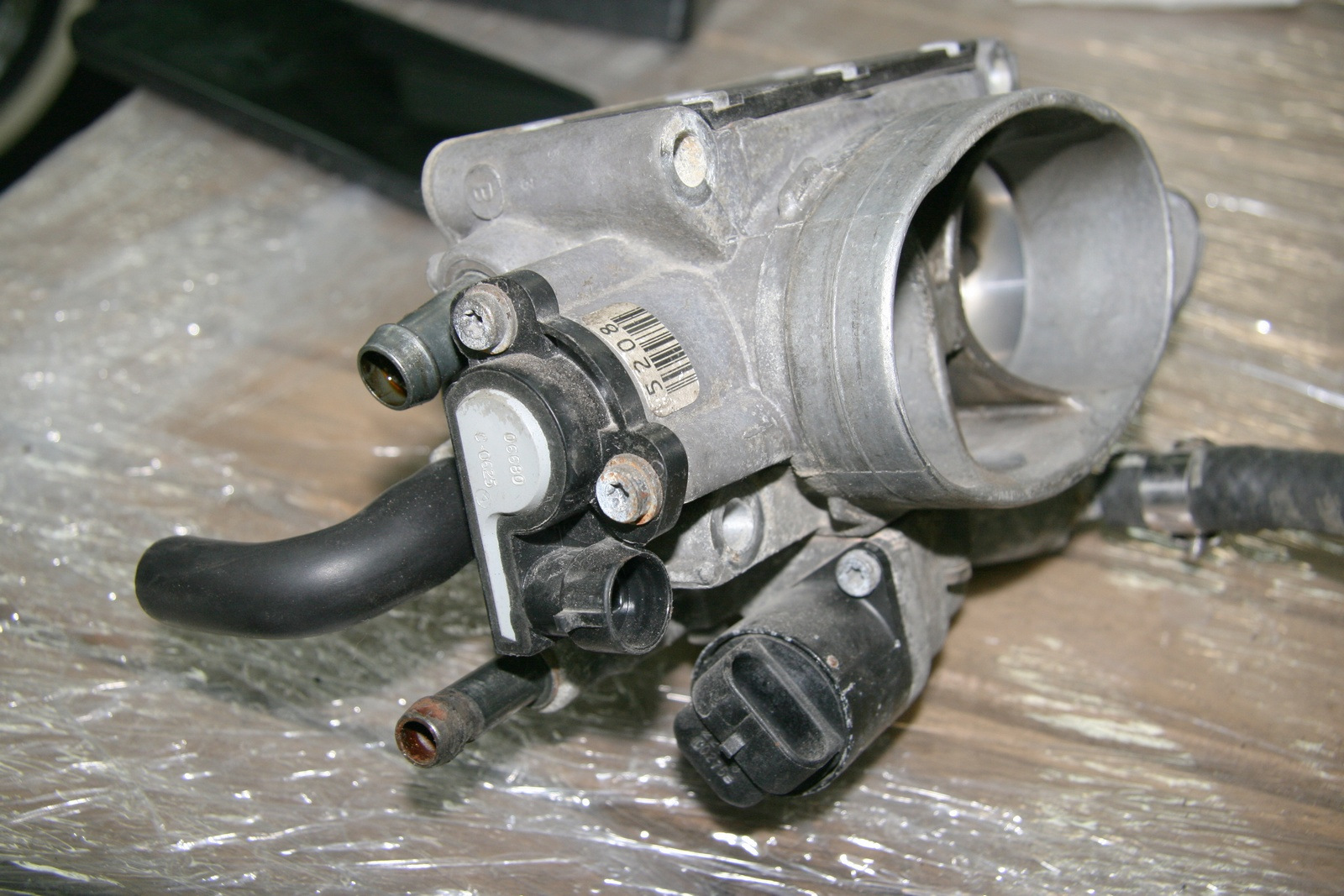

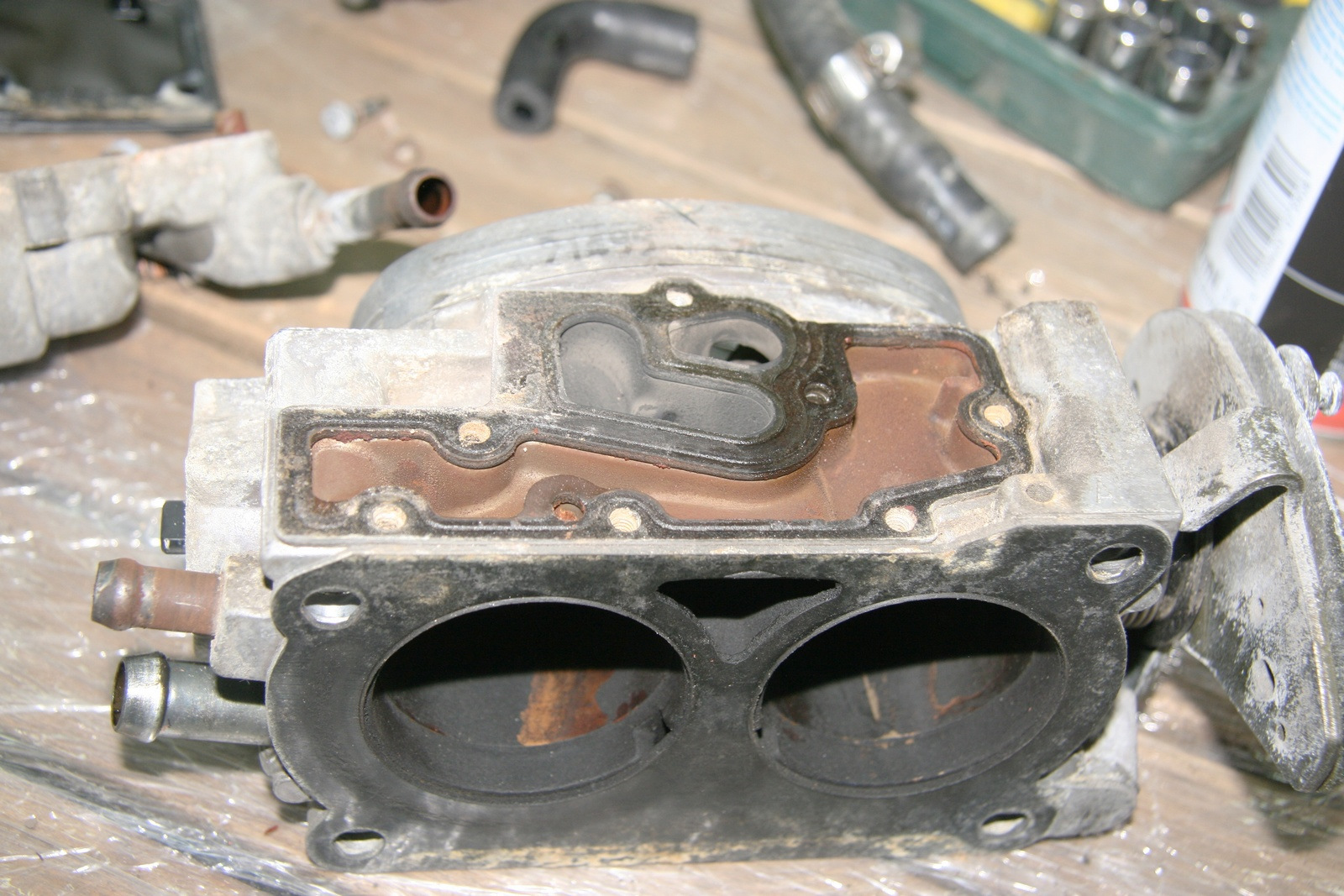

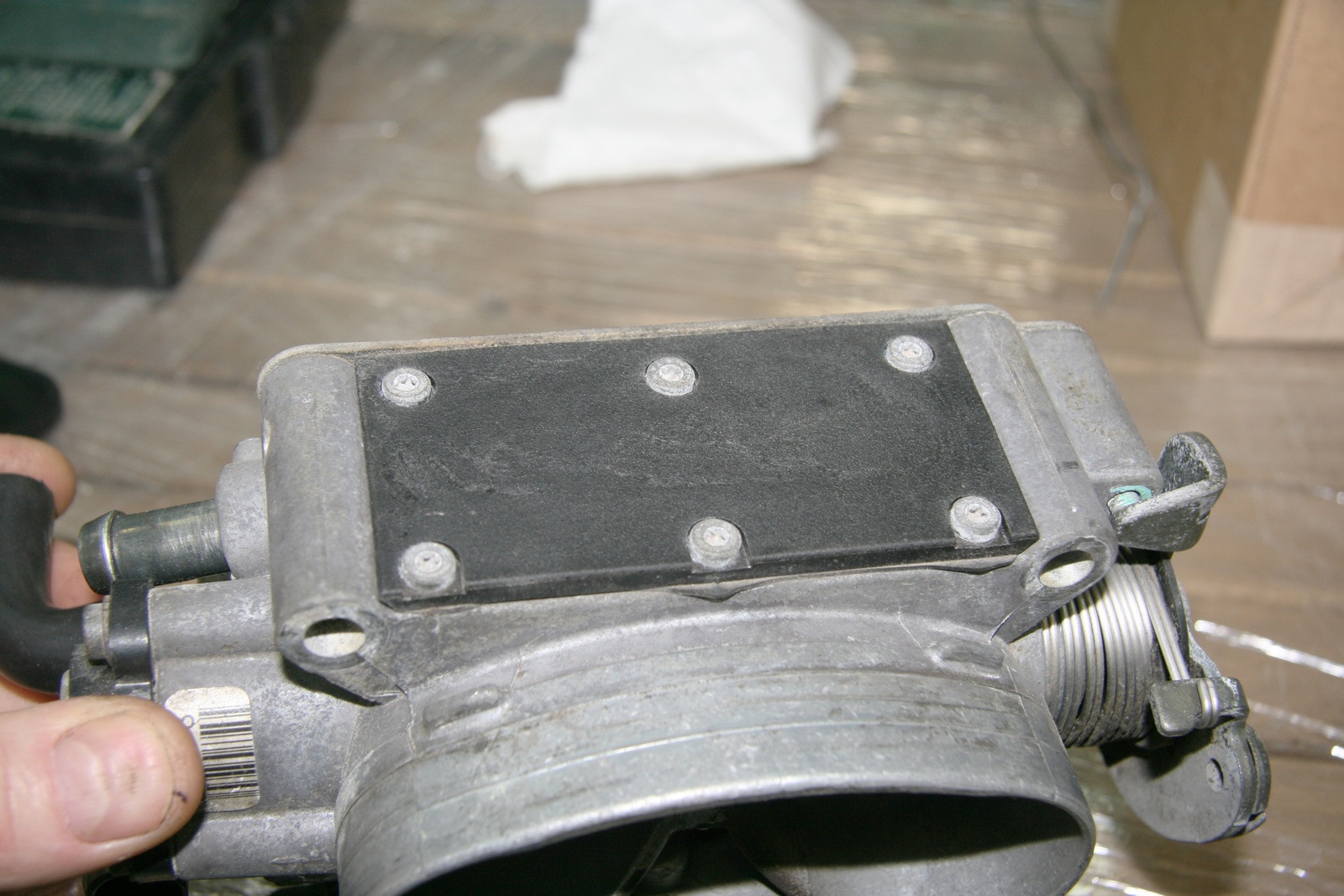

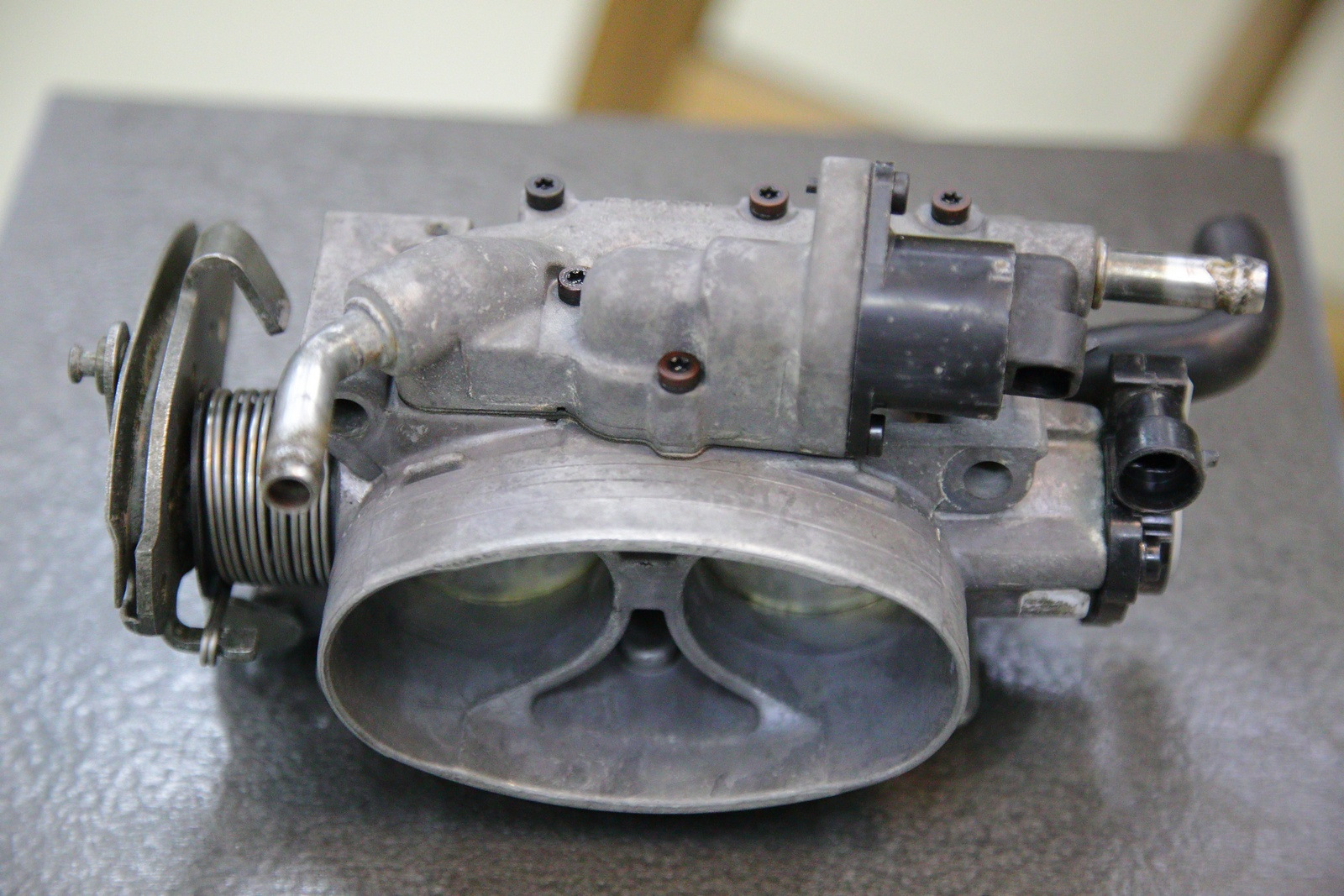

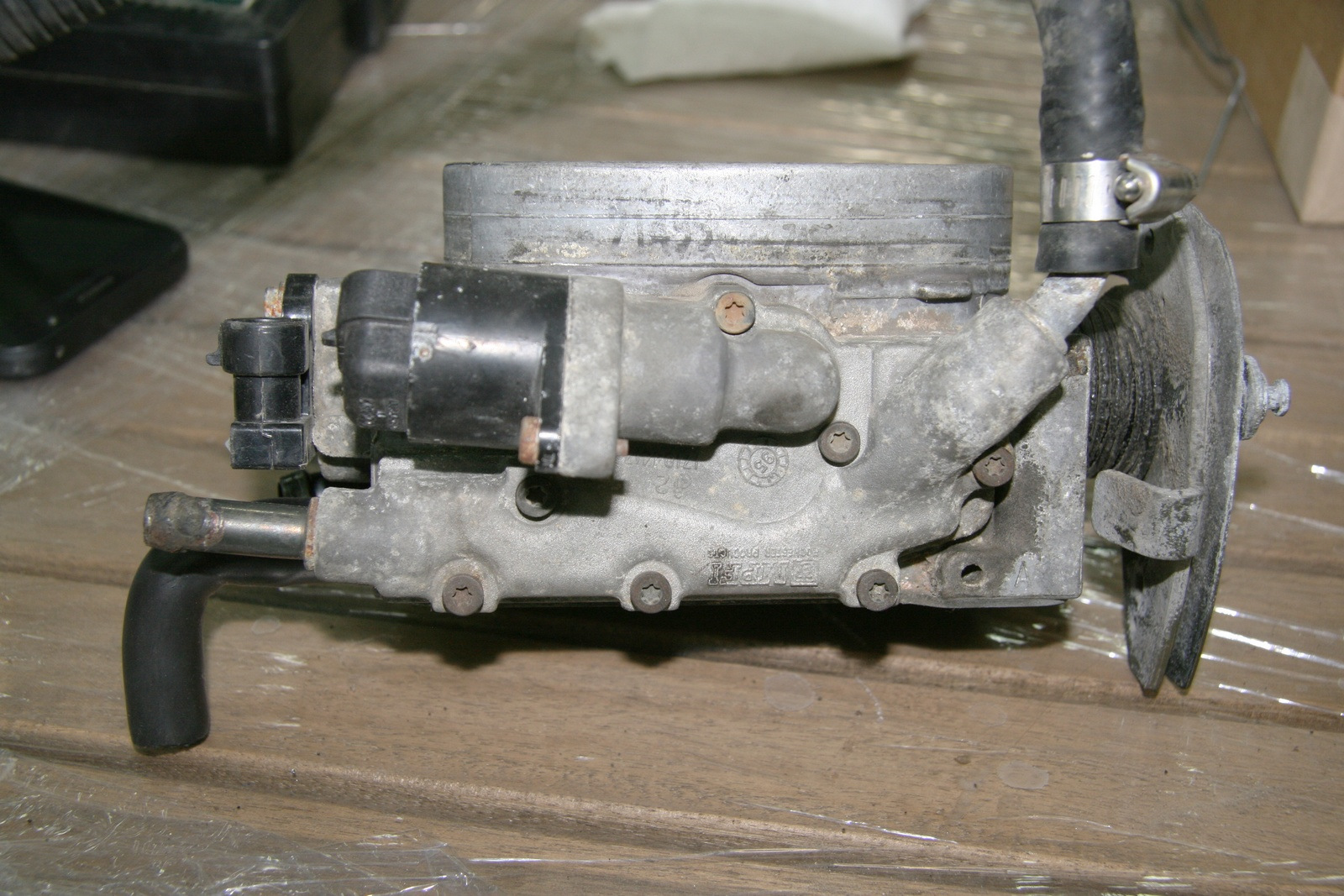

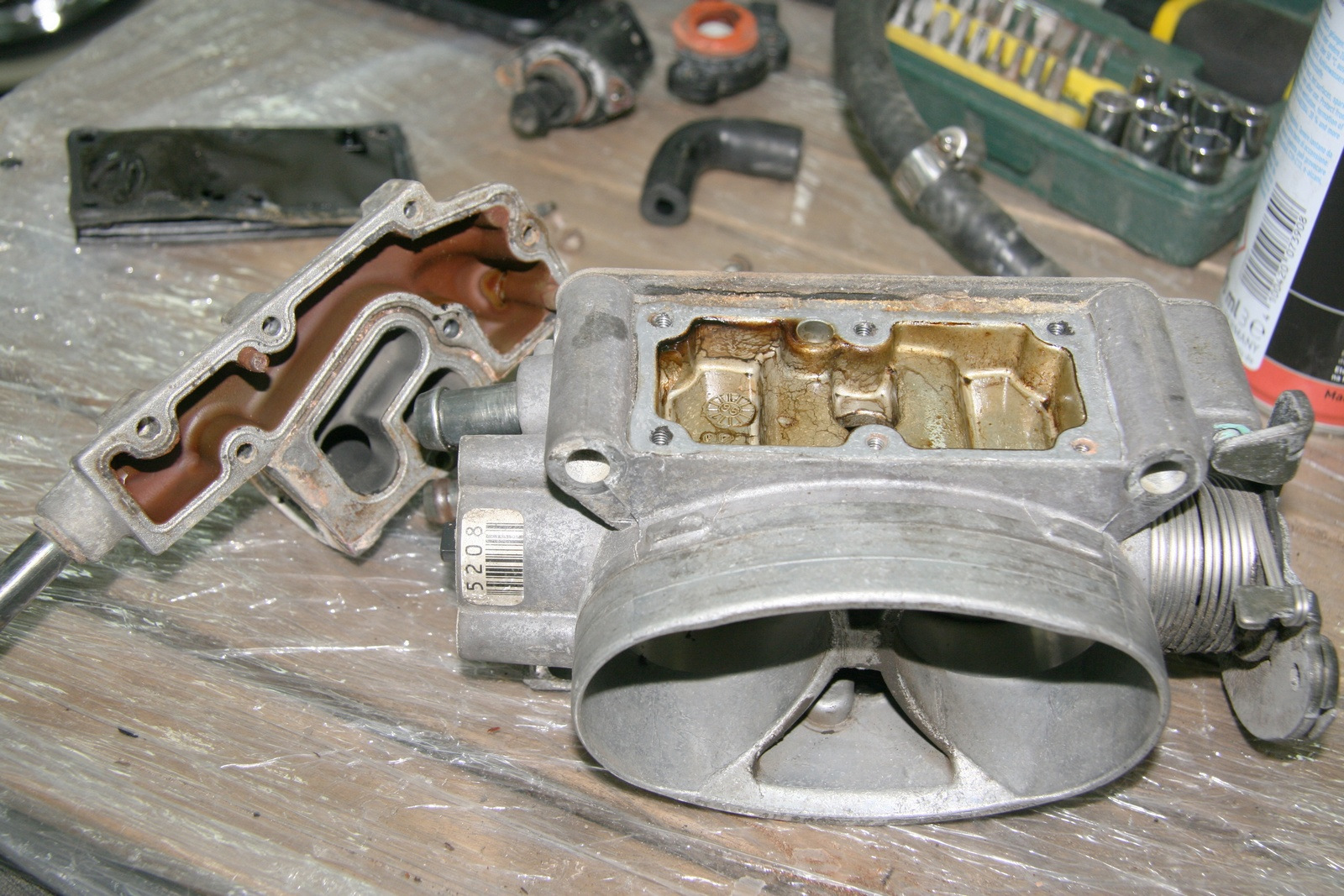

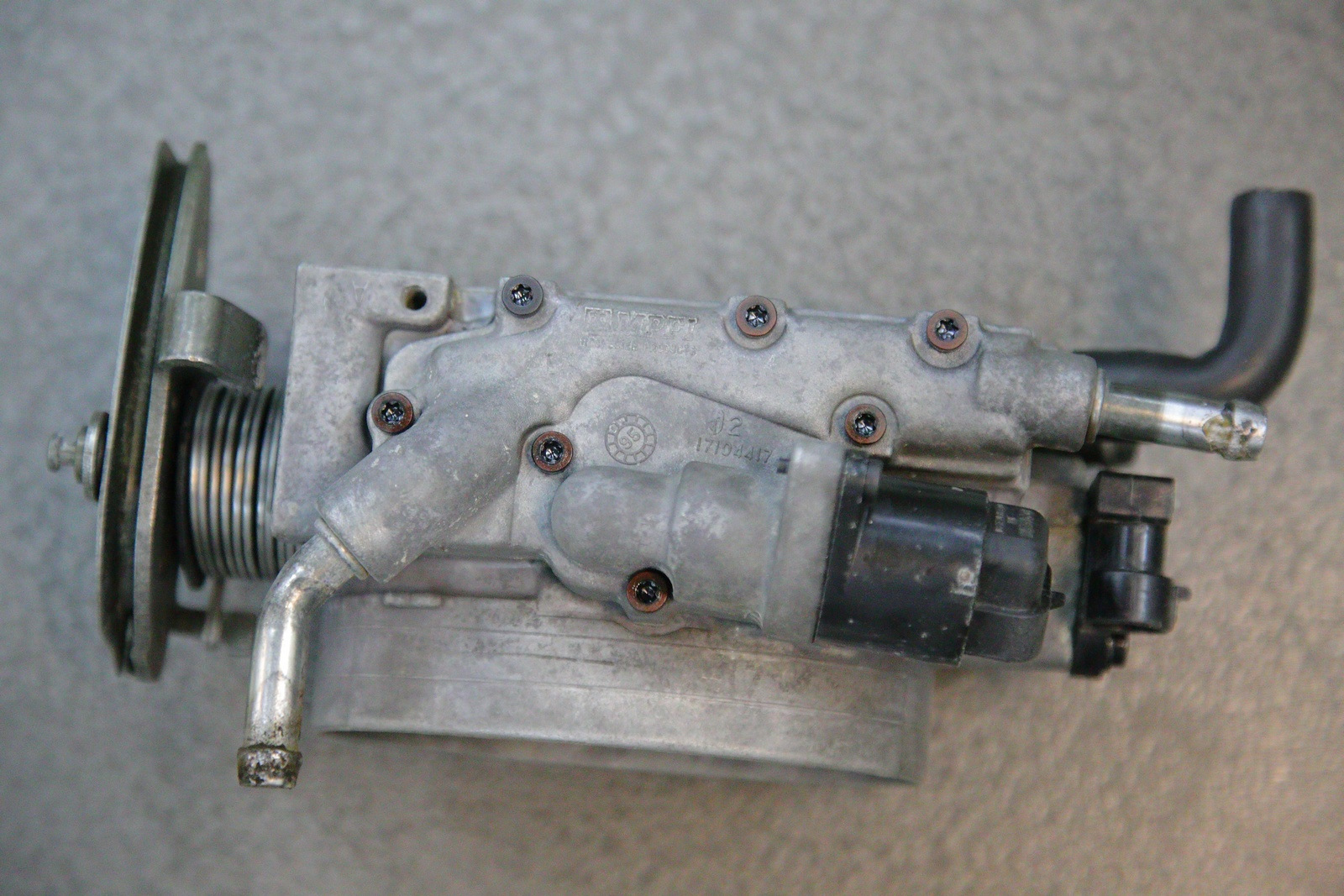

Throttle body was almost ok



But still needs to be inspected





Washing and cleaning process





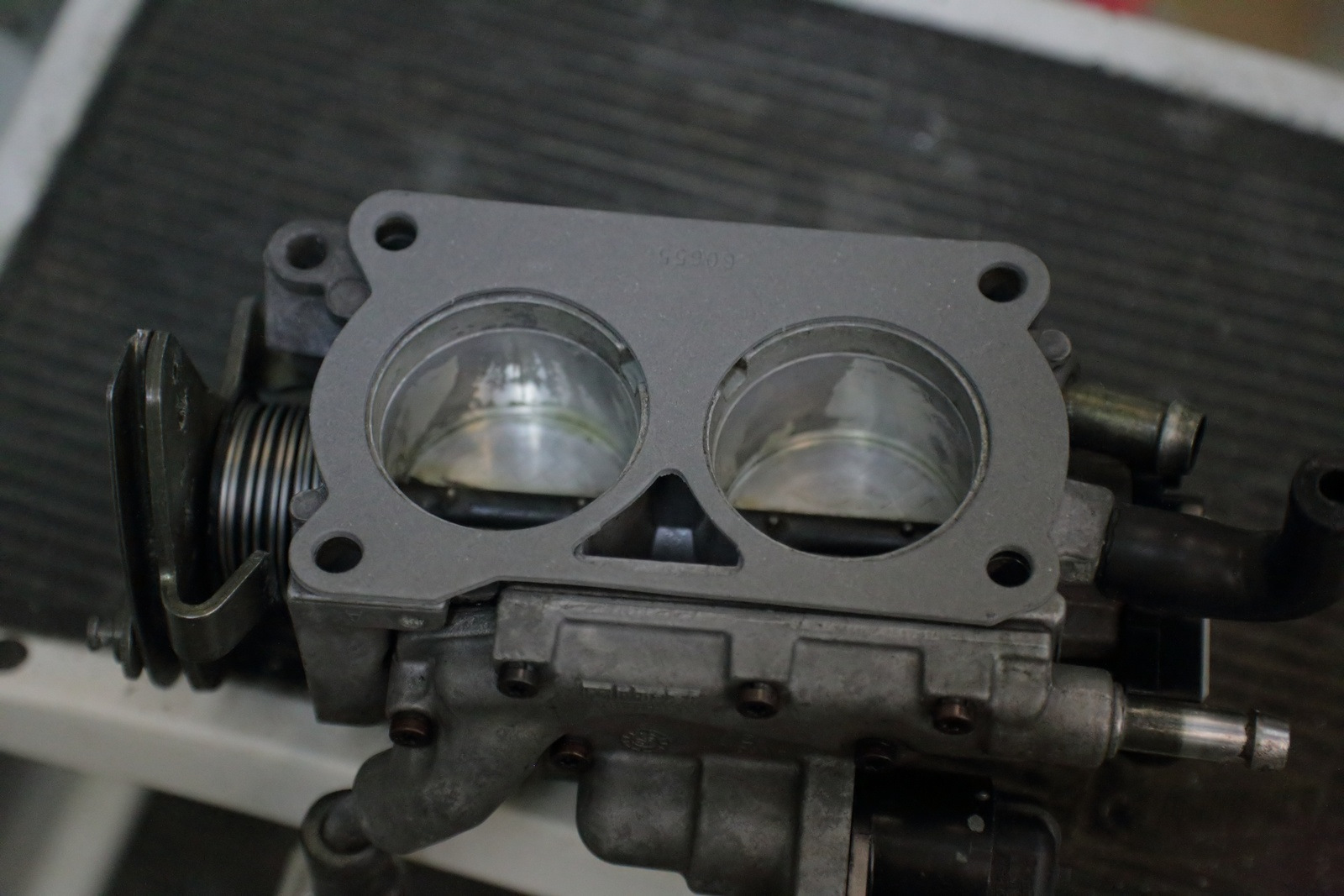

Now it's clean inside and outside, new gaskets installed







New engine mounts installed, but the engine is not ready yet



Some stuff goes to replating



Received



Intake manifold studs in the proper order



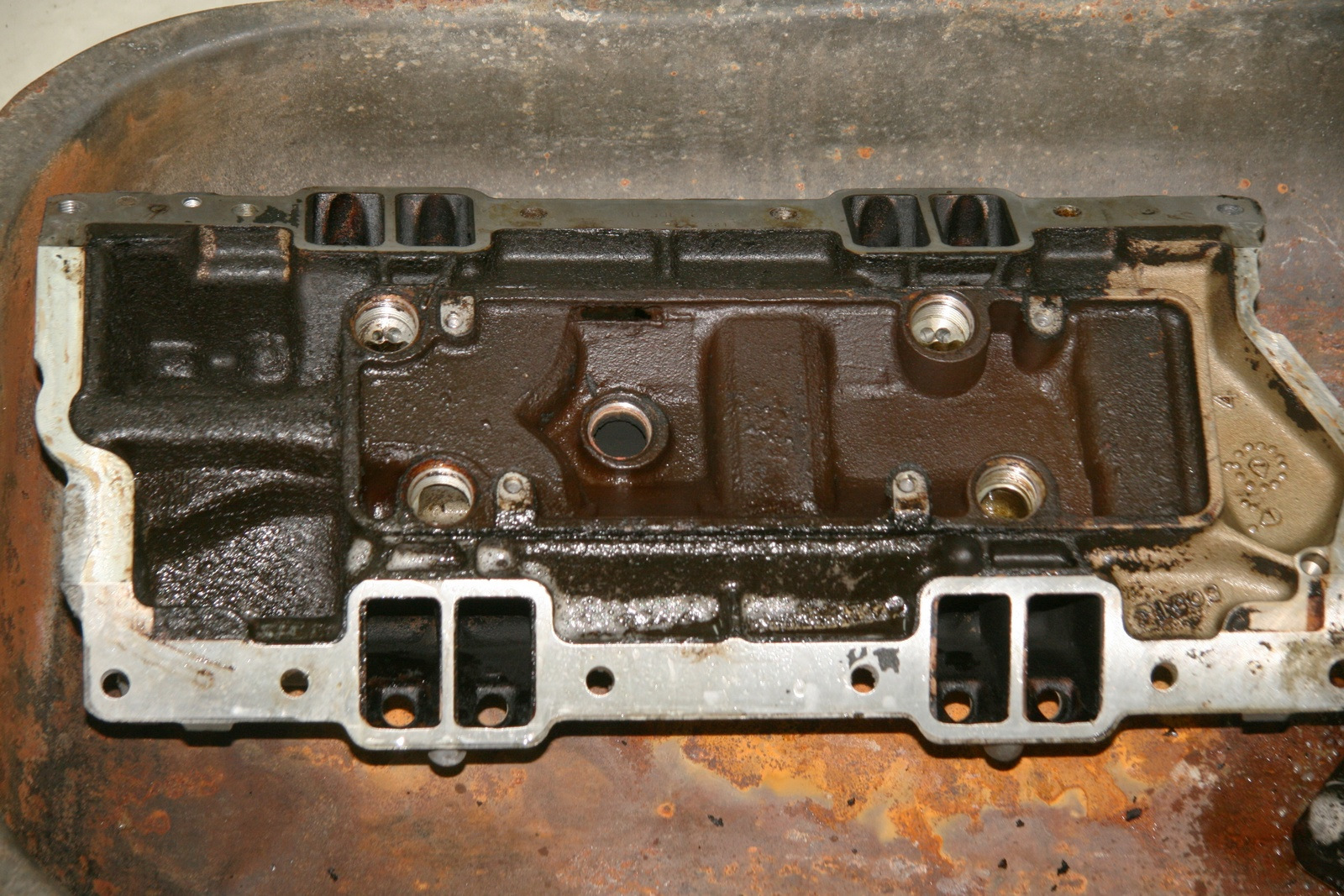

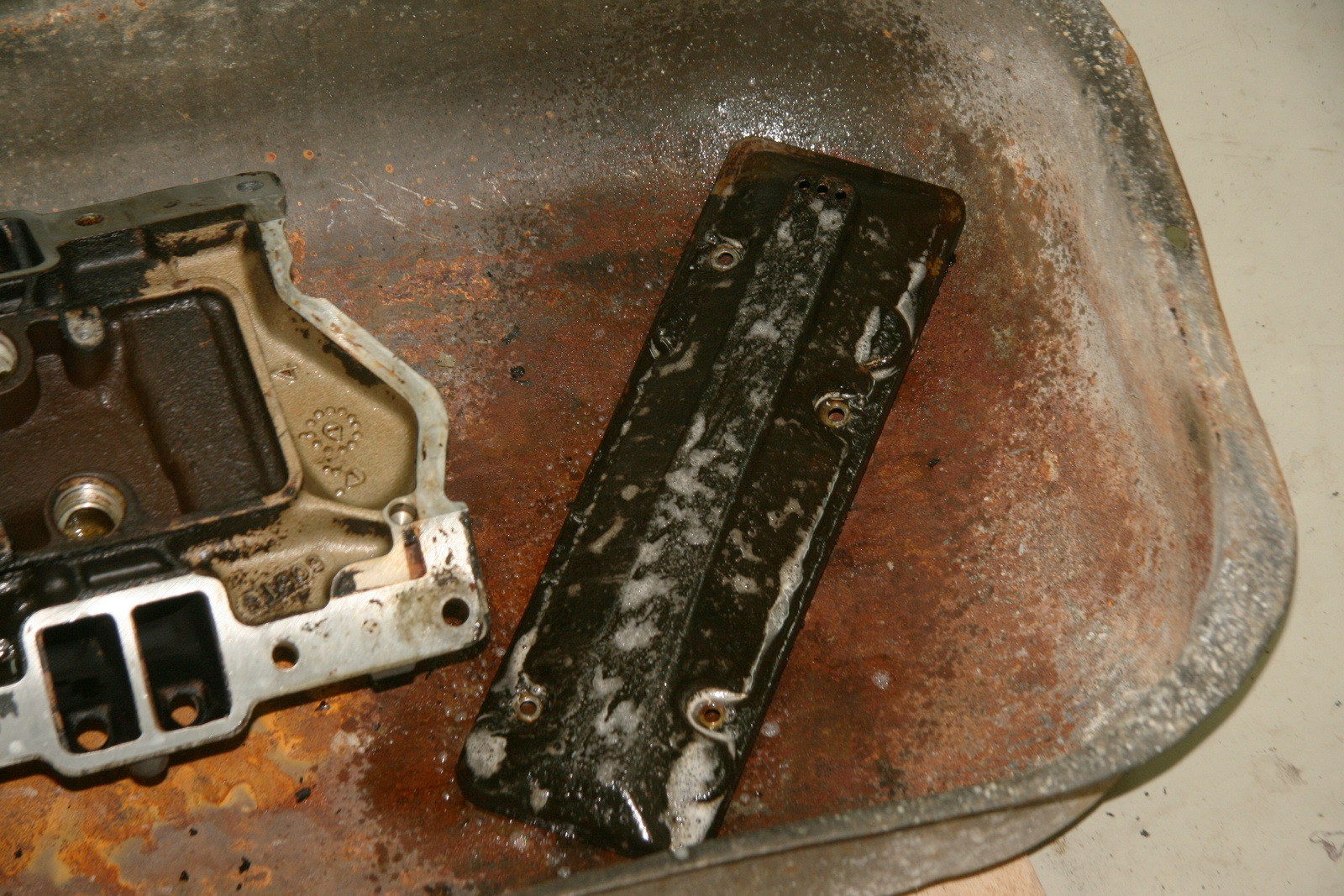

Dirty



Start washing with high Ph chemistry



Done



The best I could do

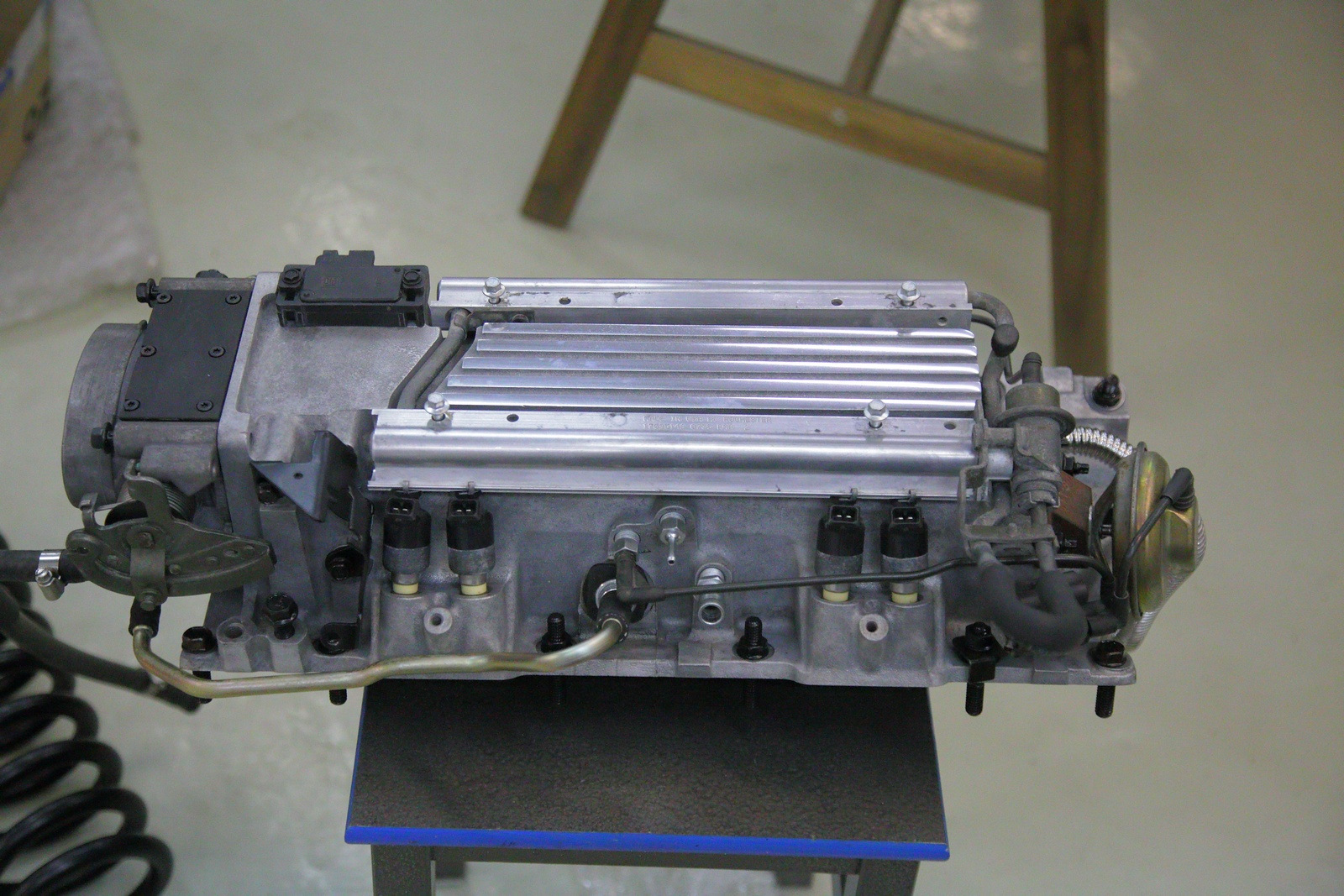

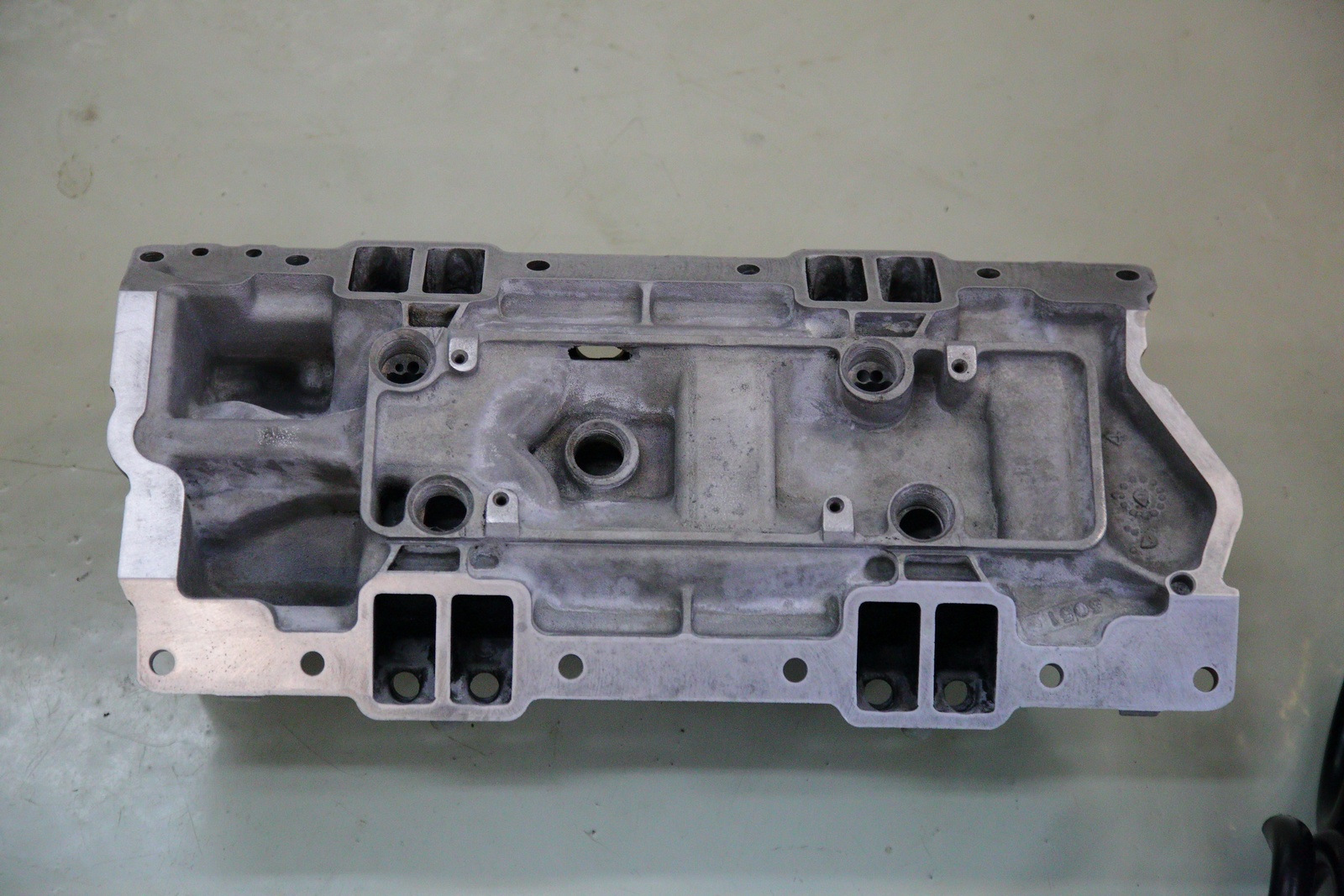

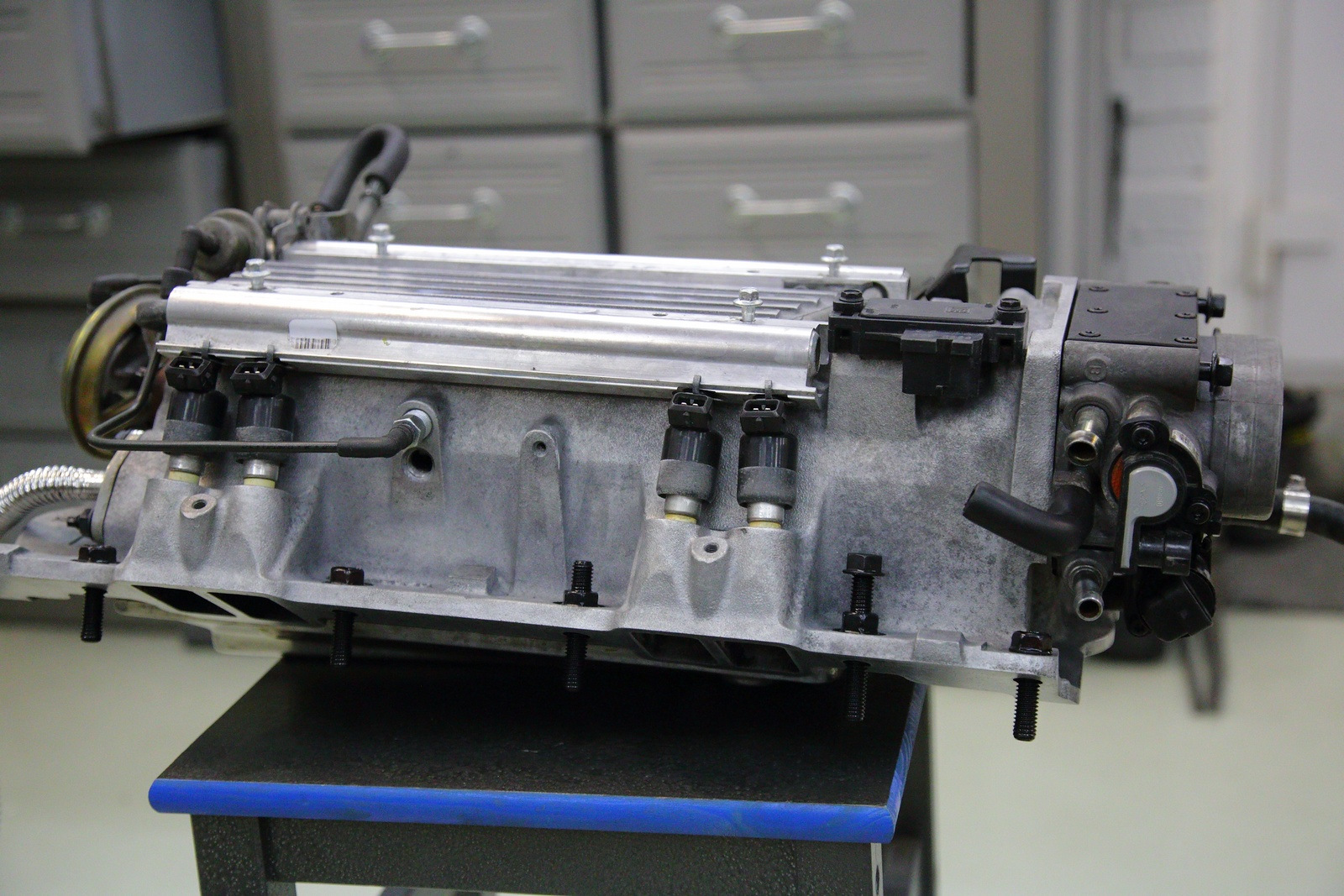

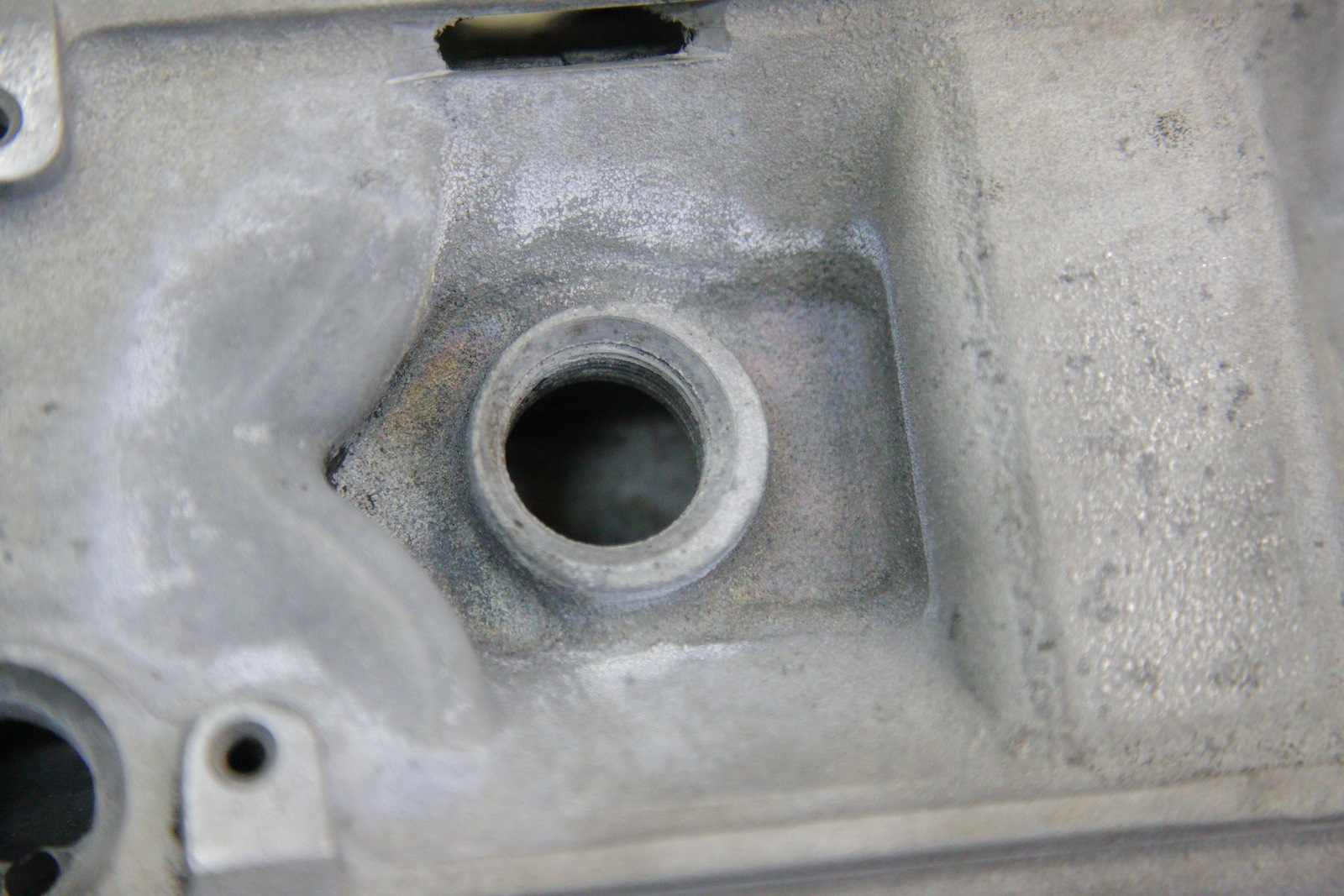

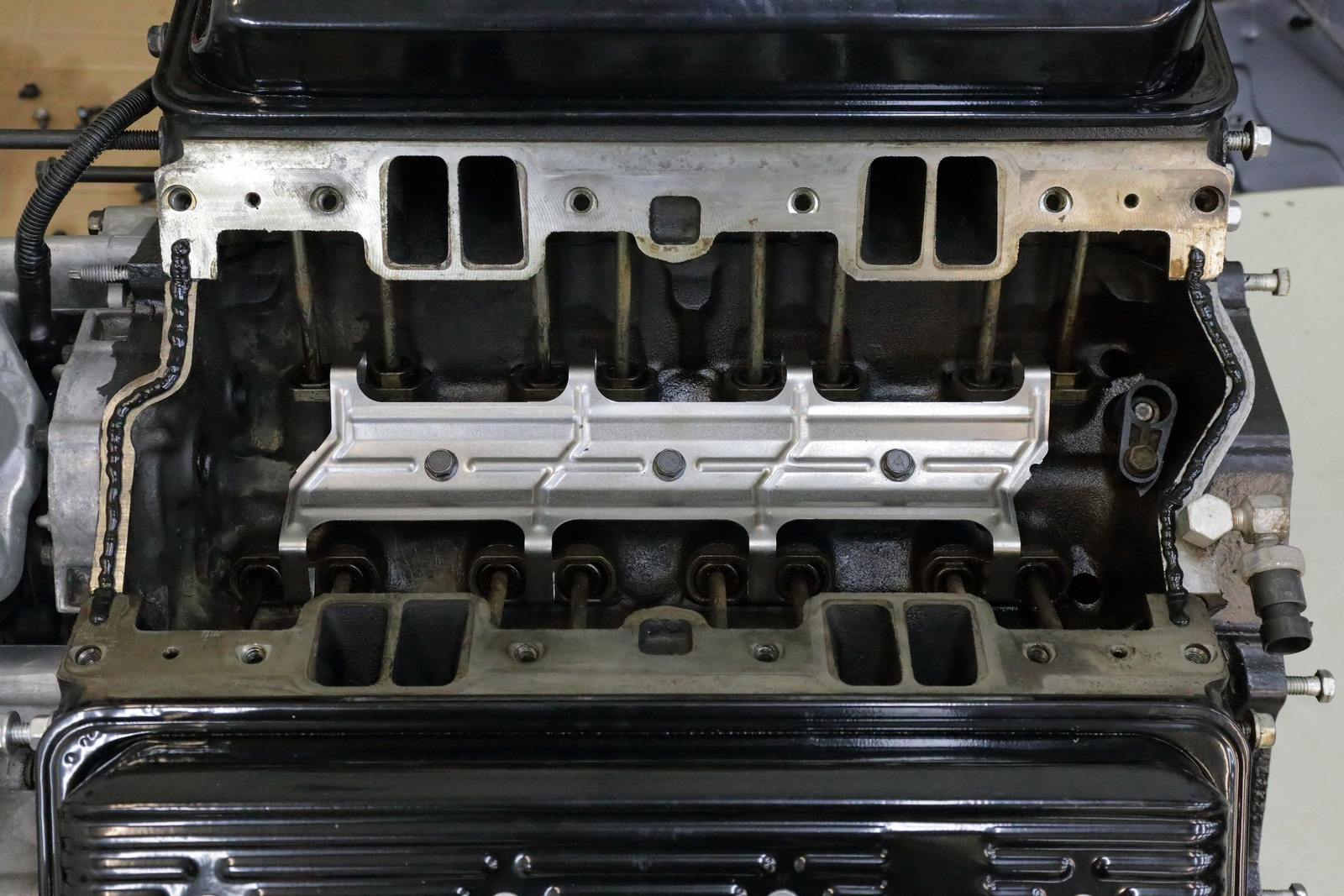

Intake has many internal passages, which were hard to reach, but I tried

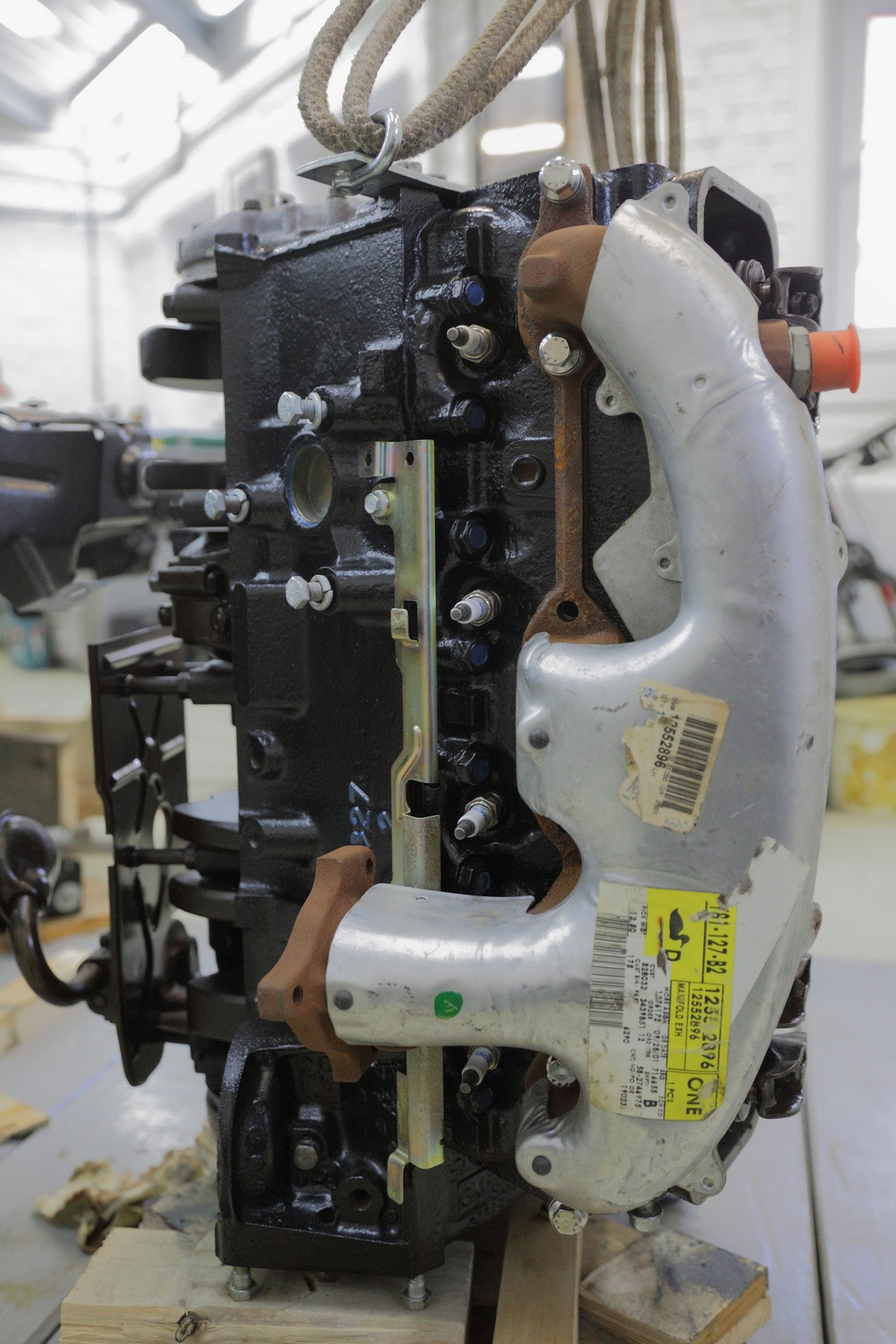

Inside view



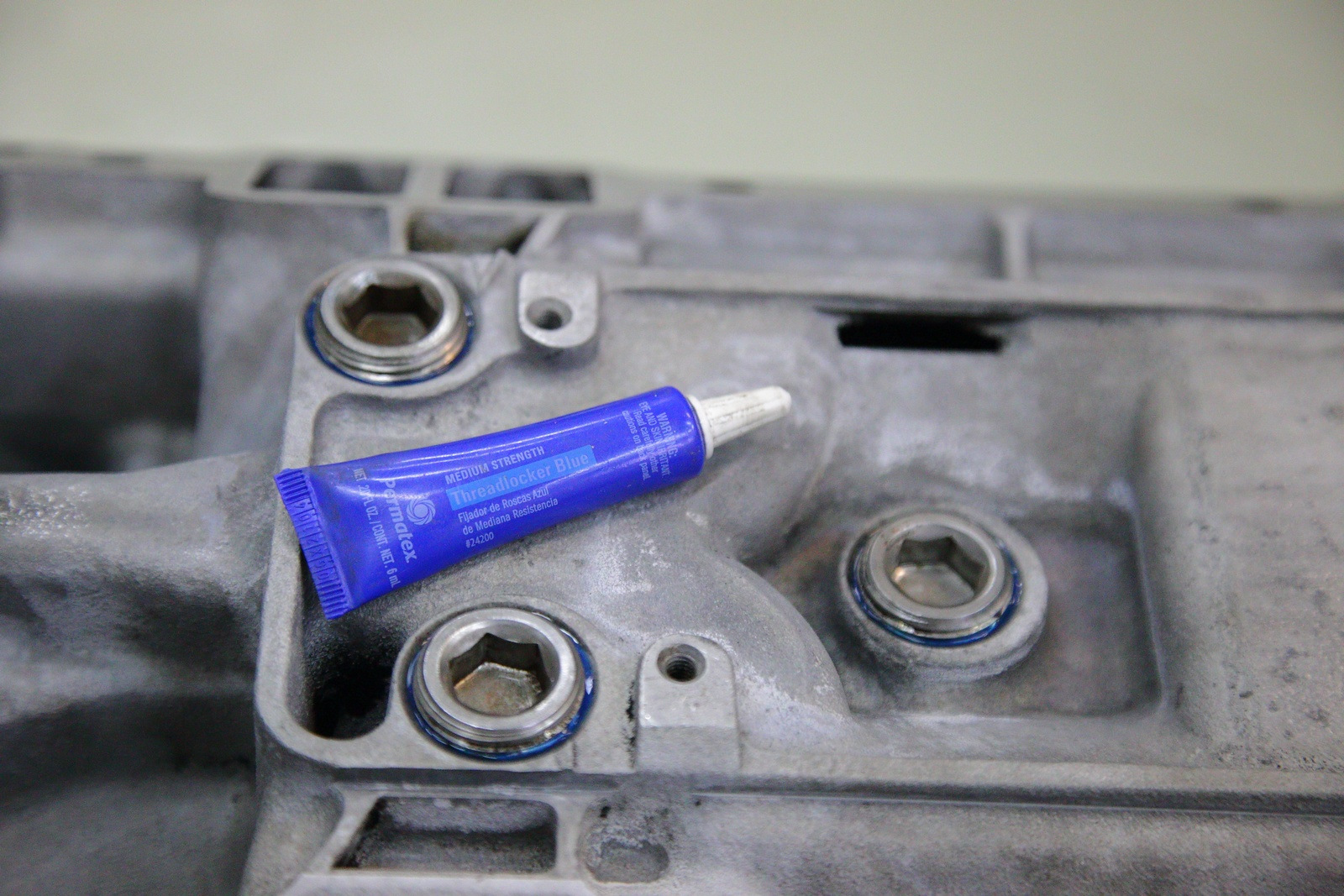

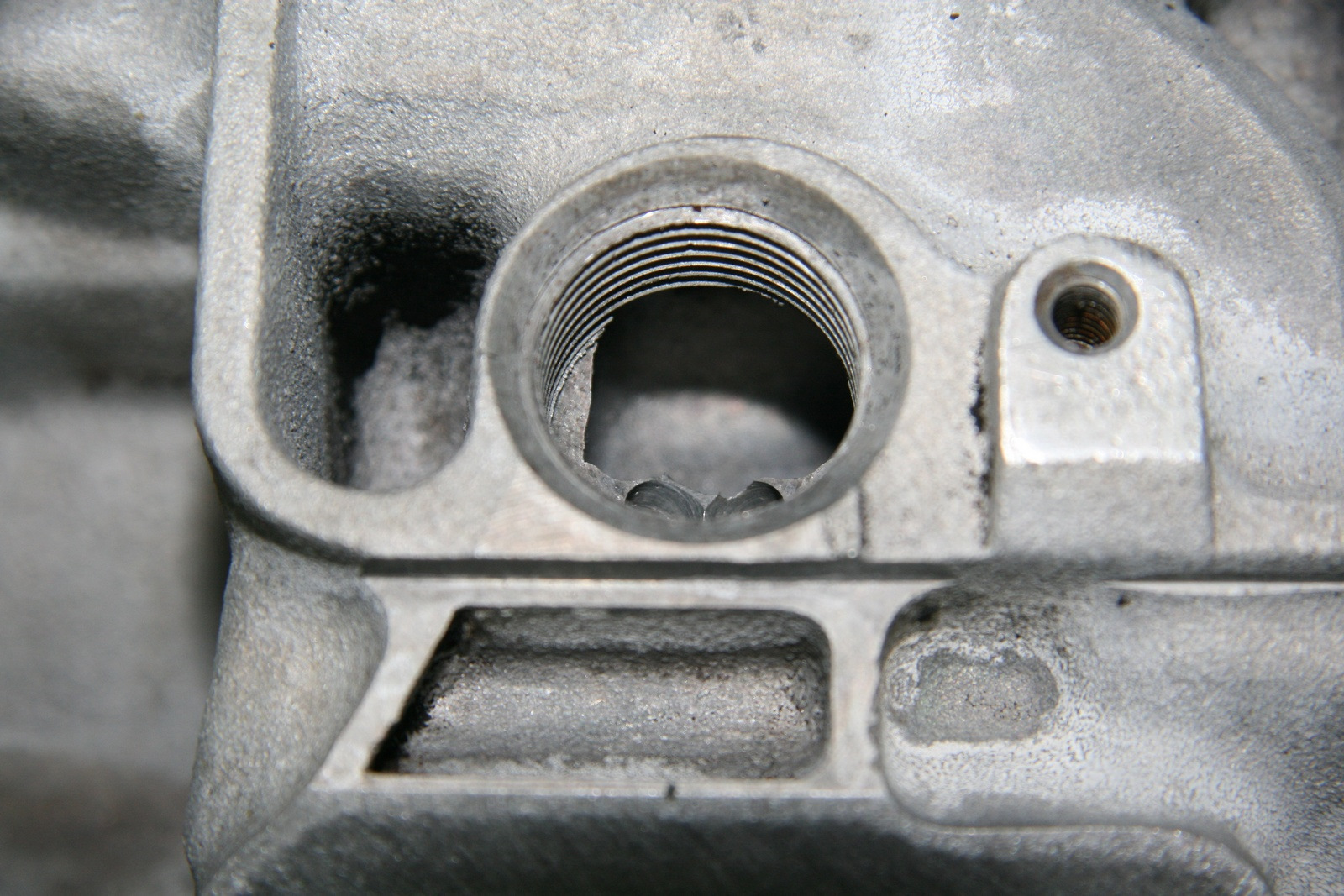

Thread sealant for the plugs

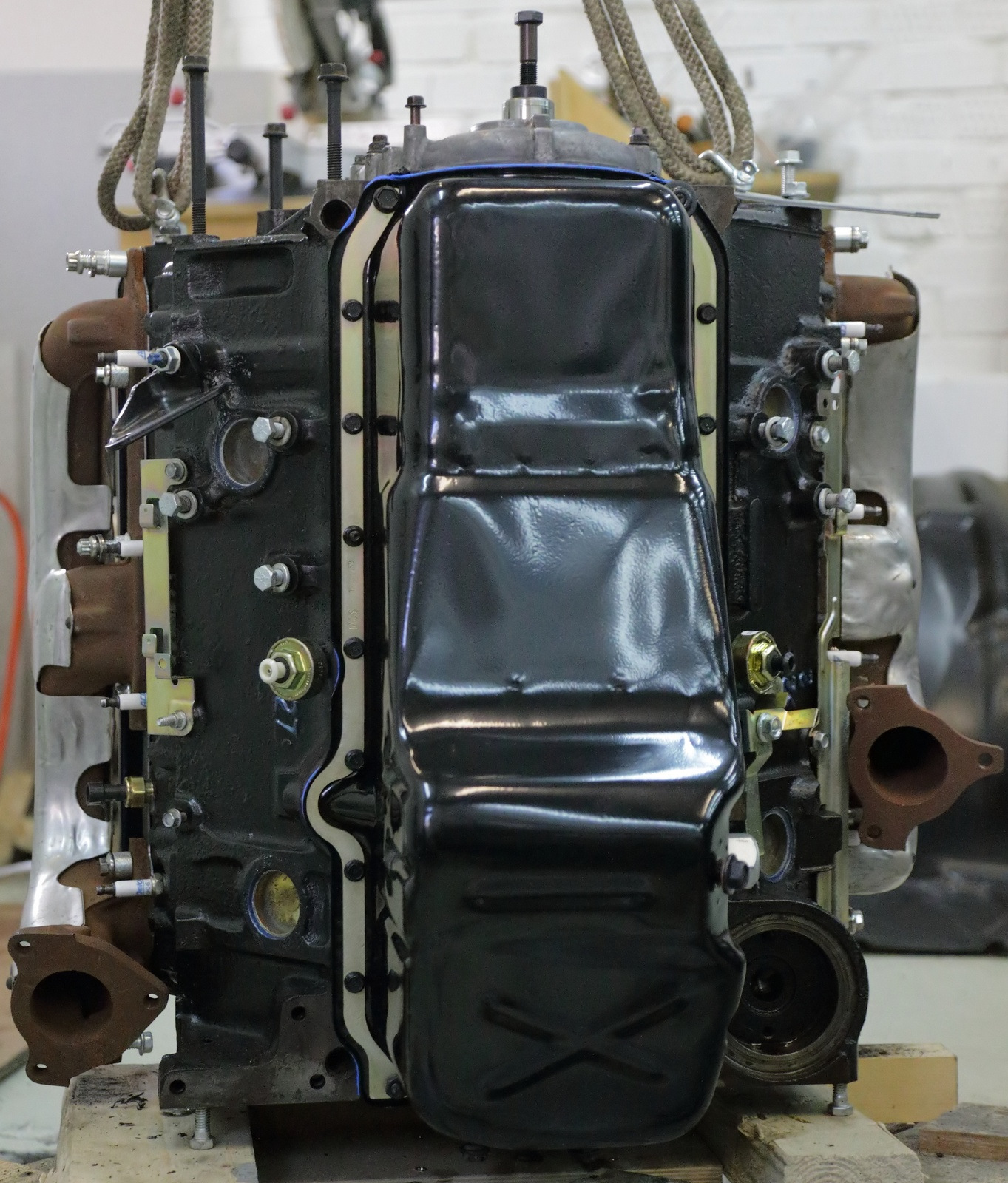

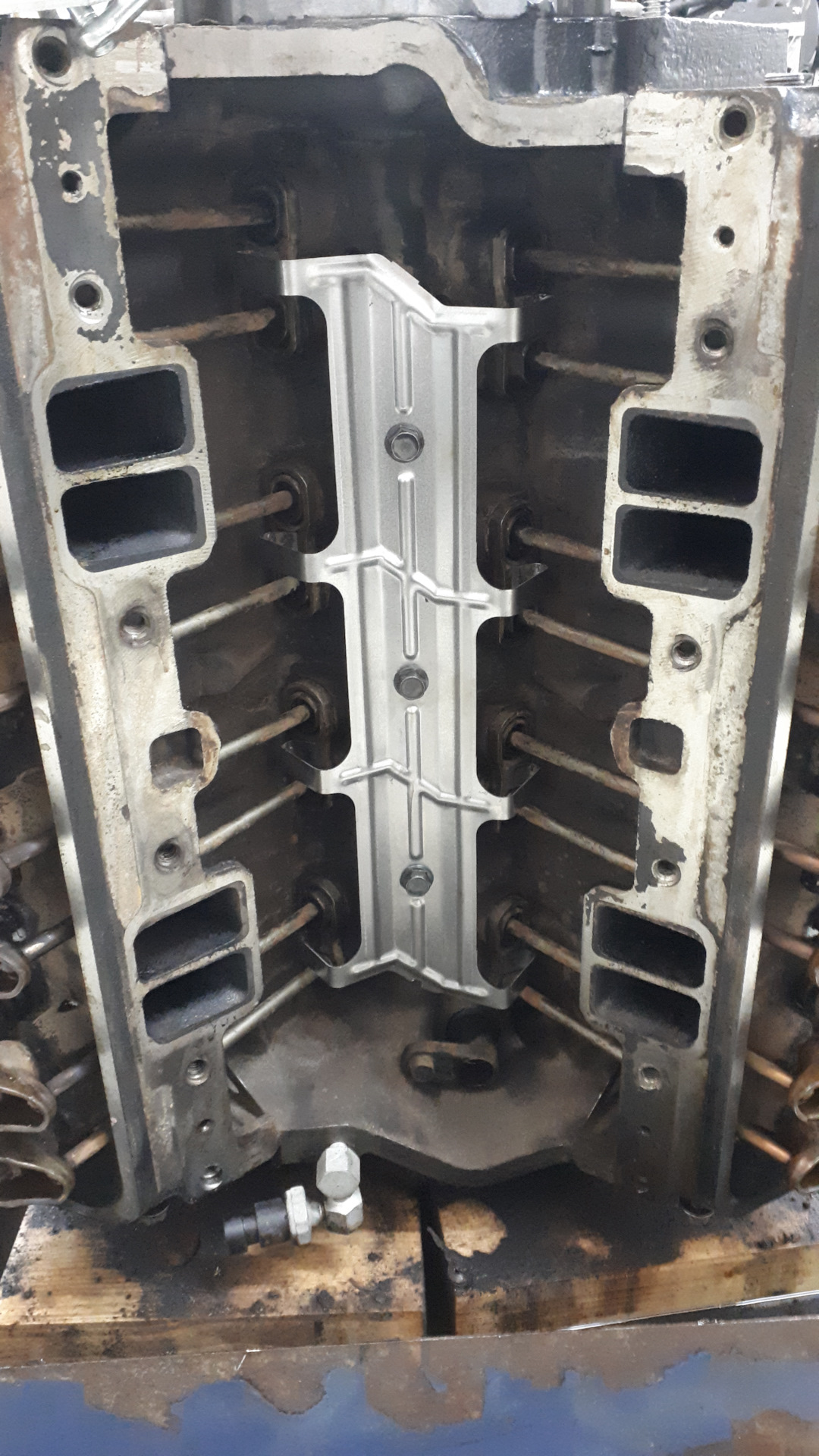

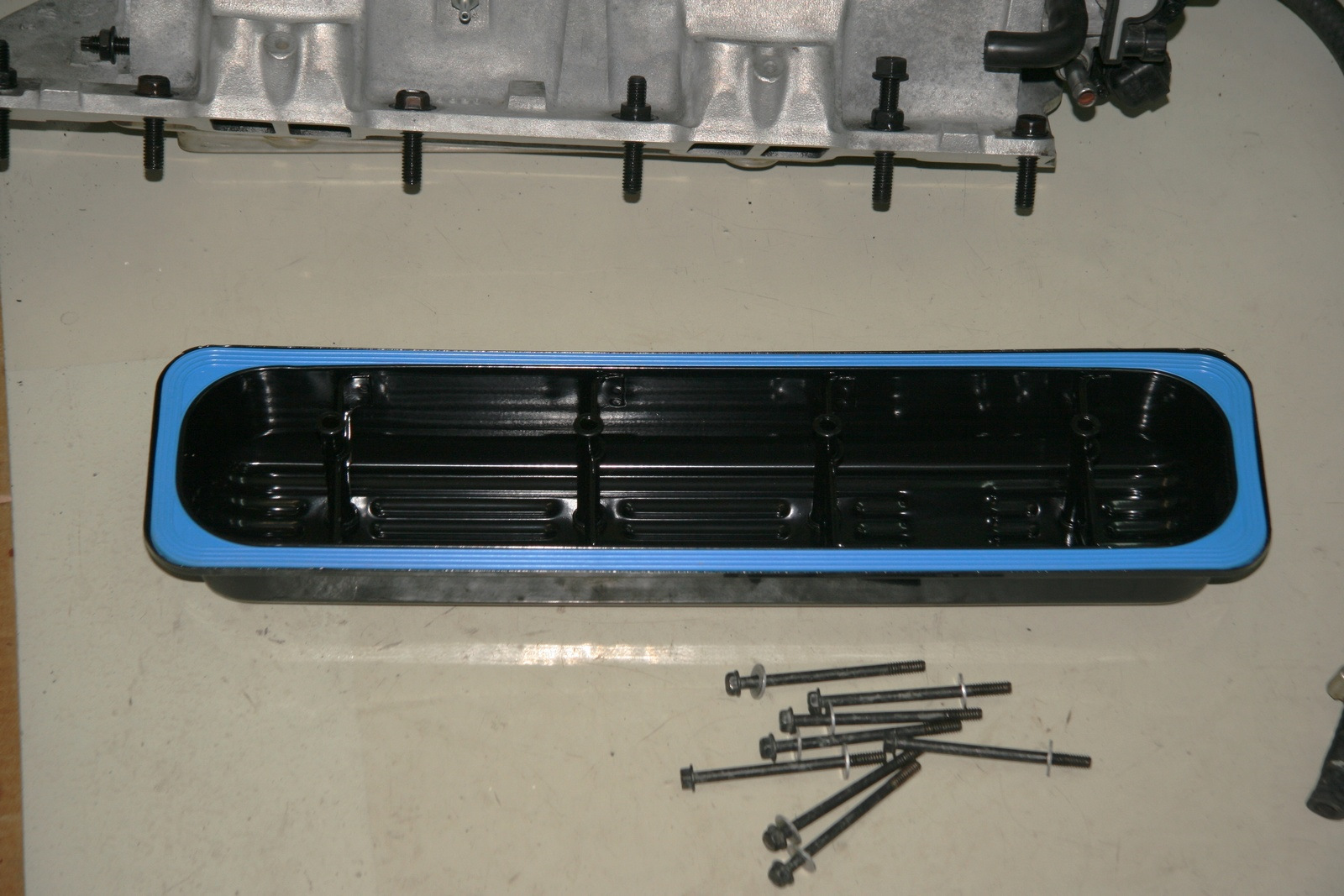

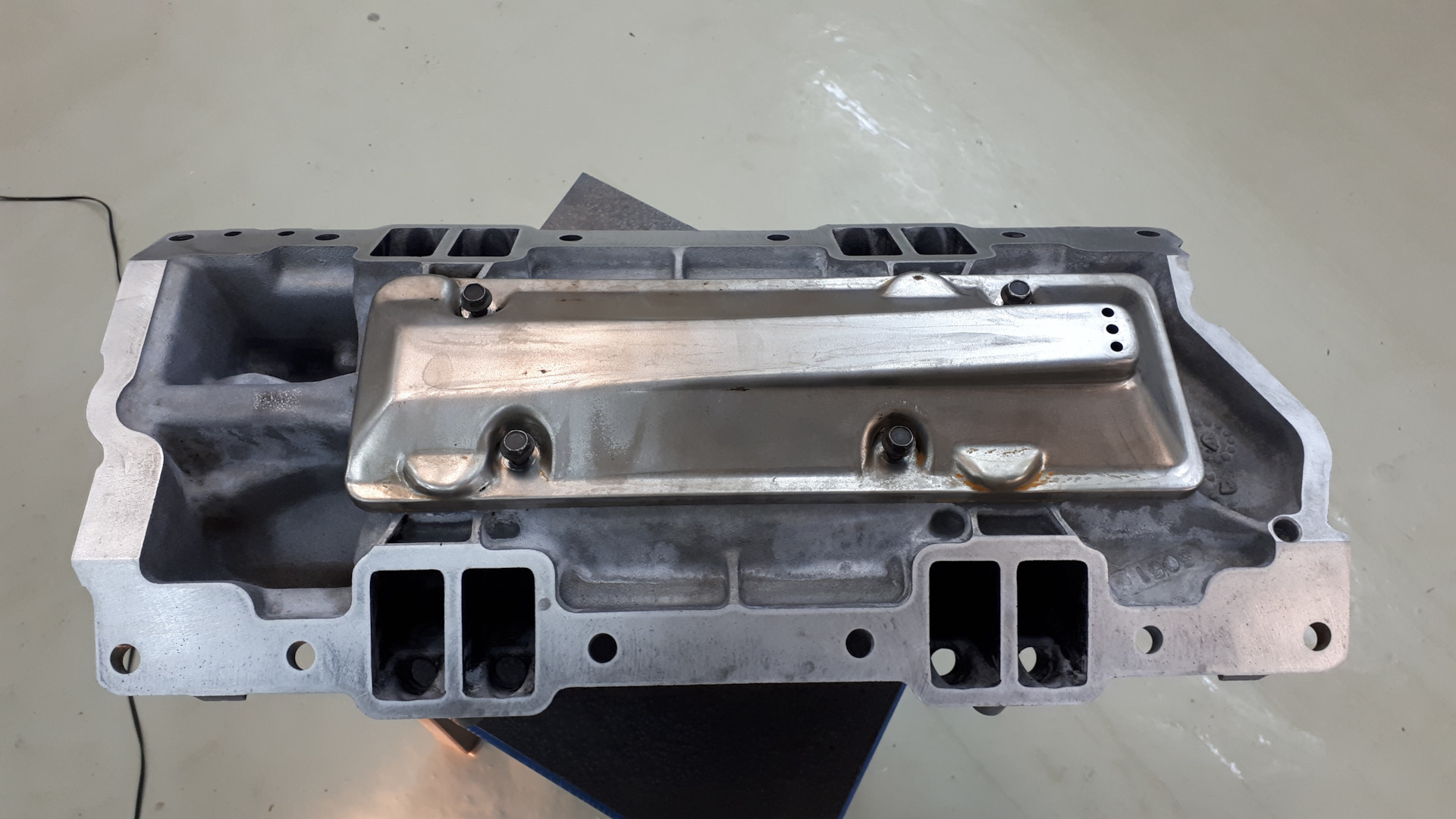

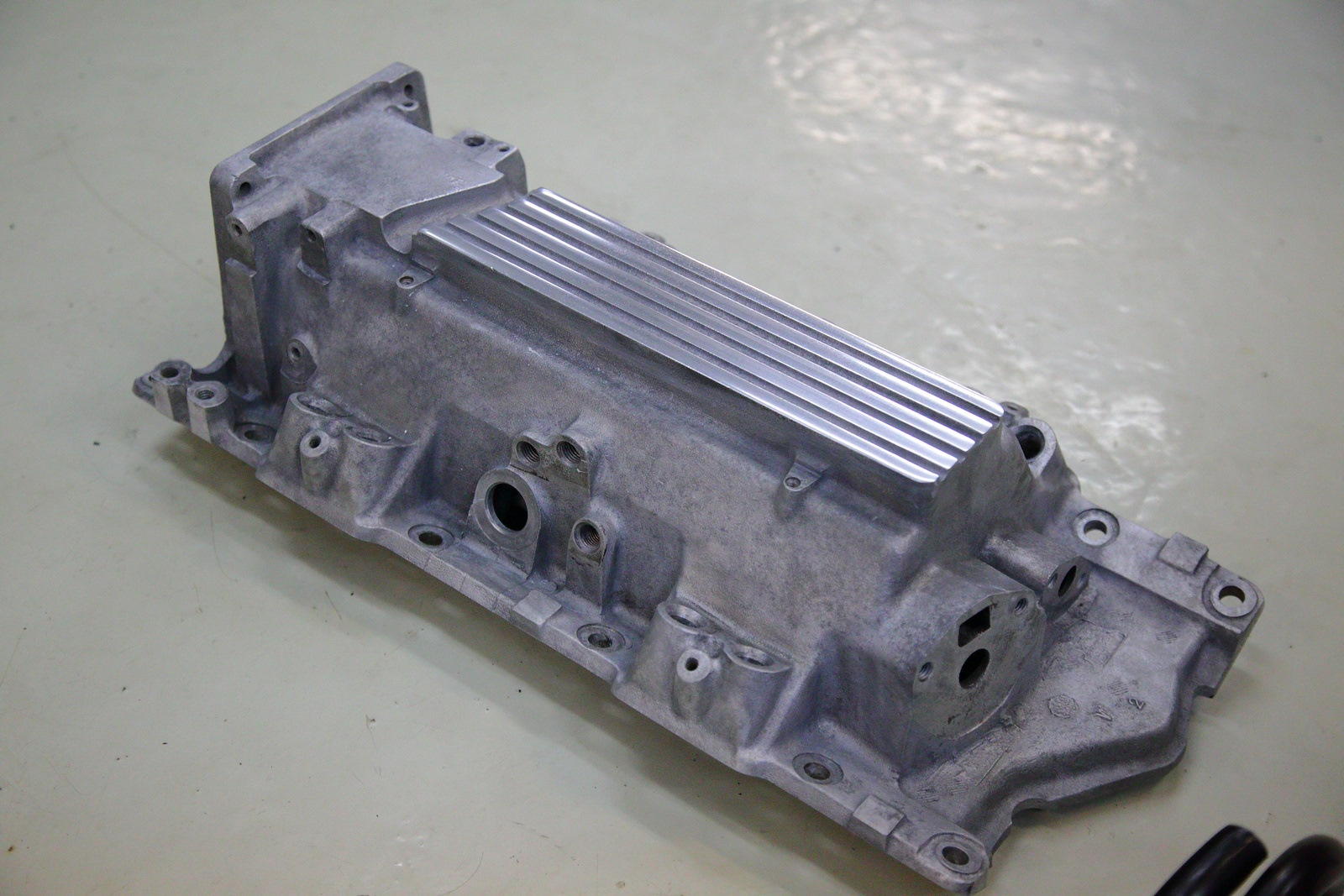

Lower plate mounting





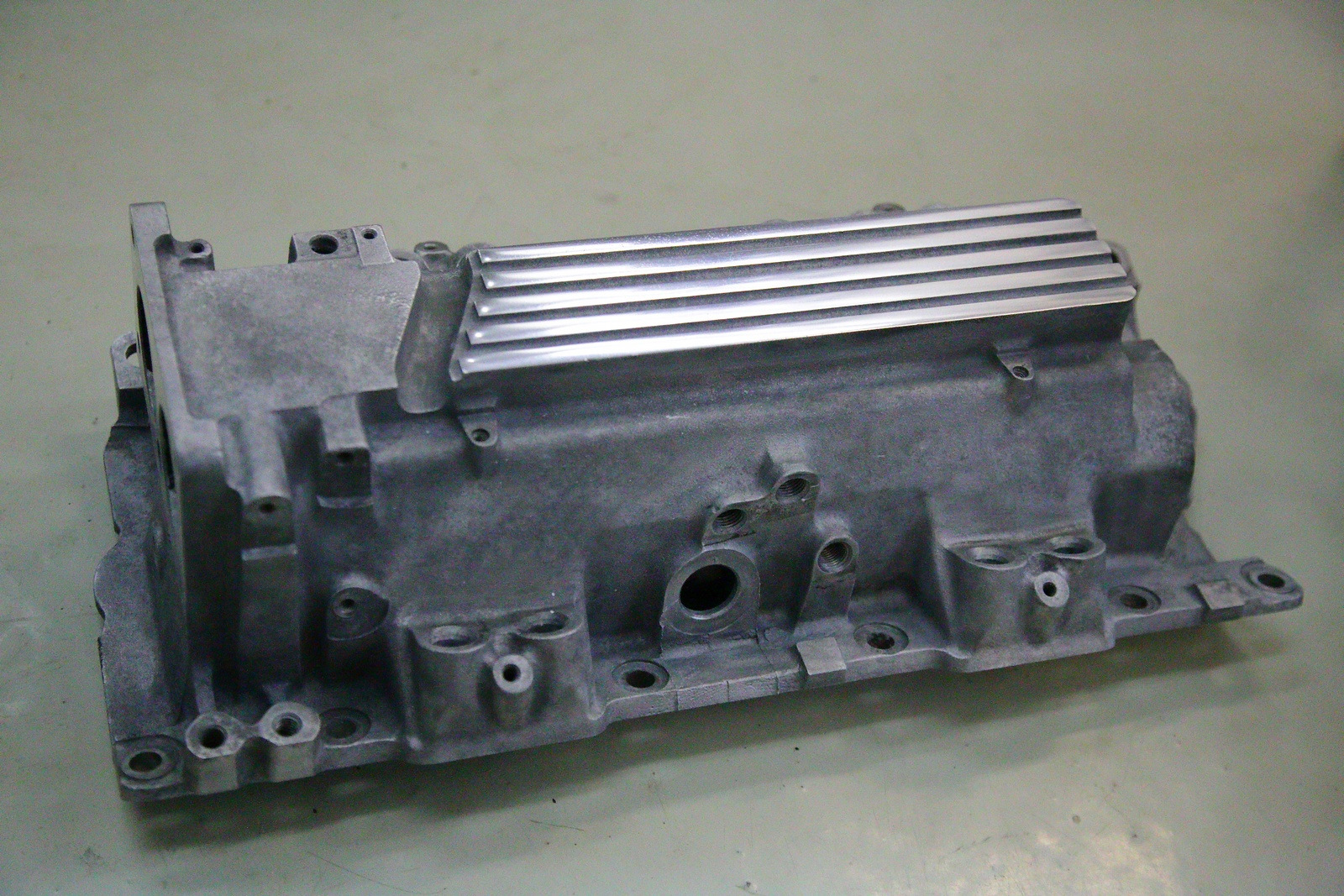

The top stripes were polished

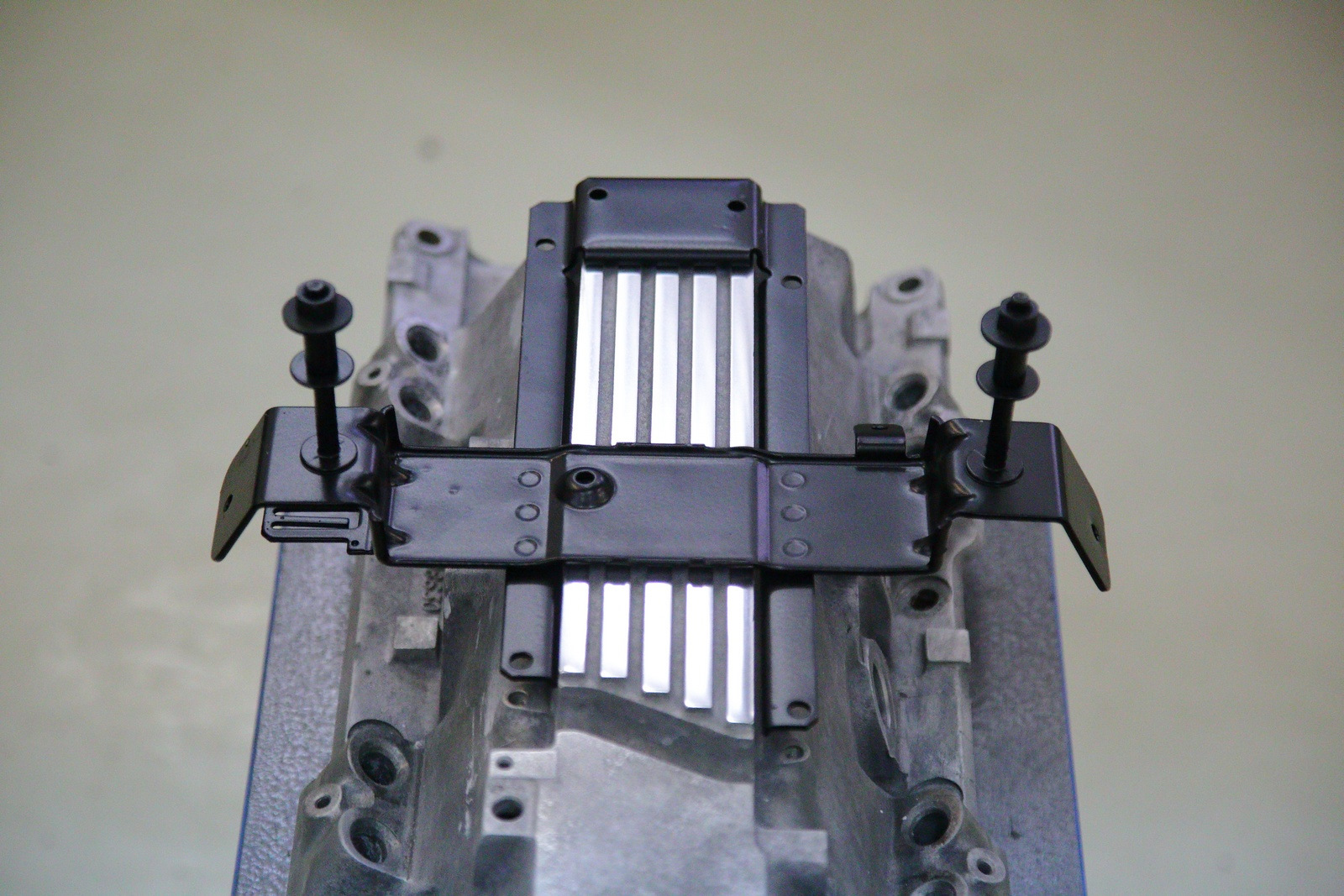

Installing brackets after paint job

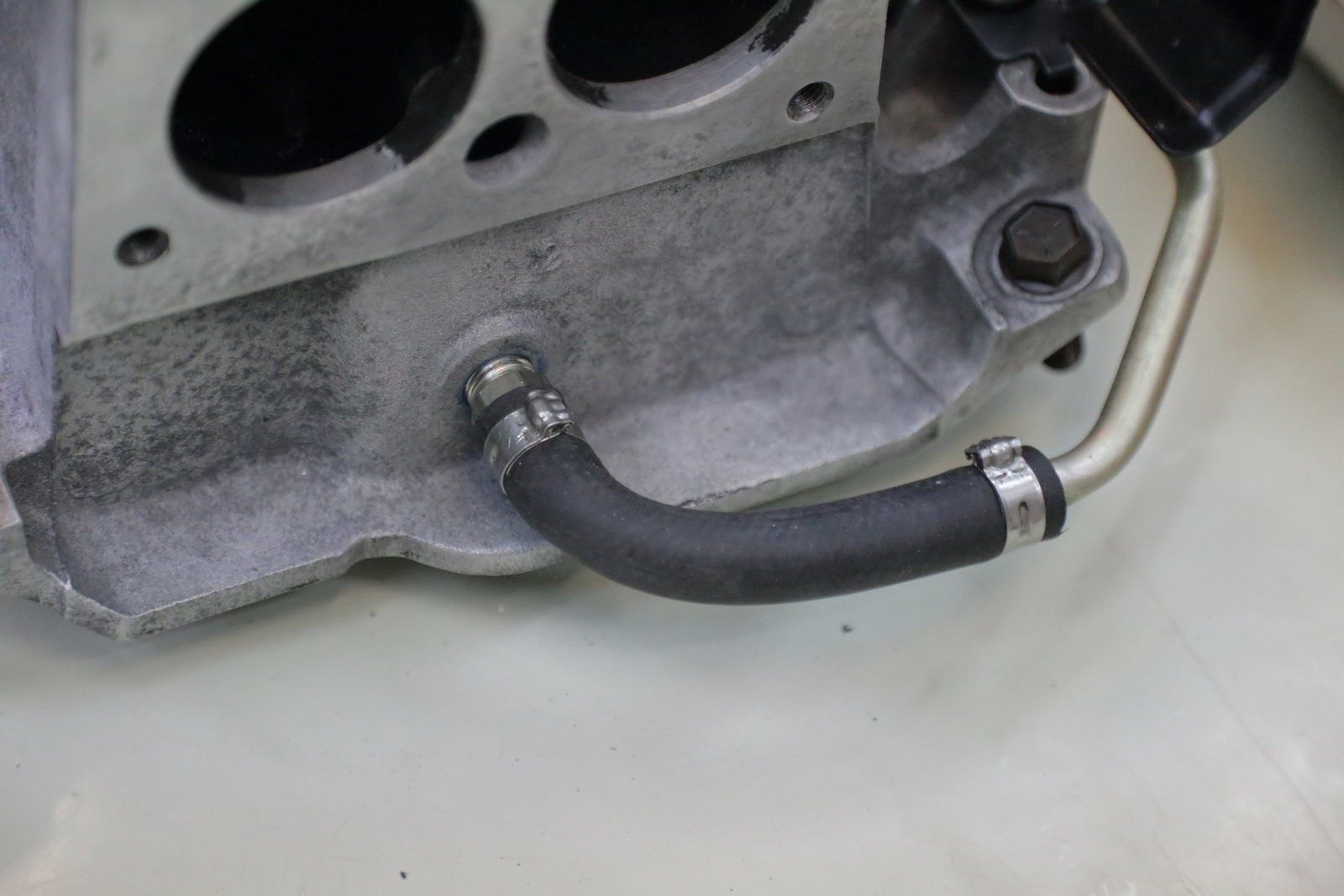

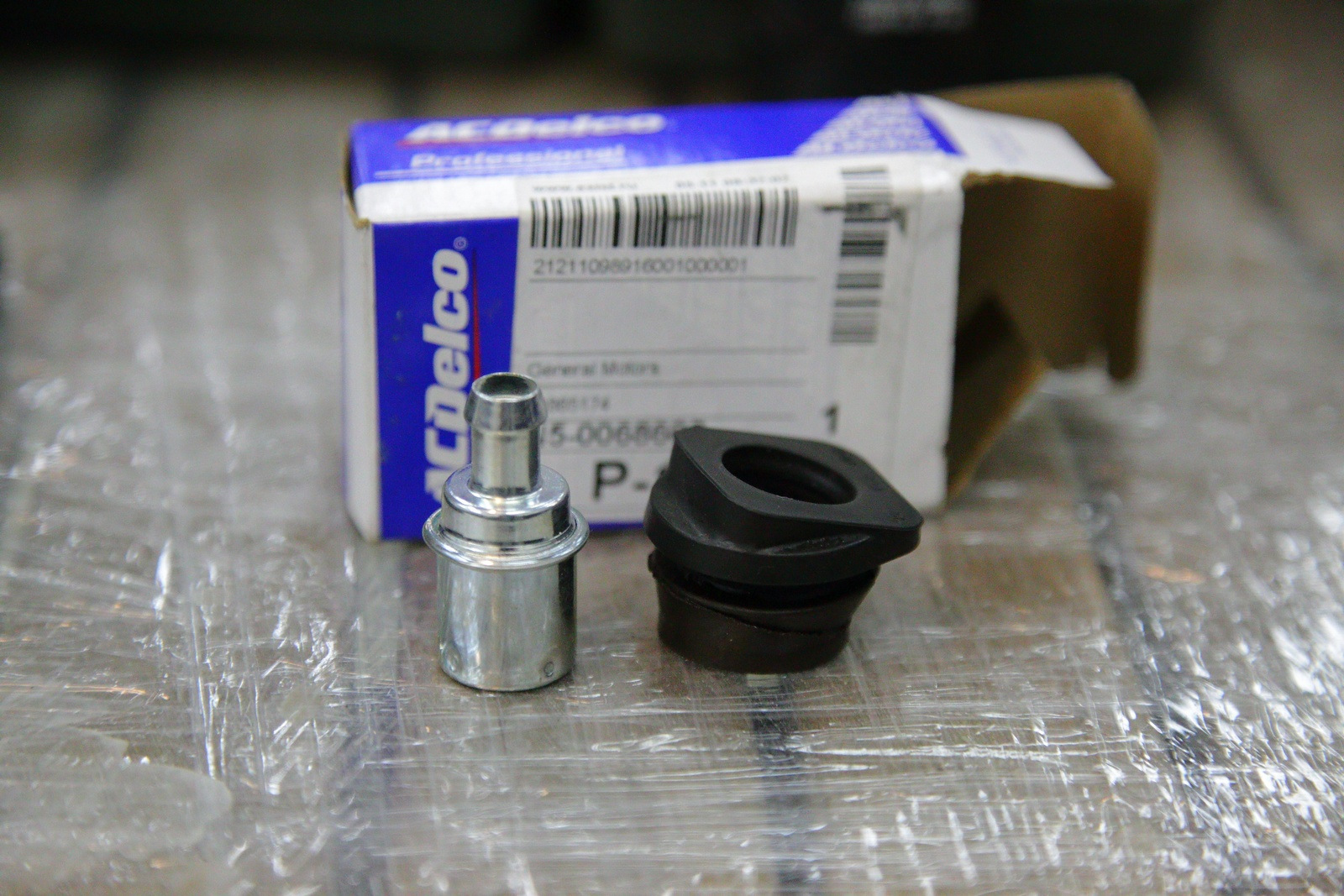

PCV valve

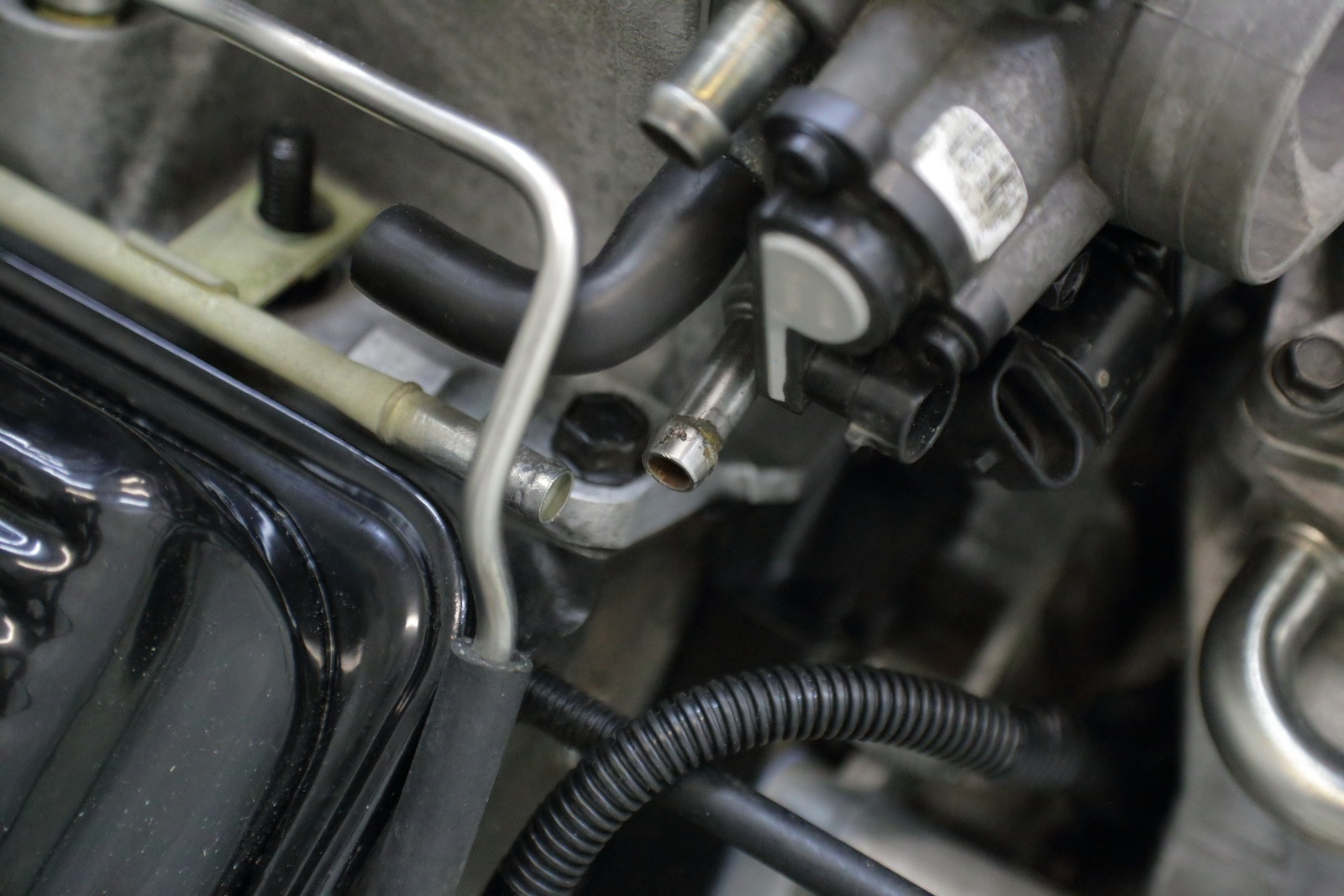

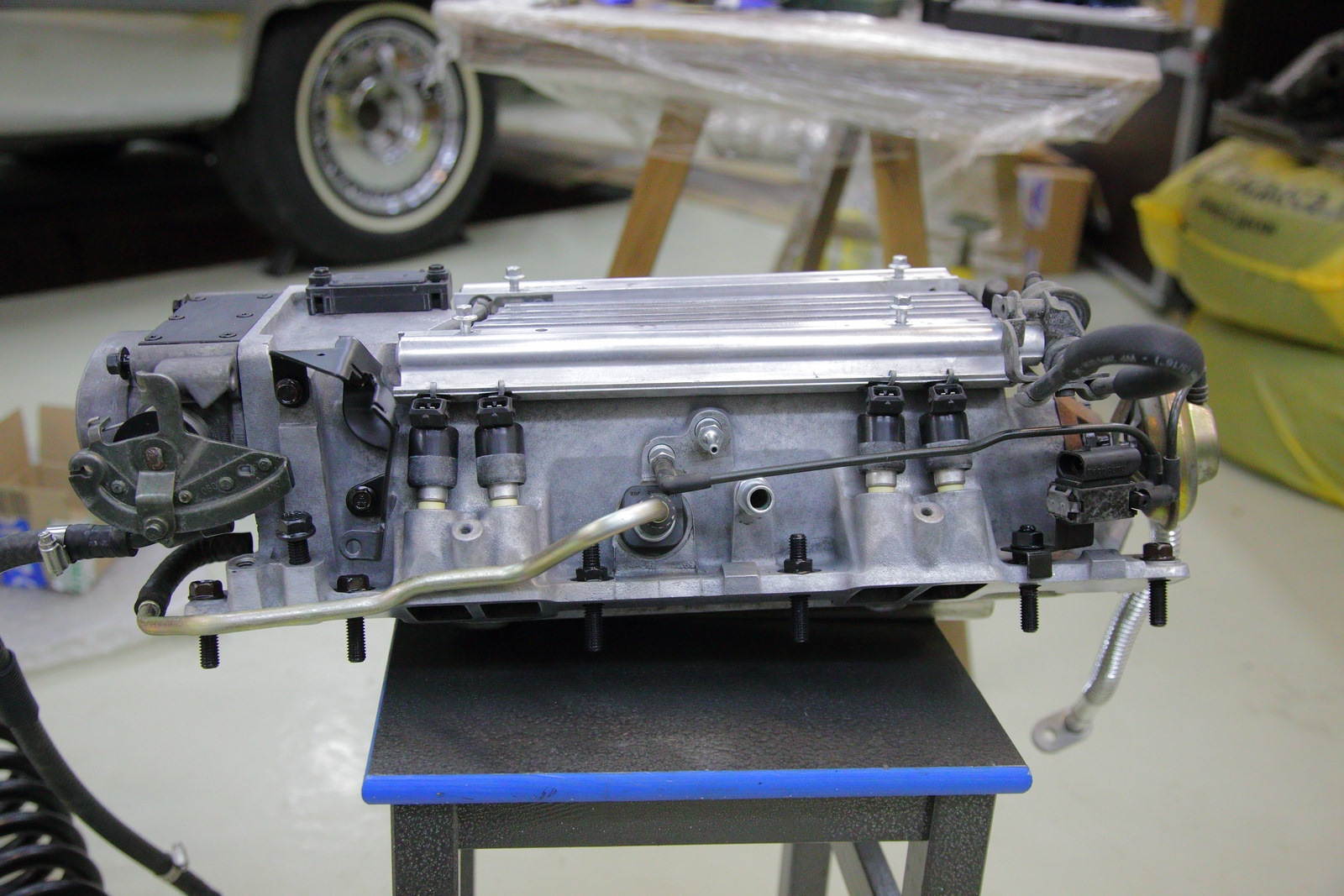

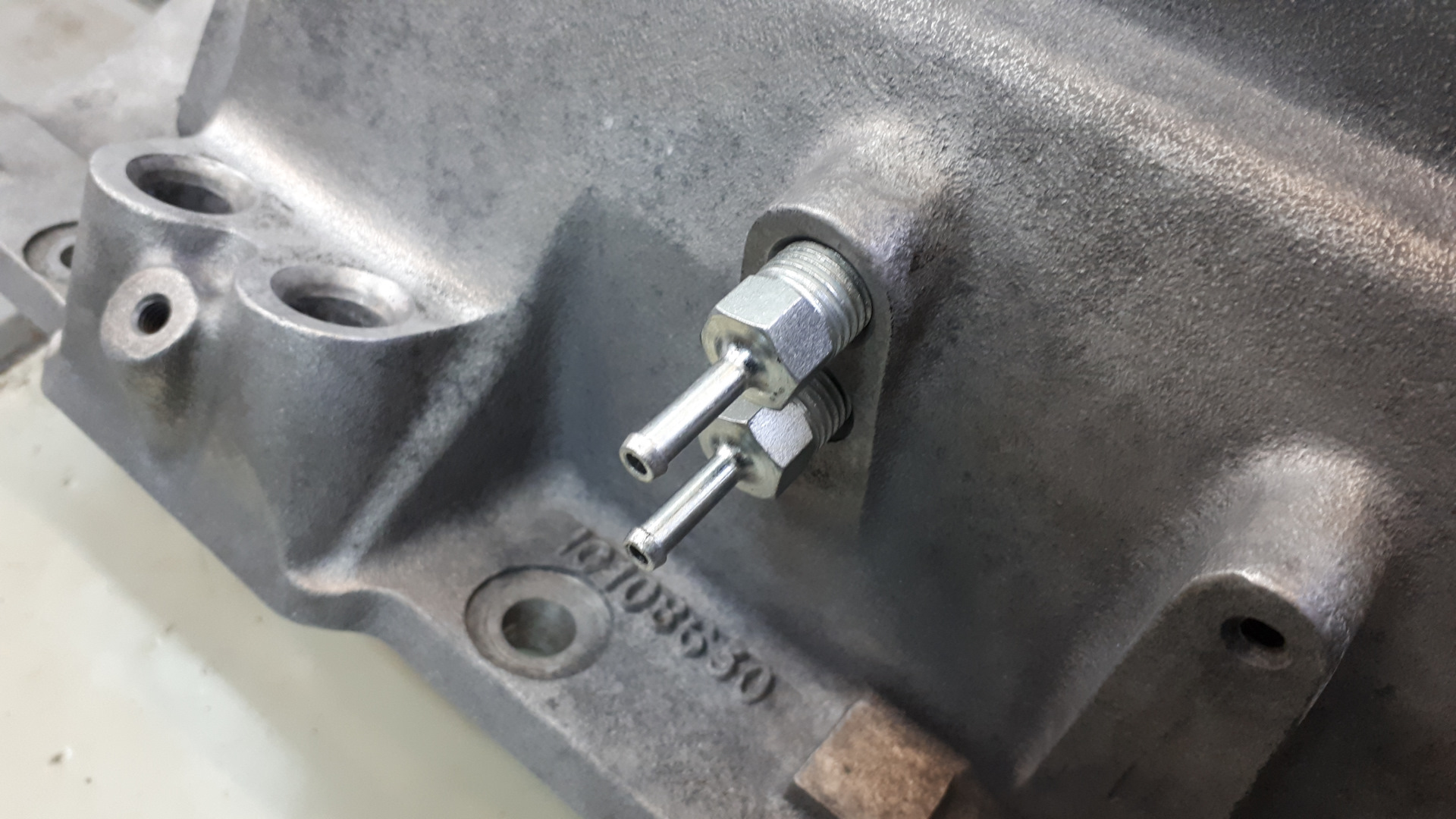

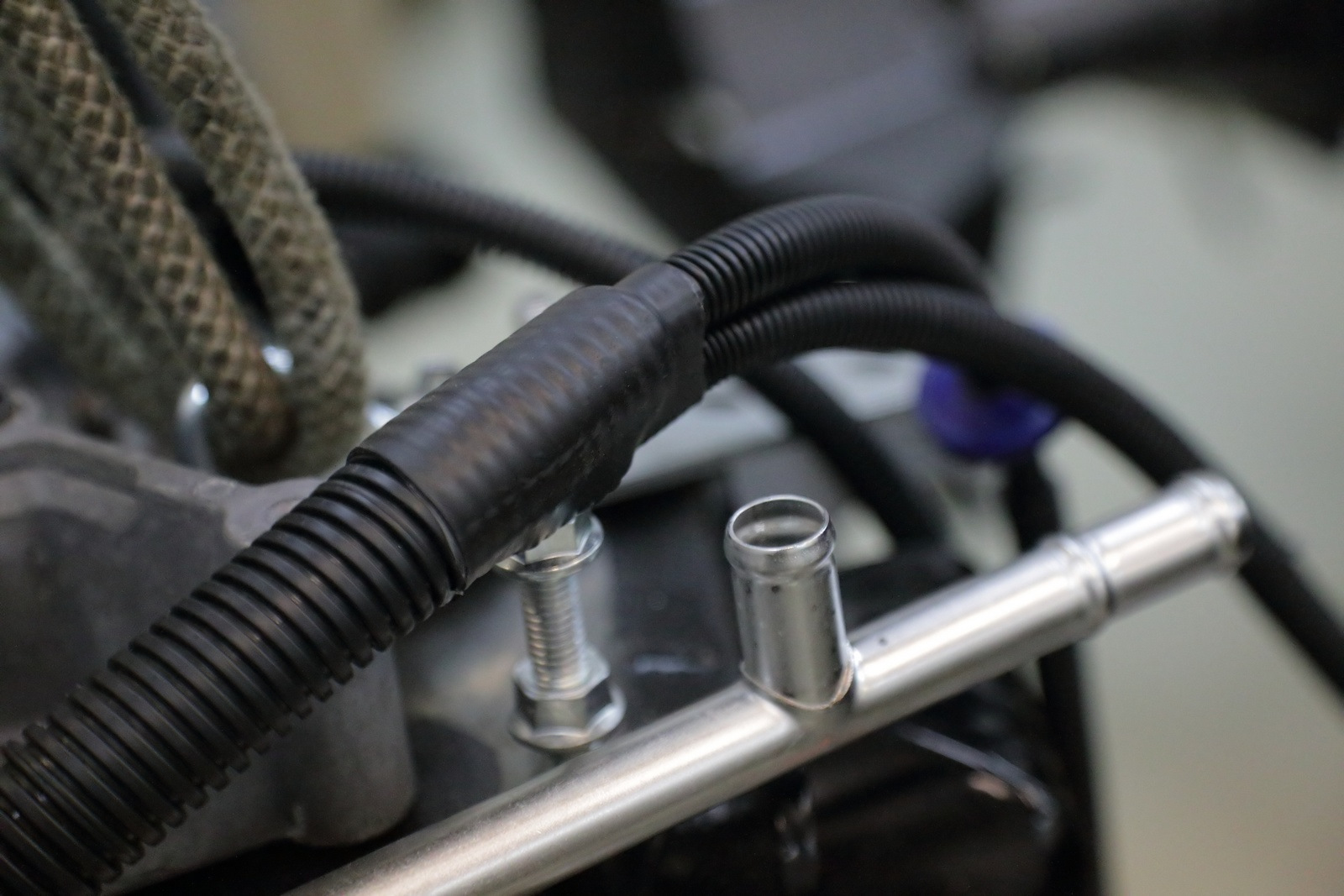

All vacuum plastic tubes were cracked. I replaced them with steel tubes and rubber fuel-resistant hoses









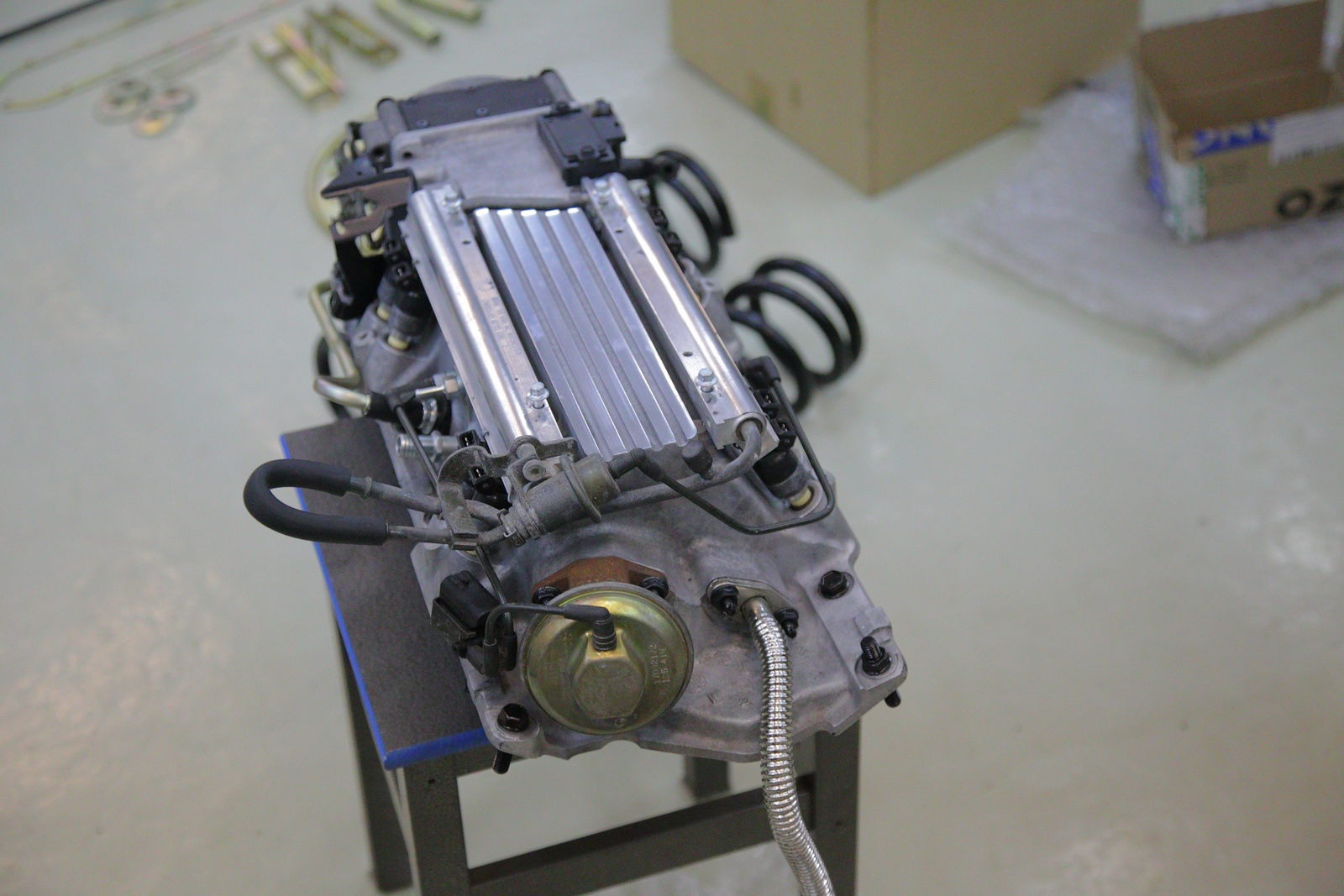

With fuel injector nozzles after ther were washed on ultra-sonic setup and tested for the productivity and leaks



Of course, new o-rings were used for the fuel ramp

One more component for today: Ignition

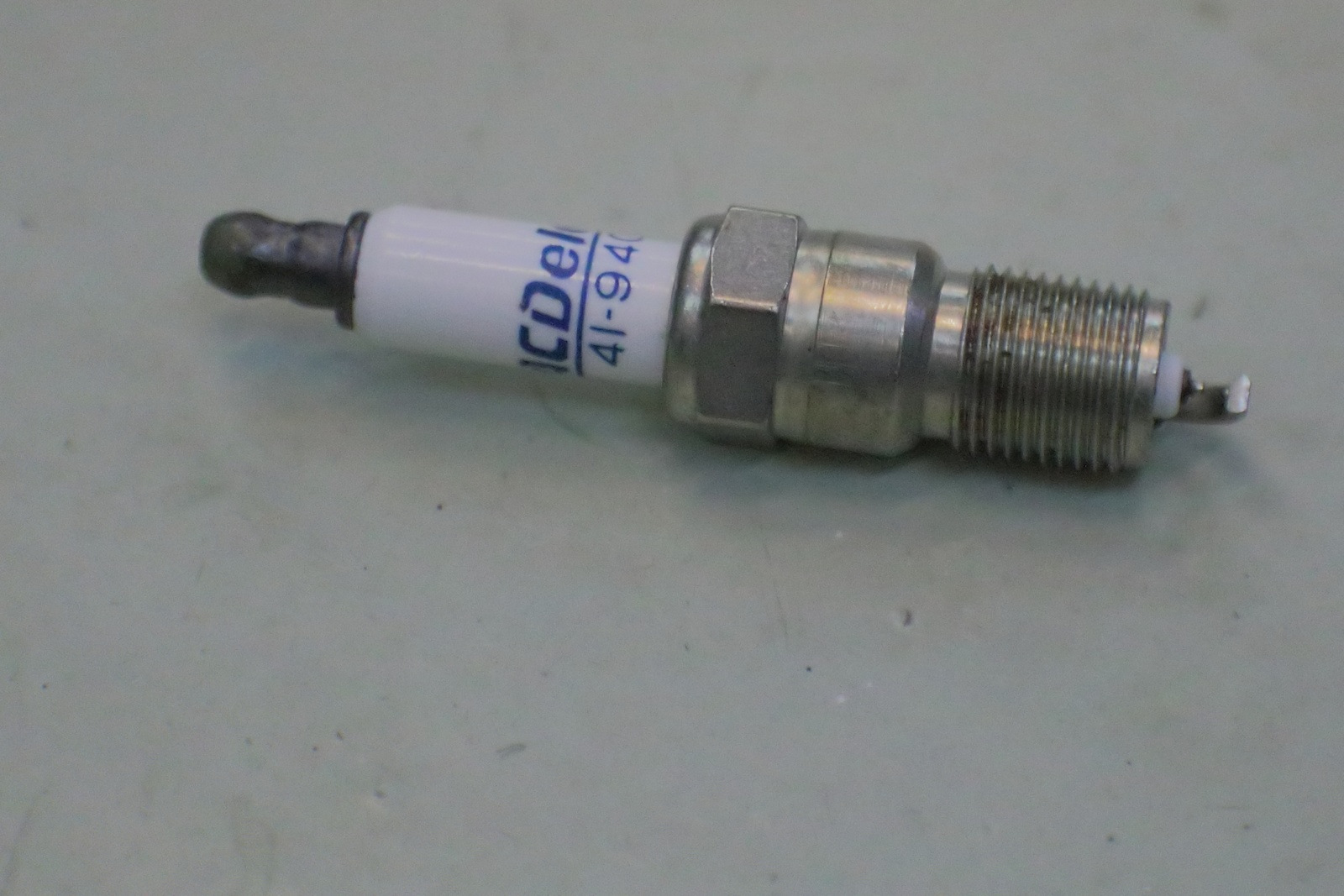

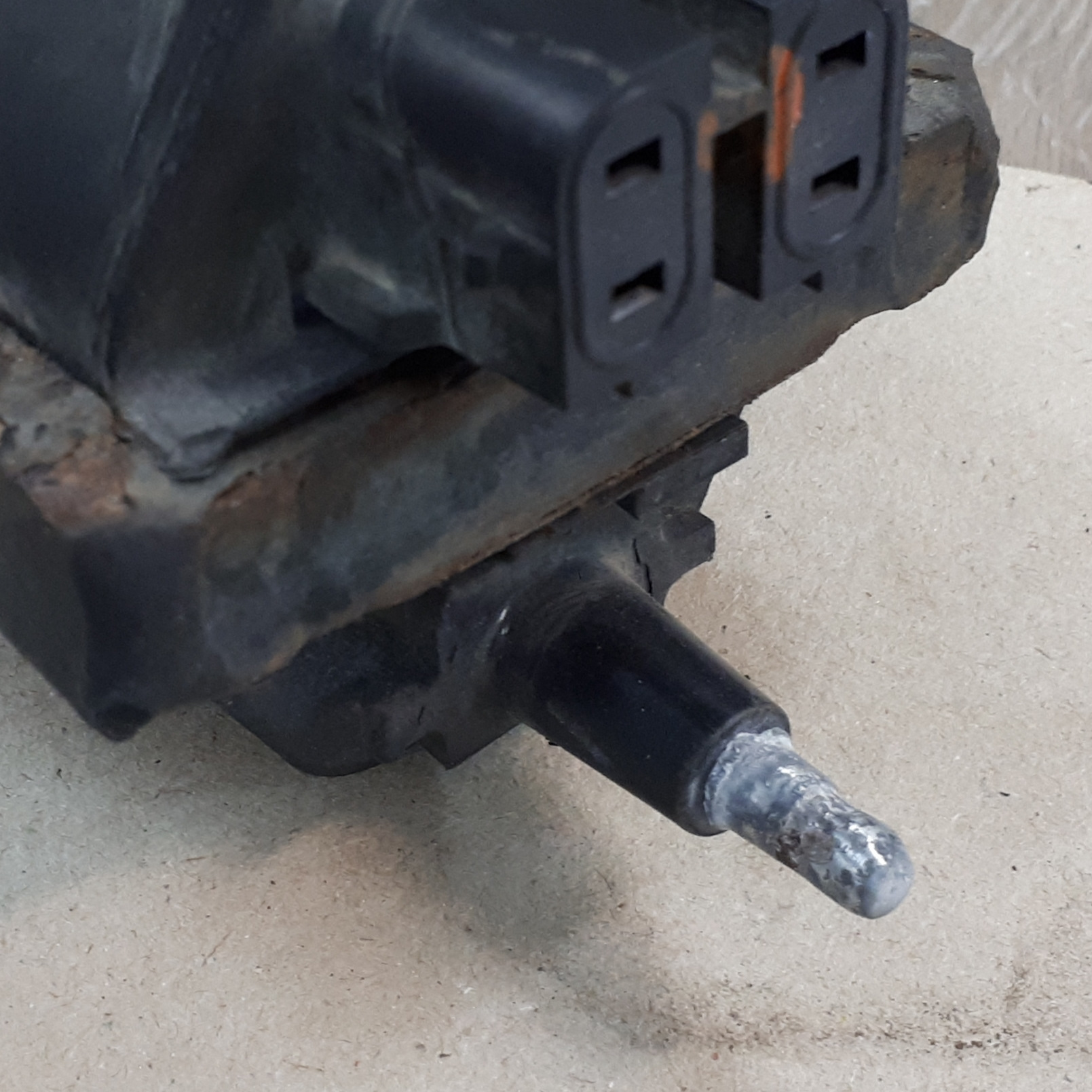

Rusted and corroded central electrode

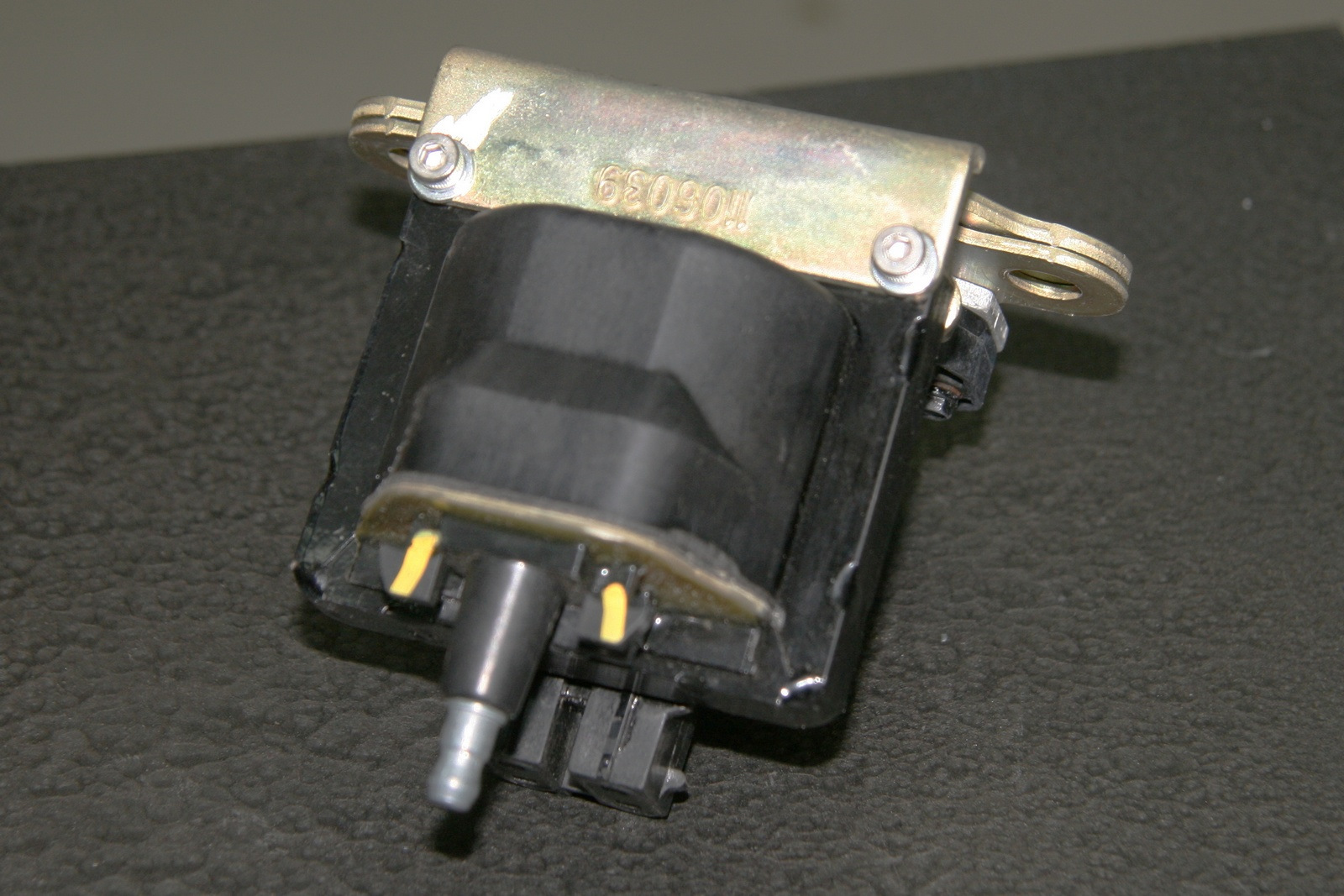

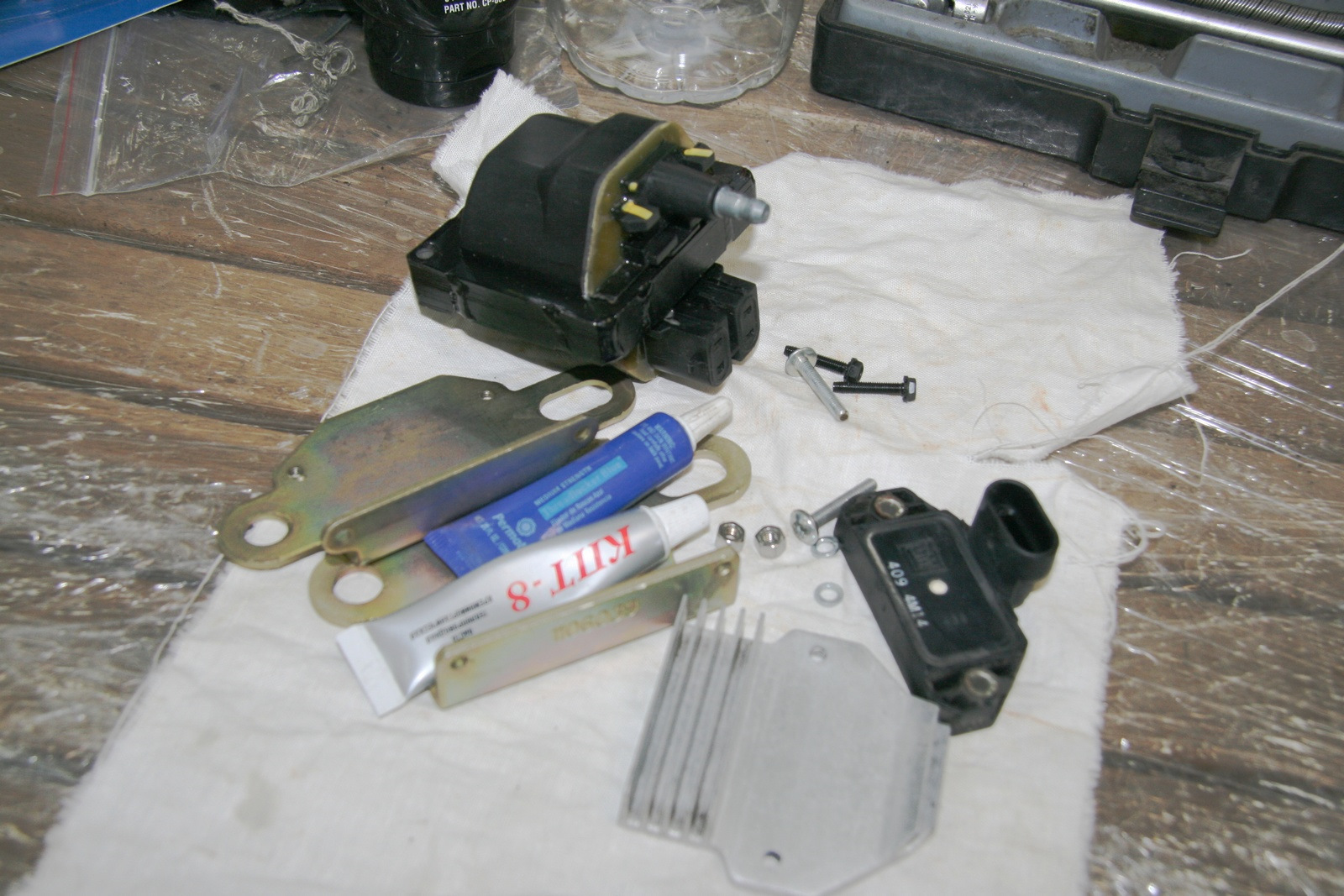

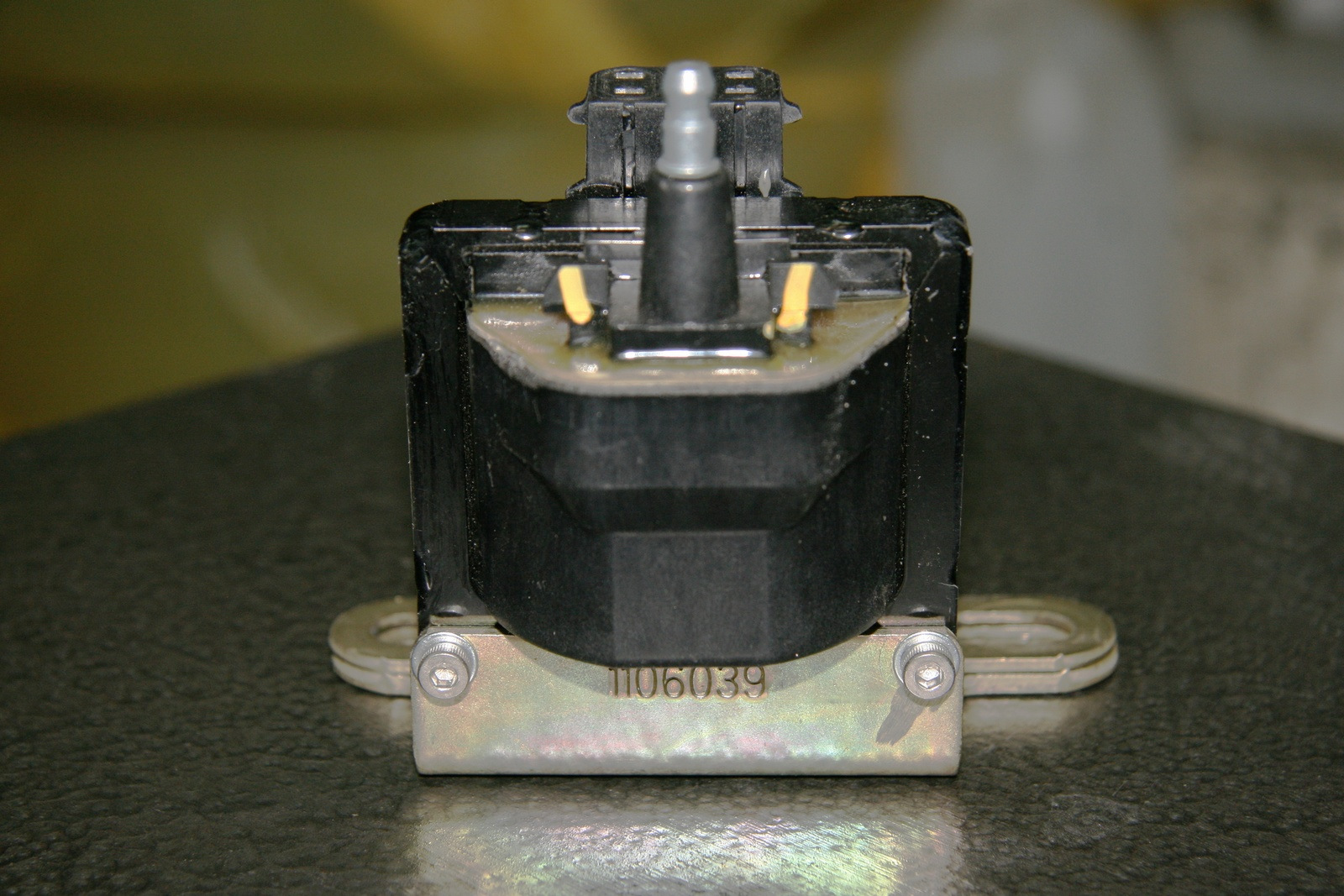

New coil, brackets after replating

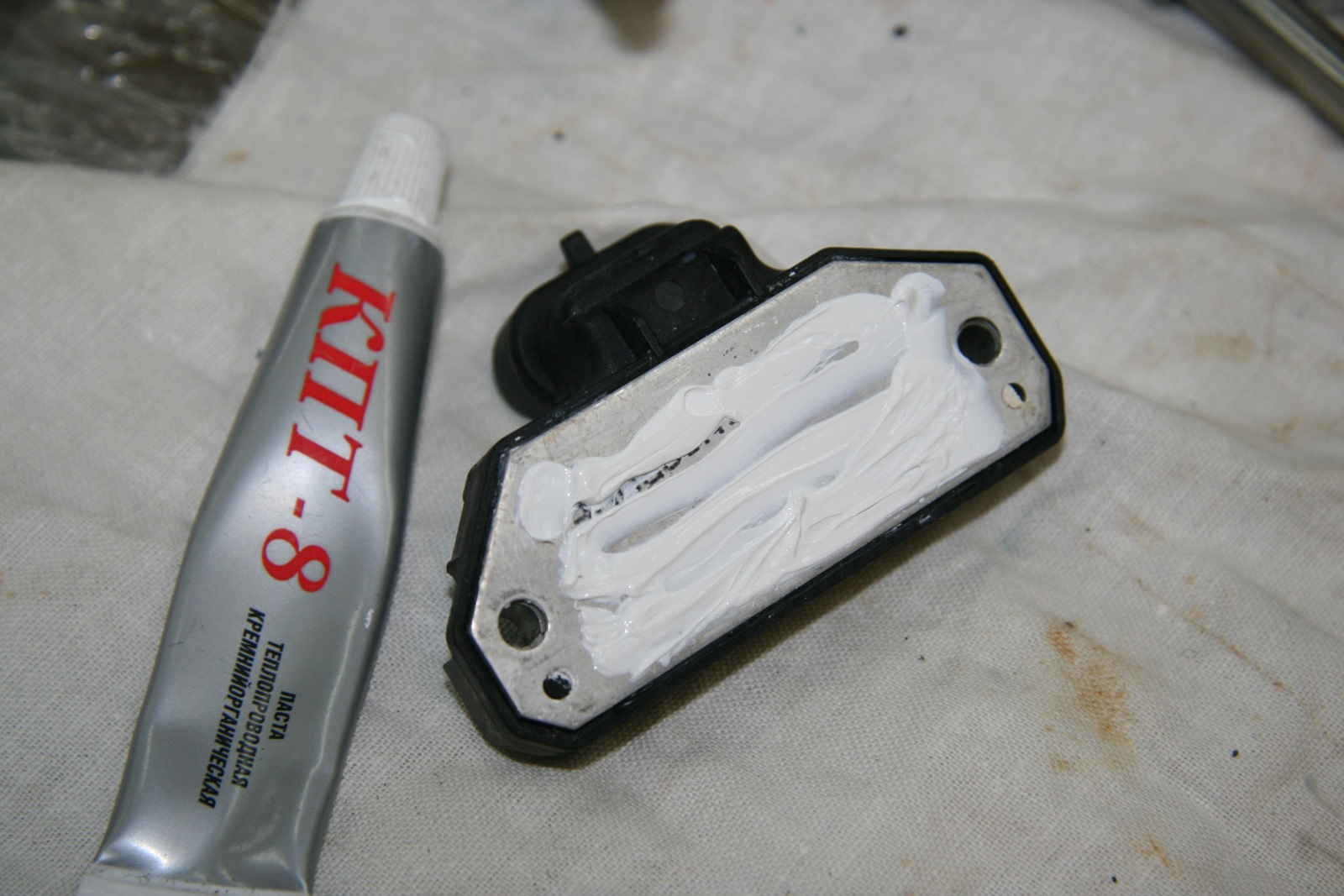

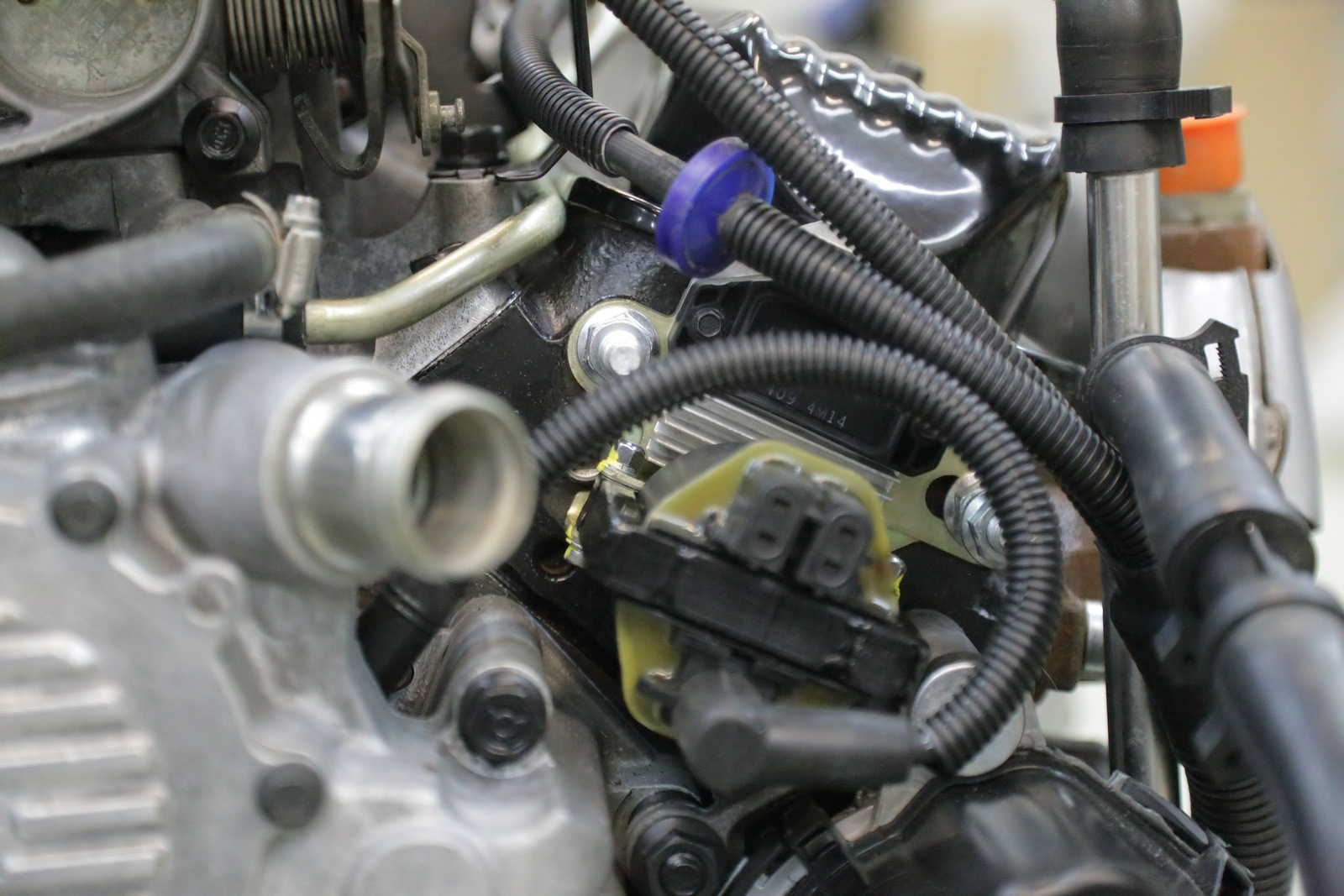

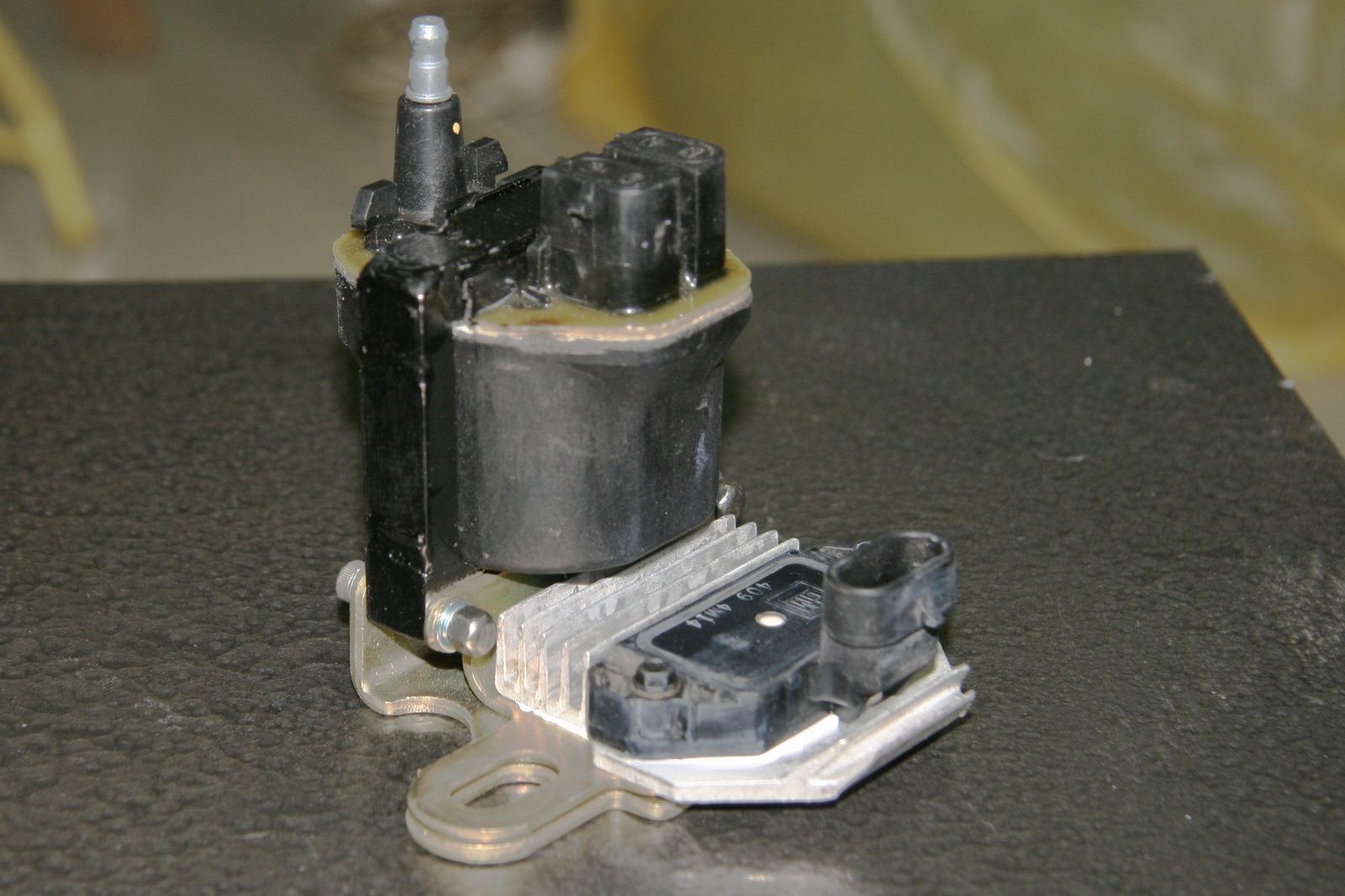

Ignition module needs good cooling, otherwise LT1 will not work

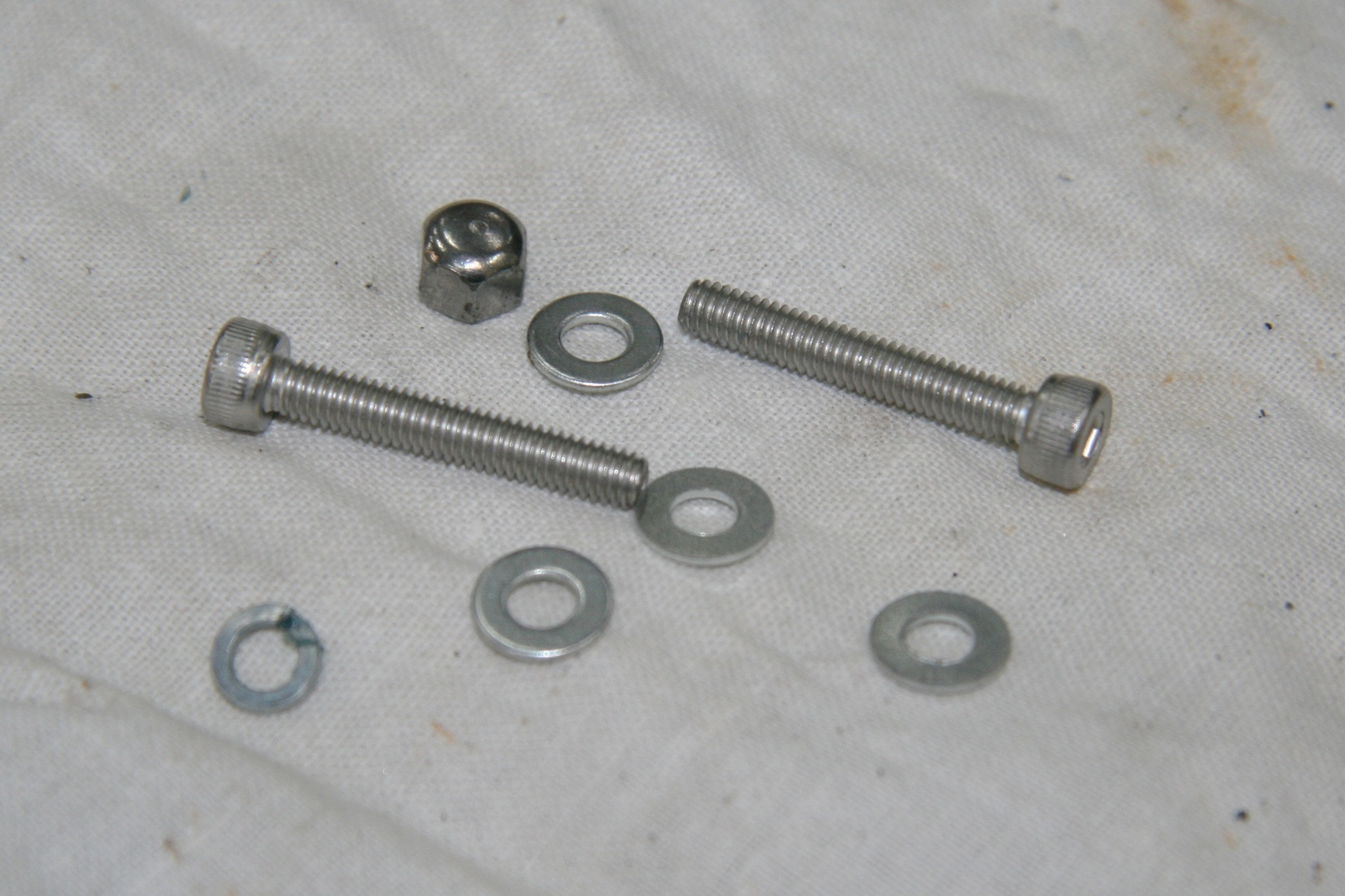

I decided to use stainless hardware instead of original steel rivets



Assembled.

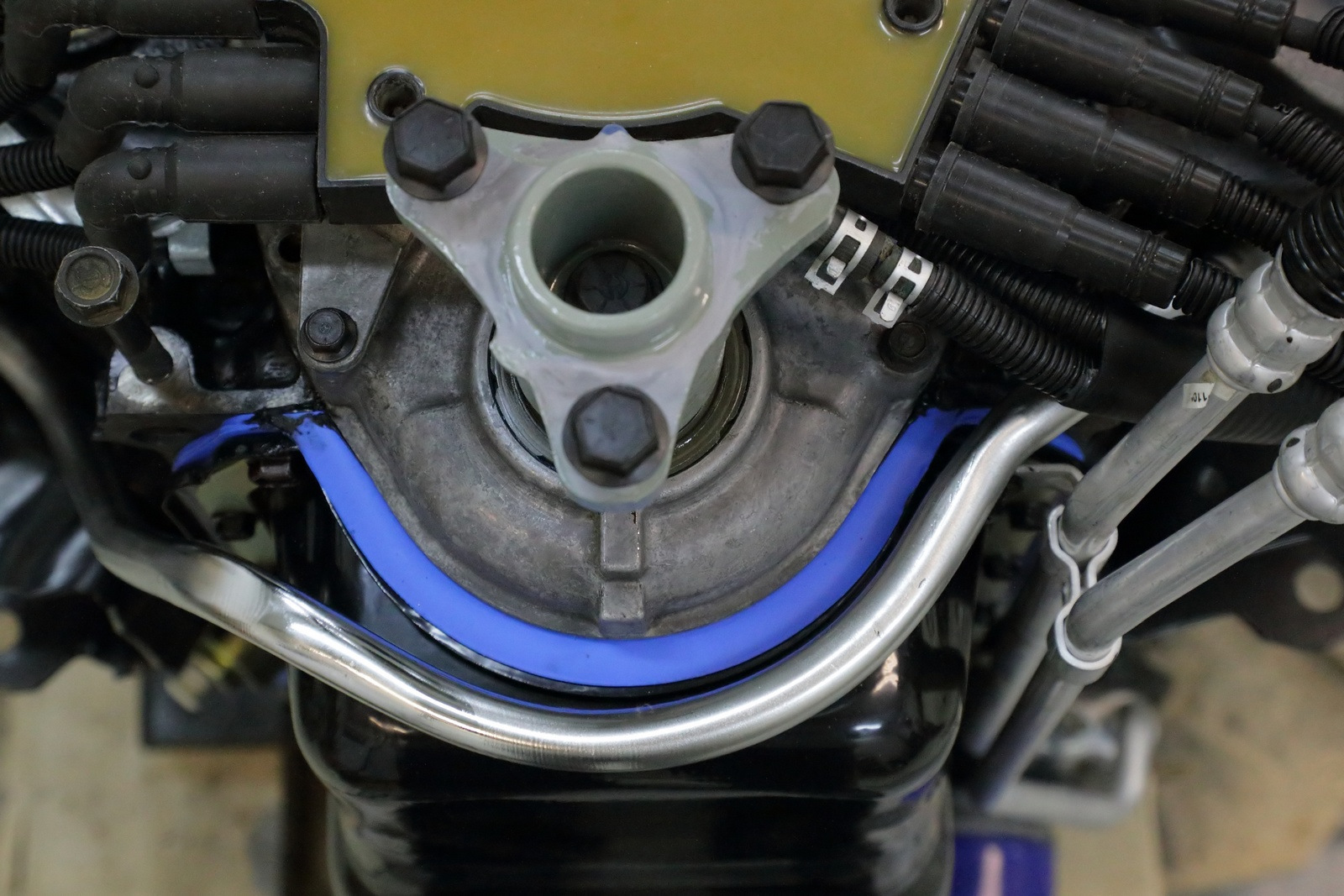

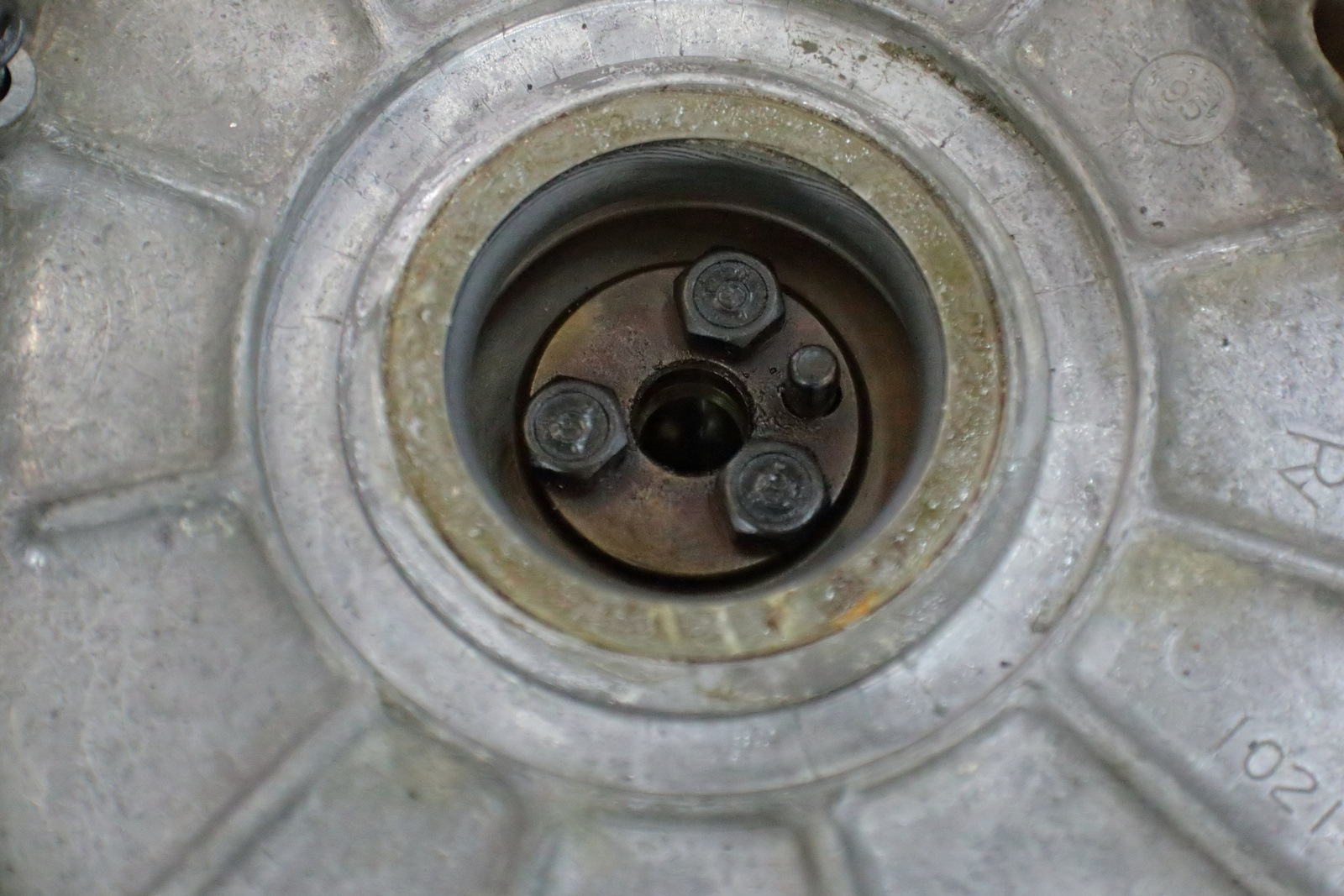

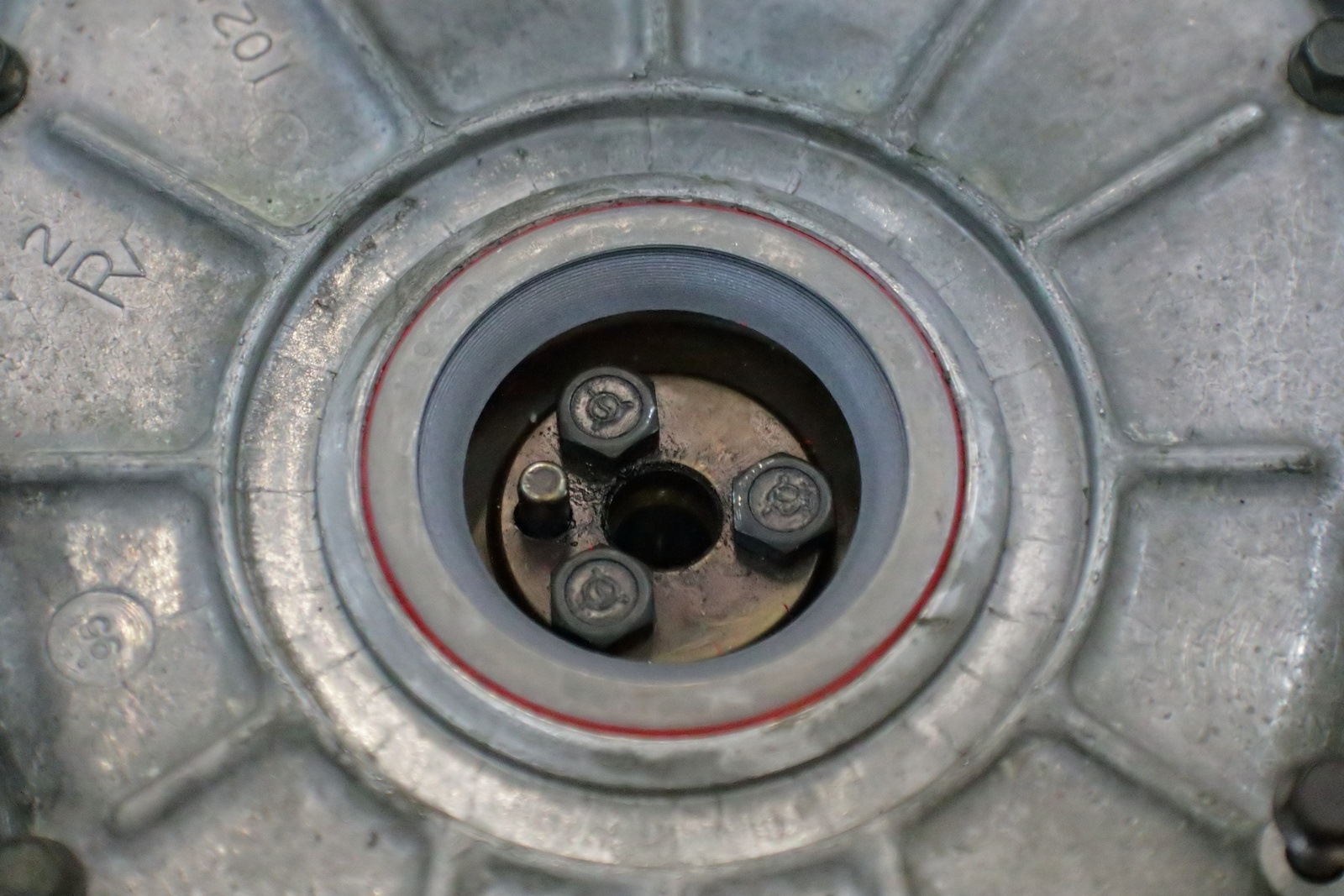

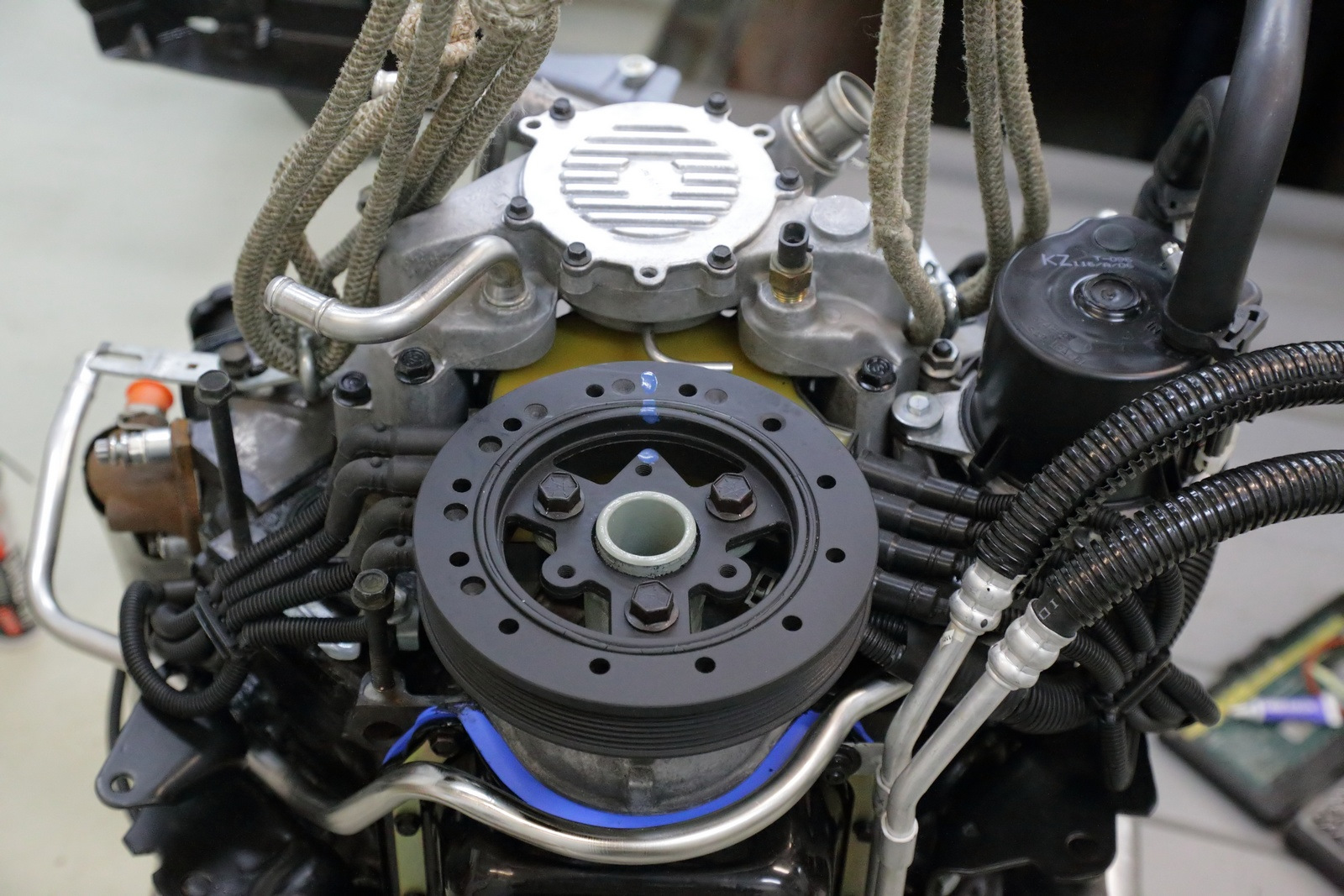

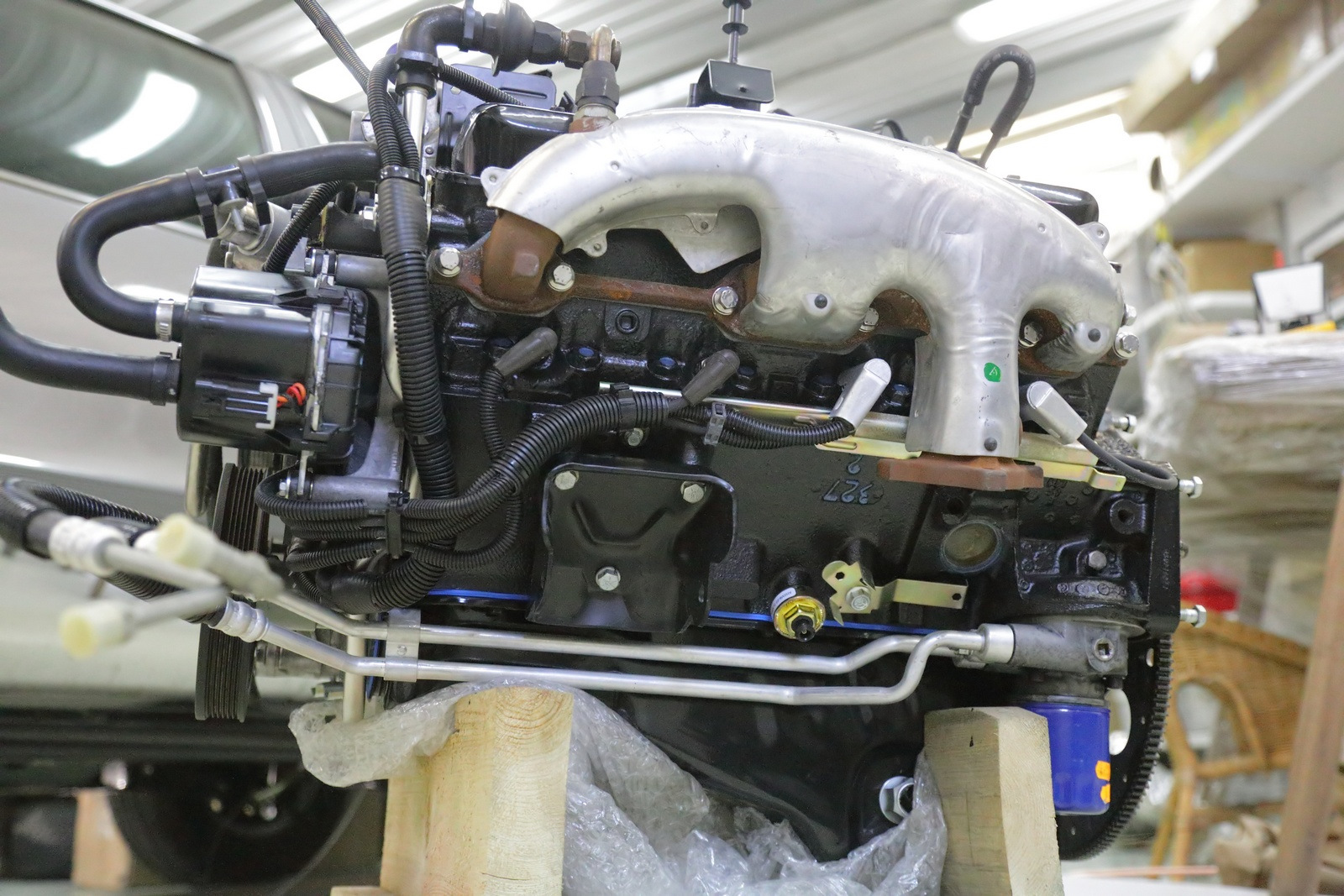

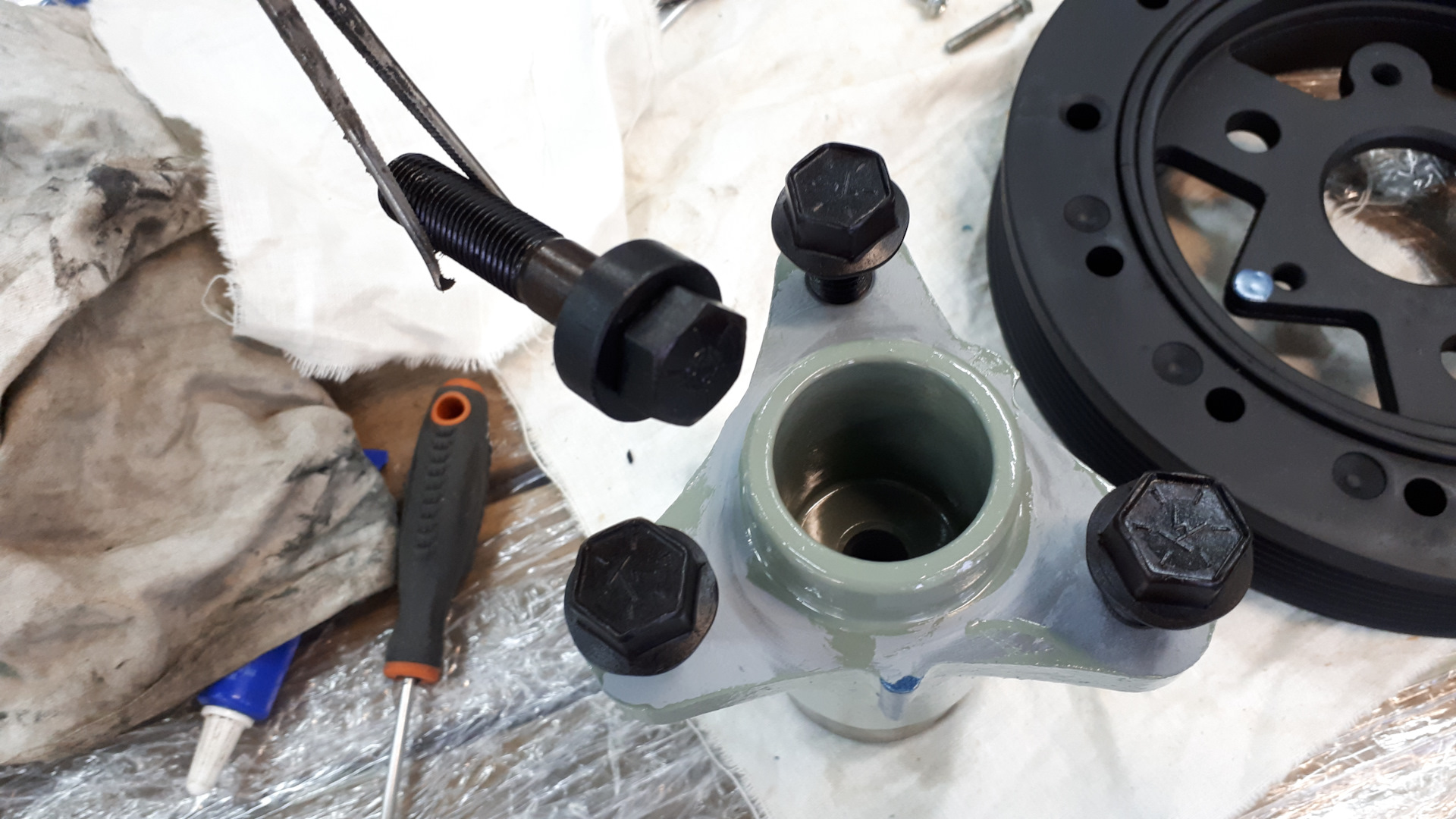

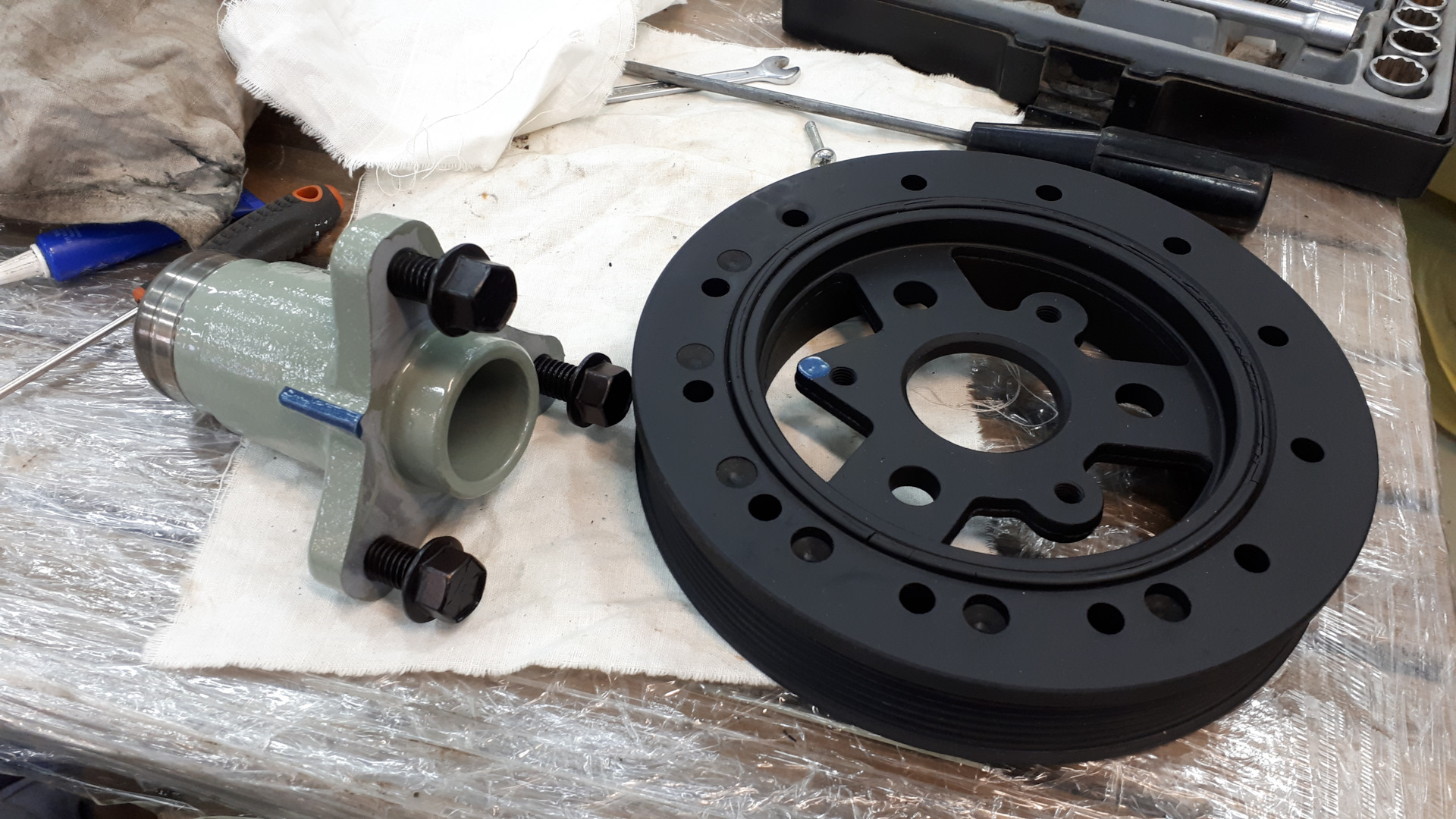

Harmonic balancer

[kudims]

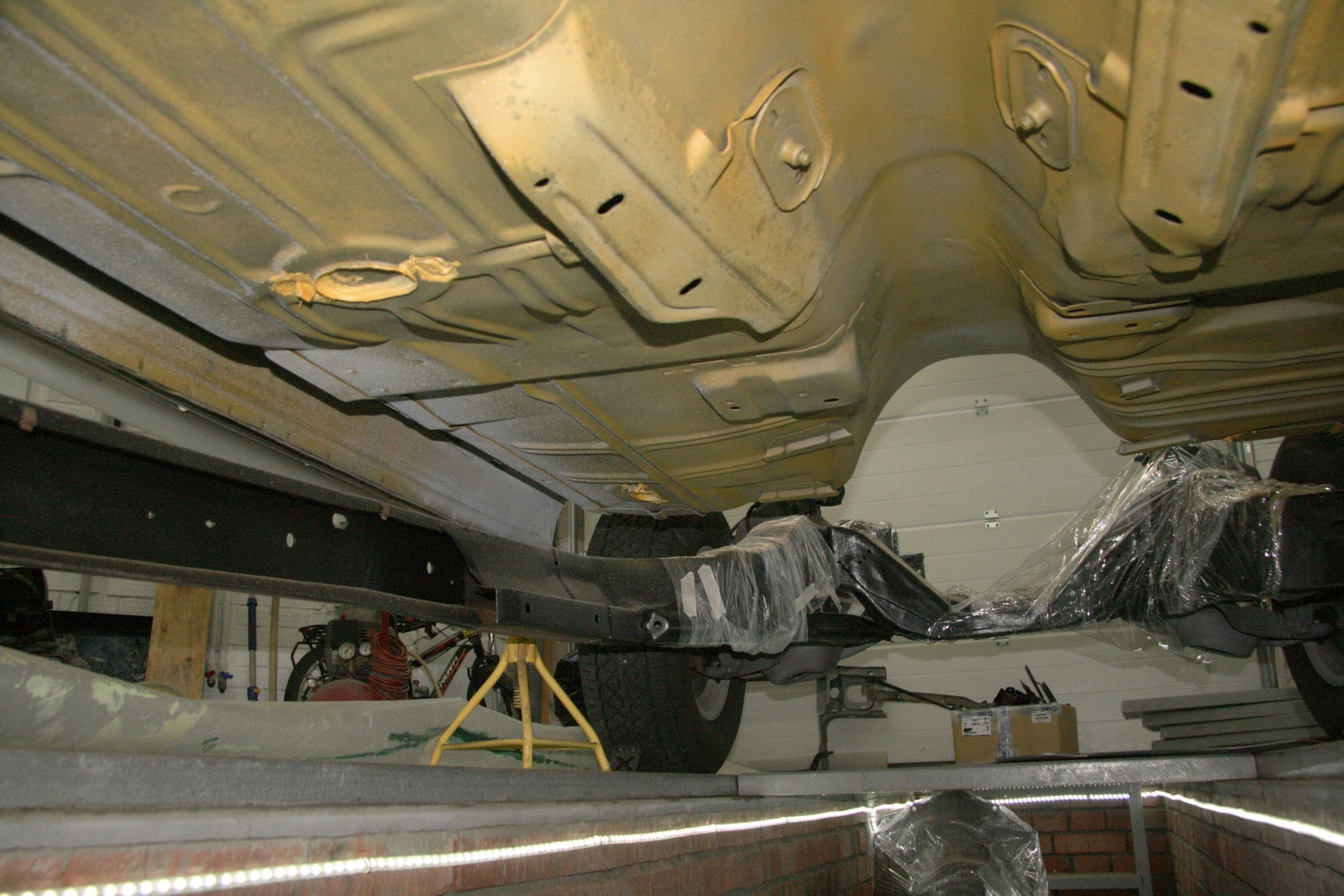

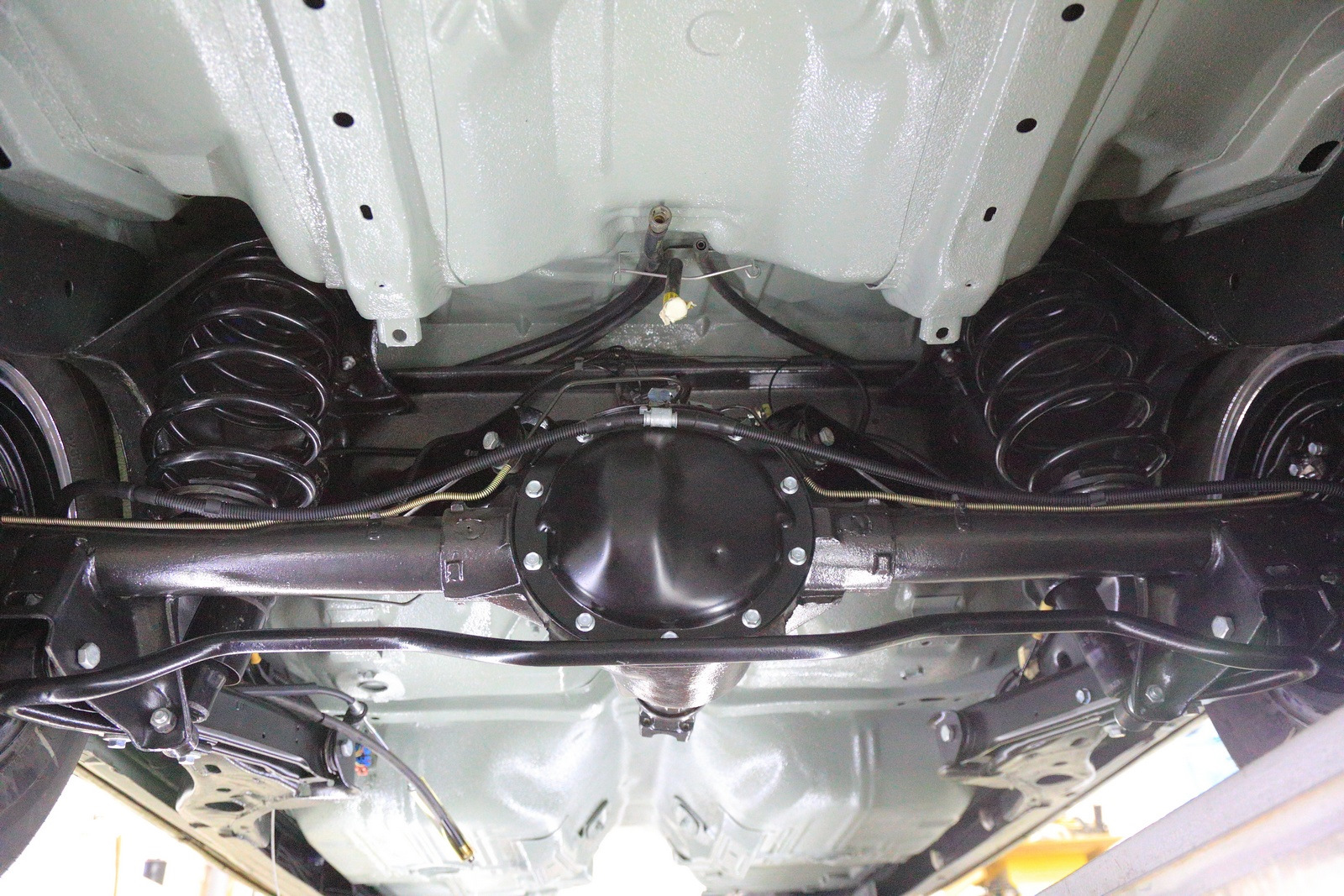

Underbody assembly



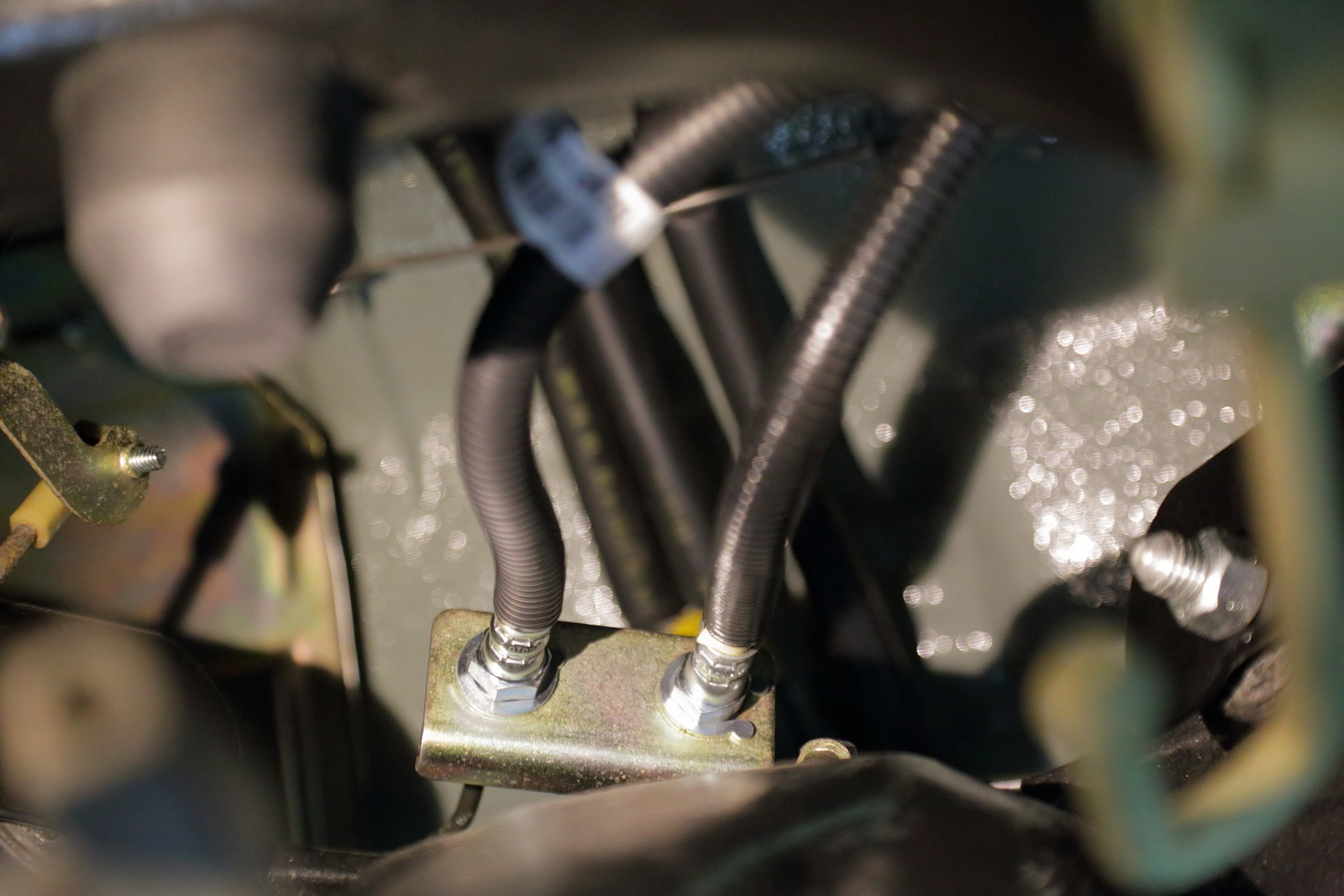

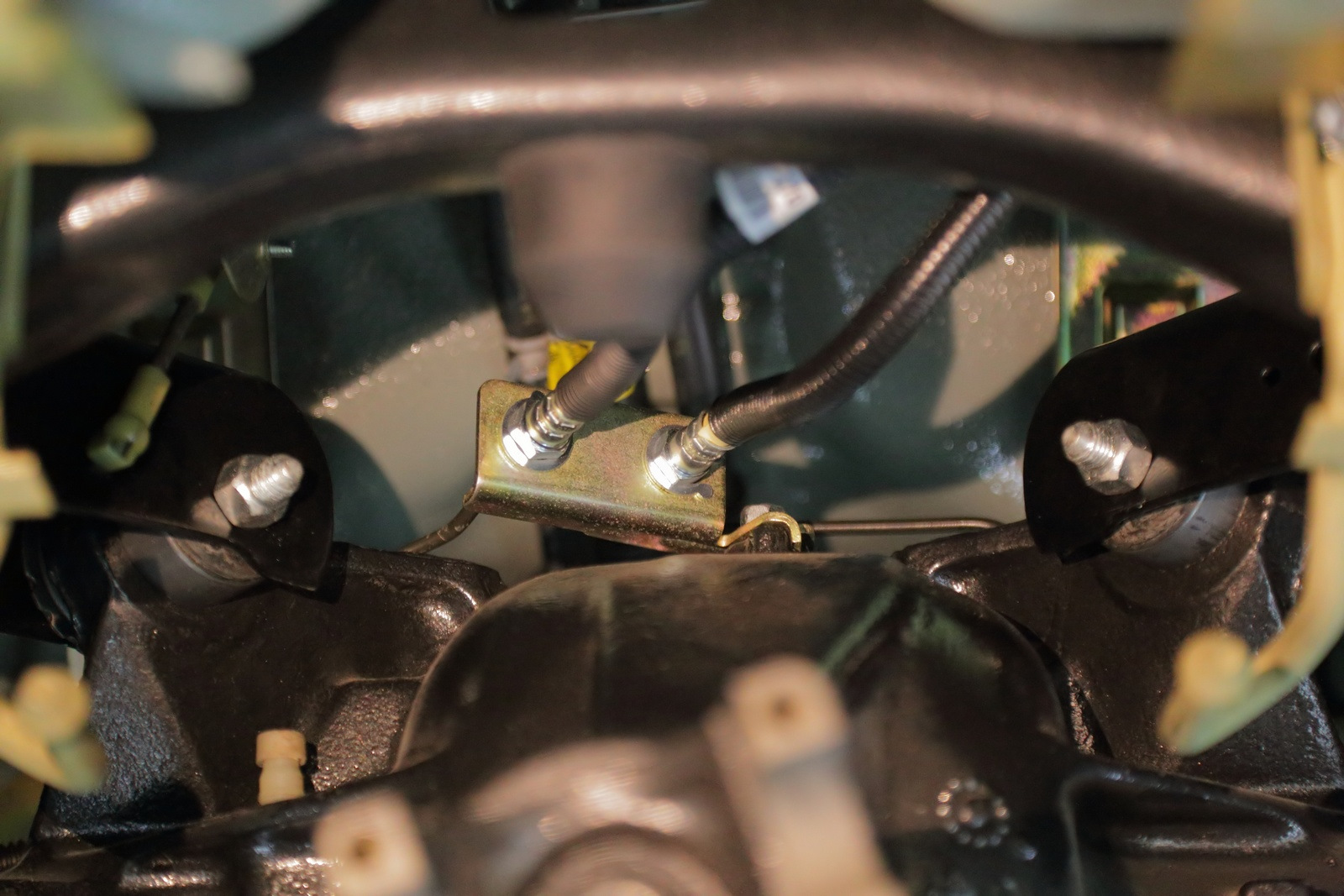

New brake hoses on rear axle - installed



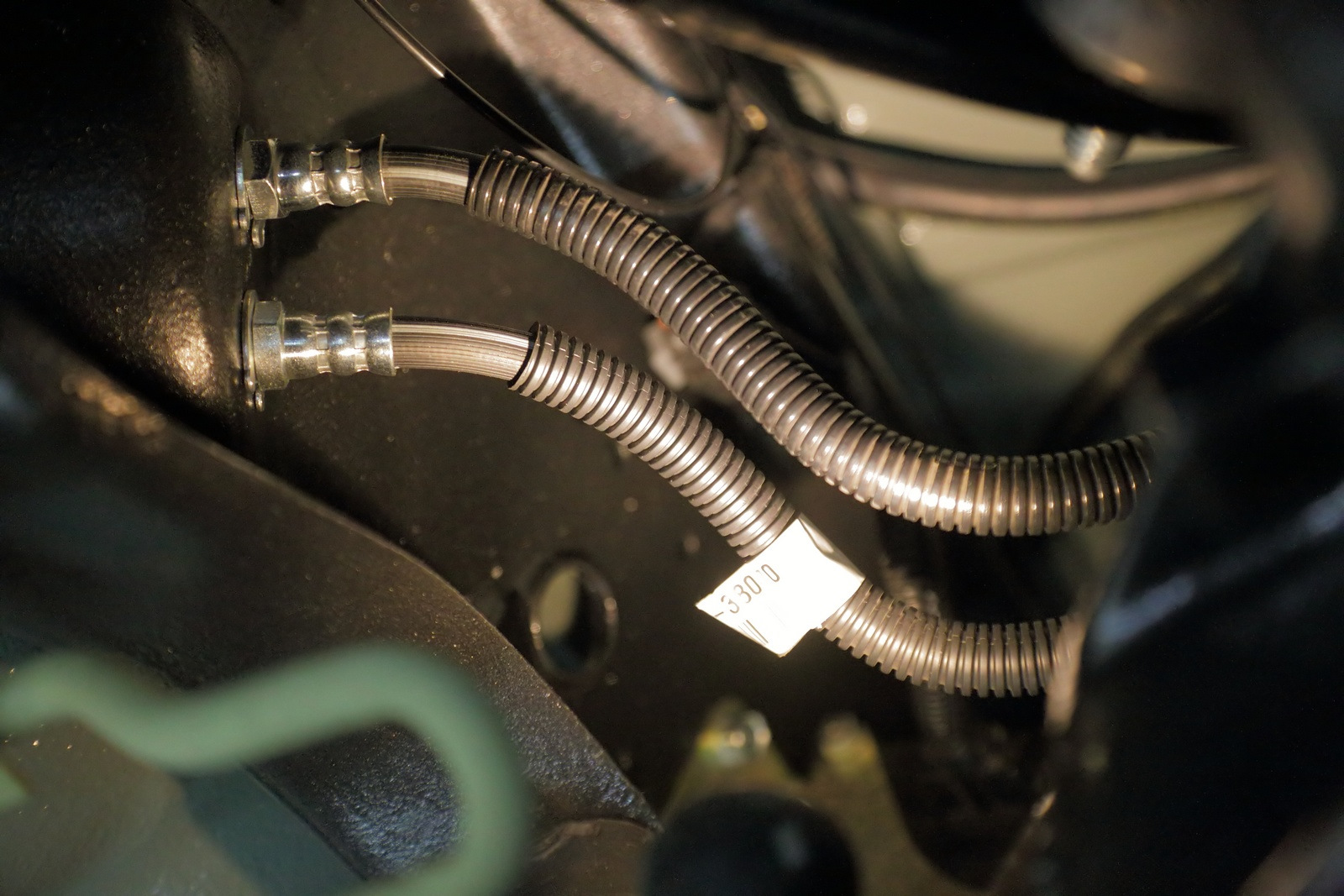

They come in protective sleeves



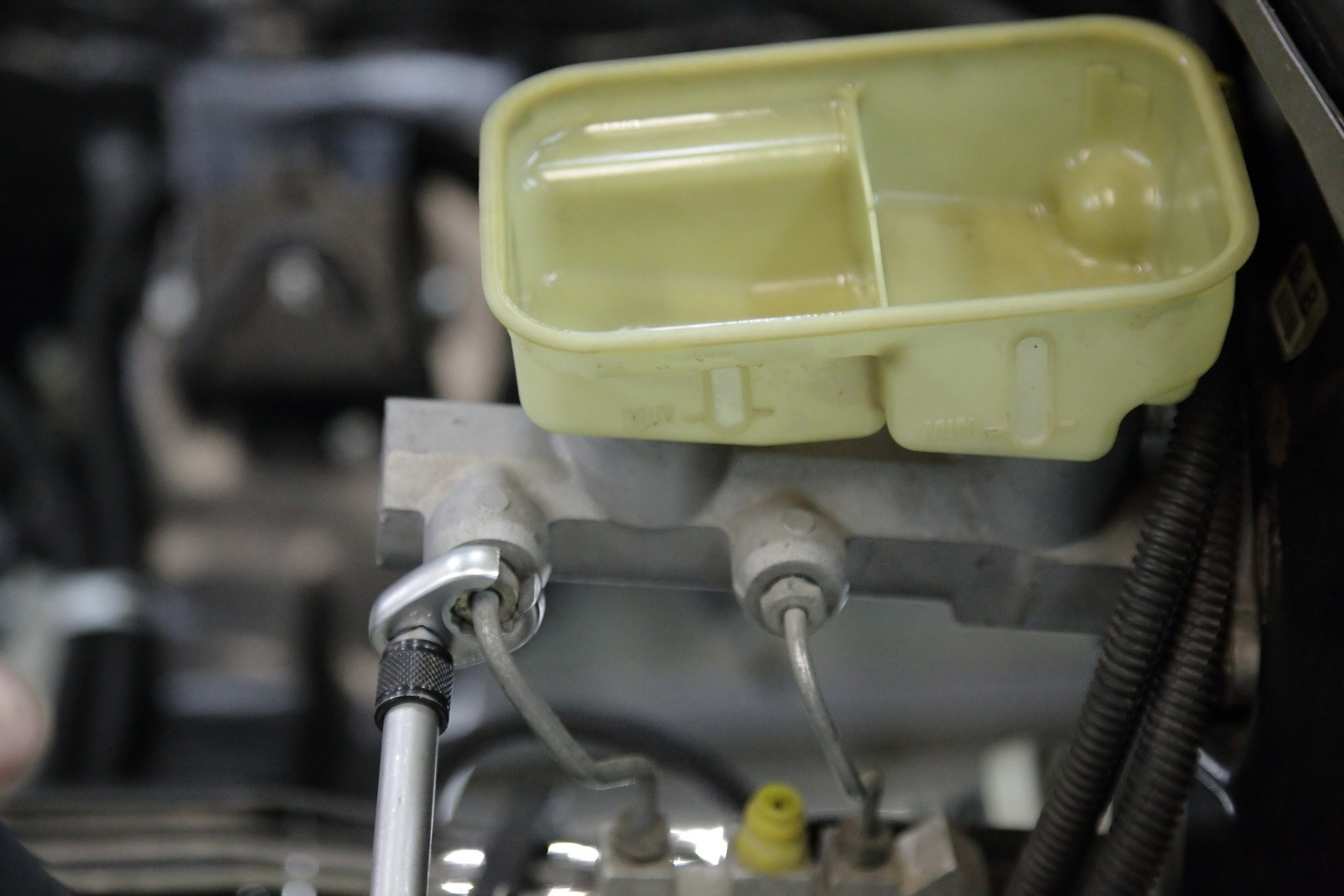

Install the brake booster and connect all lines

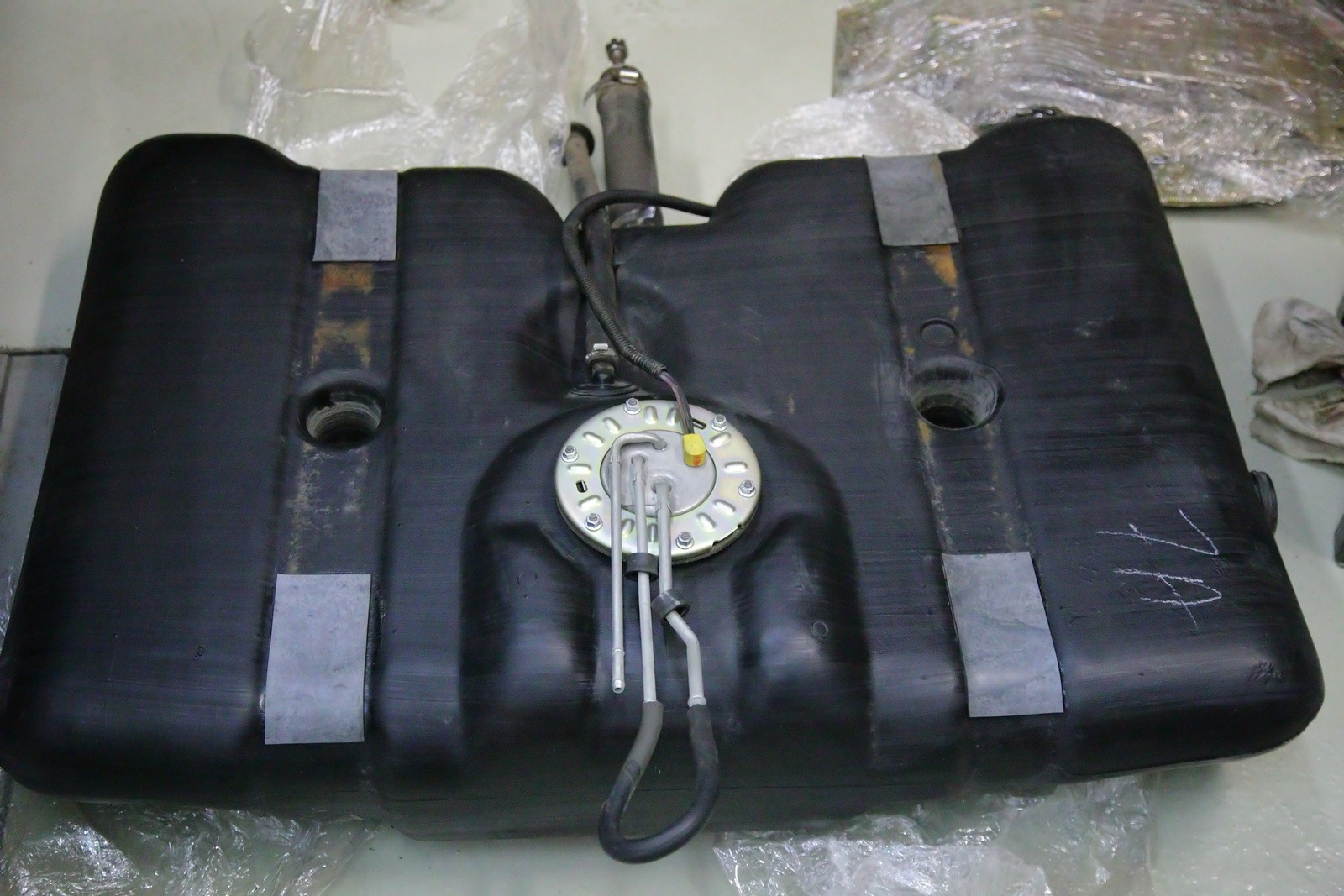

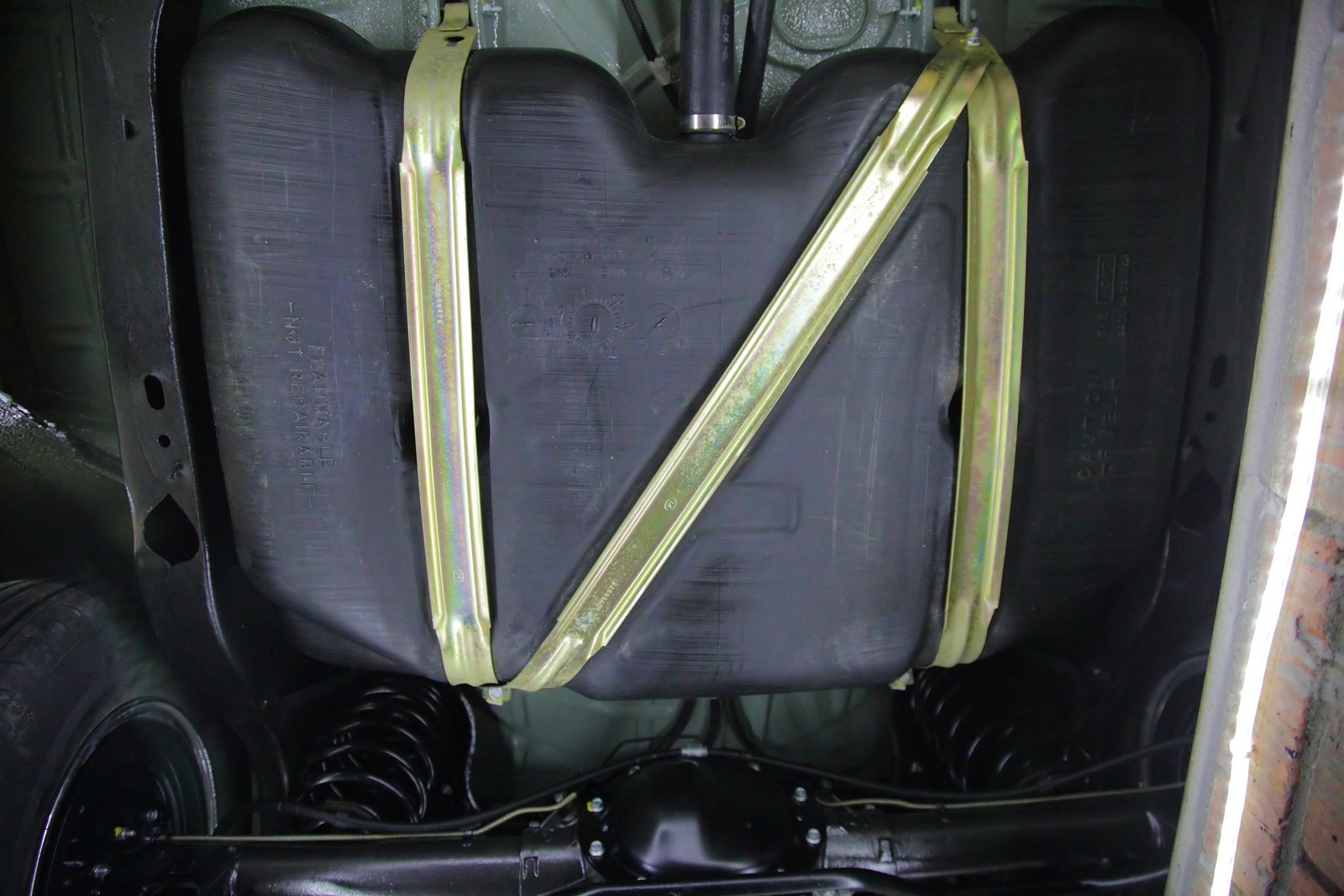

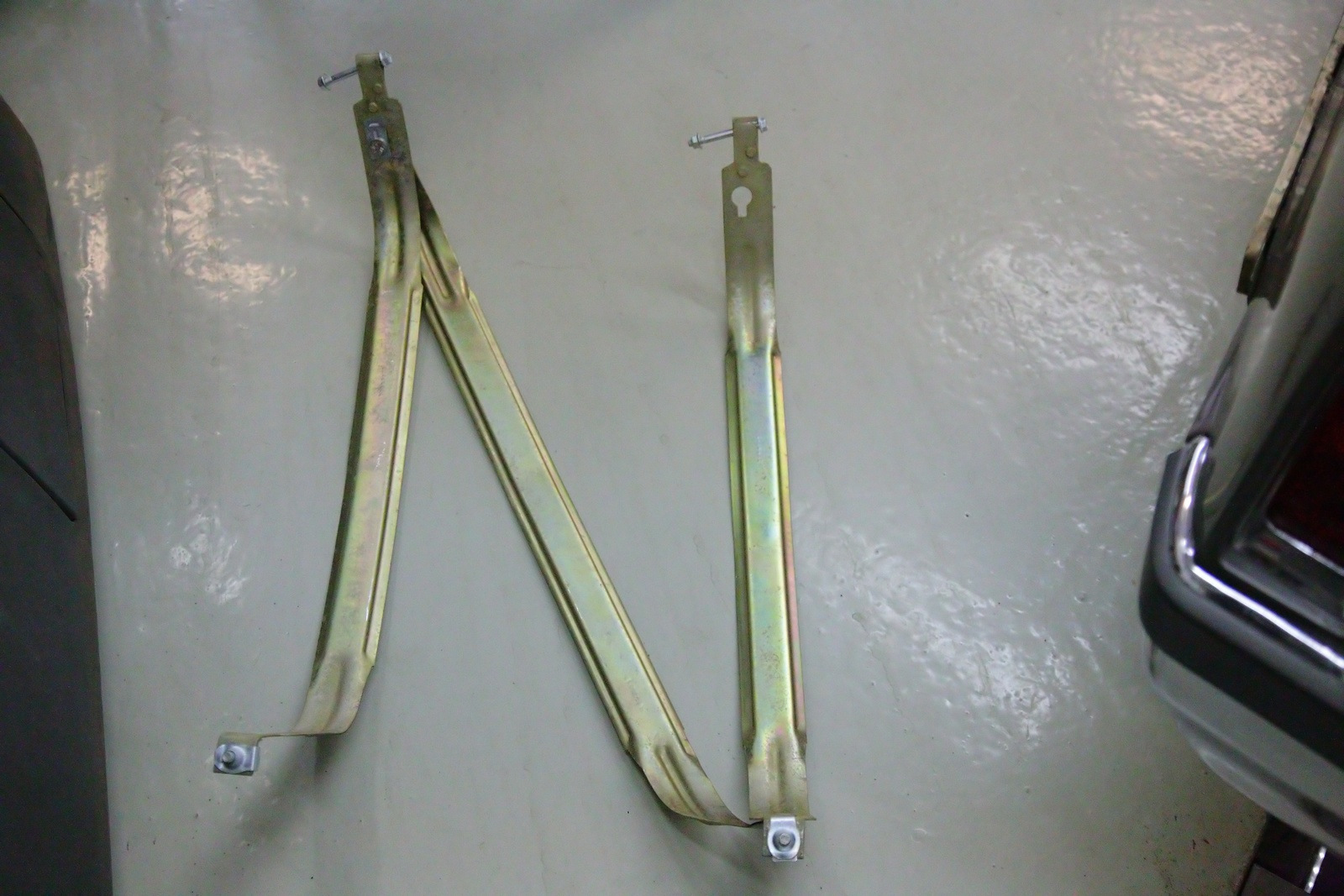

Now ready to install the fuel tank. 1/8" rubber was used as an insulator







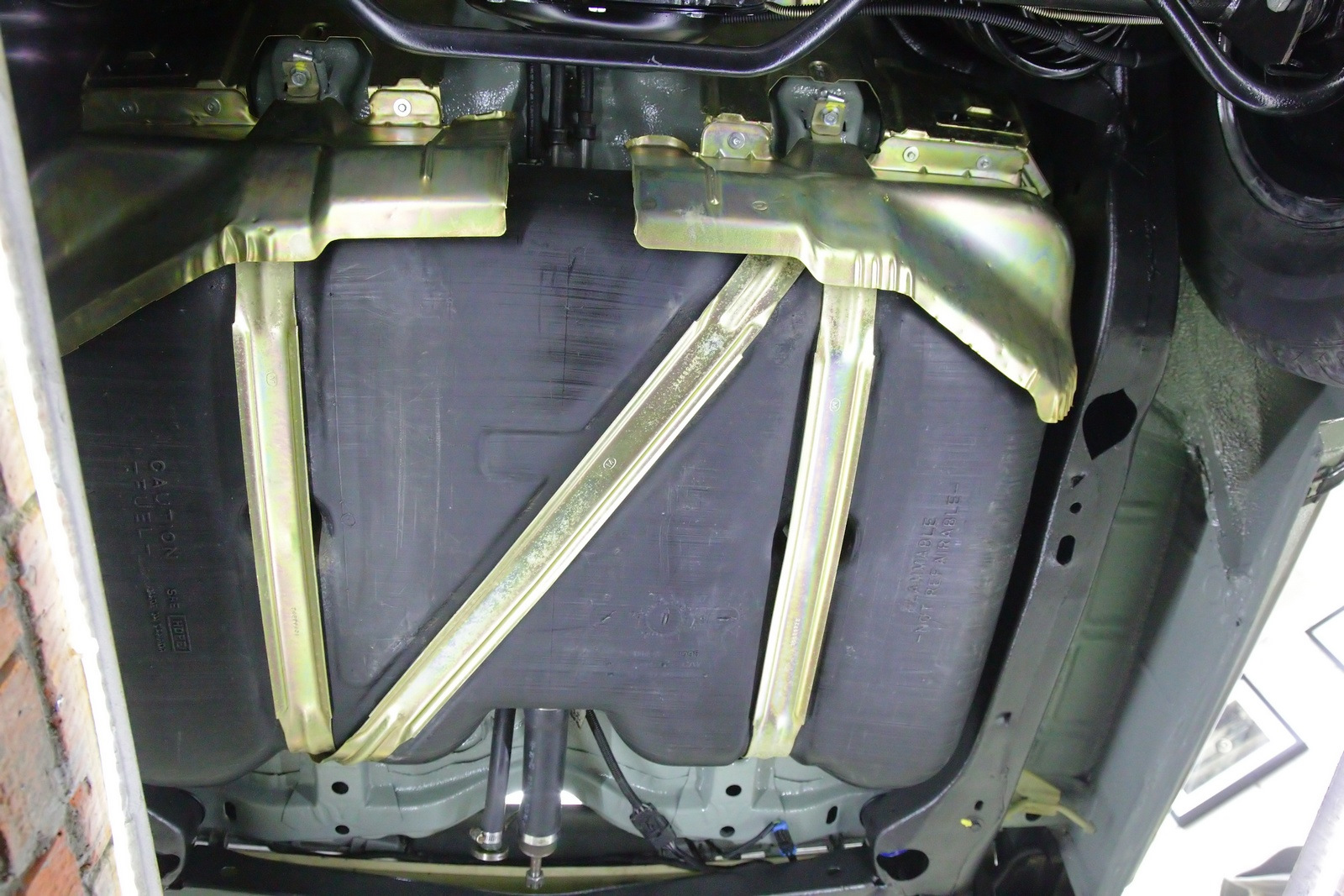

Looks new



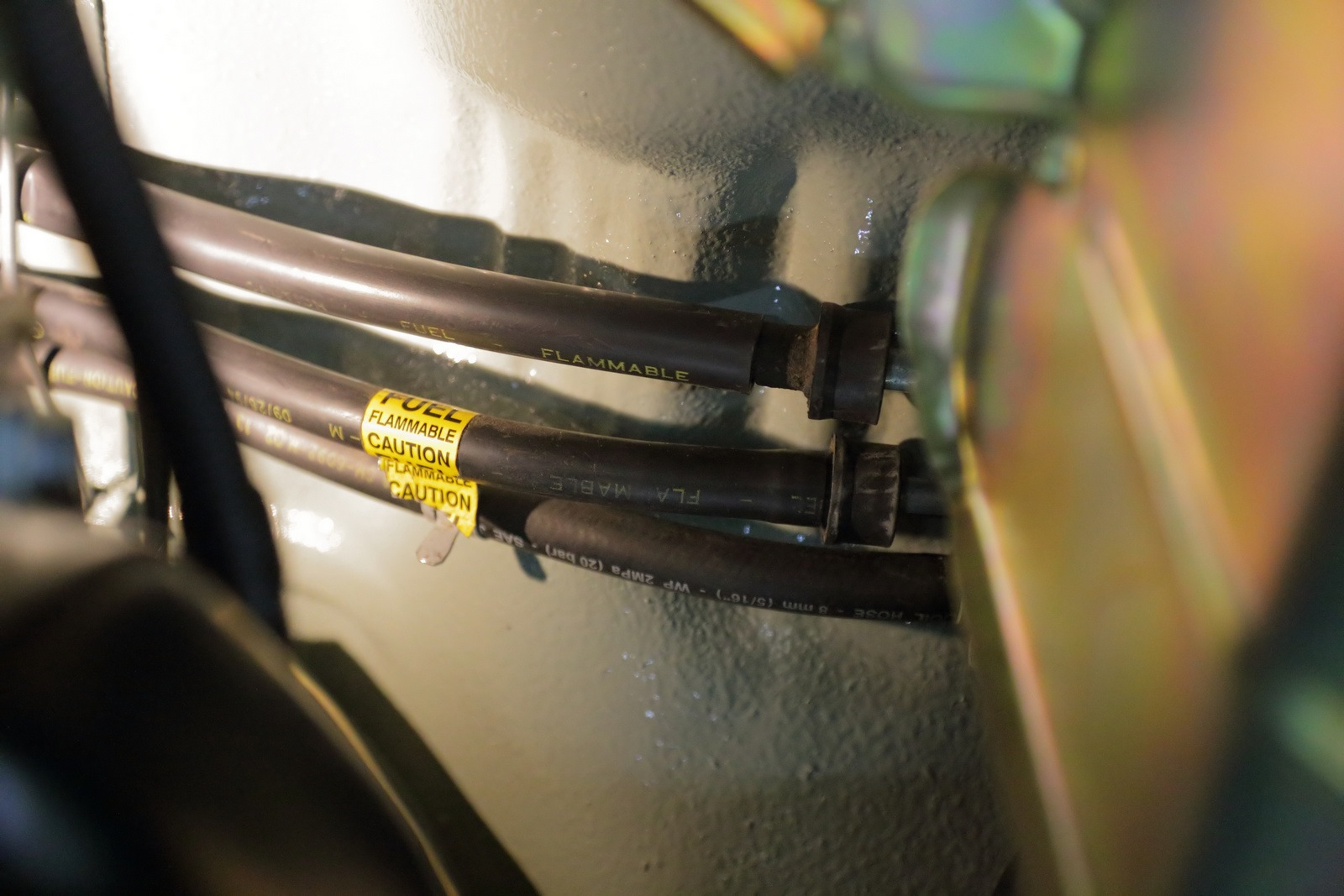

Connect fuel lines to the sender unit

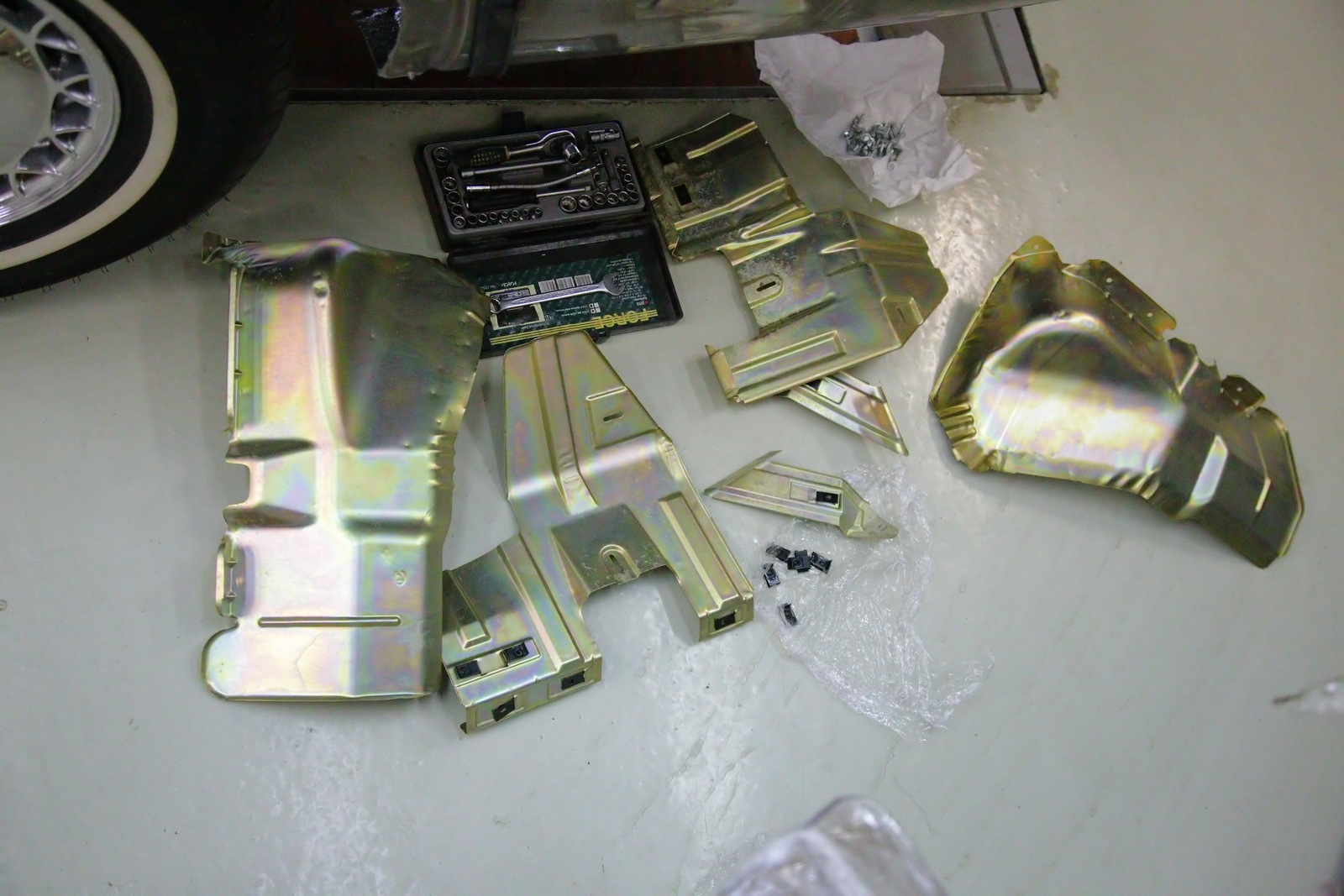

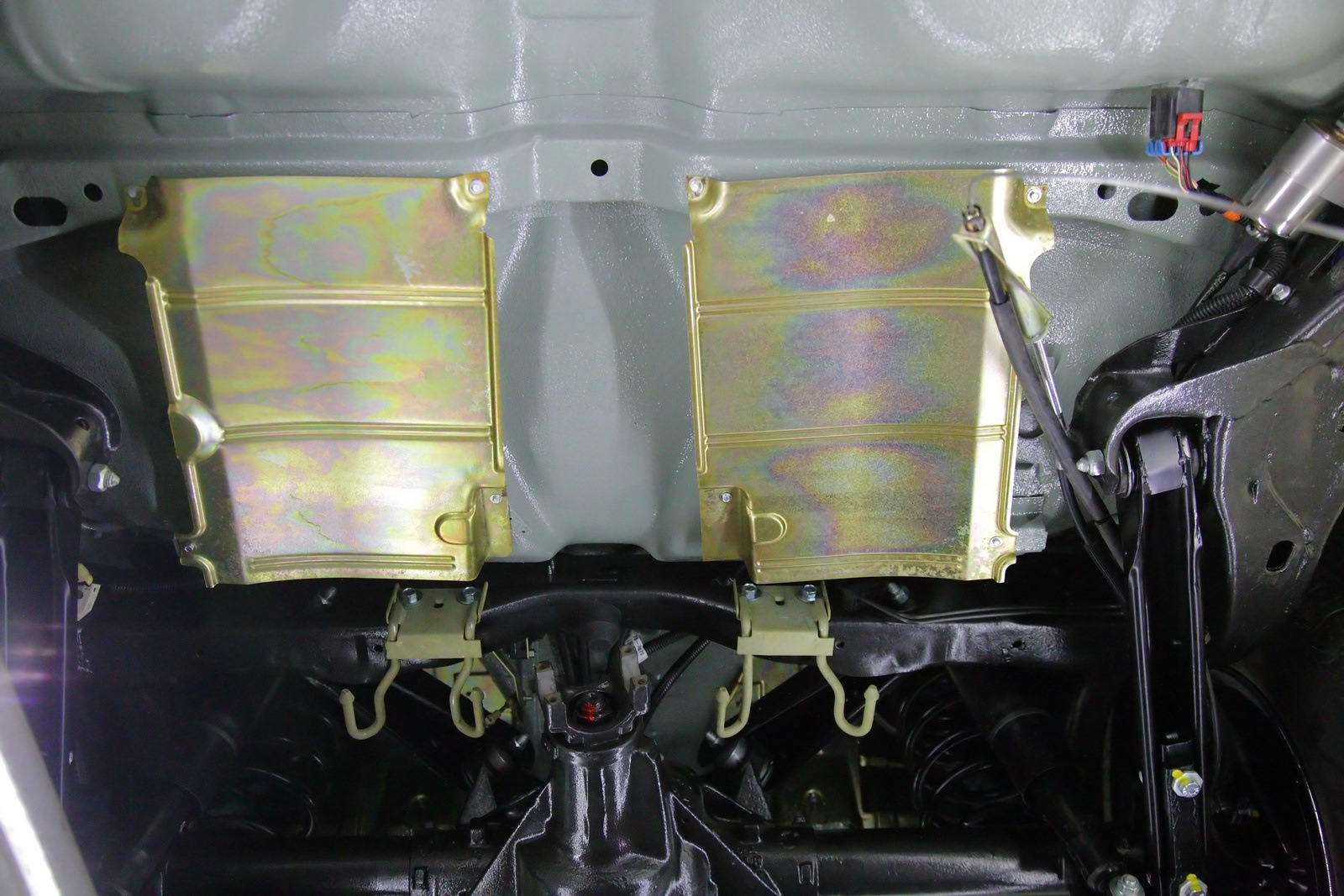

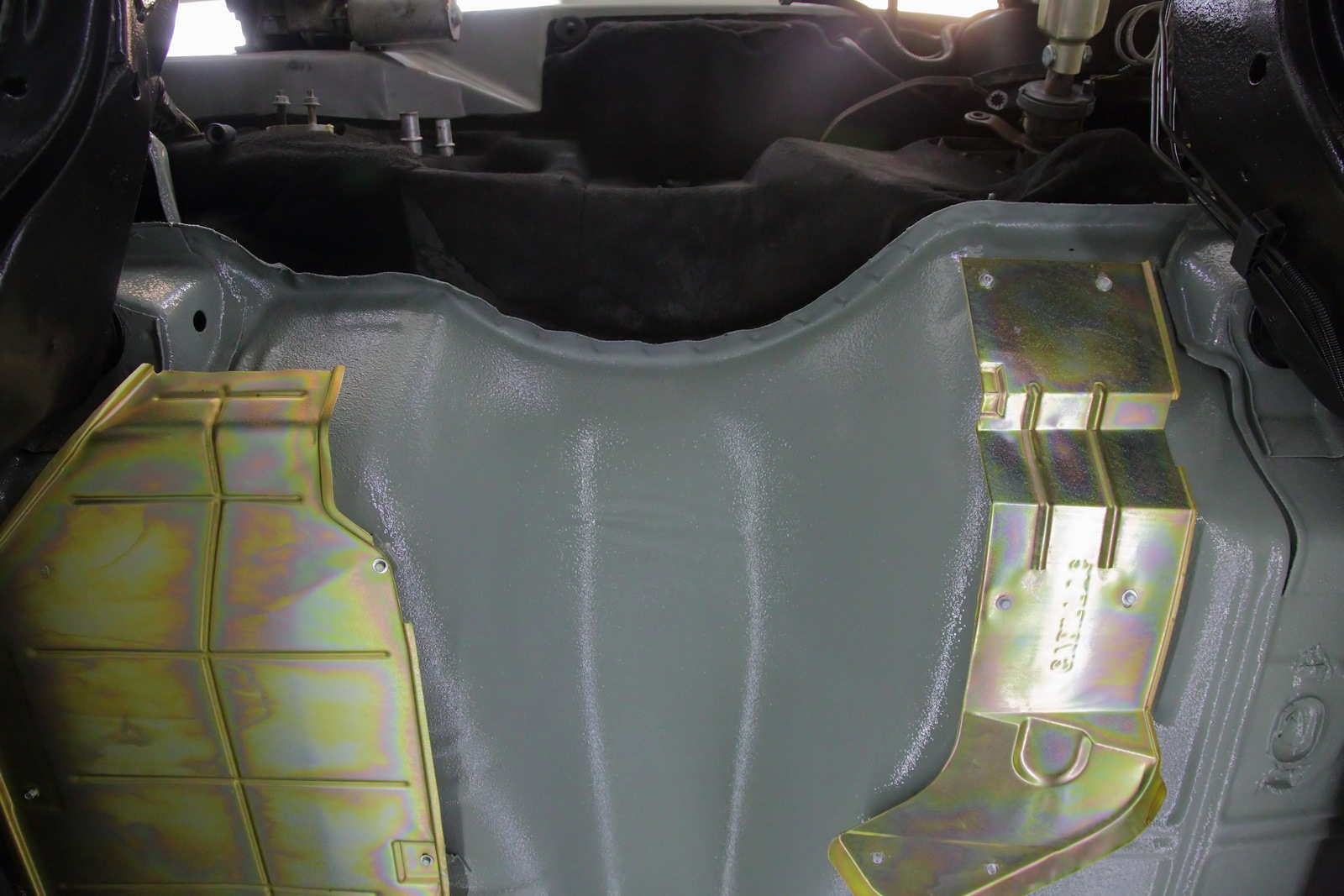

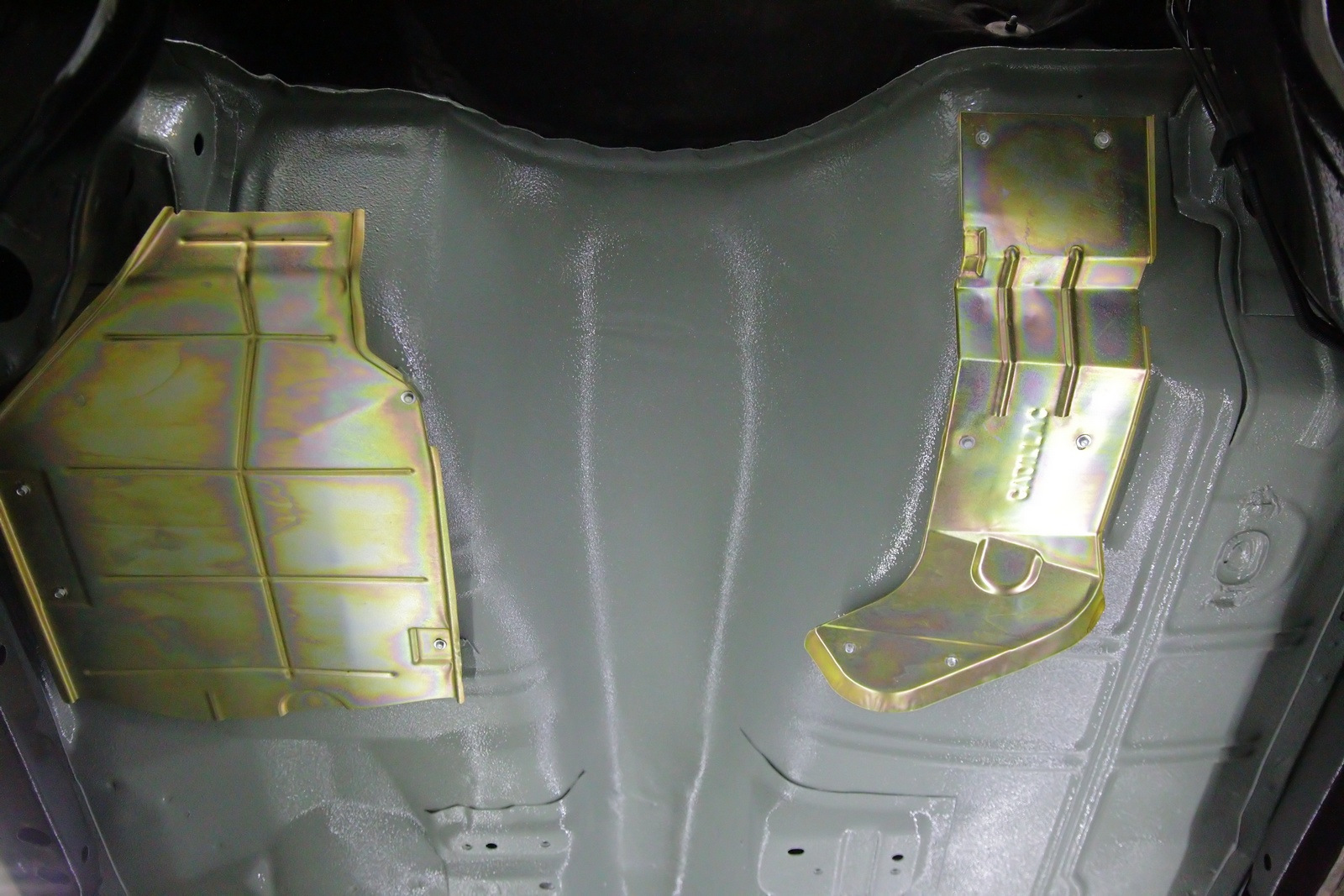

Ready to install heat shields



Two in the front



Two above mufflers in the center



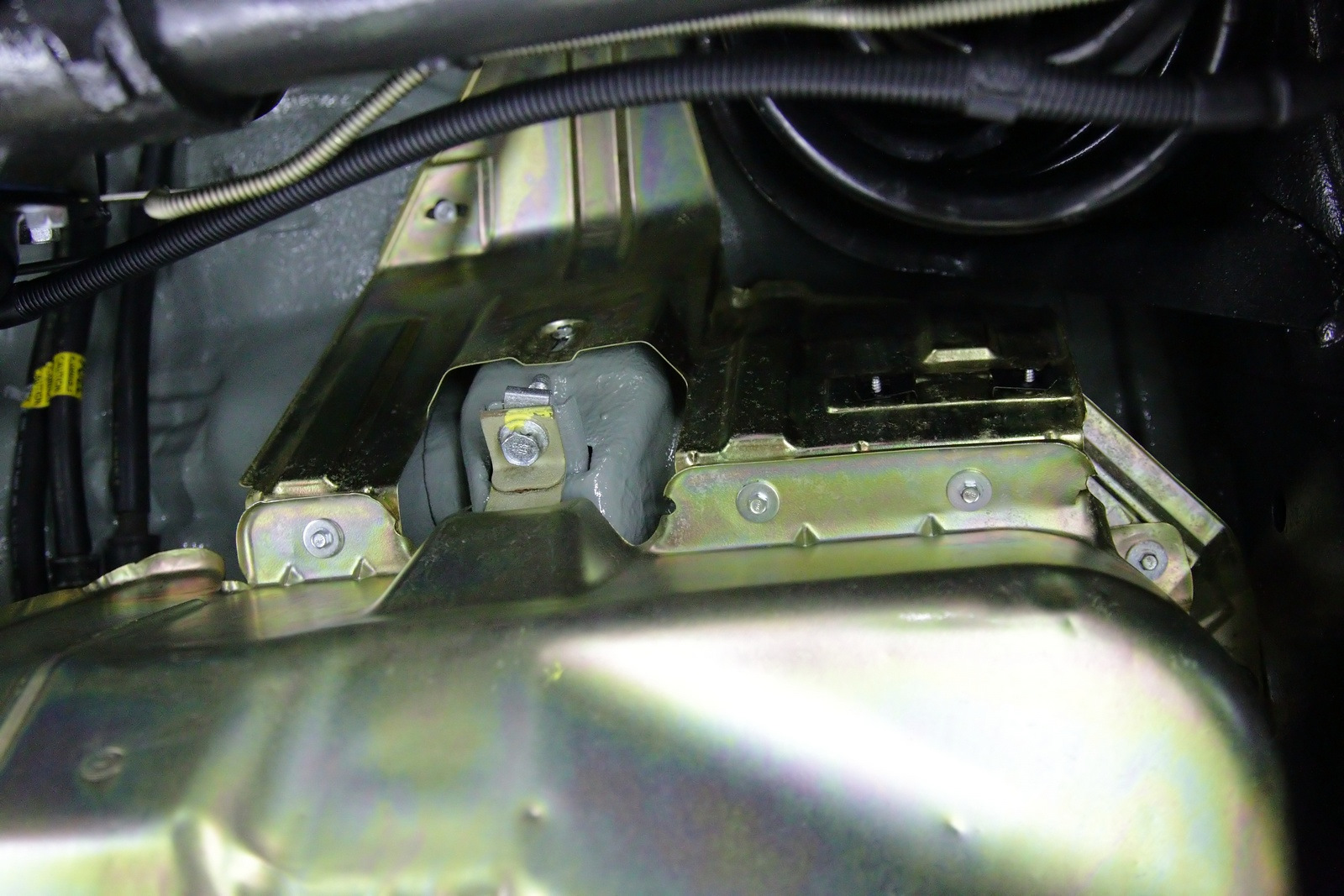

And two in the rear protecting the fuel tank







With firewall insulation above



Some additional techno-porno



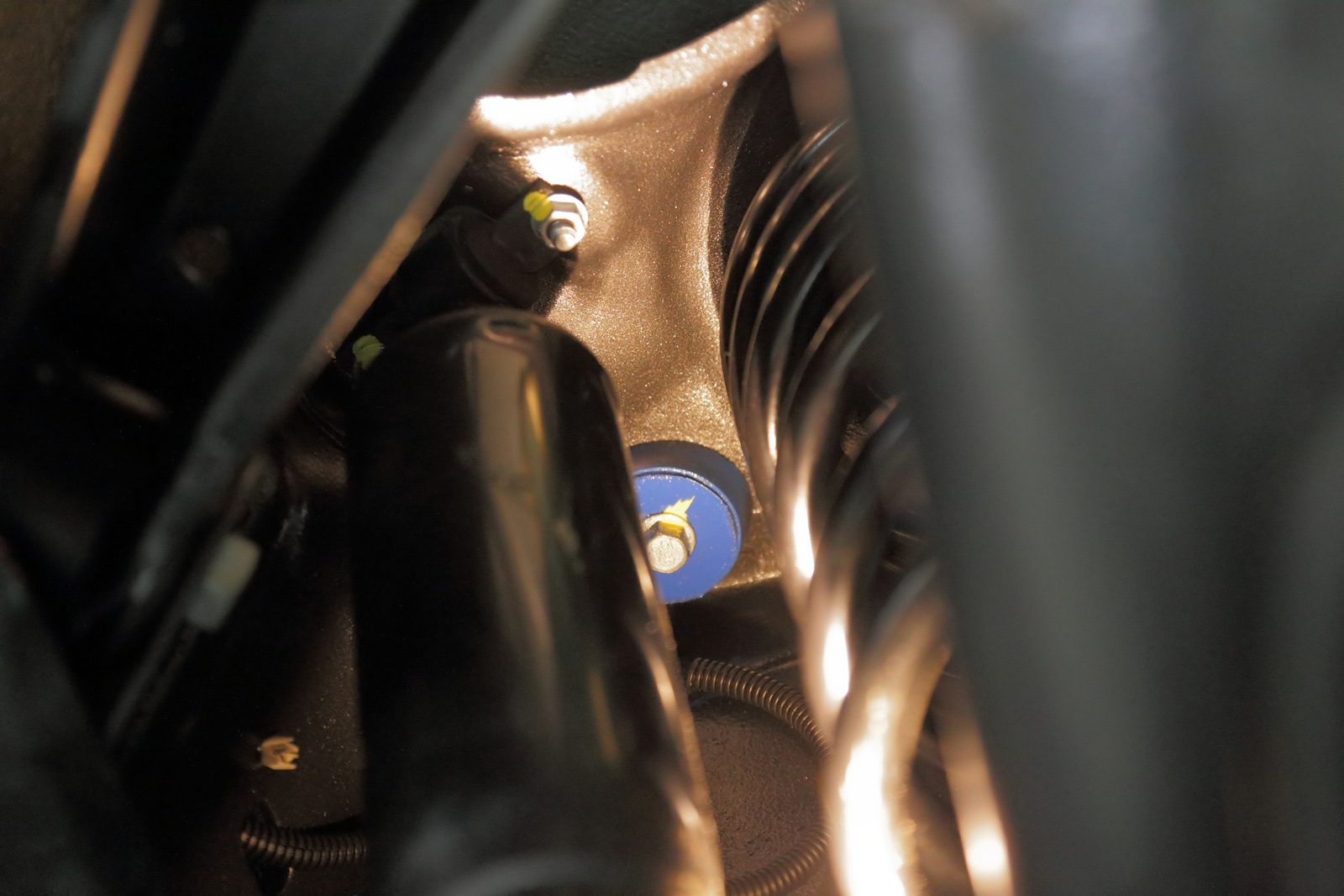

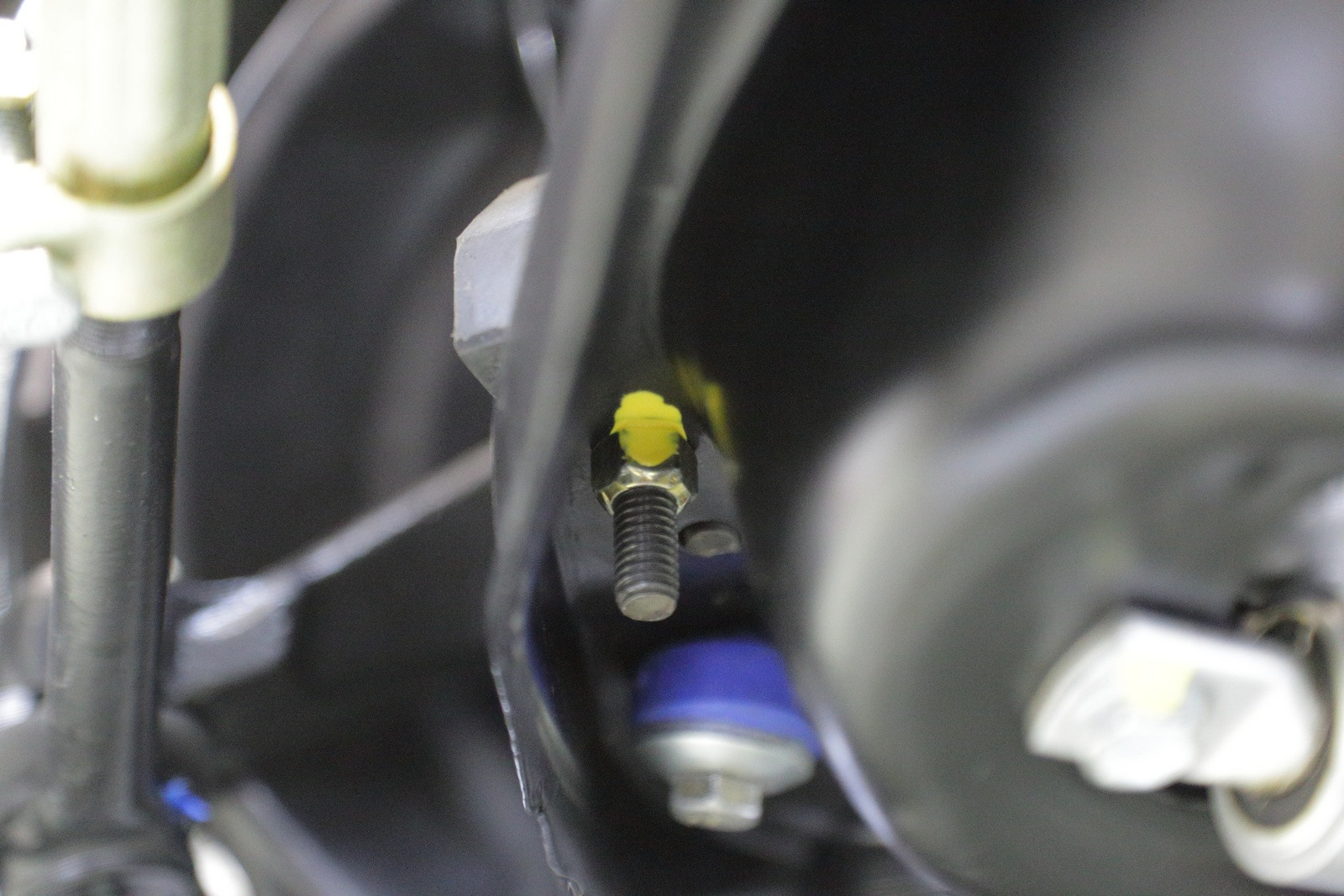

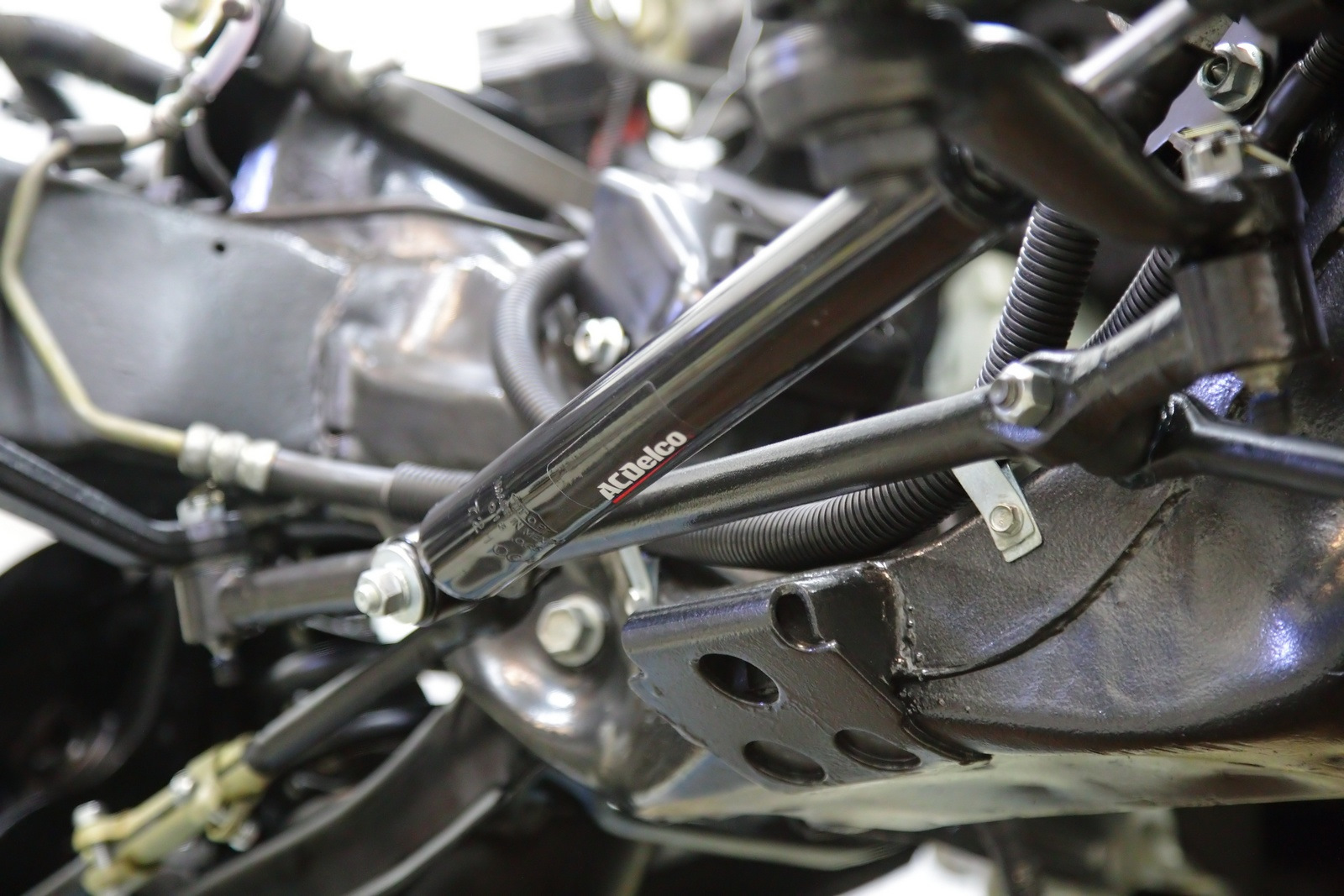

Shock and frame bushing



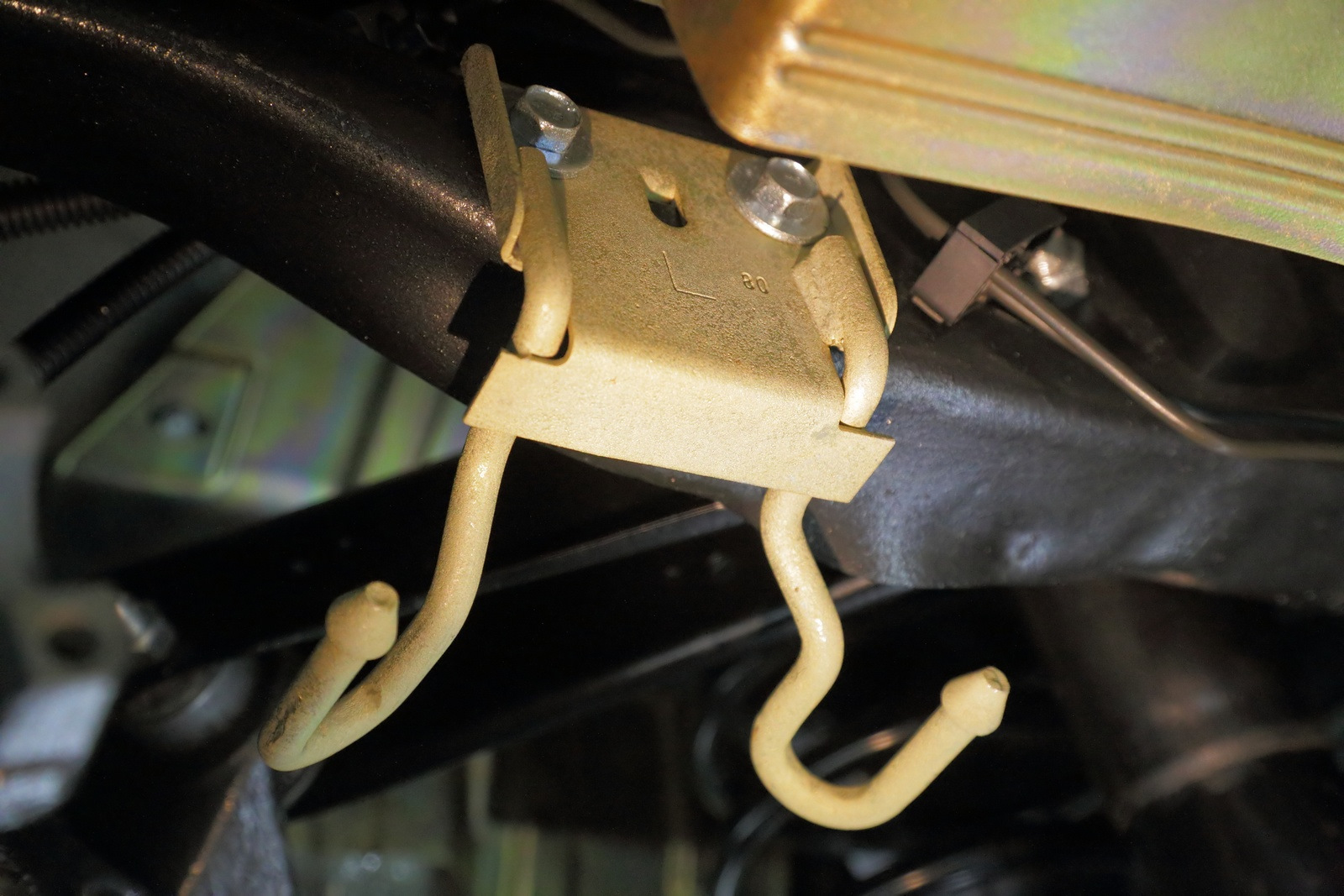

Left muffler hanger

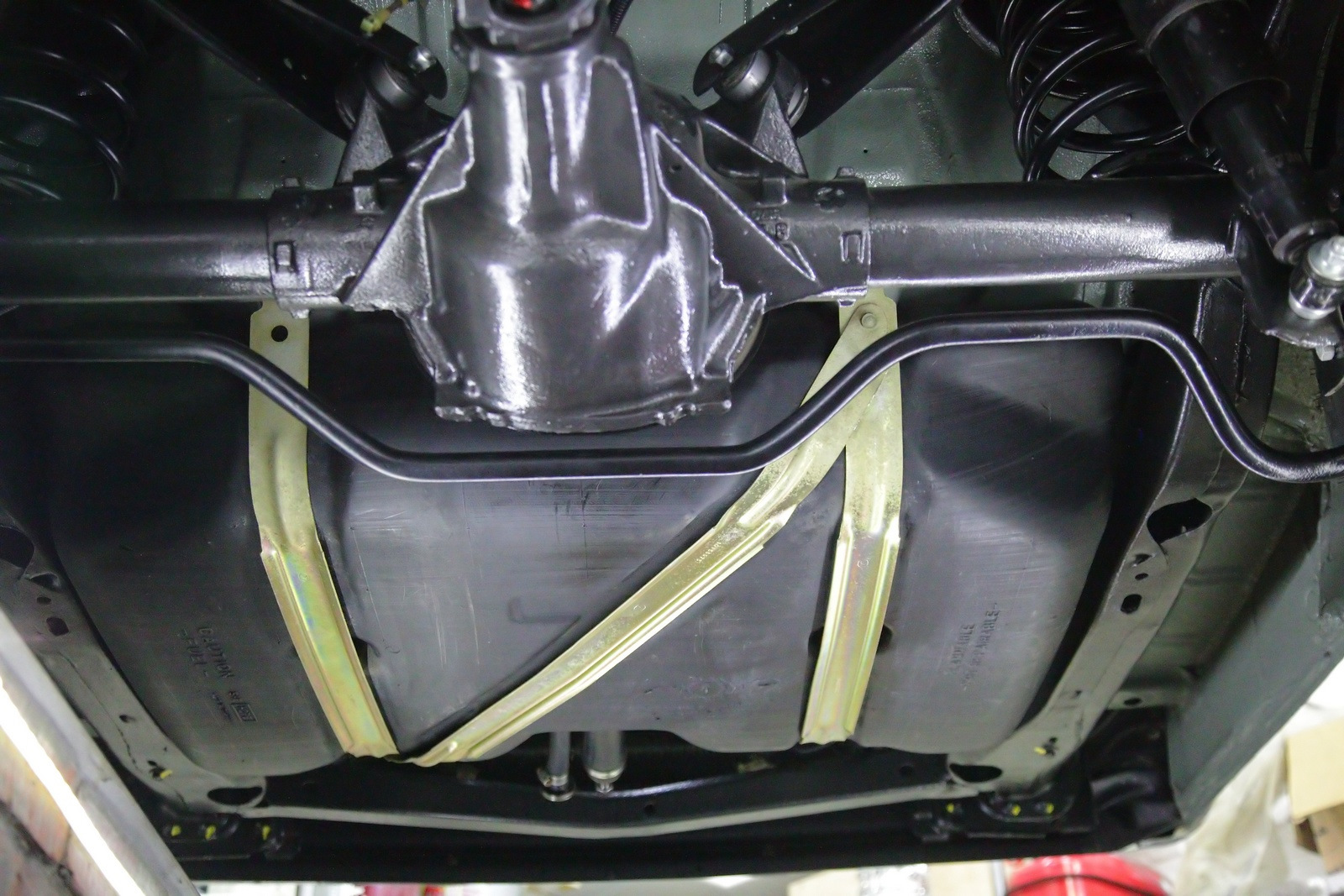

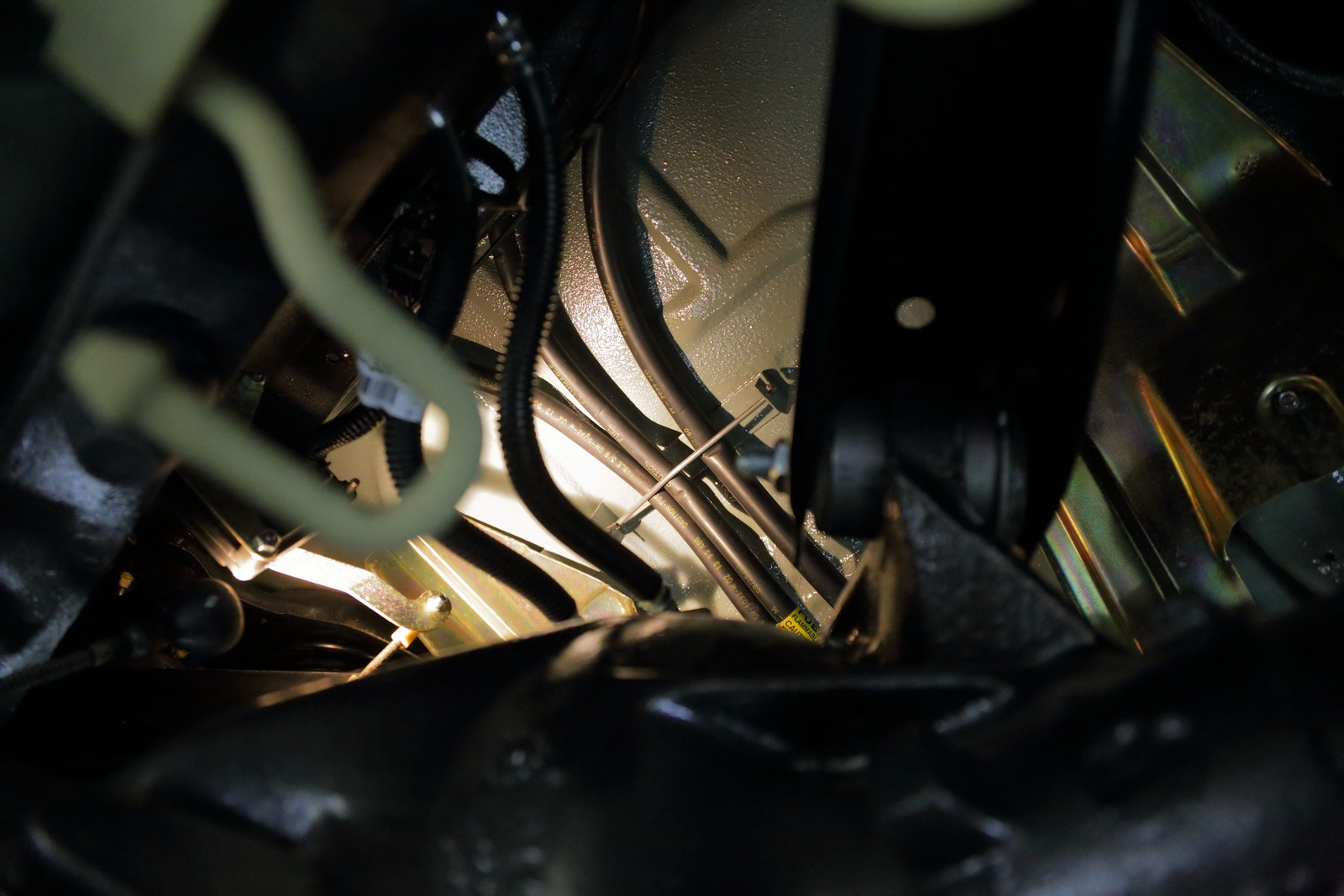

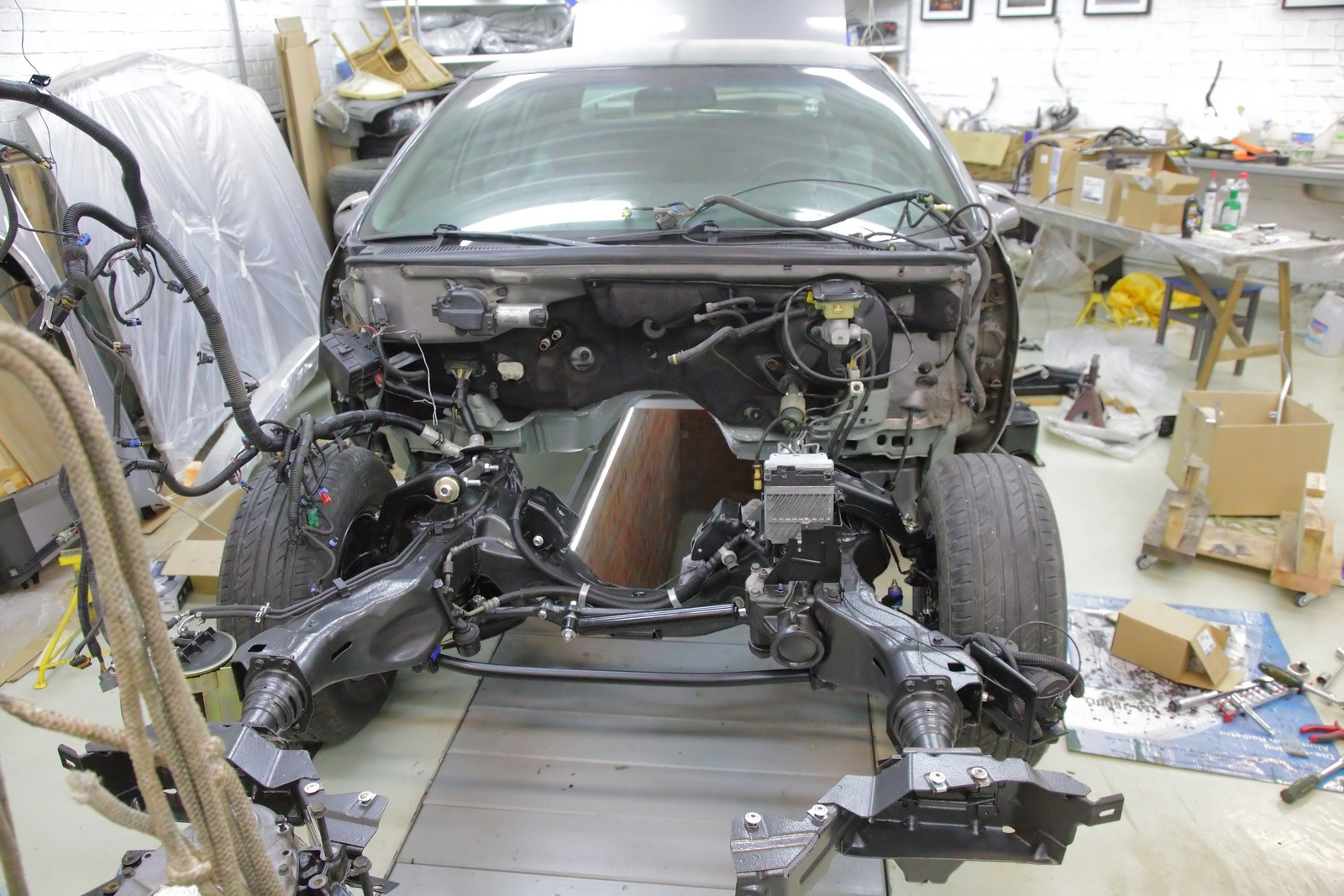

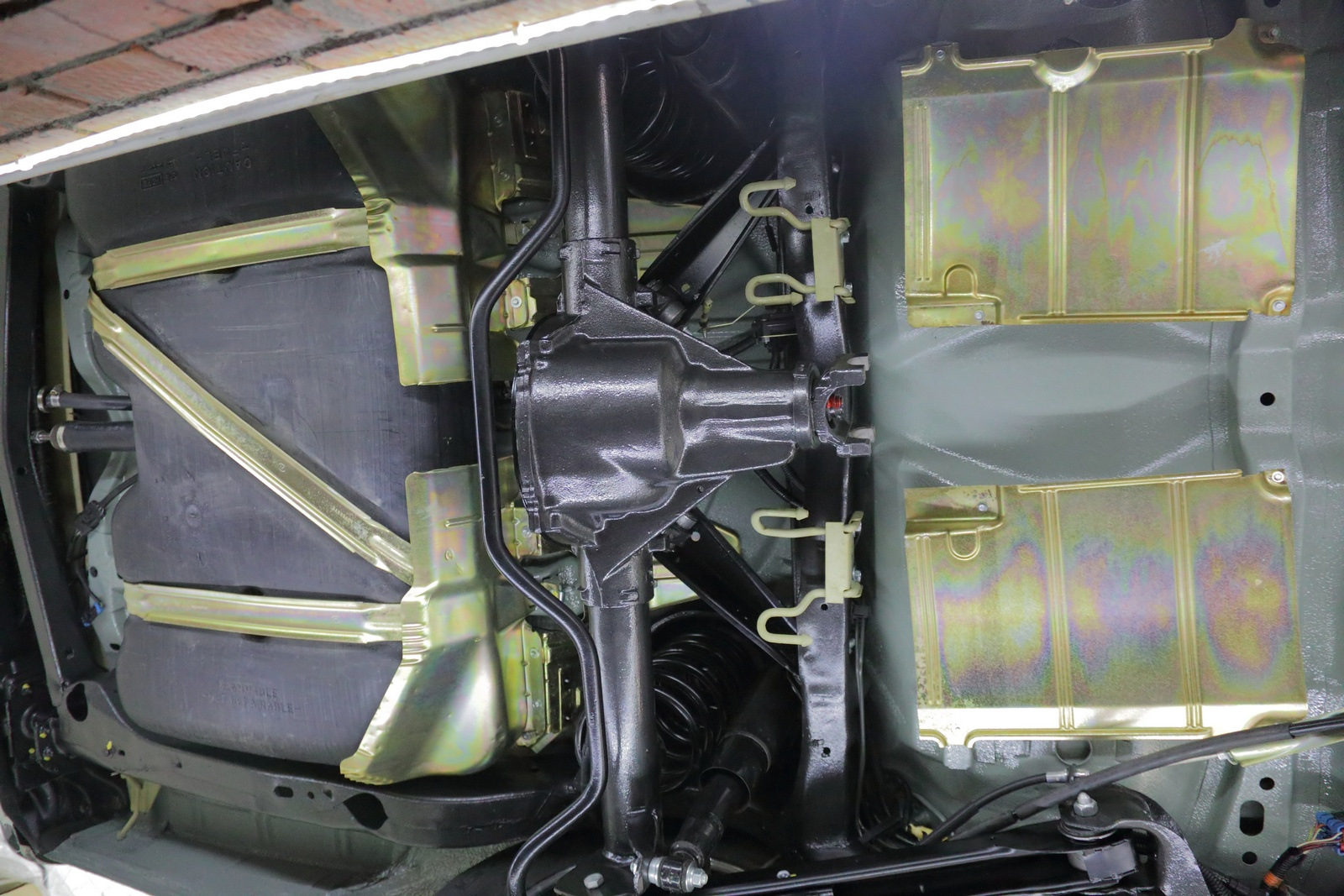

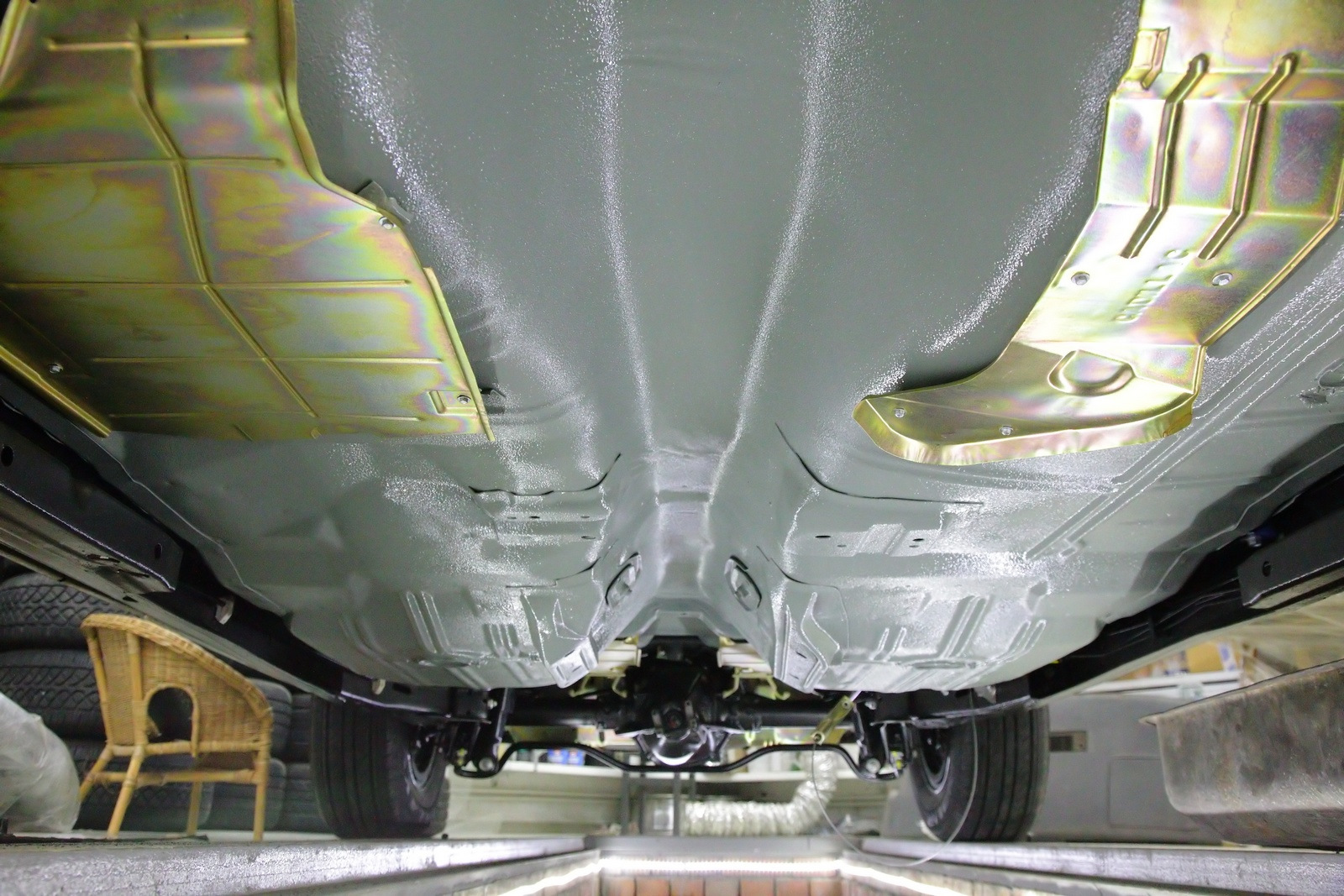

Overall view



Clean inside the shop and get ready to work with the engine

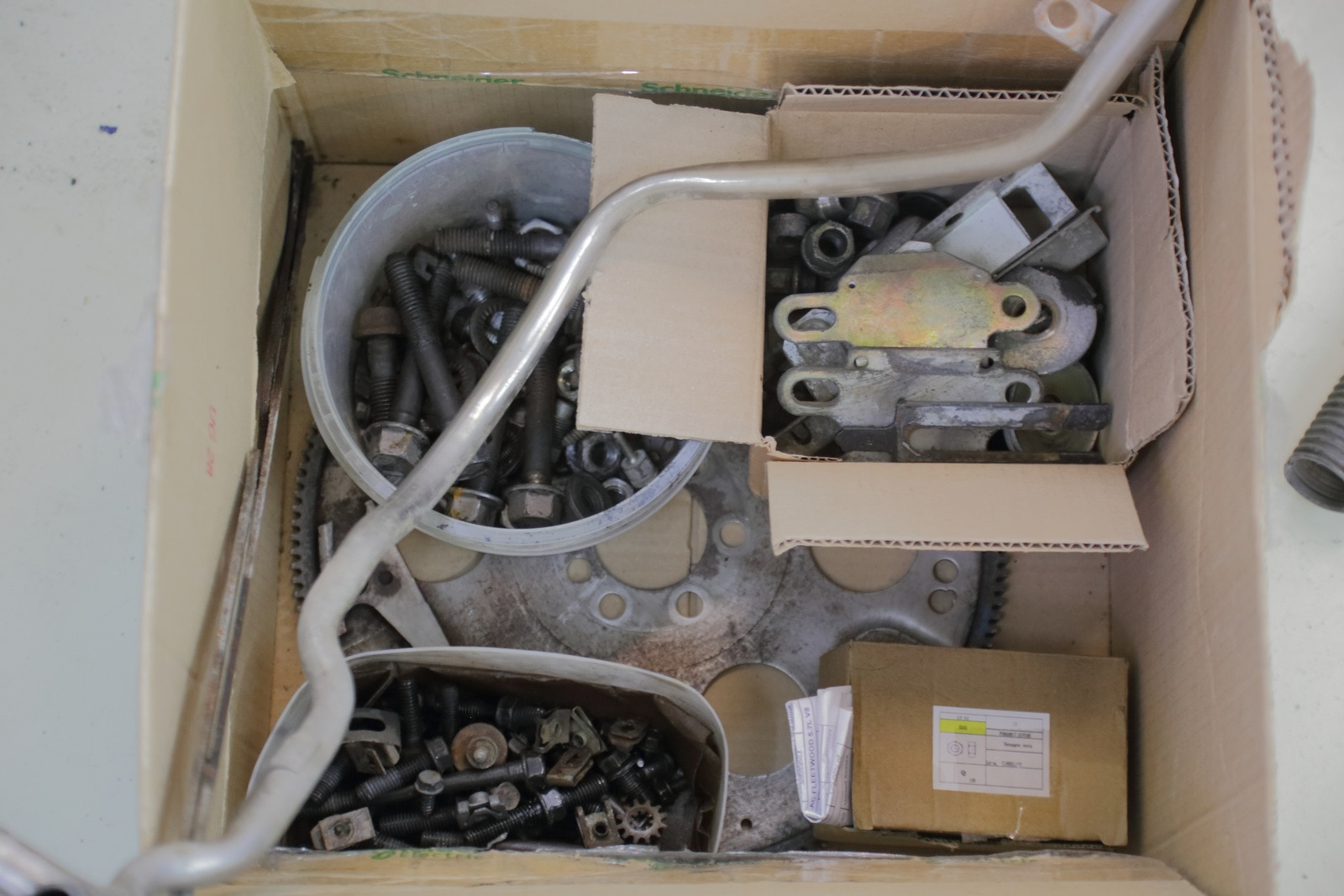

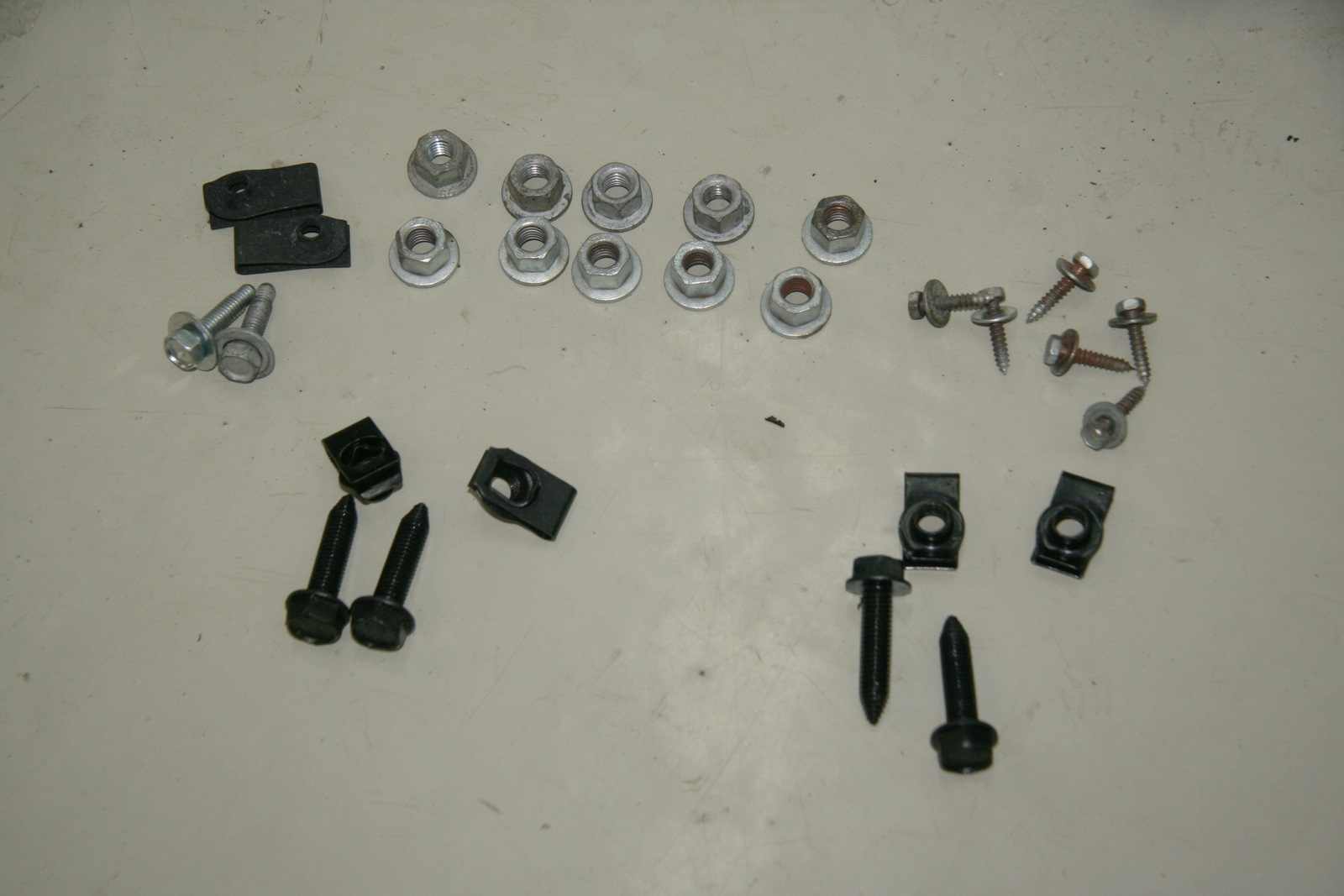

Some hardware for the future posts

[kudims]

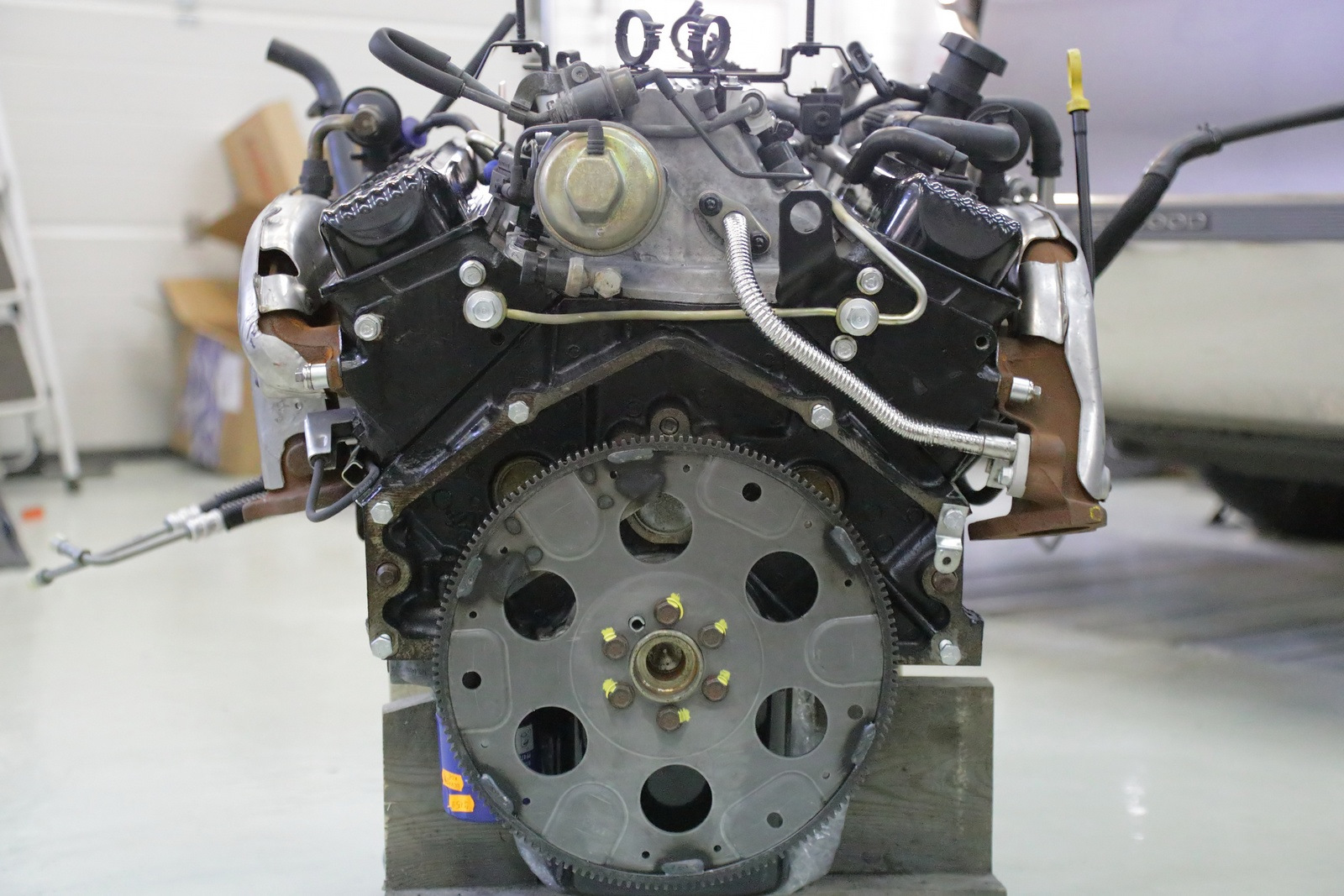

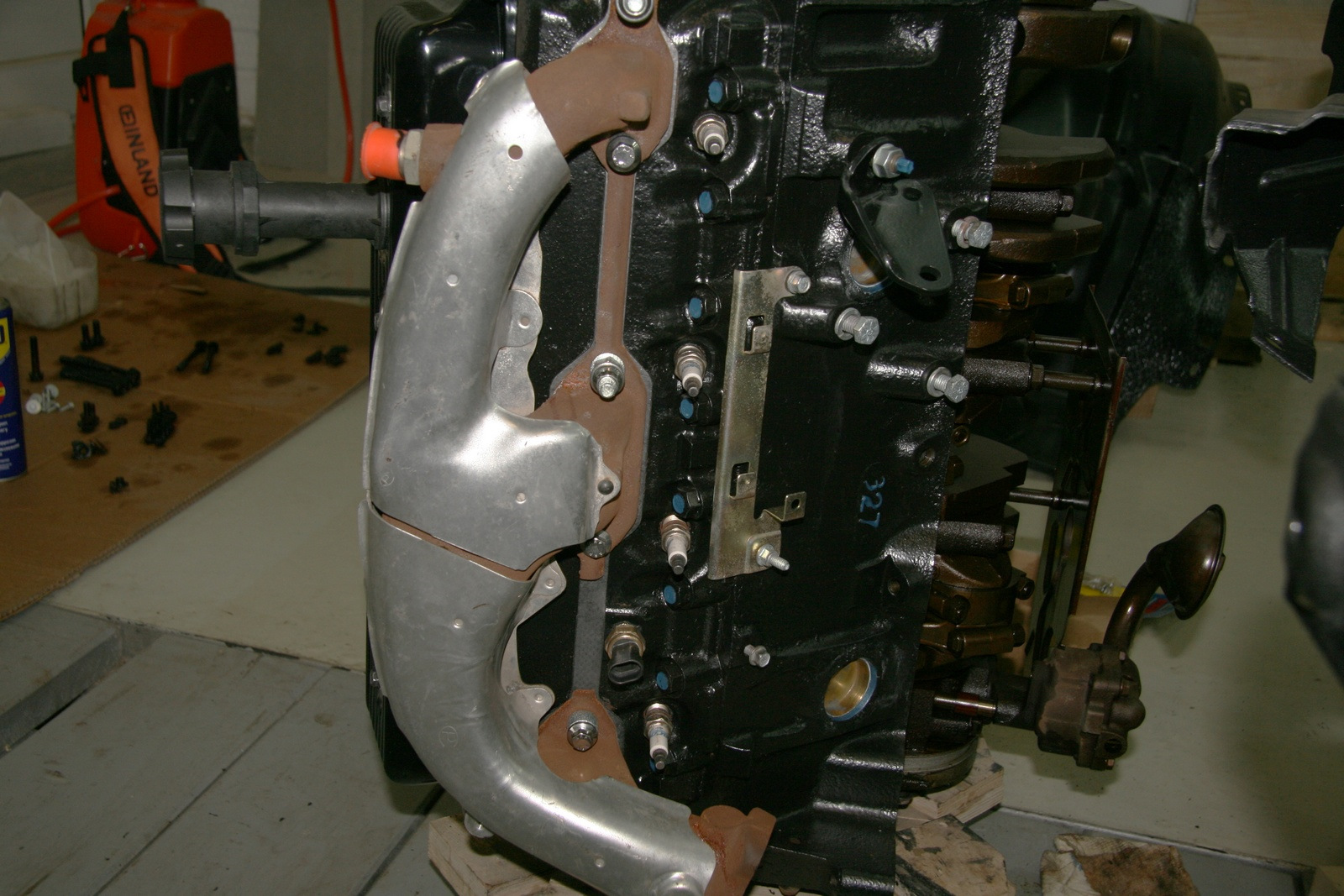

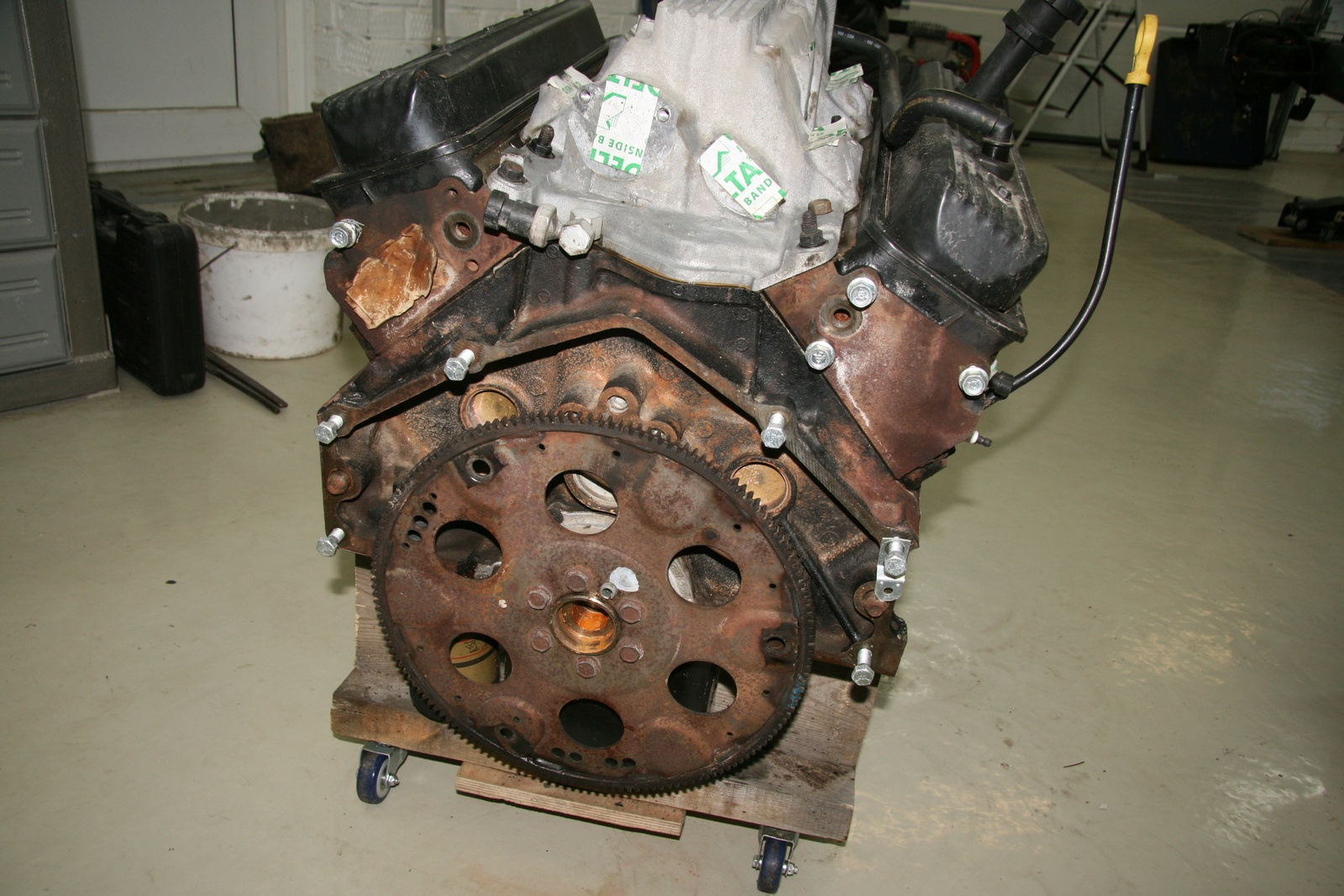

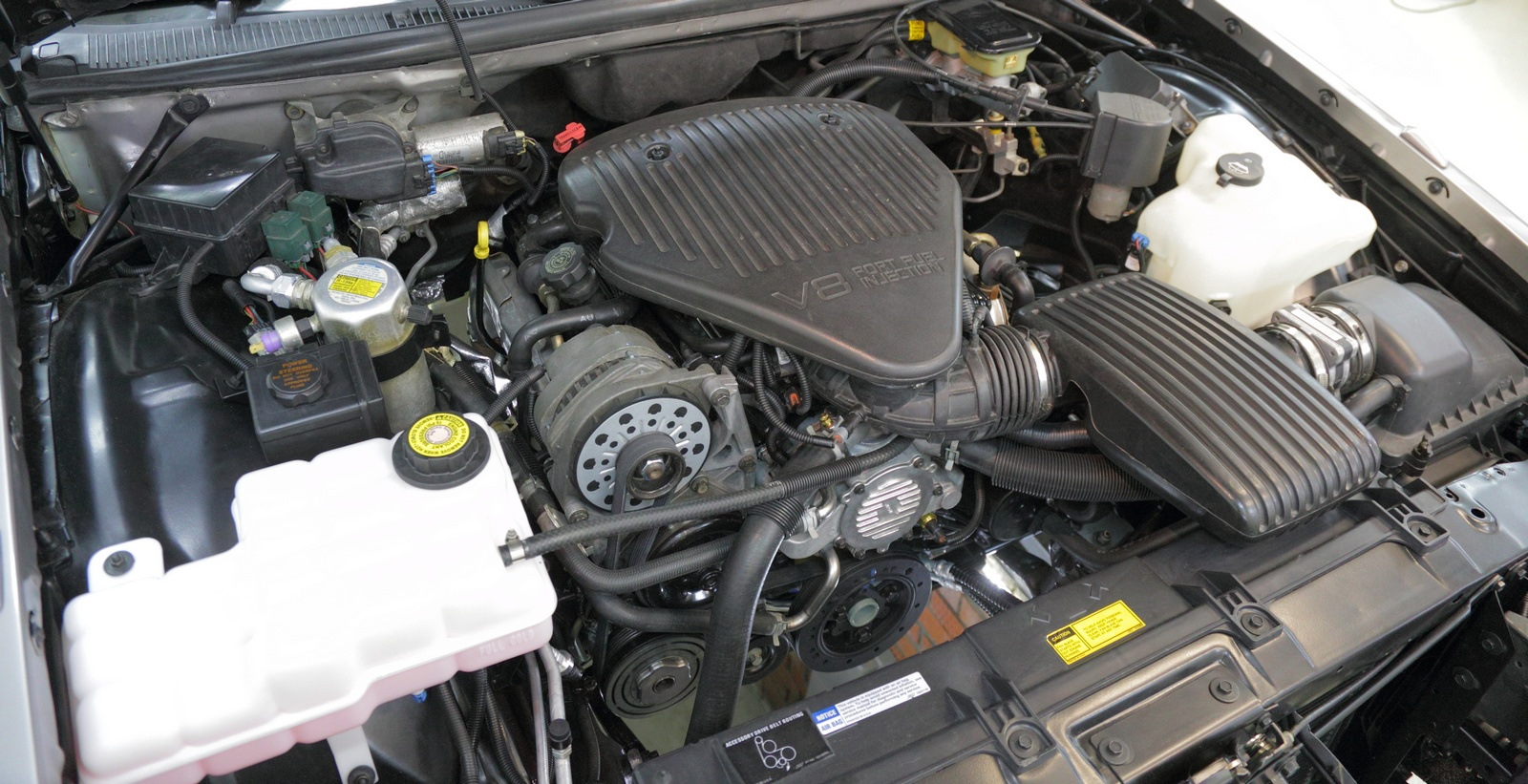

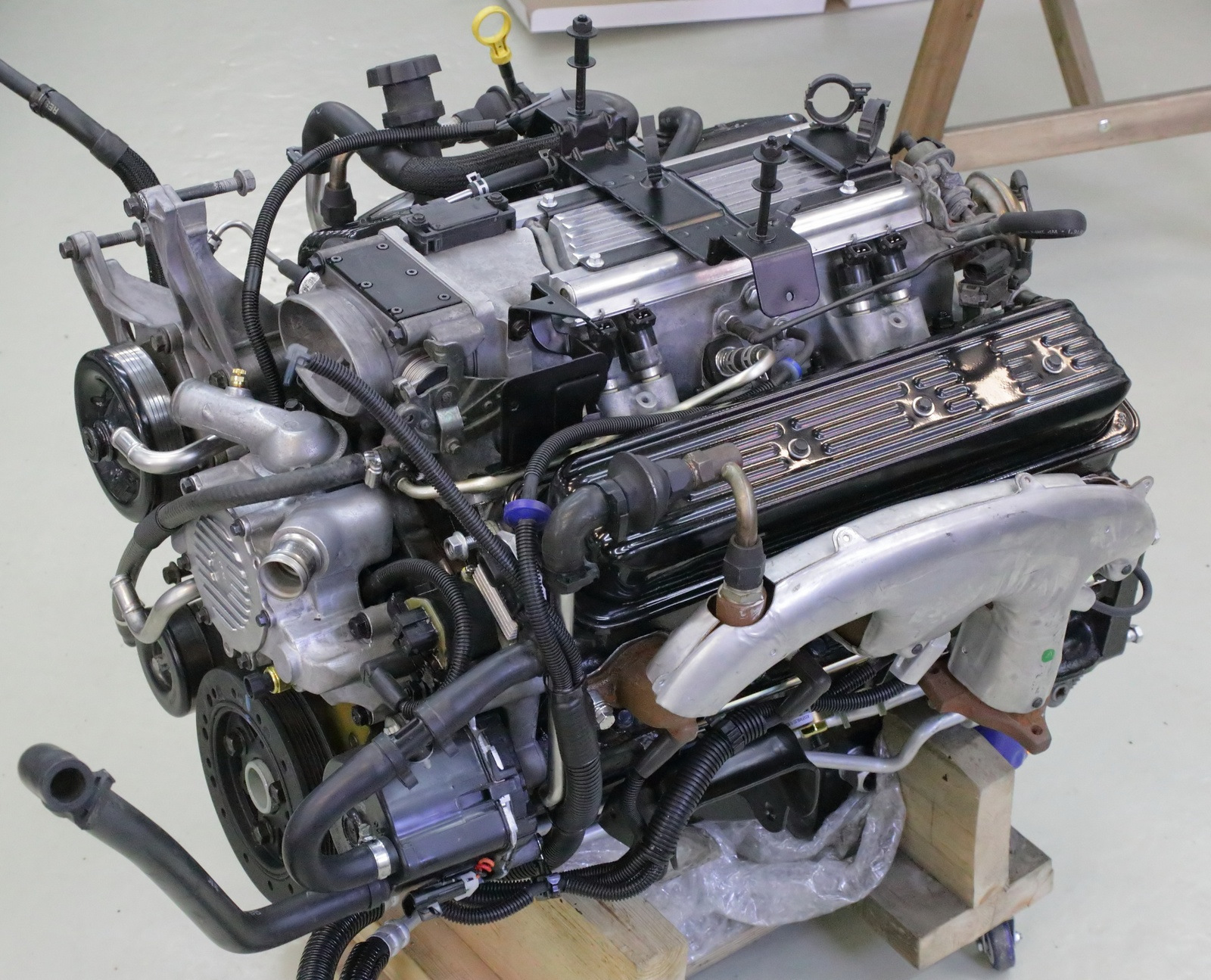

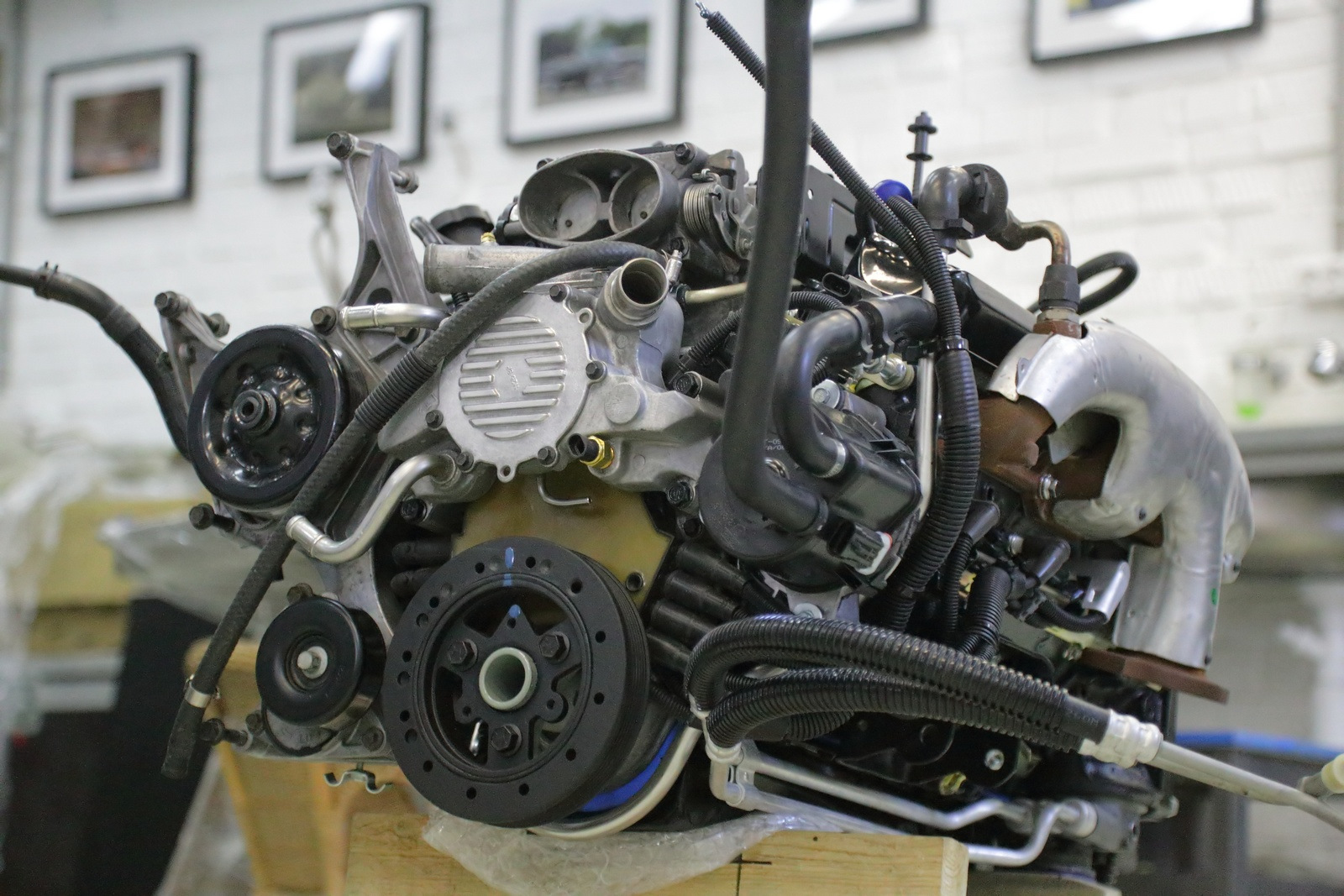

Engine LT1 350 cid @ 265 hp

I'd like to make a small disclaimer so there's no confusion about what I'm doing with the engine.

Over two seasons and roughly 500 miles of total driving, I've kept a close eye on the car. The engine has proven to be in perfectly good condition. There is no oil consumption, the exhaust pipes are free of buildup and actually show some rust inside, there are no unusual sounds, the power is excellent, and the ignition and injection systems are functioning as intended. Tearing into an engine like that for anything beyond basic gasket and seal replacement is just childish curiosity along the lines of "I wonder what's inside".



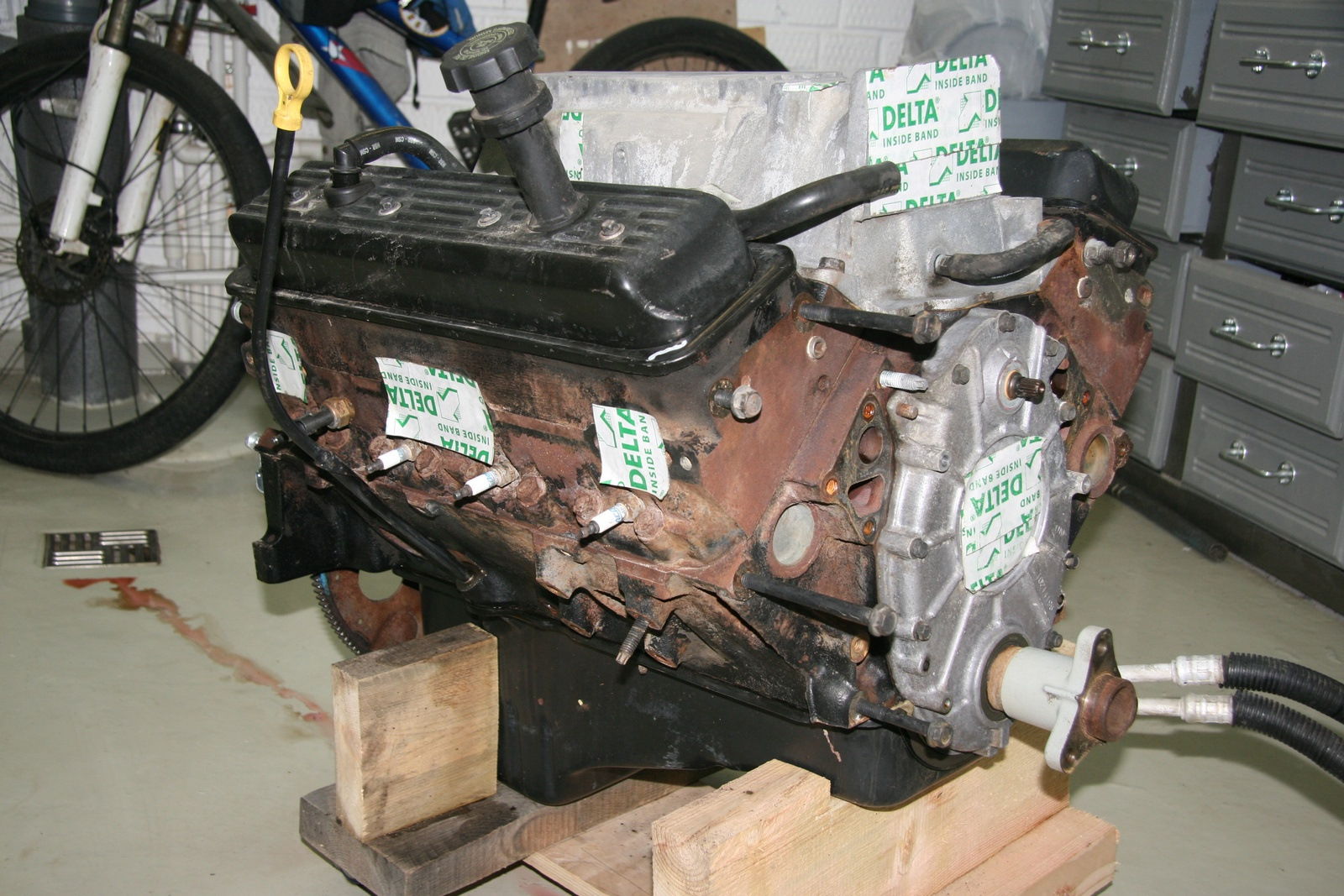

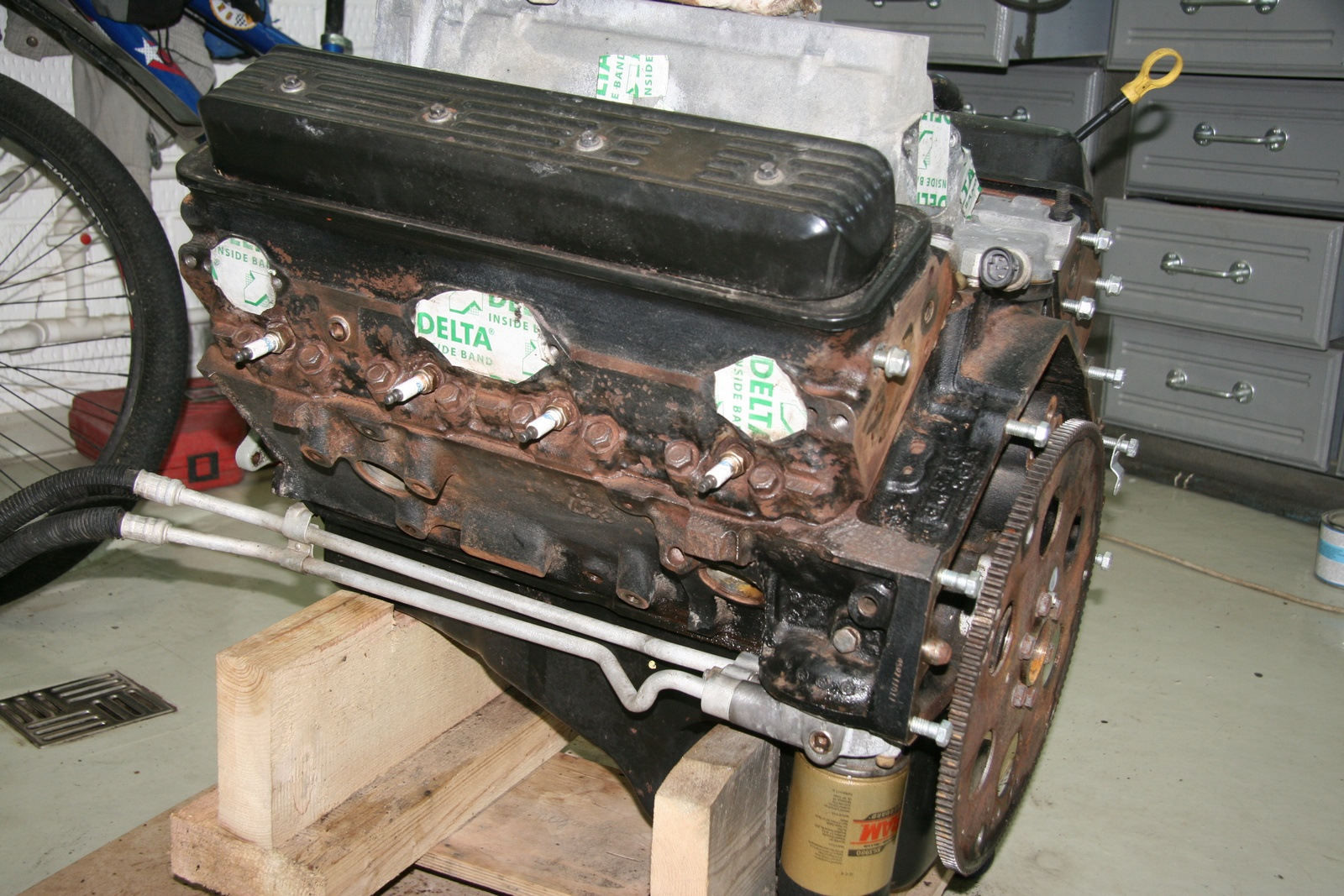

Take the engine from the "parking lot"



And start washing it



Let it dry, let it dry, let it dry





With a steel wire brush on an angle grinder, I have removed all the unconsolidated rust from the engine



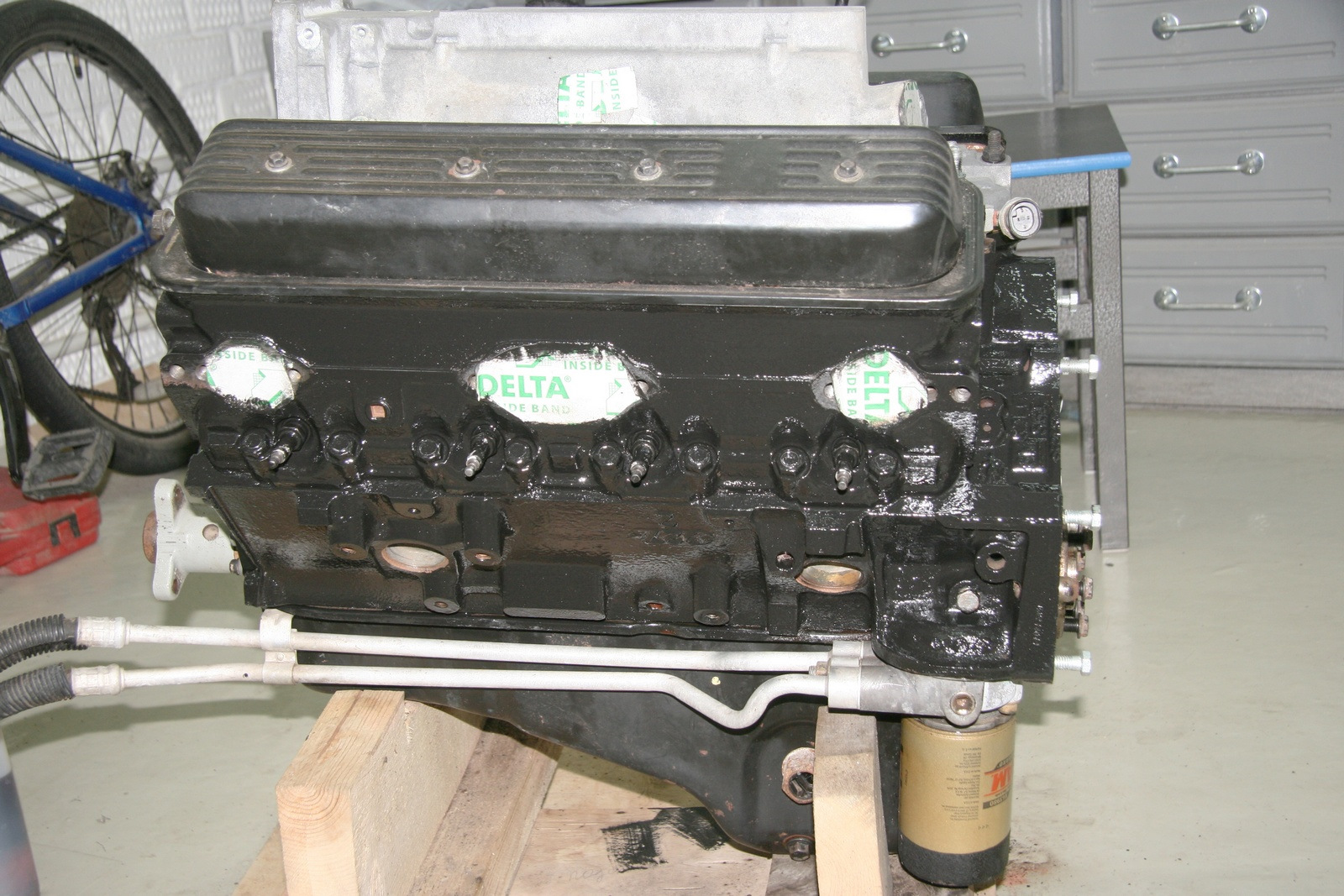

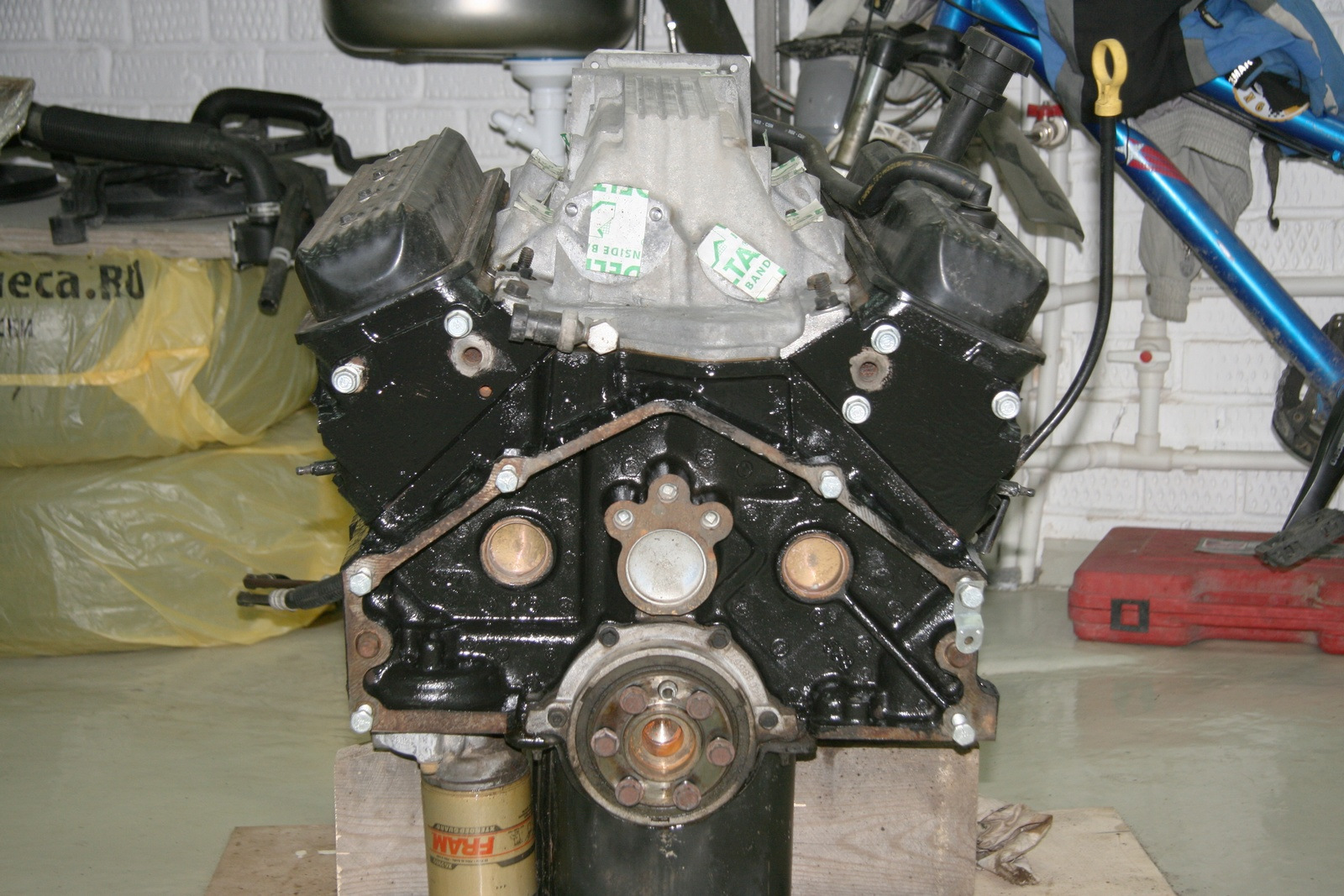

Then I took special high temperature paint over rust cast iron, and made 2 coats





I rotated the crank to the vertical dead point of 6-th cylinder, and removed the balancer, marking the correct position



Bath for internal cleaning



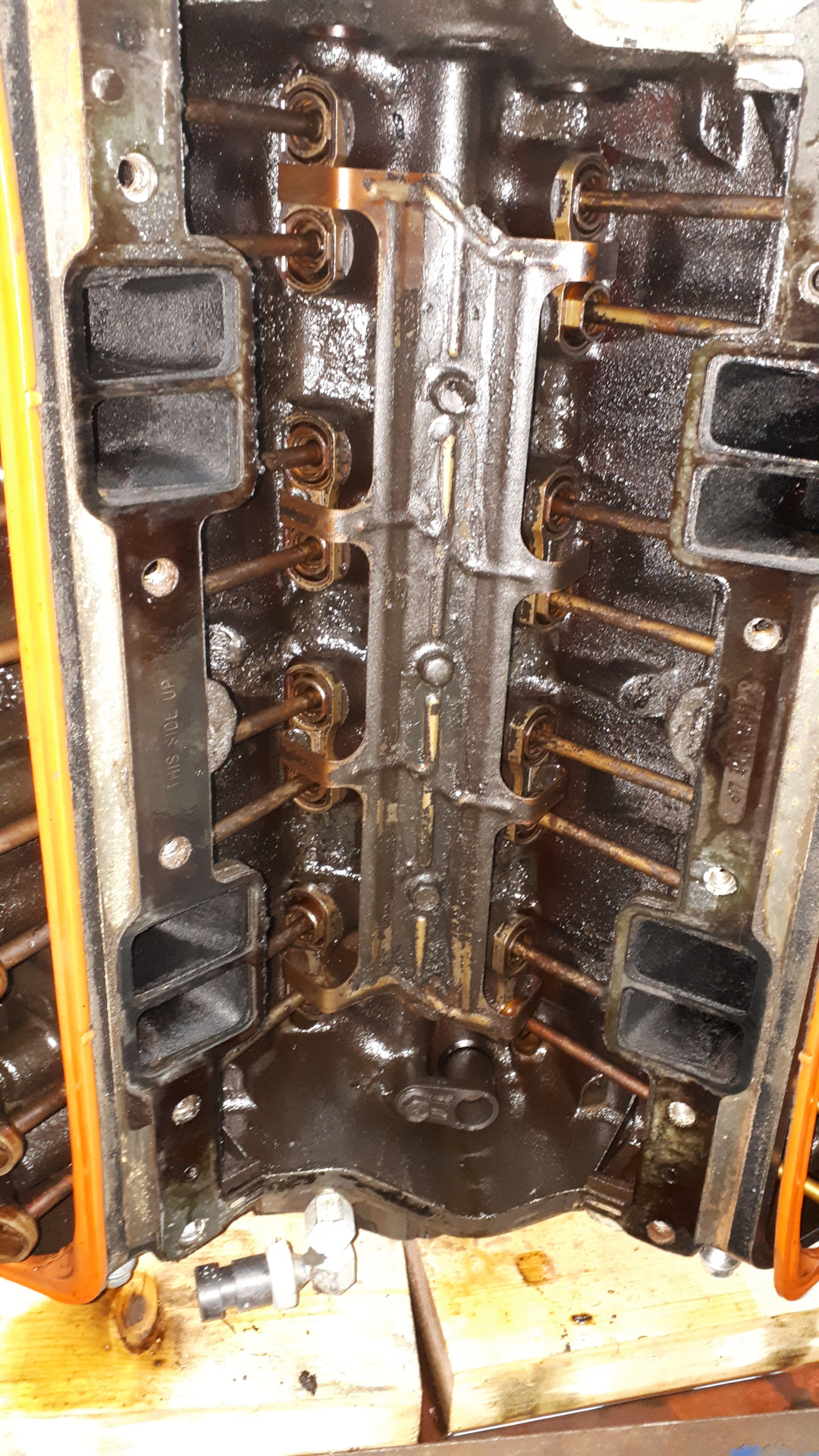

Some deposits and sludge over the last 25 years



Different types of chemistry + brush + patience give the result





Some parts for the engine and other

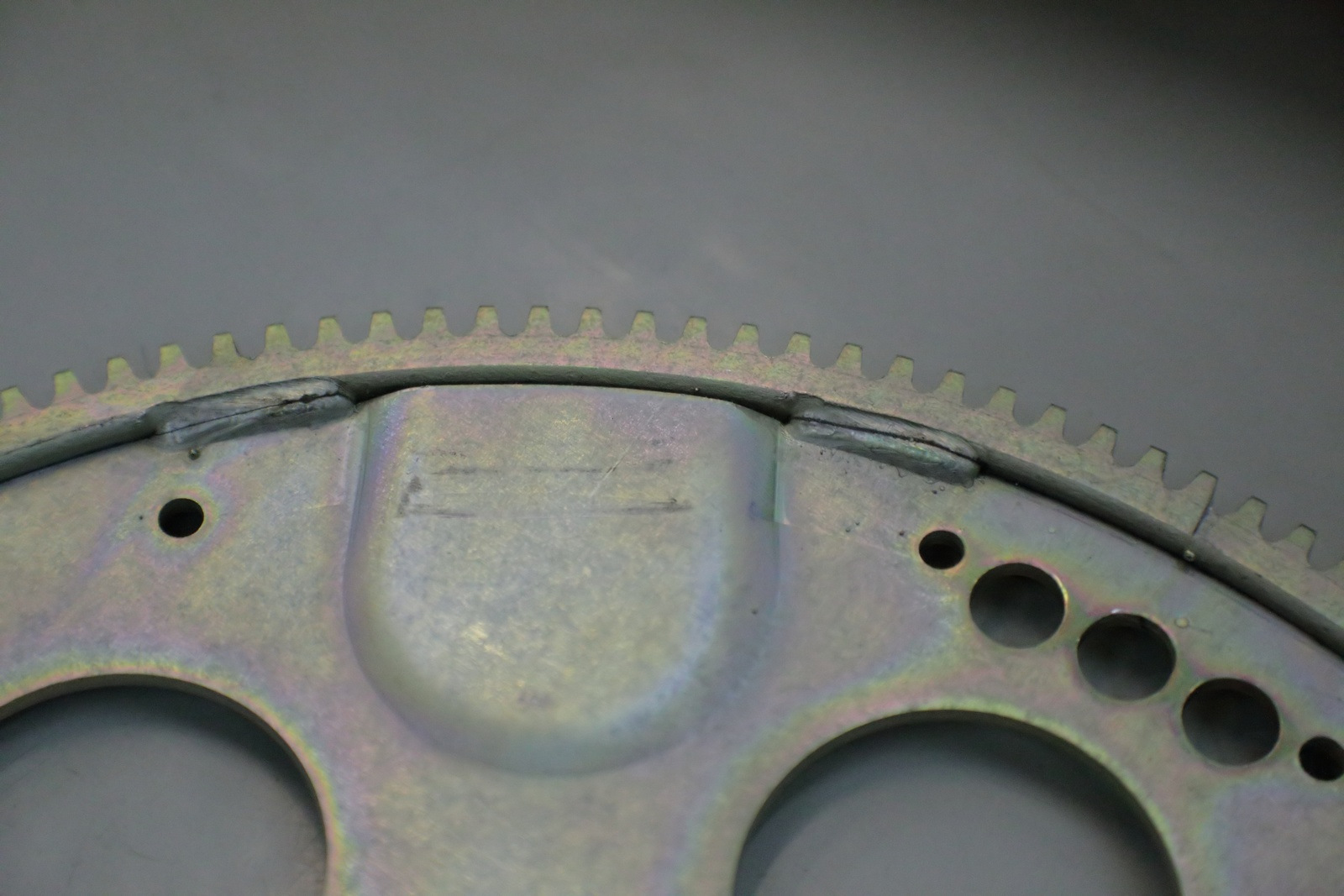

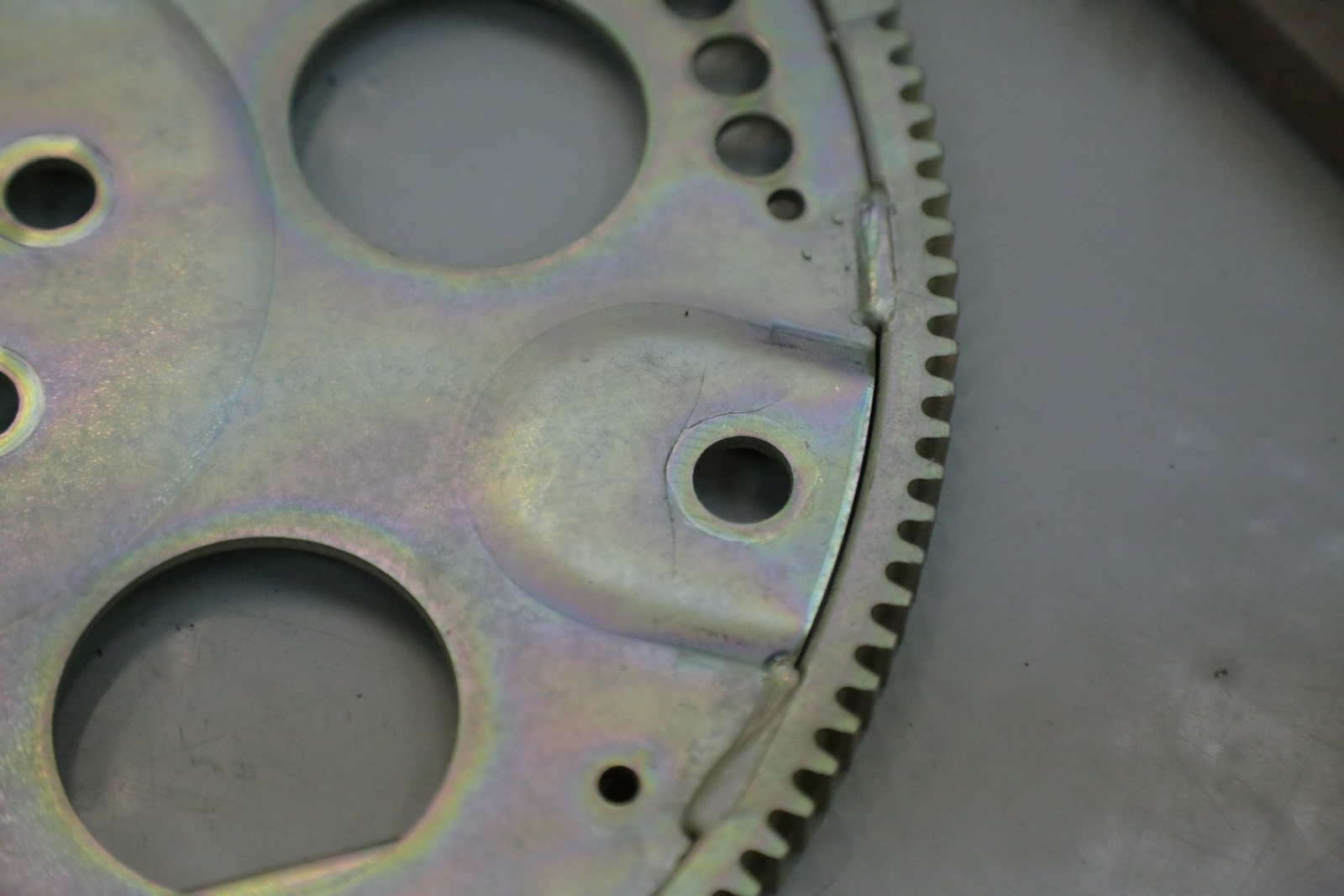

Cracked flywheel





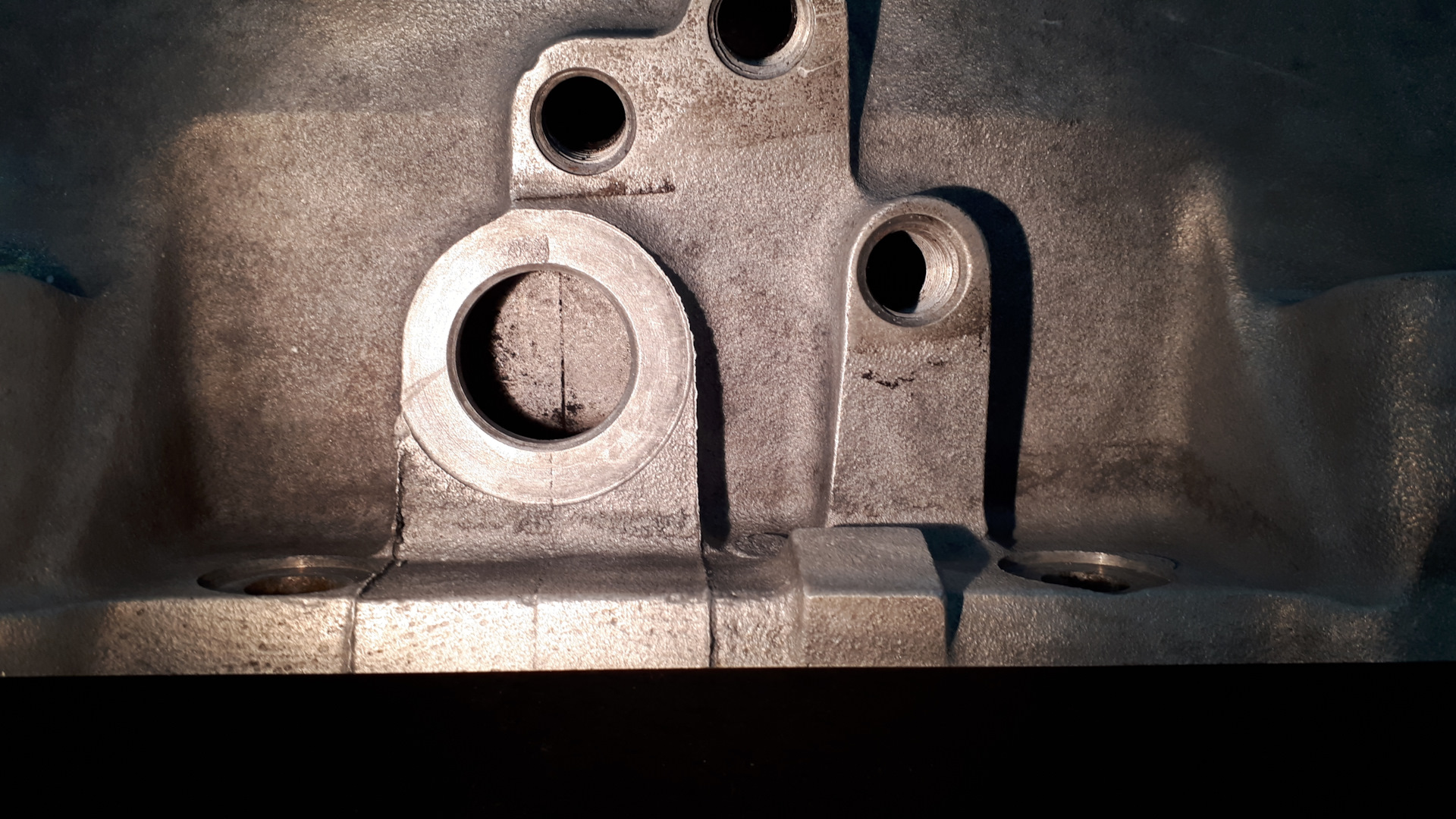

The left manifold's fasteners were converted from 3/8-inch to M10 due to a previous "hack job." The only fix was to re-tap the holes to the nearest metric size, since the closest inch thread was too far off nominal. One of the second-to-last holes in the head was so badly damaged that it needed to be tapped M11×1.5. Because ARP doesn't make M11 bolts, I bought a set of M12×1.5 bolts and turned one down to M11



But finally it was looking almost good



New gaskets



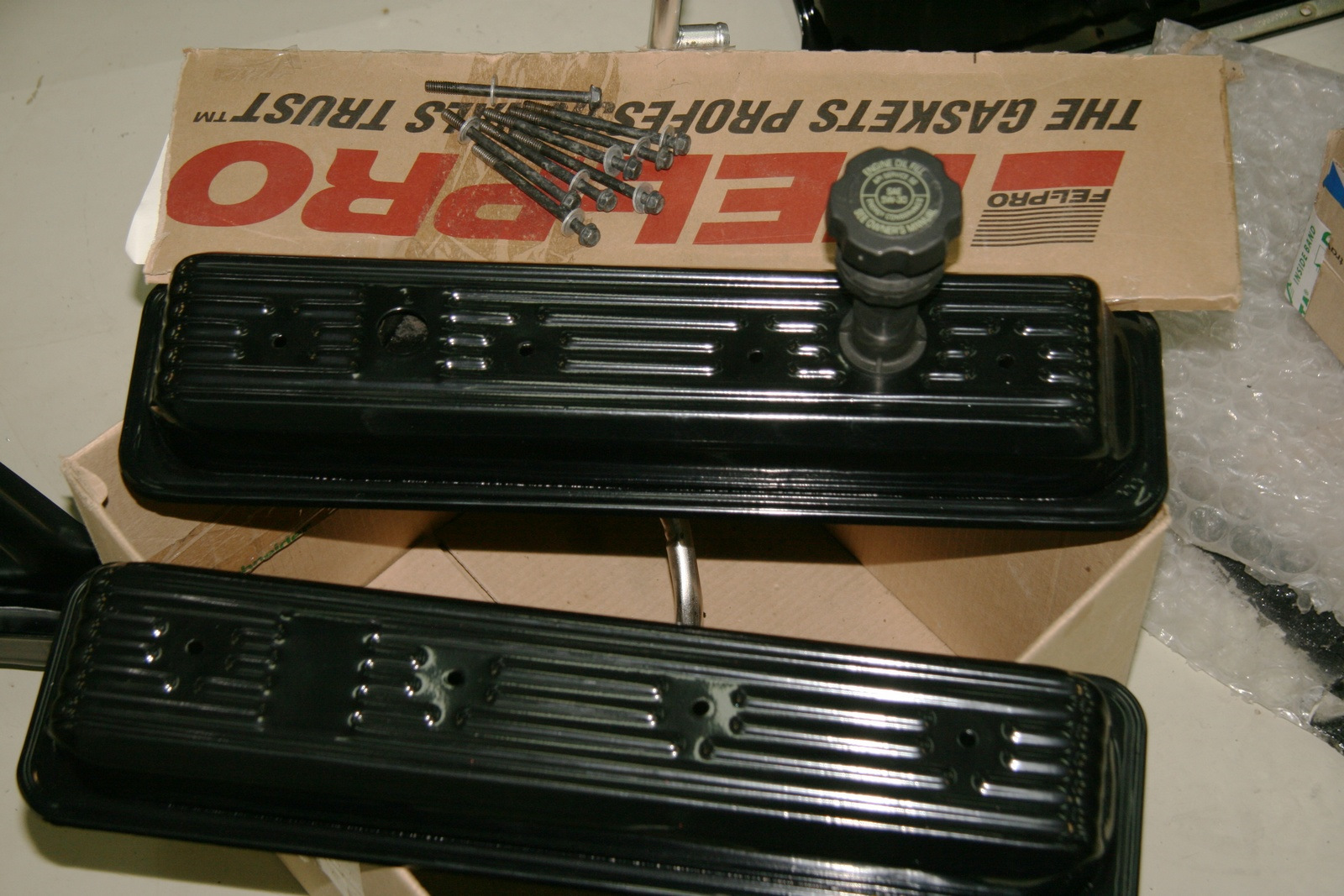

Covers after powder coating



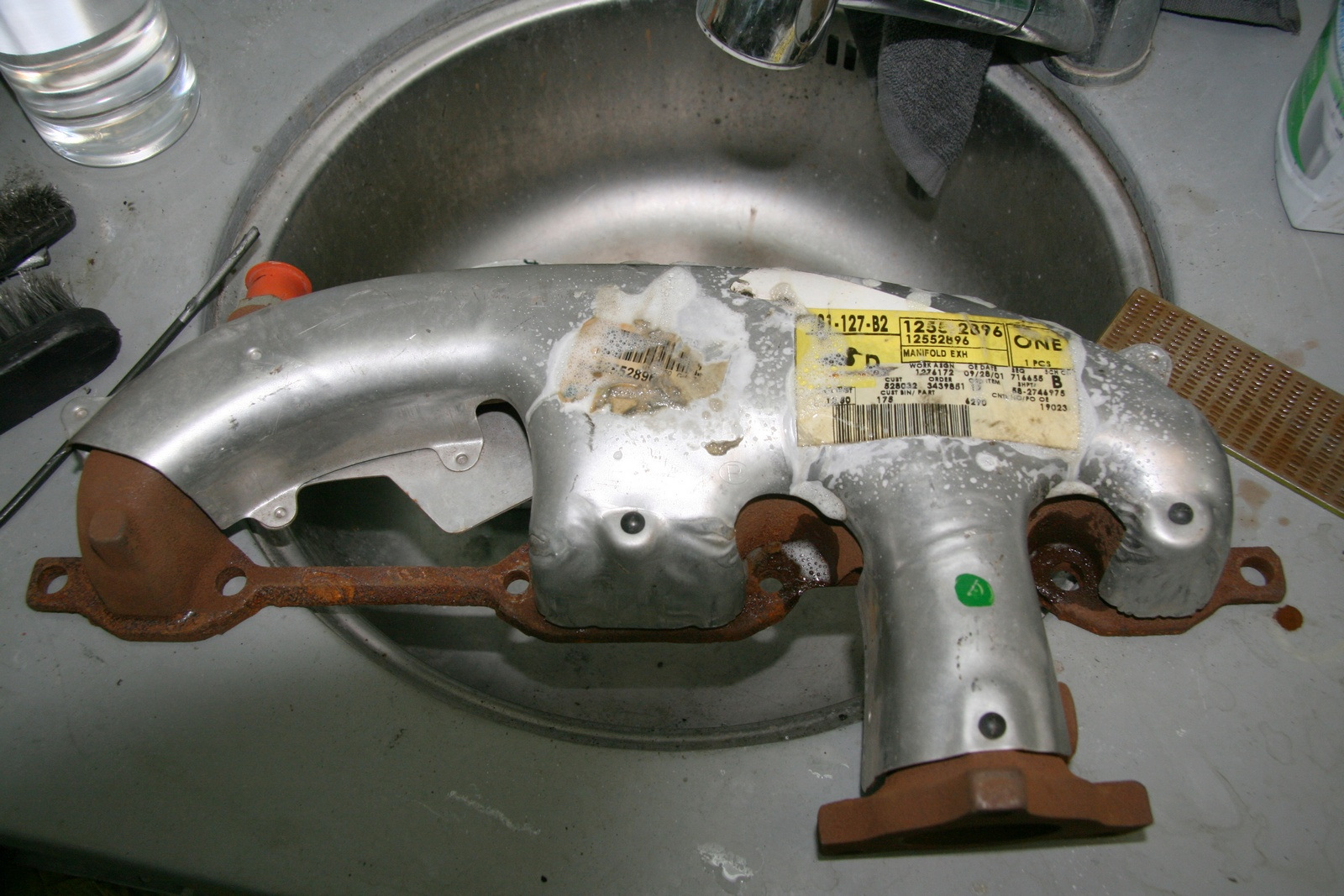

Wash all stickers



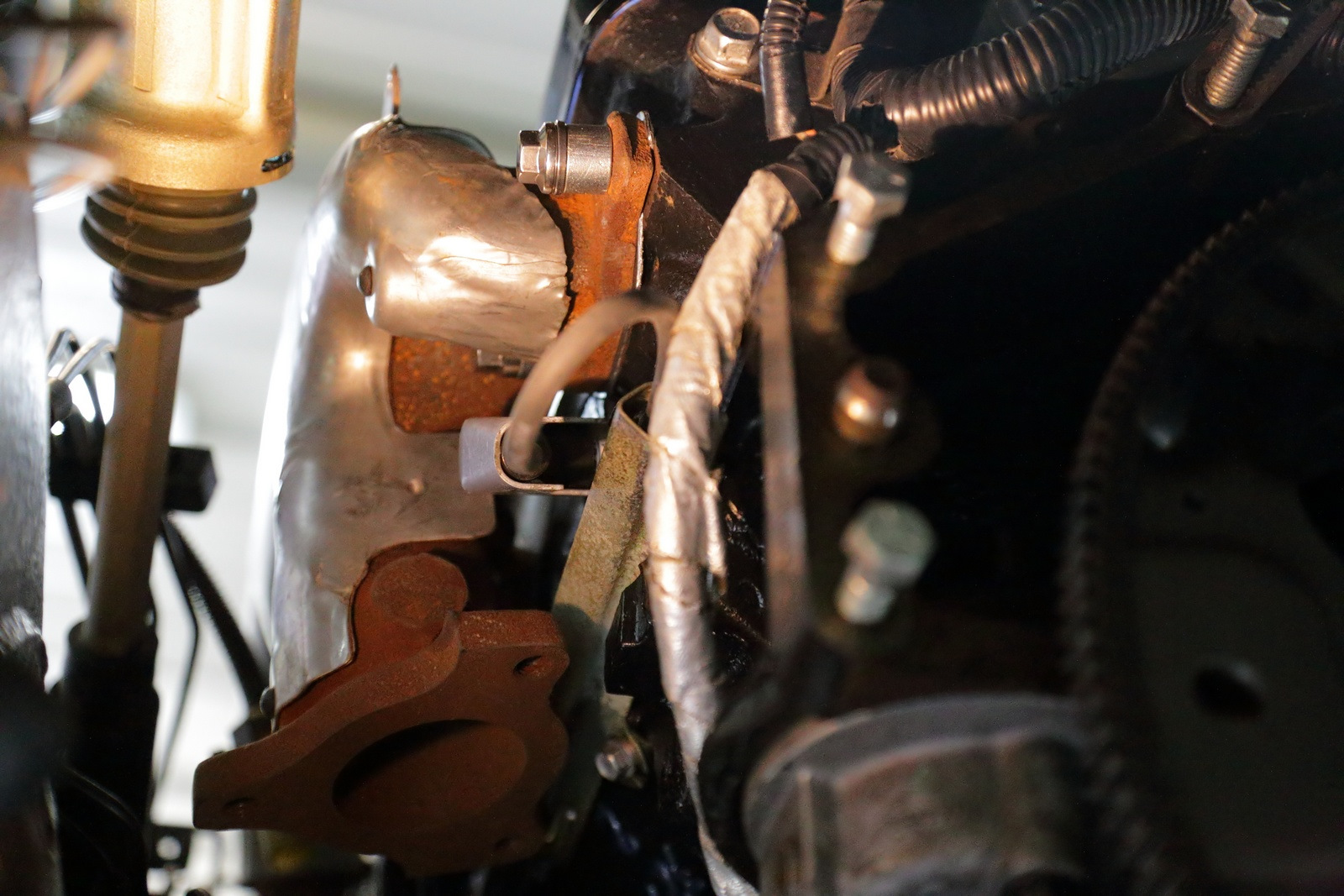

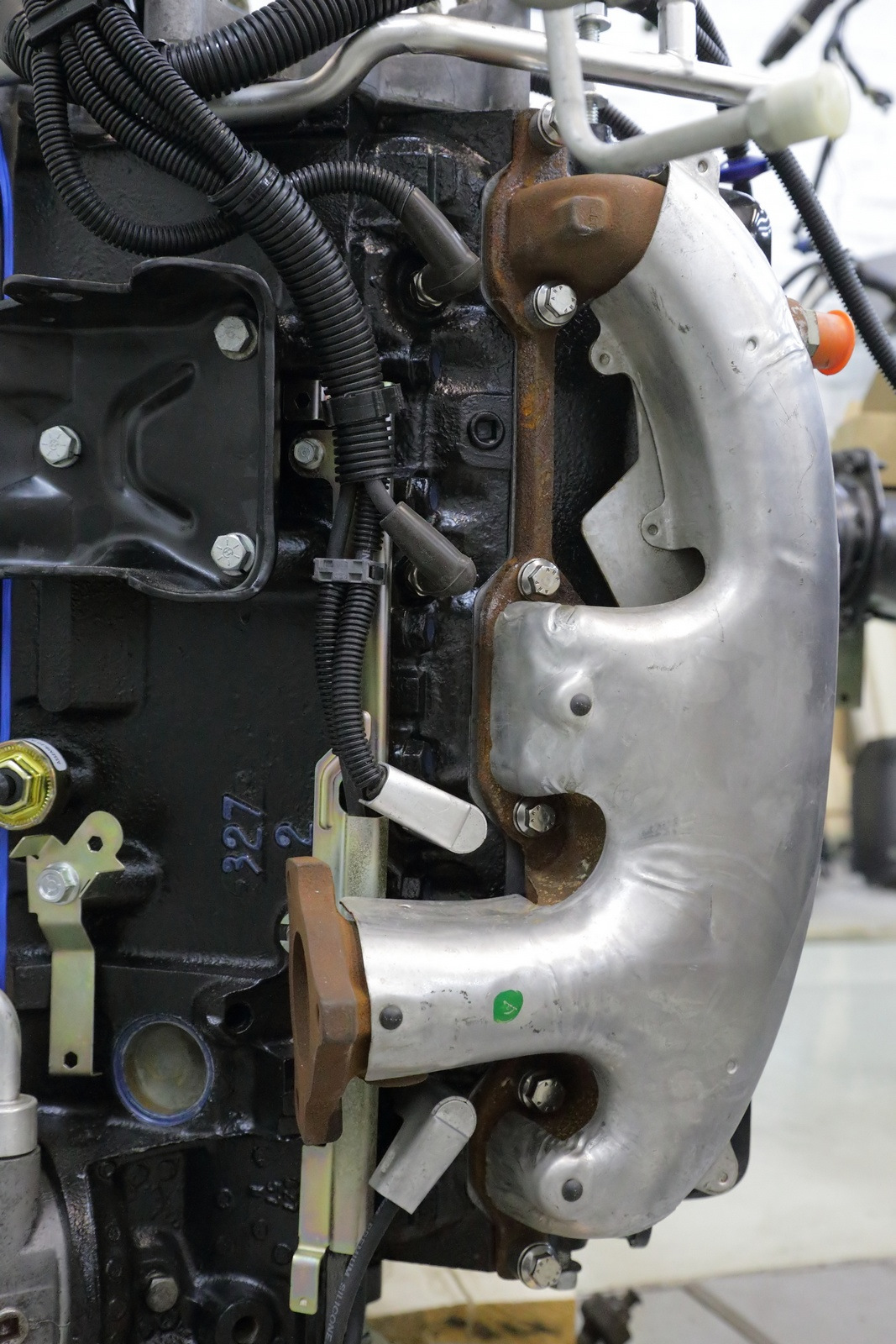

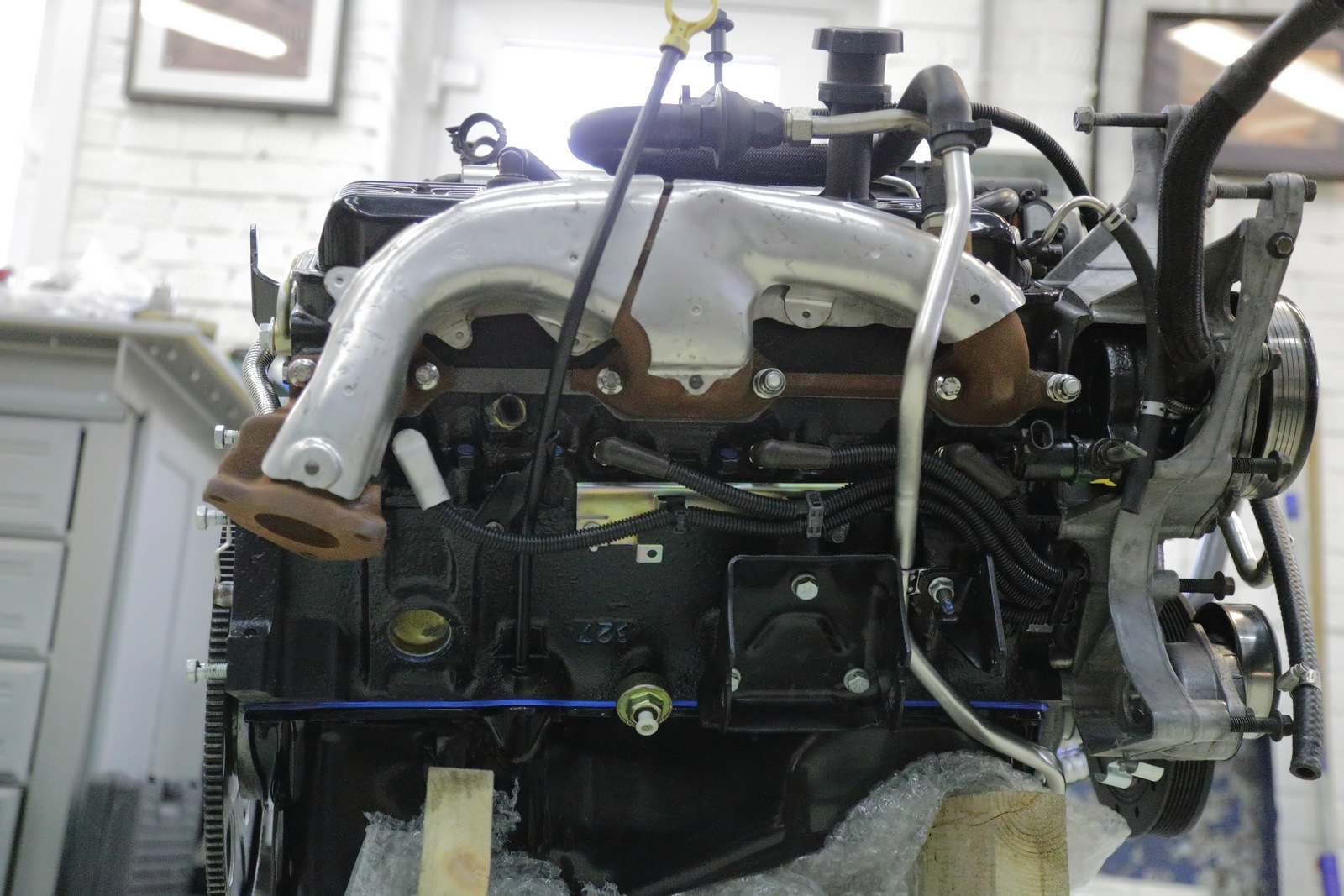

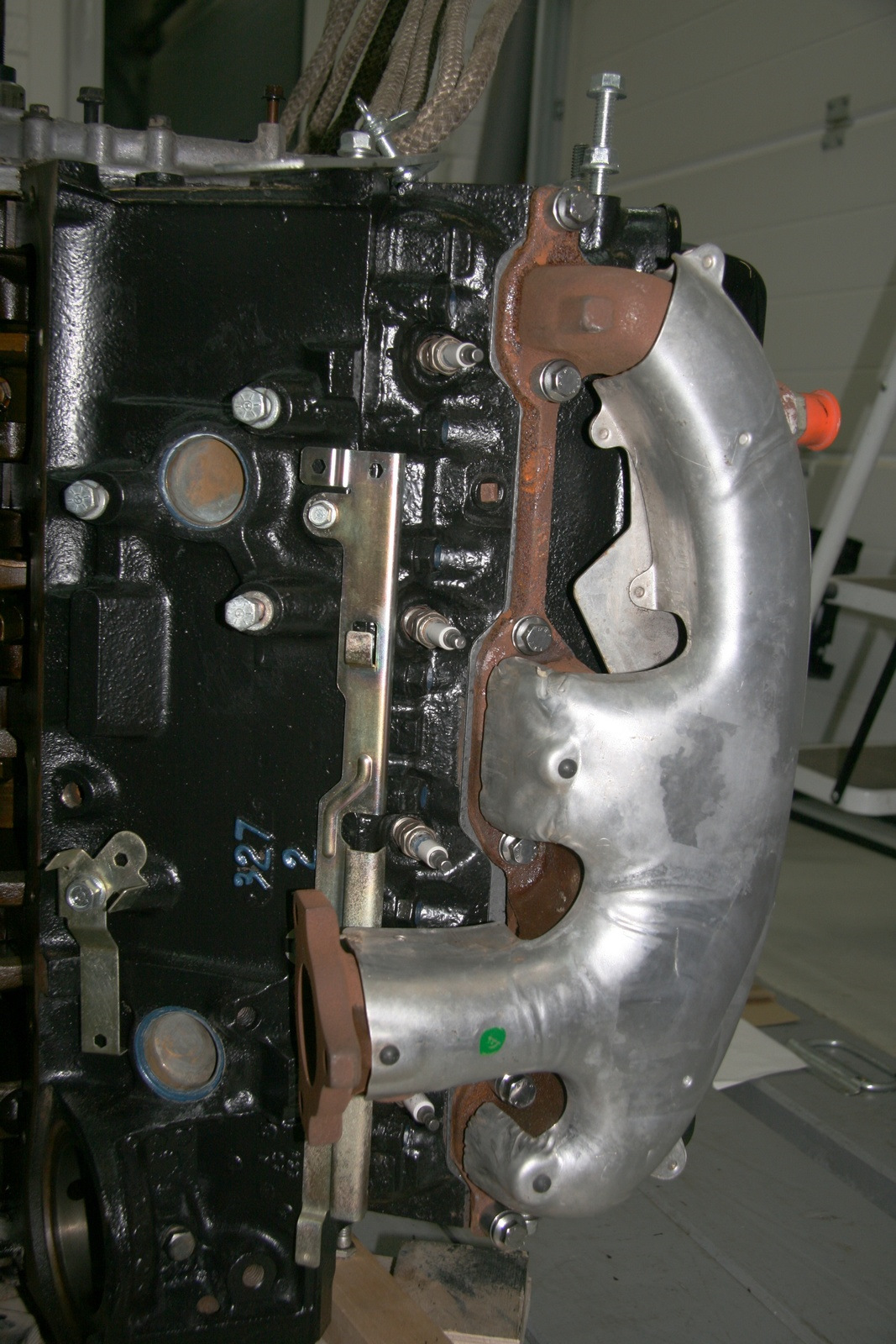

And mount both headers on the engine





I used FelPro gasket kit, and I was pretty happy with it

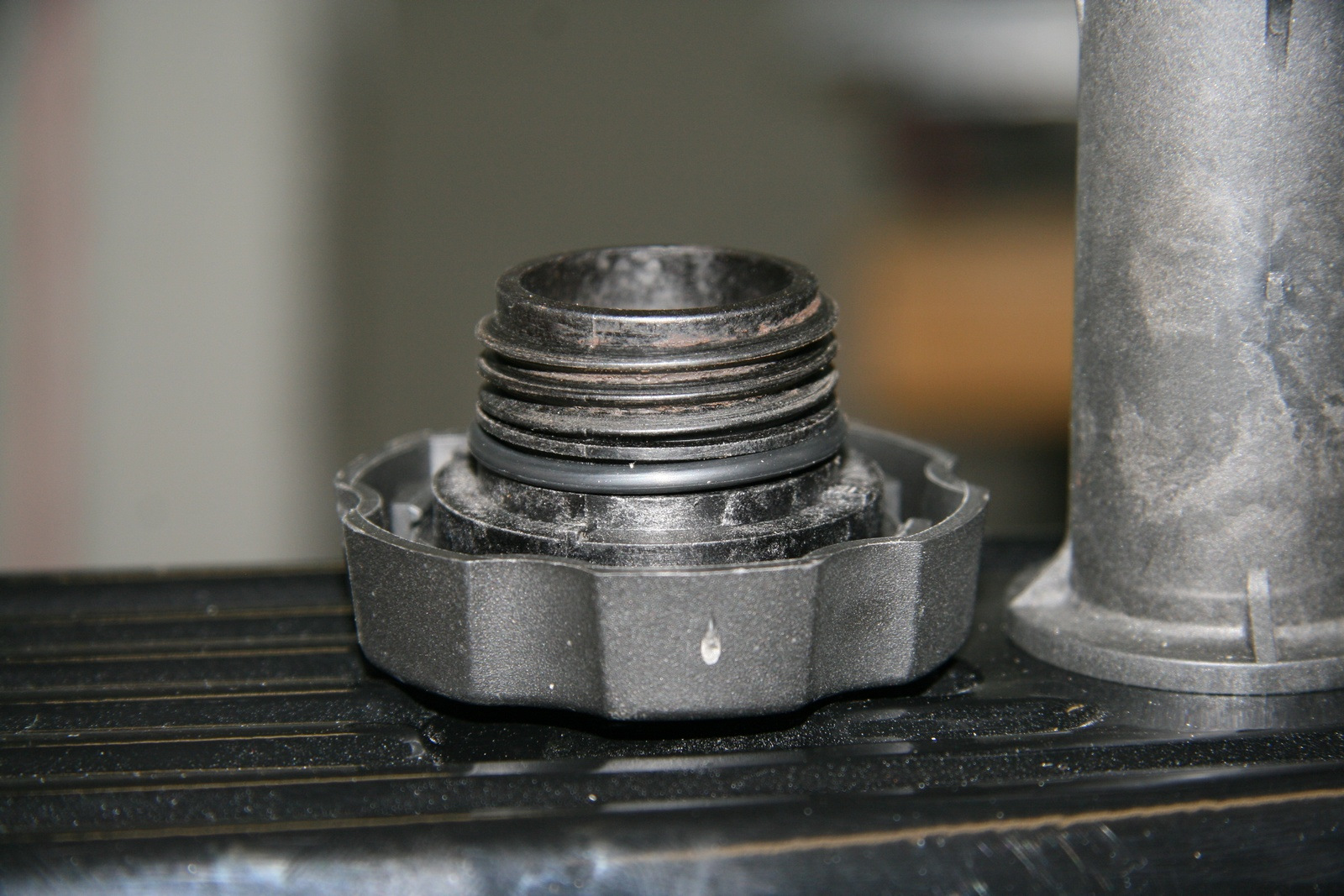

Both o-rings on the oil filler extension tube and the cap were replaced



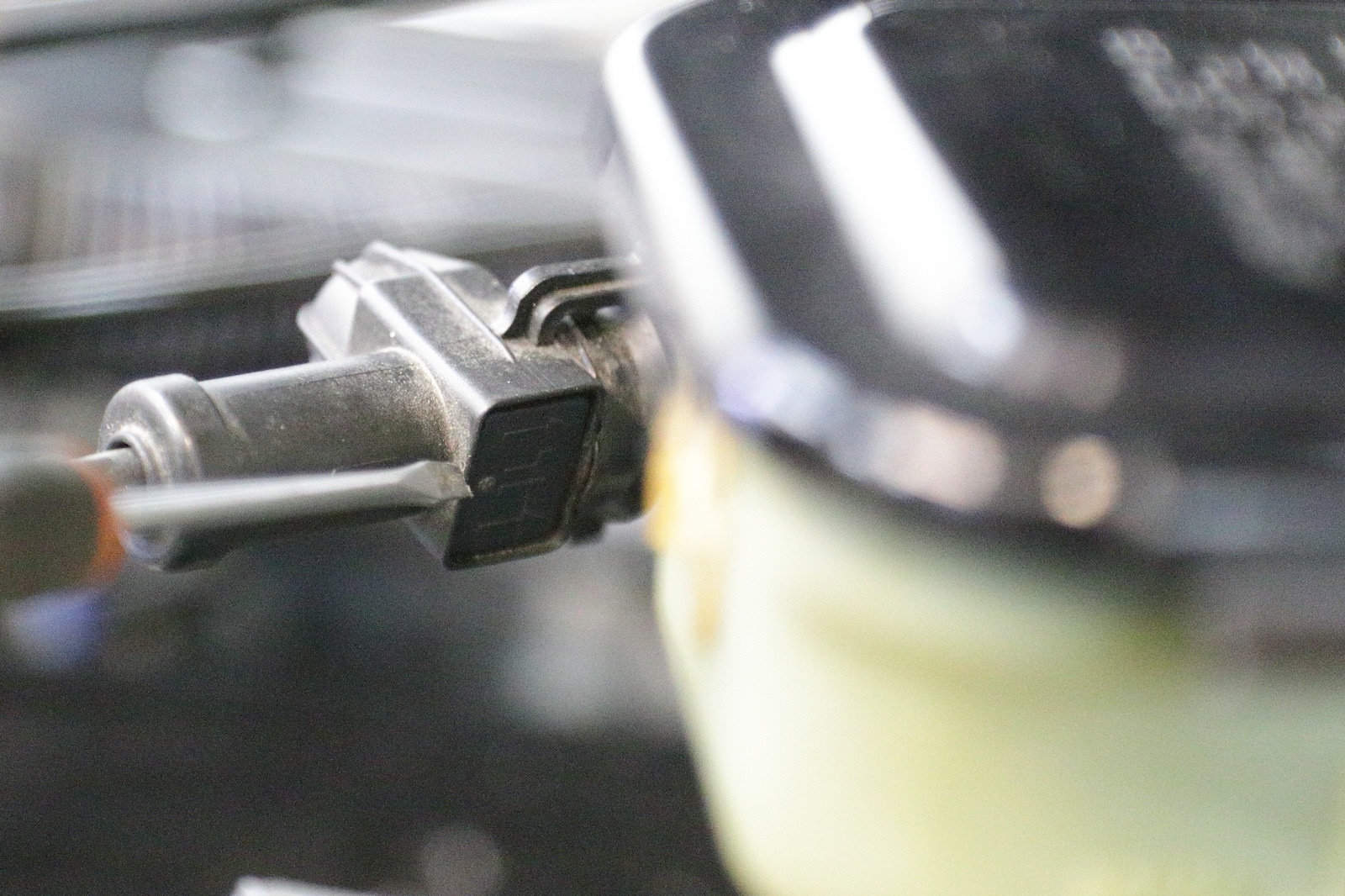

New connector



Comes to the PCV system

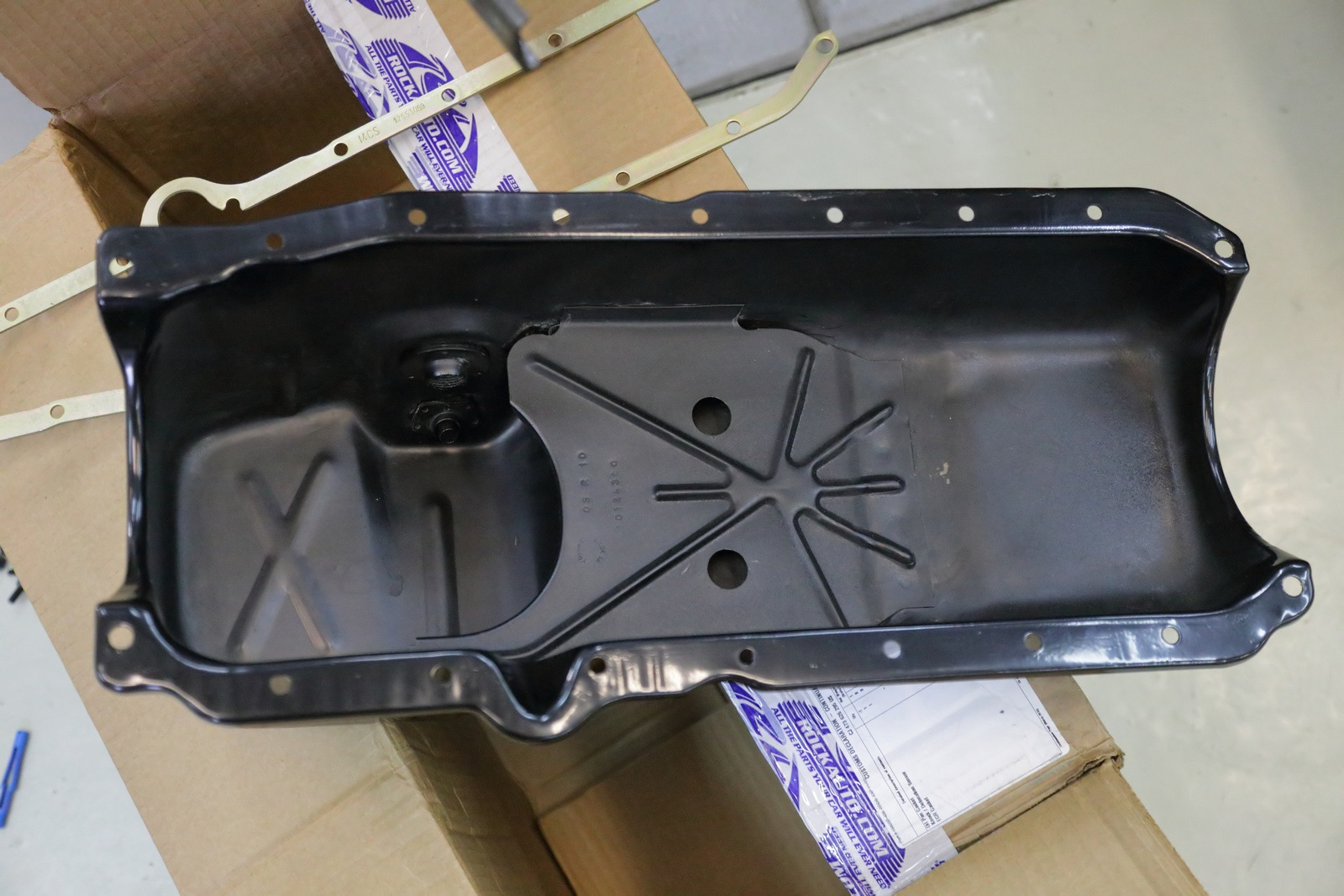

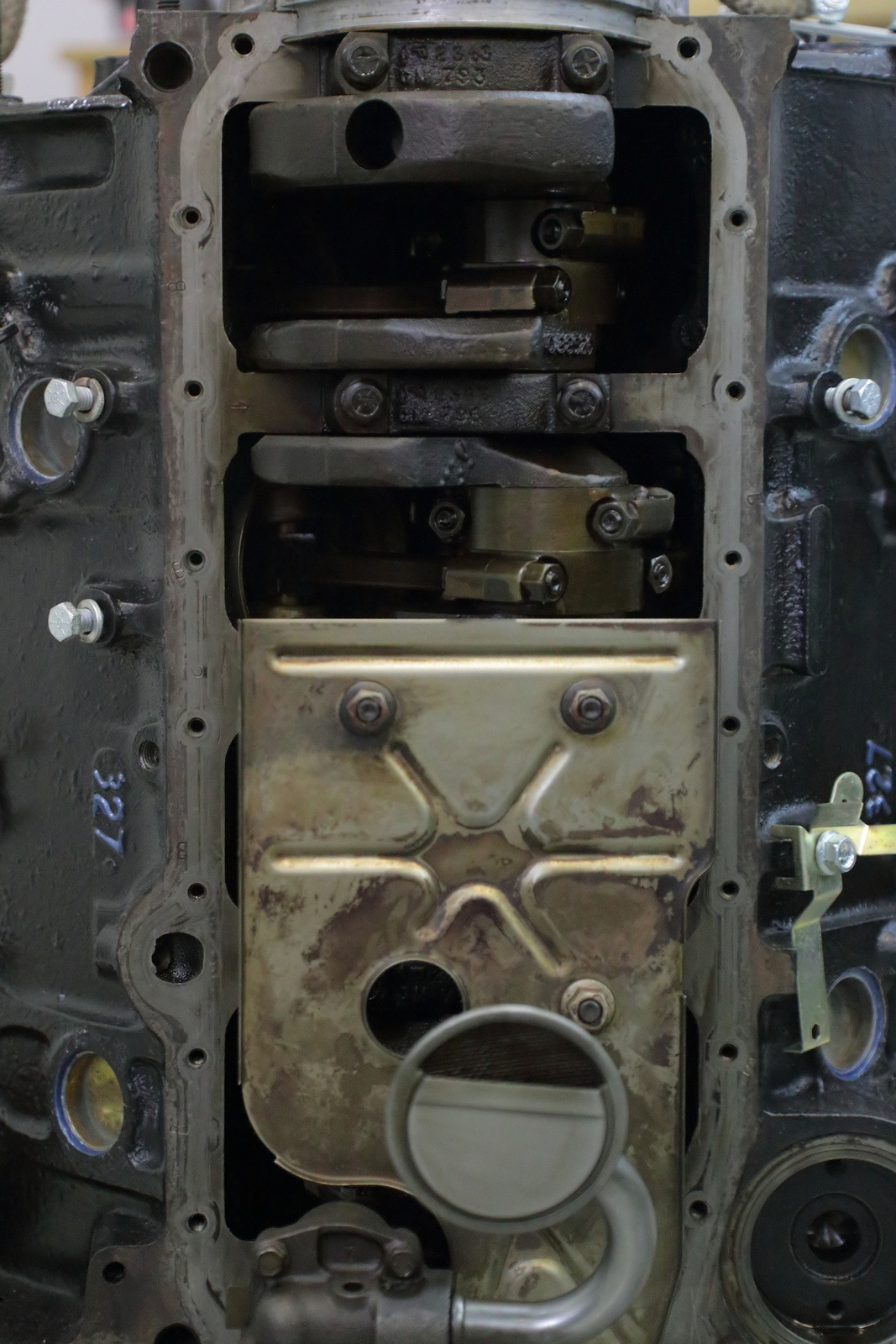

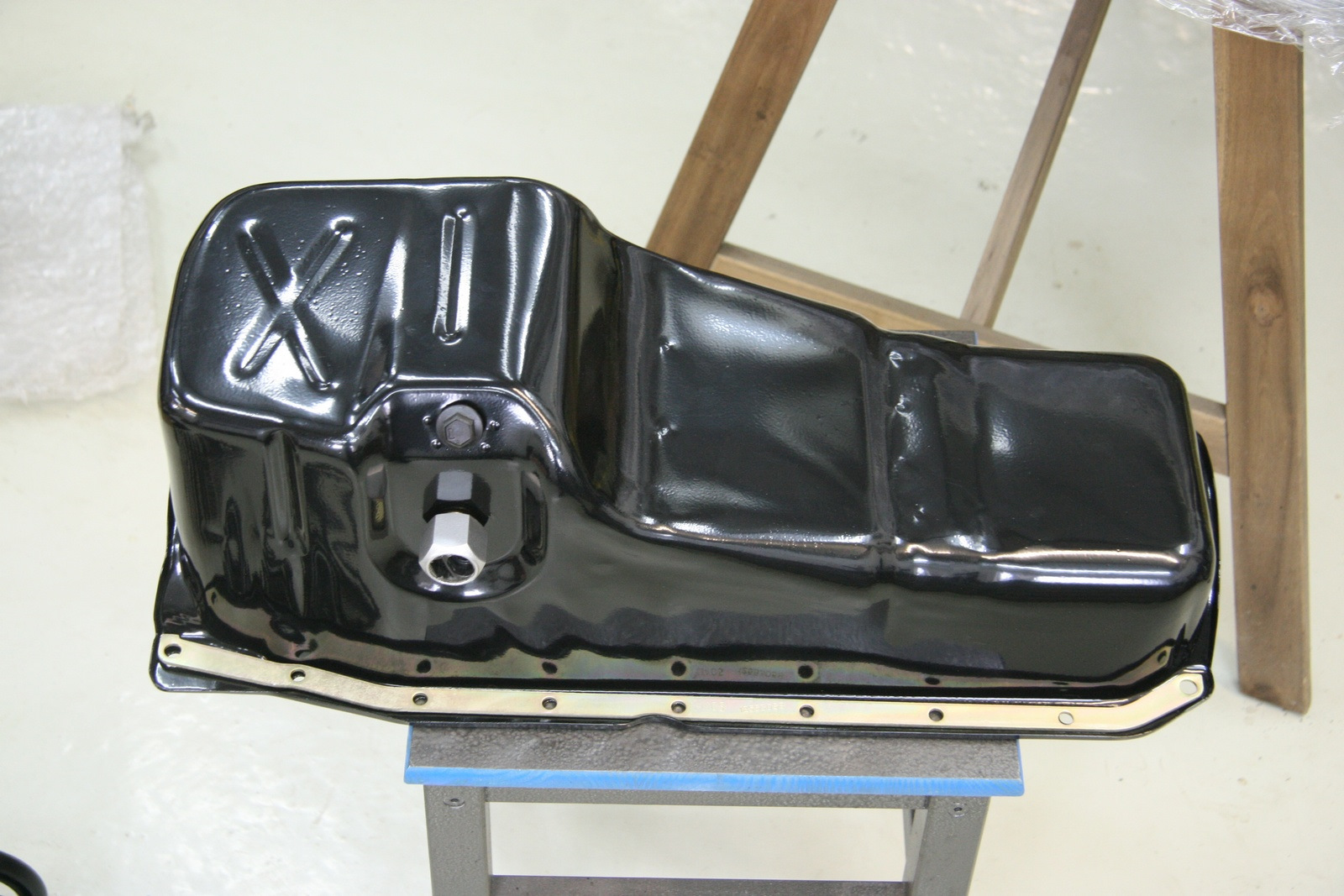

Oil pan with new level sensor



Clean inside, shining outside



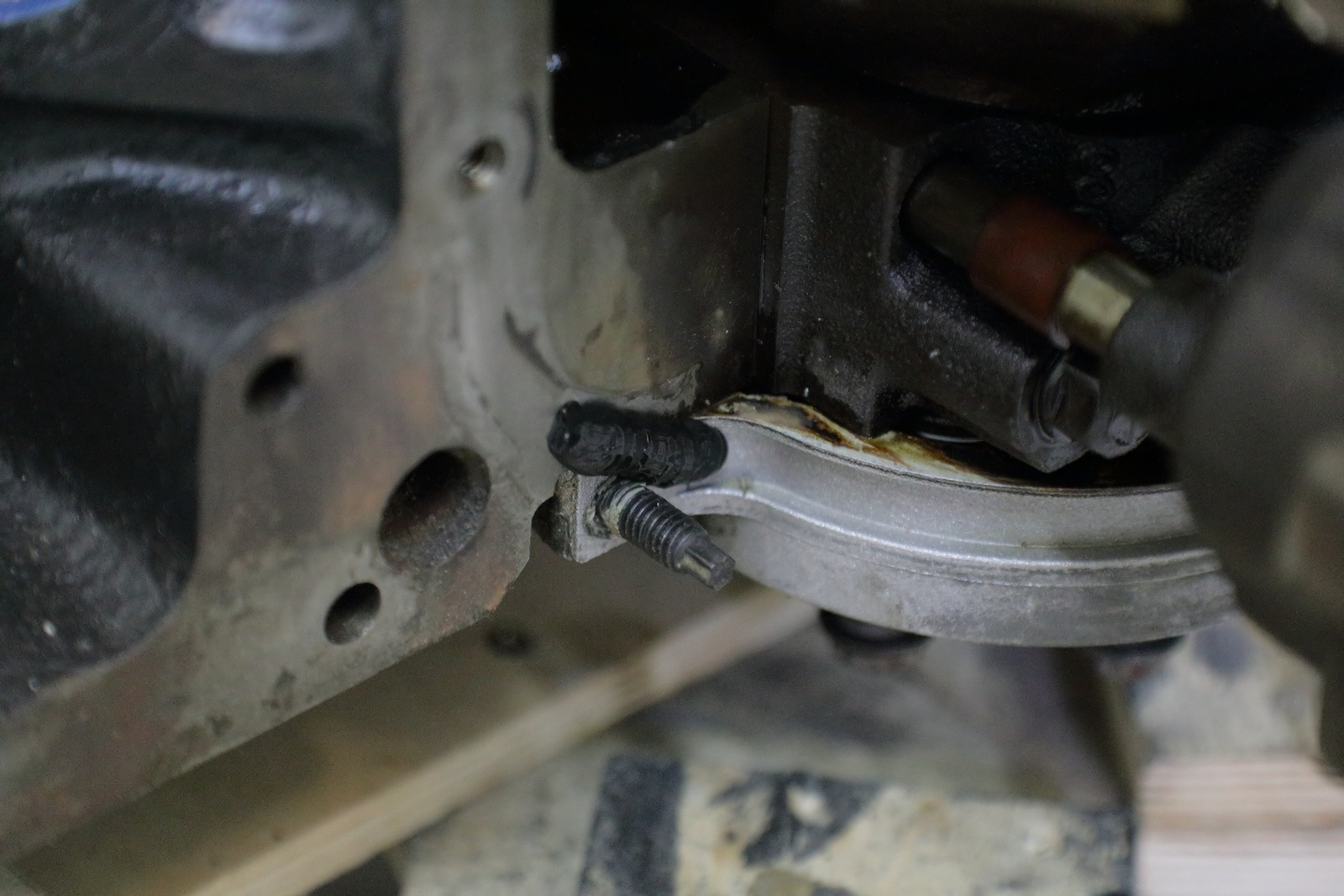

Guides for the oil pan



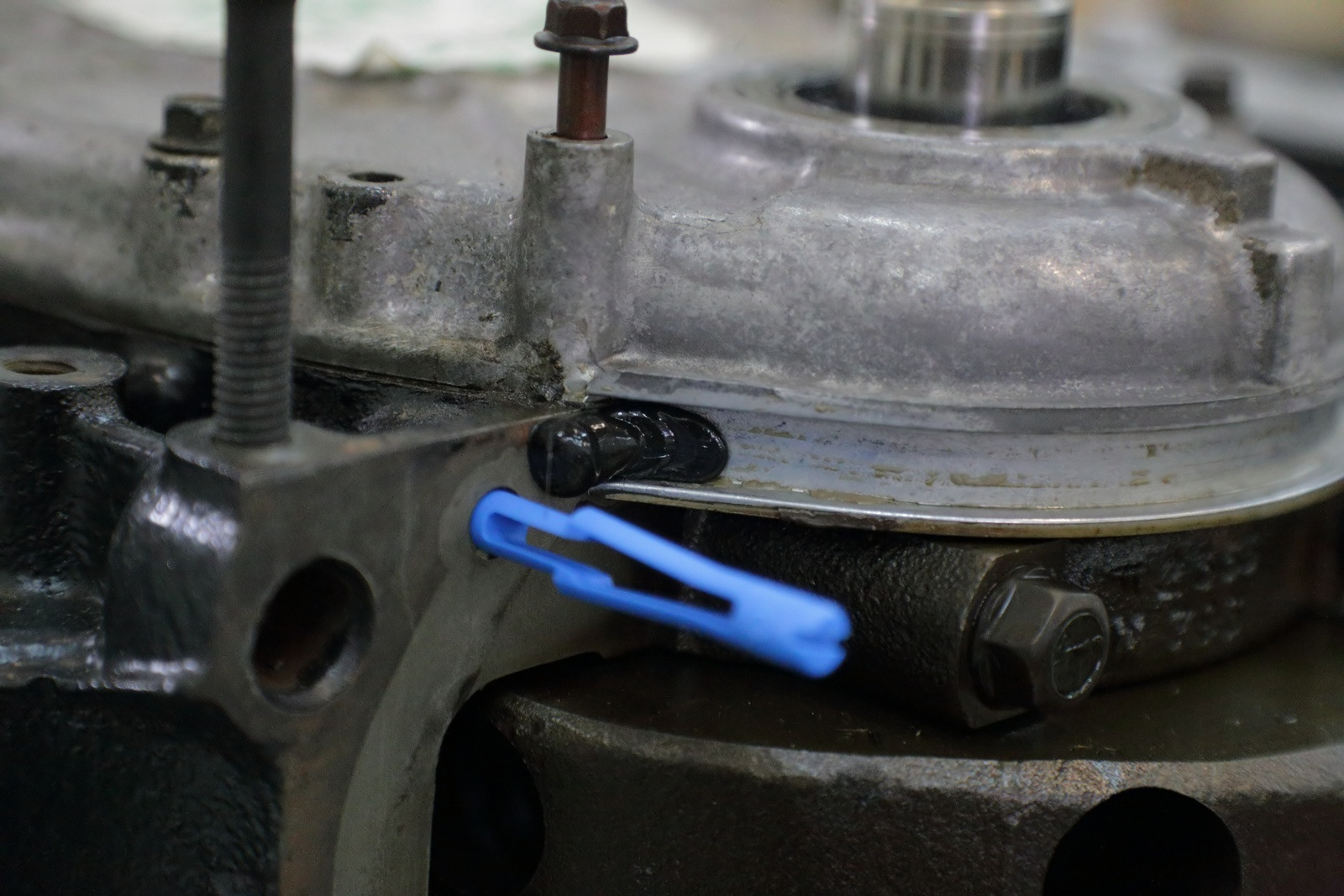

Manual says that there is a need in engine polyurethane sealant in the corners



Oil pan bolts and nuts after plating



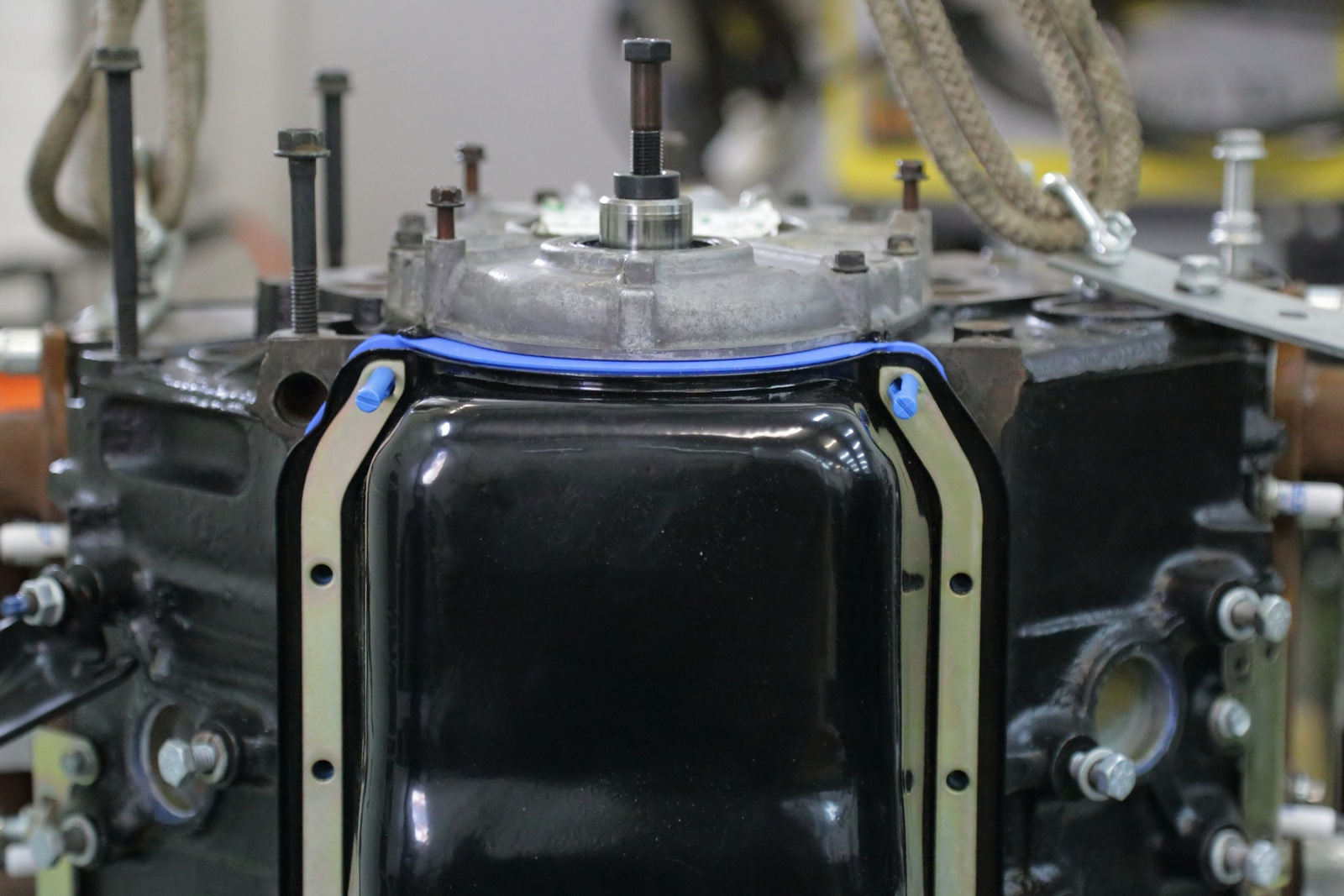

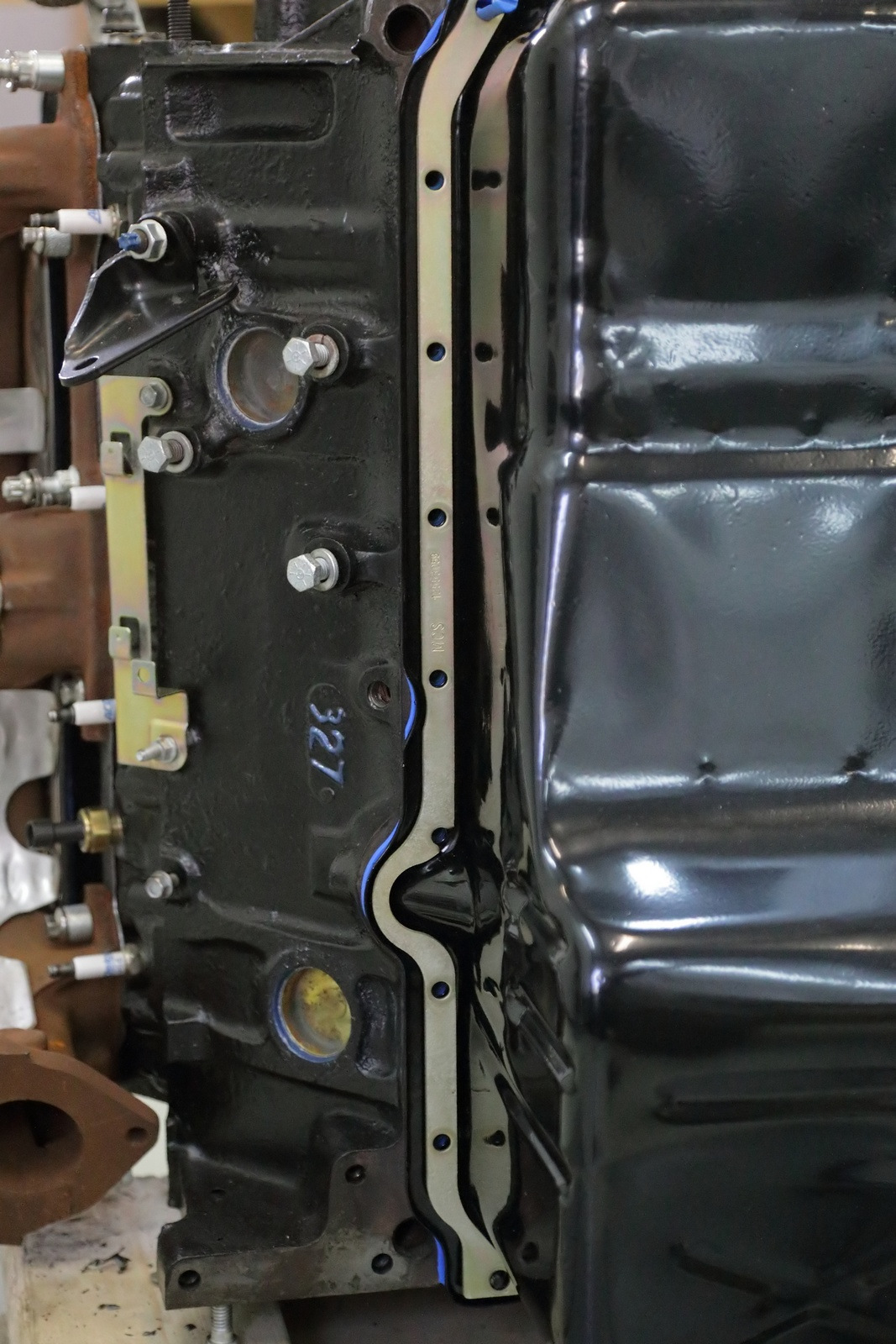

And this is how guides help to put all together



Ensure that the pan is set correctly



New seal gasket on the level sensor



Tightened



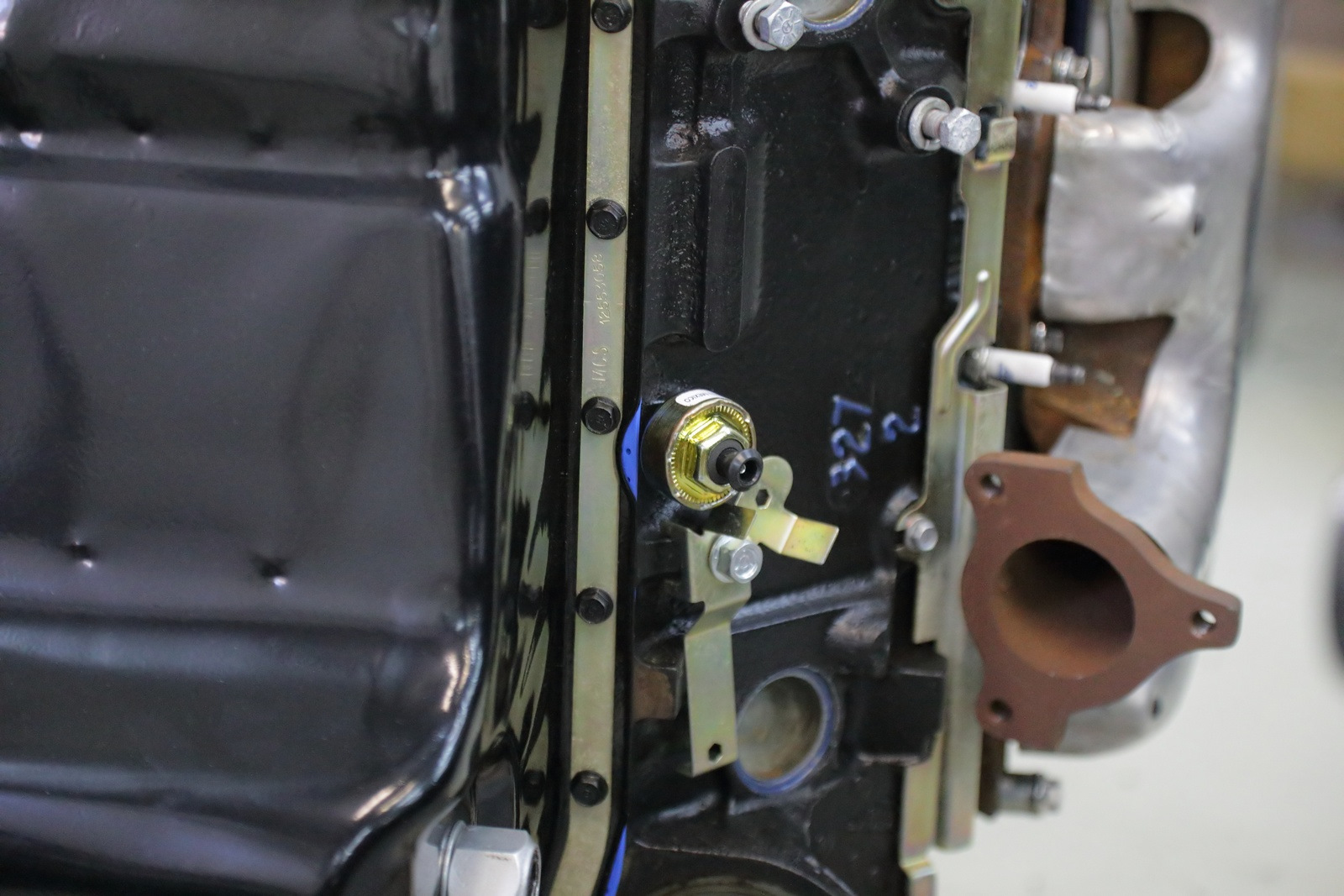

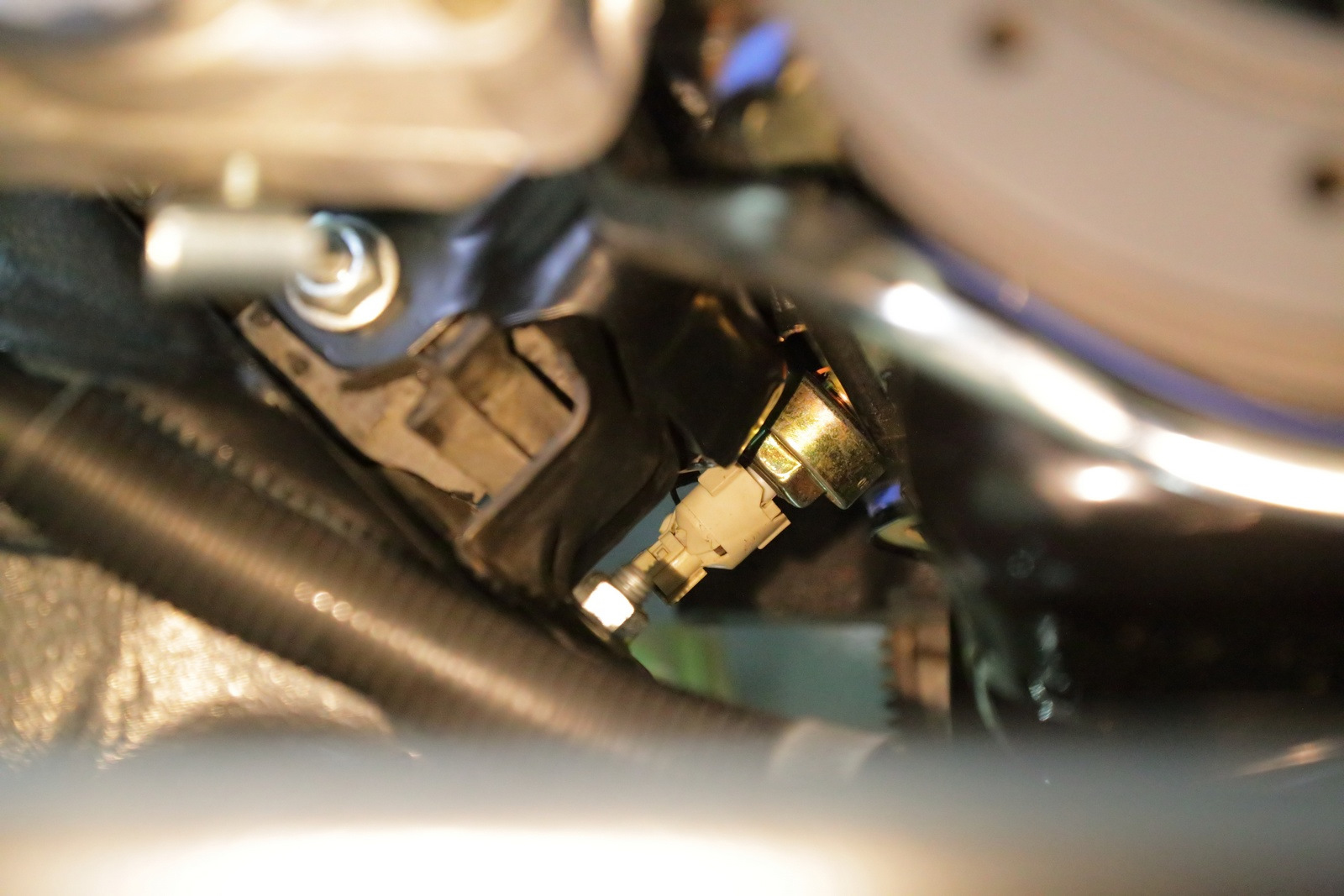

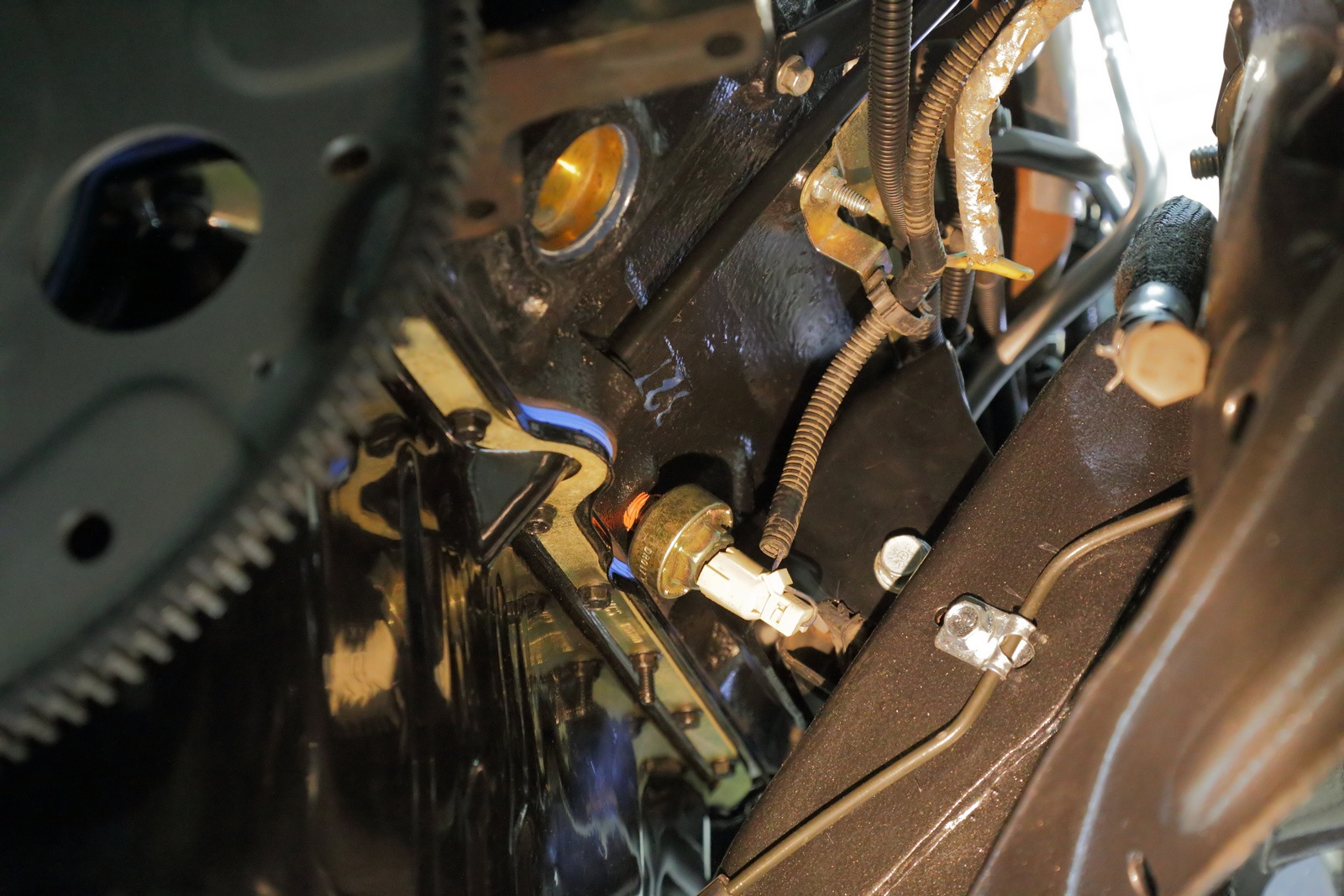

New knock sensors



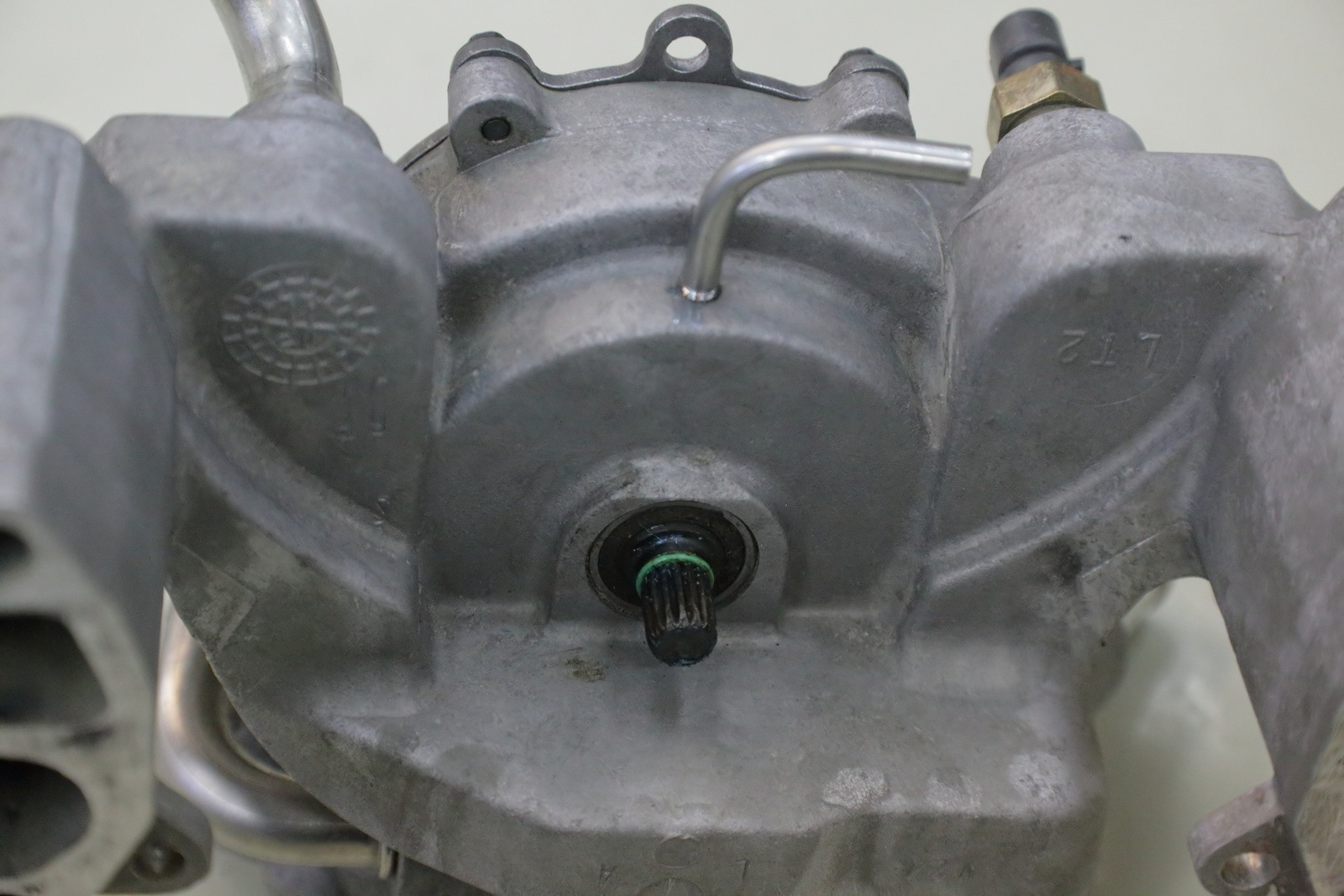

Optispark seal was damaged (and I guess it happened on assembly line), but there were no leaks there



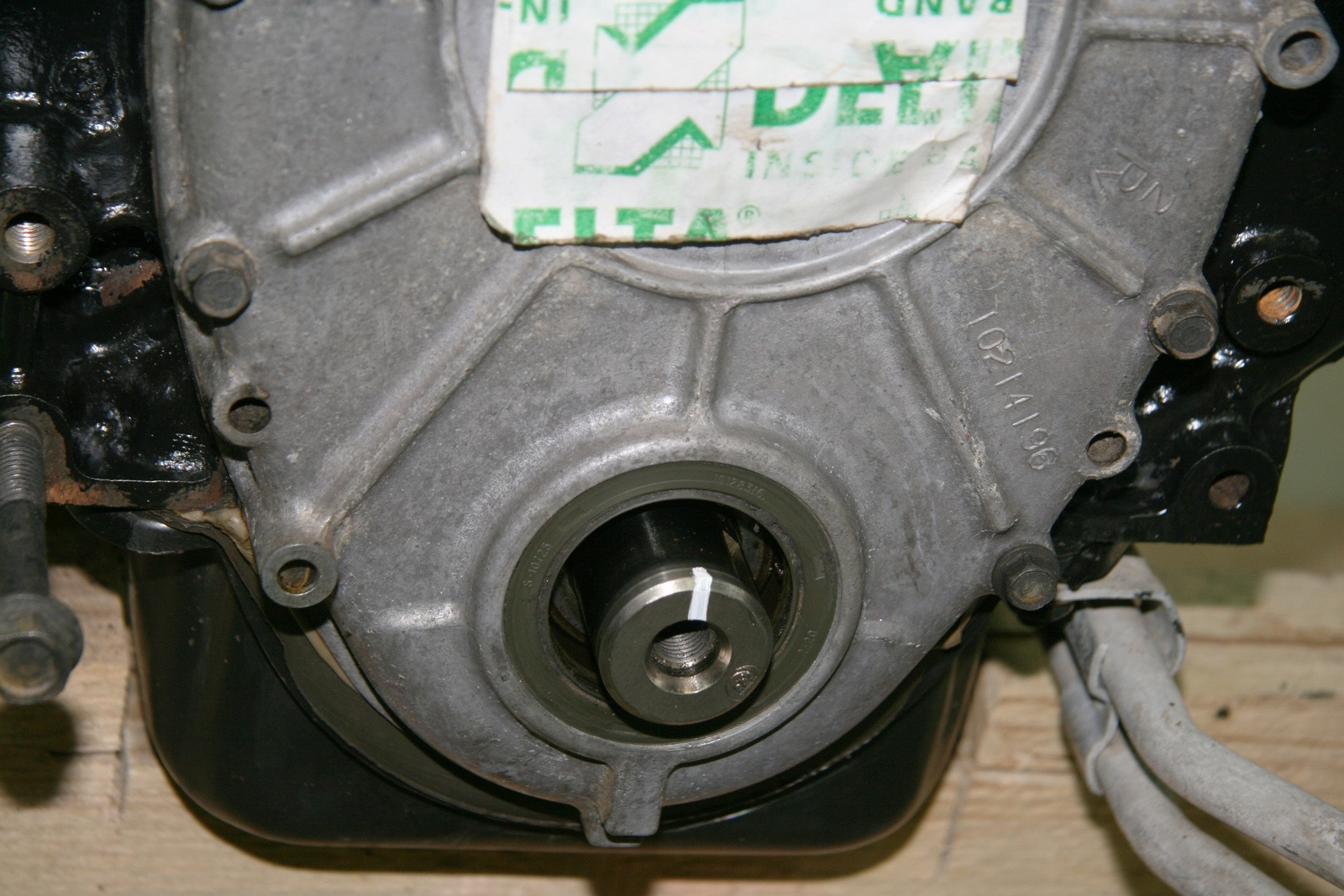

New teflon seal. No lubrication is needed!



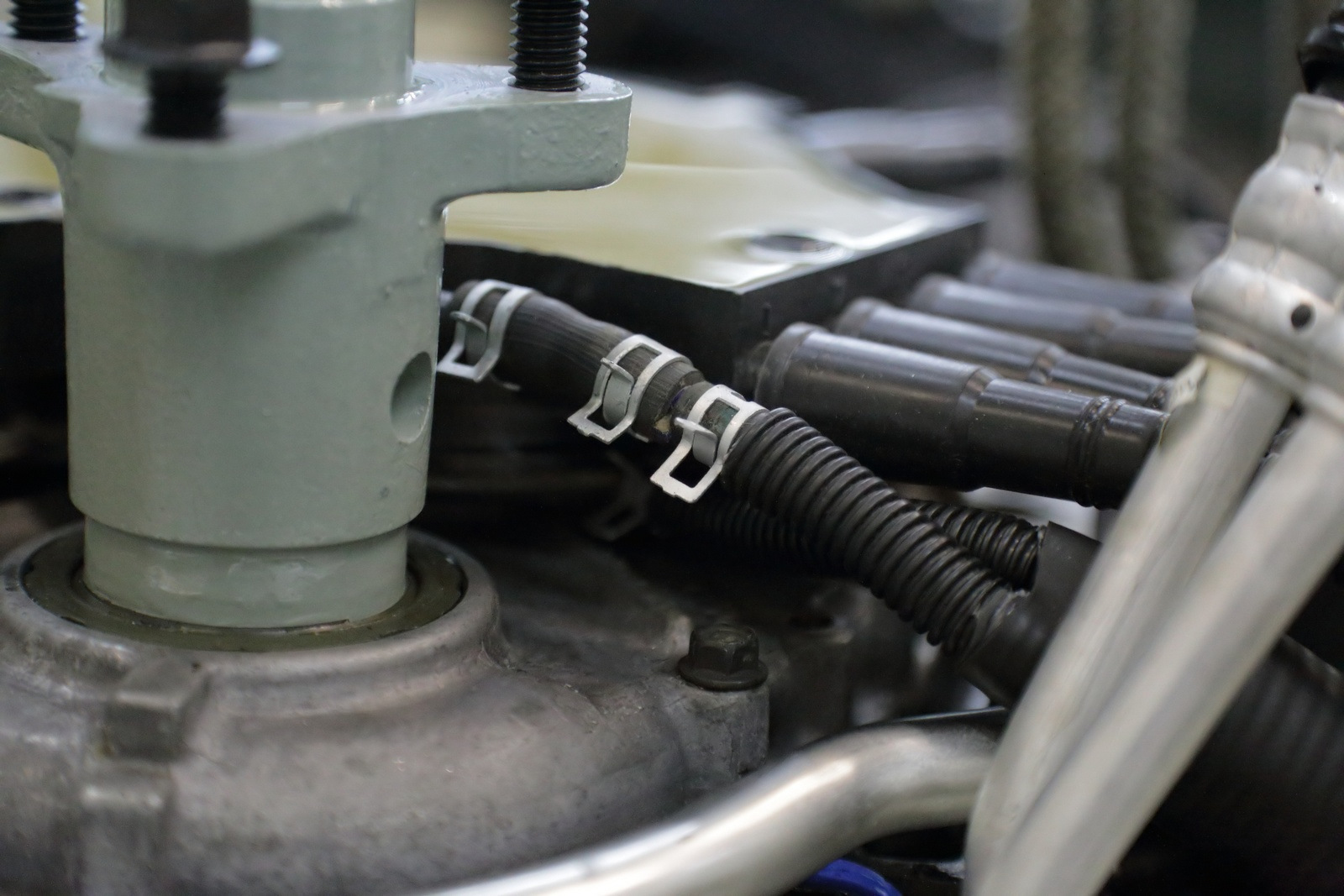

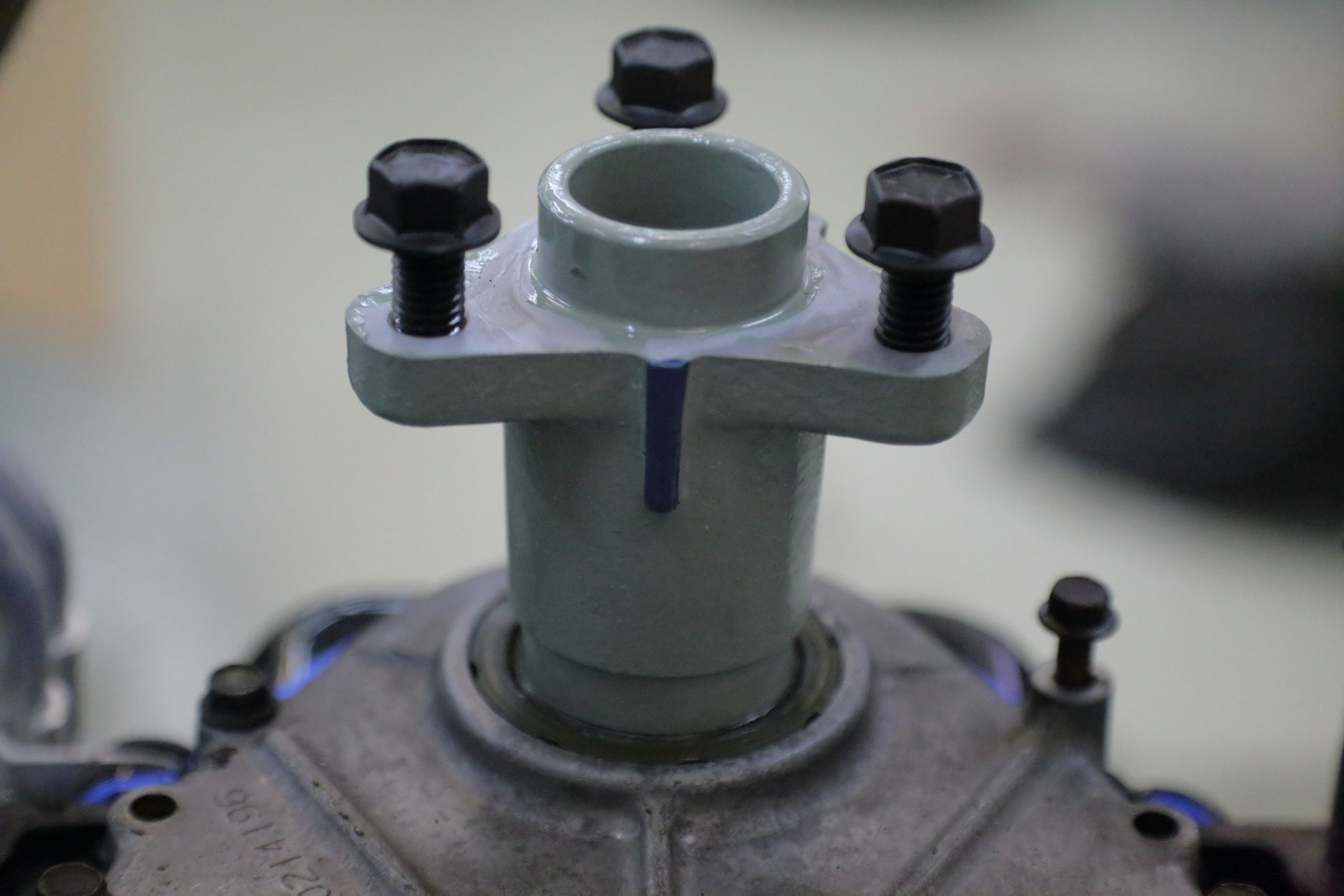

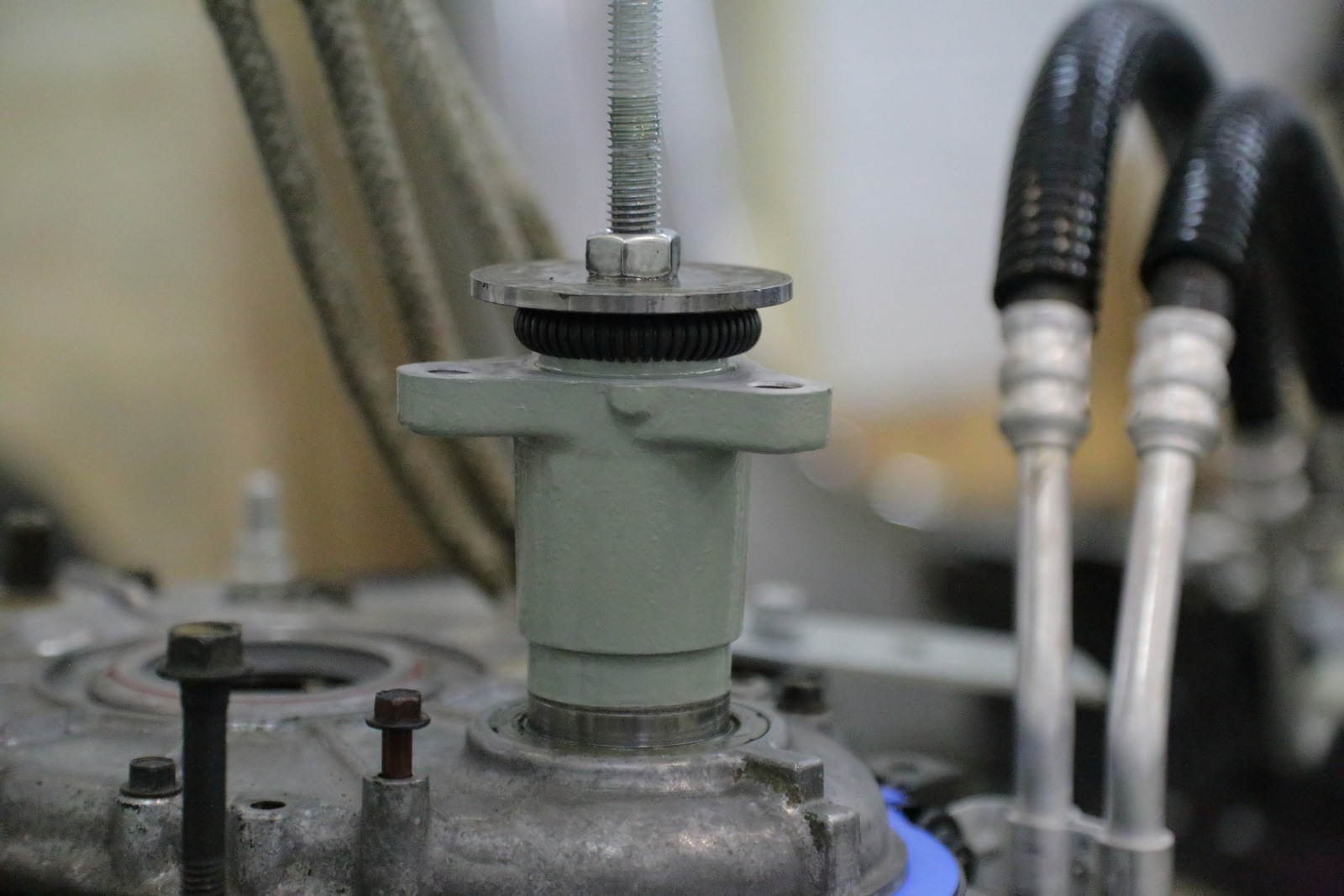

Pressing the front hub int





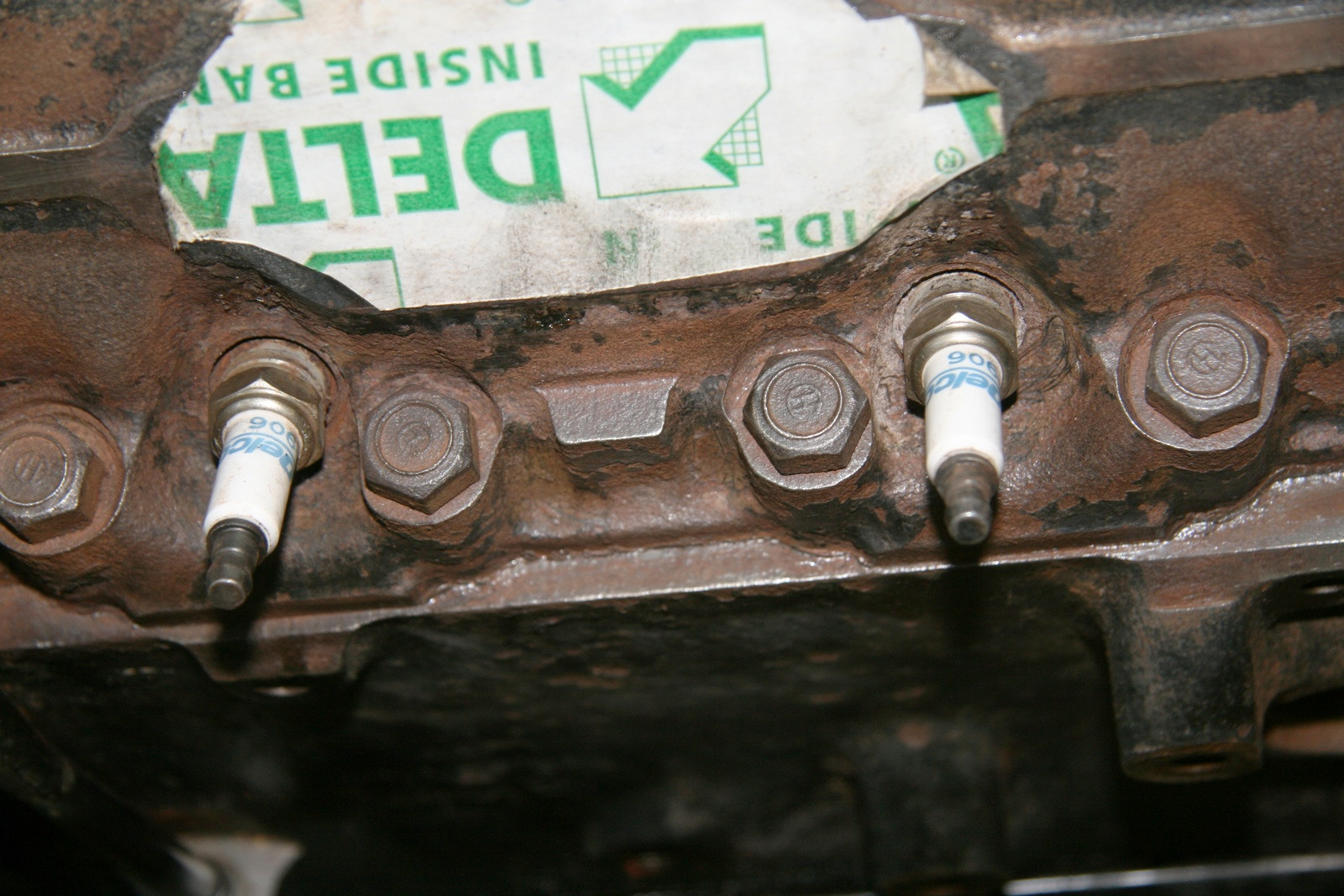

New spark plugs



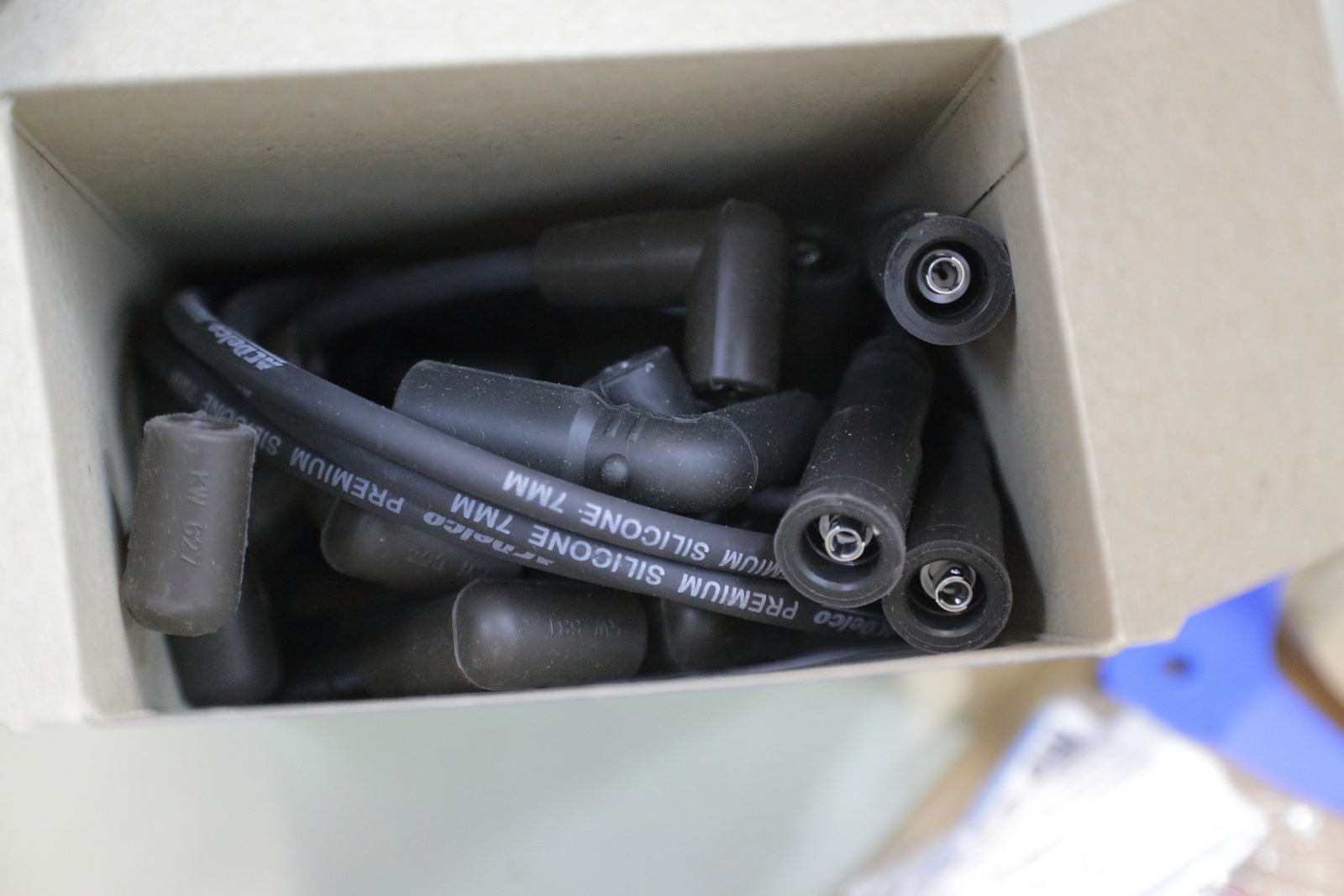

New AC Delco GM Genuine wires



Just for the reference



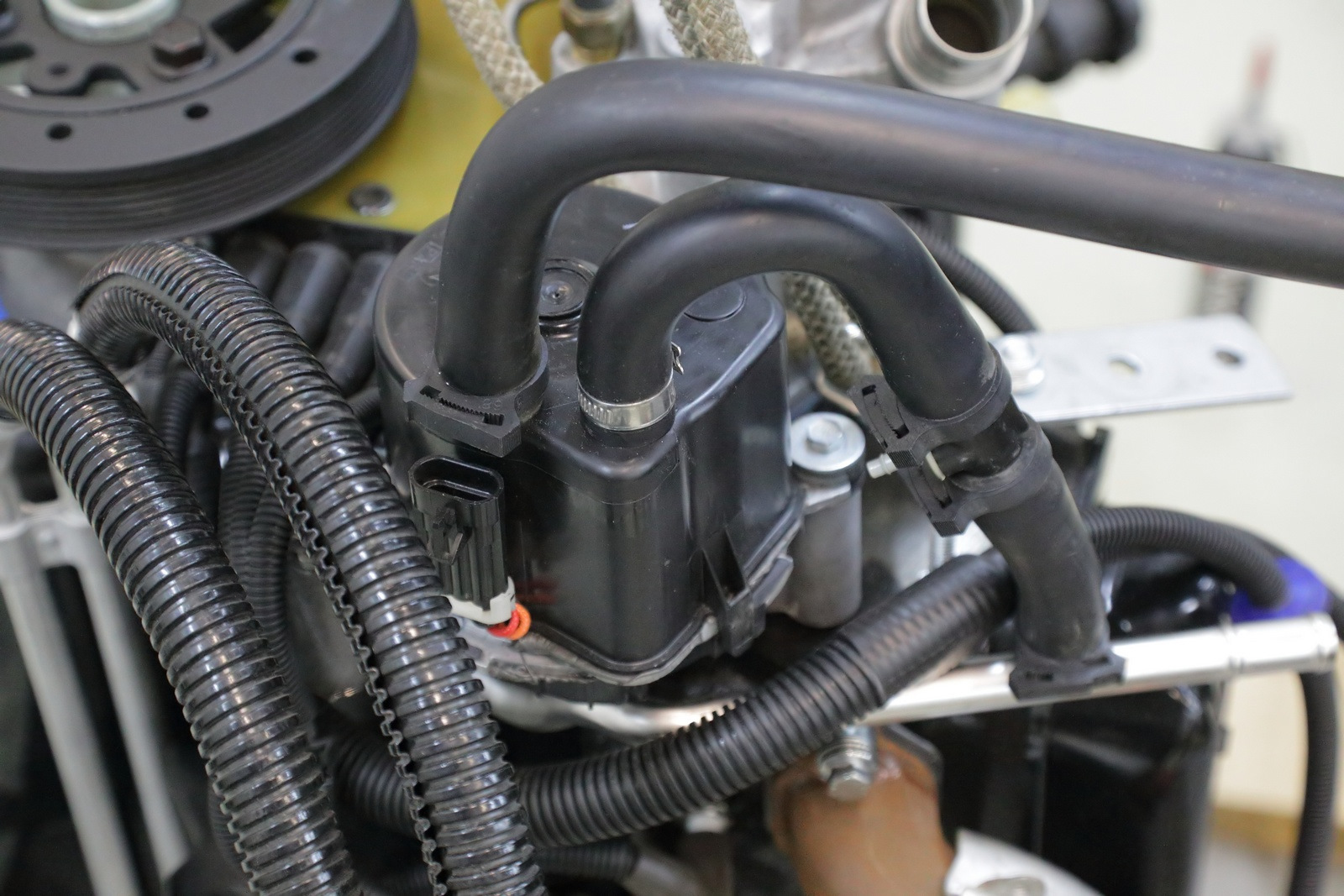

Optispark vent connections



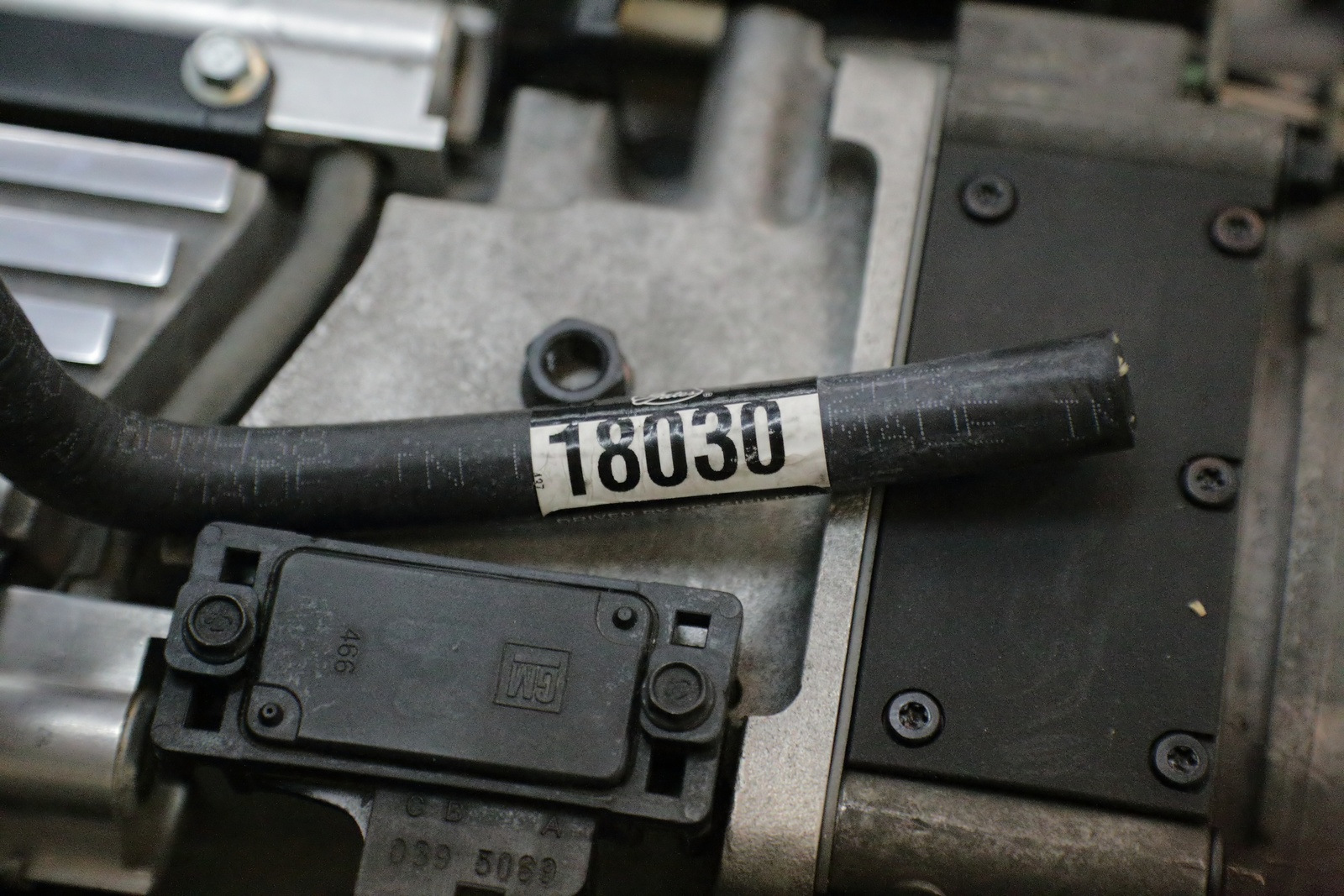

Vent hoses for ignition, which are critical for its functionality



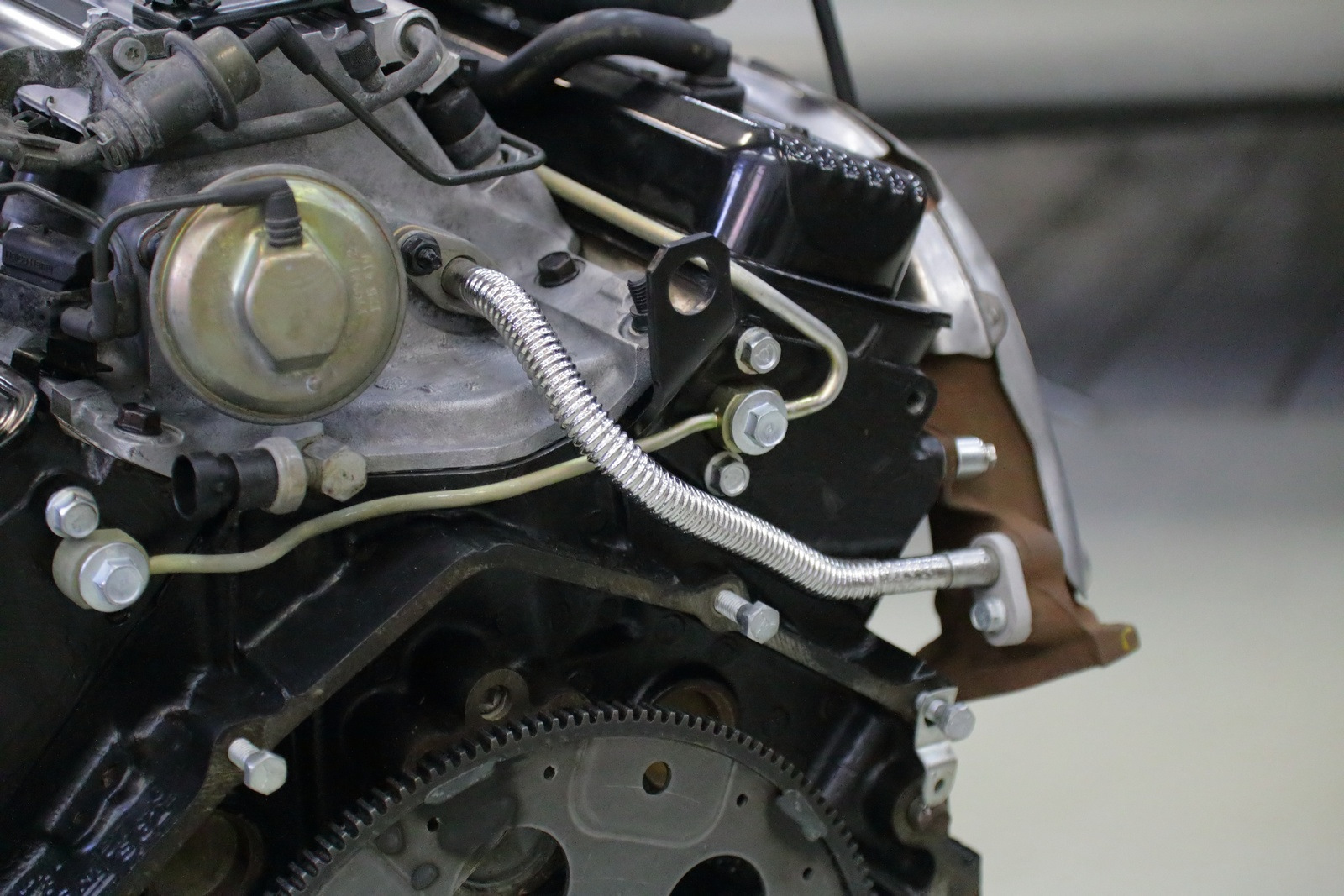

Air pump stainless tube after polishing



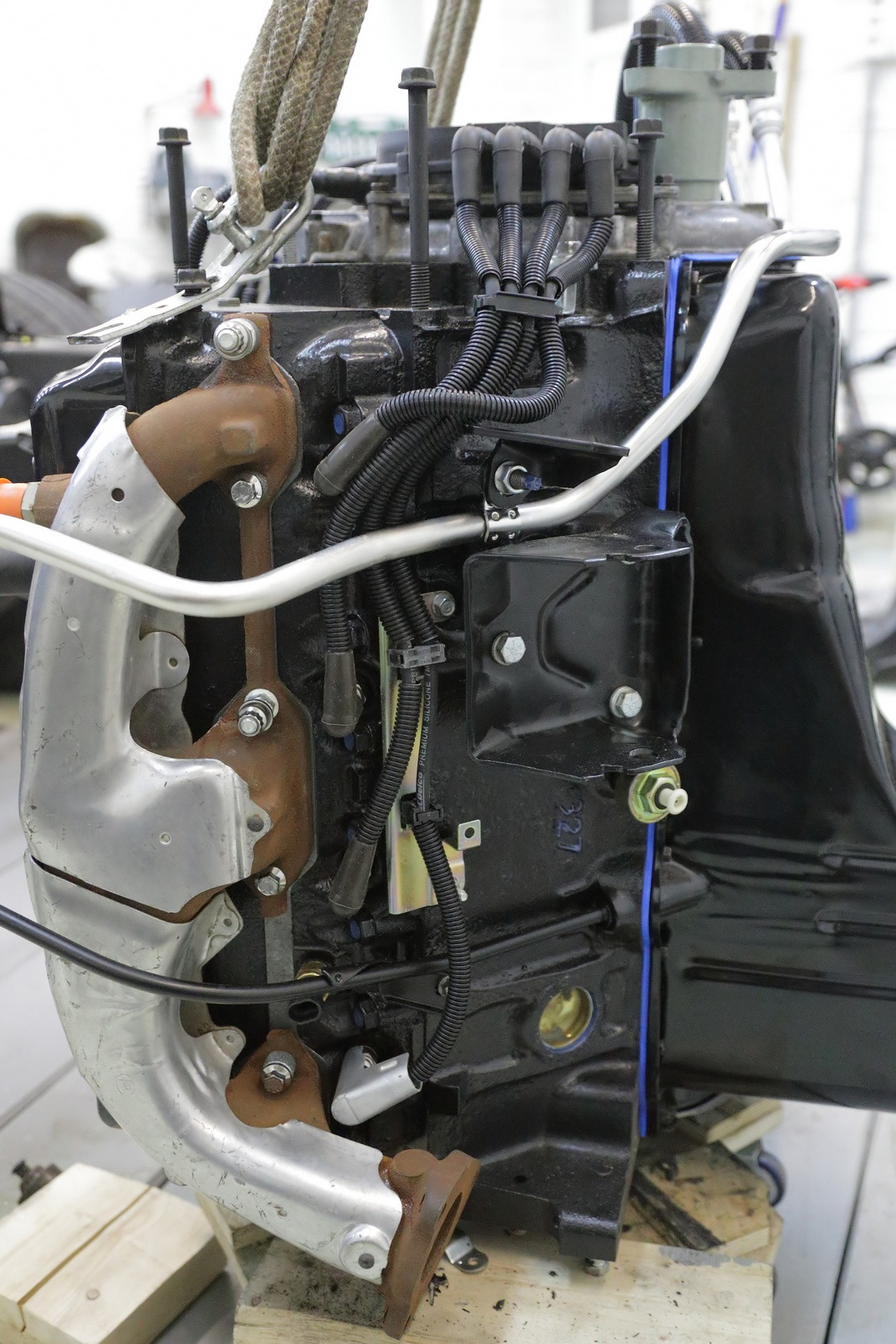

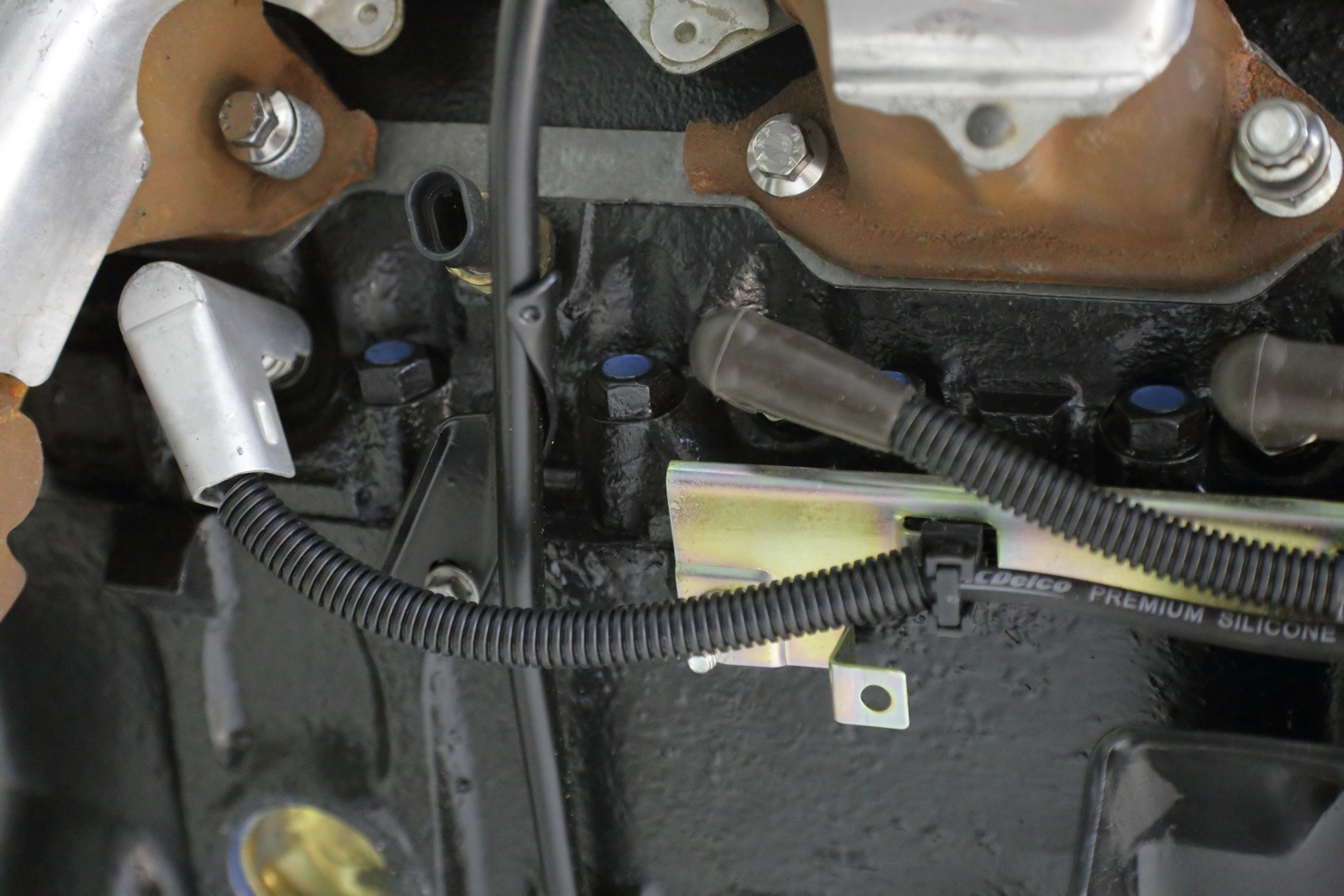

Passenger side wires



Cylinders 6 and 8



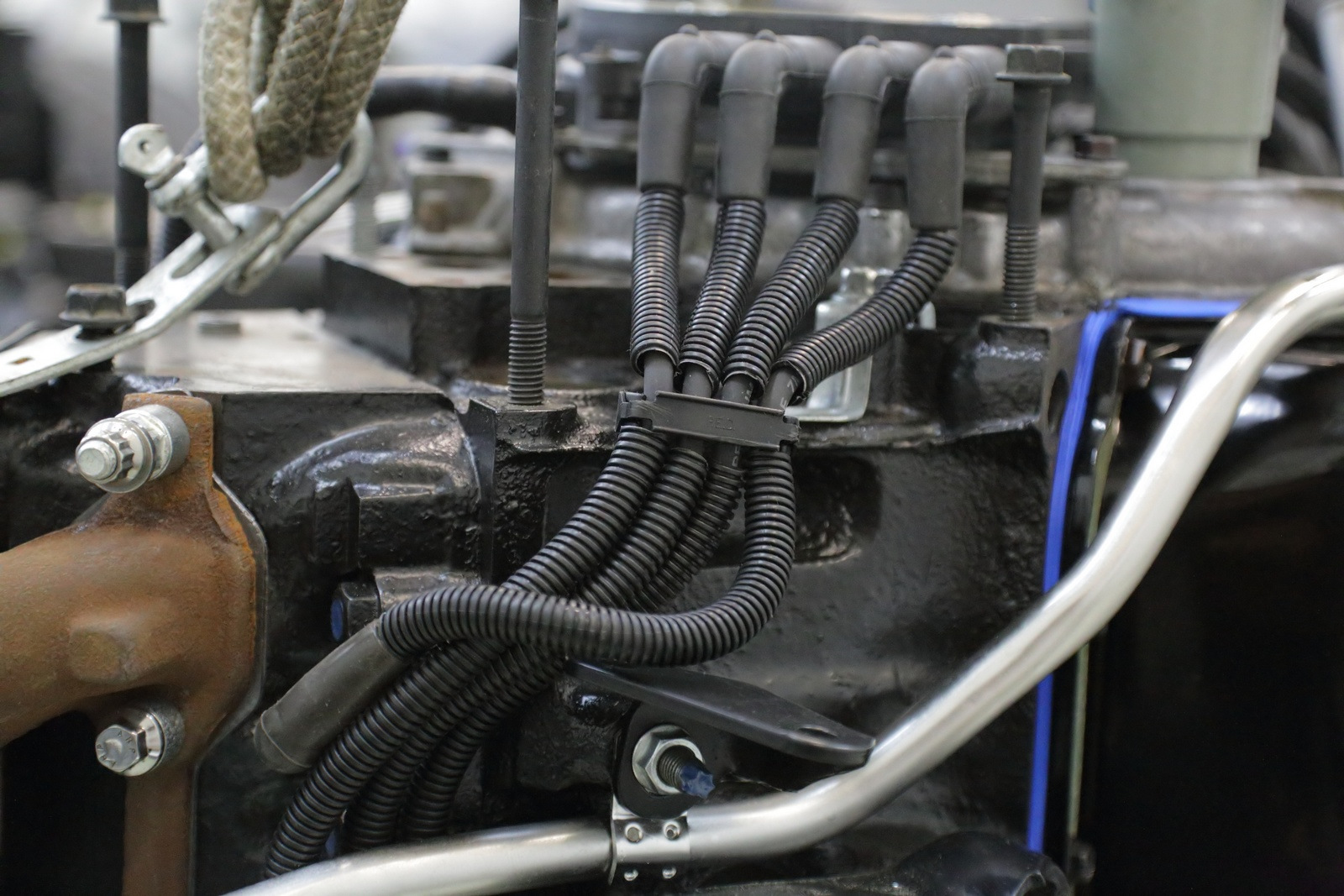

Correct routing



Driver side wires



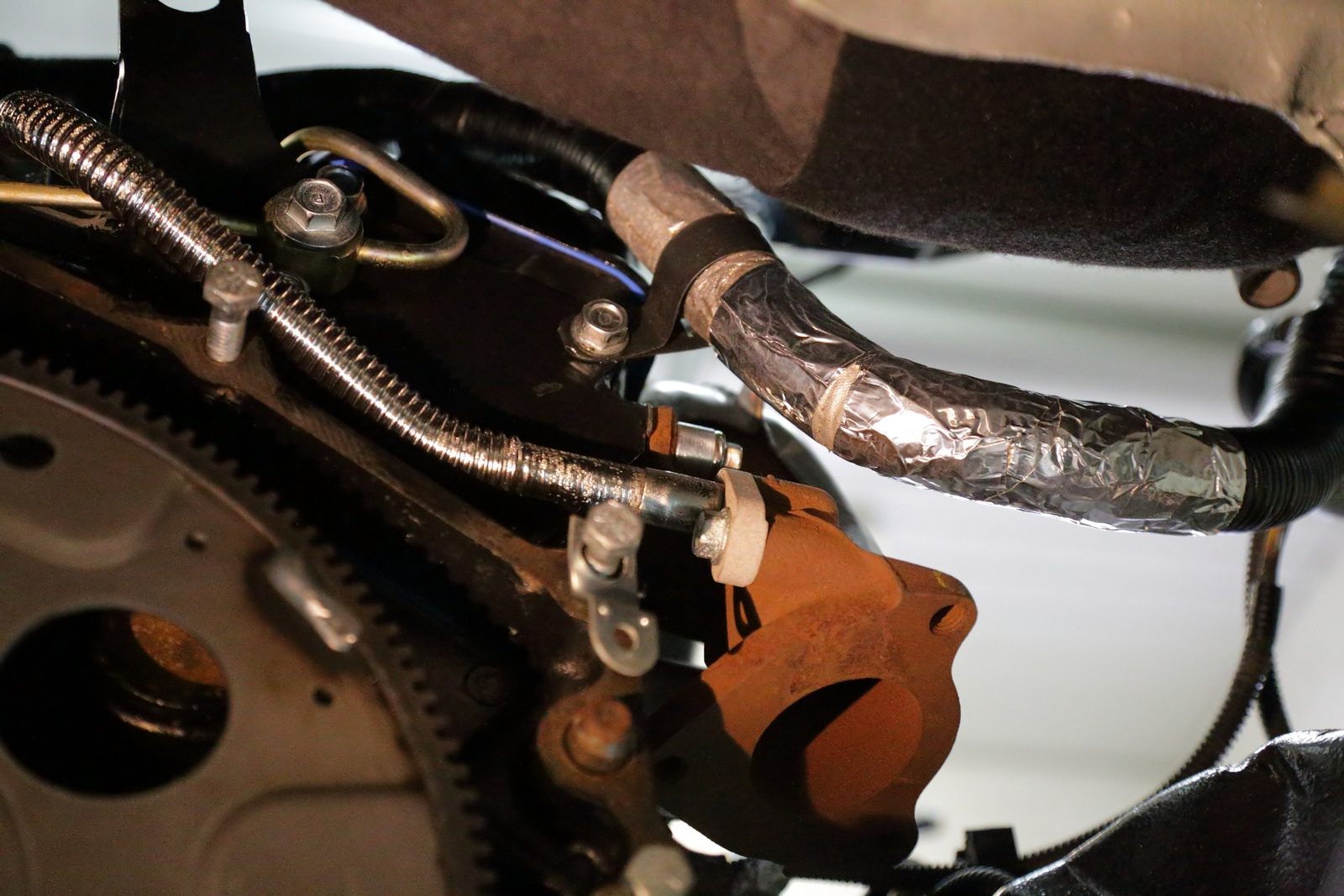

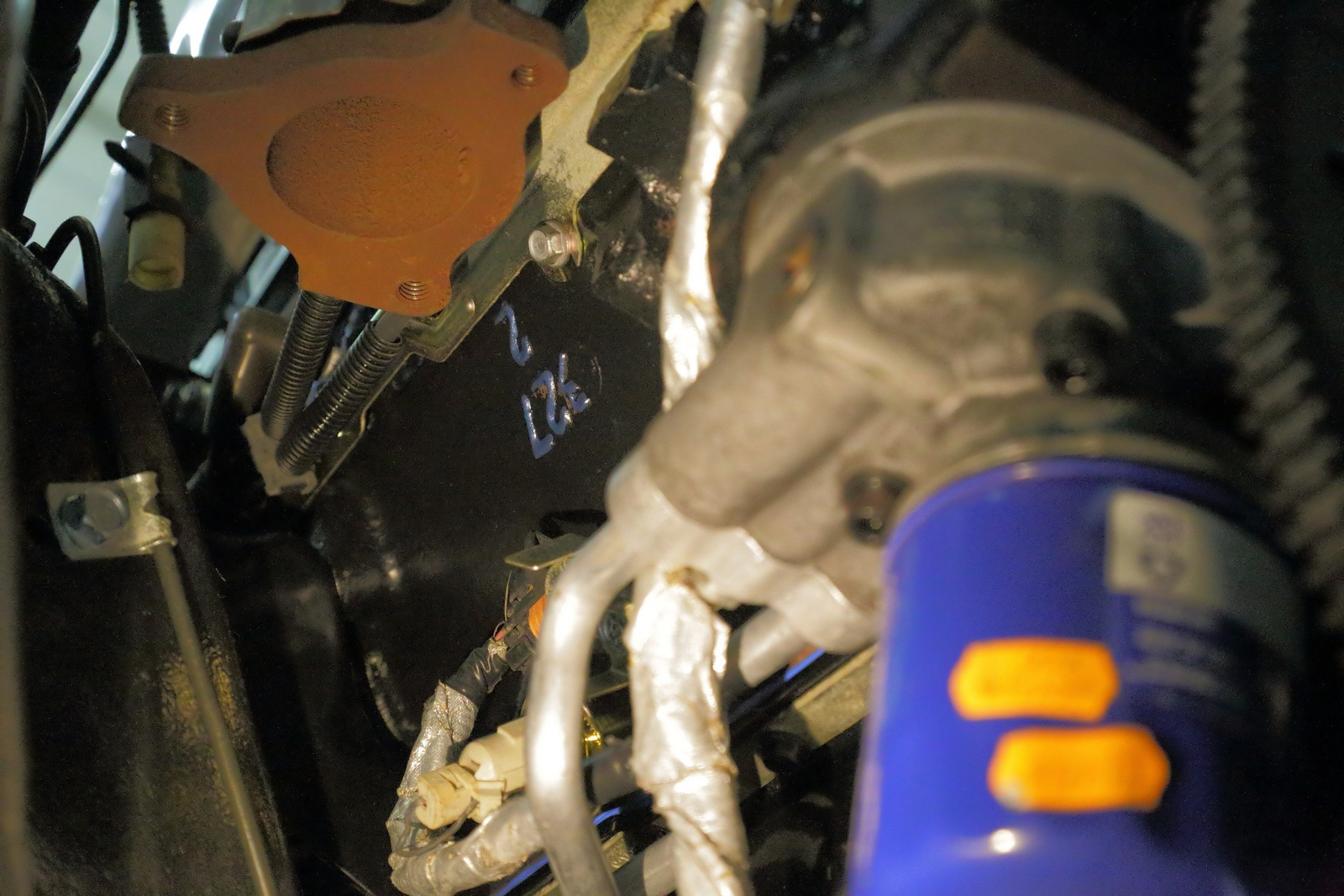

New oil cooler lines installed



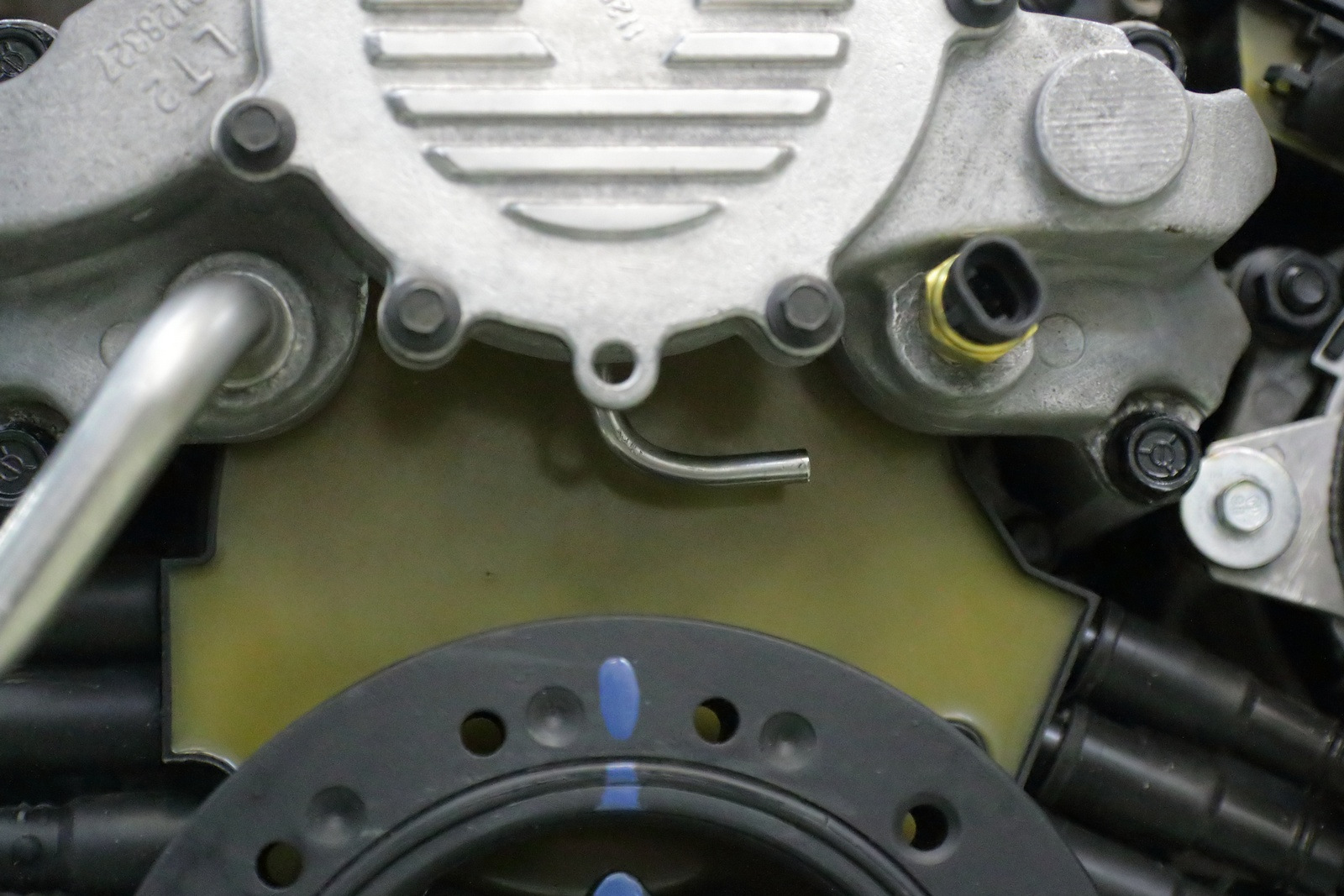

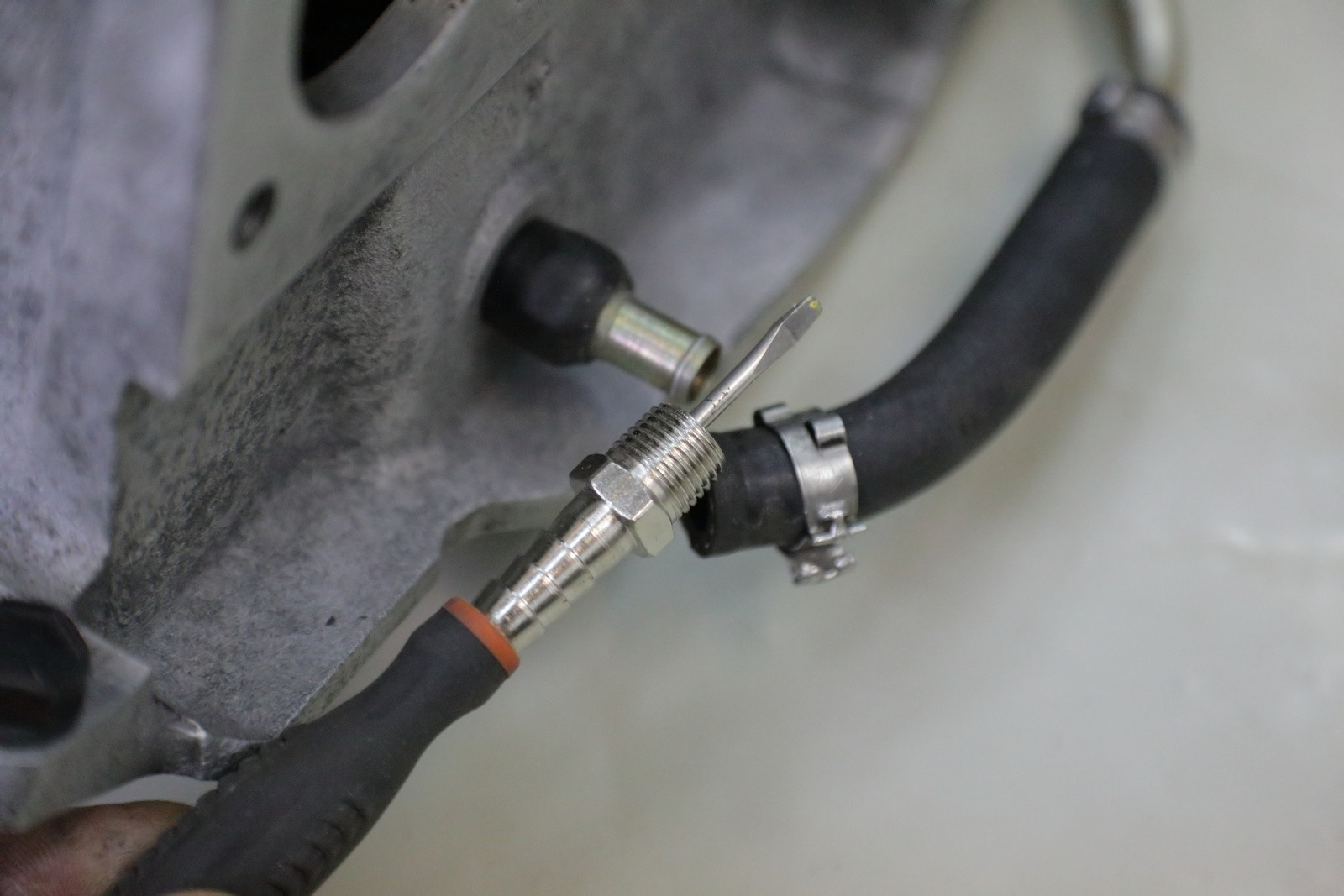

I made threads in the drainage hole from the water pump, and screwed a piece of bended stainless tube. Reason: now in case of leaks the coolant will not go straight to the Optispark



I will put a hose here and let it go somewhere underneath the engine



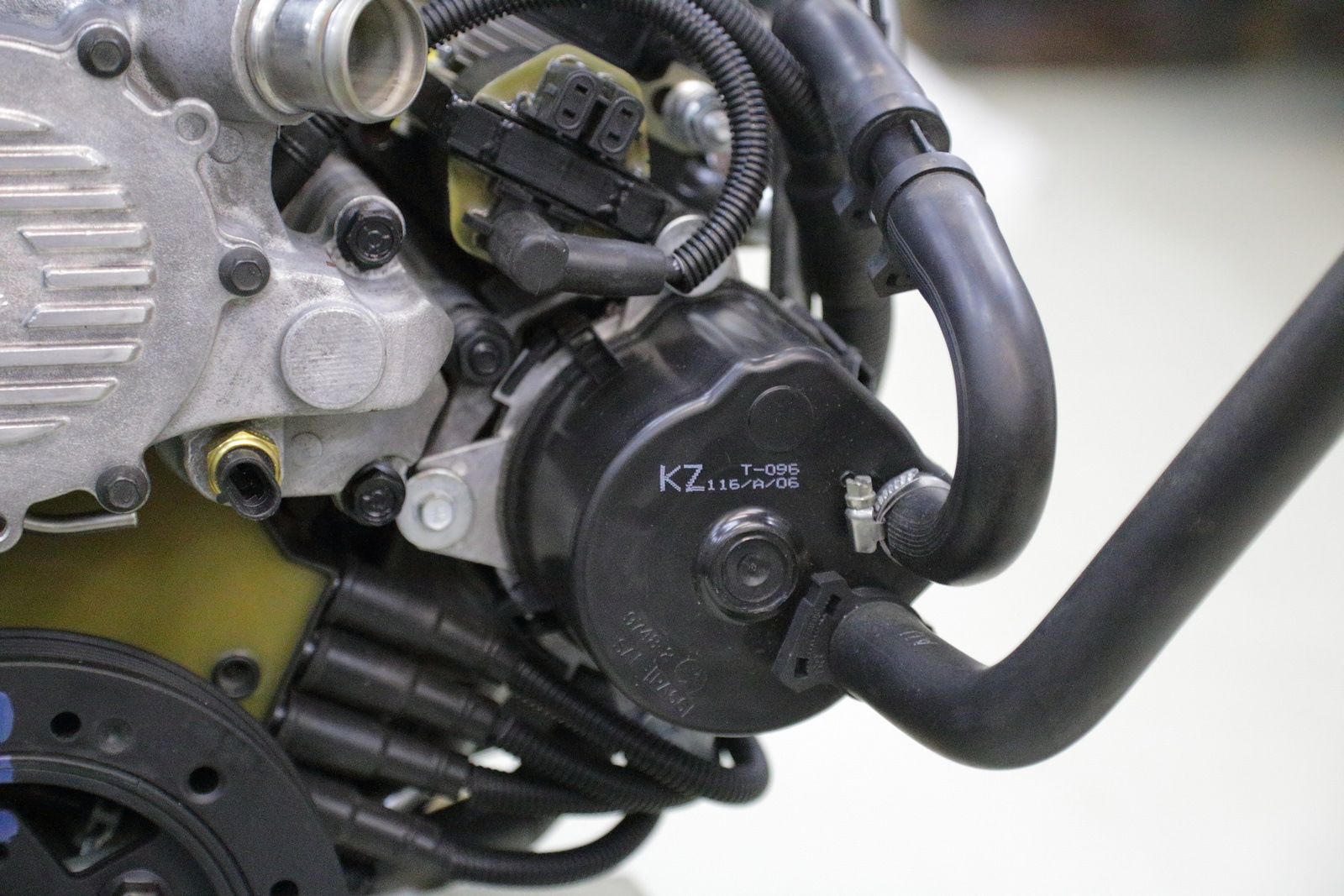

New air pump



Installed





Ignition module and coil



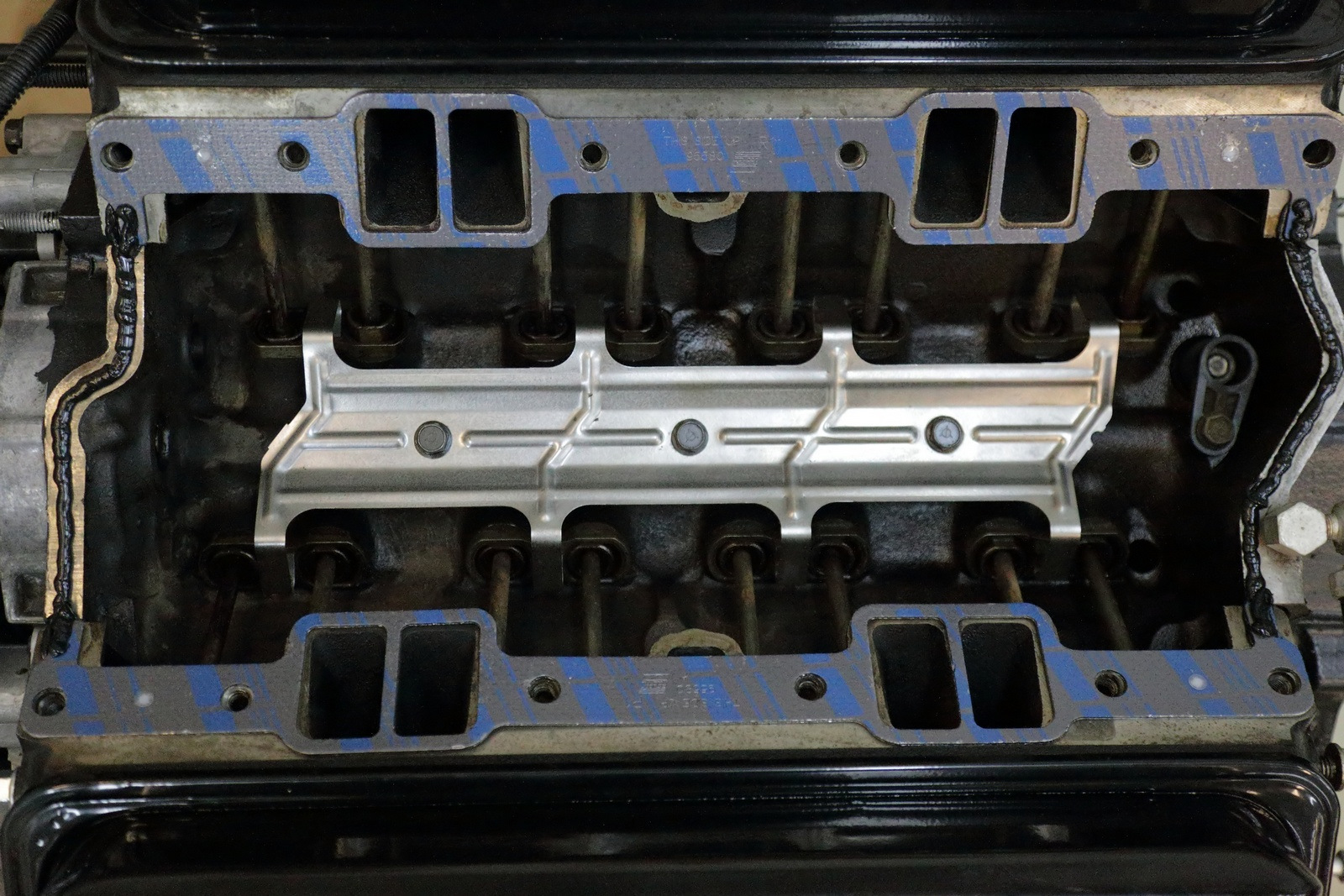

Installing intake manifold



New gaskets and polyurethane sealant



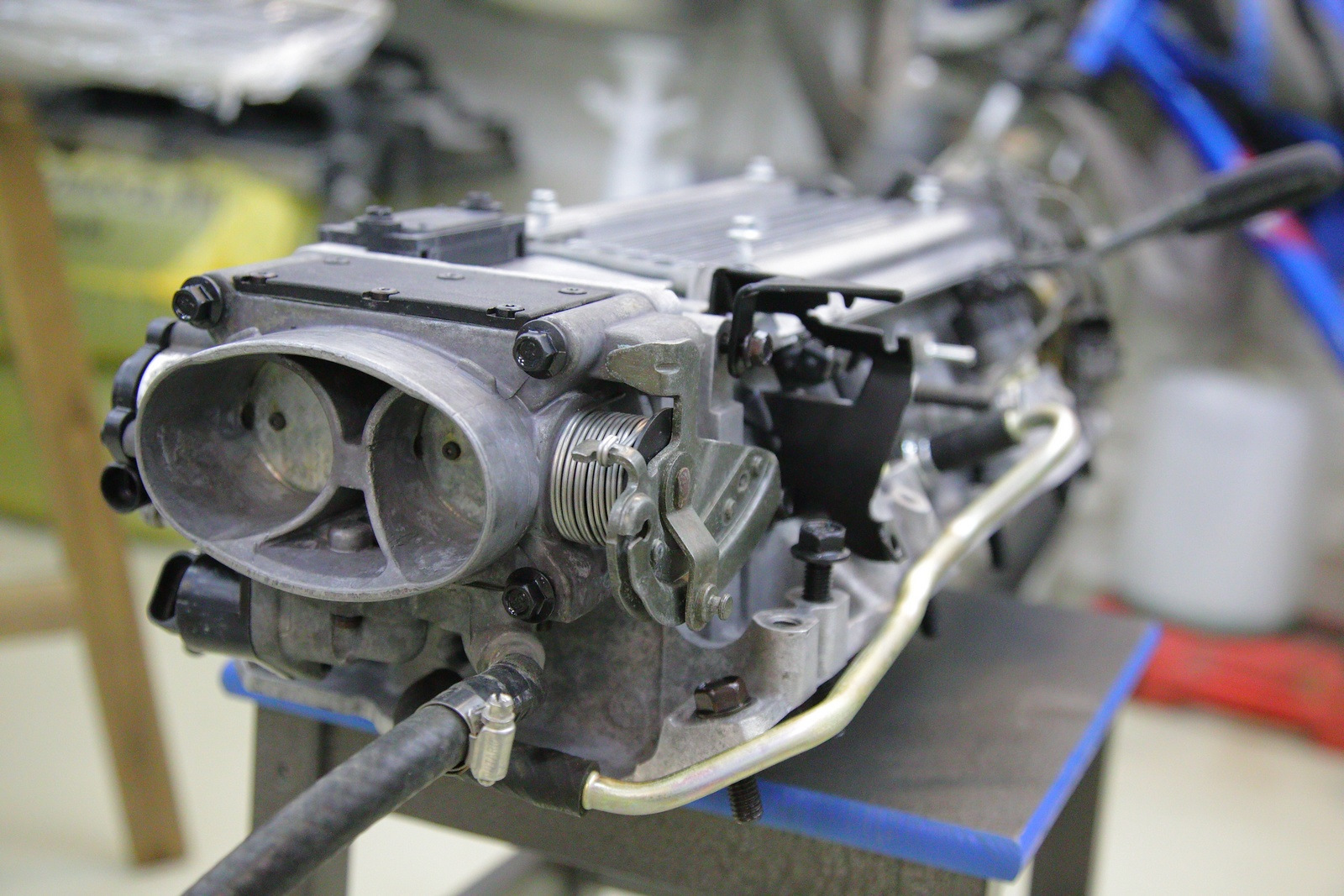

New throttle gasket



Throttle heater



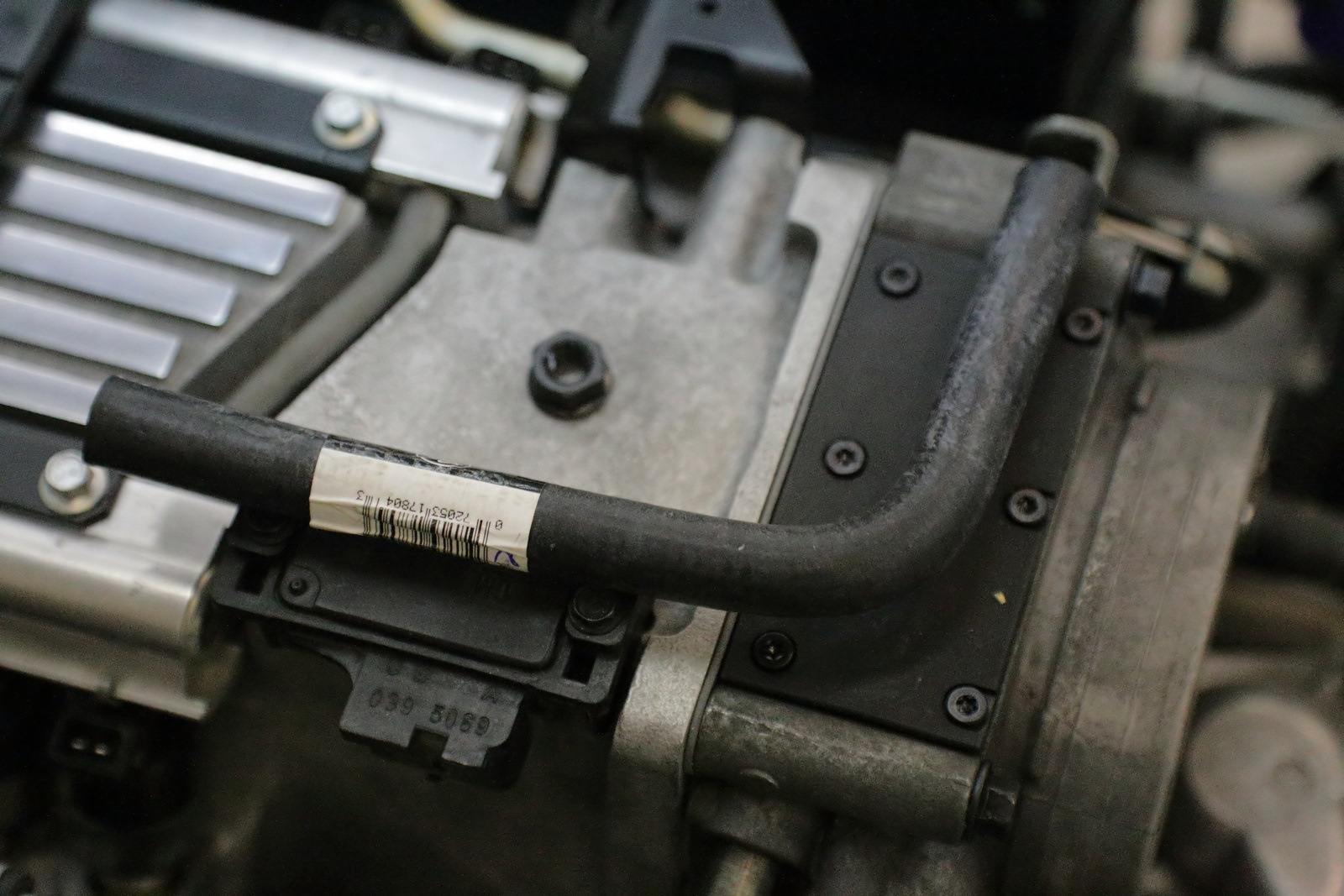

Gates 90 degree hose



Just for the reference



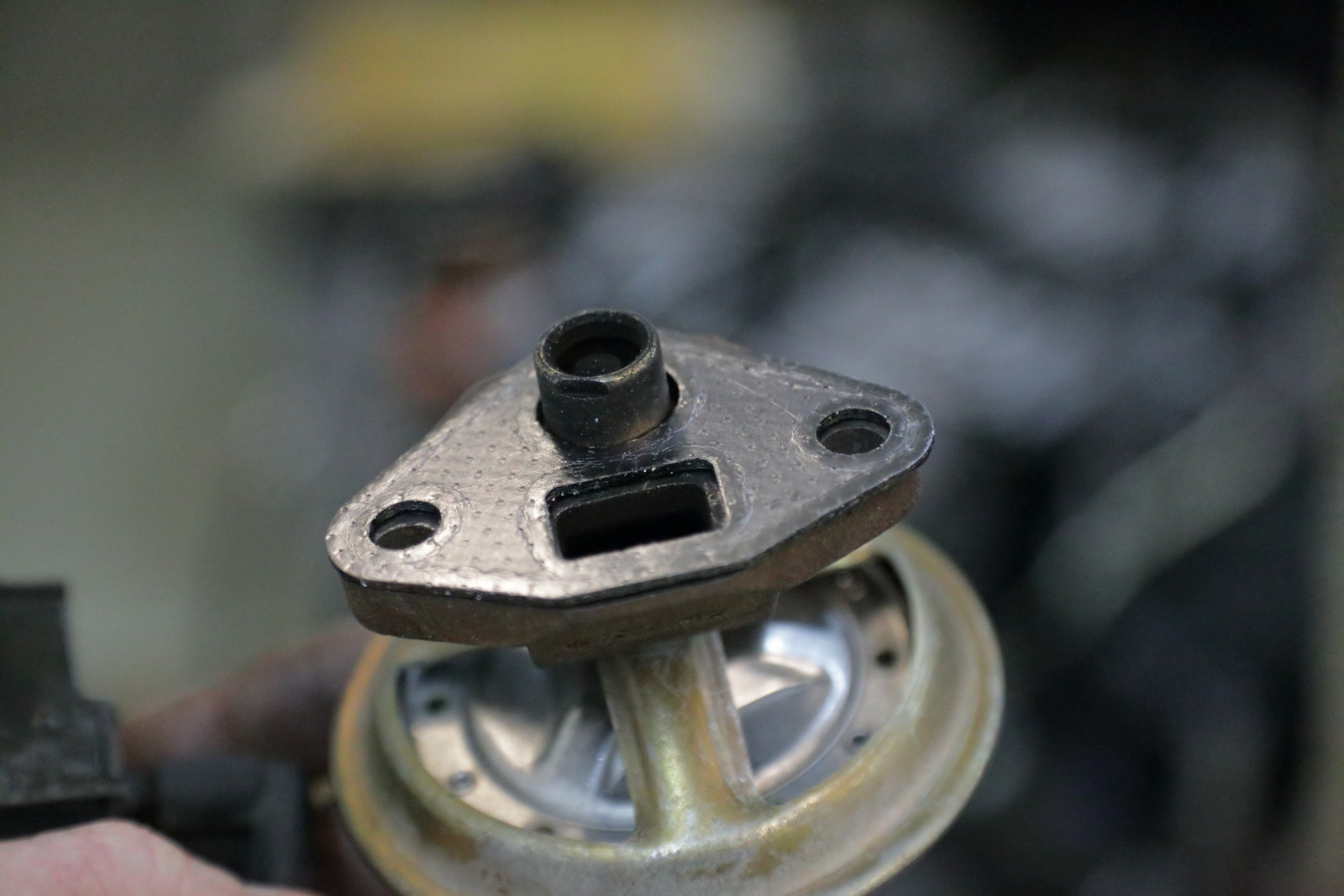

EGR valve gasket



Nice view

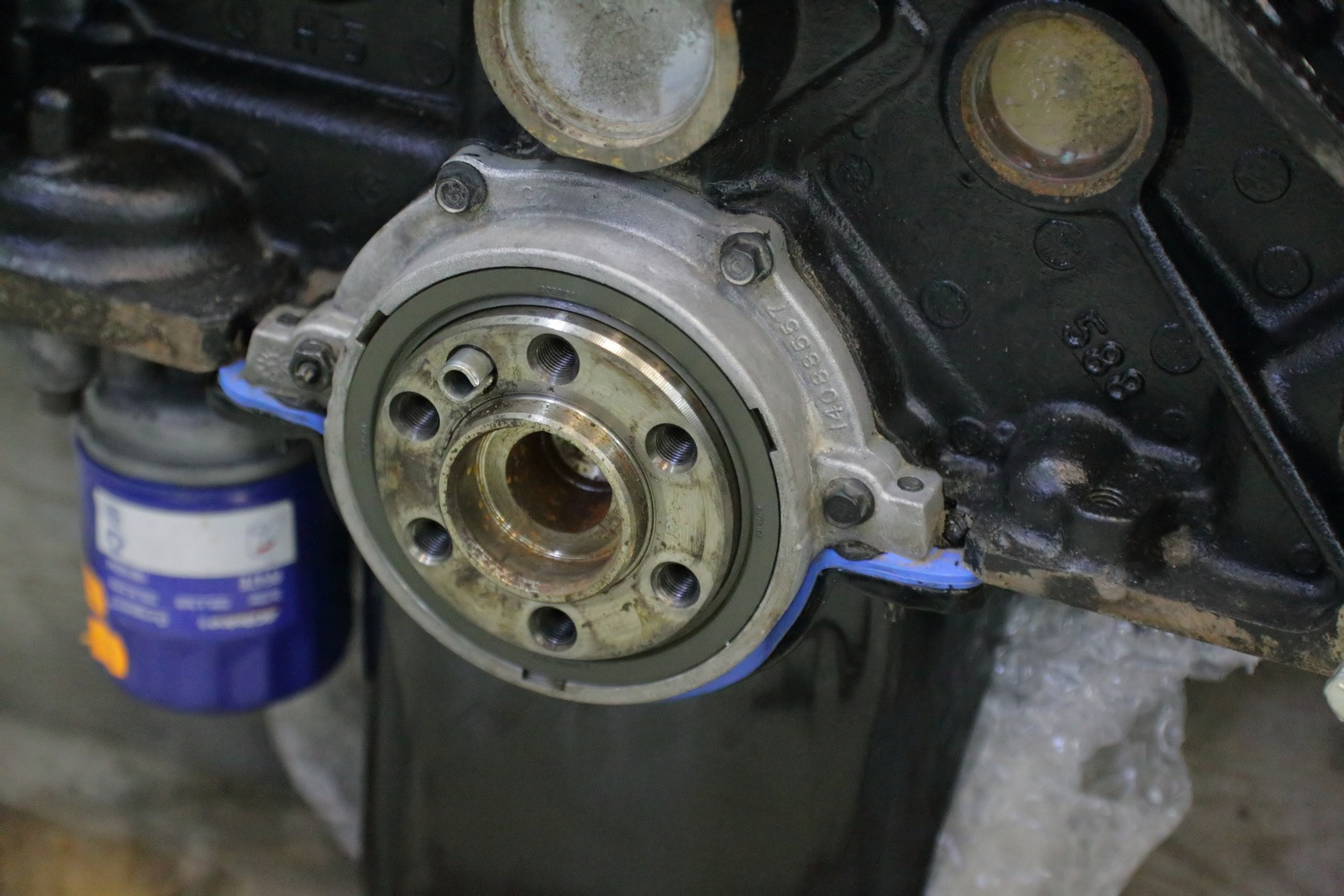

New GM original rear main seal



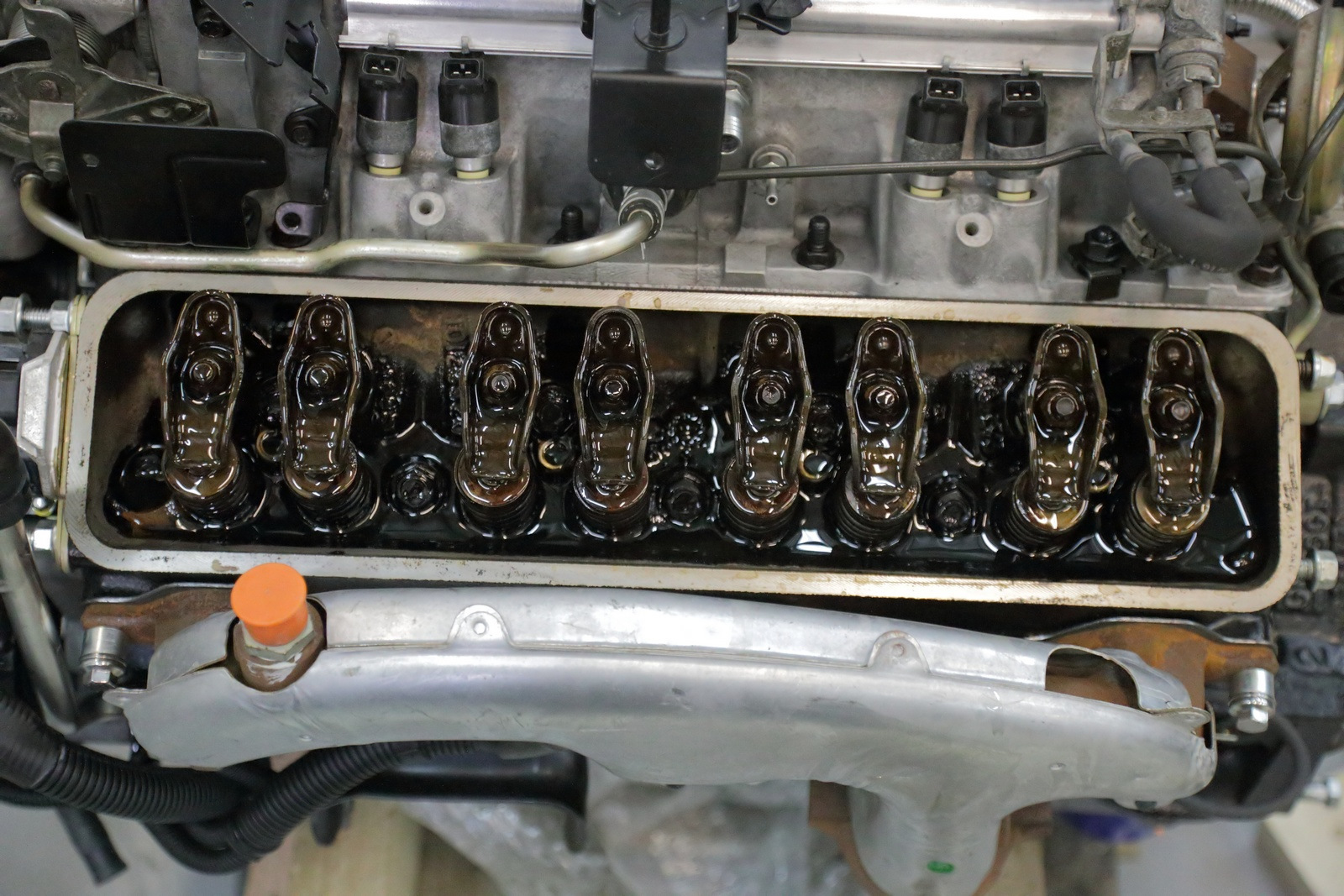

Need to mention that I lubricated with ~1 pint of engine oil left side rockers, as they will be lacking until the pump will raise required amount of oil at the first start. Passenger side will be lubricated once you fill the engine with oil



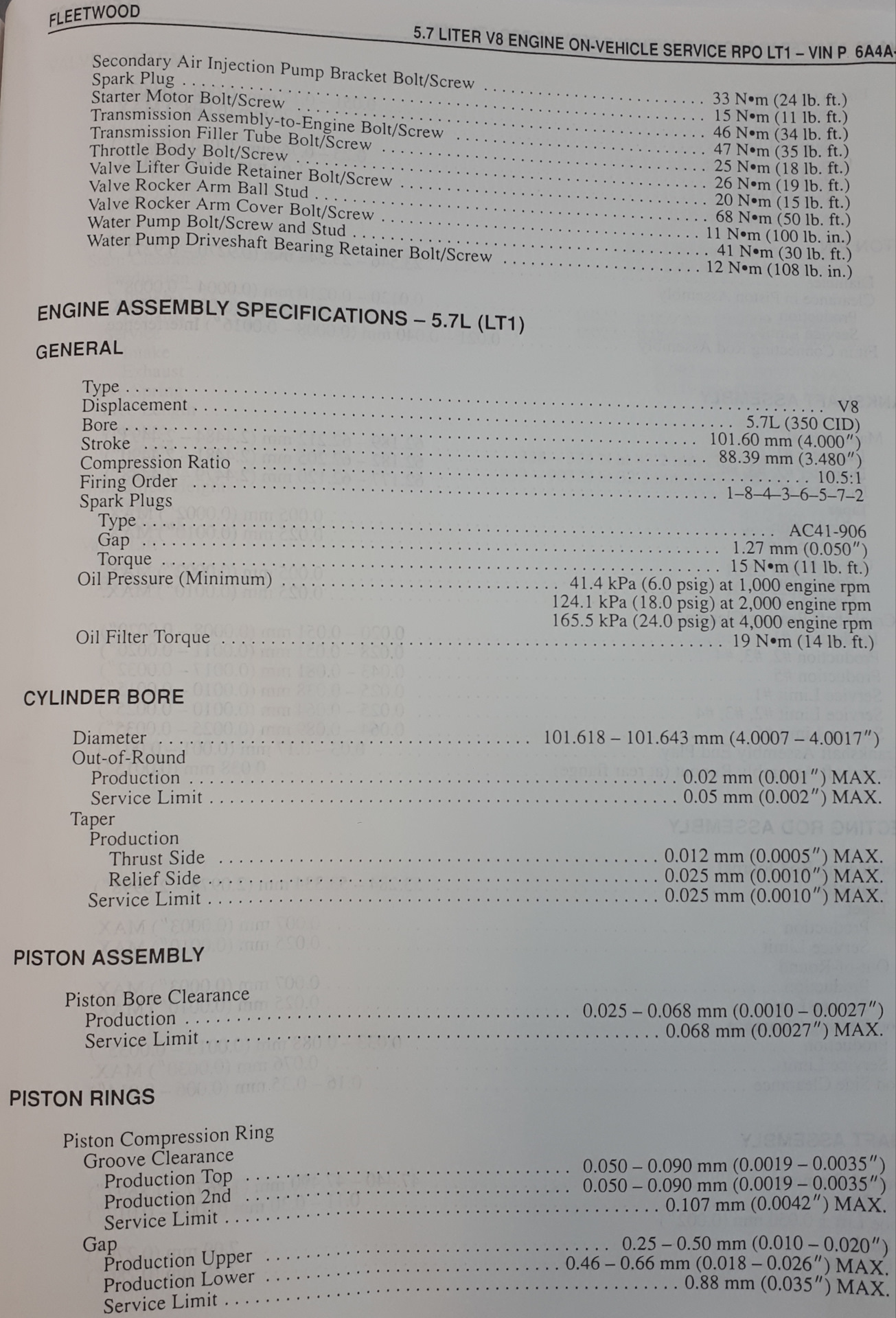

Finally, all the torques

[James Landi]

Over two seasons and roughly 500 miles of total driving, I've kept a close eye on the car. The engine has proven to be in perfectly good condition... Tearing into an engine like that for anything beyond basic gasket and seal replacement is just childish curiosity along the lines of "I wonder what's inside".

You certainly attended to wear and service life issue though!

[kudims]

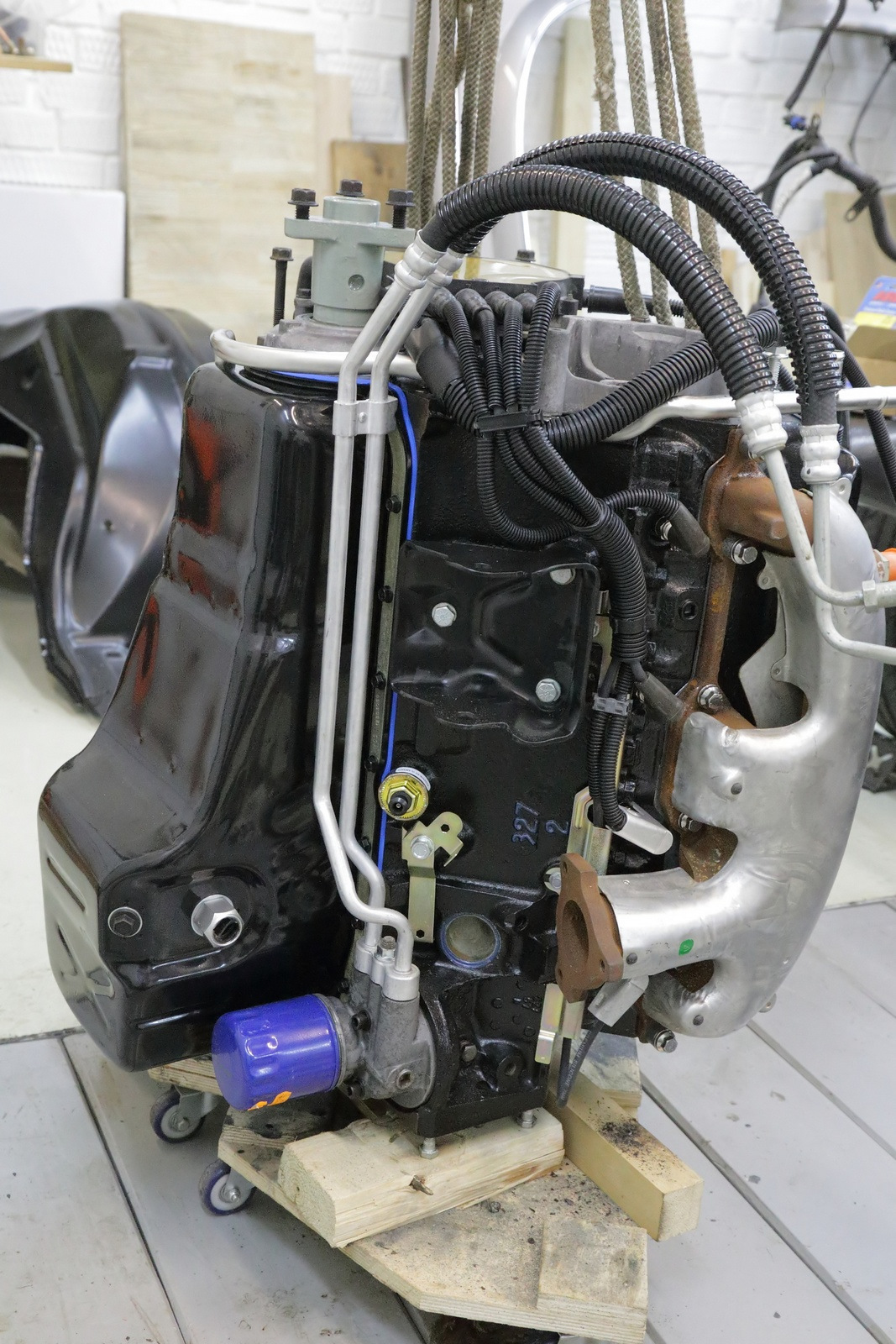

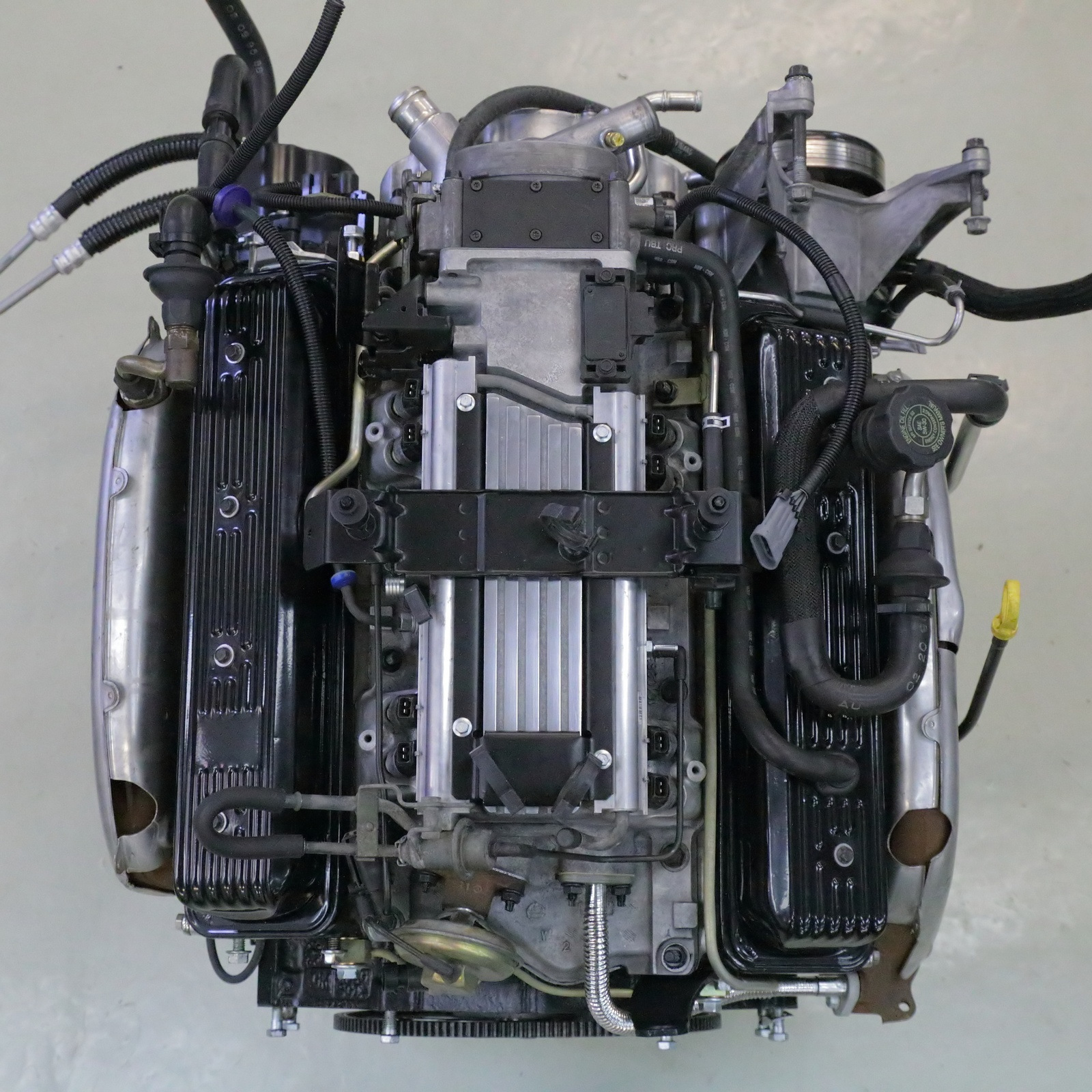

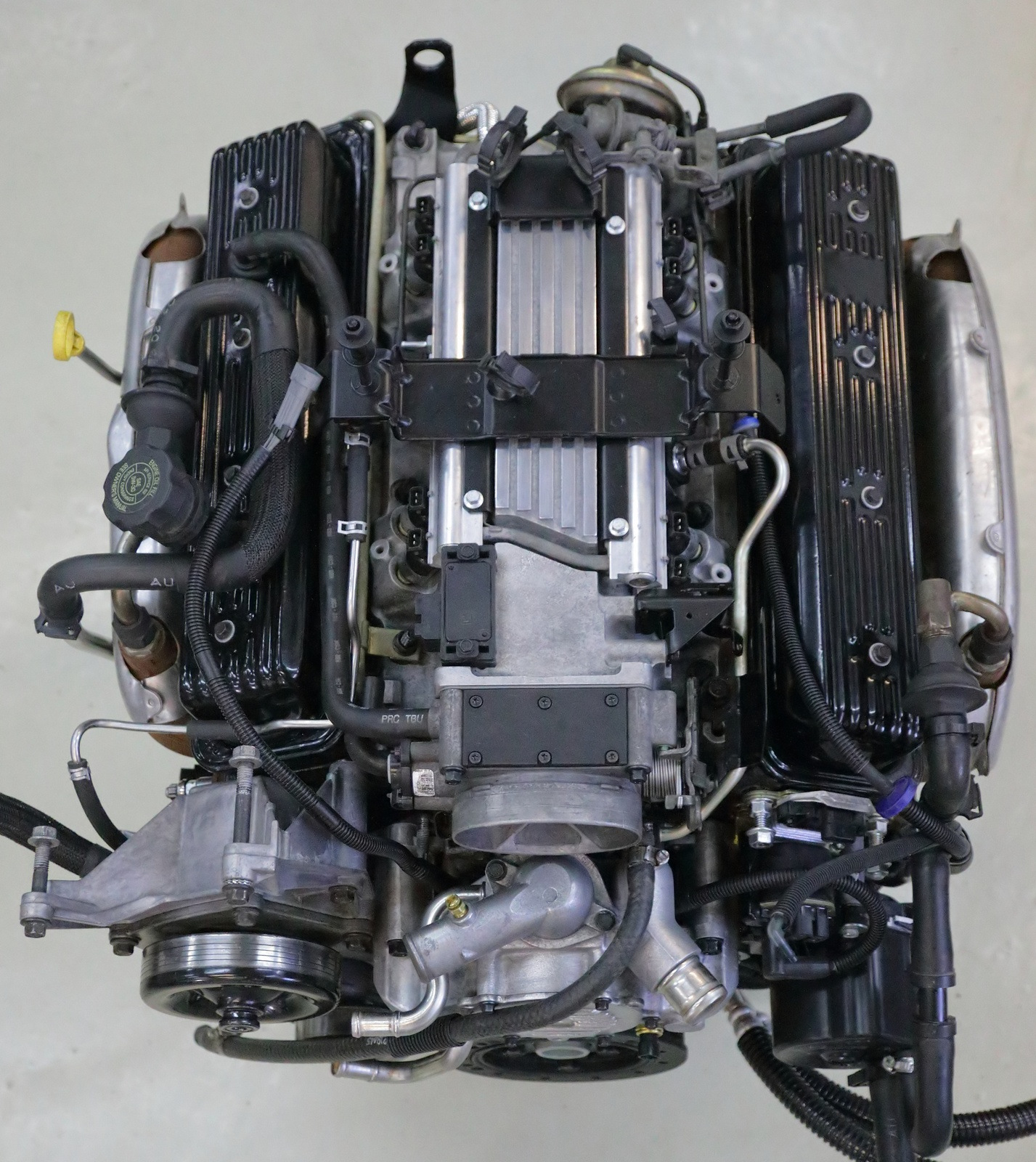

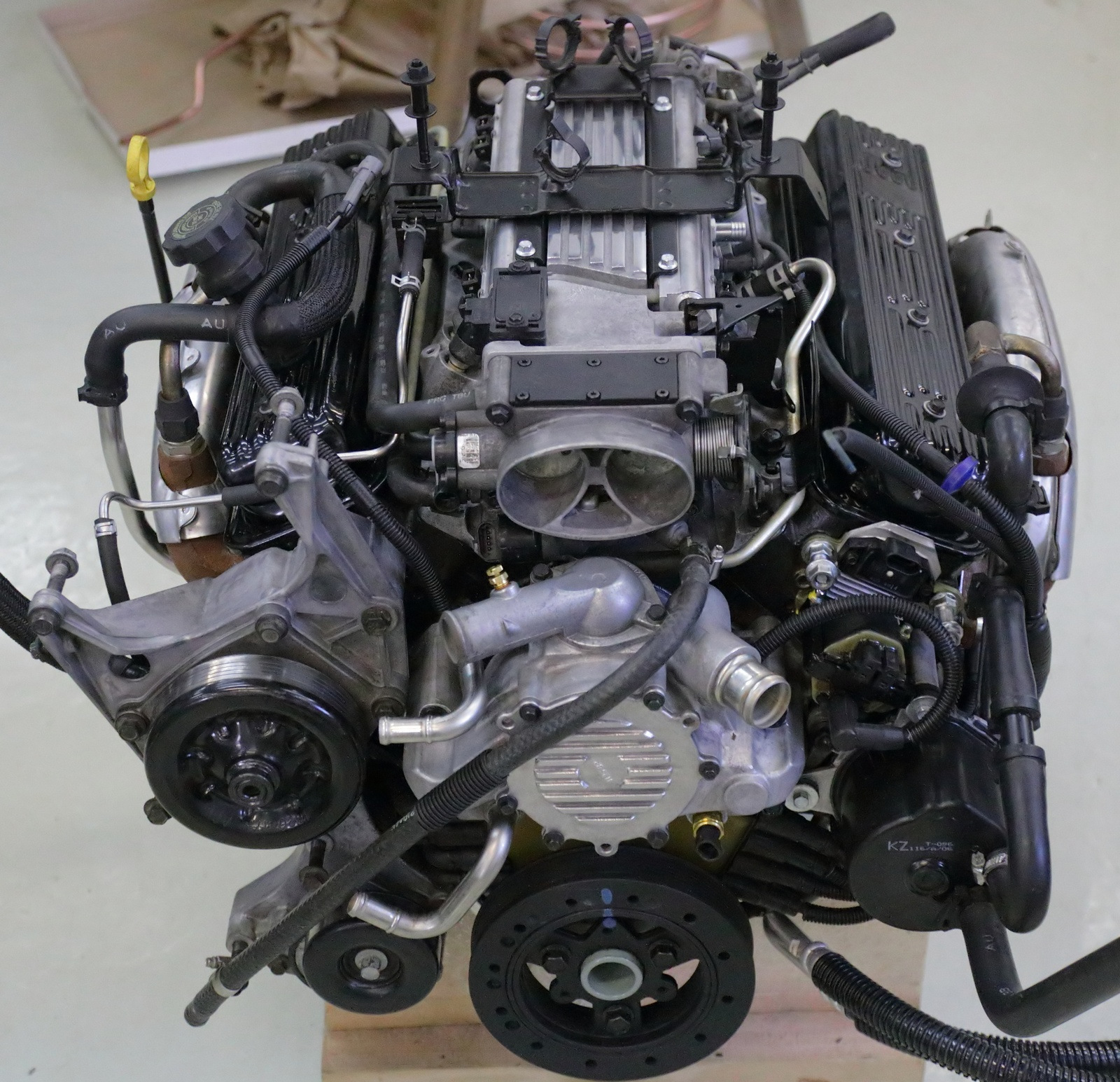

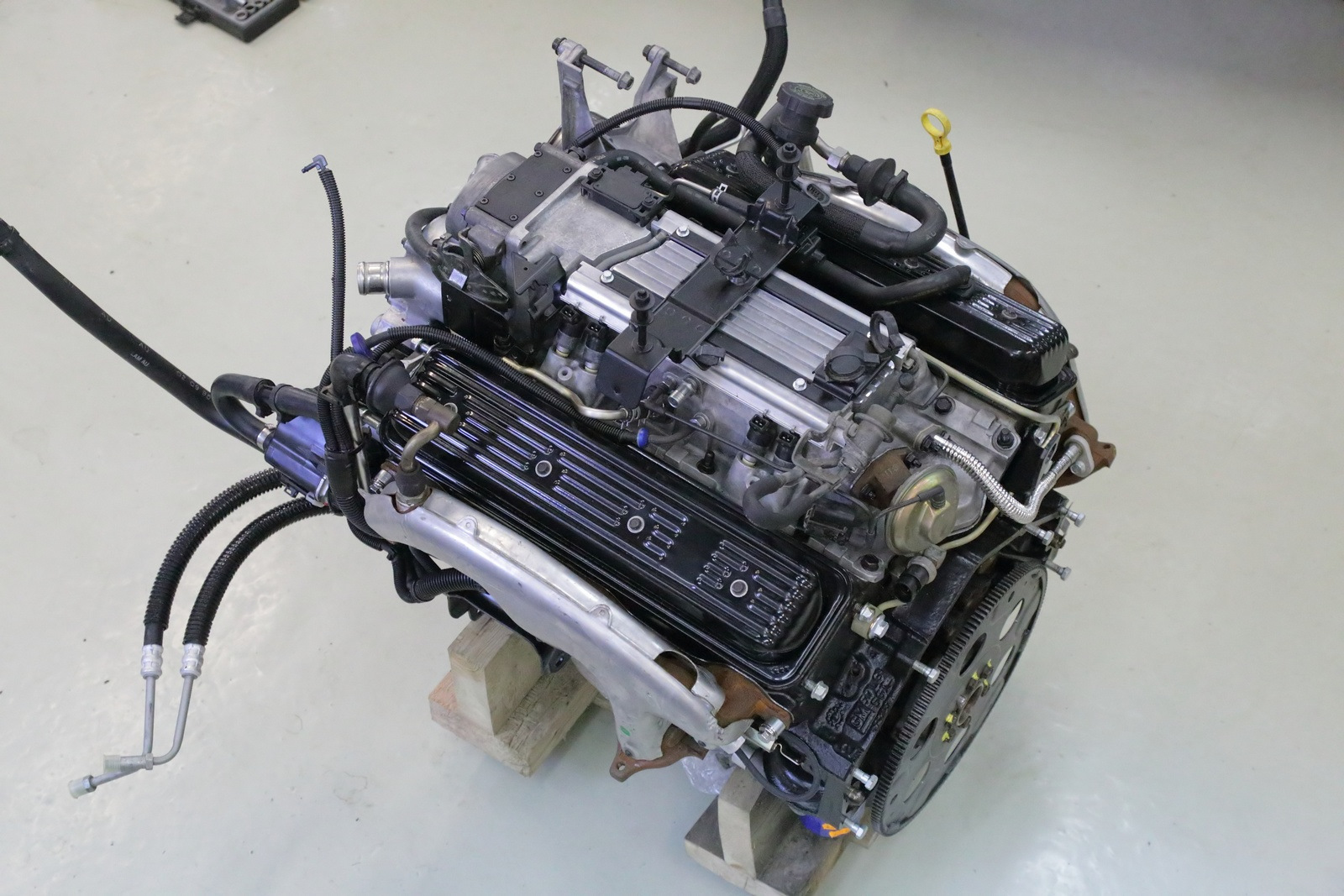

LT1 at its beauty

[kudims]

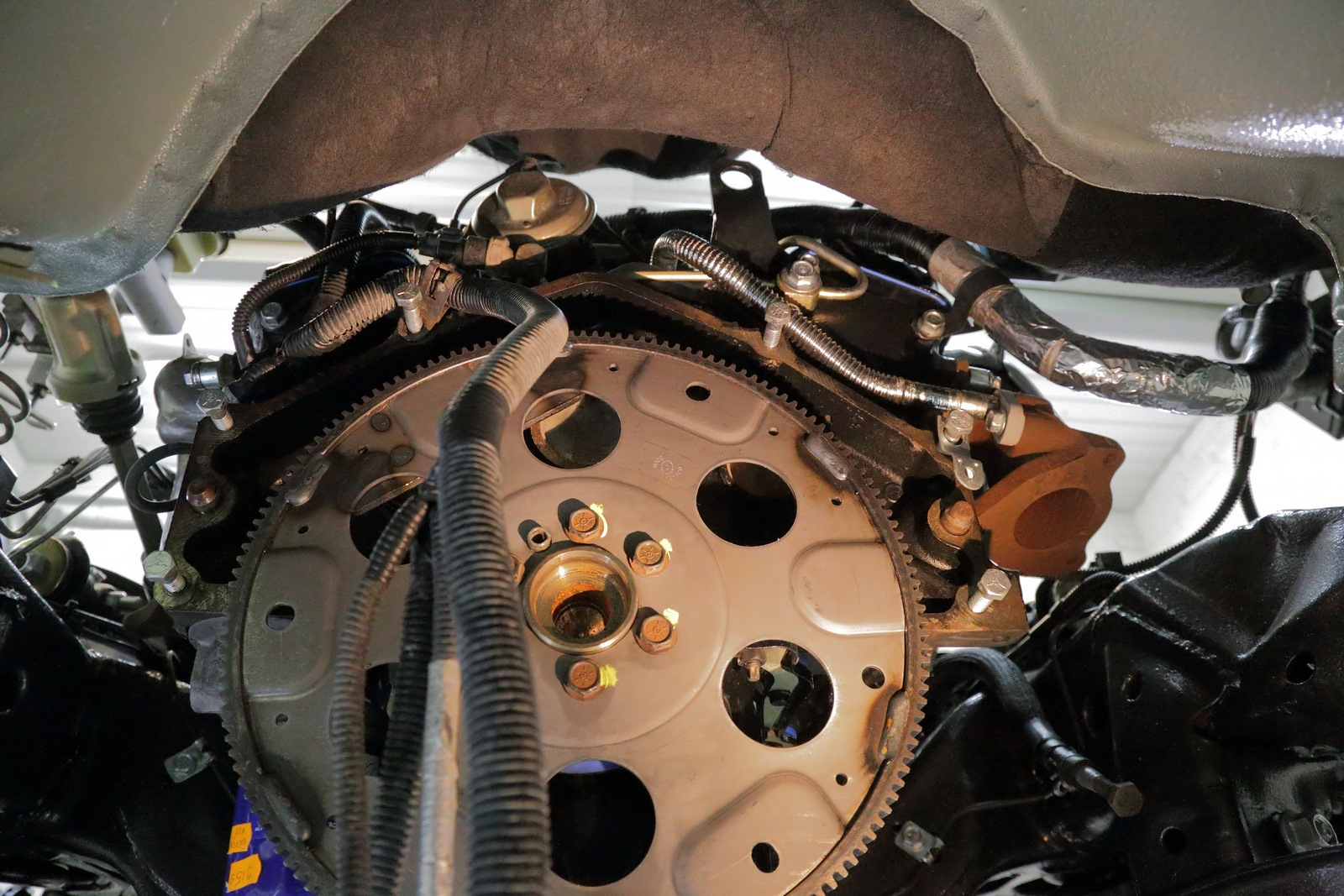

Front clip

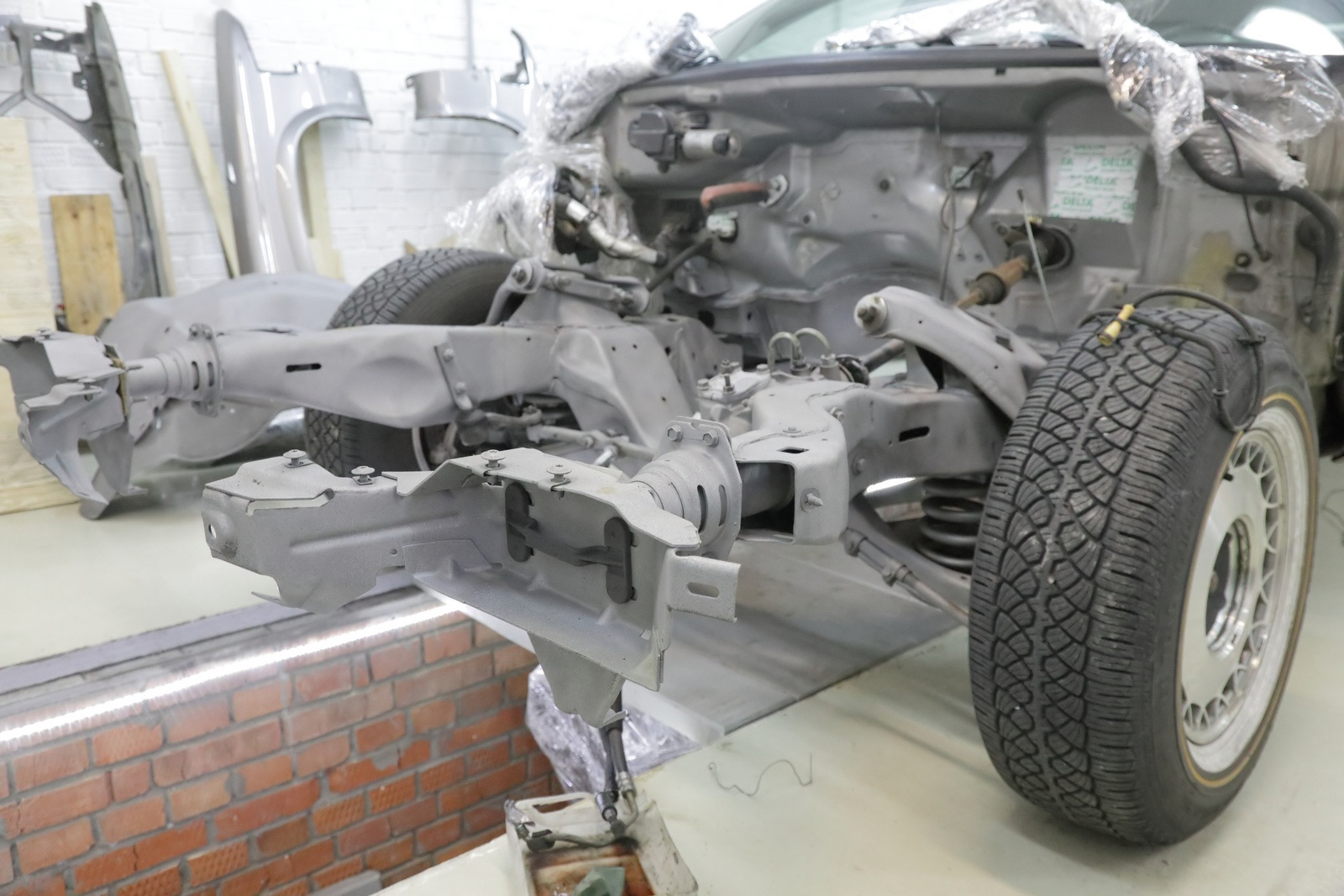

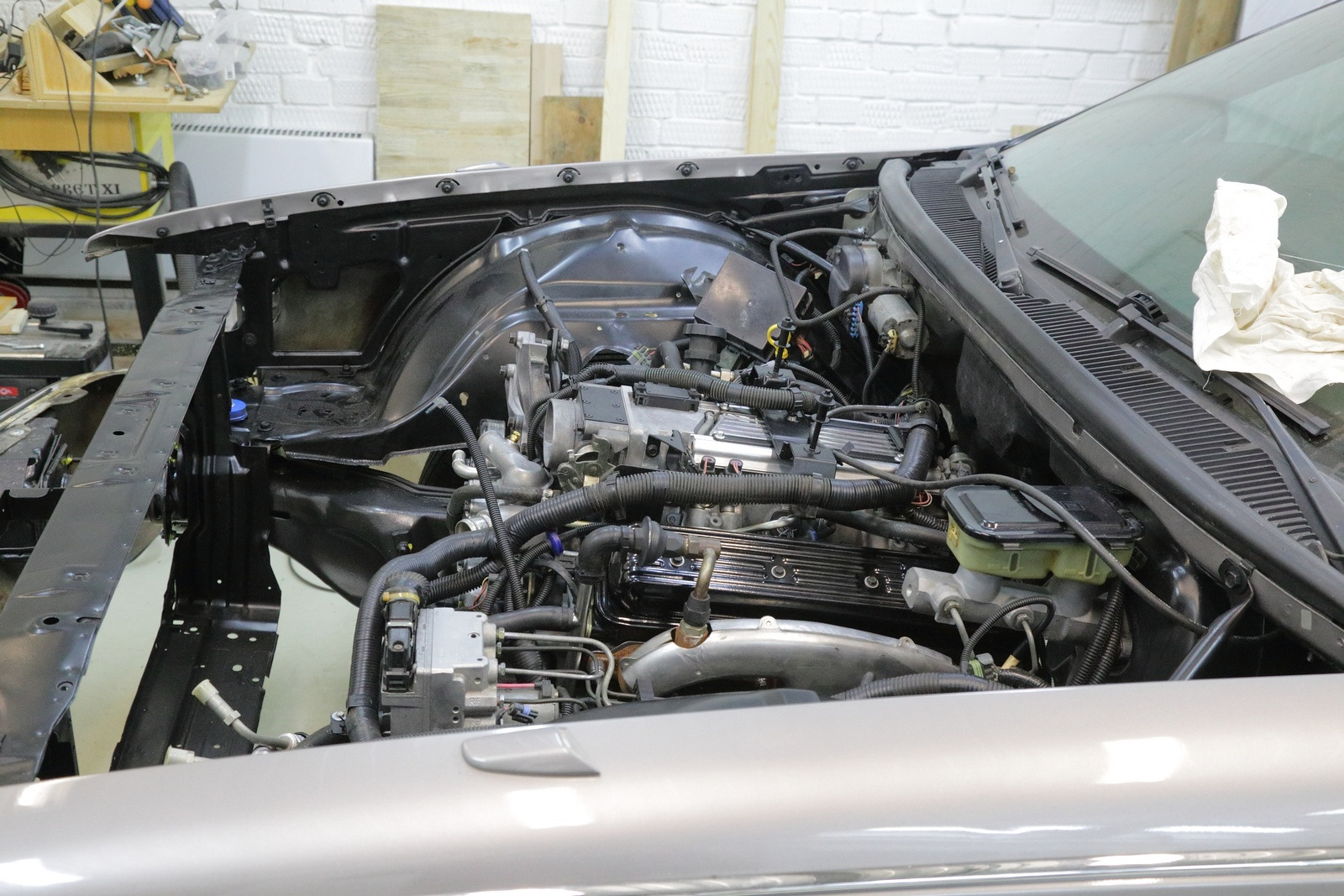

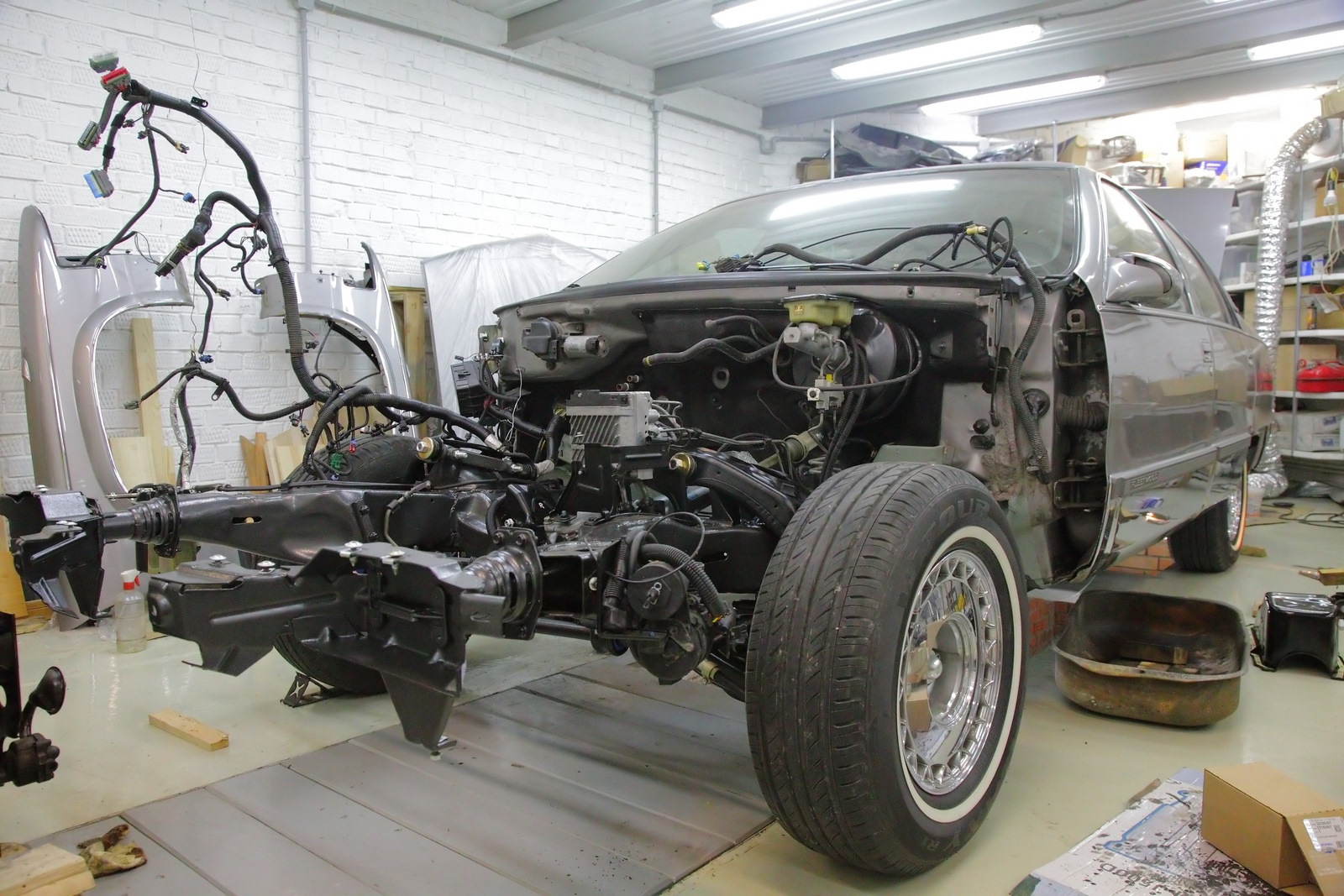

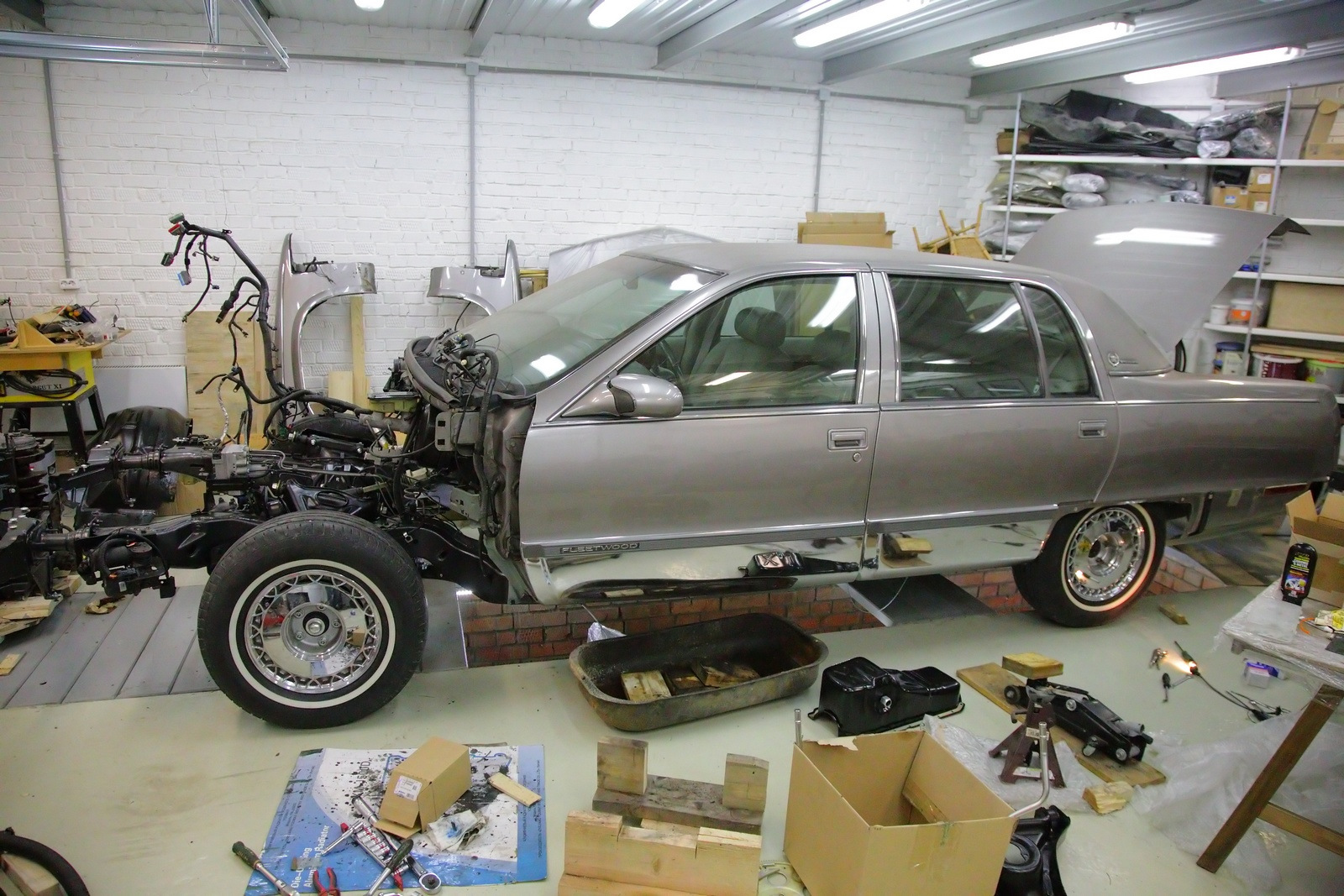

So, the engine is in place, and now it's time to reassemble the front end so our dragster turns back into a car.

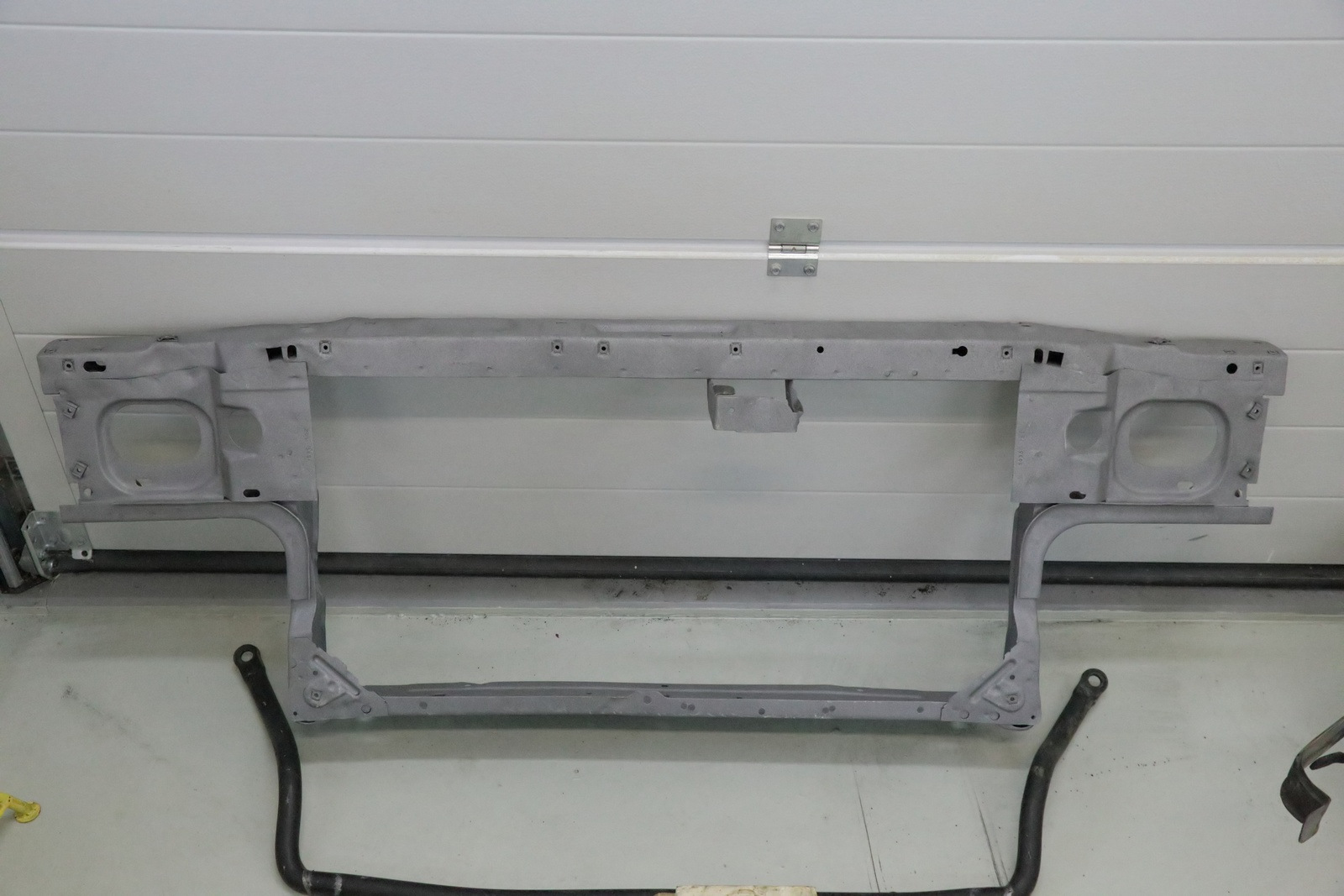

First, I install the radiator support (loosely mounting it on its frame pads). There were original factory shims between the pads and the frame, so for now, I'm using the same number of shims on each side as before. Next, I set the splash shields in place, bolting them loosely to the body and the radiator support—nothing should be fully tightened yet.

After the splash shields, the assembled front fenders go on. I loosely attach them to the body, the splash shields, and the radiator support. Nothing will fully line up until the hood is in place, so everything has room to shift around.

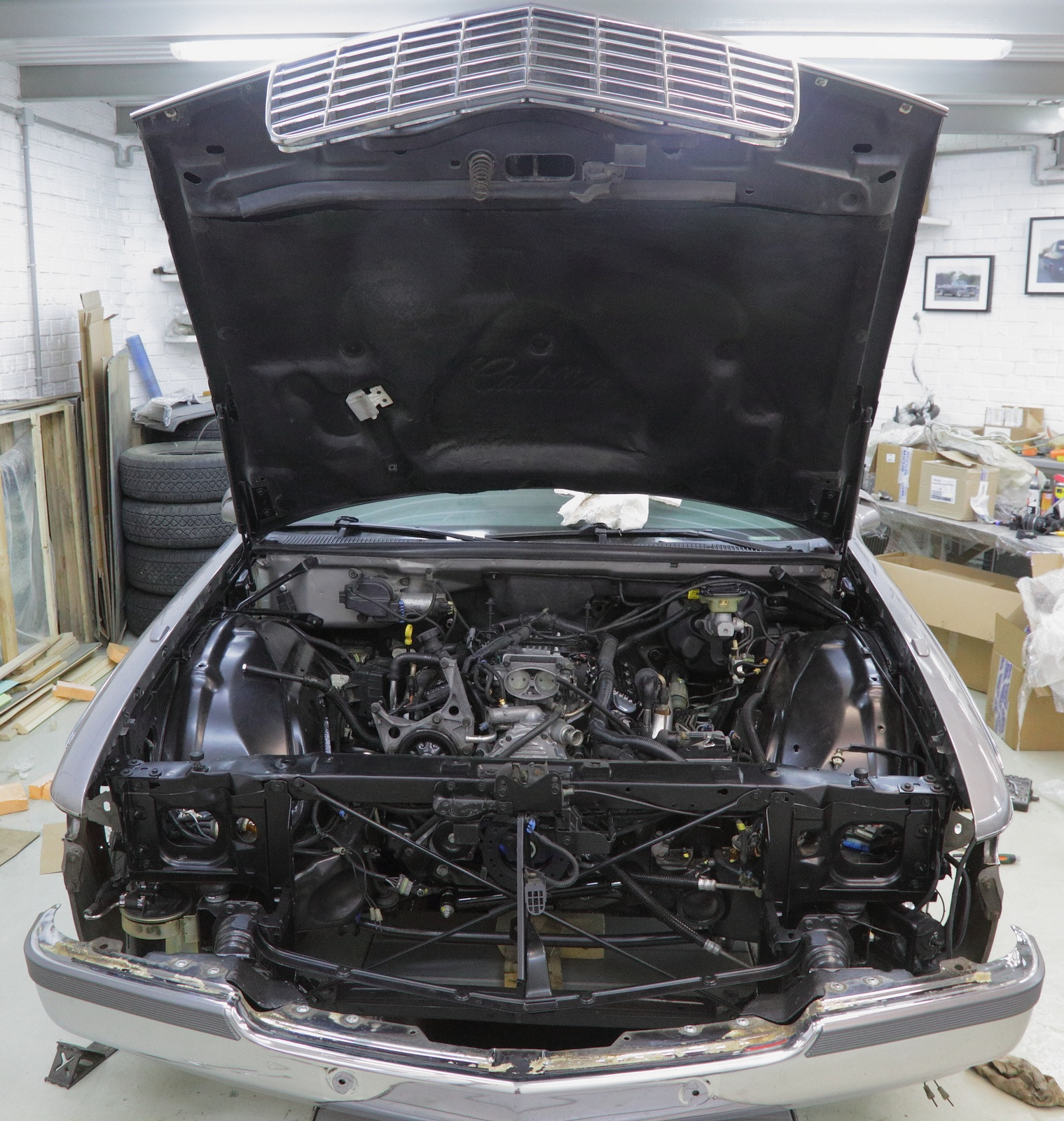

In practice, it all looks something like this:













There were four of us to attach the hood







These will be replaced



With these...



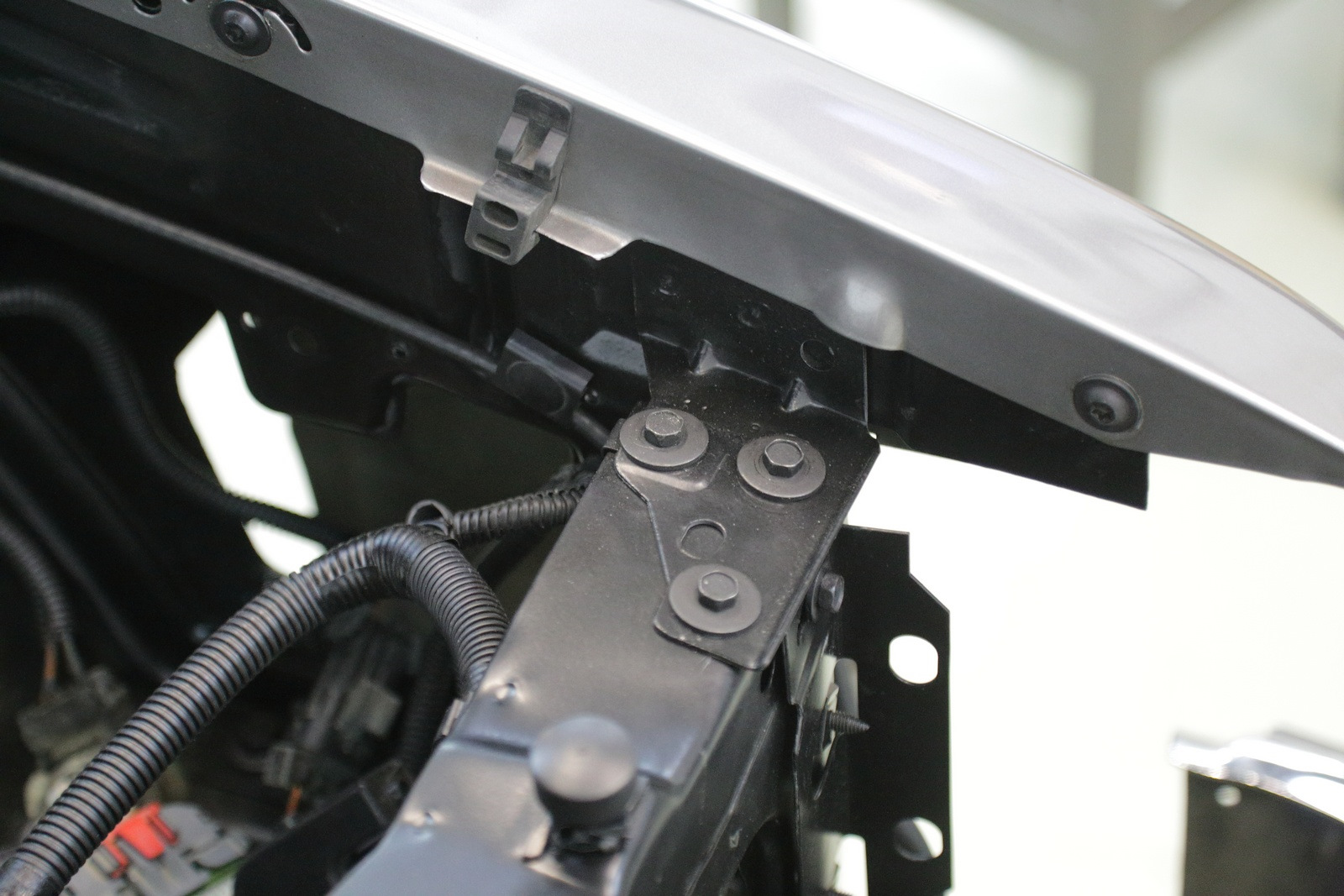

I used new original GM bolts for these bodies



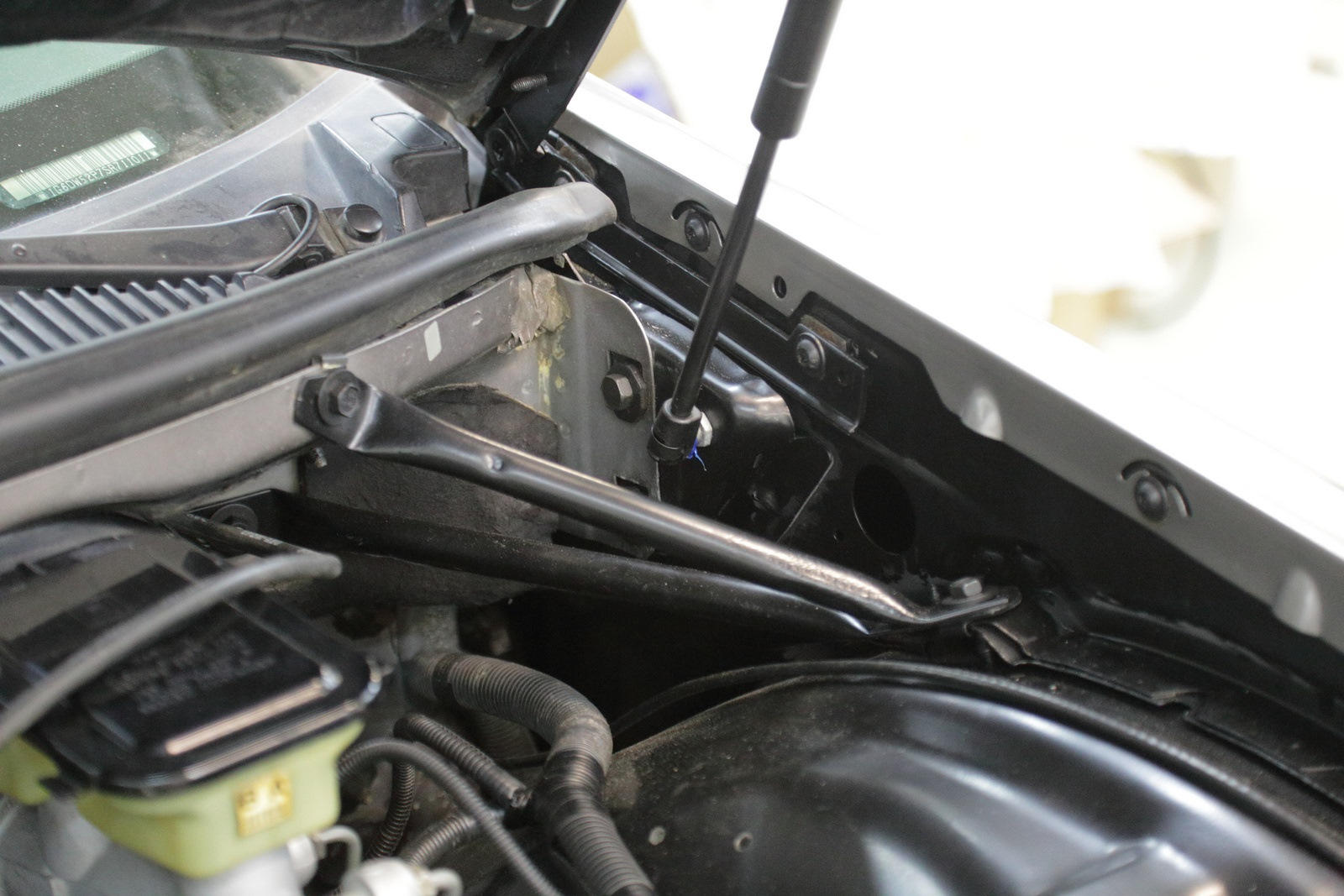

Final alignments

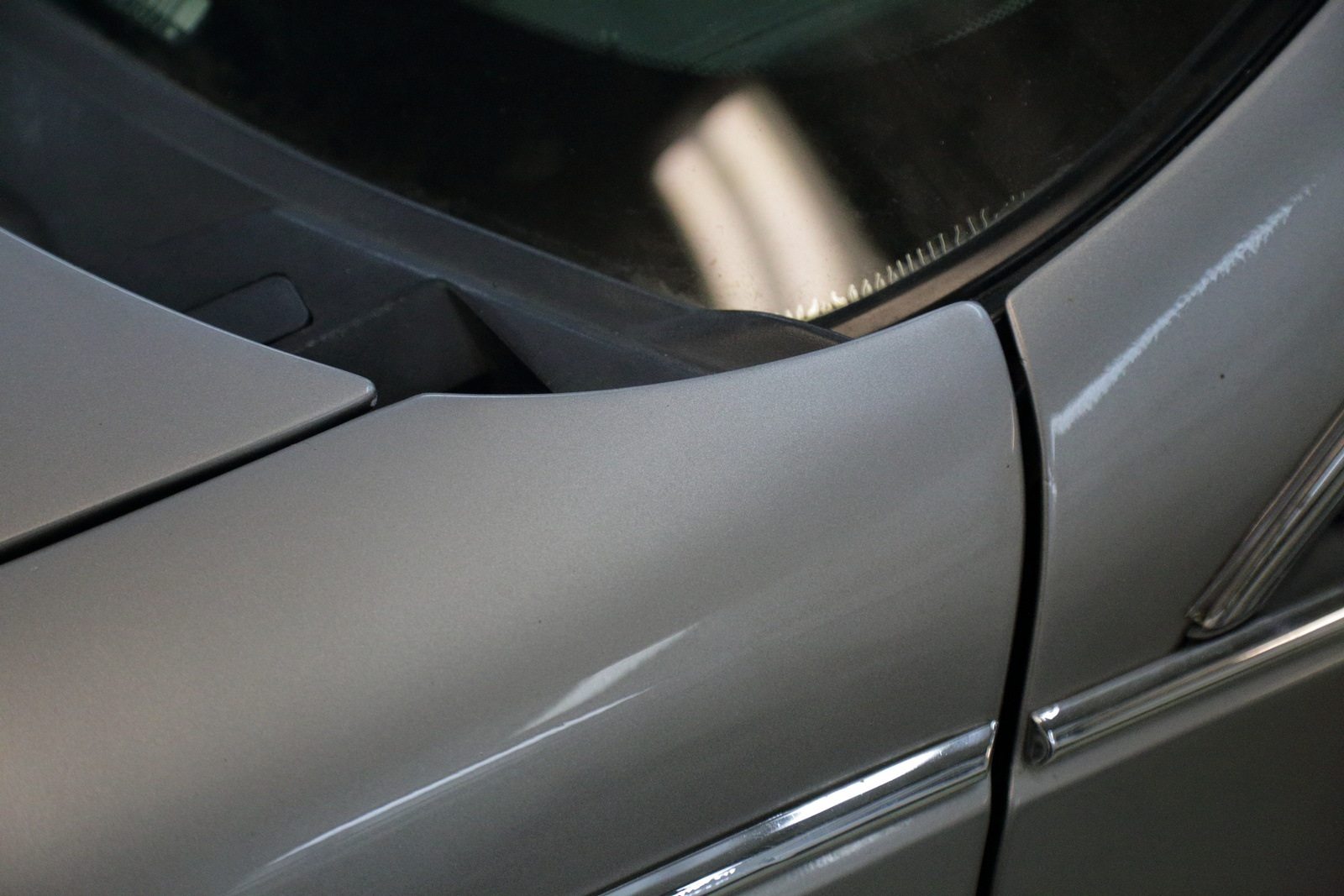

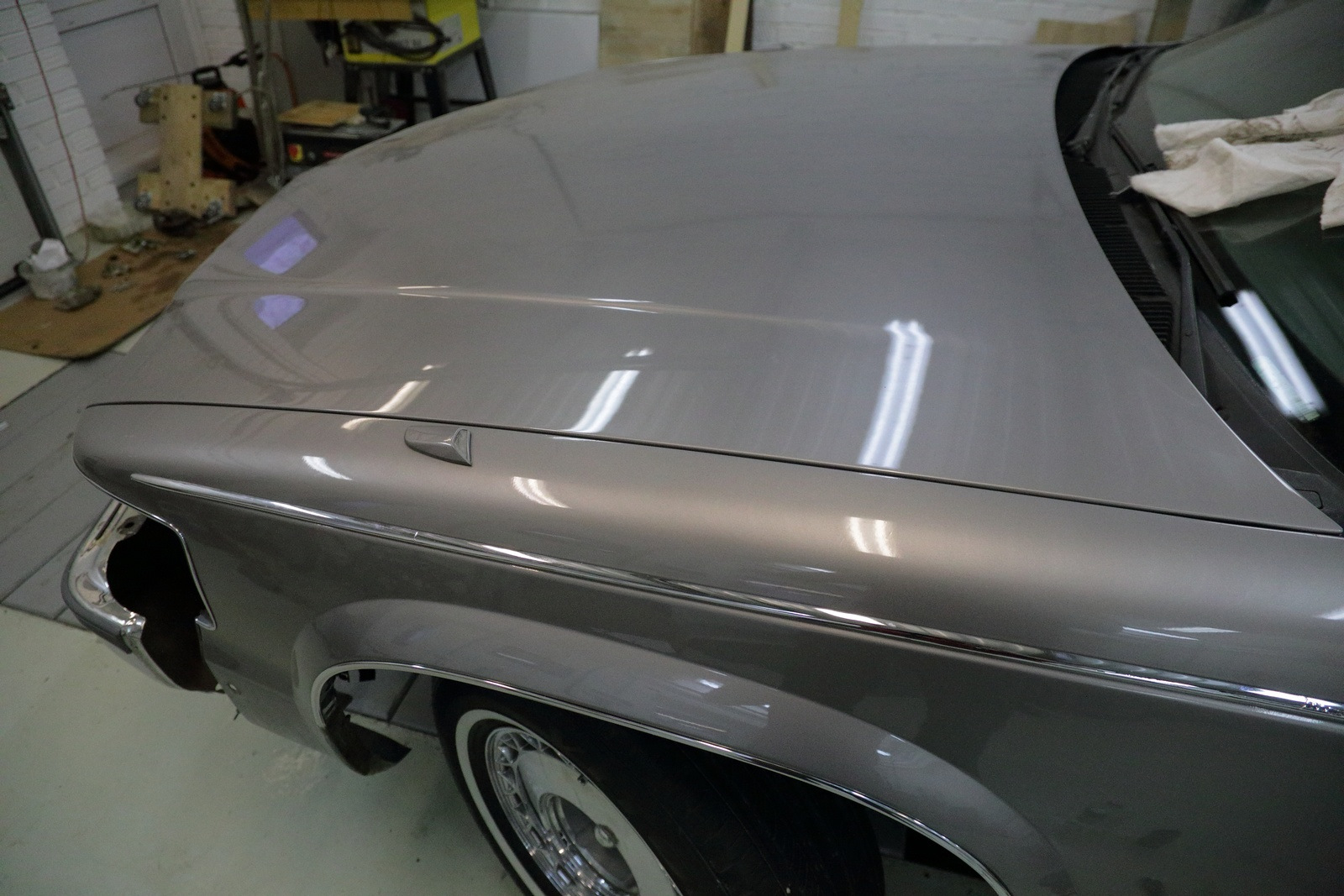

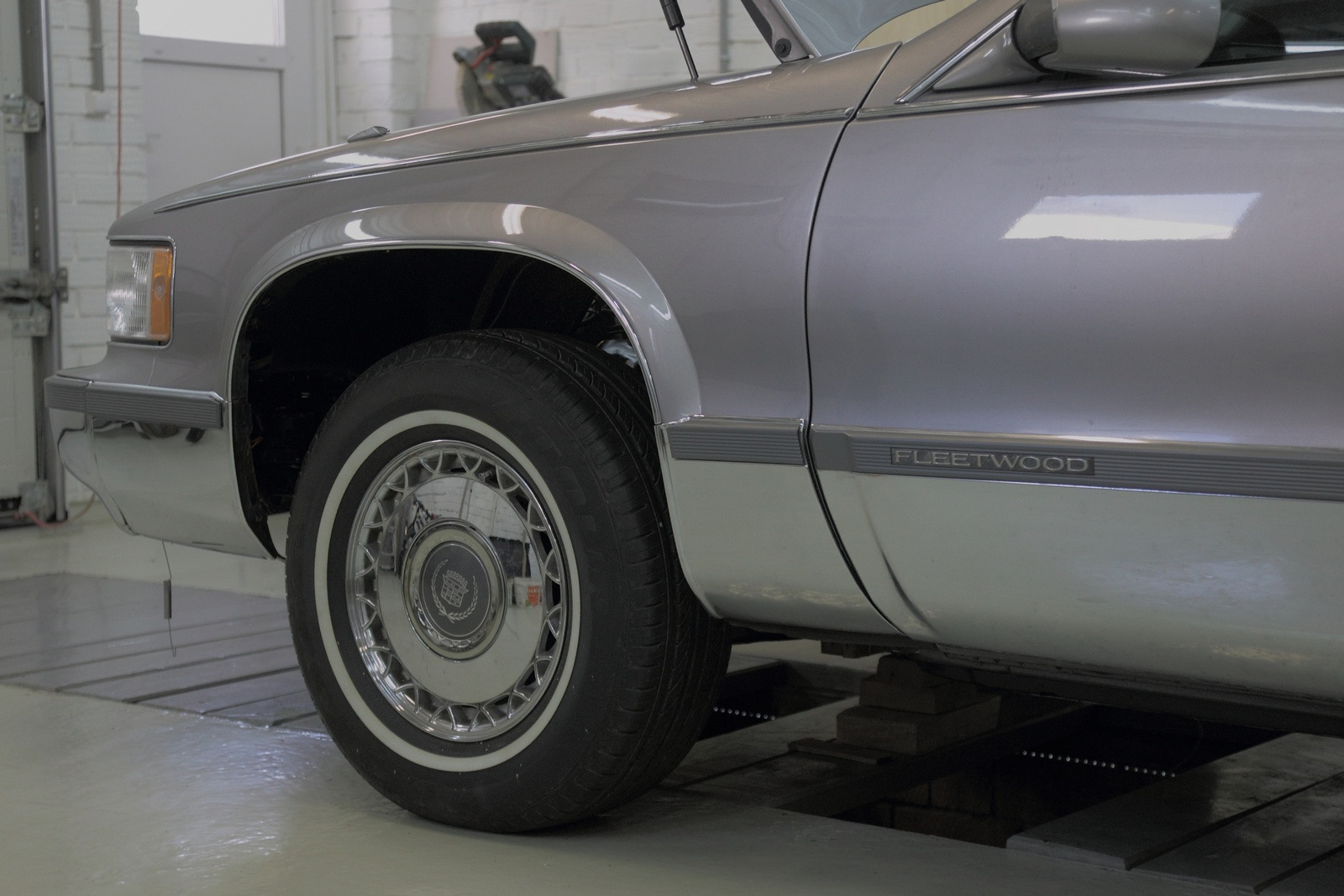

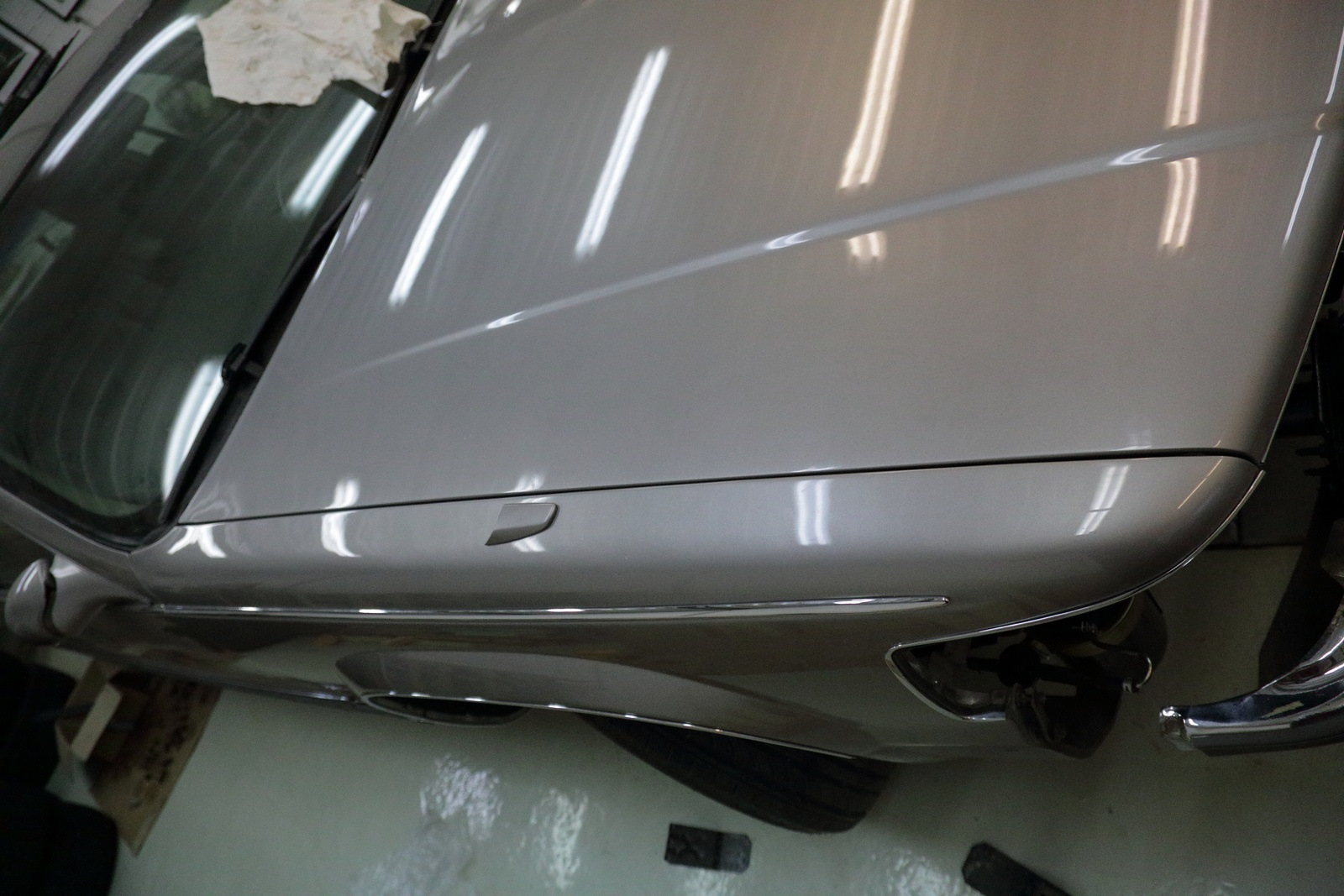

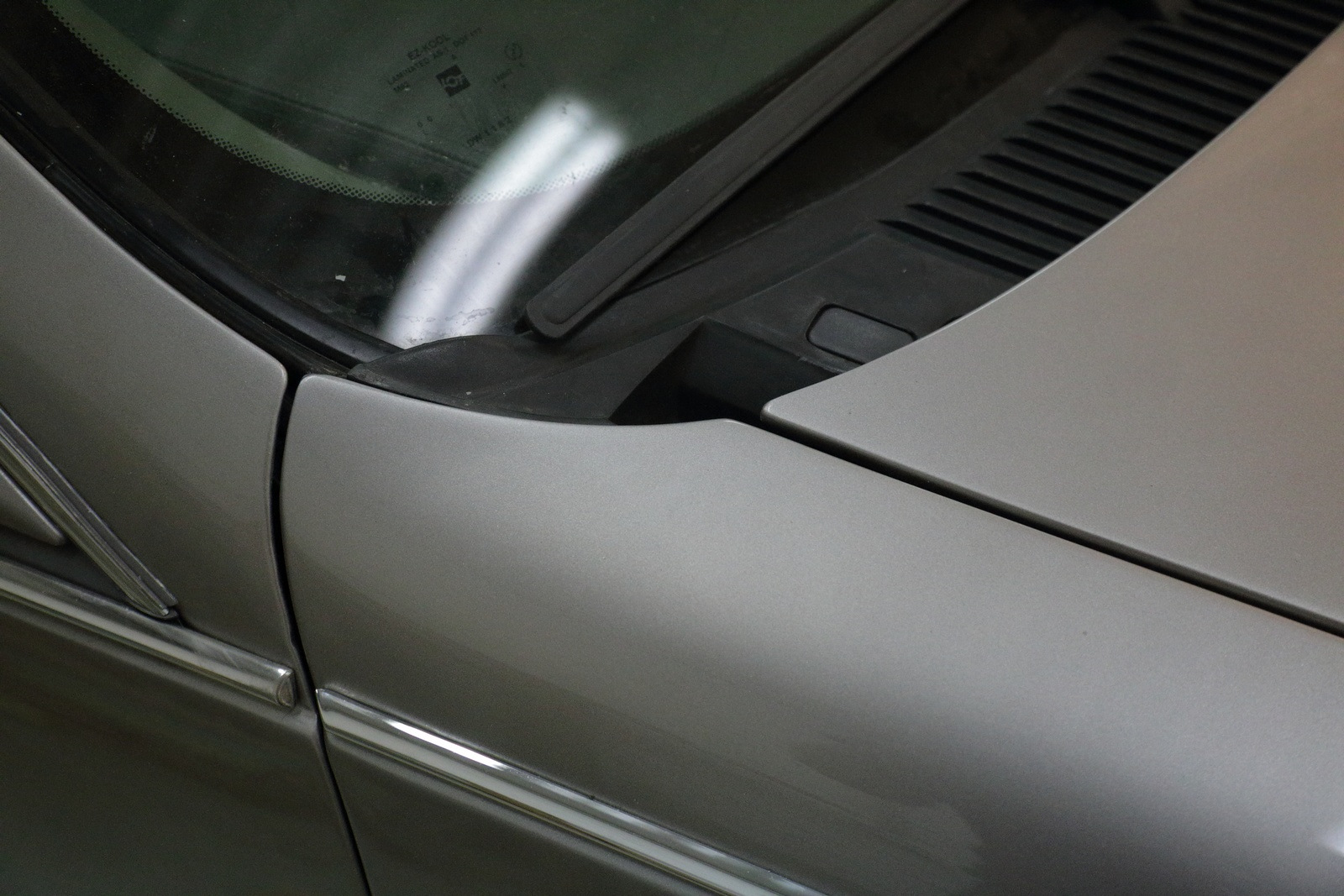

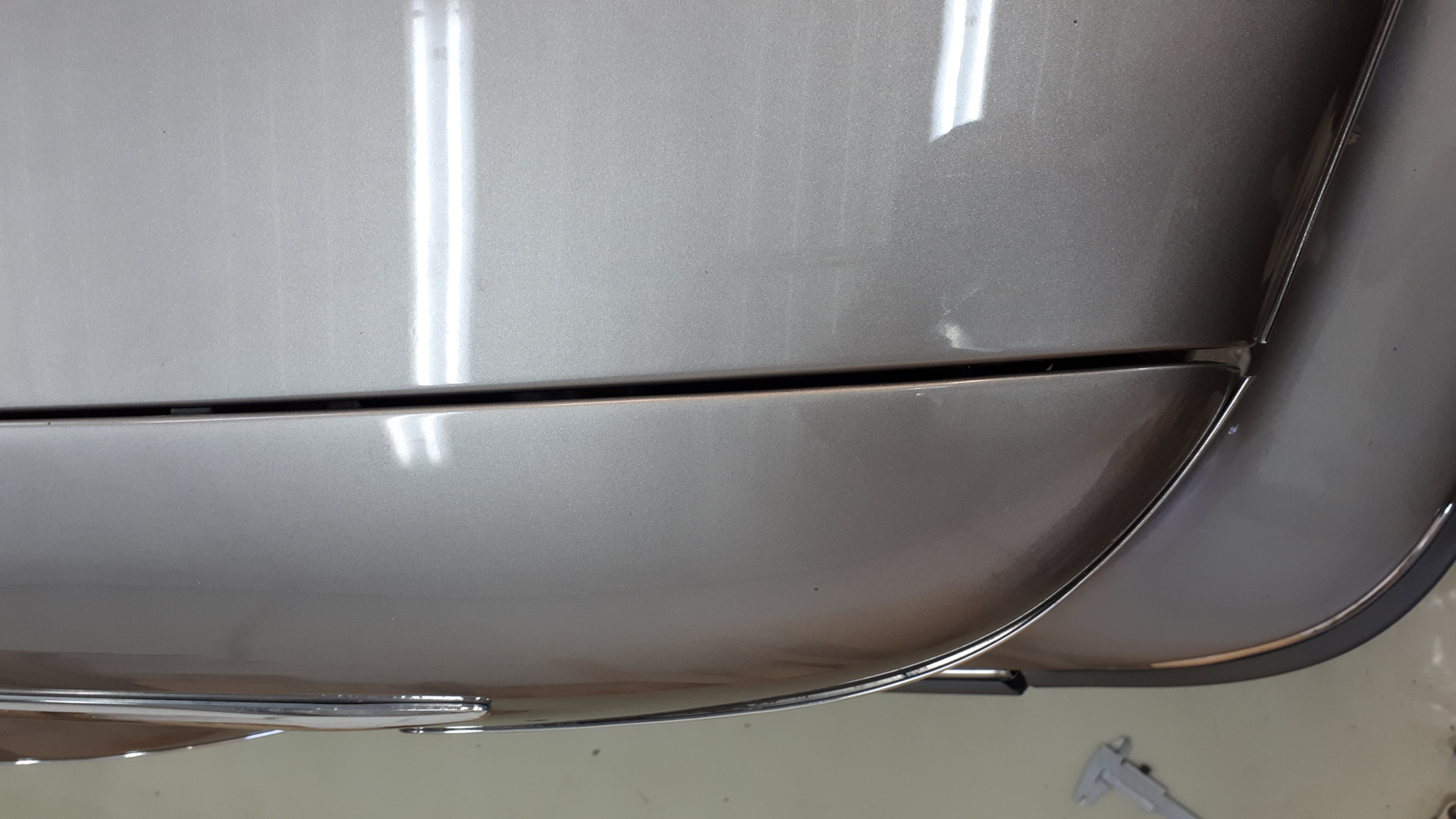

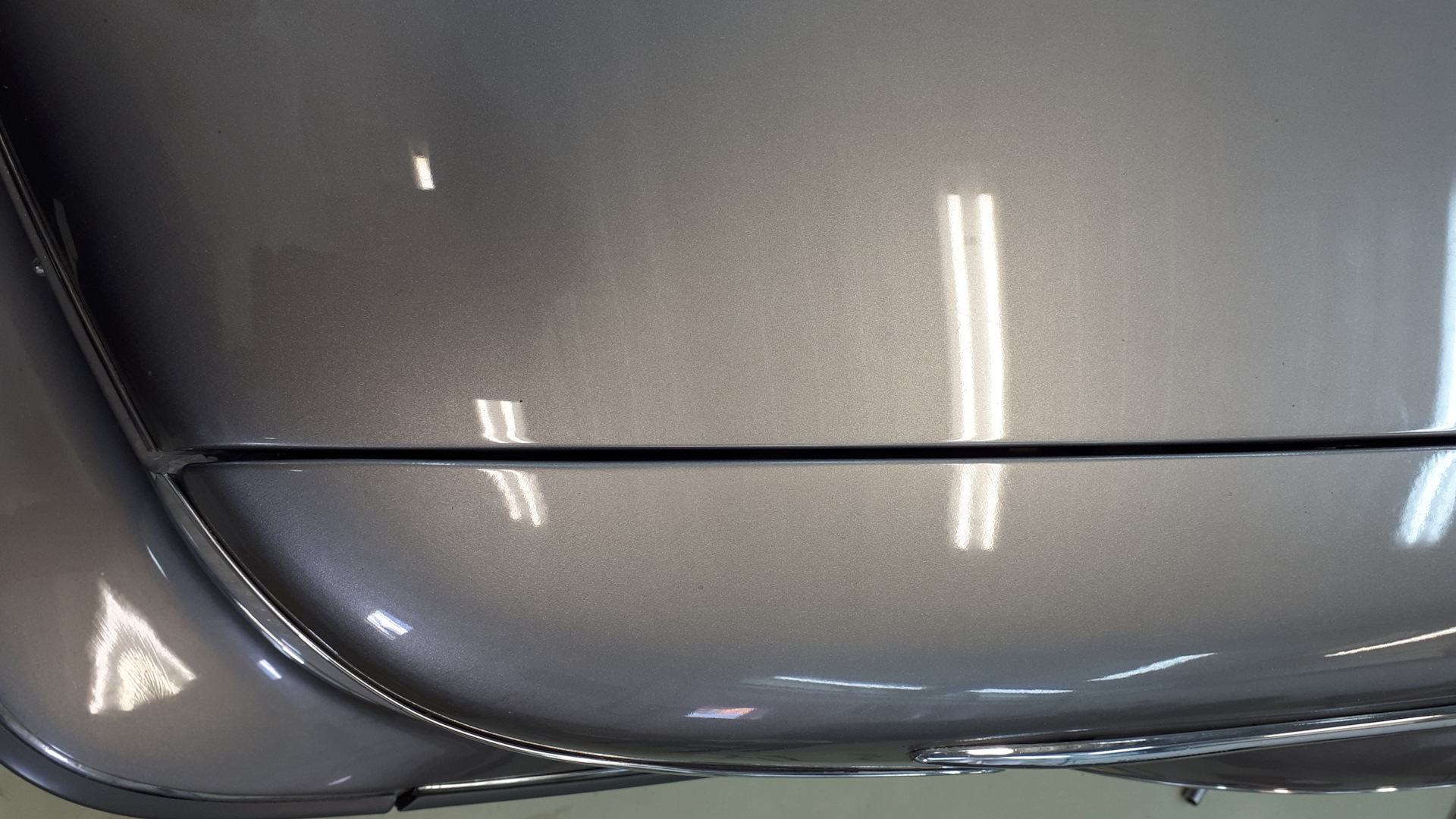

Gaps match









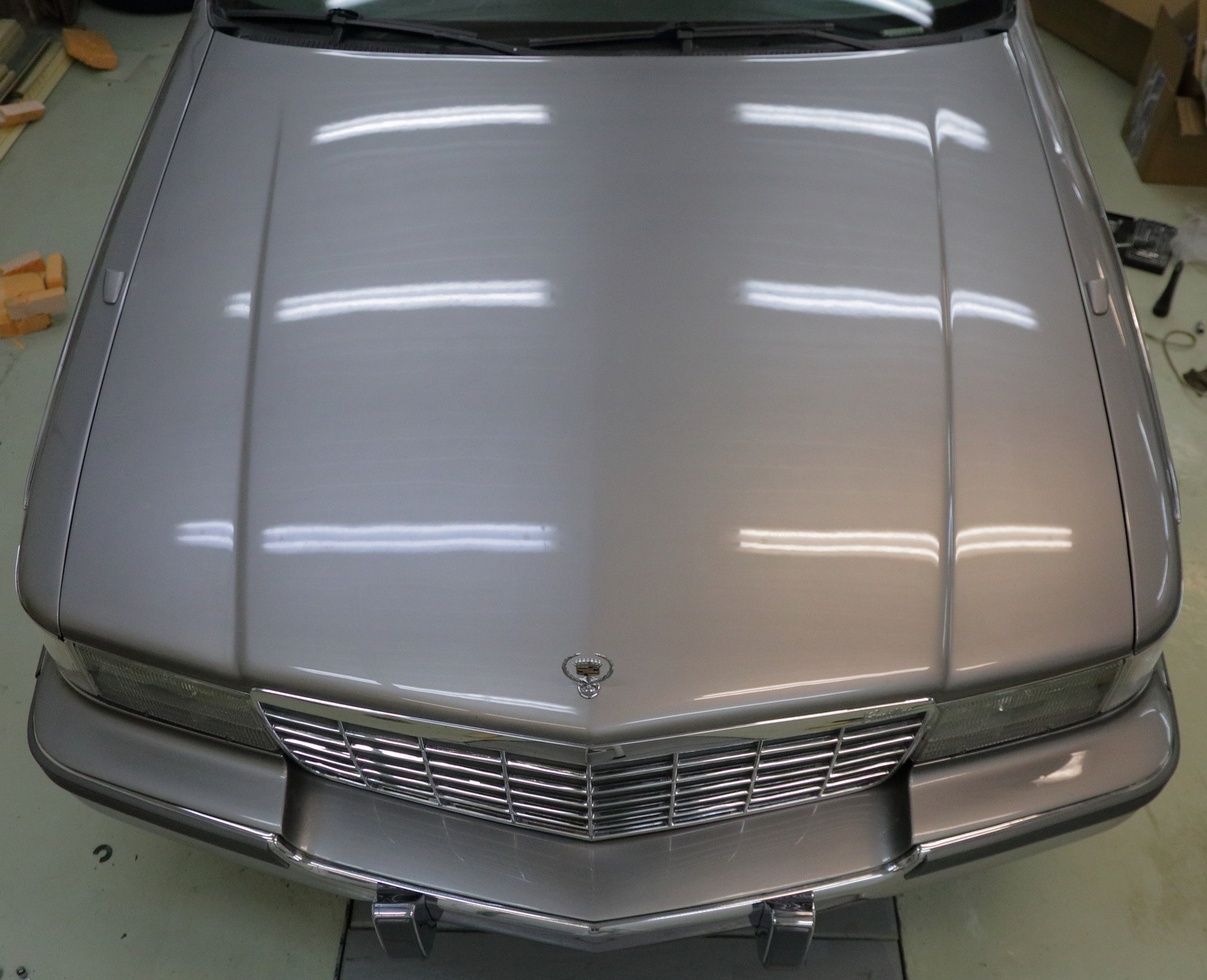

Final result





Also, attach the front bumper cover and adjust it



New original clips

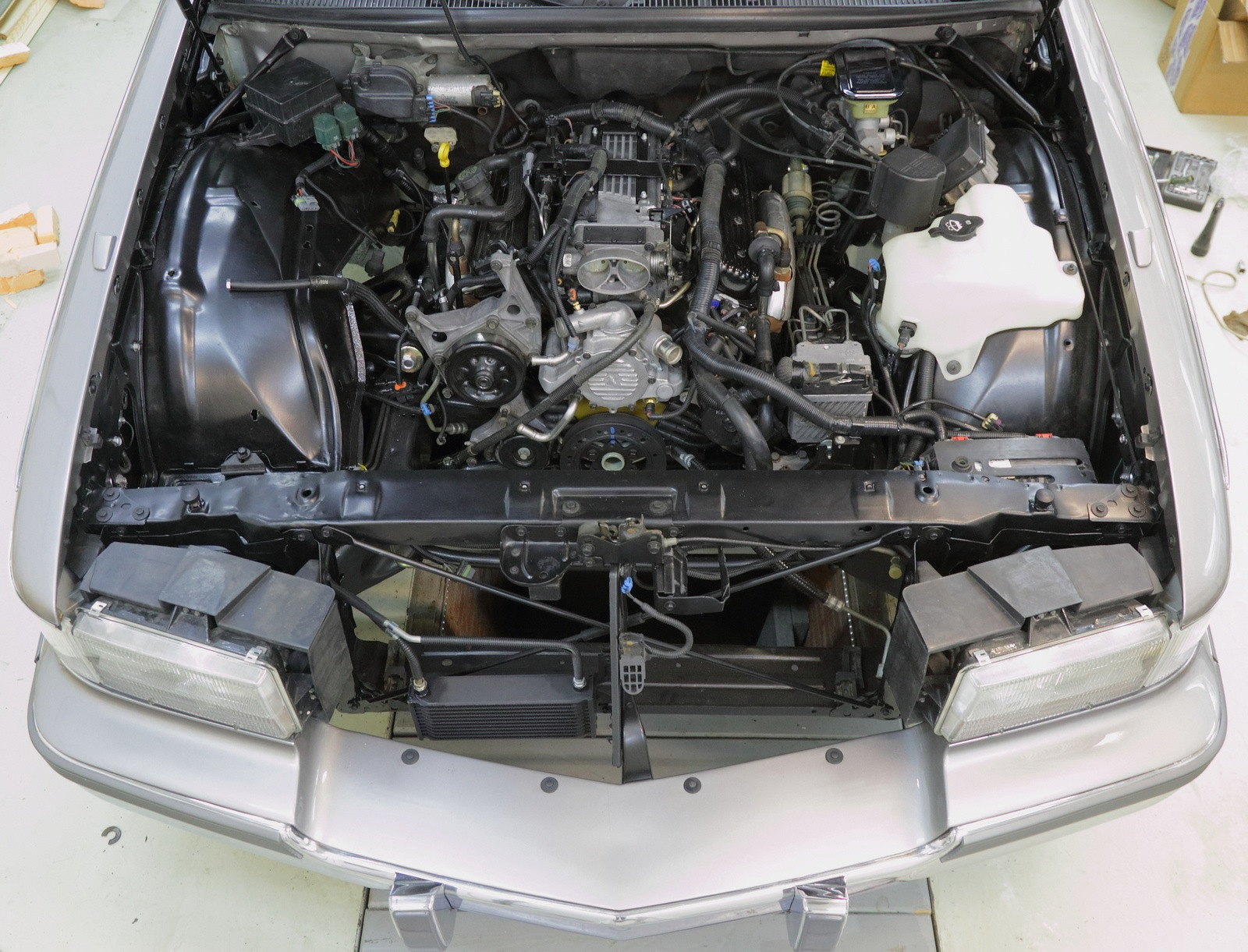

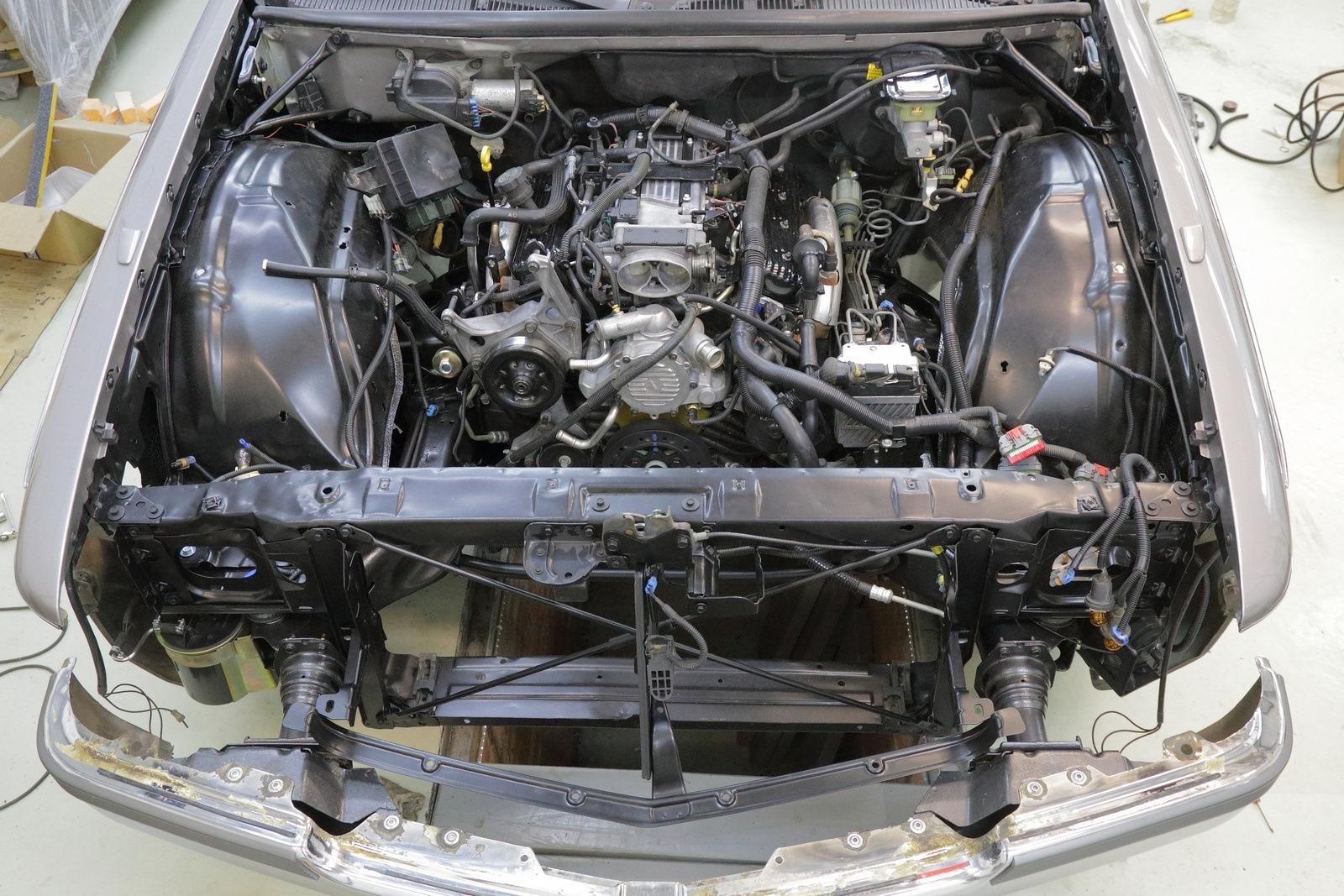

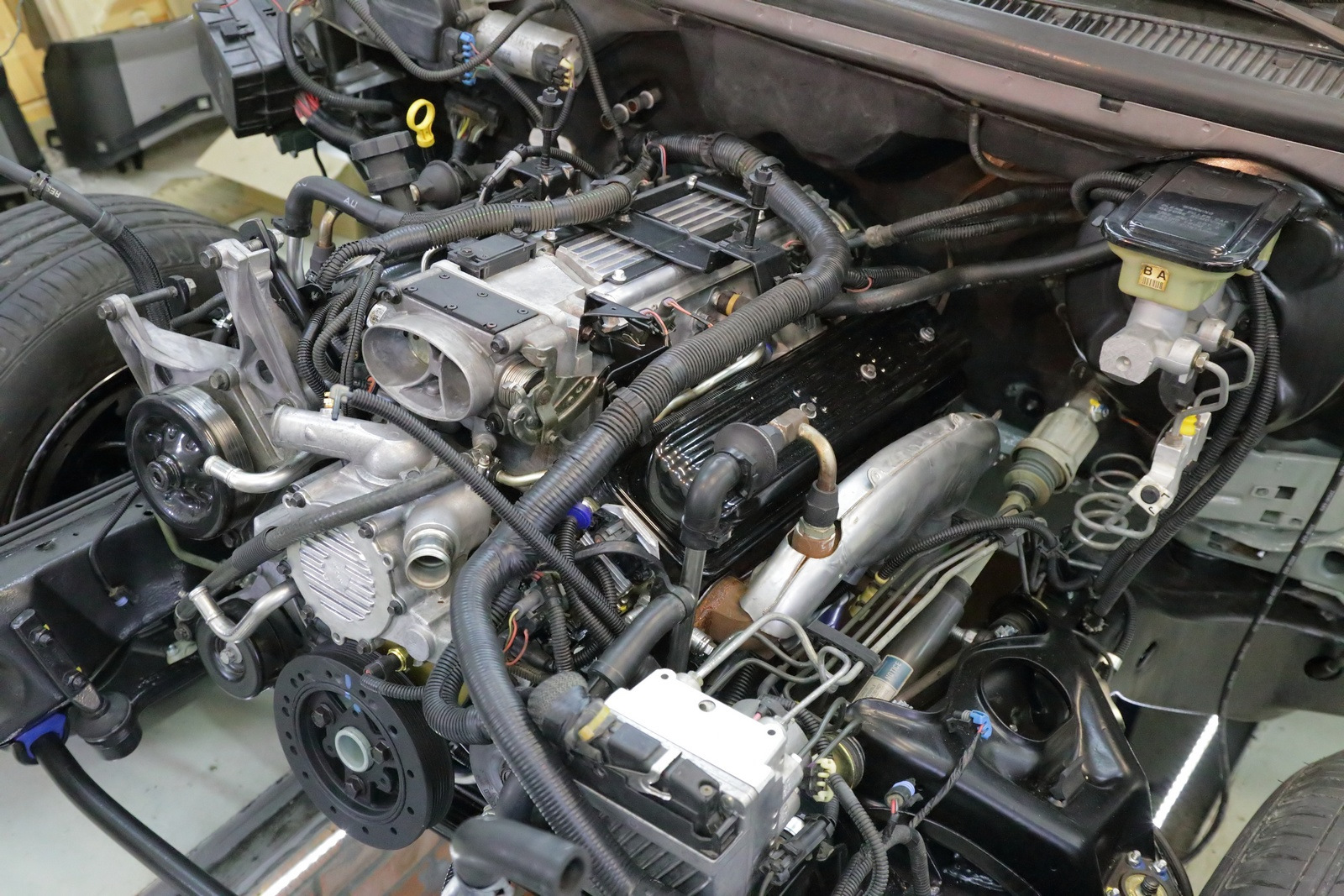

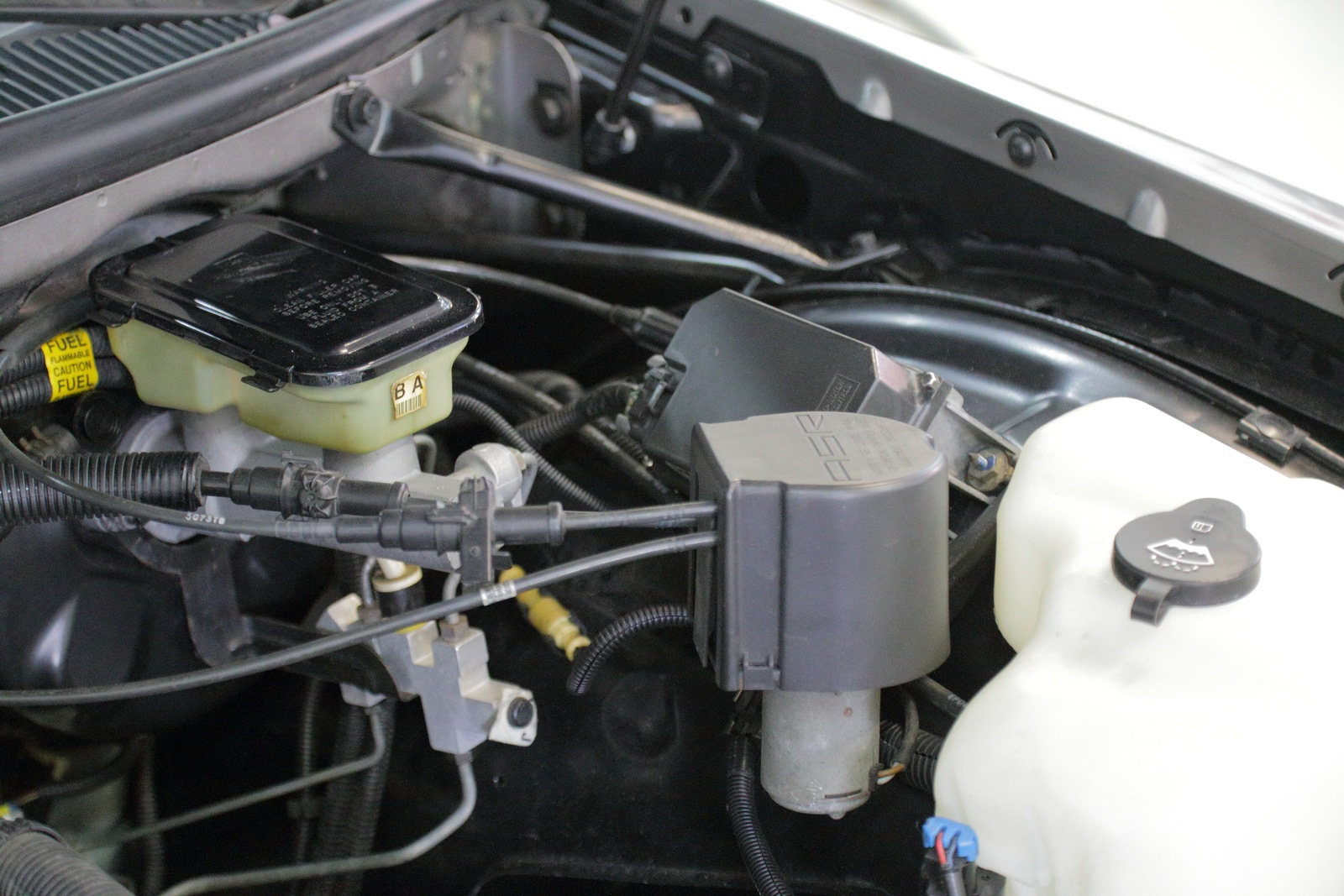

Engine bay

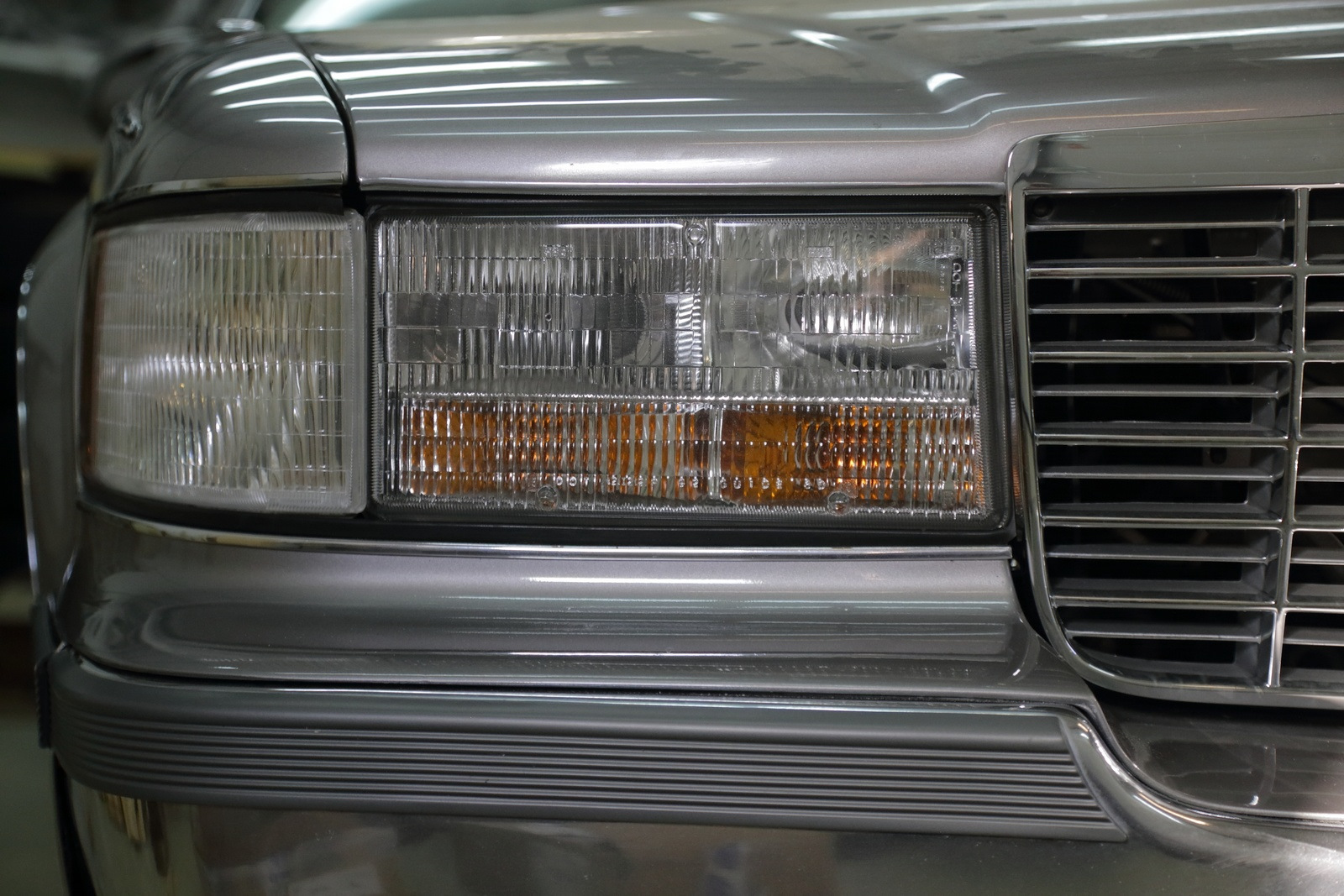

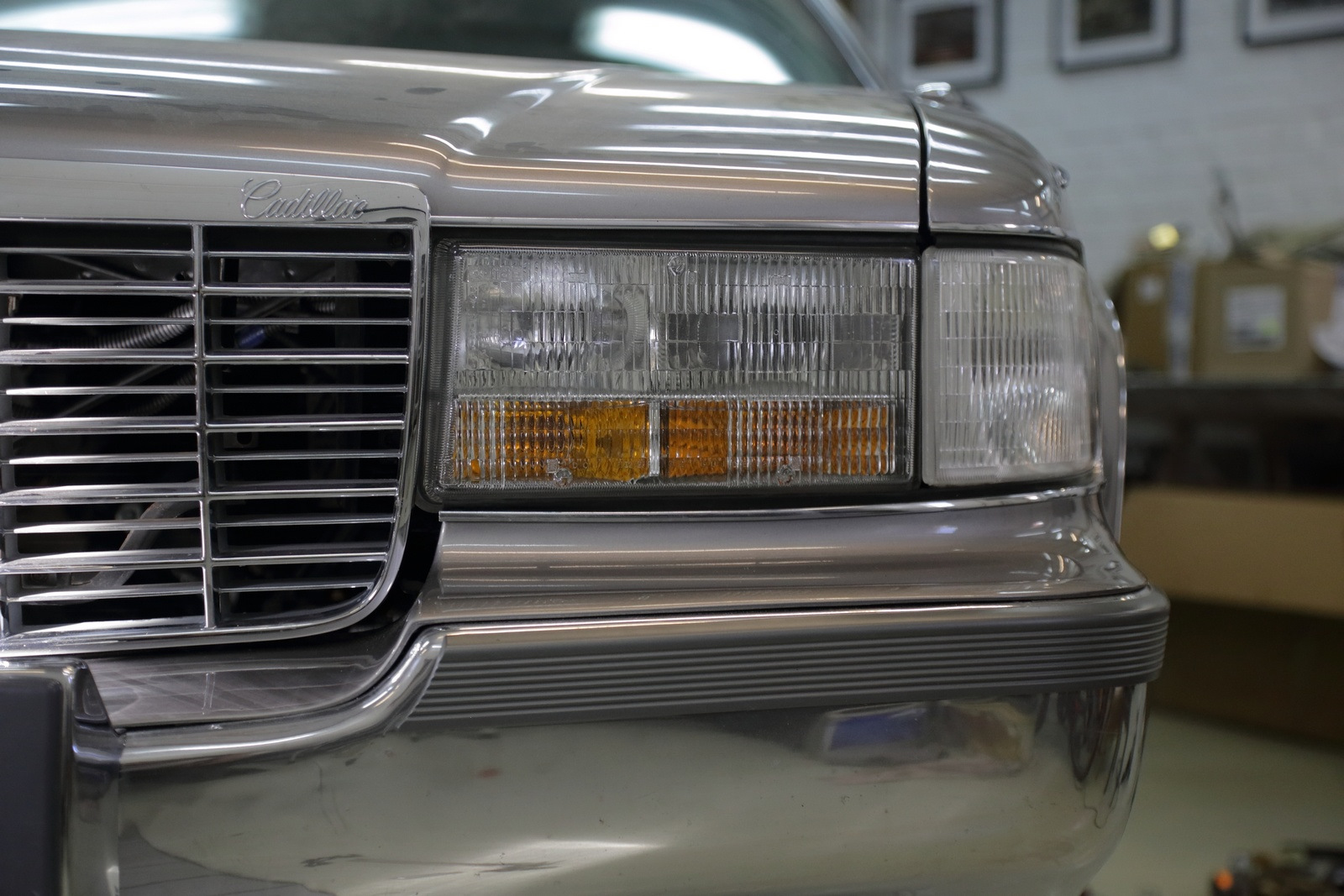

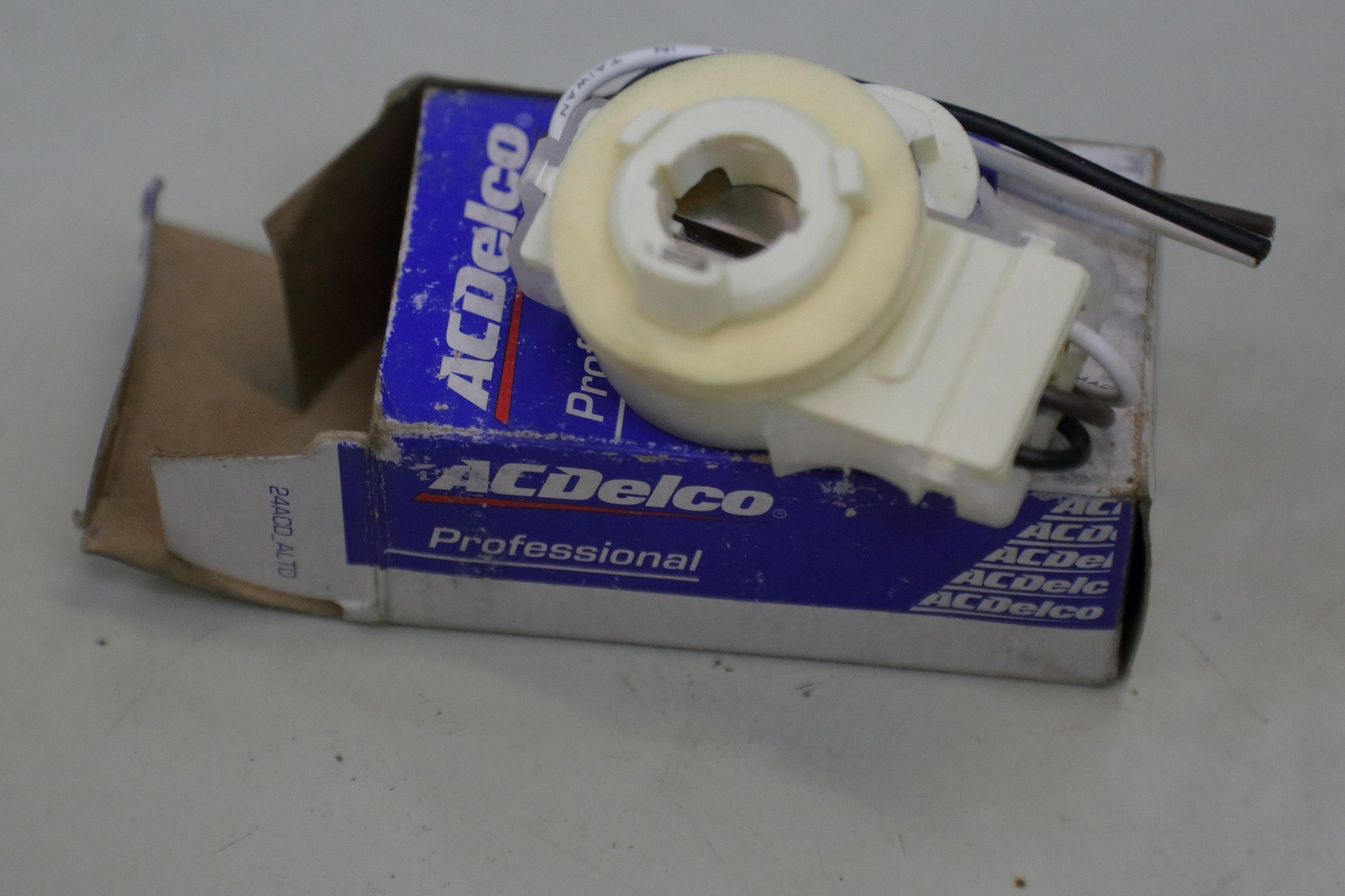

New headlights



And new grill





New transmission cooler line



in place

[kudims]

Cruise control adjustment

Fleetwood is one of the last GM cars equipped with a mechanical throttle, so all those components like the traction control regulator (part of the traction control system) and cruise control operate differently than in more modern vehicles.

If you simply connect the gas pedal cable directly to the throttle, nothing good will come of it. That's why there are two intermediary interfaces in the "gas pedal – throttle" link. The first is the traction regulator mechanism, part of the traction control system introduced at the time. Its job is to choke the engine if excessive wheel spin occurs. The second is the cruise control module itself, which adds or reduces throttle input in place of the driver.



The gas cable runs from the cabin to the traction regulator. From the traction regulator, the cable goes to the throttle. A separate cable from the cruise control also attaches to the traction regulator. All 3 cables need adjustment.



In simple words, two cables—one from a real driver and one from a "virtual" driver (cruise)—both want to control the throttle (yes, they're quite demanding!). At the same time, the traction regulator is part of the traction control system and must cut engine power at the PCM's command.

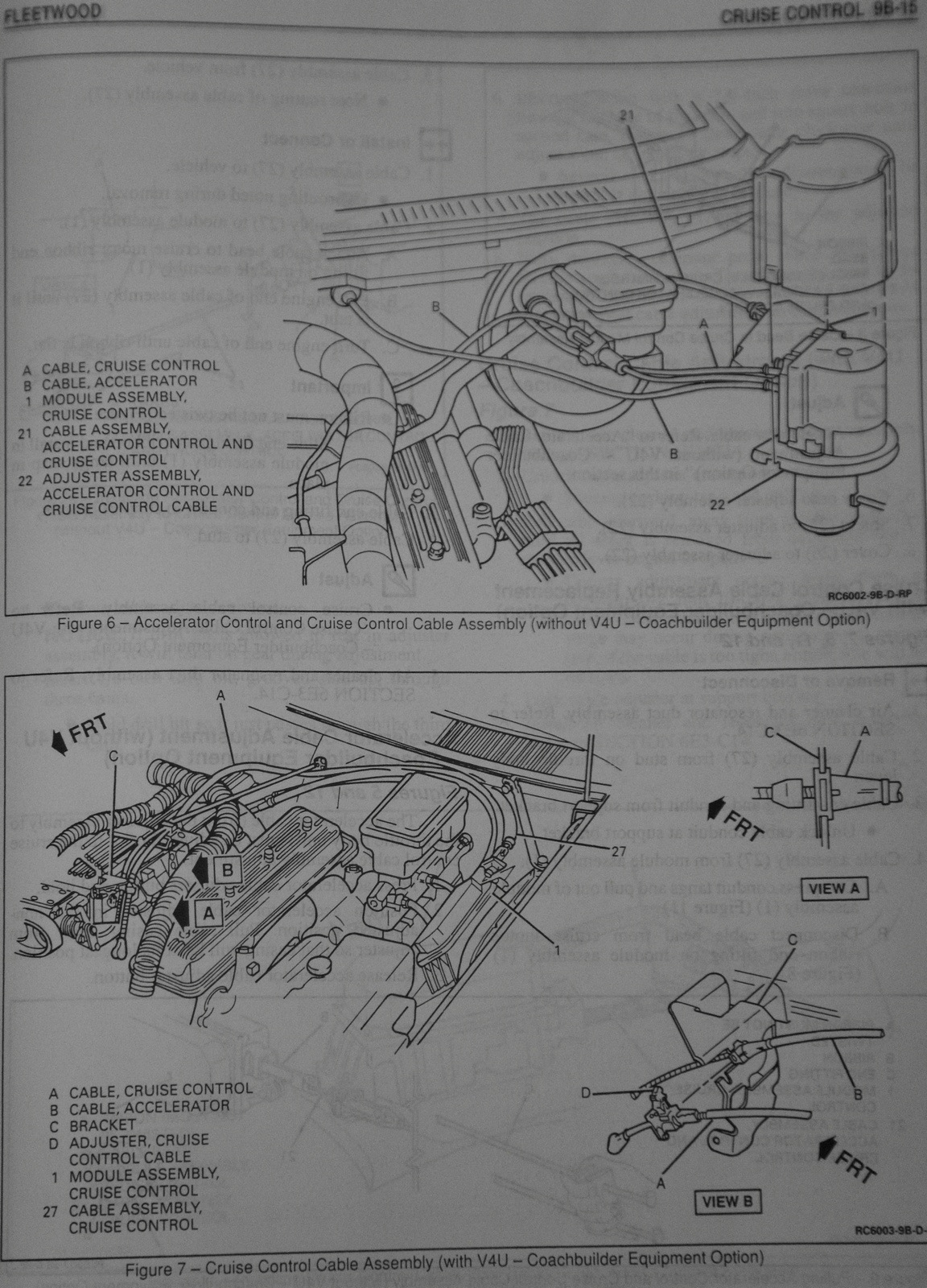

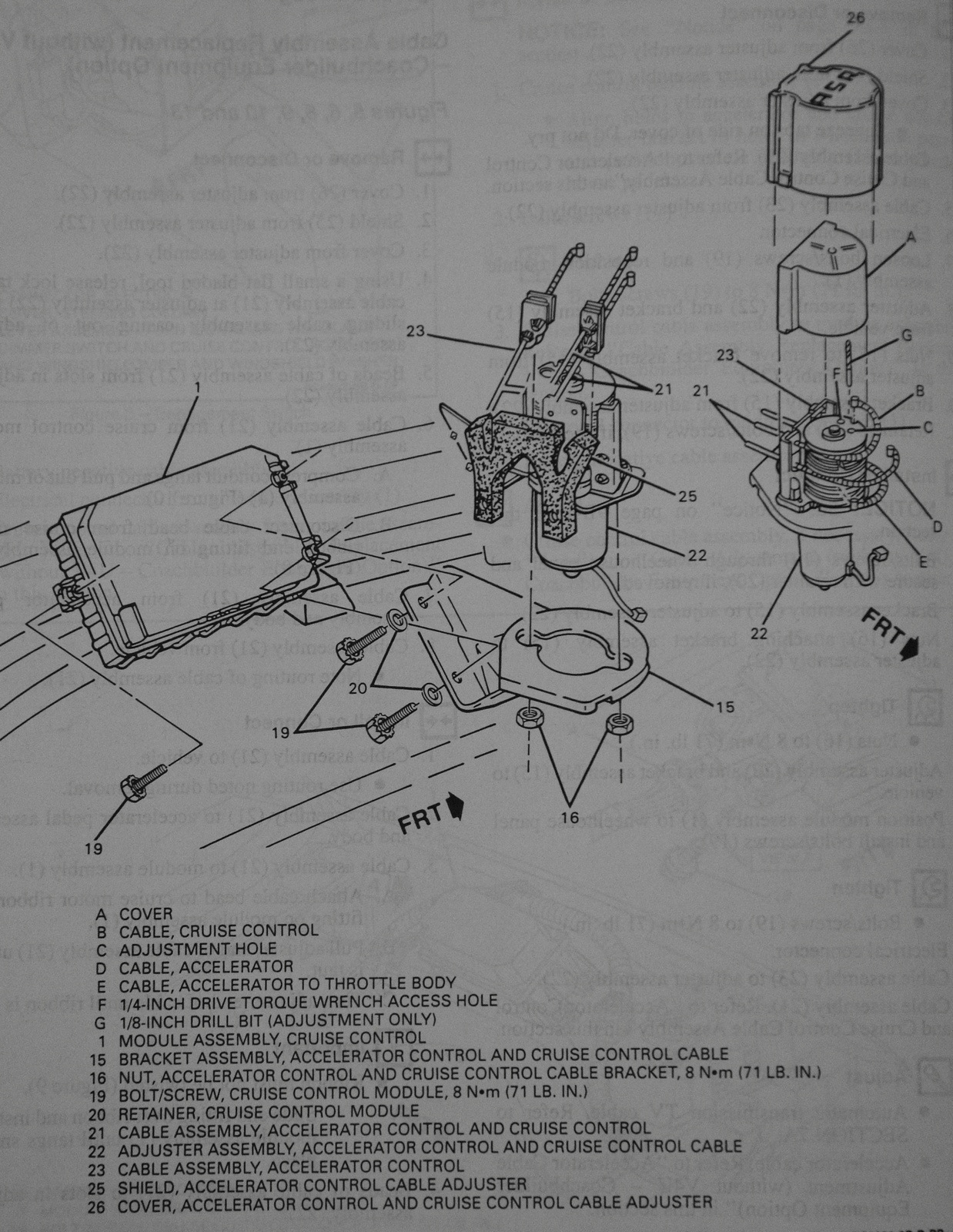

Few manual diagrams showing each component's function.






Adjustment

Adjusting these components means synchronizing all three cables so there's no unnecessary slack, and ensuring the throttle fully opens when you floor the gas pedal.



First, adjust the cable from the throttle to the traction regulator.

Press this button (requires decent finger pressure) and pull the cable's bowden out of the regulator.

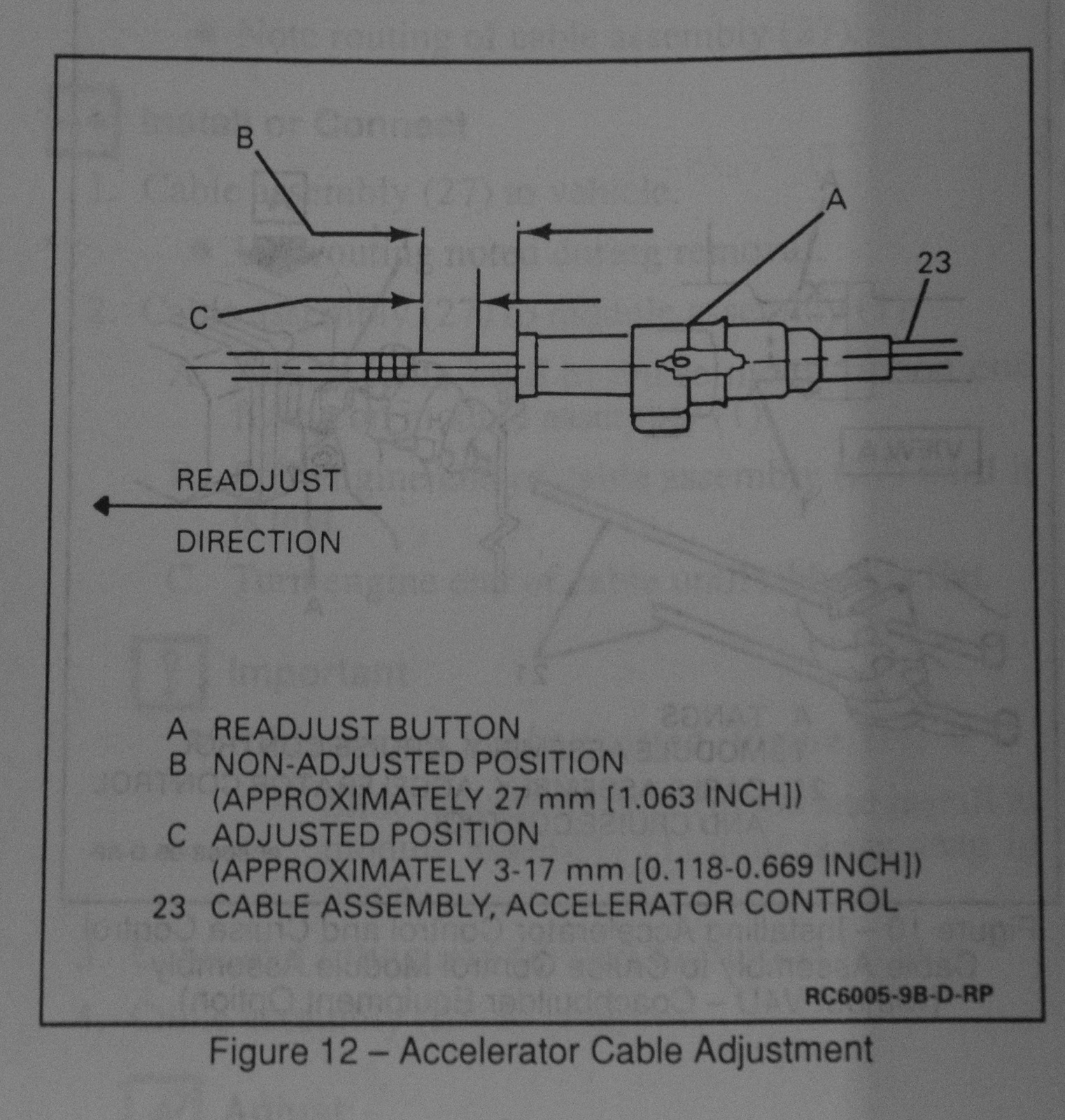

See the pic for how the cable should look in the "non-adjusted" position.



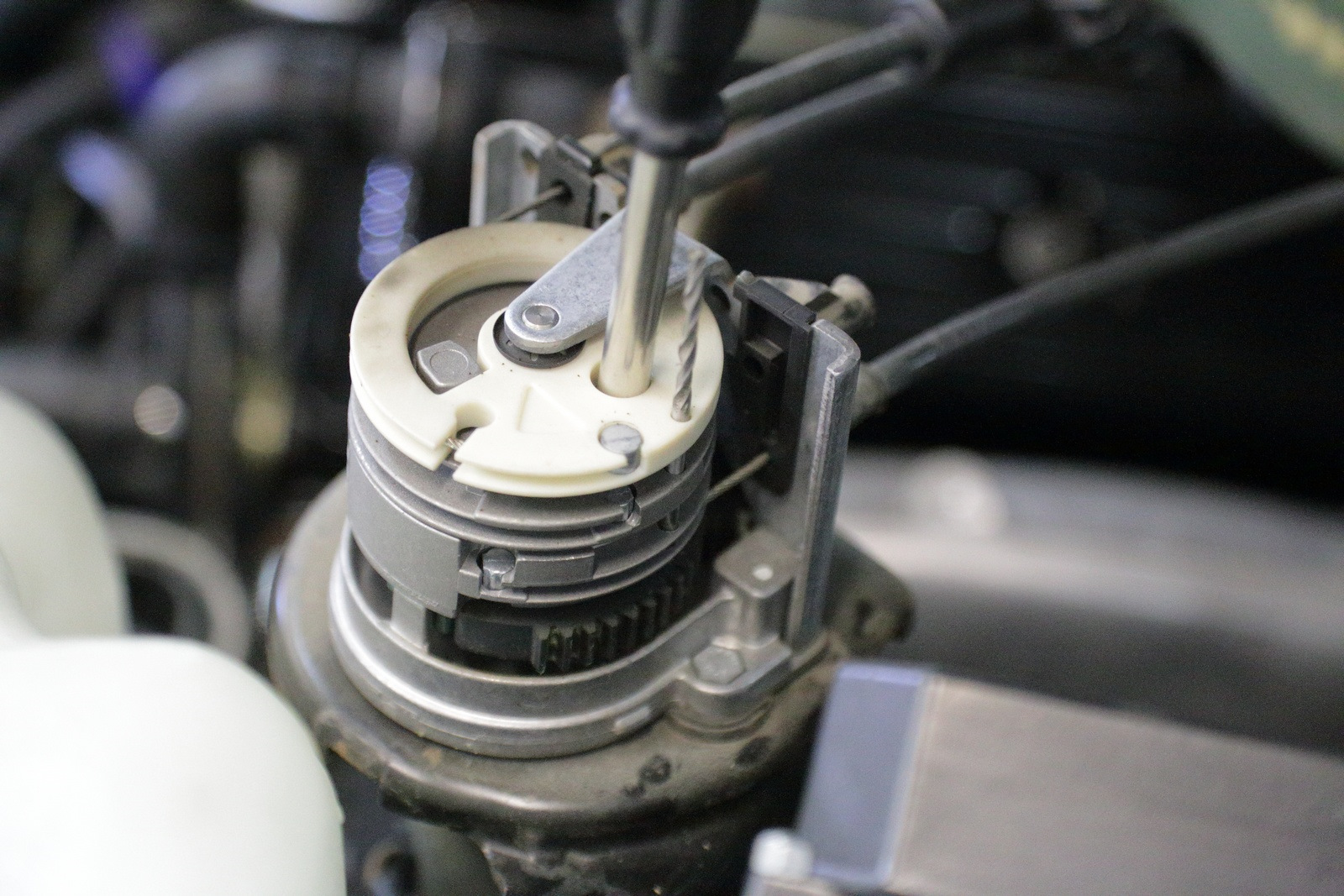

Next, insert a 3 mm drill bit all the way down through the stacked discs, then use a 1/4-inch drive tool to rotate the mechanism clockwise until it stops. Continue turning until you hear several clicks.
At this point, the accelerator cable is under tension. Check it by flooring the gas pedal: the throttle plate should fully open. If it does, the throttle cable is adjusted.


Then, adjust the cruise control cable.



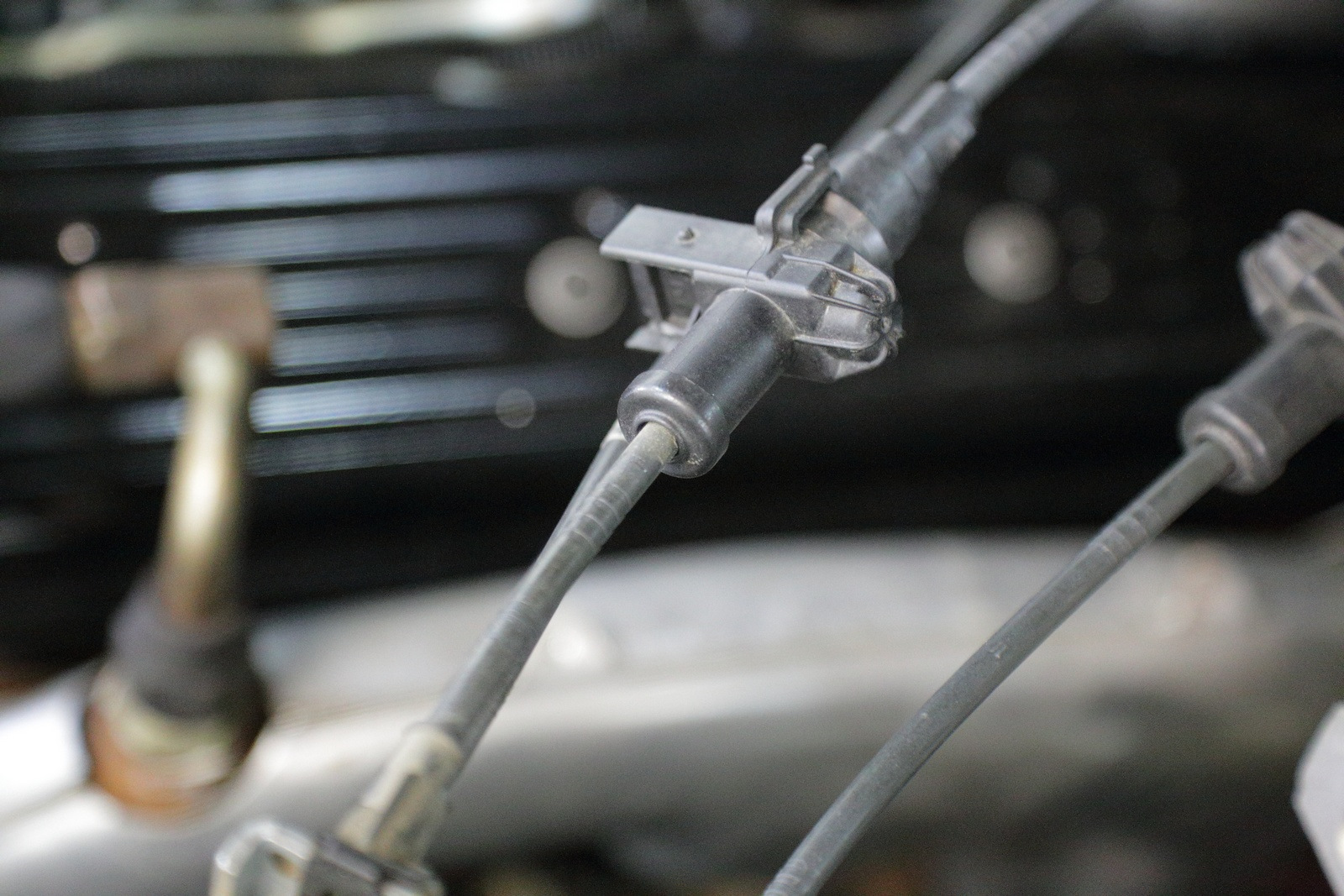

Flip the latch on the cruise cable, which loosens the bowden. Loosening the bowden = loosening the cable. Once loosened, snap the latch back in place.



While holding the throttle cable and the top disc of the regulator, pull the cruise cable just enough to remove any slack.

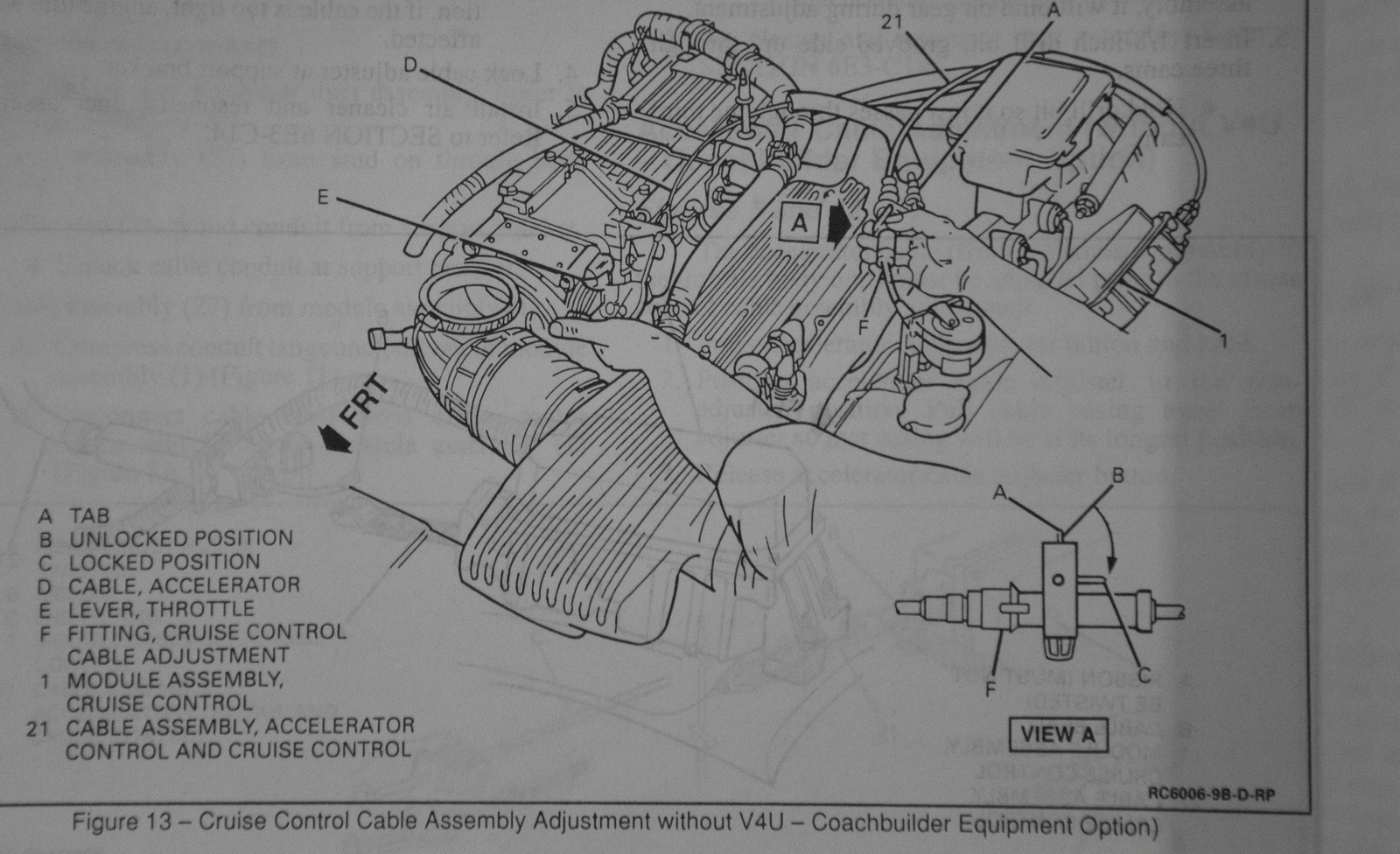

The manual shows the same process in a diagram.



That's it for the adjustments. With the pedal floored, the throttle plate fully opens, and the cruise cable has no extra slack that would cause "lag" while cruising.

Here are a few extra photos of the car in the garage:



Since the radiators aren't installed and fluids aren't filled, the front end sits higher than normal.



Sometimes, I play chess with my youngest.





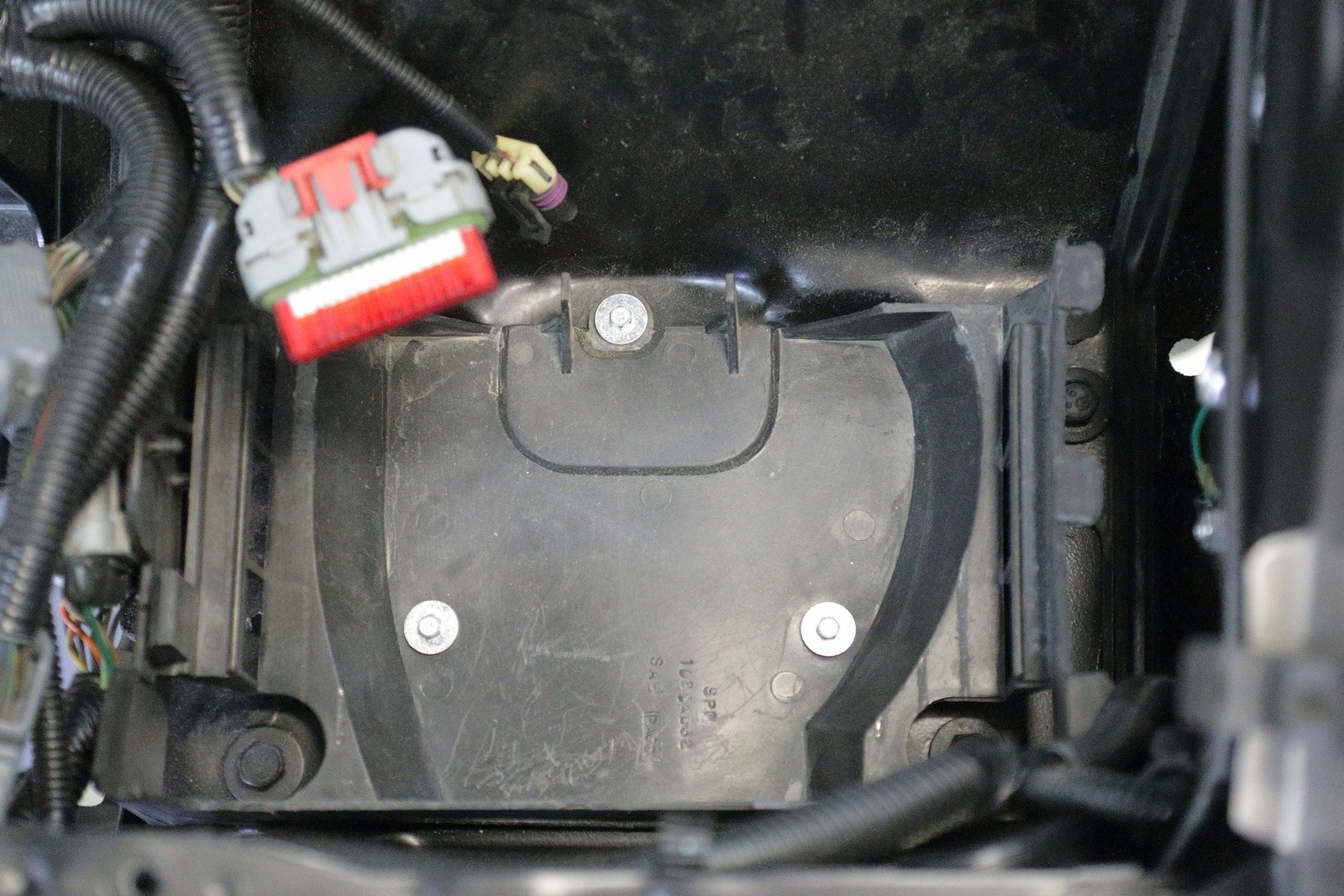

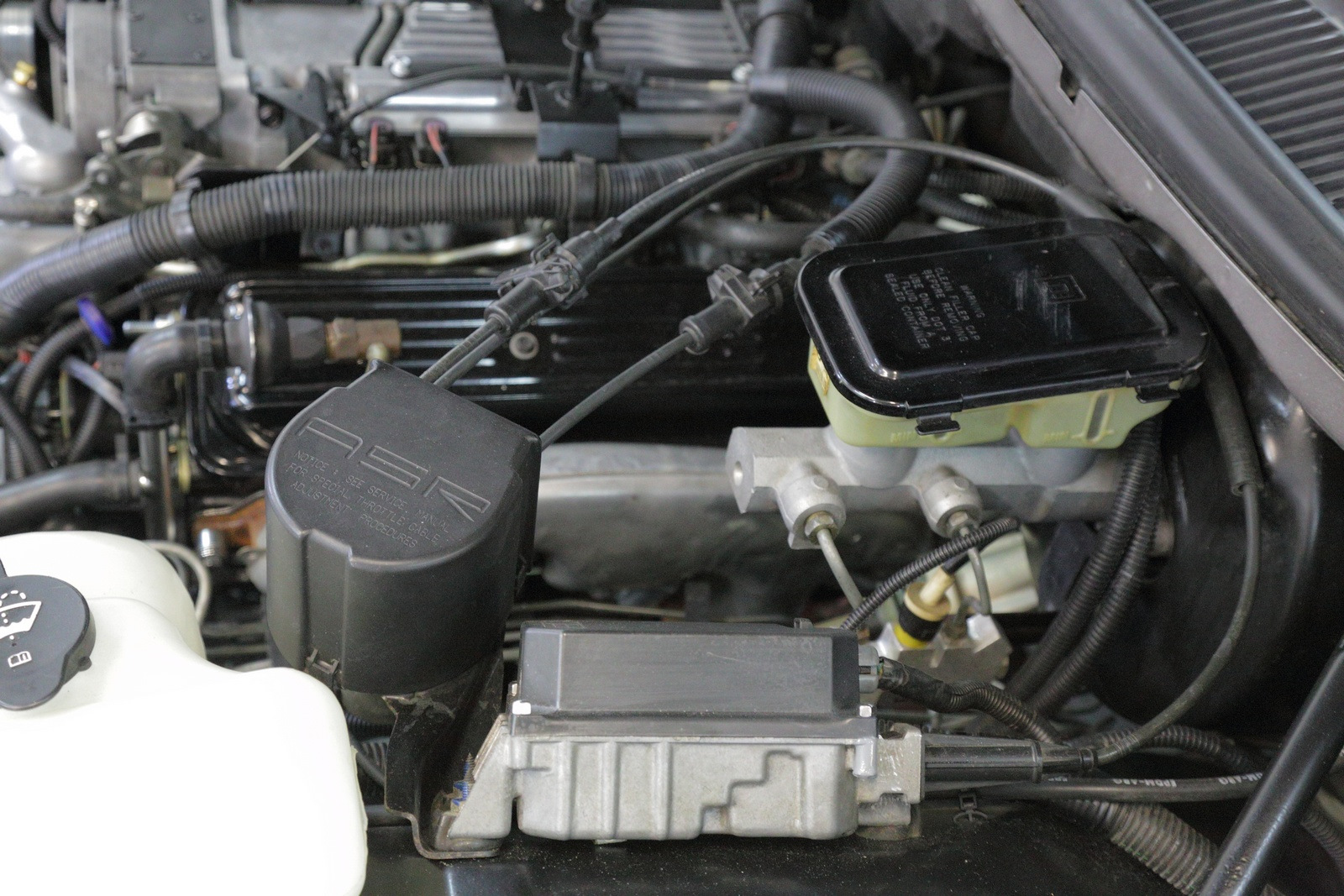

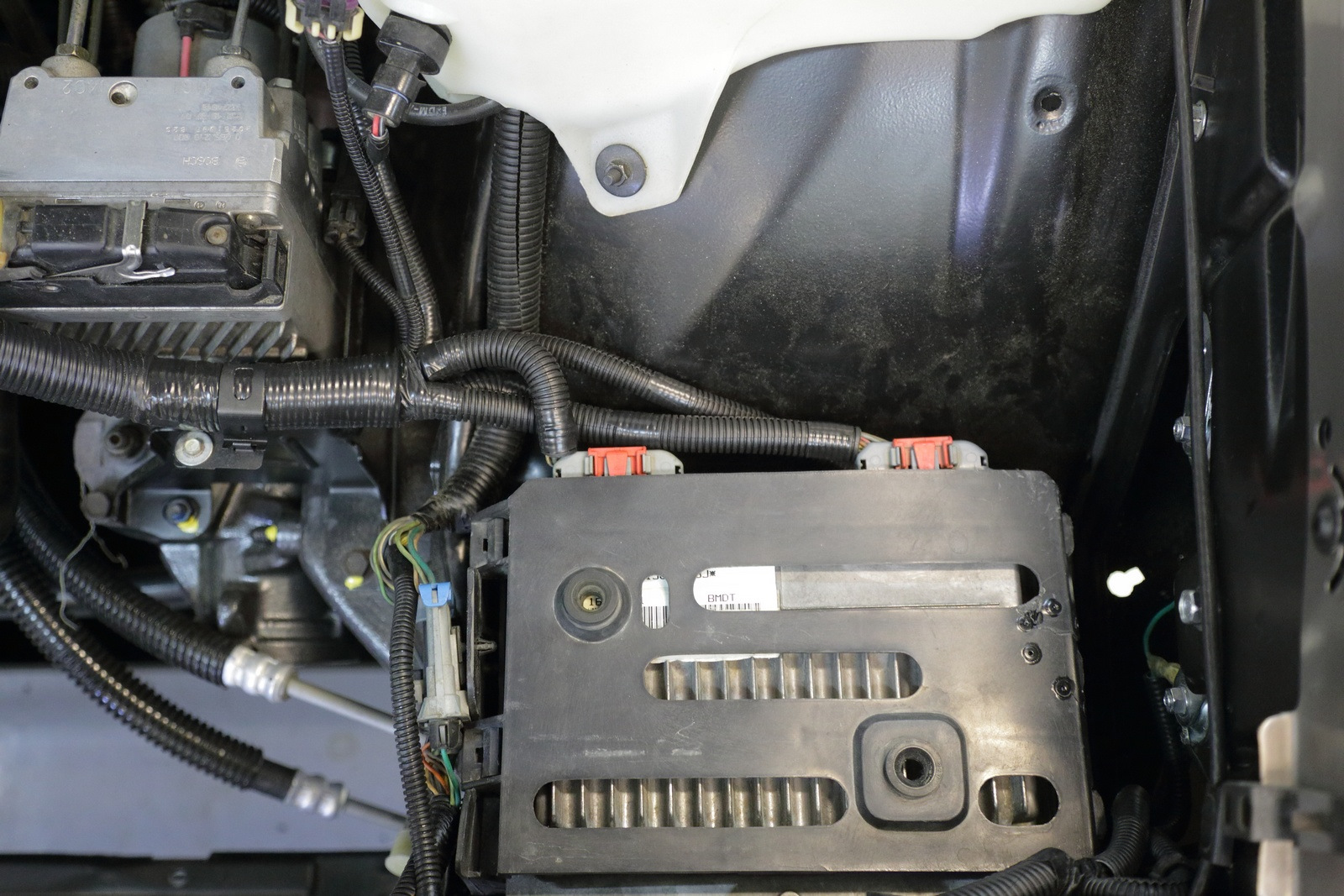

I've installed the PCM bracket and plugged in the PCM.





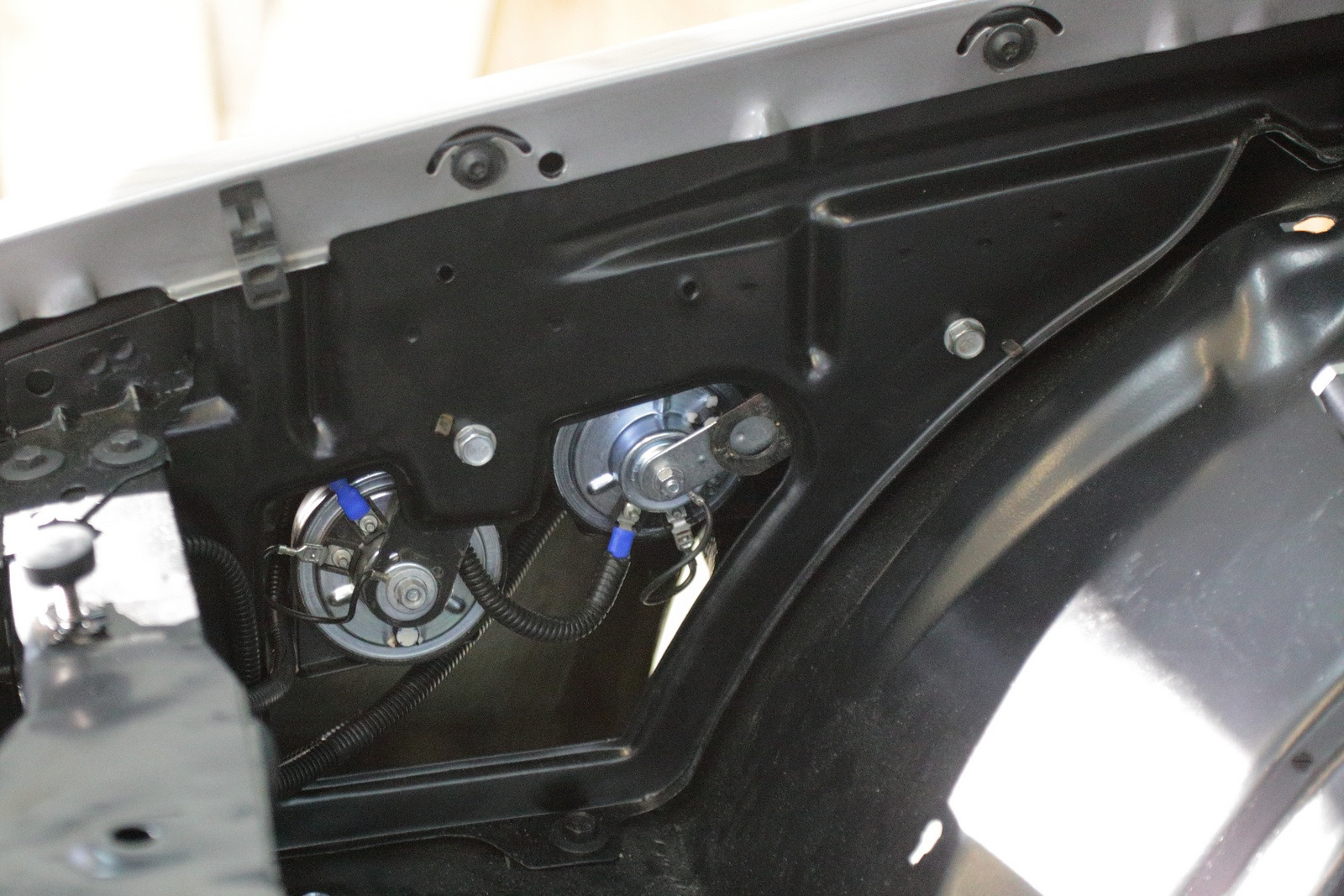

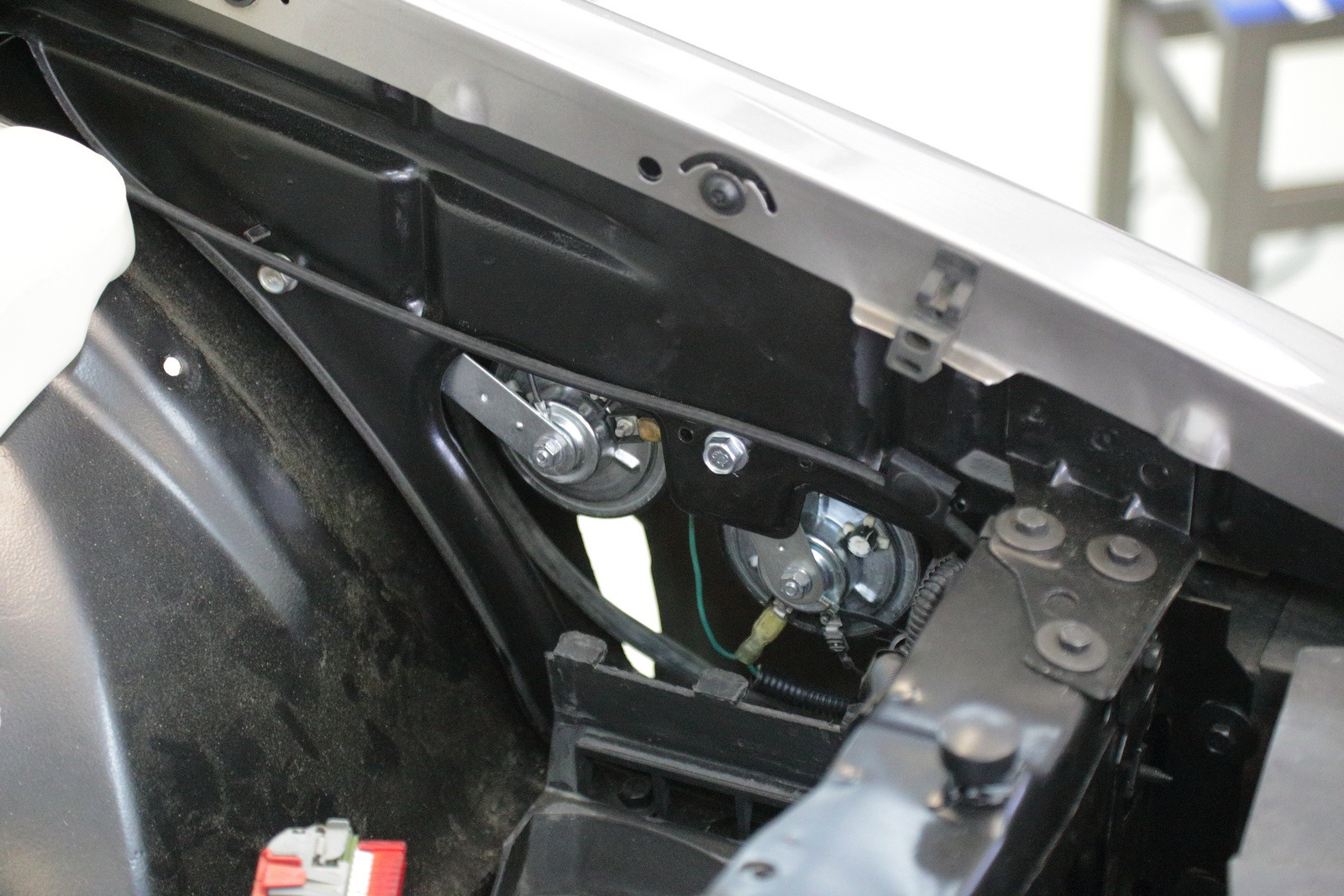

Also hooked up the horns—four of them (two on the left, two on the right).

[kudims]

AC and Engine cooling lines assembly



Compressor was drained from the old oil. The oil was clear



New oil



Old vs. new



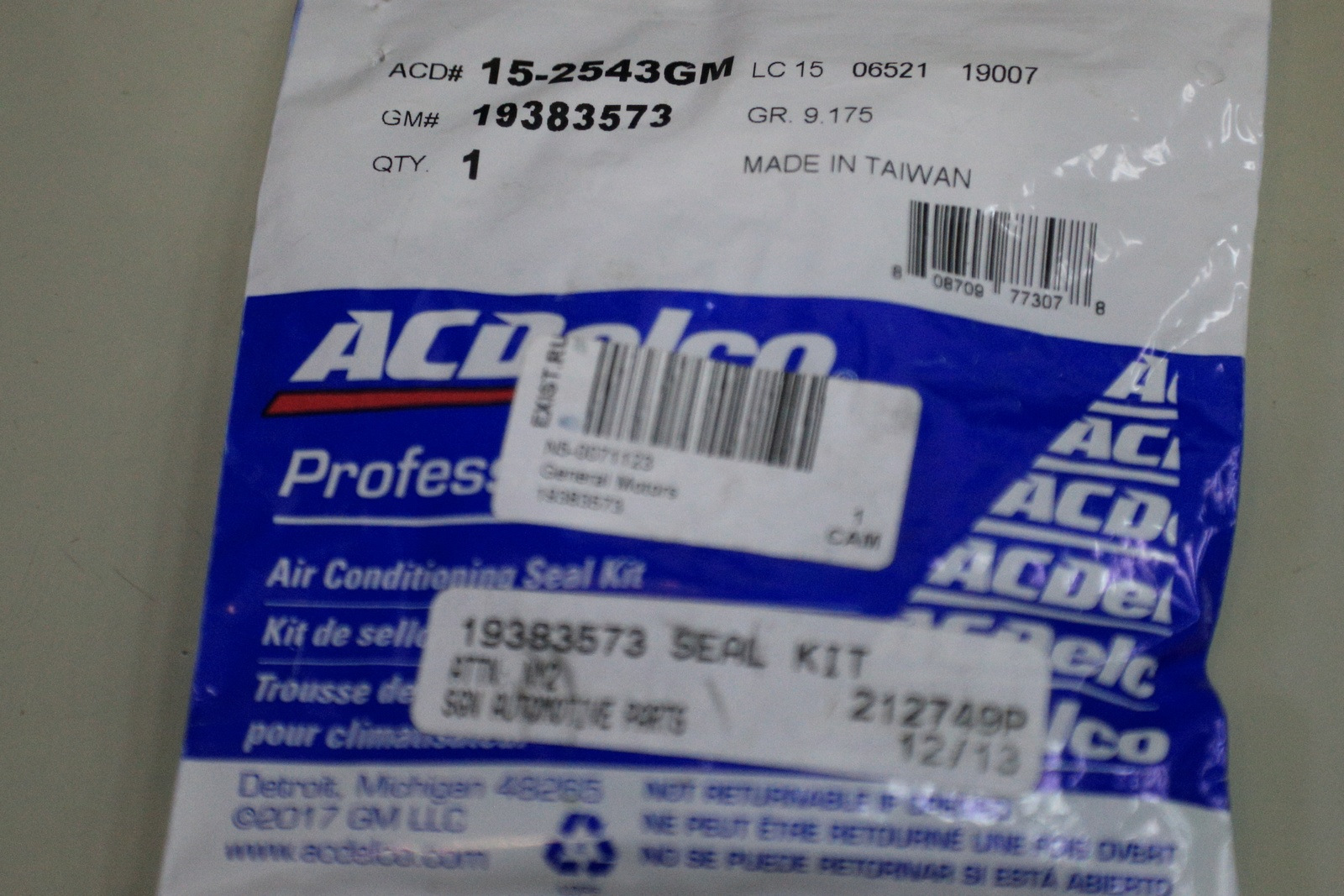

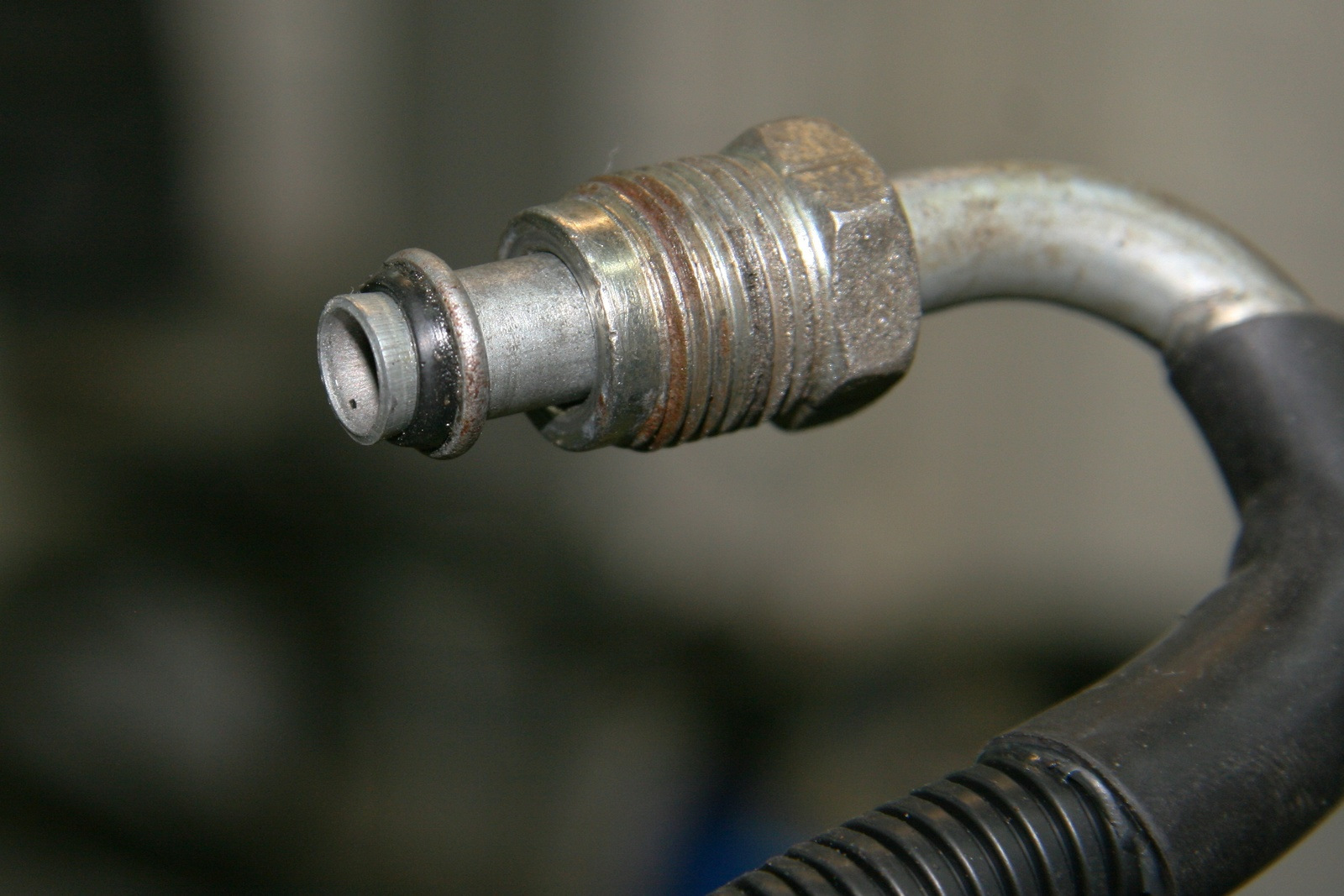

Set of o-rings and seals for the HVAC



Just in case if someone will need it



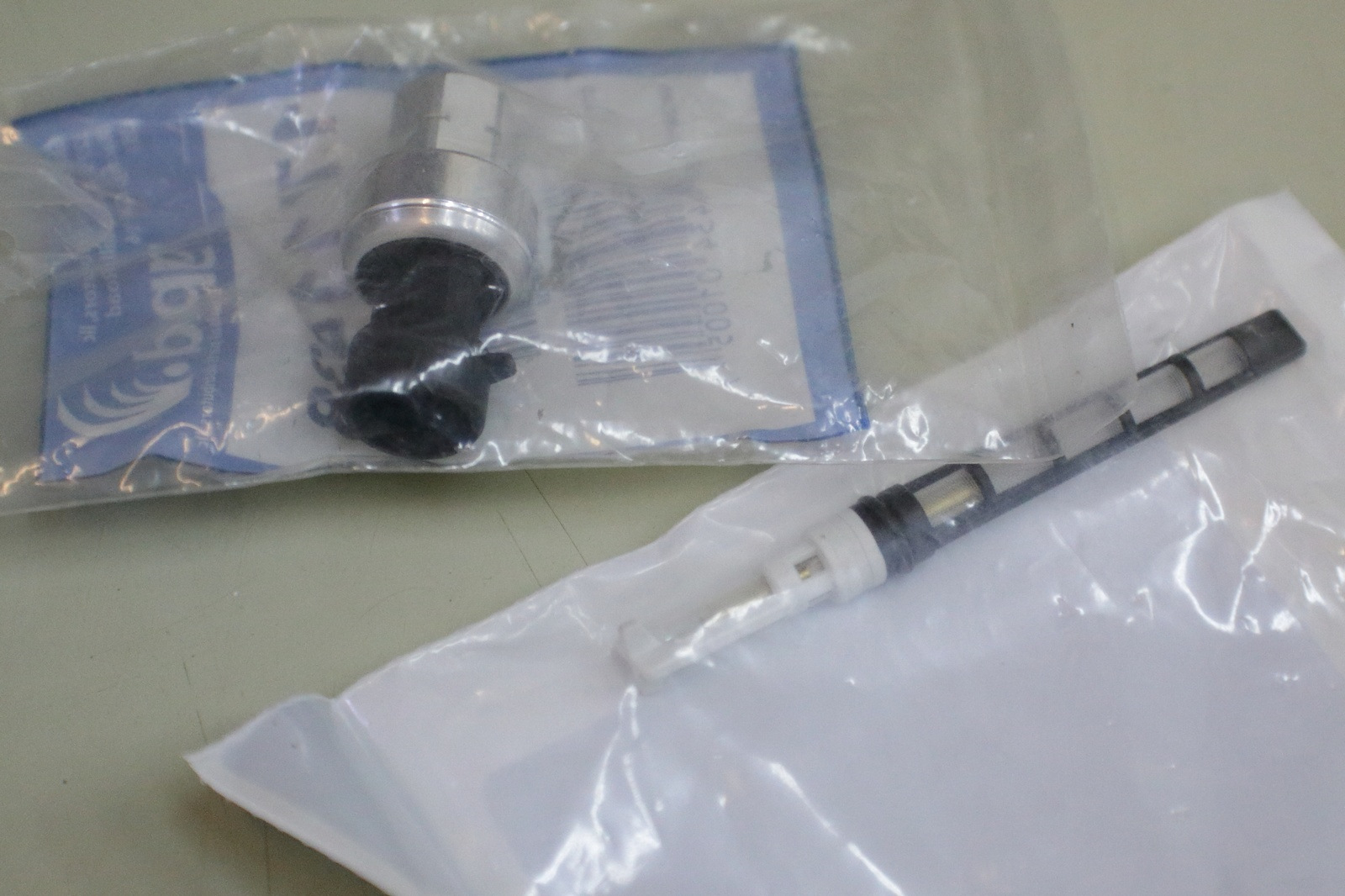

New pressure gauge and evaporator nozzle



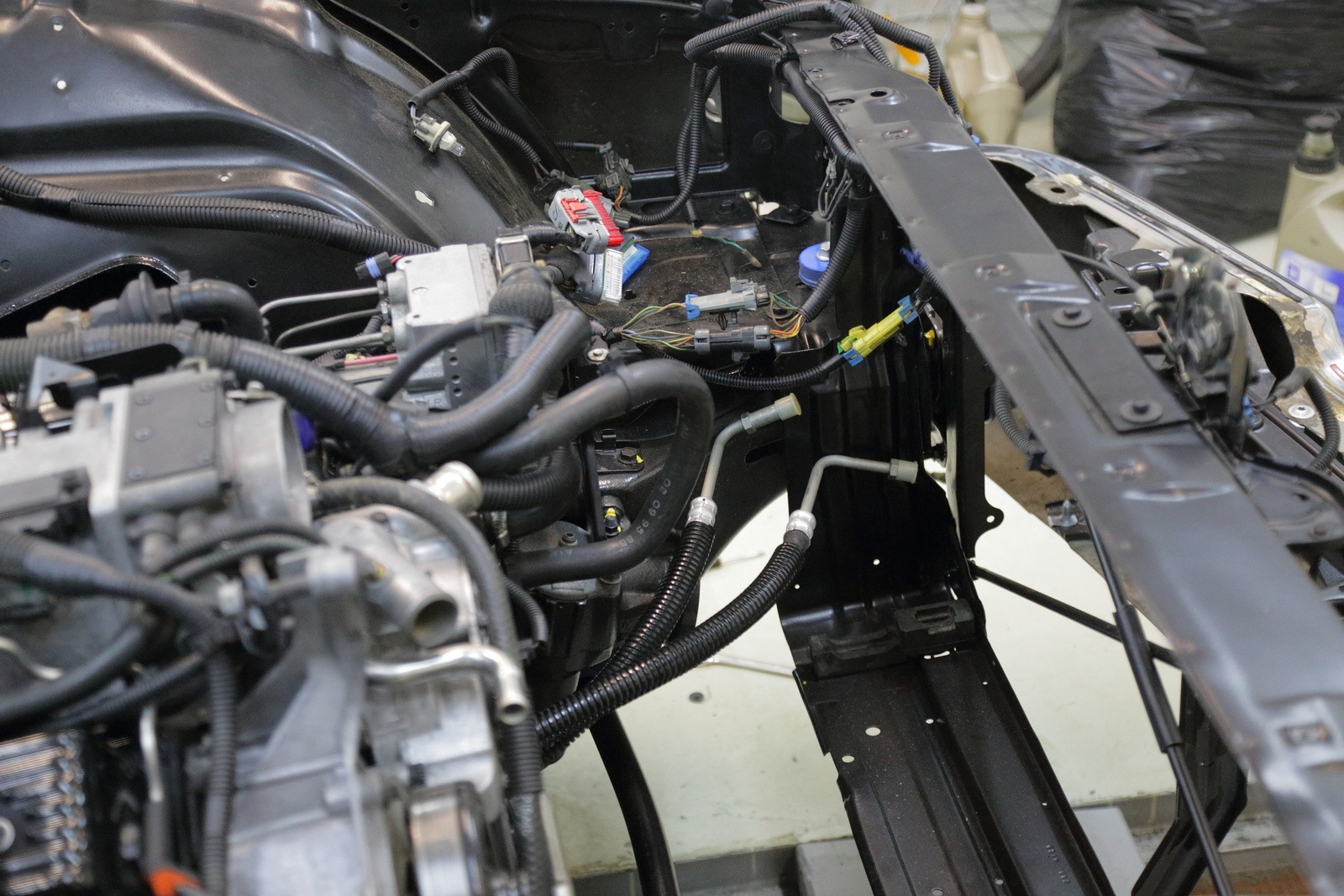

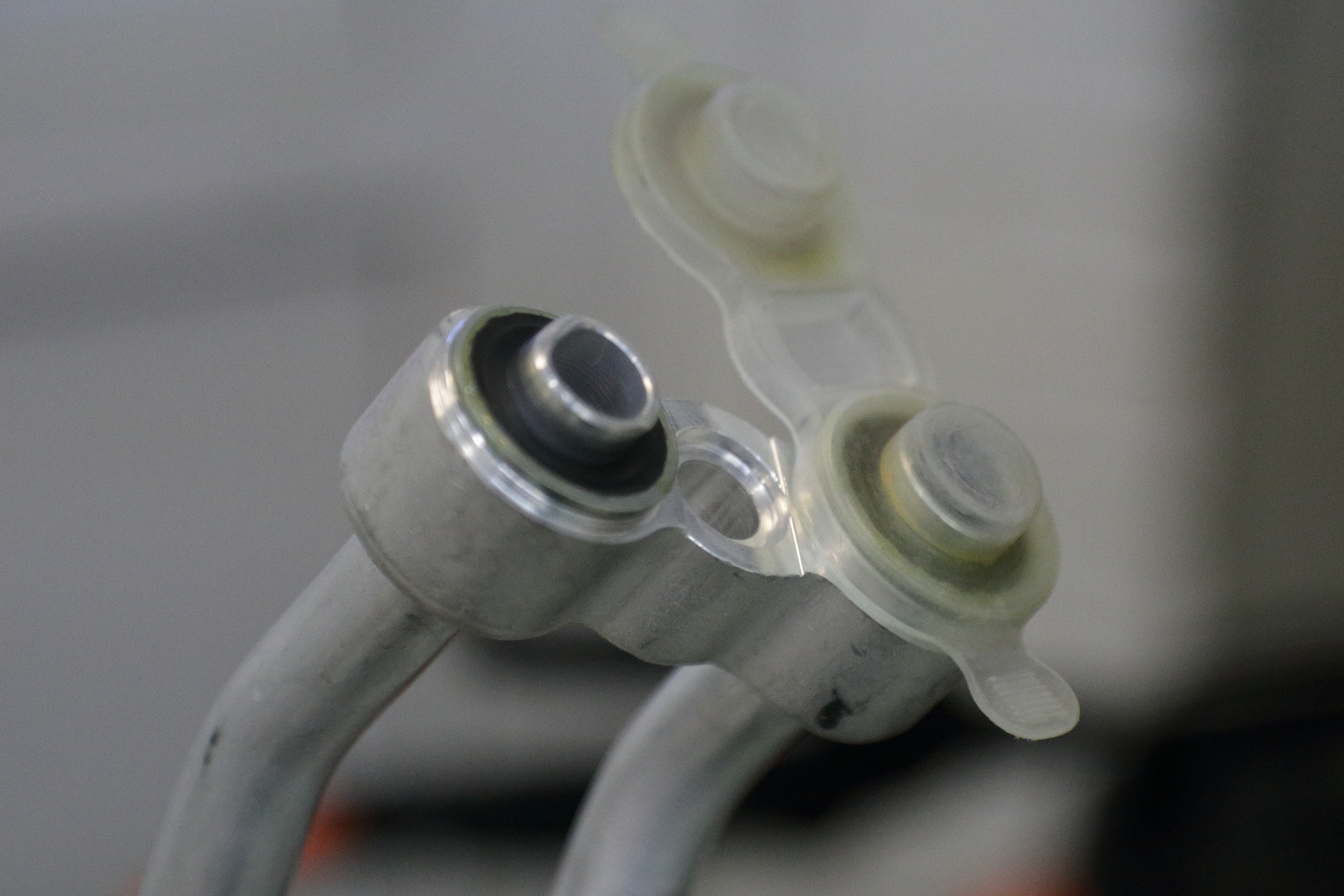

New lines were sealed



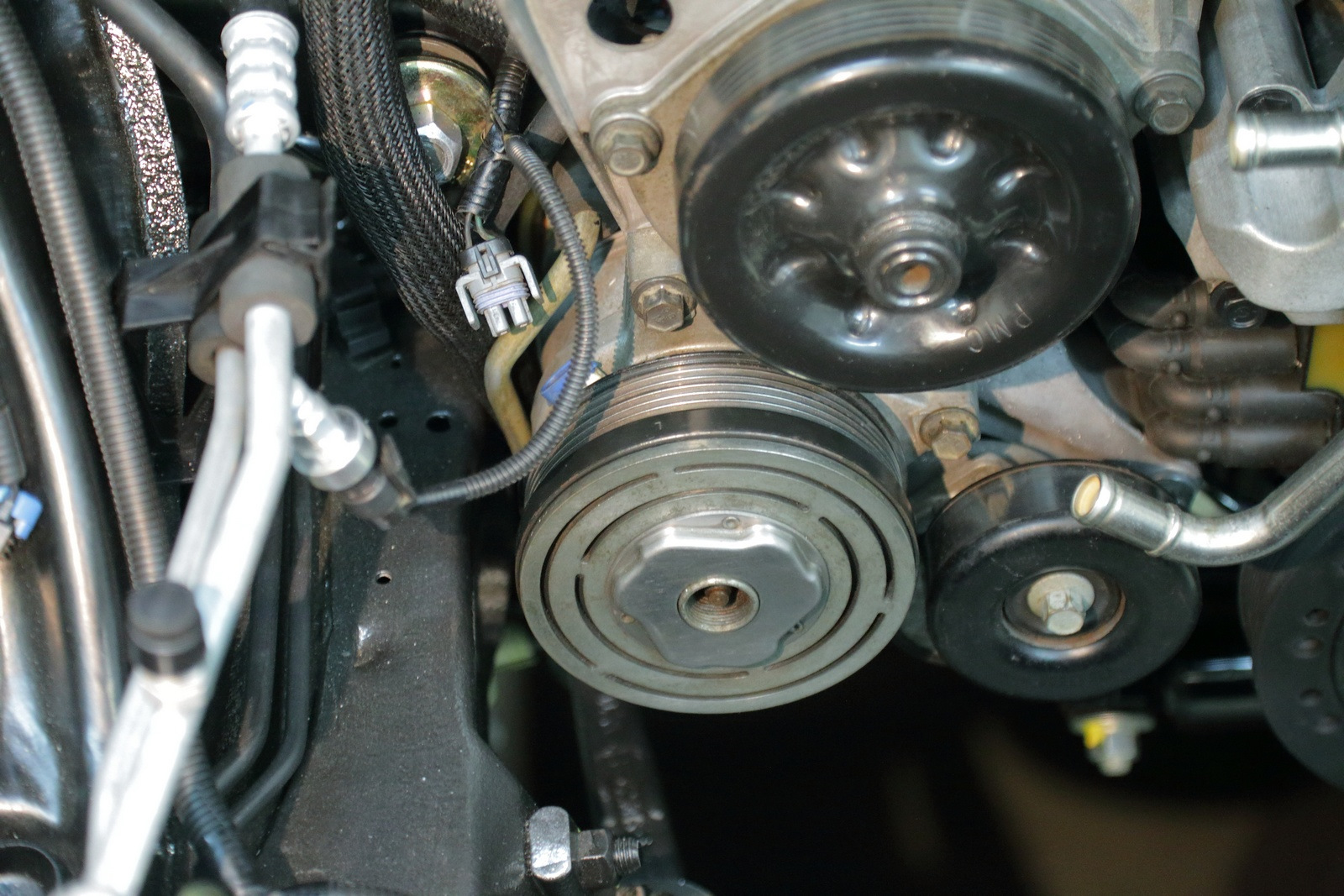

Compressor installed, 240ml of new oil was added into compressor



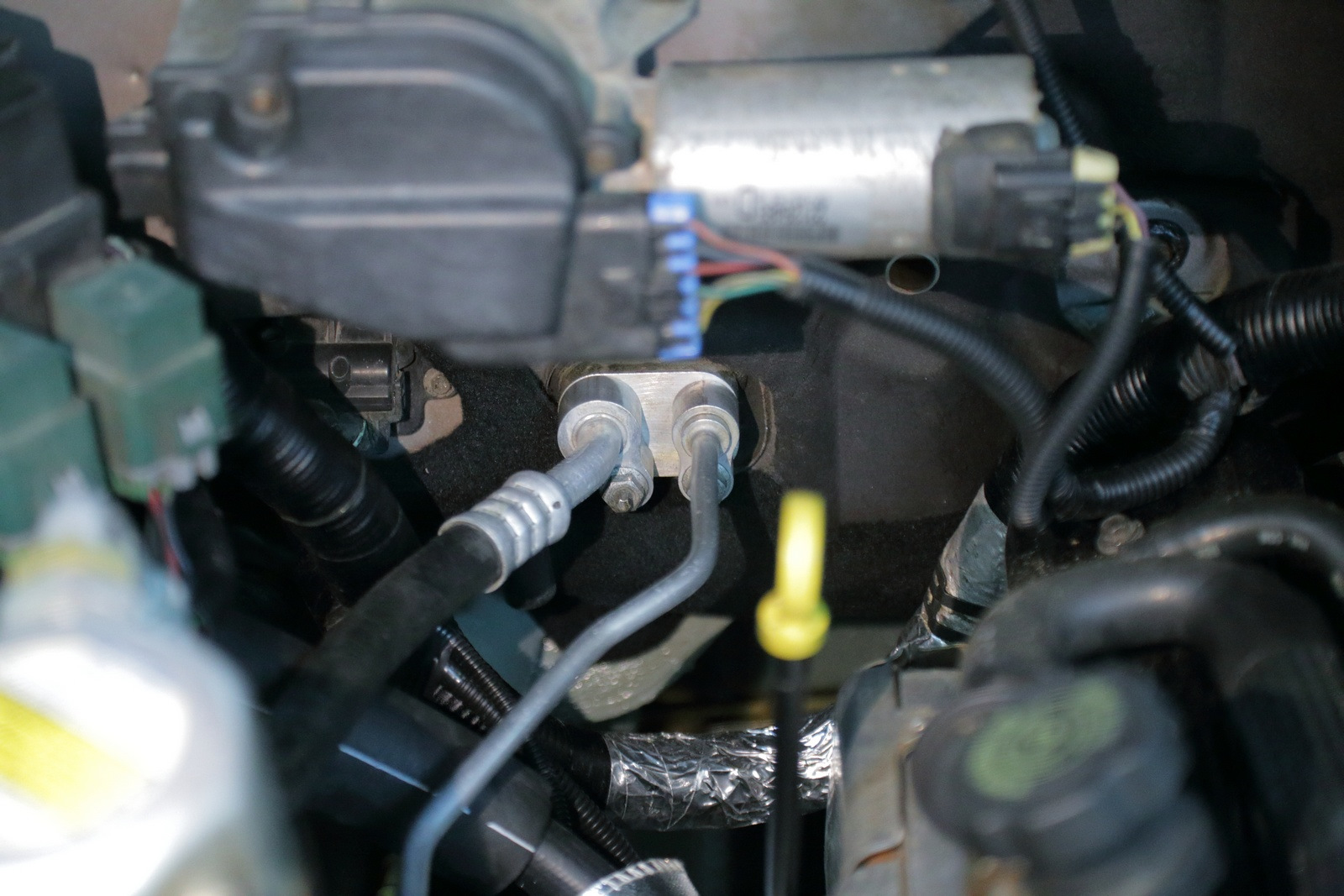

Attach new lines to the evaporator coil.
Note that the stitch where the firewall insulation was patched is almost invisible



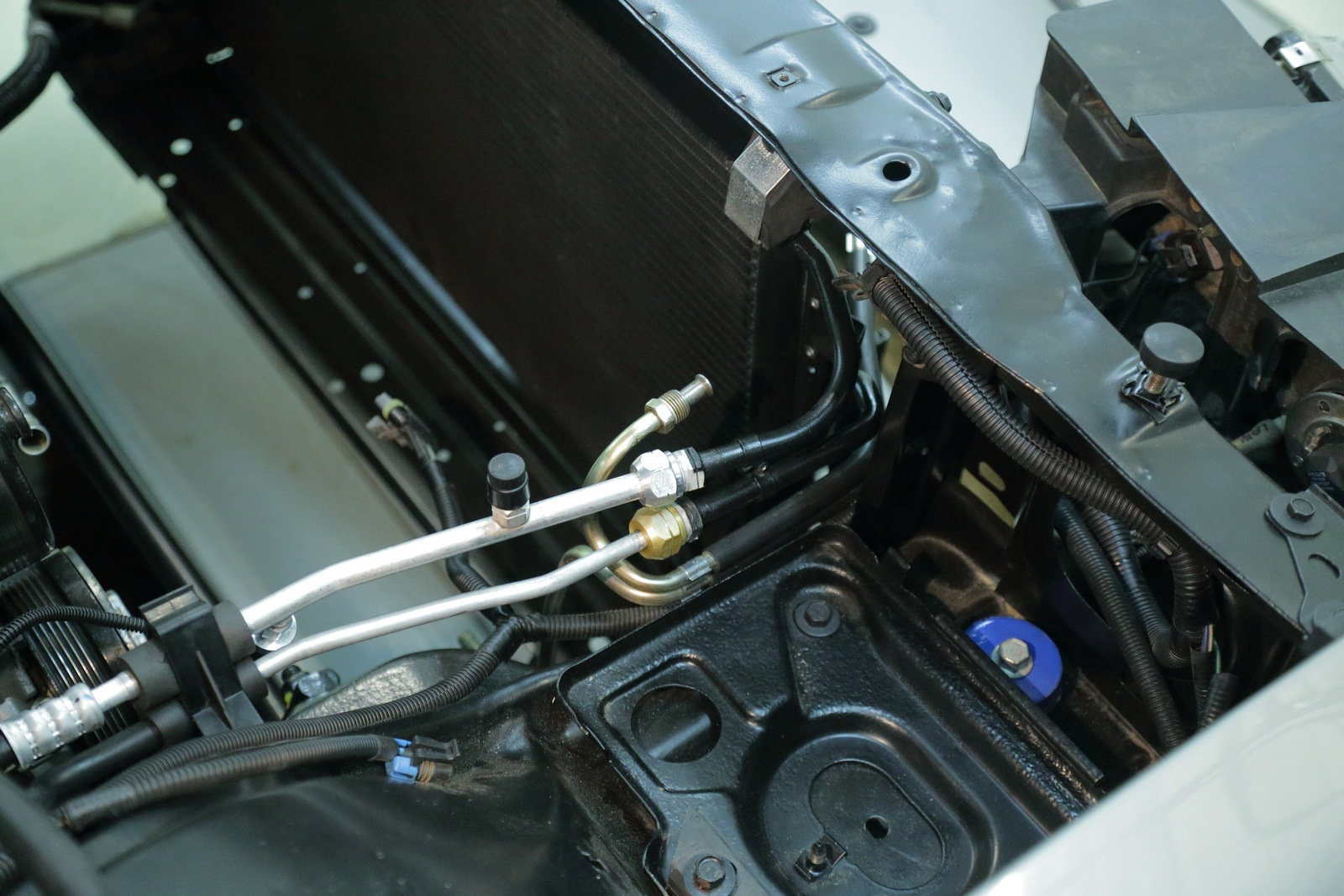

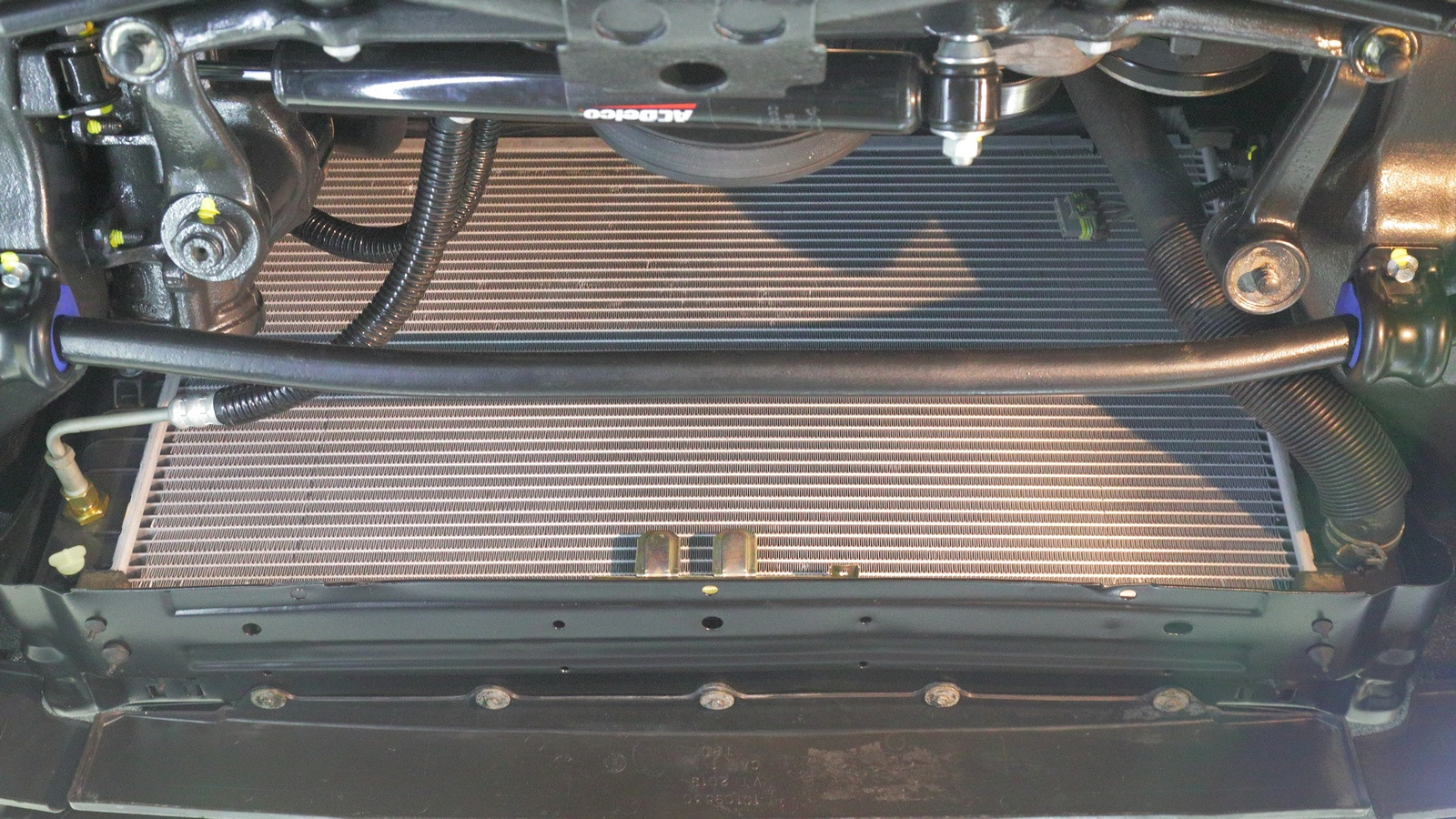

New condenser installed



15ml of oil was added into it





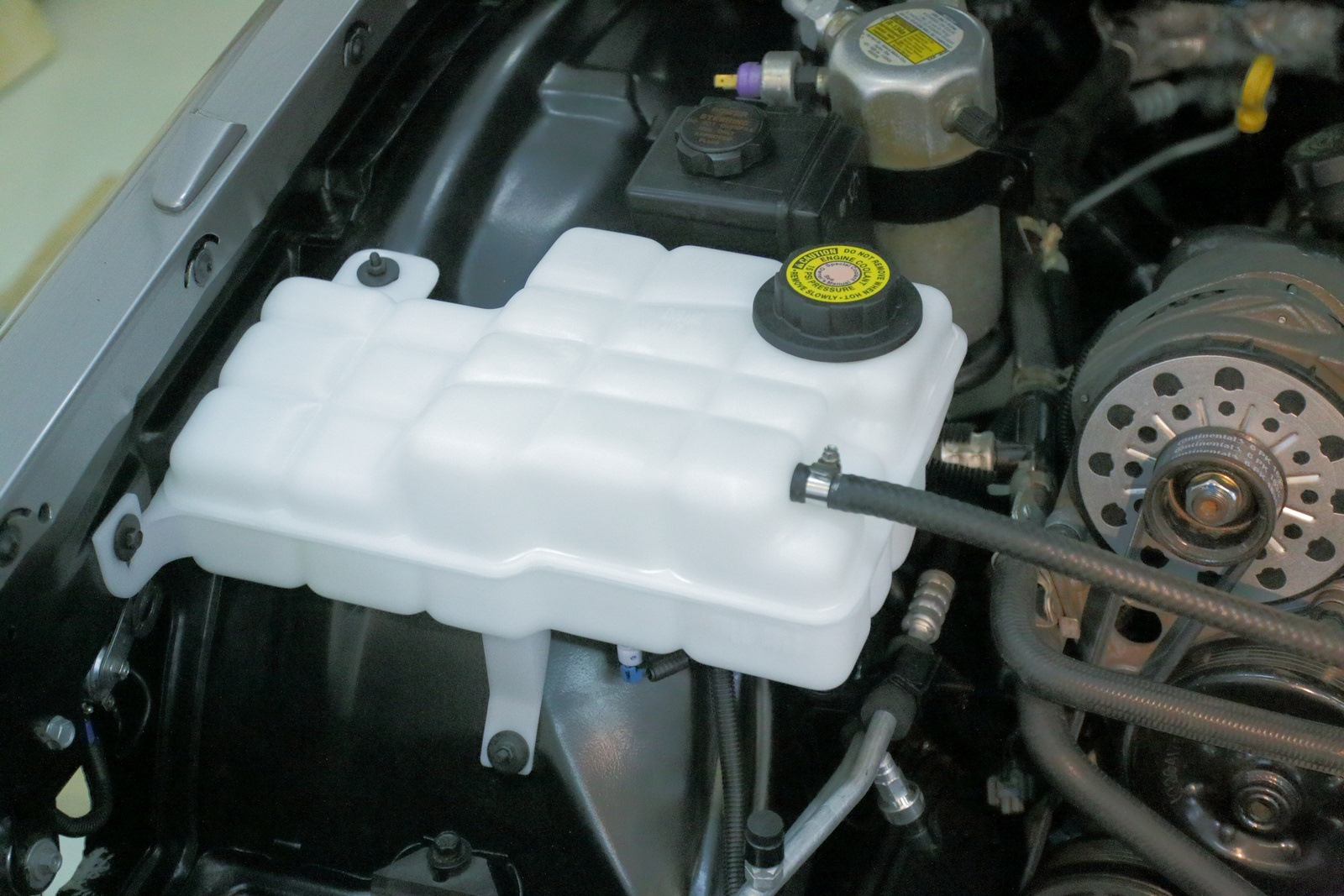

New expansion cooler tank

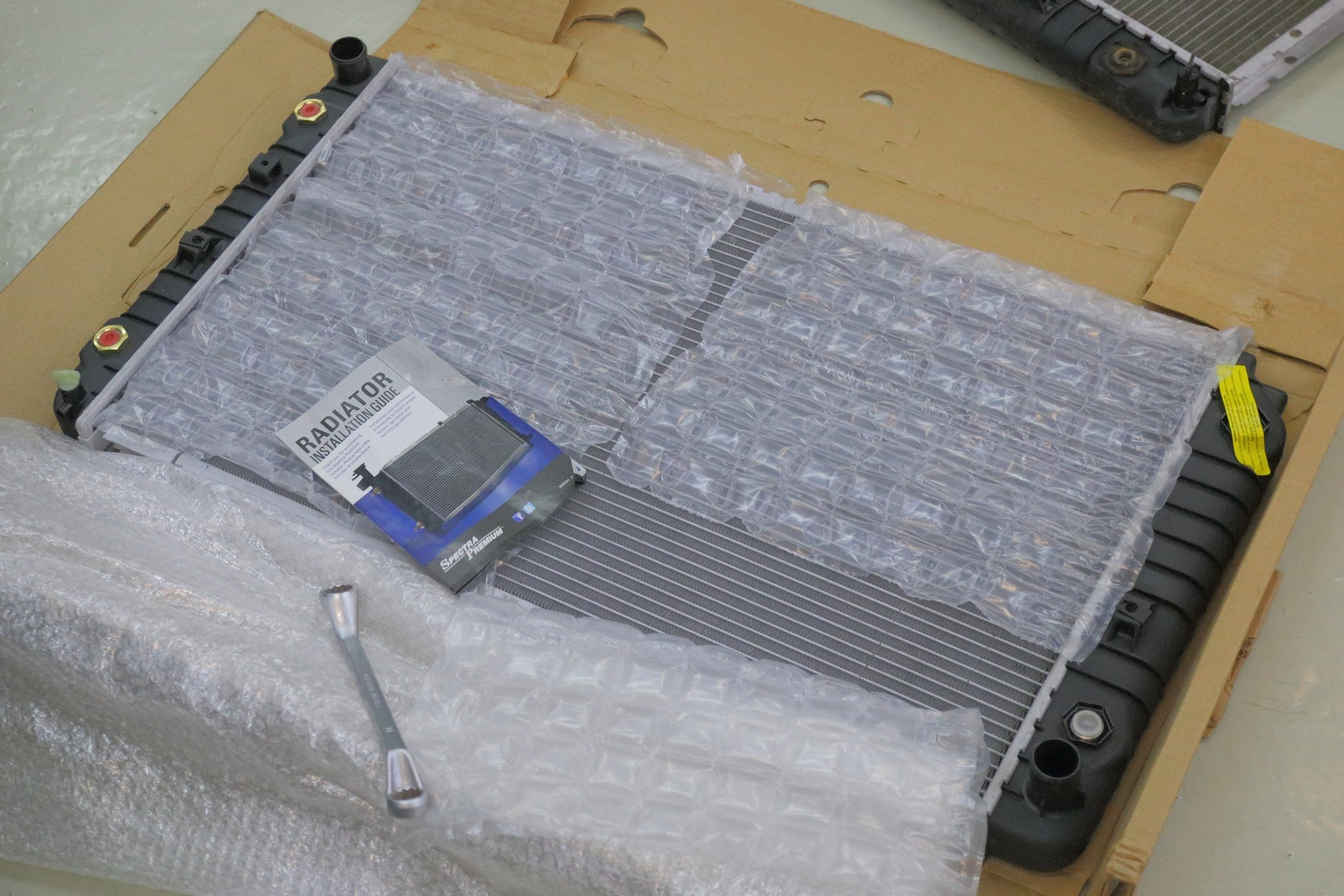

New radiator



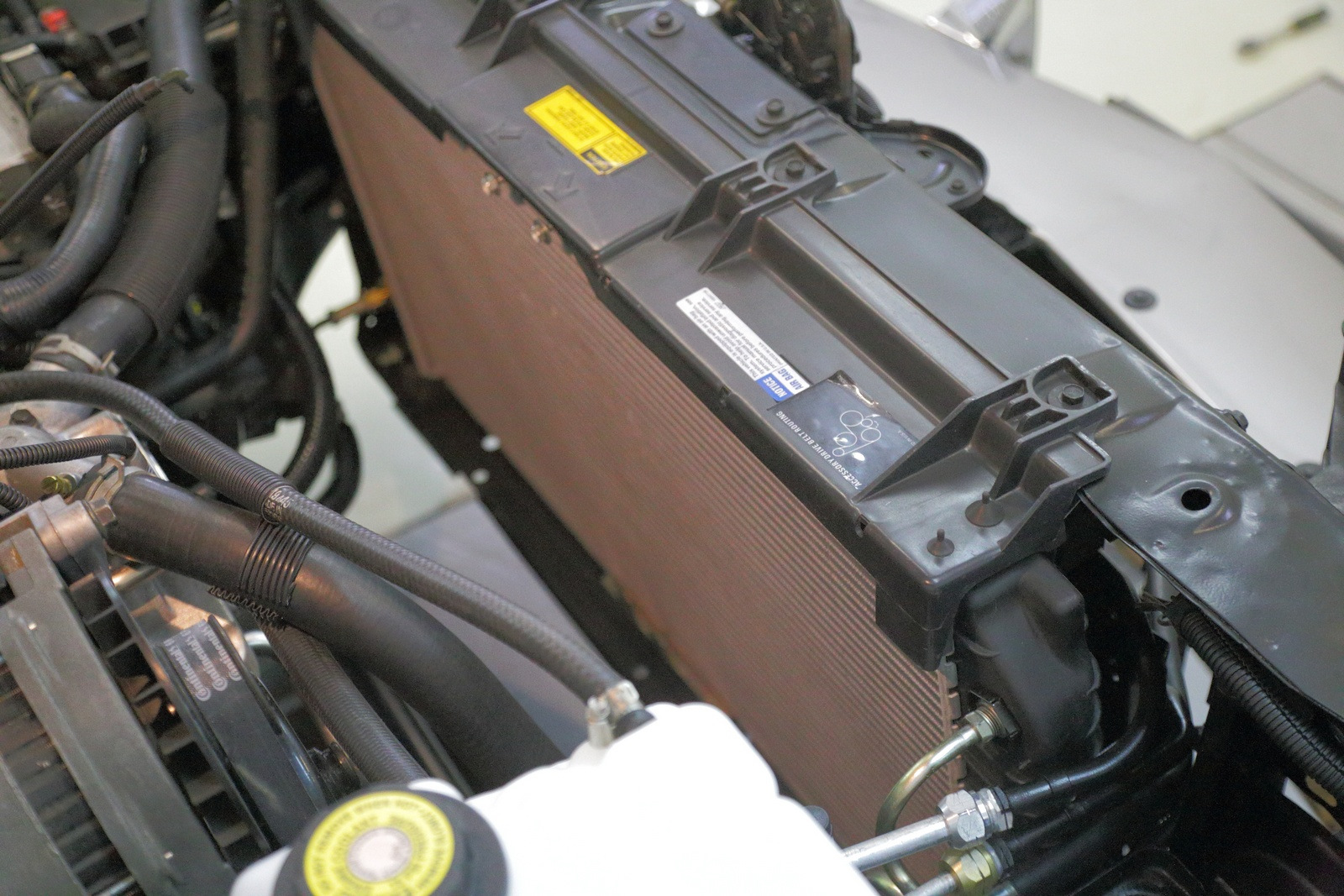

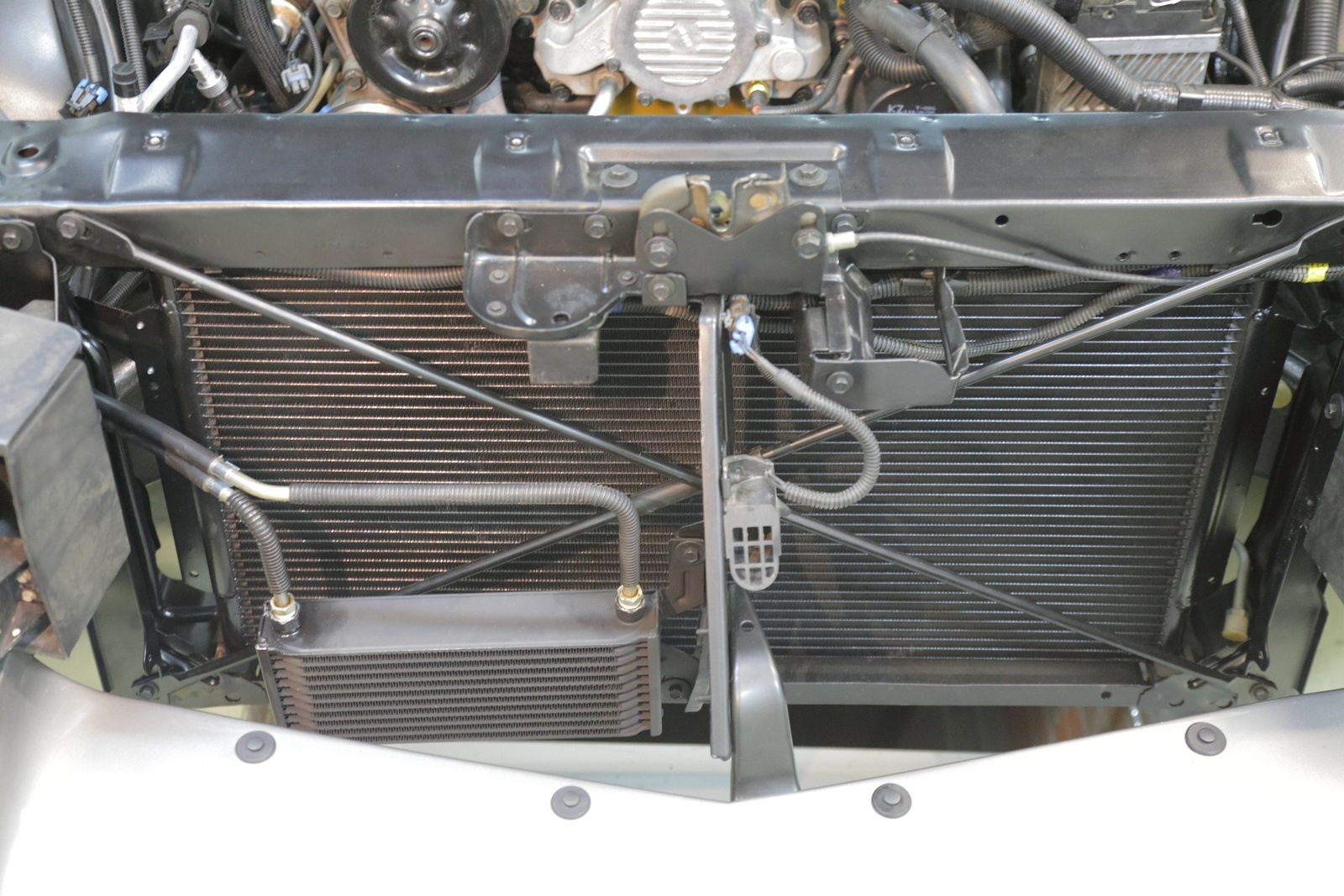

Installed



Air deflectors





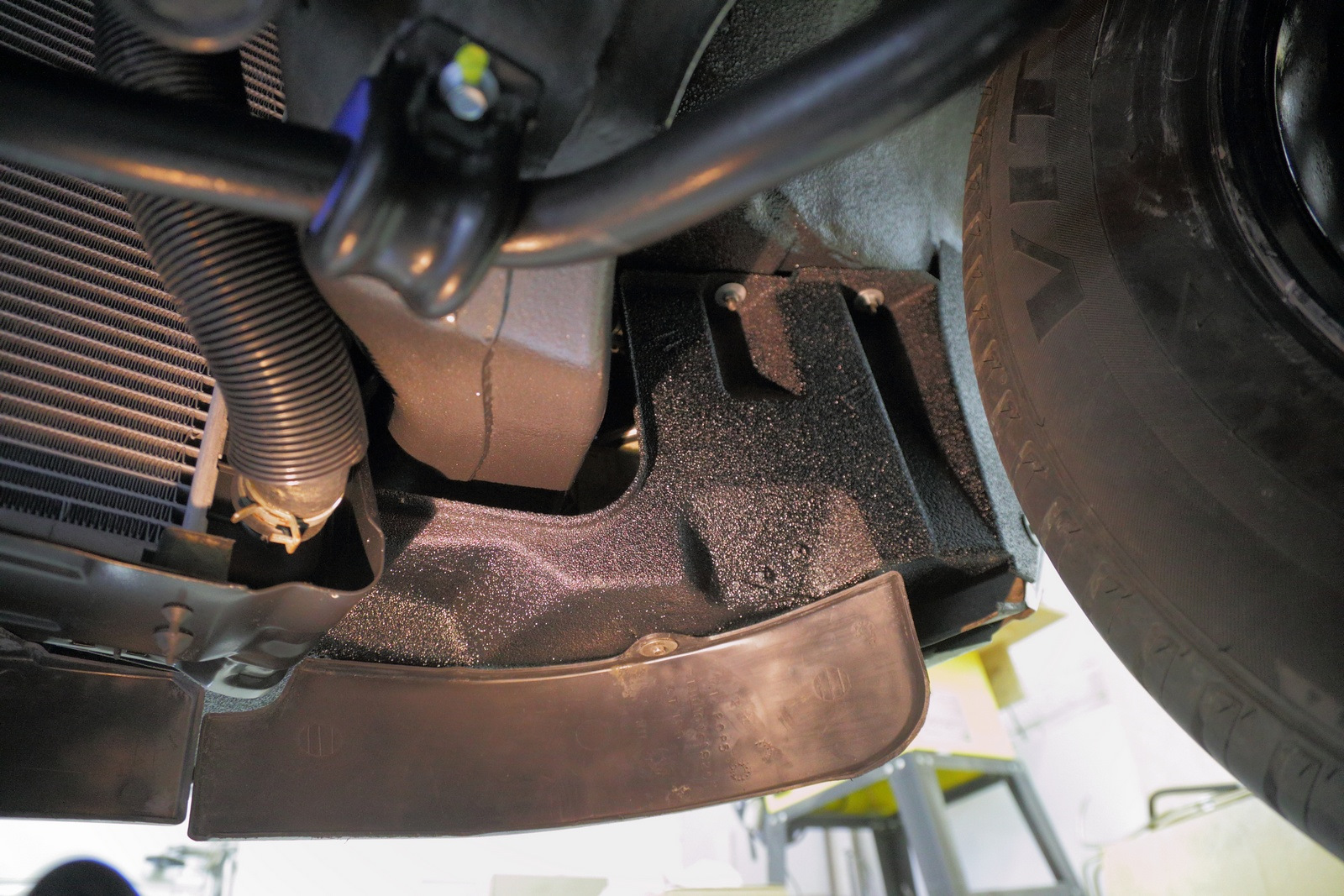

Front shields

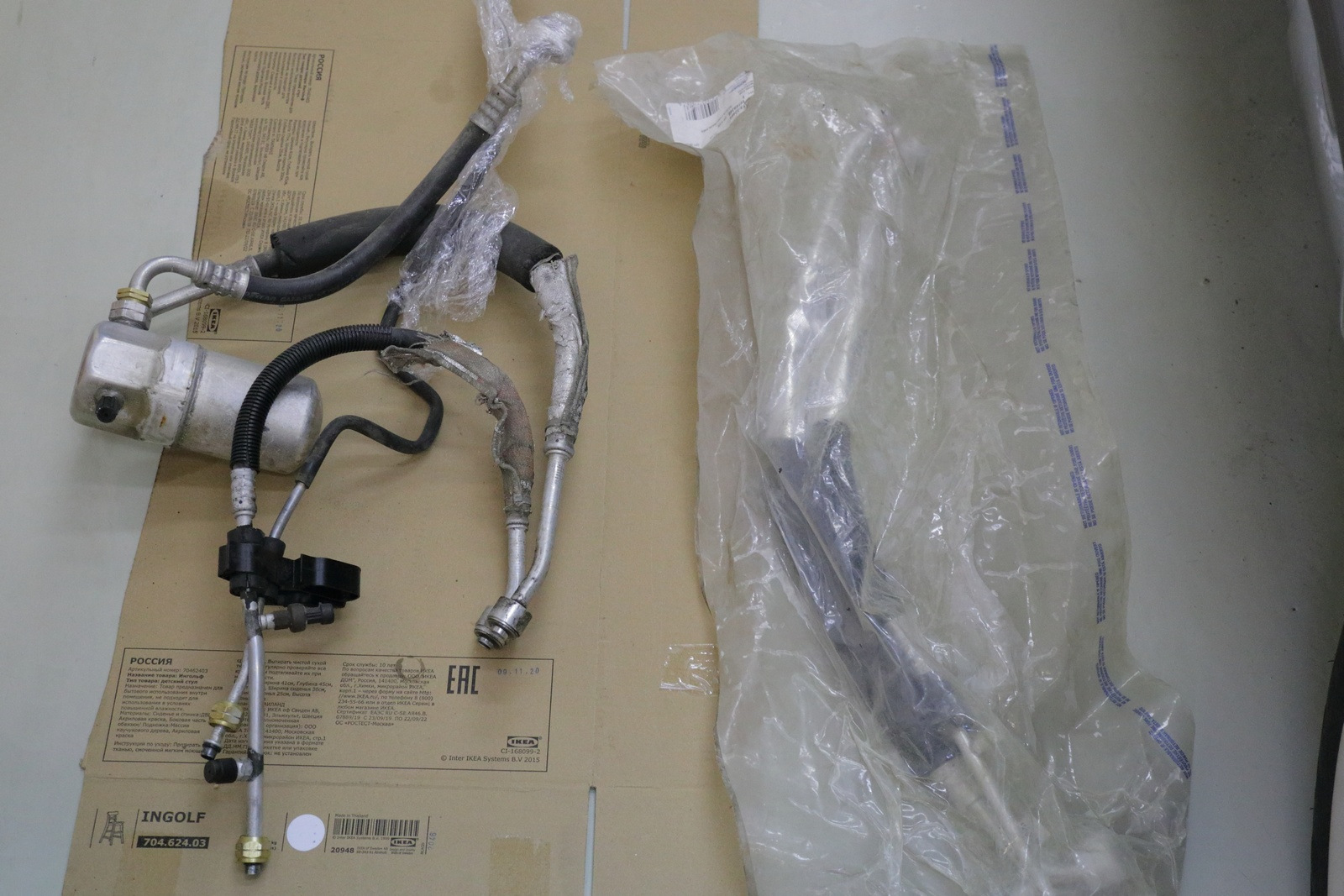

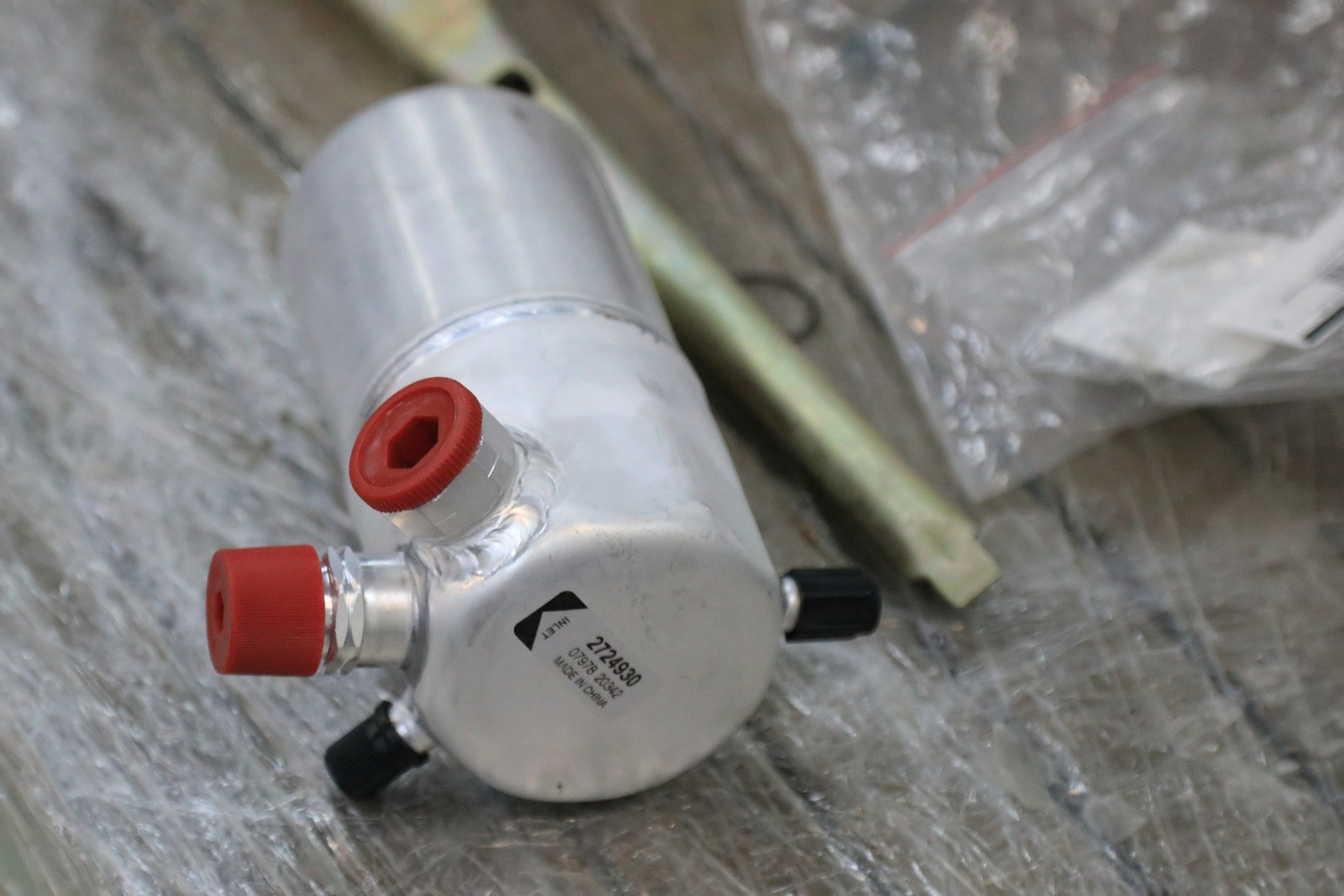

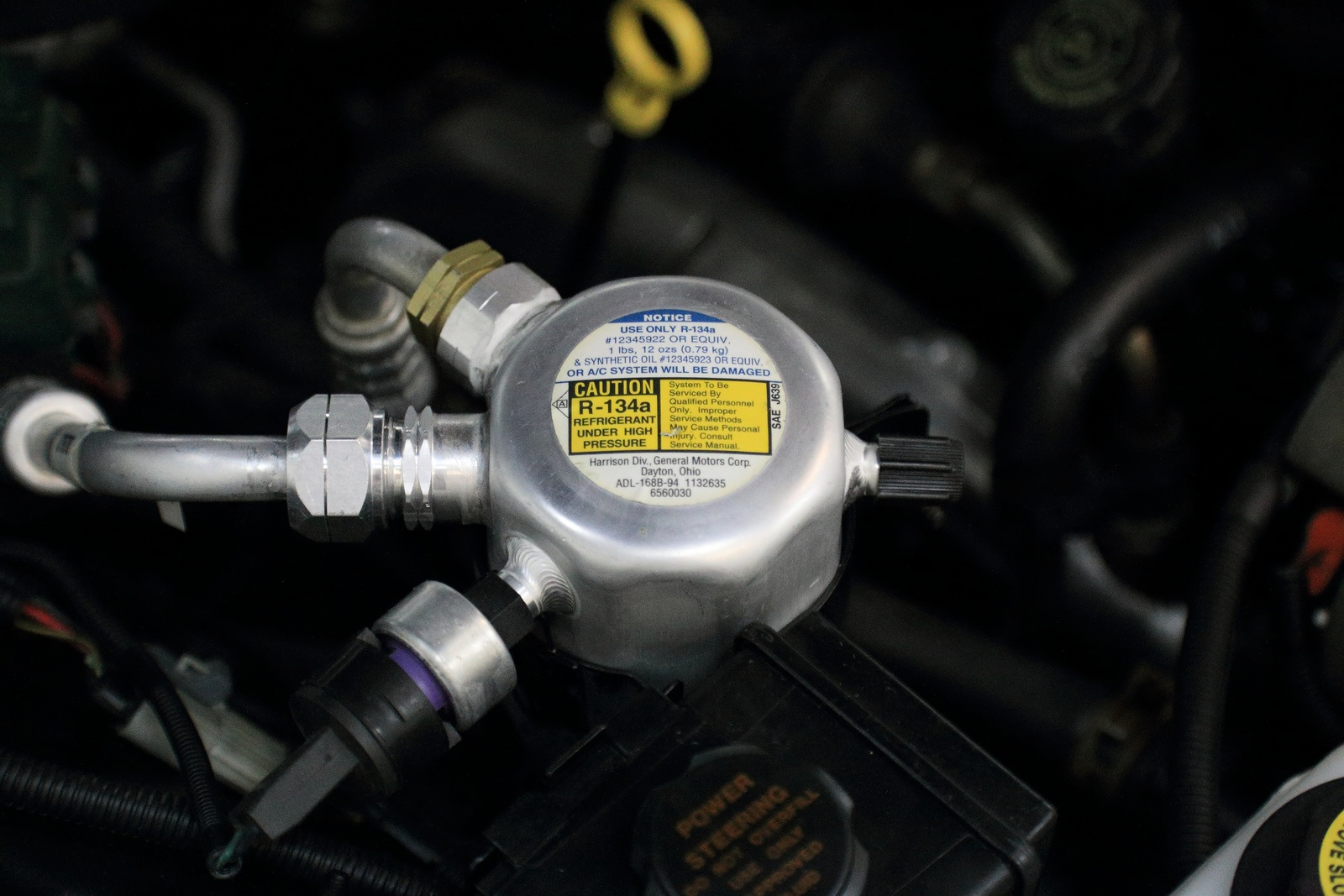

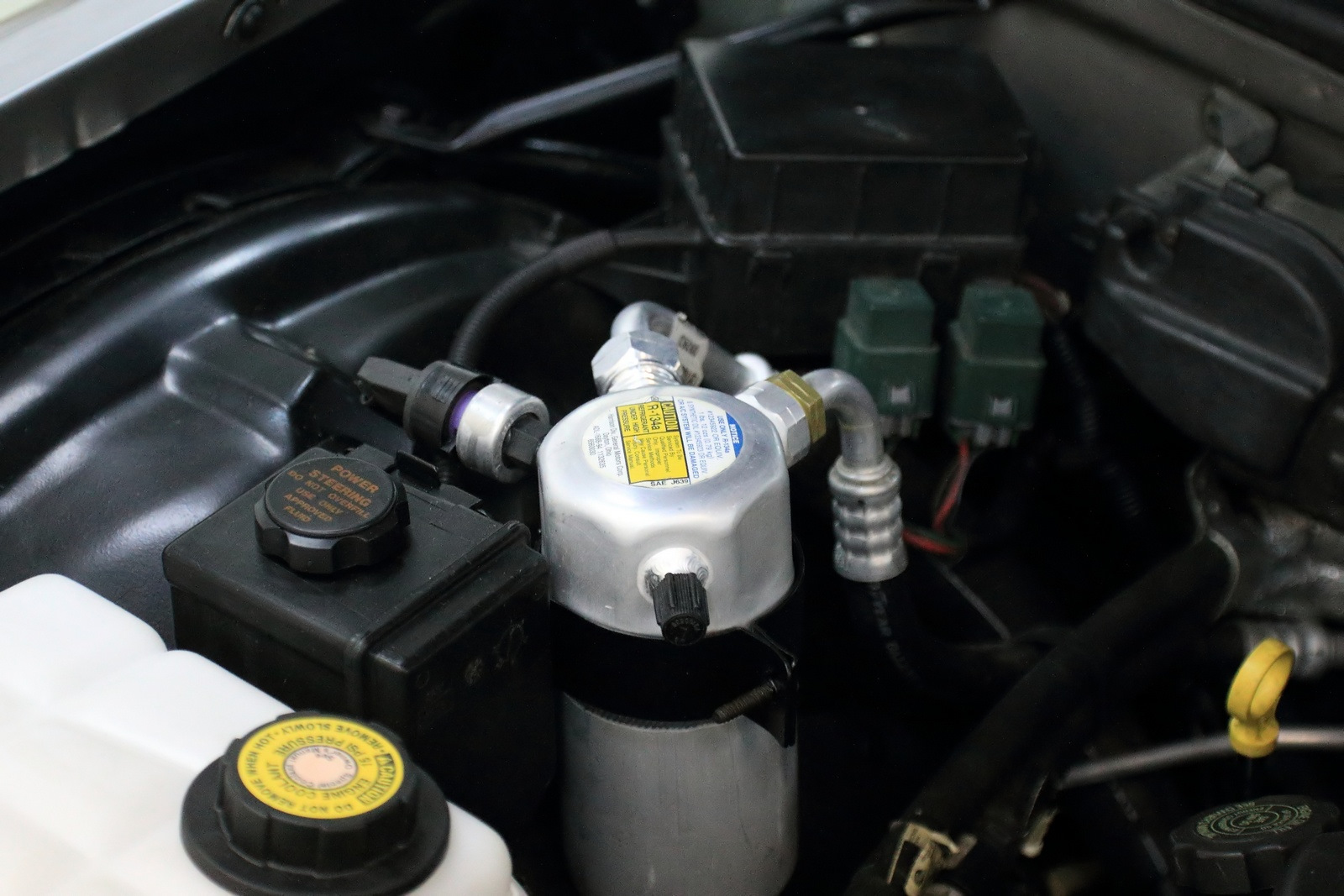

New accumulator



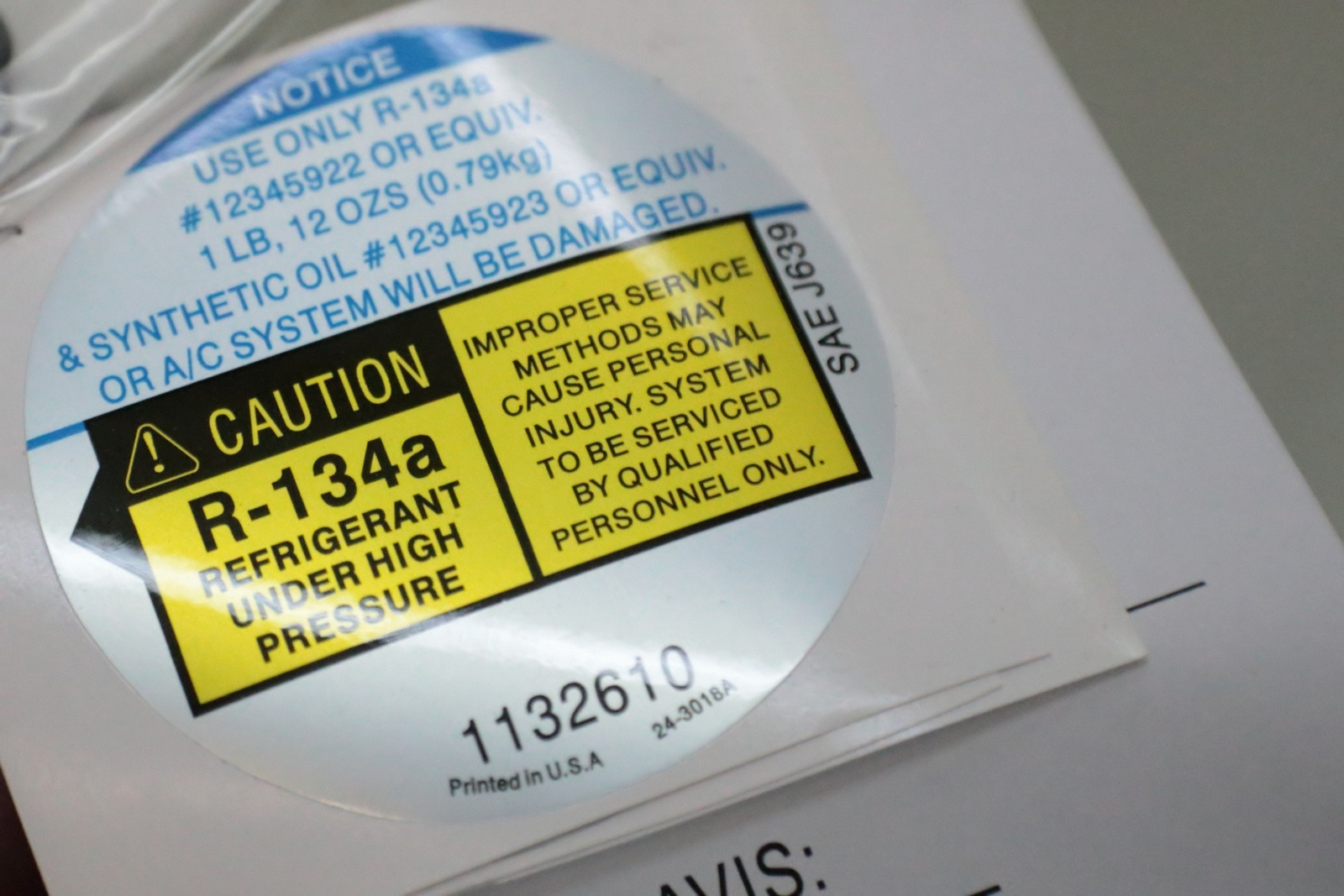

New labels



Installed



New accumulator needs 100ml of PAG46 oil

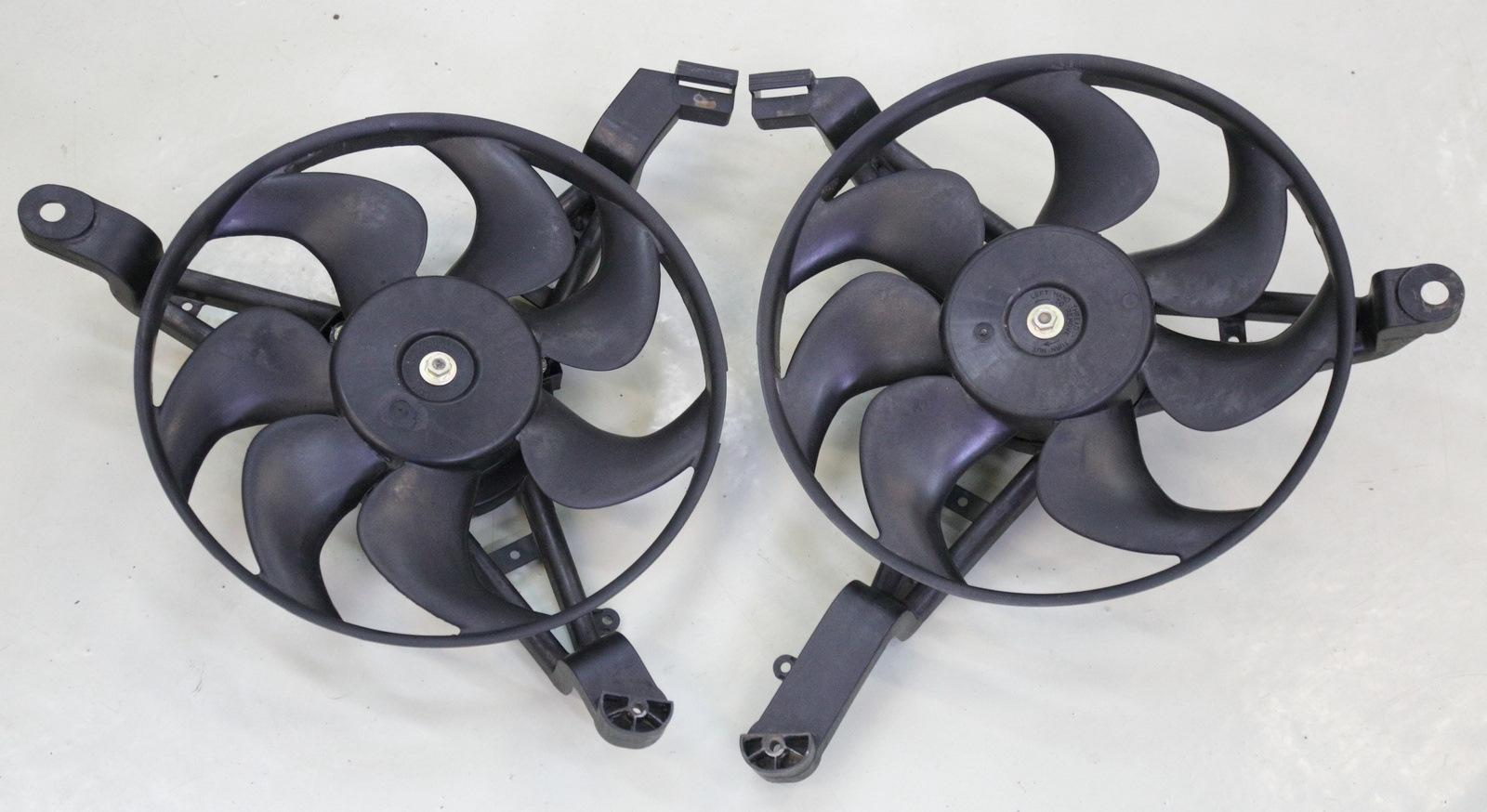

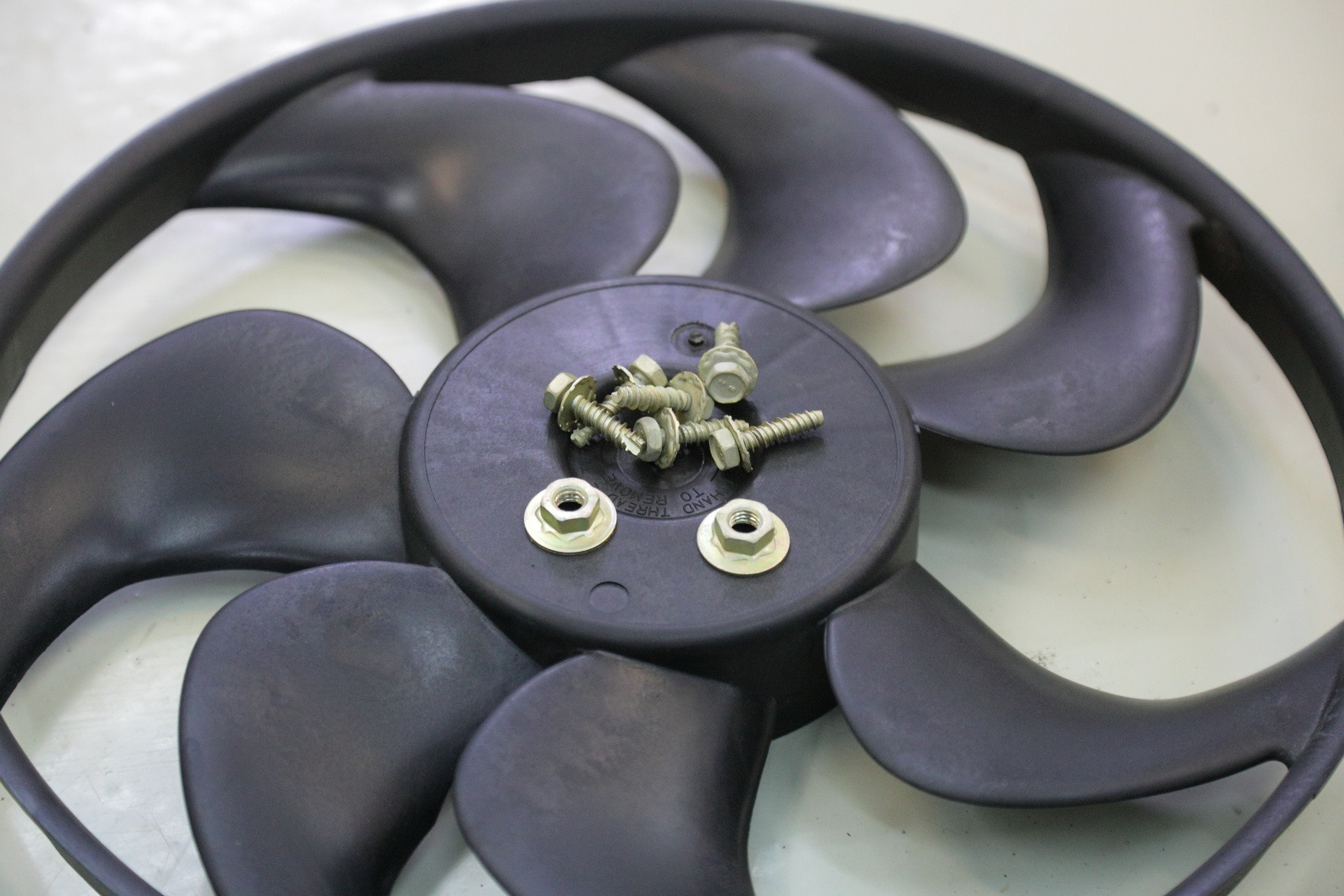

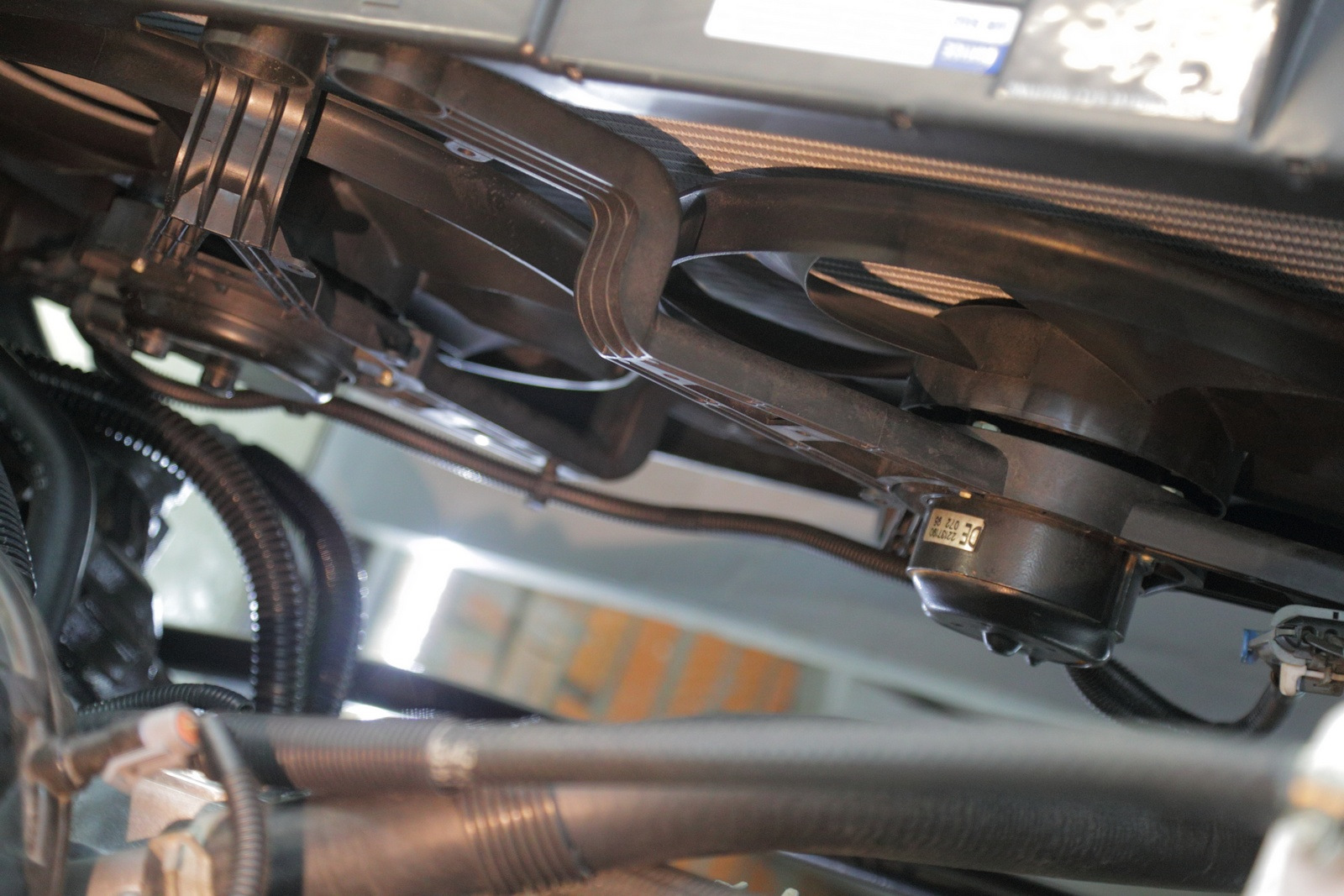

Fans



One motor was replaced with the new one



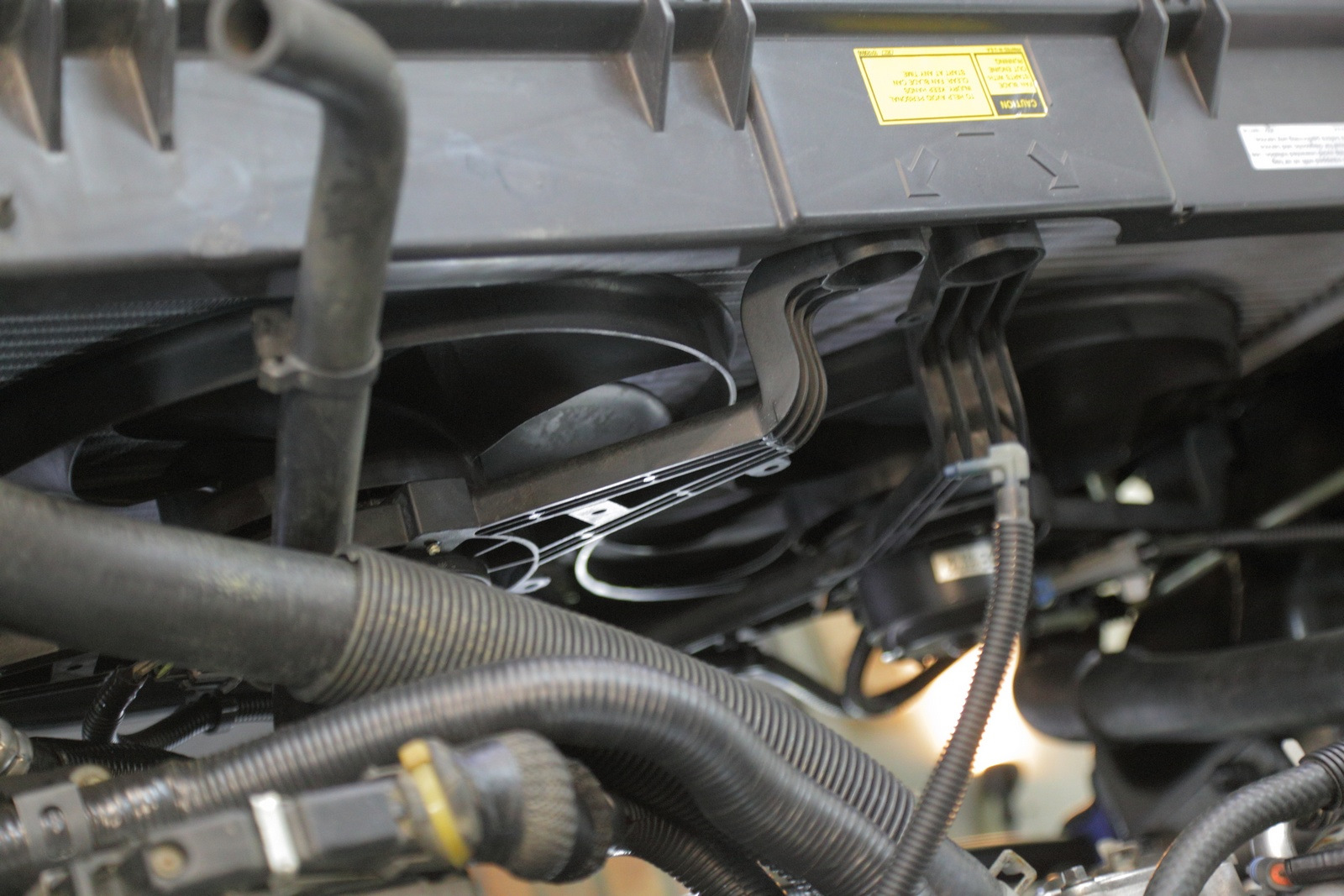

Installed





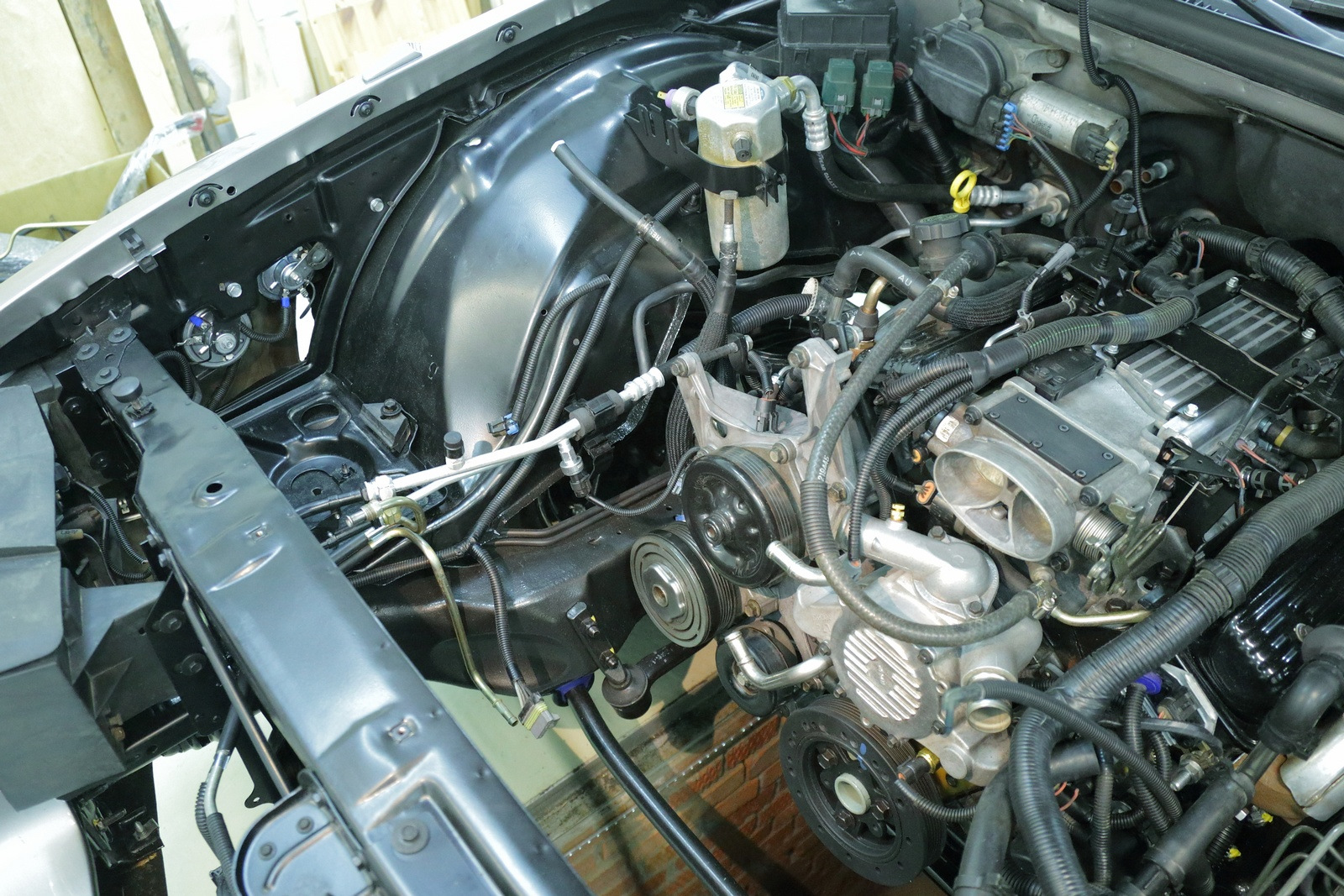

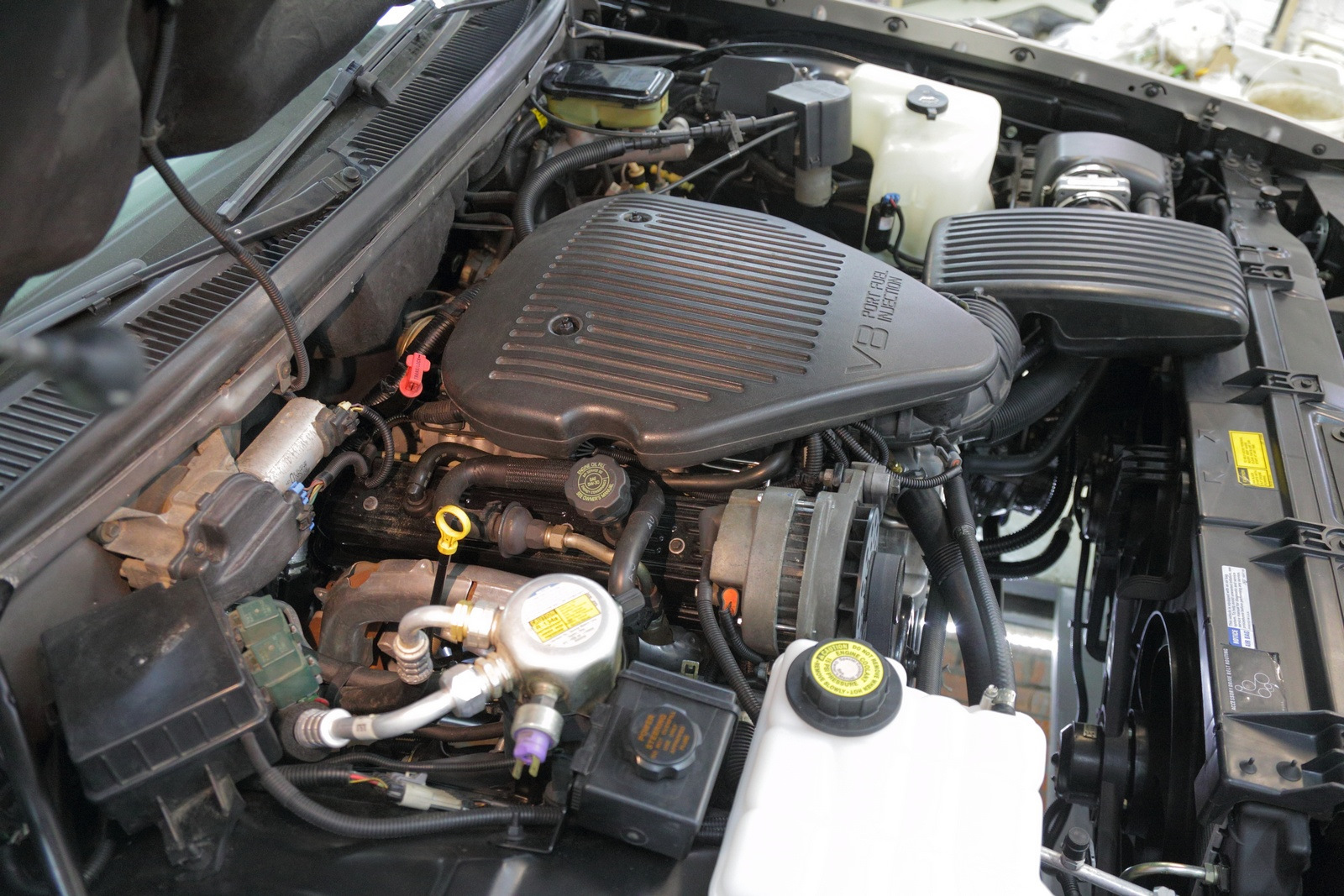

And here in the engine bay we have everything ready to go



Now I will do some work with transmission - just a regular maintenance, nothing serious. Follow next posts.
